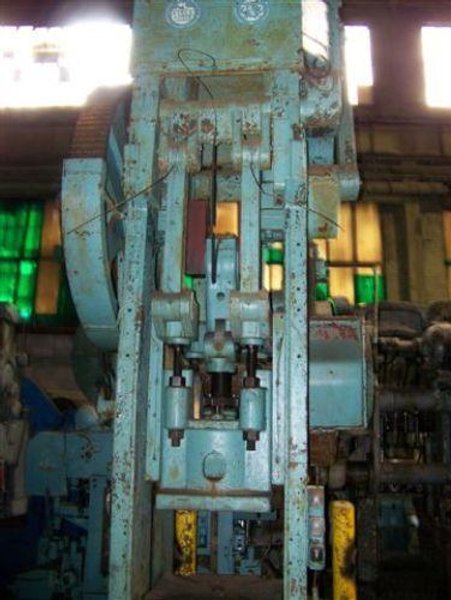

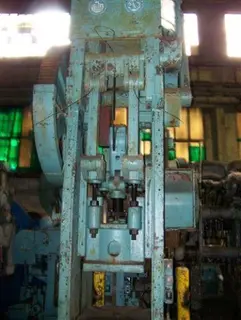

145/98 TON BLISS # 3-3/4B STRAIGHT SIDE SINGLE CRANK TOGGLE DRAWING PRESS
Brand
Category
Model
3-3/4B
Stock #
56233
Year
1948
Condition
Used
Location
Ohio
|
N E W 1 9 4 8
RATED CAPACITIES:
BLANKHOLDER PLUNGER
TONNAGE................................ 145 98
STROKE................................. 15" 22"
SHUTHEIGHT............................. 30" 28"
ADJUSTMENT............................. 6" 6"
AIR CLUTCH
7-1/2 AC MOTOR AND CONTROLS
WILL DRAW IN DEPTH AND LIFT UP TO..... 10-1/2"
BED AREA (L-R) X (F-B)................ 29" X 30"
BLANKHOLDER AREA (L-R) X (F-B)........ 24" X 25
BOLSTER ............................. 4-1/2" THICK
WIDTH BETWEEN UPRIGHTS .............. 30-1/4"
BED OPENING (DIAMETER)................ 19"
STROKES PER MINUTE.................... 13
|
