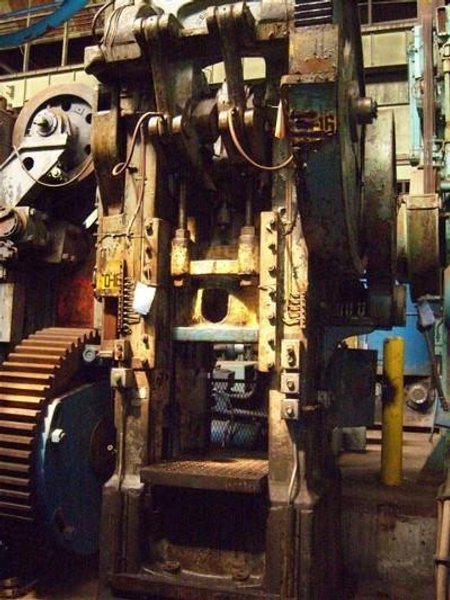

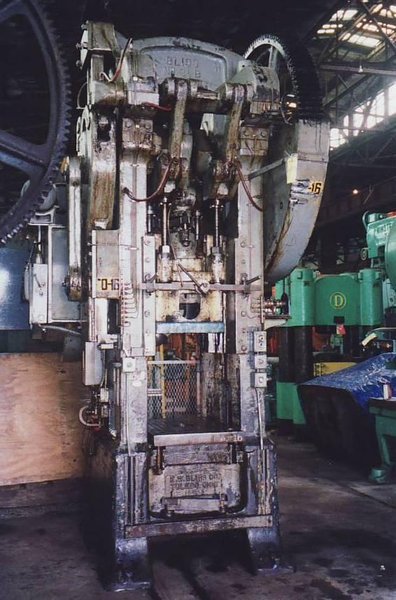

122/90 TON BLISS # 3-1/2B TOGGLE DOUBLE ACTION PRESS

Brand
Model
3 1/2B
Stock #
107026
Year
1951
Condition
Used
Location
Ohio

STROKE OF PLUNGER ......................... 15-1/2"
STROKE OF BLANKHOLDER ..................... 10"
SHUTHEIGHT OF PLUNGER ..................... 28"
SHUTHEIGHT OF BLANKHOLDER ................. 26"
BED AREA ............(LR X FB)............. 25" X 28"

RAM AREA ............(LR X FB)............. 19-3/4" X 20-1/4"
BOLSTER AREA ........(LR X FB X THICK)..... 25" X 36" X 2-3/4"
SIDE FRAME OPENING ..(FB X HIGH)........... 10-3/4" X 15"
WIDTH BET. UPRIGHTS ....................... 26"
O.A. DIMENSIONS .....(LR X FB X HIGH)...... 6'8" X 8'6" X 12'7"

EQUIPPED WITH: AIR CLUTCH
TIE ROD DESIGN
DOUBLE GEARED SINGLE END DRIVE
GREASE FITTING LUBRICATION
15 HP MOTOR
