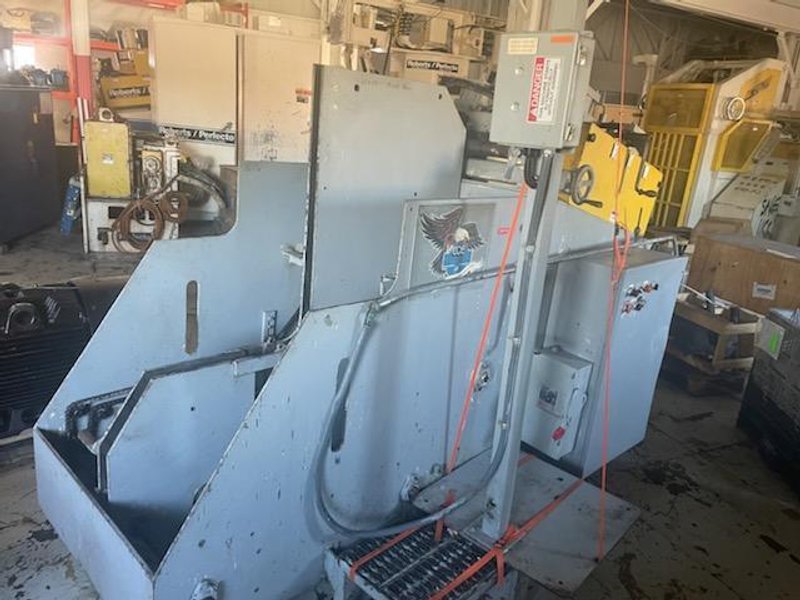

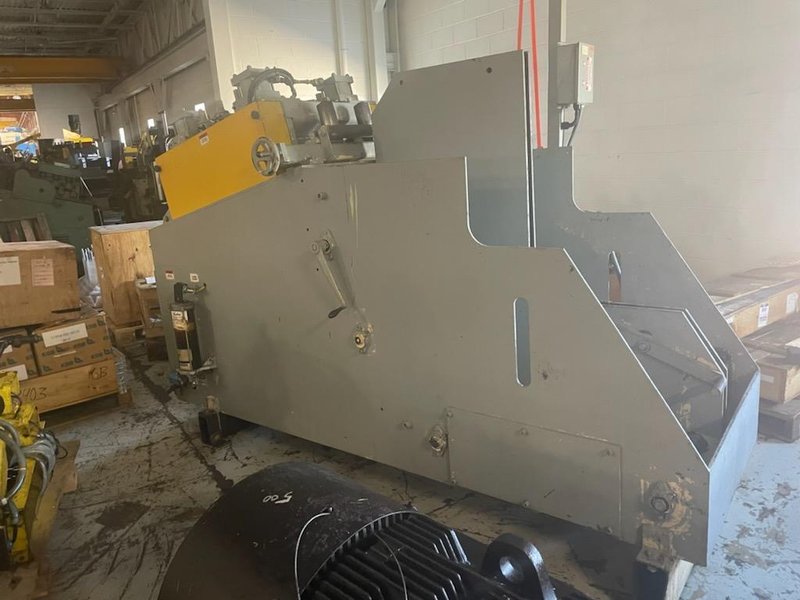

Coe Press Coil Cradle Straightener Combination Uncoiler 6,000 Lbs.

Coe Press Coil Cradle Straightener Combination Uncoiler Specifications:
Coil weight capacity: 6,000 Lbs.
Coil width capacity: 18"
Stock thickness capacity: .125" x 18" Wide
Stock thickness capacity: .187" x 06" Wide
Coil O.D. capacity: 60"

Coe Press Coil Cradle Straightener Combination Uncoiler Equipment and Features:
Coil cradle straightener entry and exit pinch rolls with air operated adjustments

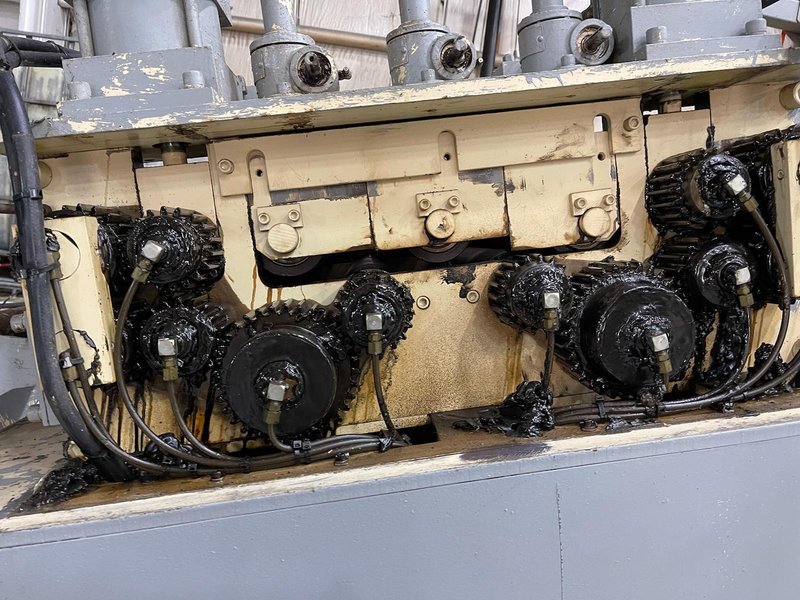

Seven coil cradle straightening rolls
Individual upper coil cradle straightening roll adjustments via screw jack
Roll position indicators
Inclined coil cradle straightening head
Adjustable stock width edge guides

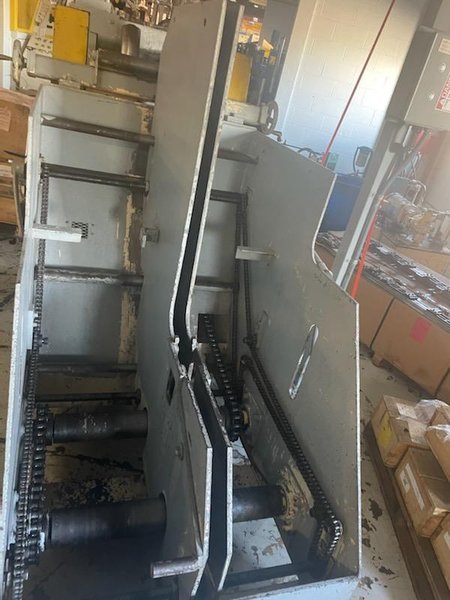

Exit cascade loop support rollers
Adjustable coil side plates
Outboard air pressure regulators and gauges
Operator's control console
Jog forward and reverse
Auto / Run cycle
Loop control
