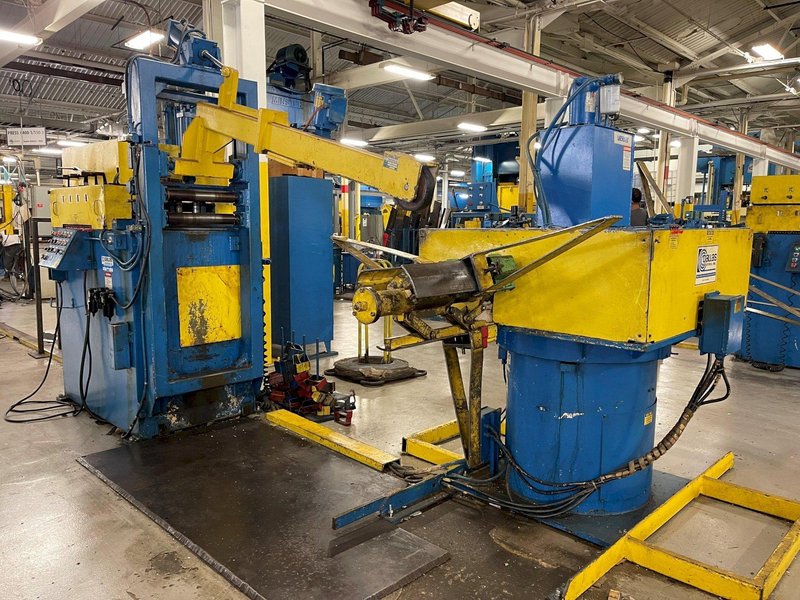

DALLAS Complete Coil Feed Line (Double End Coil Reel) 6,000 lb x 18" Wide x .125"
Brand
Category
Type
Model
DDCR-6000-18 / DPS-3-9-18 / DRF-418
Stock #
5382
Year
Not specified
Condition
Used
Location
Michigan
| Coil weight capacity: | 6000 pounds |
| Stock Width Capacity | 18 inches |
| Max Stock Thickness Capacity At Full Width | .125 inches |
| Minimum expansion range: | 16 inches |
| Maximum expansion range: | 21 inches |
| Coil O.D. capacity: | 72 inches |
|
DALLAS Double End Conventional Complete Coil Feed Line Specifications:

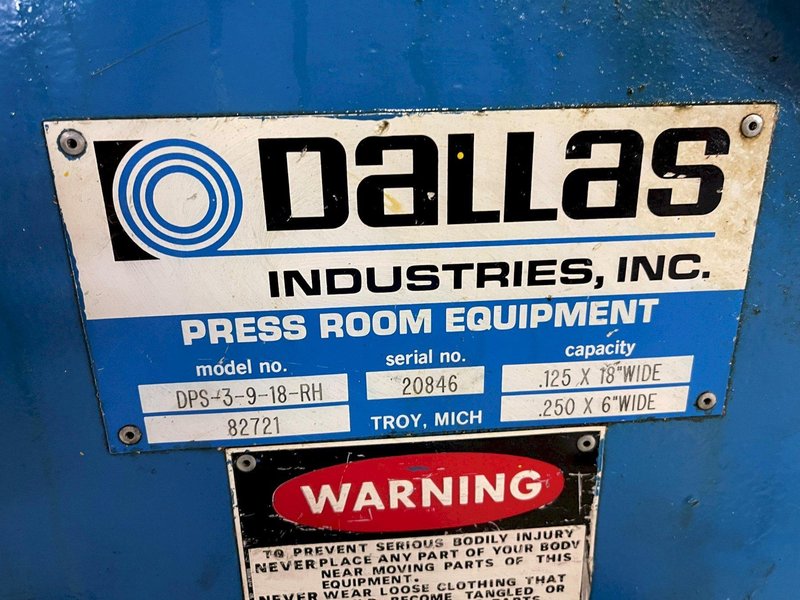

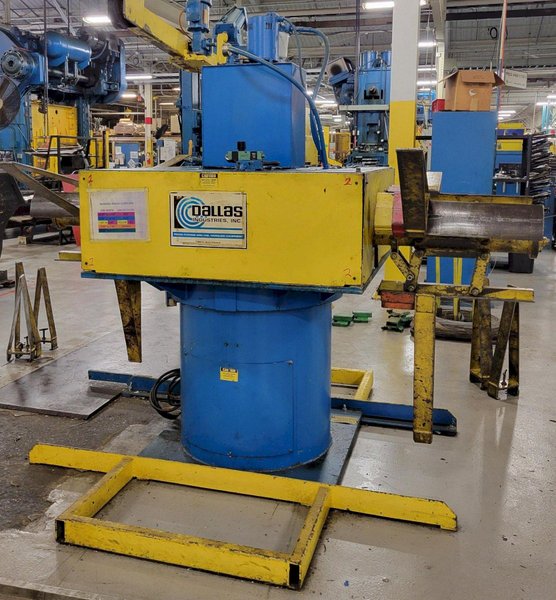

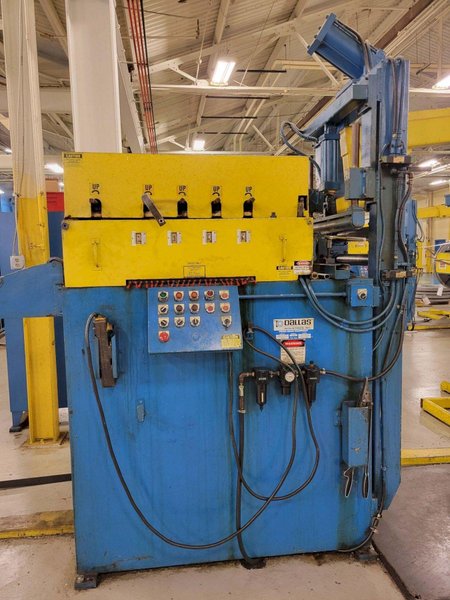

Coil weight capacity: 6,000Lbs. (per side) Coil width capacity: 18" Stock thickness capacity: .125" x 18" Wide Stock thickness capacity: .250" x 06" Wide Expansion range: 16"-21" Coil O.D. capacity: 72" DALLAS Double End Conventional Complete Coil Feed Line Equipment and Features: DALLAS Double End Coil Reel Uncoiler Model No.: DDCR-6000-18, Serial No.: 20844 Three leaf mandrel coil reel (per side) Adjustable coil keeper arms Hydraulic mandrel expansion Arbor rotation locking pin (foot pedal release) Pneumatic drag brakes mounted on main spindle Adjustable tensioning DALLAS Powered Coil Straightener Model No.: DPS-3-9-18, Serial No.: 20847 Entry and exit powered coil straightener pinch rolls Air operated entry powered coil straightener pinch roll adjustment Manual exit powered coil straightener pinch roll adjustment Nine coil straightening rolls Individual upper straightening roll adjustments Entry stock width edge guides Air operated coil hold down arm with motorized end wheel Air operated coil breaker / de-bender Centralized lubrication points Exit cascade loop support rollers Remote pendant control for jog forward and reverse Variable speed powered coil straightener drive system Auto / Run cycle Loop control DALLAS Servo Roll Feed Press Feed Model No.: DRF-418 Four inch diameter upper and lower servo feed rolls Matte chrome finish on servo feed rolls Air operated upper servo feed roll adjustments / pilot Solenoid controlled pilot release Centralized lubrication points Cabinet base mounted servo roll feed AC servo roll feed drive and controls Free standing sloped servo roll feed control console Remote pendant control for Jog forward and reverse Fused disconnect |
|
