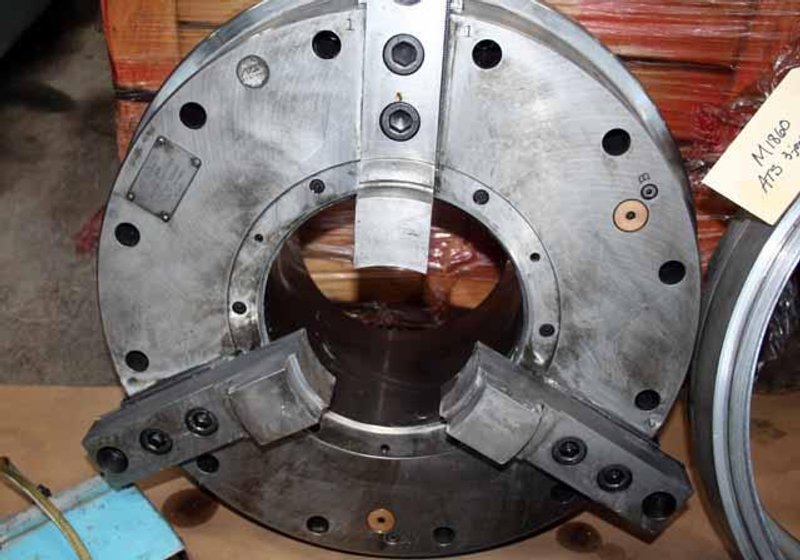

25 3-Jaw ATS Systems Model BP-640-275 Self Contained Pneumatic Power Chuck
Brand
Category
Type
Model

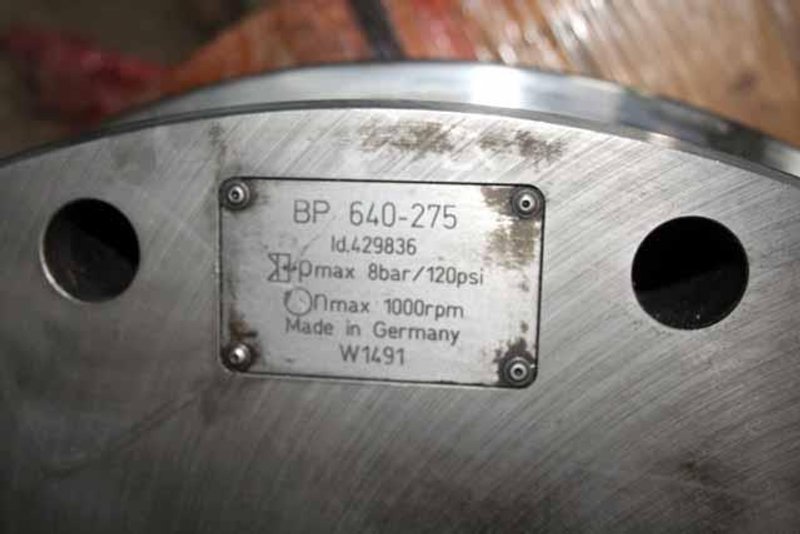

BP-640-275
Stock #
m1860
Year
Not specified
Condition
Used
Location
Illinois
| Nominal Size | 25 inches |
| Through Hole | 10.83 inches |
| Face Diameter | 25.2 inches |
| Rear Diameter | 27 inches |
| Length | 10.3 inches |
| Jaw Stroke | 0.394 inches |
| Jaw Serration | 3/32 x 90 |
| Maximum Speed | 1000 RPM |
| Maximum Operating Pressure | 120 PSI |
| Grip Force @ 90 PSI | 61600 pounds |
| Approximate Weight | 1400 pounds |
|

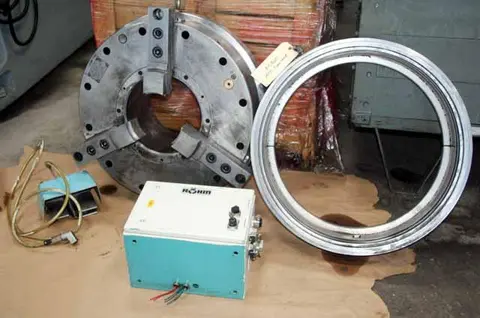

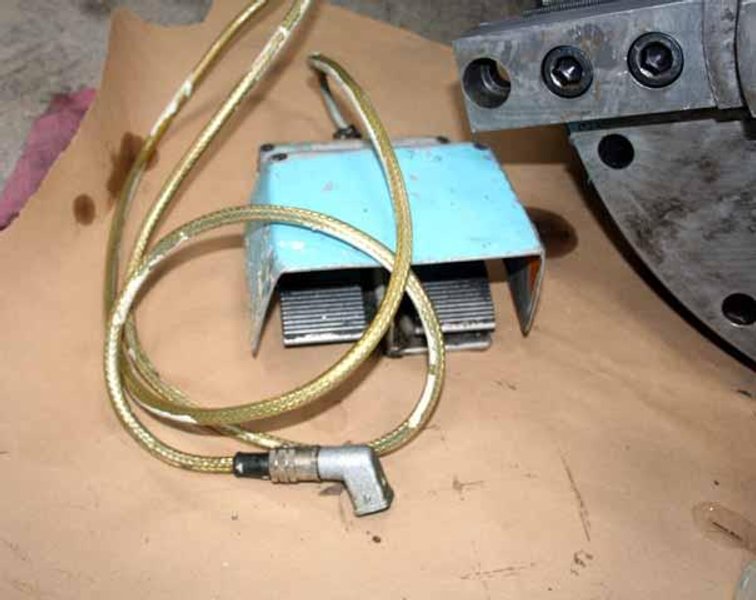

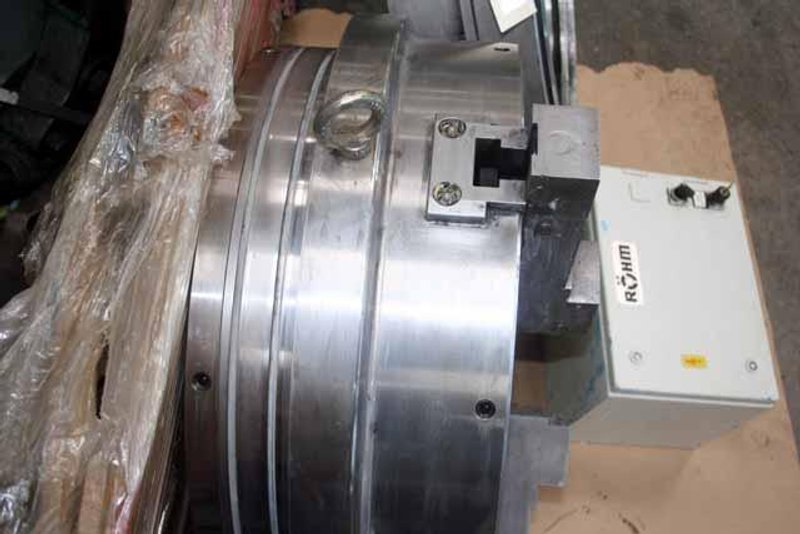

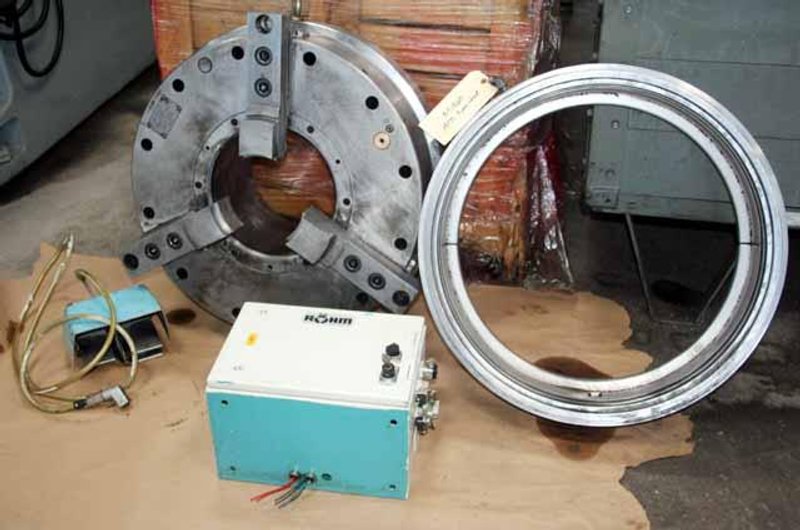

Built In Cylinder. No Draw Tube. Adjustable Grip Force. Easy Mount Design. Bolts Directly To Adapter Plate. Rohm Chuck Controller. Foot Pedal For Opening And Closing Chuck.
This machine is being offered "As-Is, As-Taken from Service". It appears to be in good operating condition and can be inspected at your convenience. |
|
