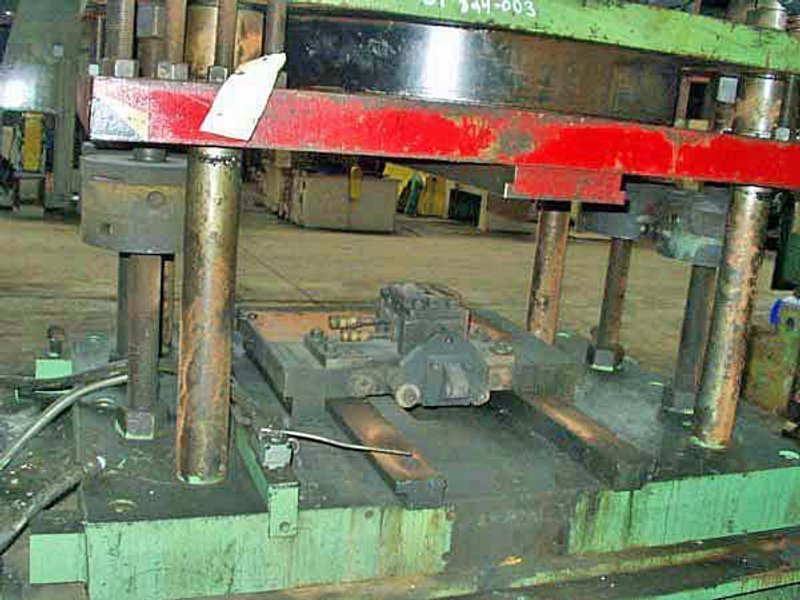

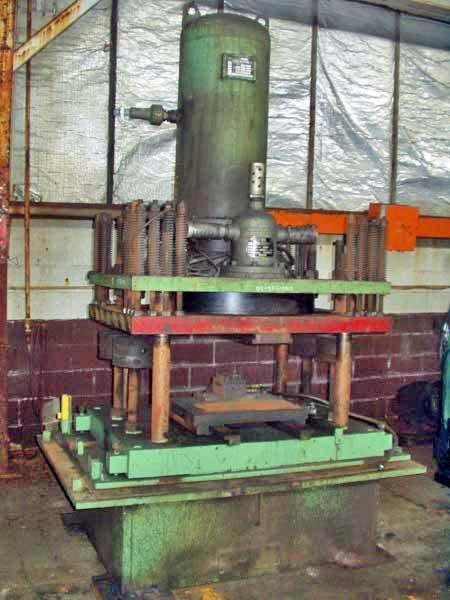

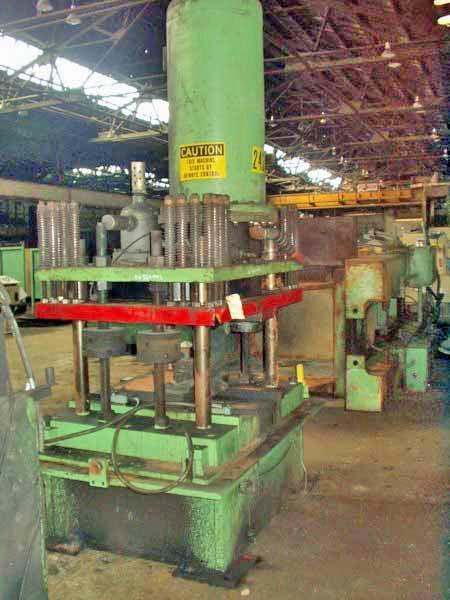

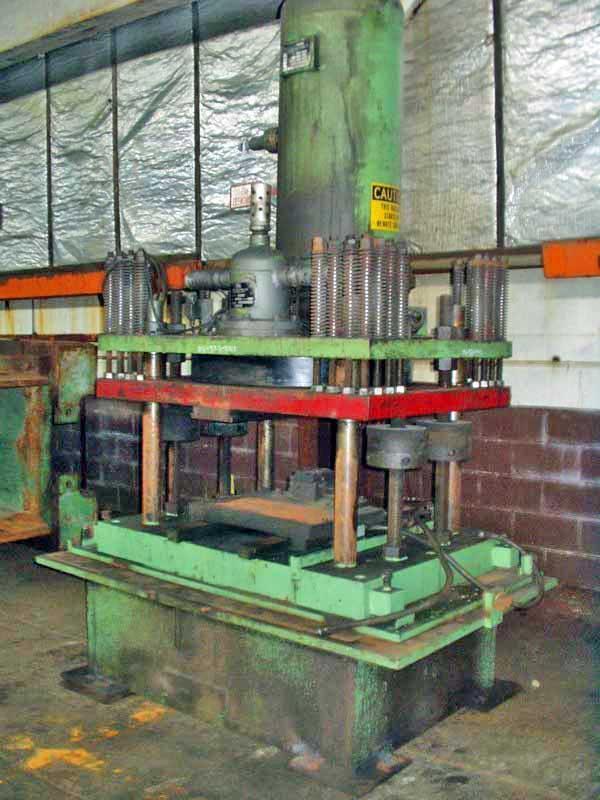

80 Ton Pneu-Power Cutoff Press

4 POST PNEUMATIC TYPE

-TONNAGE:                         80
-STROKE:                          3"
-DISTANCE BETWEEN POSTS:          35" L-R x 24" F-B
-POST DIAMETER:                   3"
-BED AREA:                        52" L-R x 38" F-B
-RAM BOLSTER:                     3" THICK
-BED PLATE:                       5" THICK
-2 DIE RAILS:                     40.75" L x 3" WIDE ON BED
-DIE PLATE:                       24" L-R x 18" F-B (2" THICK)
-TOP DIE RAIL (ATTACHED TO RAM):  39.25" L x 8" W
-FLOOR TO BED:                    27.5" (32" TO TOP OF DIE RAIL)

-VERTICAL & HORIZONTAL SCREW ADJ. OF BED PLATE

-MAIN CYL. NATL BD: 884
-BUFFALO WELDING CO. BUFFALO
-D.P. 200/D.T. 450
-S/N: 84-478B

-20-48 TANK/1985
-TANK: 20" DIA. x 45" HT

-SMALL CYLINDER:  M.W.P. 200 PSI @ 450 DEG. F
-8.5" DIA. x 10" HT
-S/N: 84-479
