Pro Eco Cut-to-Length Line w/6 HI Leveler

Max Coil Capacity:  60,000 lbs.

Max. Coil Width:  60"

Max. Coil O.D.:  72"

Coil I.D.:  20" - 24"

Material Thickness: 0.104" Max.

Consisting of the following:

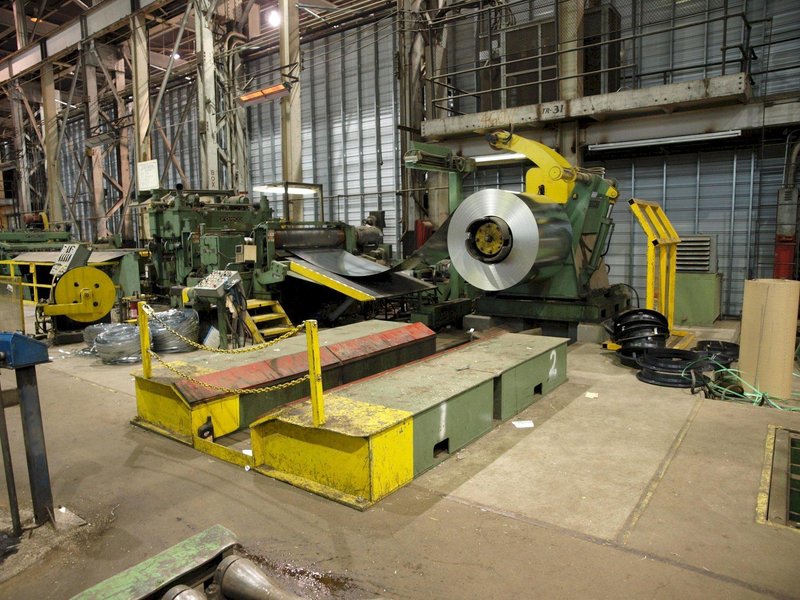

-(2) Coil Staging System for Coil Car:

-Entry Coil Car:

  Pit Type

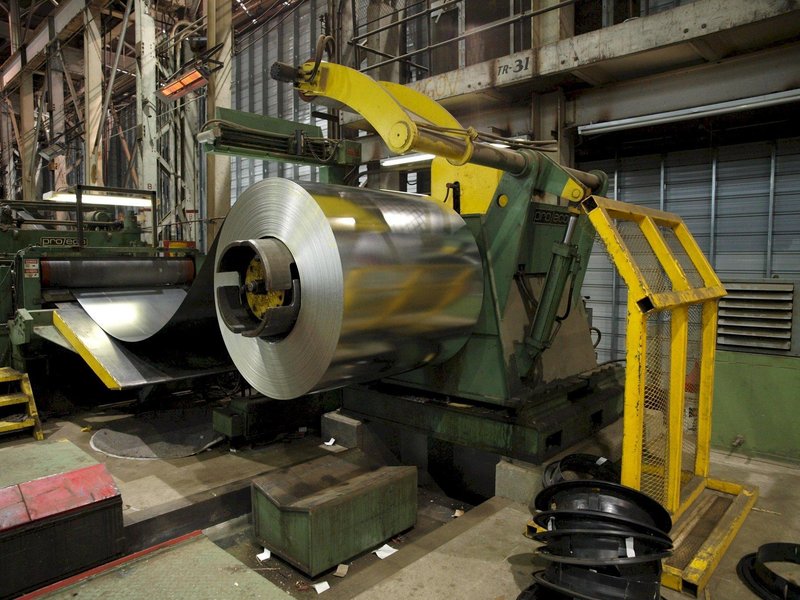

-Pro Eco Uncoiler:

  Hydraulic Expansion

  Pumpkin Tooth Mandrel

  Powered Holddown Roll

  Threading Drive

  Air Clutch and Brake

  Sliding Base

-North American Edge Guide System:

-Peeler Table:

  Model:  PB-104

  Driven Pinch Rolls

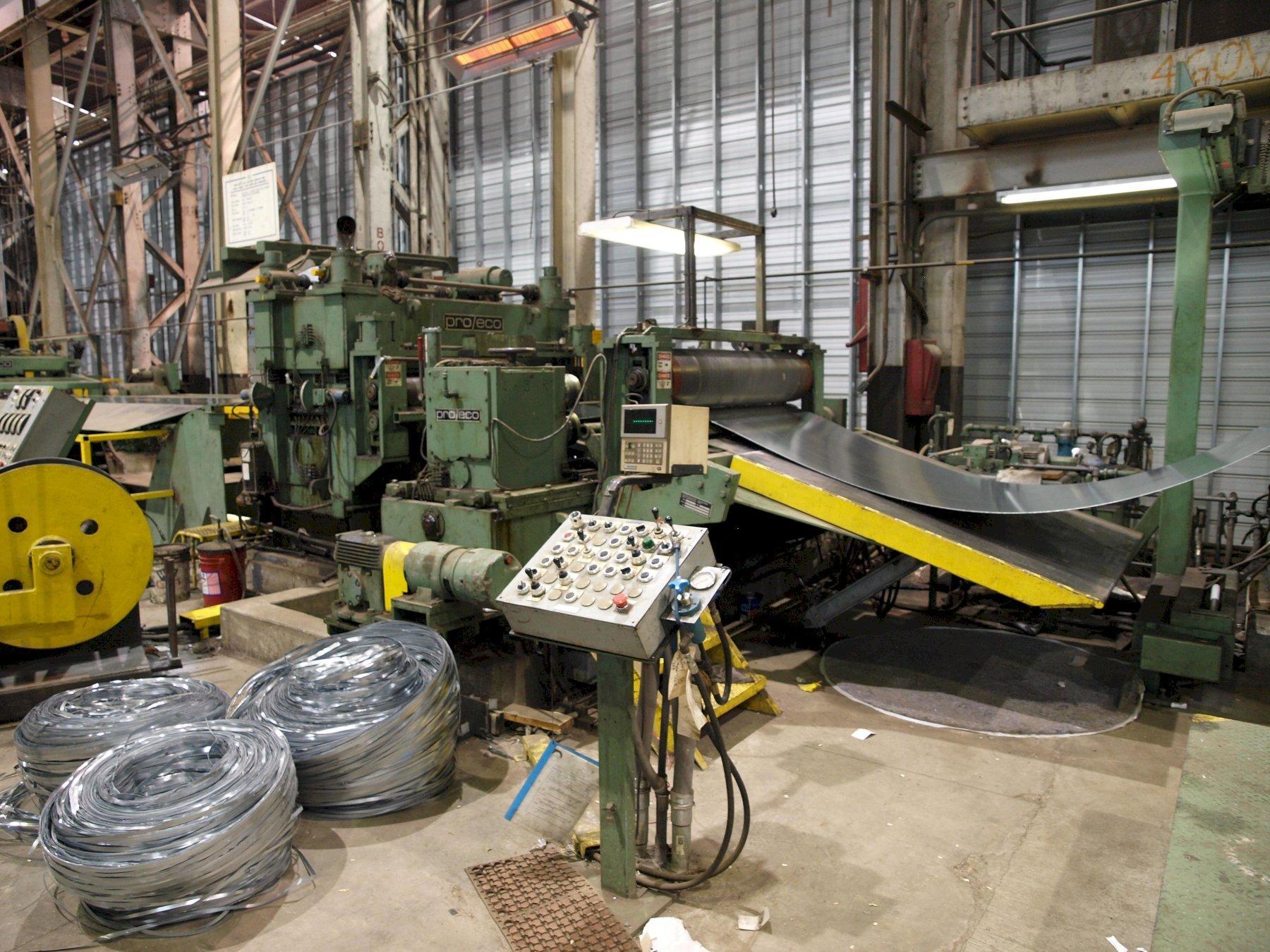

-Edge Trimmer:

  Double Stub Type

  Powered Width adjustment on Heads

-Scrap Winder:

  Hydraulic Motor Powered

  Oscillate Wind

  Powered Opening for Scrap Dump

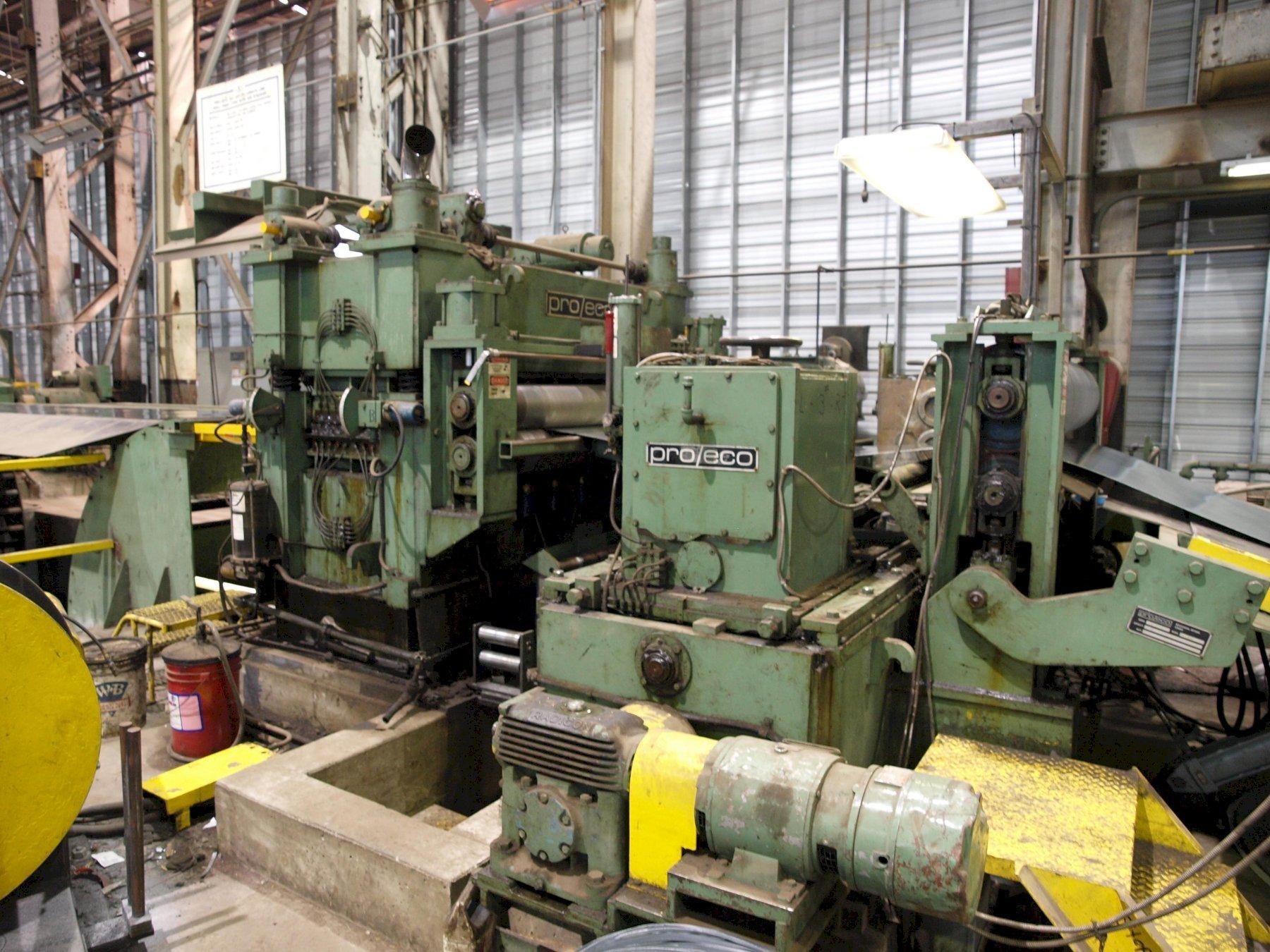

-Pro Eco Leveler: 6 HI

  Width:  60"

  Entry Driven Pinch Rolls

  Number of Work Rolls:  19; 9 over 10

  7 Flights of Backups

  5 Flights Motorized w/Joystick adjustment

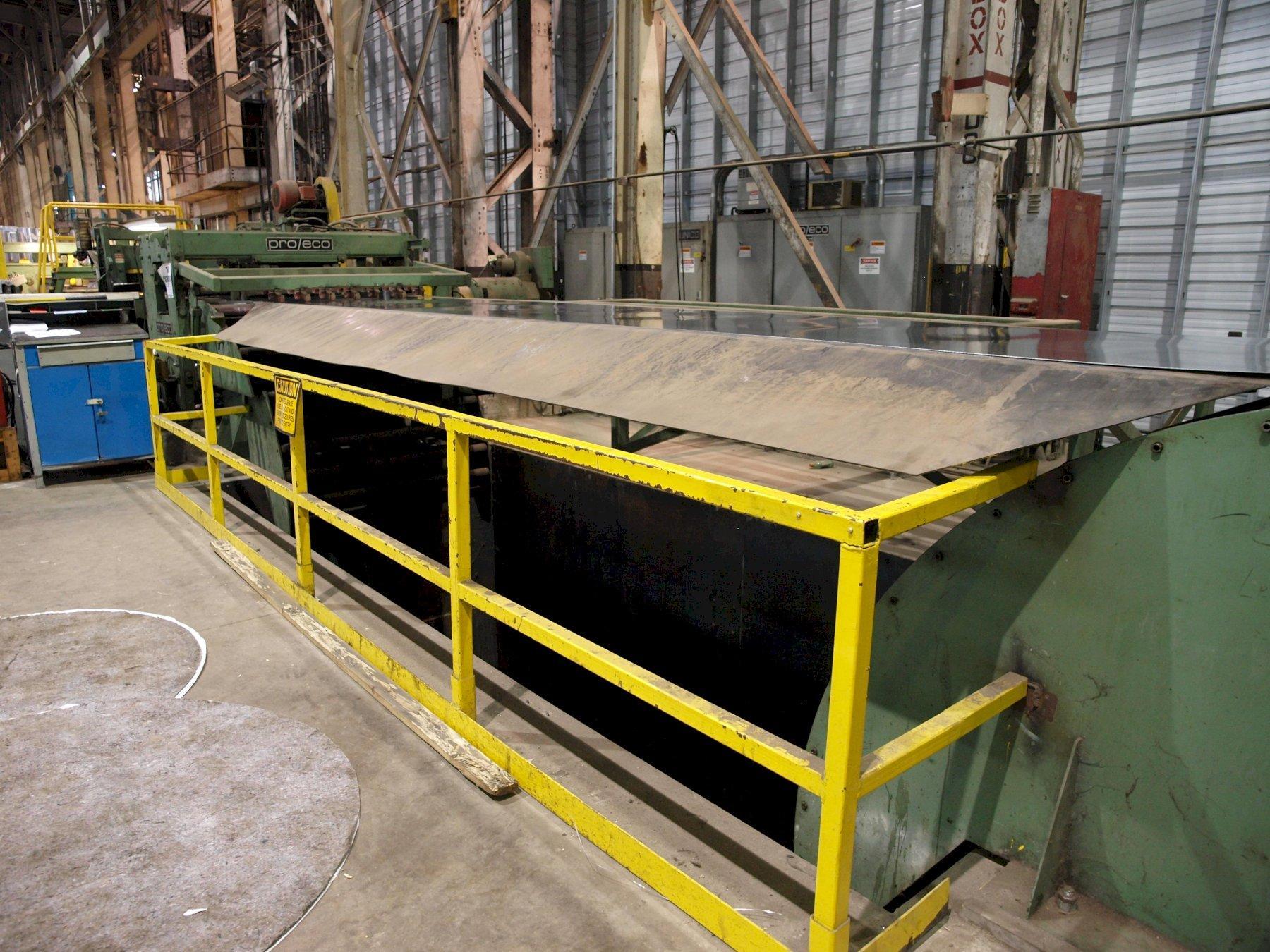

-Looping Pit:

  Entry and Exit Catenary Rolls

  Crossover Table

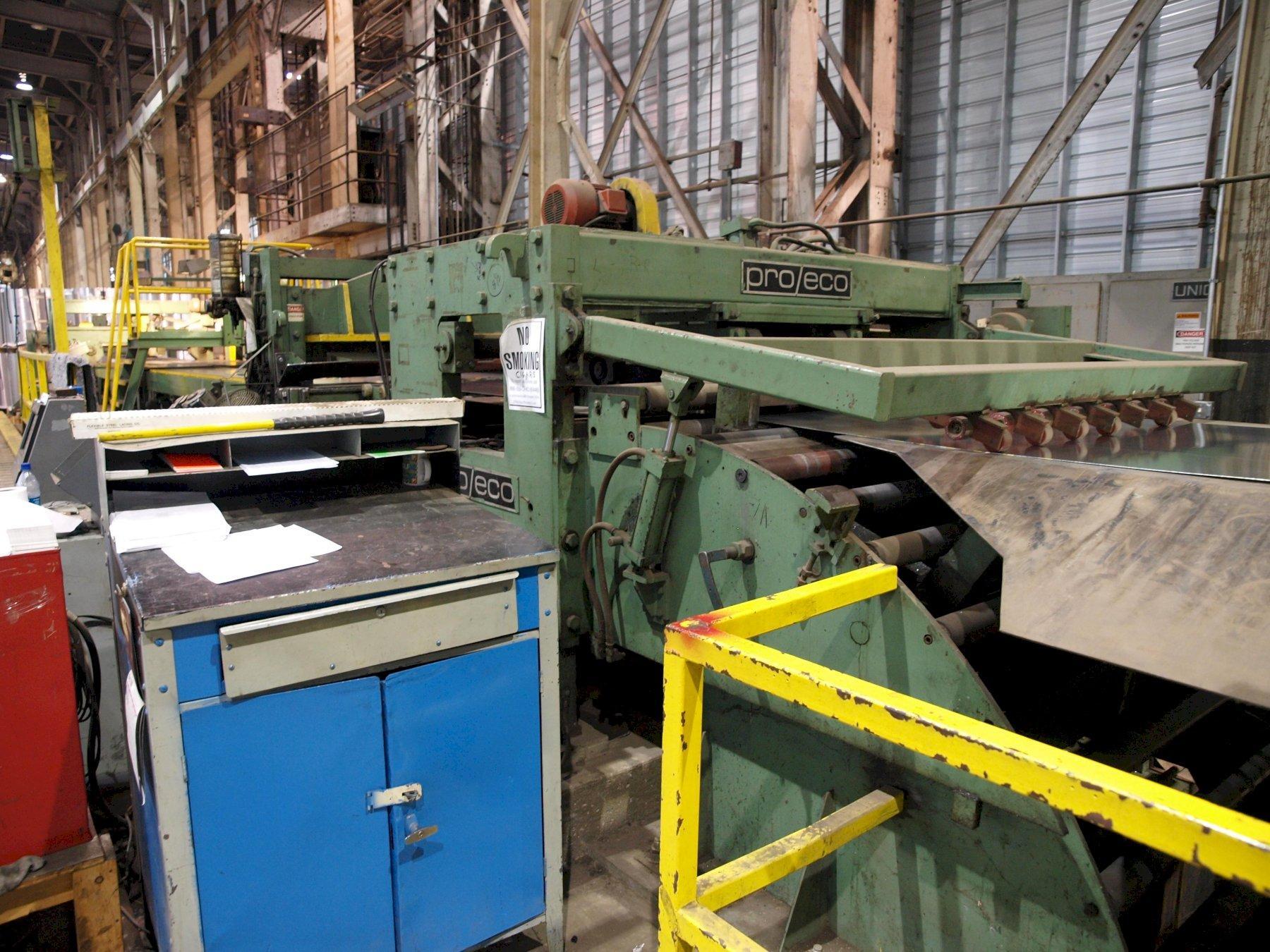

-Pro Eco Roll Feed Unit:

  Entry Strip Holddown

  Entry Passline Rolls

  Unico Drive

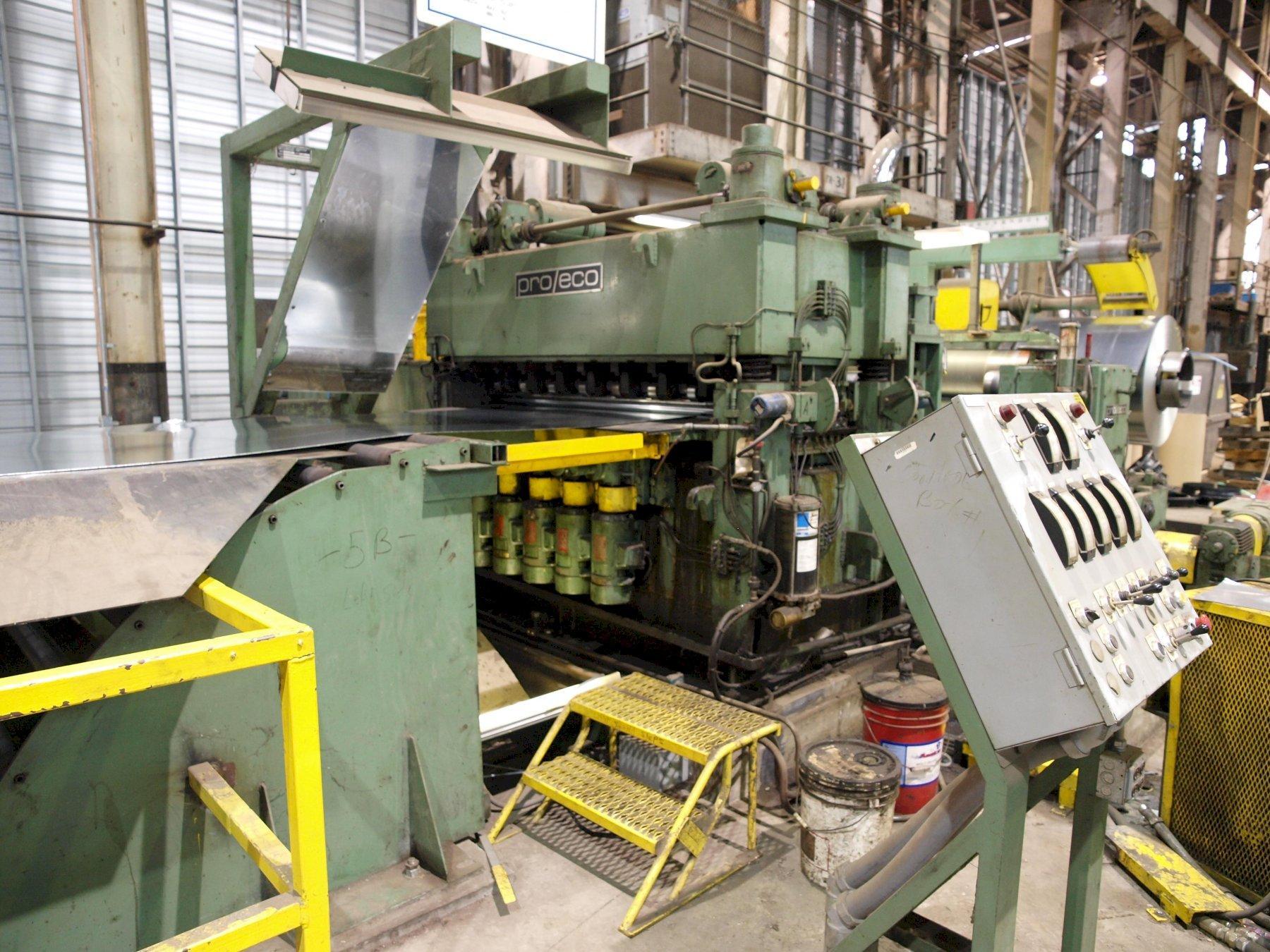

-Pro Eco High Speed Mechanical Shear:

  Model:  MCS104-60-300

  Max. Capacity:  0.104"

  300 Strokes/Min.

  AC Drive Motor w/Air Clutch

  Wichita Brake

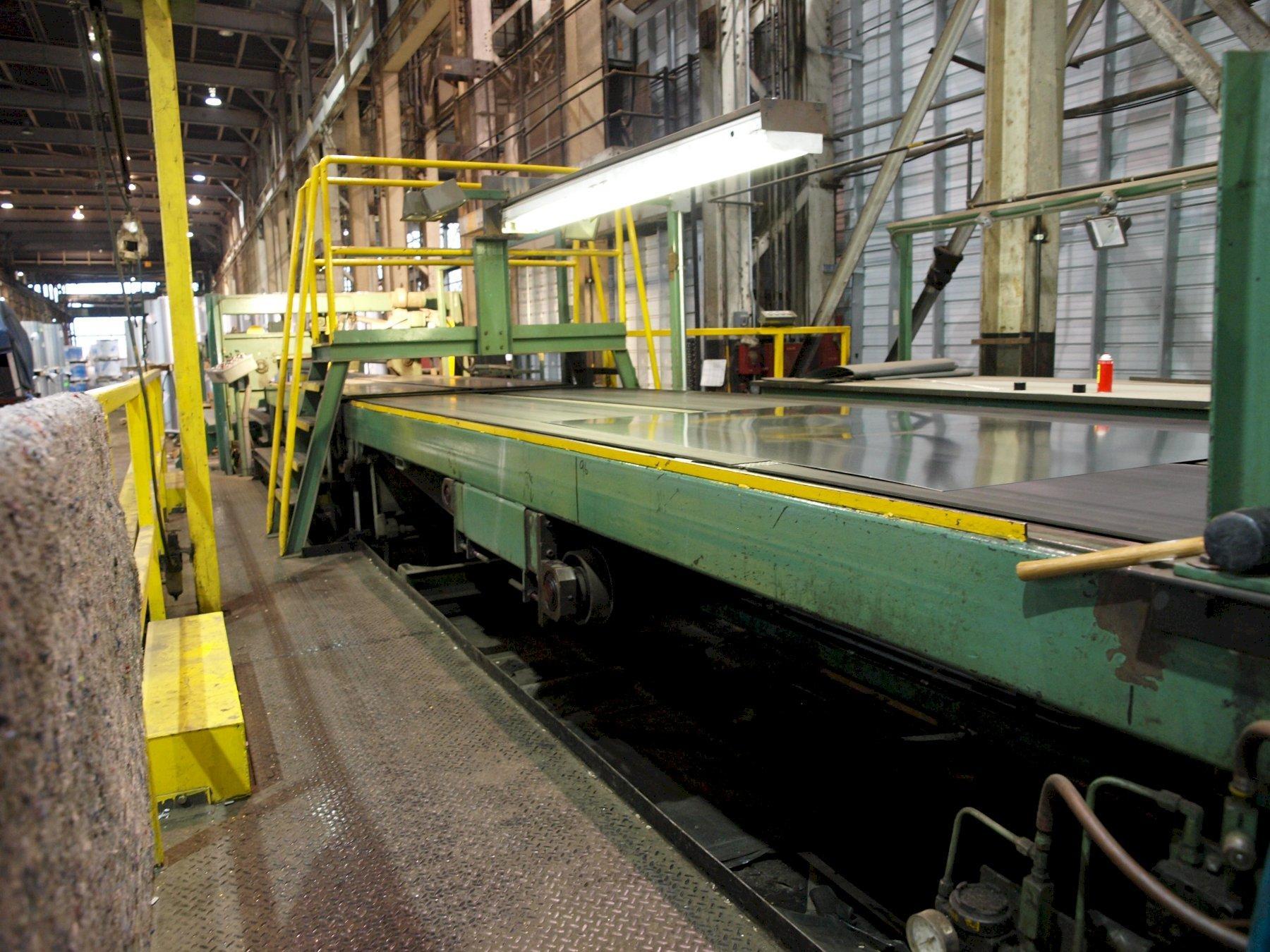

-Pro Eco Runout Table:

  Twin Driven Belts

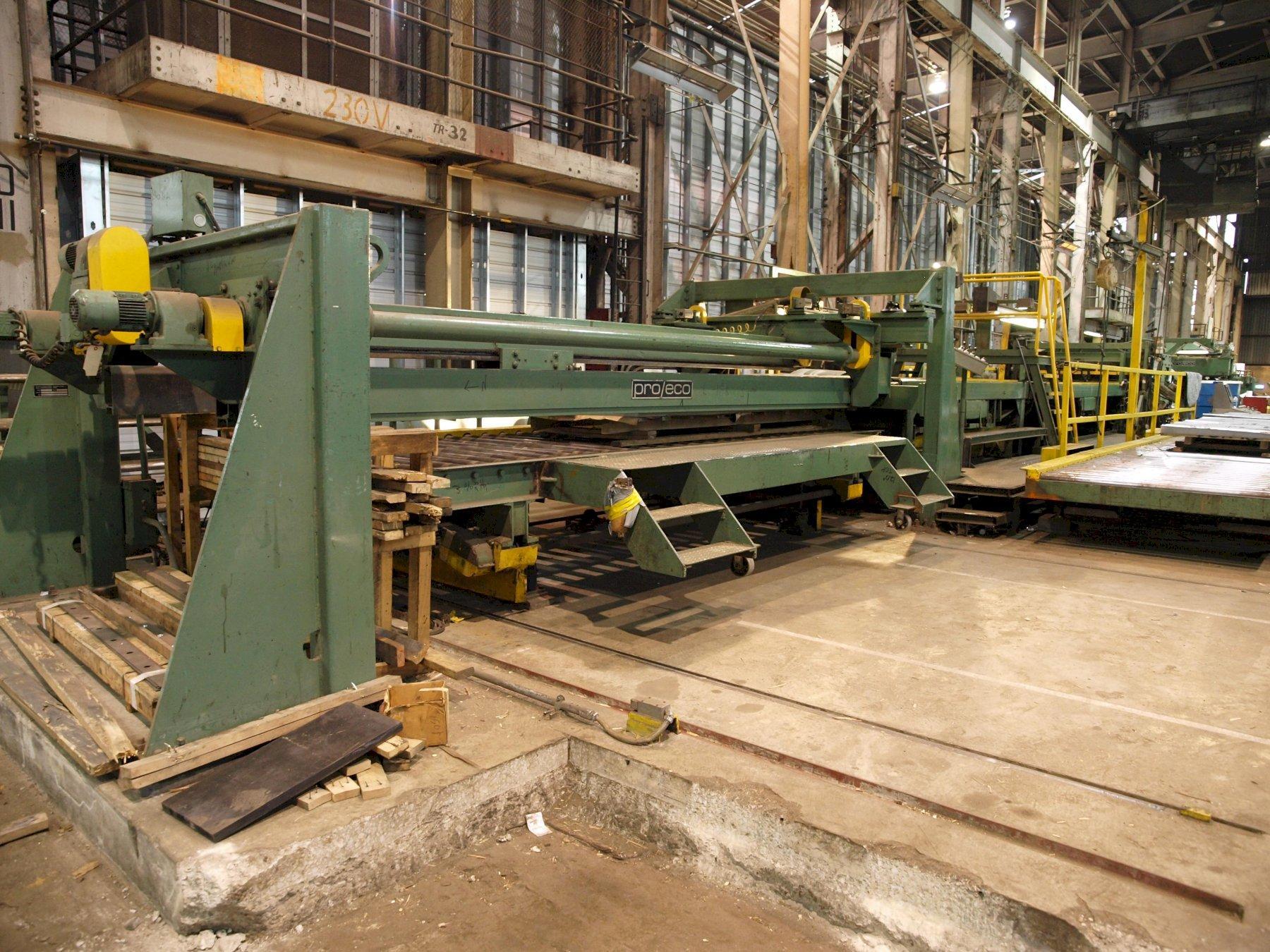

-Pro Eco Stacker:

  Powered Width Adjustment

  Powered Length Adjustment

  Scissors Lift Table w/Powered Conveyor Rolls

  Side Discharge Design

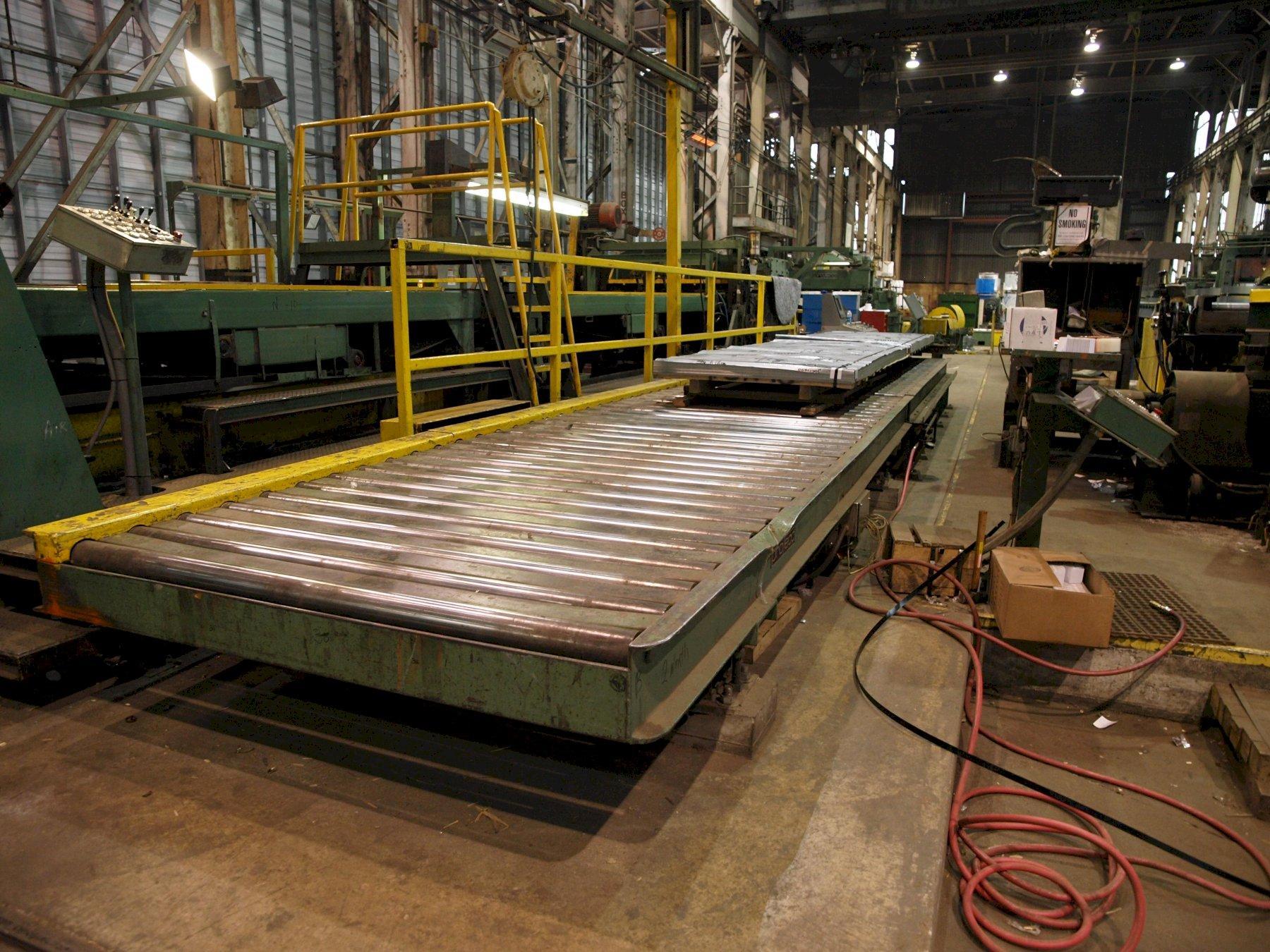

-Exit Conveyor:

  Powered Conveyor Rolls

  w/15,000 lb. Built-In Scale

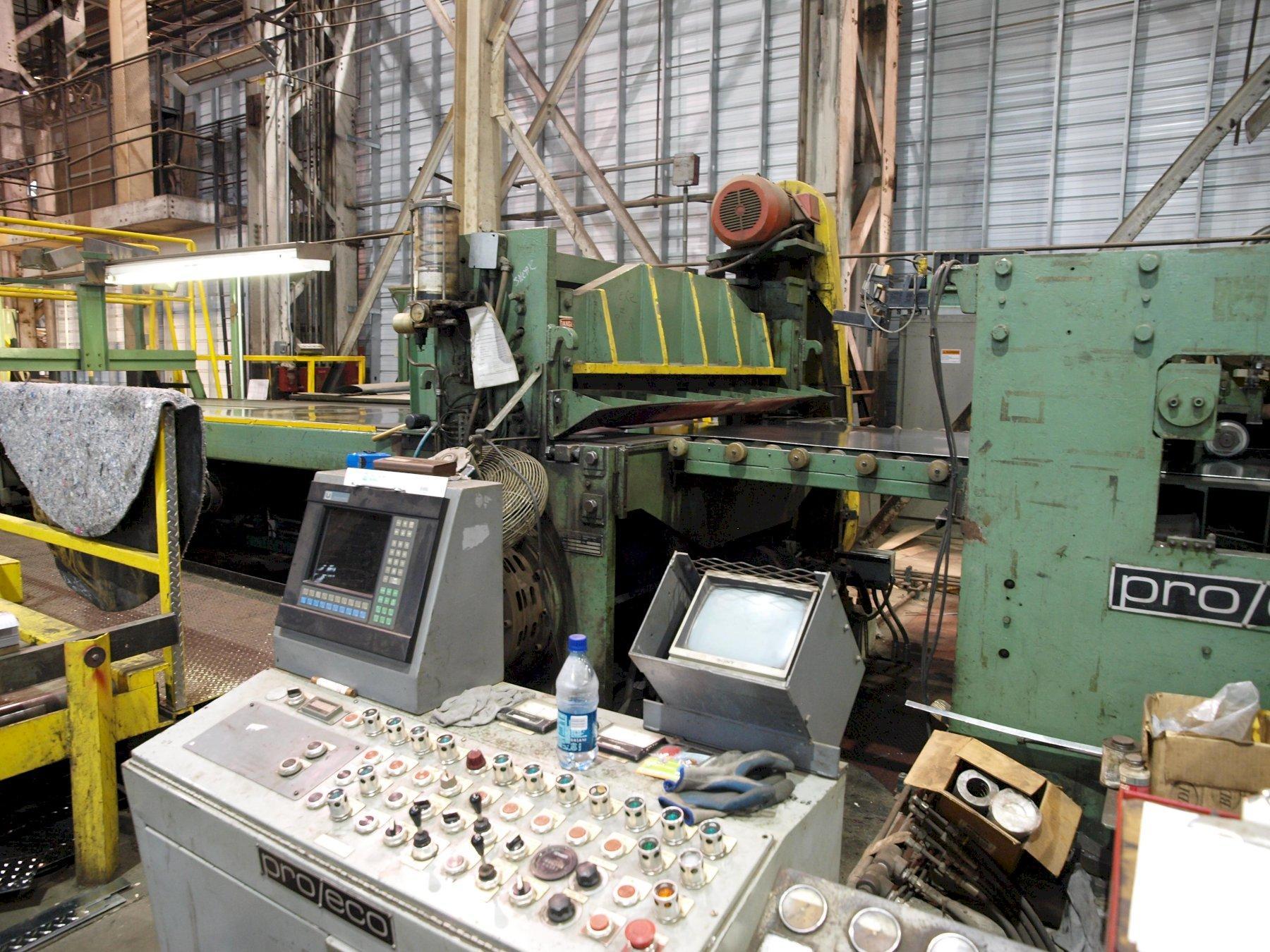

-Operator Control Panels:

-Line Direction: Right to Left

-Line is installed and under power
