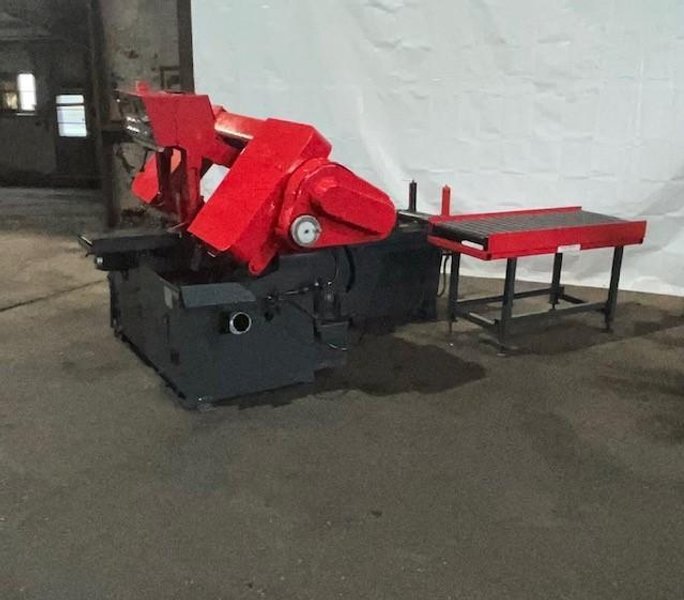

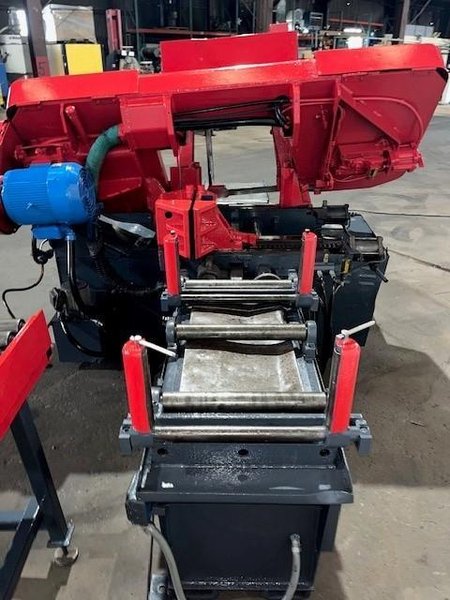

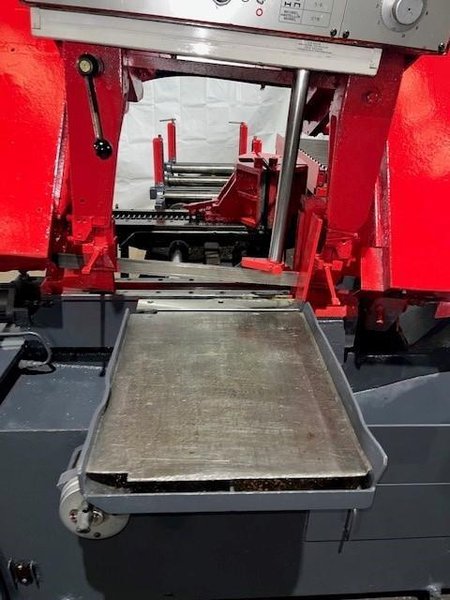

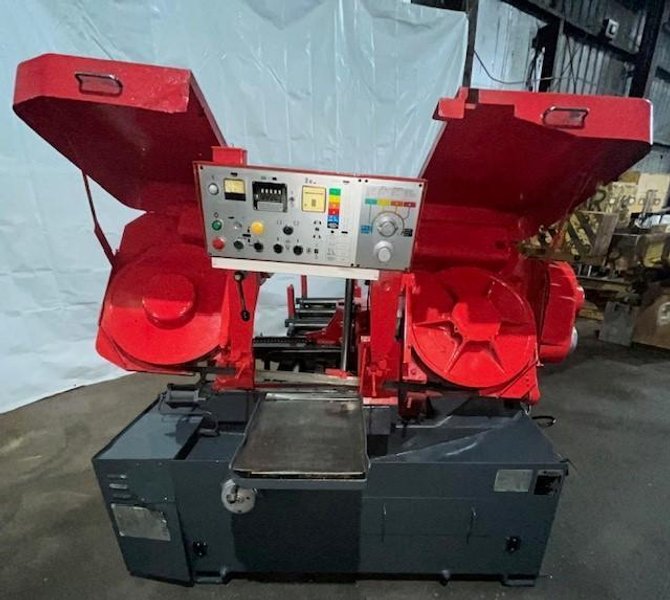

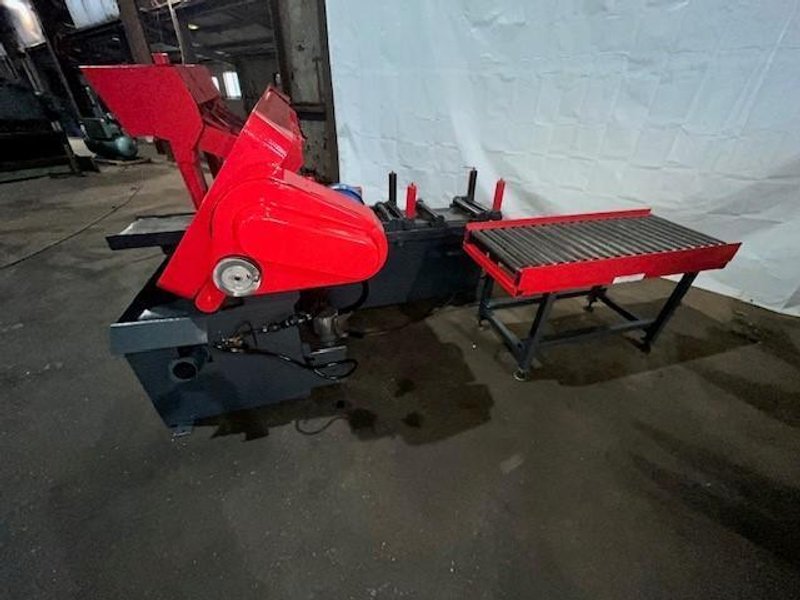

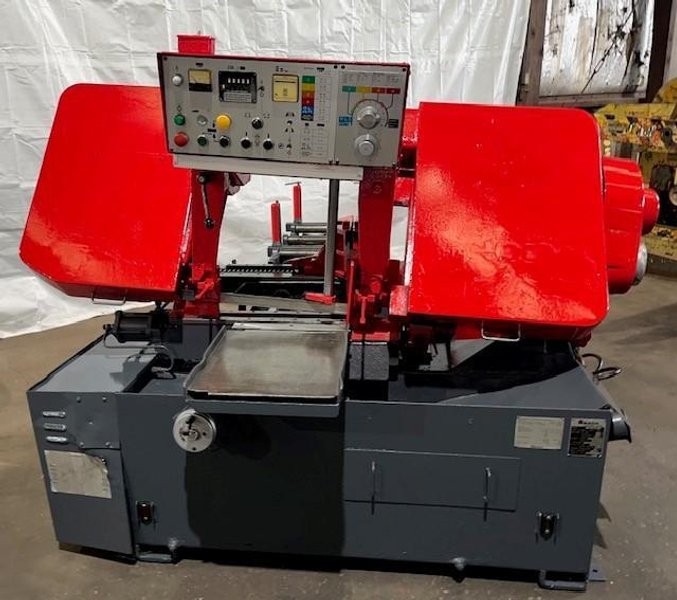

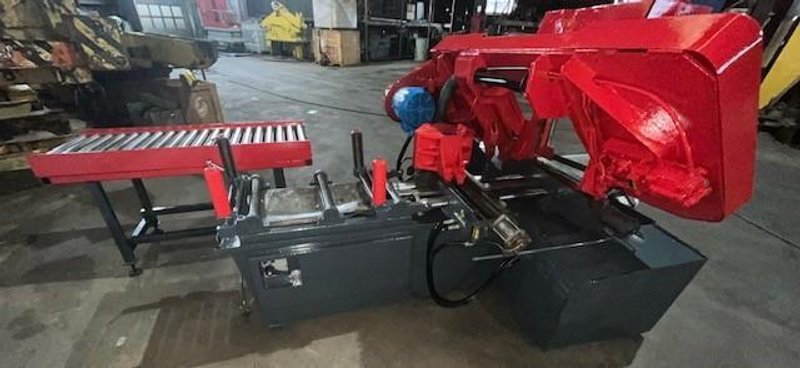

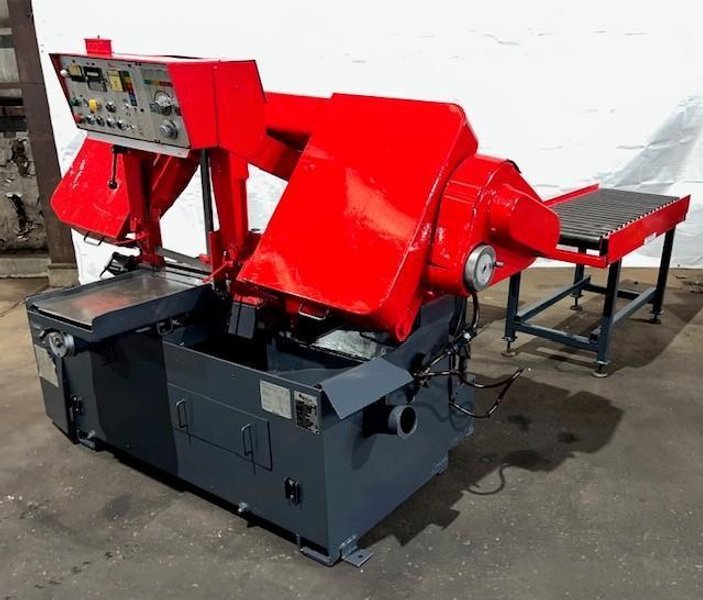

MAKE ............................. AMADA
MODEL ............................ HA-400W SERIAL ........................... 40651096 YEAR ............................. 1990 VOLTS ............................ 230/380/415/460 PHASE ............................ 3 Round Cutting Capacity ........... 16" Rectangle Cutting Capacity ....... 15.9" X 15.9"
Saw Blade Dimensions ............. 1-1/2' x 180" x .05'
Blade Speed ...................... 50-295 FPM
Main Motor ....................... 10 HP Hyd.
Pump Motor ....................... 2 HP

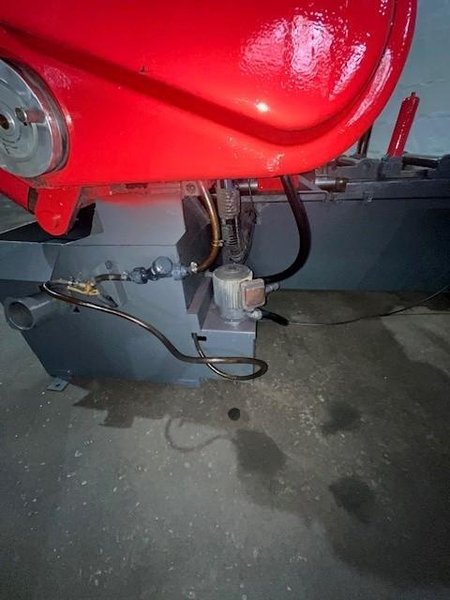

Coolant Pump Motor ............... 1/4 HP
Table Height ..................... 27"
Machine Weight ................... 4,400 Lbs.
Work Load Capacity ............... 7,250 Lbs.
Max. Index Length ................ 20" up to 9 times = 180"

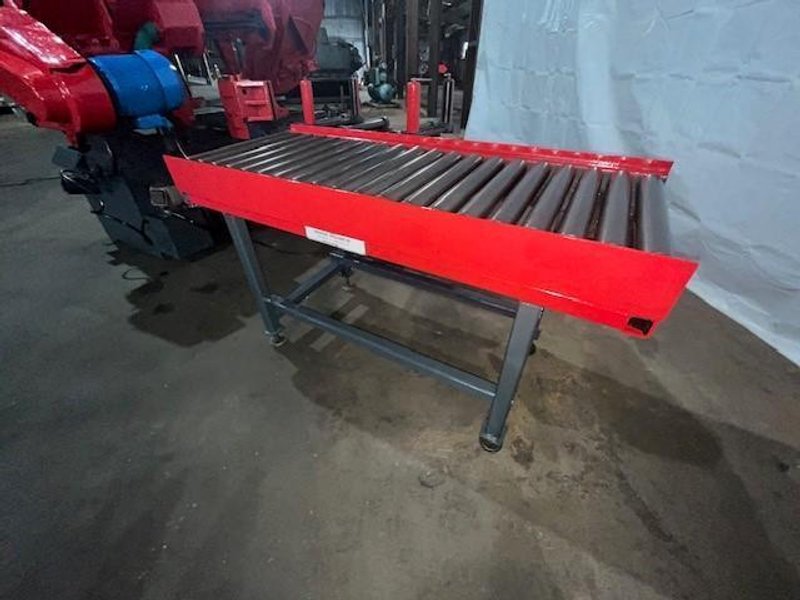

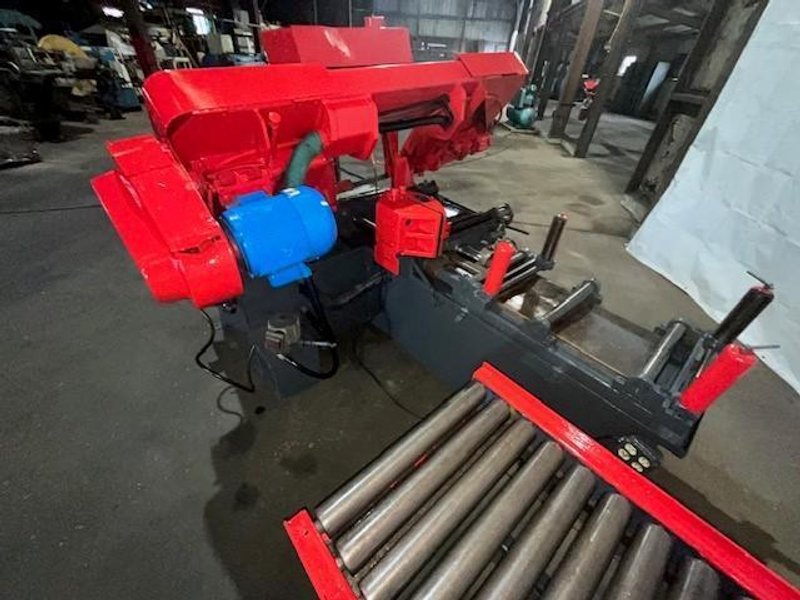

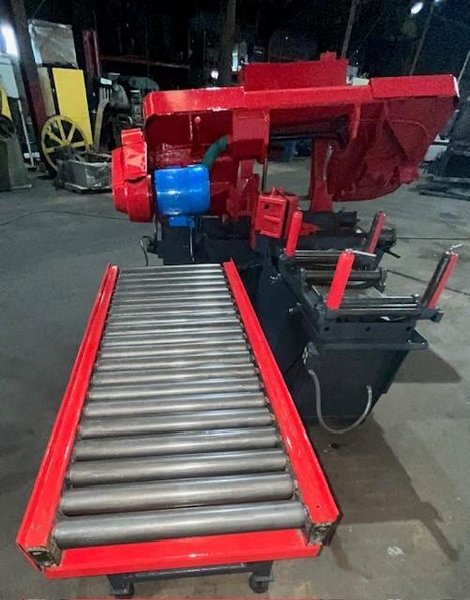

Machine Approx. Dims ............. 88" x 98" x 57" H ENTERTY ROLLER CONVEYOR .......... YES CONVEYOR LENGTH .................. 5' CONVEYOR WIDTH ................... 24" ROLLER LENGTH .................... 20" ROLL DIAMETER .................... 2.5" ROLL COUNT ....................... 20 |
