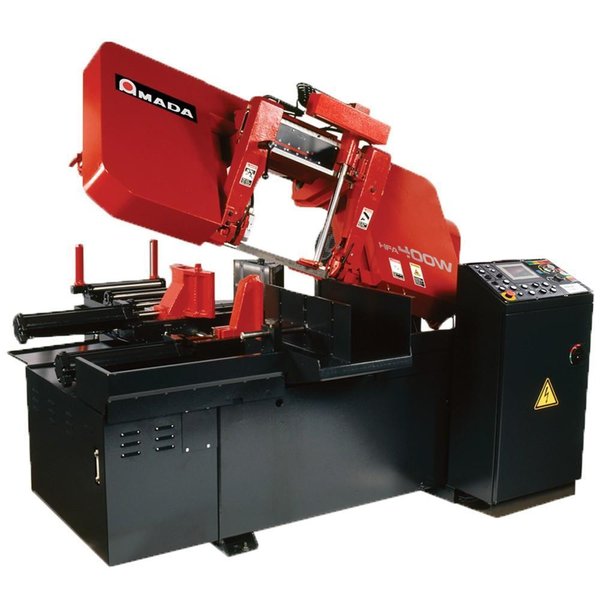

AMADA HFA400W HORIZONTAL BANDSAW

SPECIFICATIONS:

ROUND CAPACITY ................ 1.18" - 16.54"

RECTANGLE CAPACITY ............ 16" X 16"

WORK LOAD CAPACITY ............ 5,511 LBS

BLADE SIZE .................... 15' x 0.050" X 1-1/2"

BLADE SPEED ................... 56 - 295 FT/MIN

SAW BLADE MOTOR ............... 7.5HP

HYDRAULIC PUMP MOTOR .......... 2HP

CUTTING FLUID PUMP MOTOR ...... 1/4HP

SINGLE INDEX STROKE ........... 19.6"

INDEX LENGTH .................. 0.39" - 999.999"

MATERIAL INDEX REMNANT LENGTH . 3" PLUS LENGTH OF PARTS

HEAD UP POSITION .............. 89.5" X 106.2" X 95.5"

HEAD DOWN POSITION ............ 89.5" X 106.2" X 62"

TABLE HEIGHT .................. 31.5"

MACHINE WEIGHT ................ 4,850 LBS

STANDARD FEATURES:

PRESSURE FLOW VALVE

POWERED CHIP CONVEYOR

PLC CONTROLLER

BLADE DEVIATION MONITOR

MOTION DETECTOR

VARIABLE BLADE SPEED

WHEEL COVER LIMIT SWITCH

AUTO TRIM CUT

NC BACK GAUGE

SELF DIAGNOSTICS

FULL STROKE VISE

SPLIT VISE (HFA250W)

OPTIONAL FEATURES:

ROLLER TABLE 6'

ROLLER TABLE 10'

VISE PRESSURE CONTROL

VERTICAL CLAMPS

EXTERNAL CHIP CONVEYOR

STAGING TABLE 6' X 4'

STAGING TABLE 10' X 4'

NC FUNCTIONS:

HOUR METER

AUTO TRIM CUT

BLADE DEVIATION MONITOR

99 CUT-OFF LENGTHS FROM THE SAME BAR

NUMBER OF PIECES REQUIRED/CUT

DOUS NOT HAVE BLADE LIFE/HISTORY
