Tonnage | 110 |
Stroke | 4.33 inches |
Shut Height | 18.6 inches |
Adjustment | 3.54 inches |
Bed Size | 39.4" x 20.5 |
Ram Area | 31.5" x 20.5 |
SPM | 50-100 |
Standard Specifications

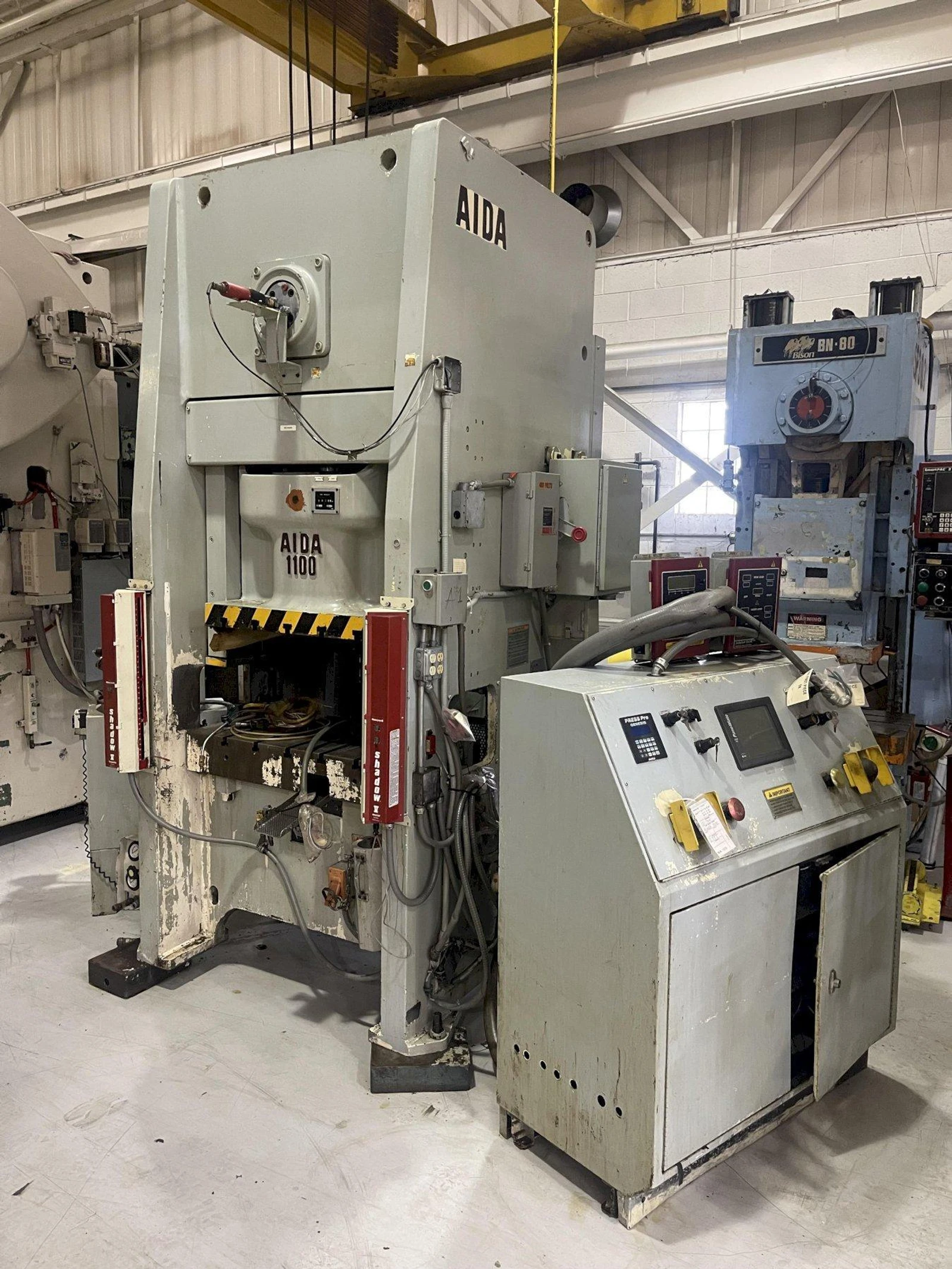

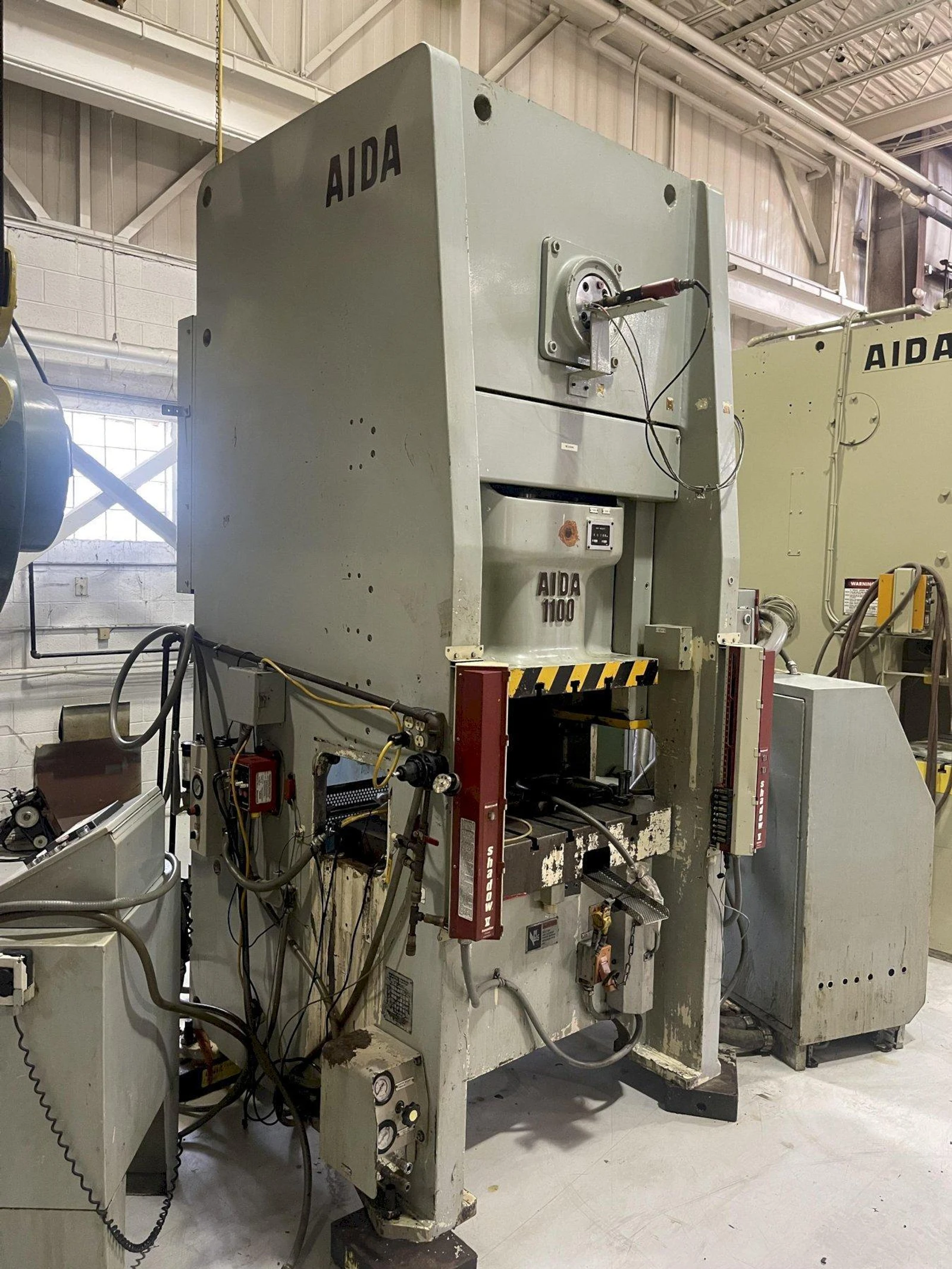

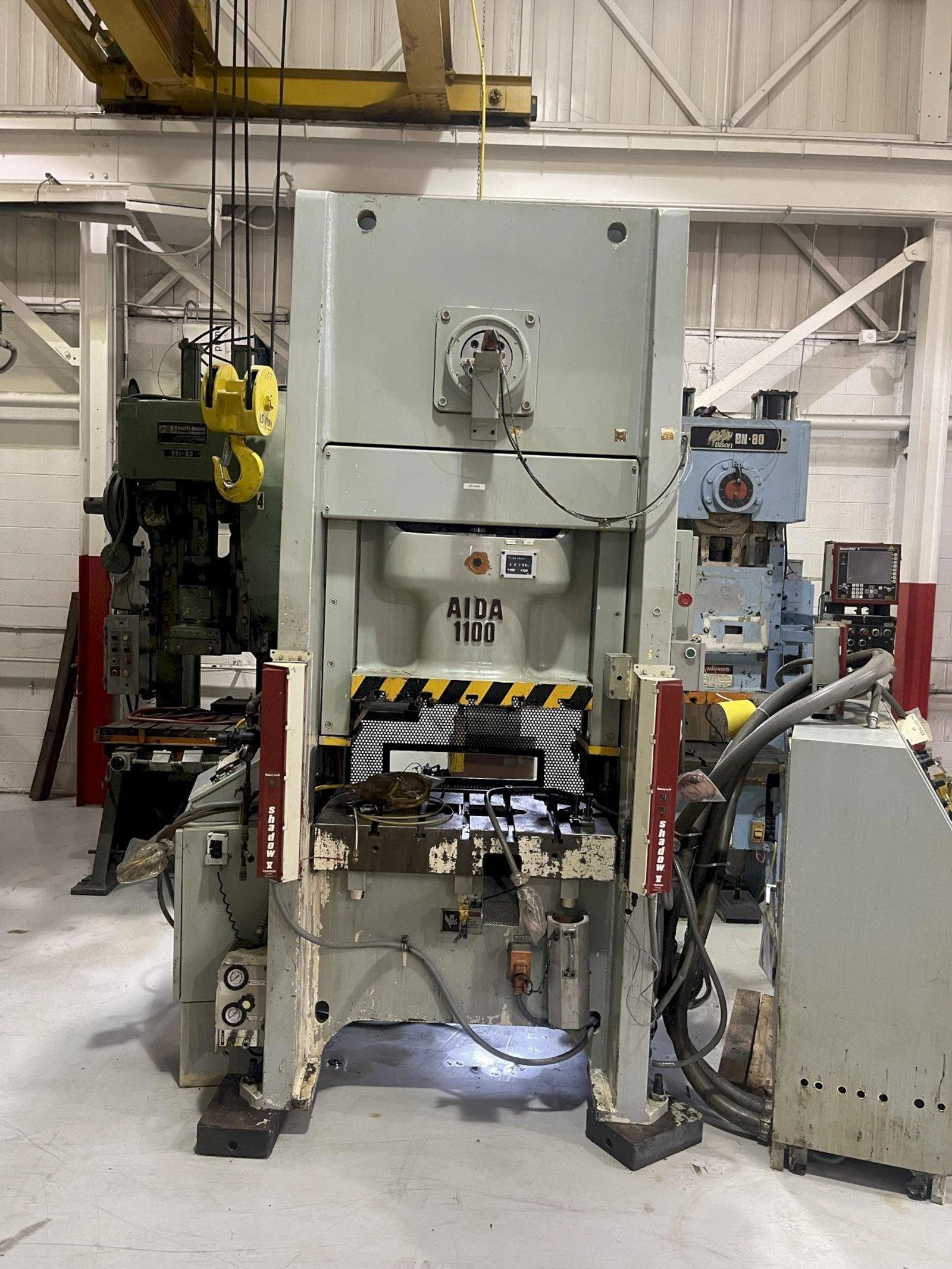

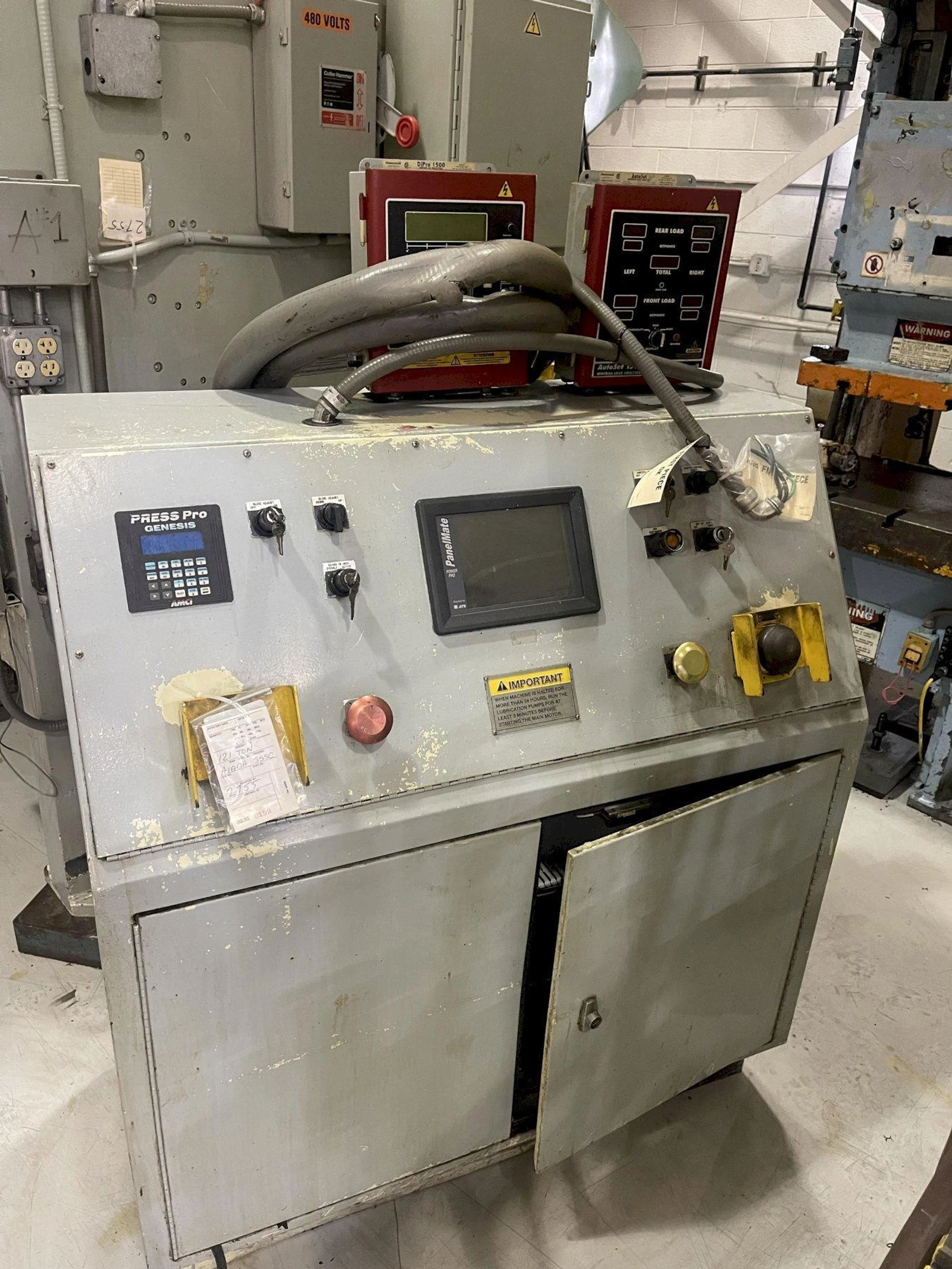

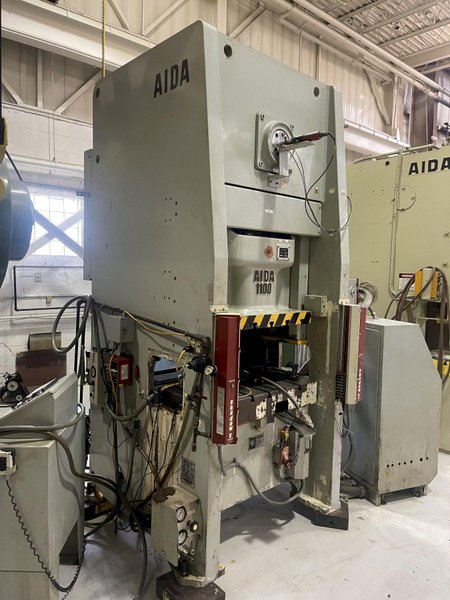

Aida NS1-1100 Single Point Eccentric Geared Straight Side 110 ton Capacity (Metric) 121 ton Capacity (US Ton) 4.33" Stroke 12.6" Die Height On Bolster 3.54" Motorized Adjustment 39.4" LR x 20.5" FB Bed Area 31.5" LR x 20.5" FB Slide Area 50-100 VSPM Equipment and Features Aida Wet Clutch and Brake Air Counterbalances Hydraulic Overloads 19.6" Wide Windows 6.1" Thick Bolster Plate Max Upper Die Weight 770 lbs. 15 HP Main Motor Floor Standing Wintriss Die Pro 1500 Wintriss Autoset 1504 load analyzer Palm Buttons Shadow V Light Curtains This used Aida Straight Side Mechanical Metal Stamping Press Can Be Seen Under Power in the S & G Press Warehouse! |
