USED FUKUI 1,000 TON MECHANICAL SINGLE CRANK COLD FORGING PRESS, Year: 1991

USED FUKUI 1,000 TON MECHANICAL SINGLE CRANK COLD FORGING PRESS, Year: 1991

Name: USED FUKUI 1,000 TON MECHANICAL SINGLE CRANK COLD FORGING PRESS, Year: 1991
Brand: FUKUI
SKU: 11057
Availability: PreOrder

Brand

FUKUI

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Overview

Type:

Presses, Straight Side, Single Crank

Manufacturer:

FUKUI

Model:

MSF 1000

Year:

1991

Stock #:

11057

Status:

For Sale

Description

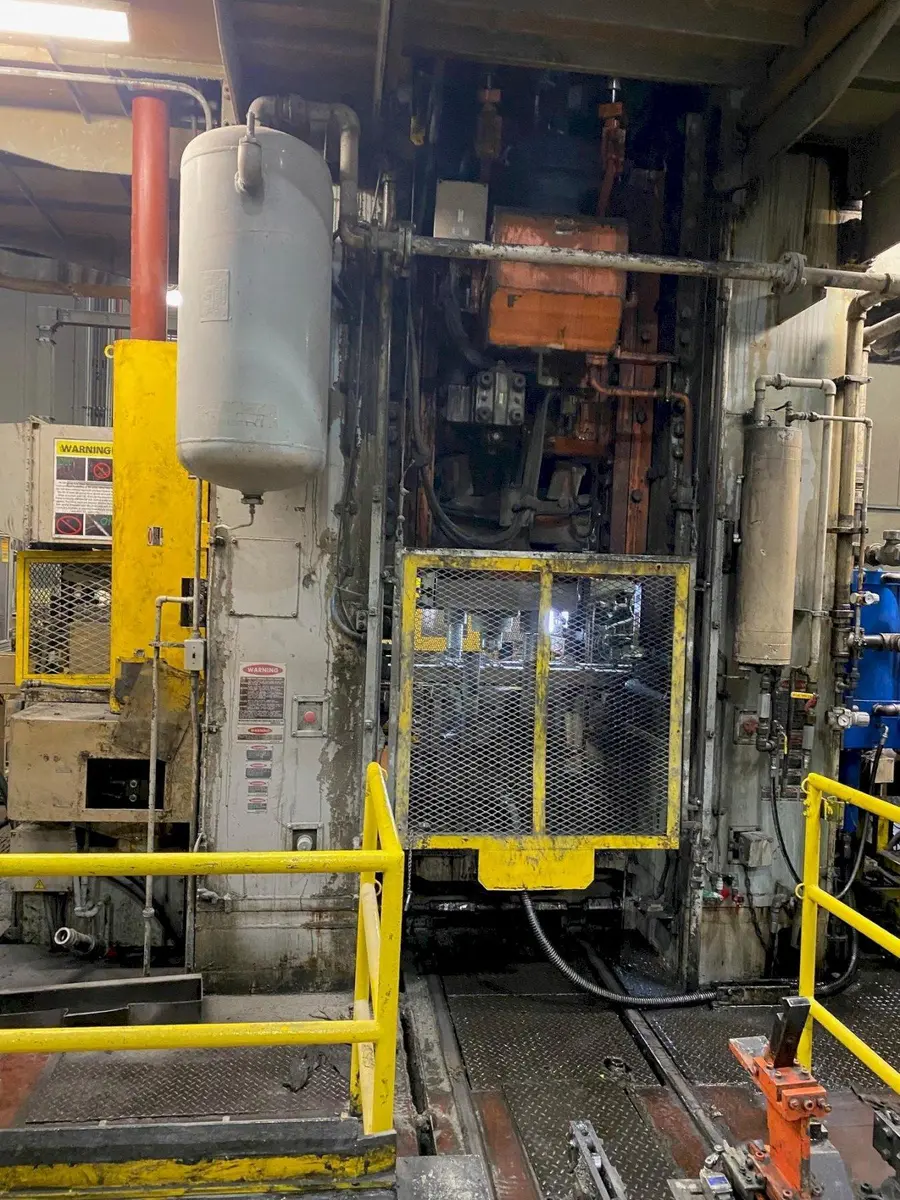

FUKUI MSF 1000 (1991) used single-crank straight side press. 1,000-ton capacity, 11.18" stroke, adjustable slide, air clutch/brake, hydraulic overload protection, and more.

Specifications

Brand: Fukui
Model: MSF 1000

Specifications:
Tonnage: 1,000
Stroke length: 11.18" (300mm)
Shut height: 33.46" (850mm)
Slide adjustment: 2: (50mm)
Bed size: 25.4" (700mm) x 31.49" (800mm)
Bolster thickness: 10.62" (270mm)
Ram area: 25.4" (700mm) x 31.49" (800mm)
Strokes per minute: 30 - 32 (infinitely variable)
Main motor: 200 H.P. (150KW)

Equipped With

Air clutch
Air brake
Air counterbalance
Hydraulic overload protection
Pneumatic ram knockout
Mechanical bed knockout
Pneumatic upper die clamp
Hydraulic lower die clamp
Recirculating lube system
Portable palm station
Exit conveyor

Sold As-Is Where-Is
Inspect under power in mid-west plant
Available June 2024

Specifications subject to verification
