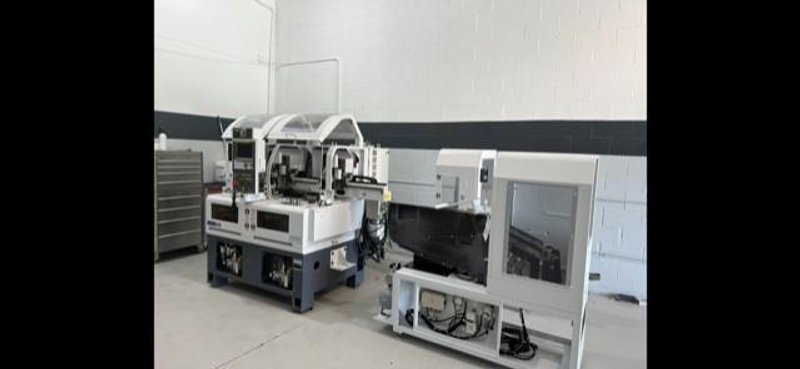

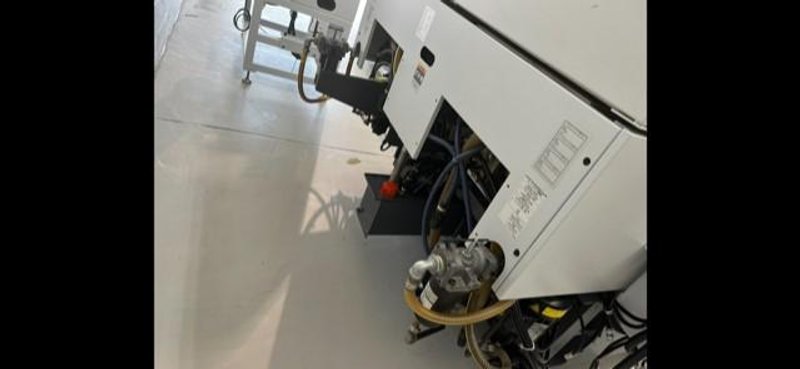

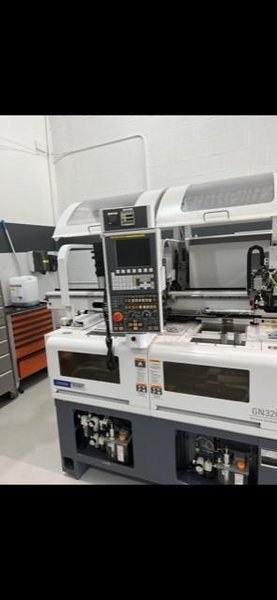

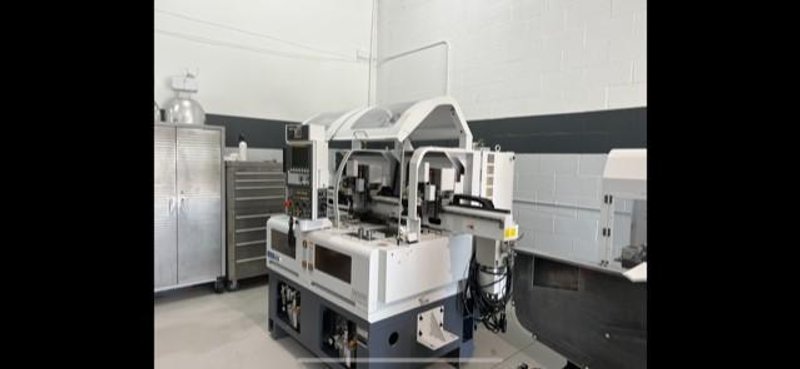

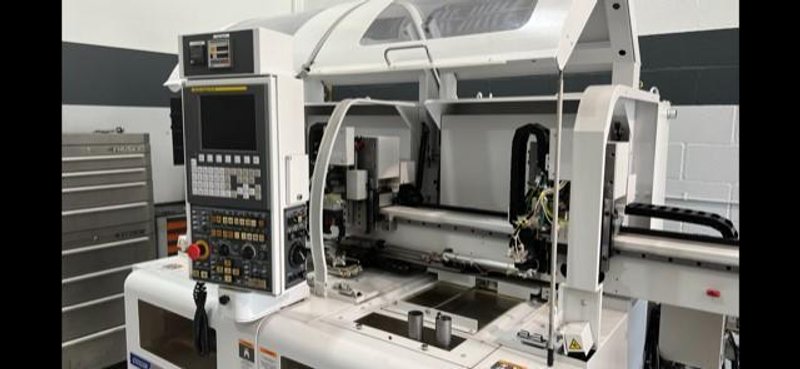

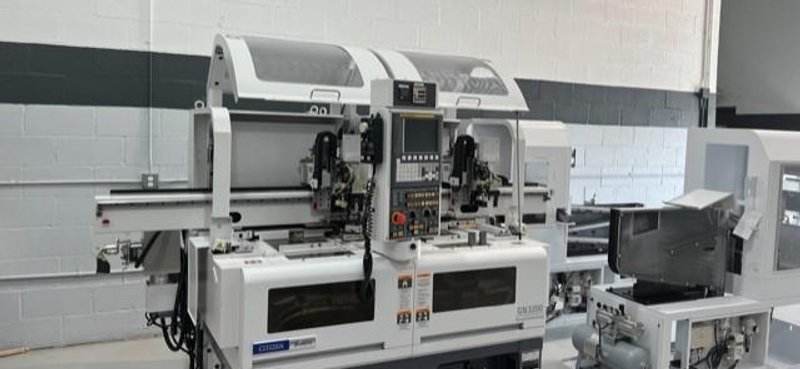

Miyano Citizen GN2-3200W CNC Twin Spindle Chucking Lathe with Fanuc Oi-TF 2, 8000 RPM, Gantry Loader, 3.5 Secs - Load/Unload, 7.5HP, New 2020
Brand
Category
Model
GN2-3200W
Stock #
56136
Year
2020
Condition
Like New
Location
Florida
| CNC Control | yes |
| Type of CNC Control | Fanuc FS 0i-TF 2 system |
| Machining Capacity | Max. Diameter of chuck |
| Pull type collet chuck | 1.574 or 40mm |
| Fixed type collet chuck | 1.377 or 35mm |
| Fine precision air chuck | 1.77 or 45mm |
| Power type chuck | 1.77 or 45mm |
| Diaphragm Chuck | 1.968 or 50mm |
| Max Machining Length | 1.969 or 50mm |
| Max. workpiece length with loader | 1.574 or 40mm |
| Number of Spindles | Two |
| Spindle Nose | Flat |
| Spindle Thru Hole | .669 or 17mm |
| Inner diameter of draw tube | .433 or 11mm |
| Spindle Speed Range | 8,000 RPM |
| Slide - Number of Tool Platens | Two |
| Type of Slide - Horizontal linear tool platen | X & Y Dovetail |
| Control Axis | 2x2 axes (x,z simultaneous) |
| Slide Stroke | See X & Z below |
| X Axis Travel | 7.08 or 180mm |
| Z-Axis Travel | 7.87 or 200mm |
| Rapid Feeds - X & Z | 15 m/min |
| Tools | See Below |
| Shank size of square turning tools | 10/12/ (16) mm |
| Number of Tools | 5x2 |
| Diameter of Drill Shank | .787 or 20mm |
| Spindle Drive 15 min/cont. | 5HP or 1.5kW and at 15 min 7.5HP or 2.2kW |

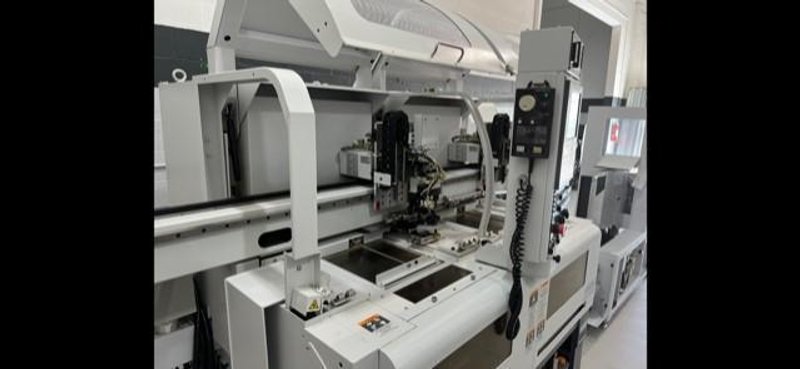

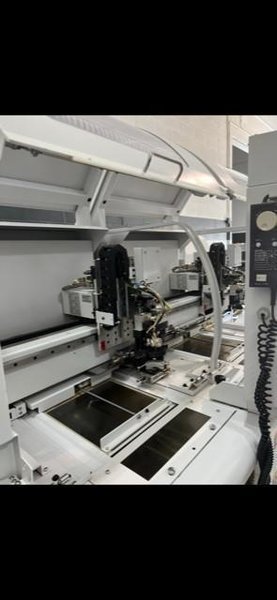

| Robotic Gantry Loader | yes |
| Dimensions | 55.11 Width x 55.11 Depth x Ht. 62.99 |
| Robotic Gantry loaders - Load/Unload Time | 3.5 Seconds |
| Weight | 5900 pounds |
|
Number of Part Cycles on this machine: 30,000 approximate
Control: GN2-3200W: FS 0i-TF 2 system Controlled axis X, Z X, Z 2 axes × 2 systems Loader with one slide: 2 axes × 2 systems Loader with one slide: 2 axes × 1 system Gantry Loader specifications (Yes) Type 2-axes NC 1 saddle 2 hands 1 saddle 2 hands – 2 saddle 4 hands Max. Work Size Ø 40 x 40 mm Ø 40 x 40 mm Max. Work Weight 250 g 250 g Feed rate Right and left operation 130 m/min 130 m/min Upper and lower sides 154 m/min 154 m/min Control unit Control system PMC axis control PMC axis control Control soft Flexible loader control Flexible loader control Drive system Right and left operation Rack & pinion Rack & pinion Upper and lower sides Rack & pinion Rack & pinion Tank capacity (in Liters) Spindle cooling device 7 l 9 l Lubricating system 1.5 l 1.5 l x 2 Coolant tank 90 l 200 l Air supply Air pressure supply 4 bar (4 kgf/cm2) 4 bar (4 kgf/cm2) Splash guard interlock (Must be Verified) Optional accessories: Gantry loader (Yes), Chuck Systems, Air Blow, High pressure & inner coolant supply, Spindle inner coolant, Automatic fire-extinguisher, Automatic power off, Chip conveyor, Chip box, Total and preset counter, Total and multi counter, Coolant mist collector duct, Damper & duct, Warning light, Specification color, etc. Loader specifications (Optional) |
|
