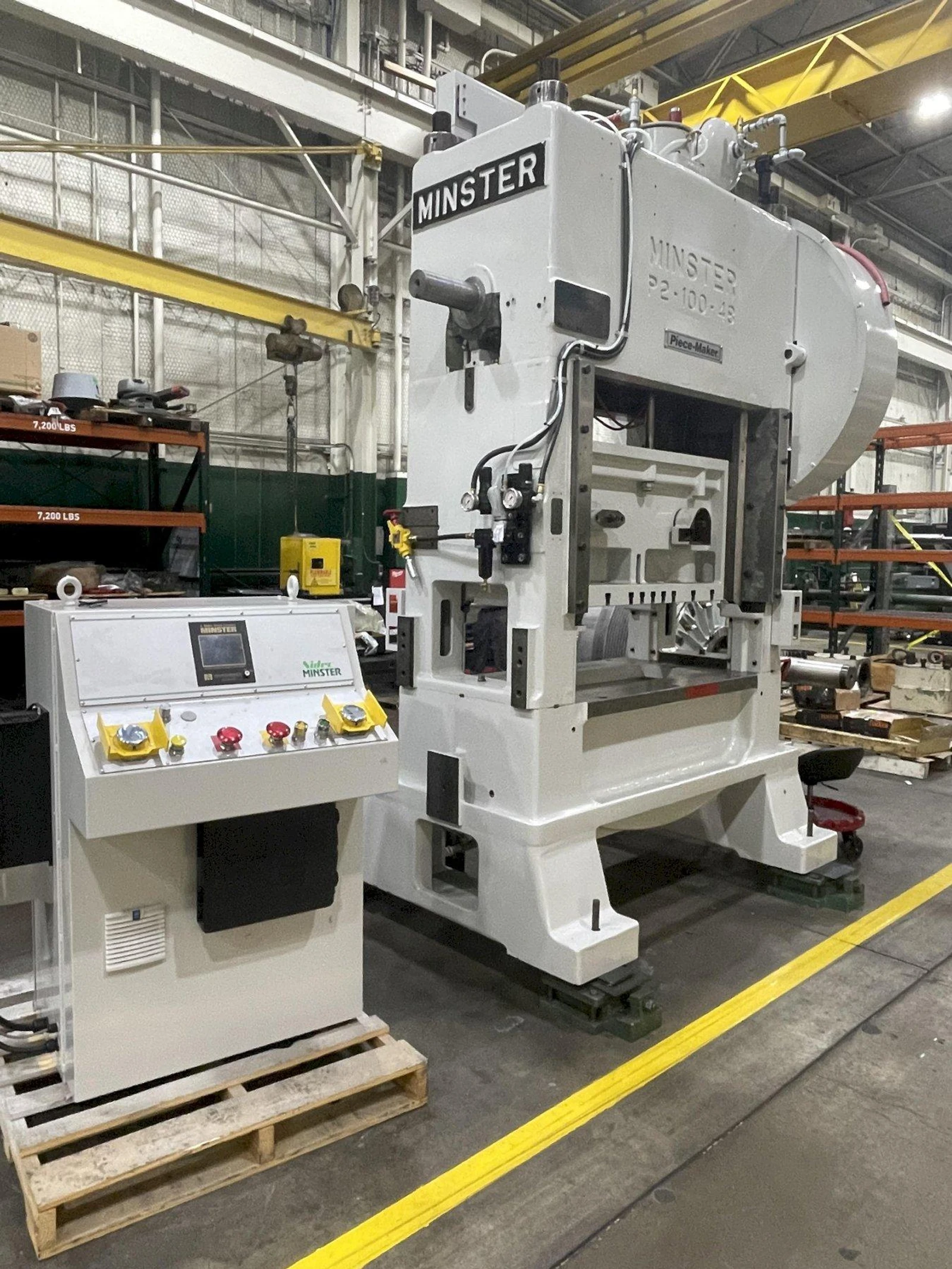

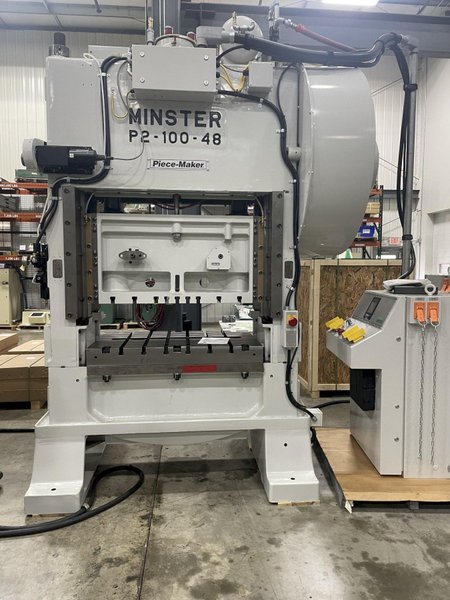

Minster P2-100-48 Straight Side Press
Brand
Category
Model
P2-100-48
Stock #
017046
Year
1967
Condition
Rebuilt
Location
Ohio
| Tonnage | 100 tons |
| Stroke | 3 inches |
| Shut Height | 12.5 inches |
| SPM | 200 |
| Vari Speed (Yes/No) | yes |
| Bed W | 31 inches |
| Bed L | 48 inches |
| Crank (Single/Double) | double |
| Air Clutch (Yes/No) | yes |
| CNC Control | yes |
| Type of CNC Control | Minster PMC |
| Dimensions | 117" x 60" x 151" |
| Weight | 28000 pounds |
|
Remanufactured Minster P2-100-48-017046 Precision Straight Side Press
Specifications (INCH)
Press Specifications Model Number........................................................ P2-100-48×31-FW Force × Distance off Bottom.................................. 100 ton Crankshaft Extension Location............................... Opposite Drive Side Drive Arrangement.................................................. Flywheel Drive Location........................................................ Right Hand Side Lube Unit Location................................................. Drive Side Approximate Press Mass......................................... 28,000 lb. Shutheight Indicator Readout................................. Inch
Press Slide Specifications Stroke Length, Speed Range................................... 3.00 in, 100-200 spm Adjustment of Shutheight....................................... 4.00 in Manual Area of Slide, R-L × F-B........................................ 48.0 × 18.5 in Slide Face Machining.............................................. Standard
Press Bolster Specifications Plate Material.......................................................... Steel Bolster Plate Thickness........................................... 5.00 in Area of Bolster, R-L × F-B..................................... 48.0 × 31.0 in Bolster Plate Machining.......................................... Standard
Press Frame Specifications Upright Passline Opening, F-B............................... 16.0 in Area of Bed, R-L × F-B.......................................... 48.0 × 31.0 in Opening in Bed, R-L × F-B.................................... 41.0 × 15.0 in Shutheight, SDAU on Bolster................................. 12.50 in Shutheight, SDAU on Bed...................................... 17.50 in Approx. Clearance, Mount to Bottom of Bed........ 12.00 in Dist Mount to Top of Bed.......................................... 40.0 in Approx. Floor Area, R-L × F-B.............................. 117 × 60 in Approx. Overall Height, from Mount 151 in |
|
