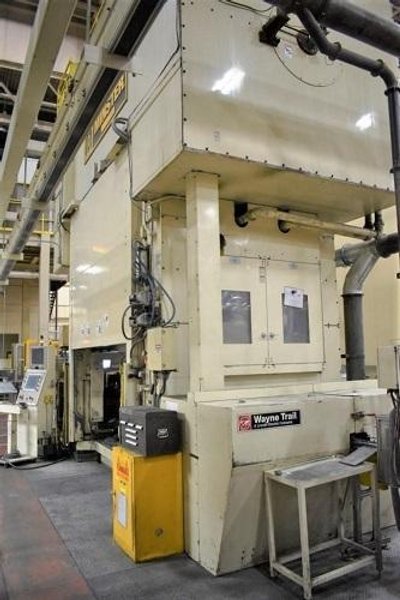

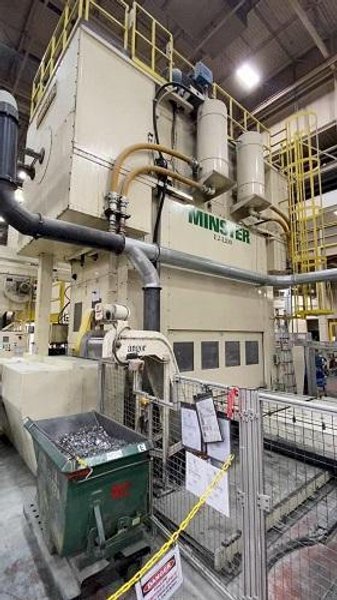

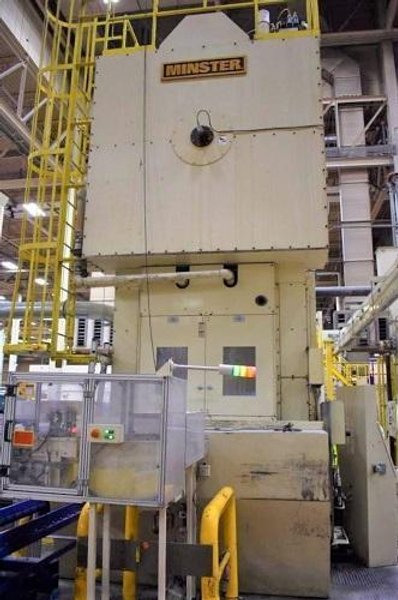

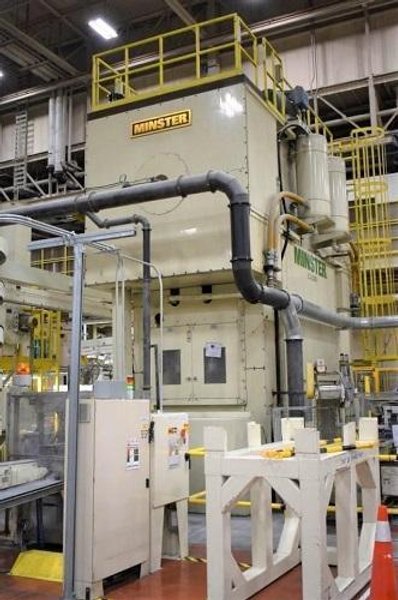

1200 Ton Minster E2-1200 Straight Side Press

1200 TON MINSTER E2-1200 ECCENTRIC SHAFT STRAIGHT-SIDE TRANSFER PRESS

MODEL E2-1200-120 X 60

BRAND MINSTER

CONDITION USED

YEAR 2011

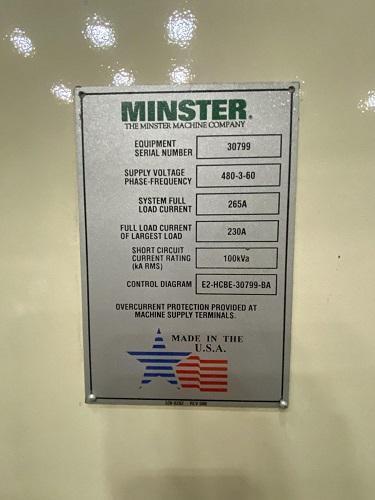

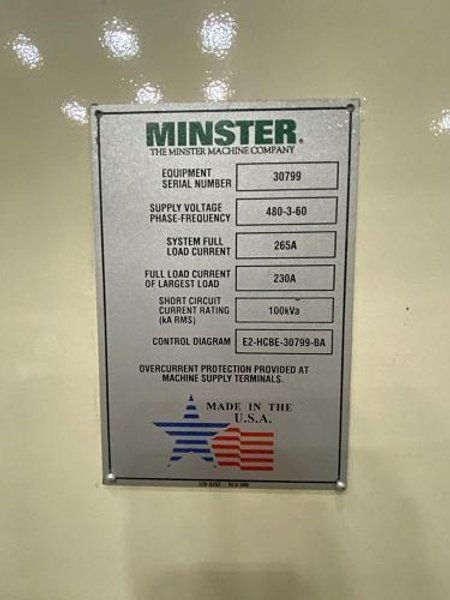

SERIAL # E2-1200-30799

SPECIFICATIONS

PRELIMINARY SPECIFICATIONS

MINSTER 2 POINT ECCENTRIC SHAFT STRAIGHT-SIDE TRANSFER PRESS

MODEL: E2-1200-120 X 60

MFG YEAR: 2011

1200 TON CAPACITY

12" STROKE (305 MM)

44" SHUT HEIGHT (SDAU) (1118 MM)

12" SLIDE ADJUSTMENT (305 MM)

120" LR X 60" FB BED AREA (3048 MM X 1524 MM)

25-45 SPM VARIABLE

EQUIPMENT & FEATURES:

10.8" BOLSTER PLATE(275MM)

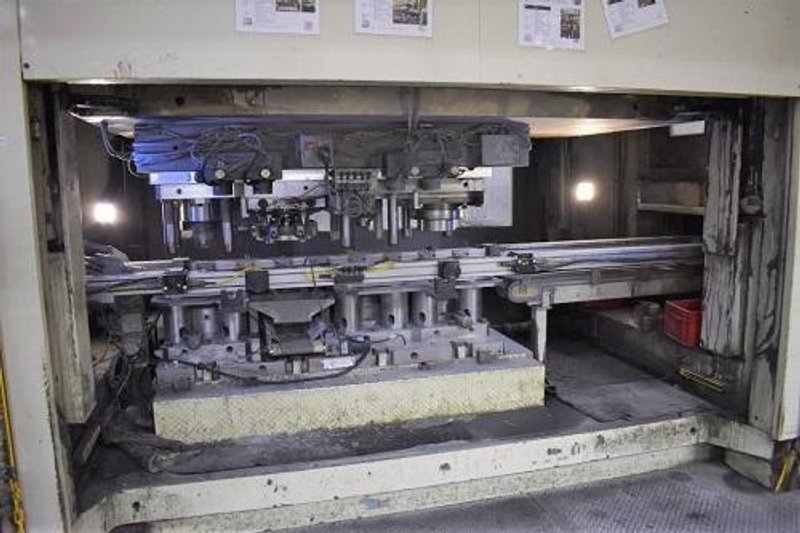

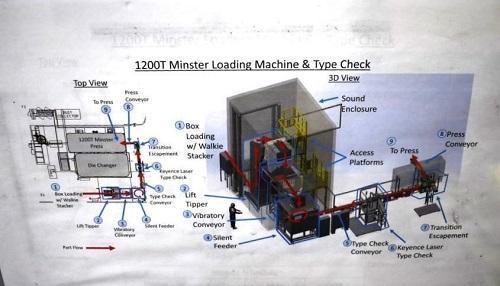

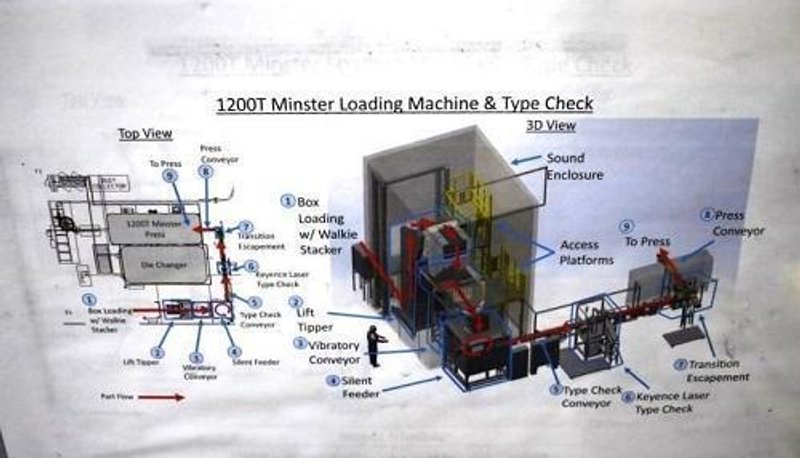

WAYNE TRAILS MODEL WTTS-II SERVO TRANSFER

AIR CLUTCH & BRAKE

HYDRAULIC OVERLOAD PROTECTION

63"(1600MM) WIDE WINDOWS

AUTOMATIC COUNTER BALANCE ADJUSTMENT

PNUEMATIC BED KNOCKOUT SYSTEM

SLIDE KNOCK OUT CYLINDERS

30 TON DAYTON PNUEMATIC DRAW CUSHION

ADJUSTABLE DIE SAFETY BLOCKS

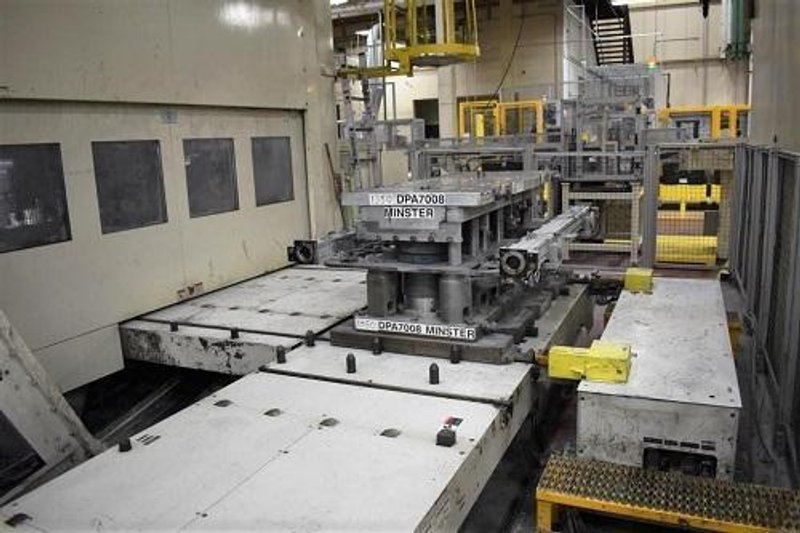

WAYNE TRAILS TRANSFER FEED

(4) VIBRO-DYNAMICS ISOLATOR MOUNTS

PRESS IS PIT MOUNTED.

200 H.P. 1800 RPM MAIN DRIVE MOTOR. 480/3/60

OVERALL ESTIMATED WEIGHT , CROWN #145,000 LBS,BED #142,000 LBS, SLIDE # 92,200 LBS, UPRIGHTS,#86,000, = TOTAL 455,000 LBS
