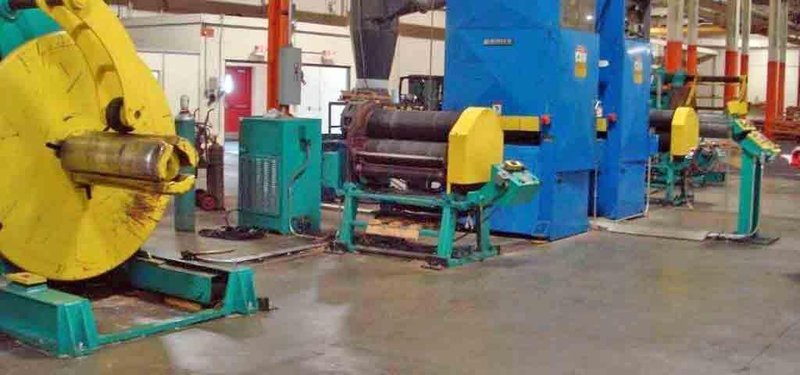

Coil to Coil Polishing Line
Materials: Stainless Steel
Maximum Coil Width: 30"
Maximum Thickness: 0.048"
Maximum Coil Weight: 15,000#
Maximum Shear: 45,000 PSI
Maximum Yield: 45,000 PSI
Coil I.D. (Entry): 16" - 20"
Coil I.D. (Exit): 20"
Maximum Coil O.D.: 72"
Line Direction: Left to Right
Mode of Operation: Pull Through
Line Speed: 0 - 150 FPM
Consisting of the following:

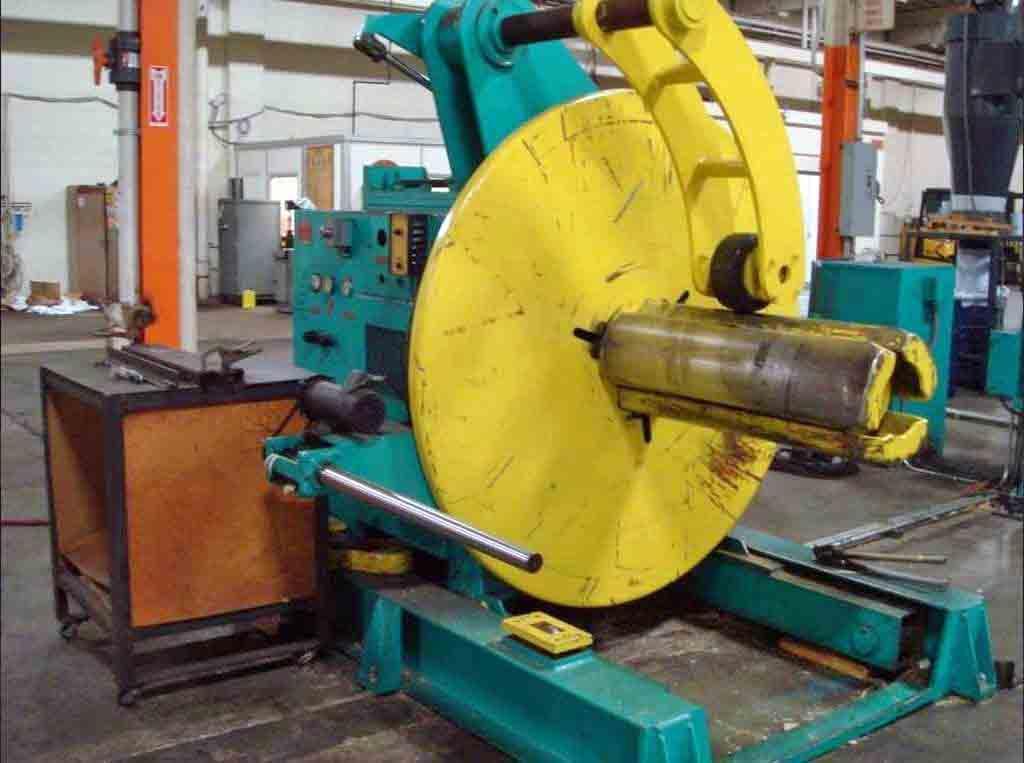

-Uncoiler: ASL
Model #1000-150NM
Single Mandrel Type
"Wedge Type" Hydraulic Expansion
Air Cooled Brake
Holddown with Idler Snubber Roll
Feedup Drive
Slide Base
Self-Contained Hydraulic Unit
Paper Rewinder
Machine Mounted Controls

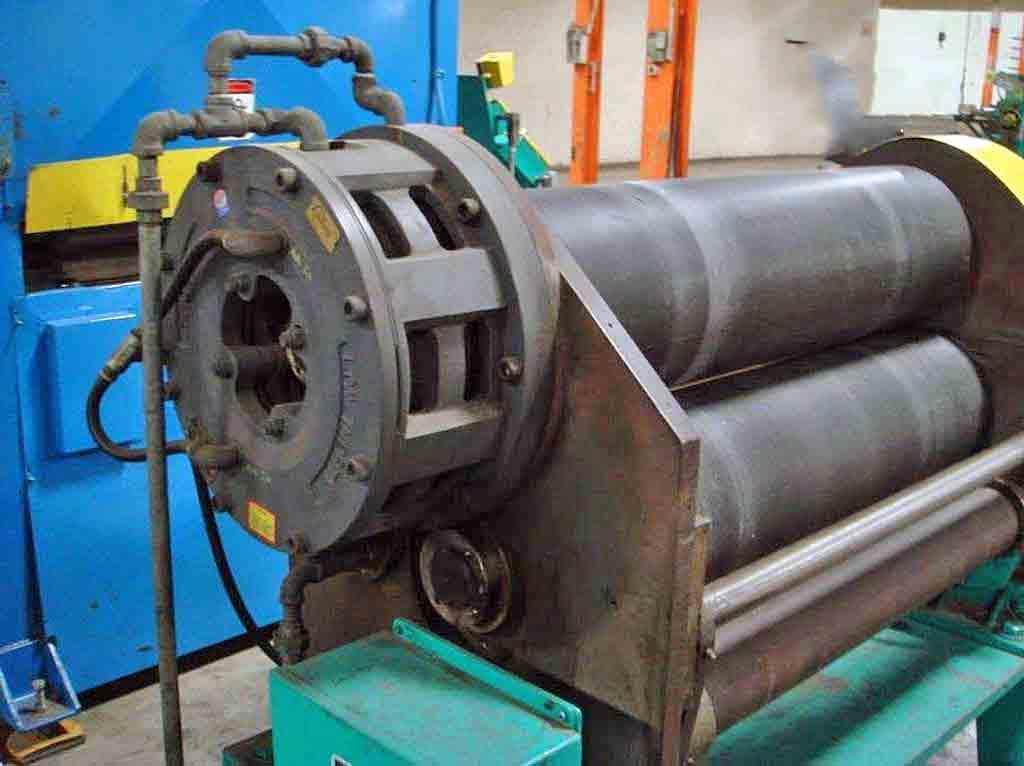

-Entry Tension Stand: ASL
Rotary Type
12" Diameter Rubber Coated Rolls
Pneumatically Powered Bottom Roll
12" Wichita Water Cooled Brake on Top Roll
Water Cooler for Brake
Machine Mounted Controls

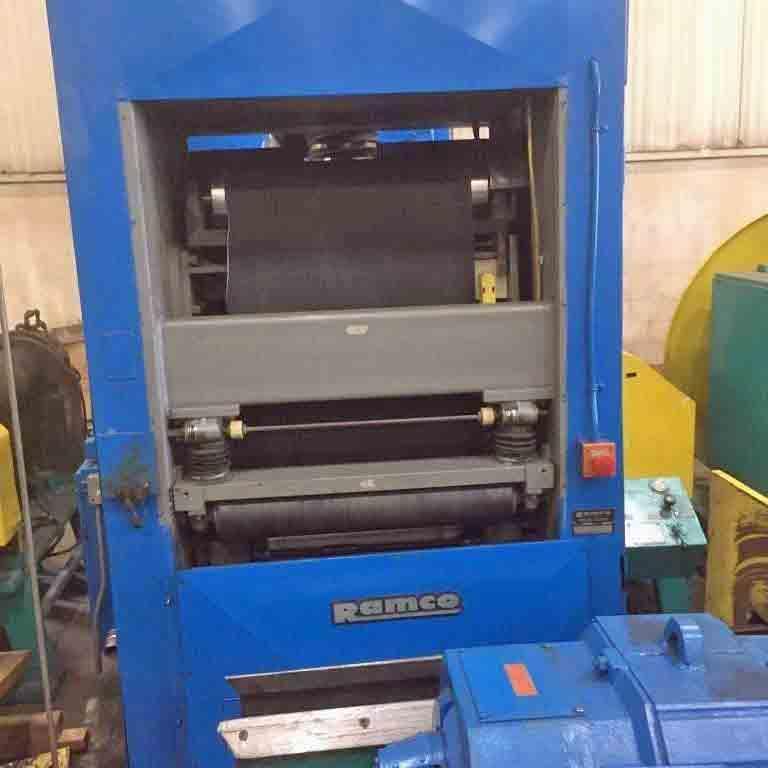

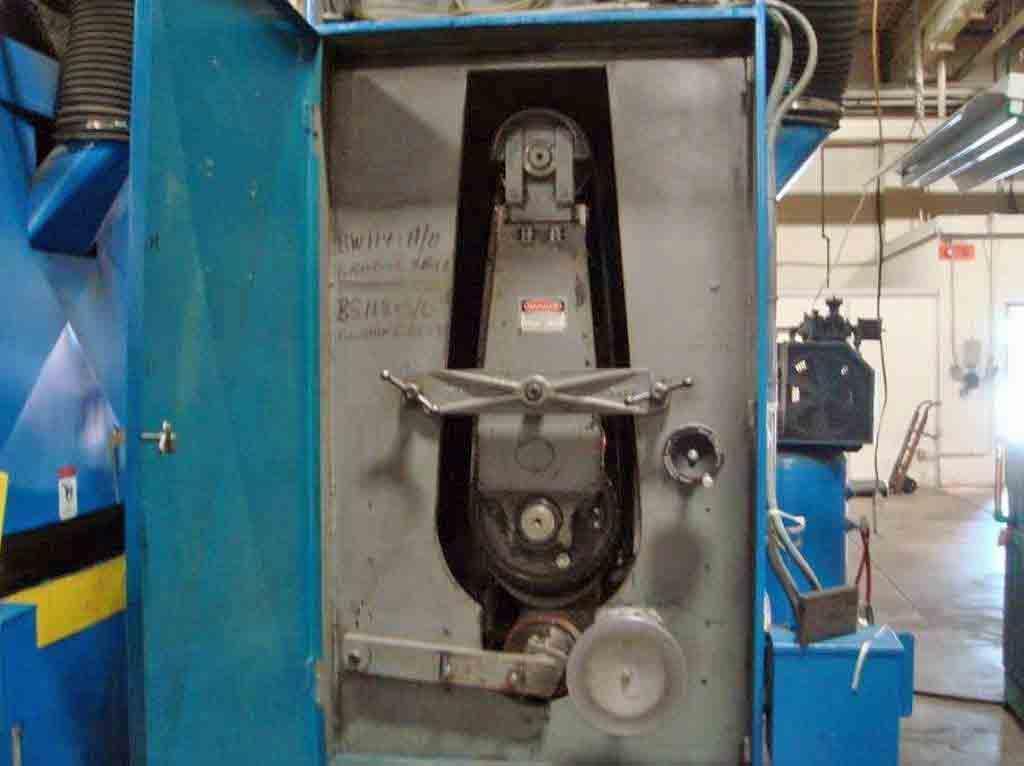

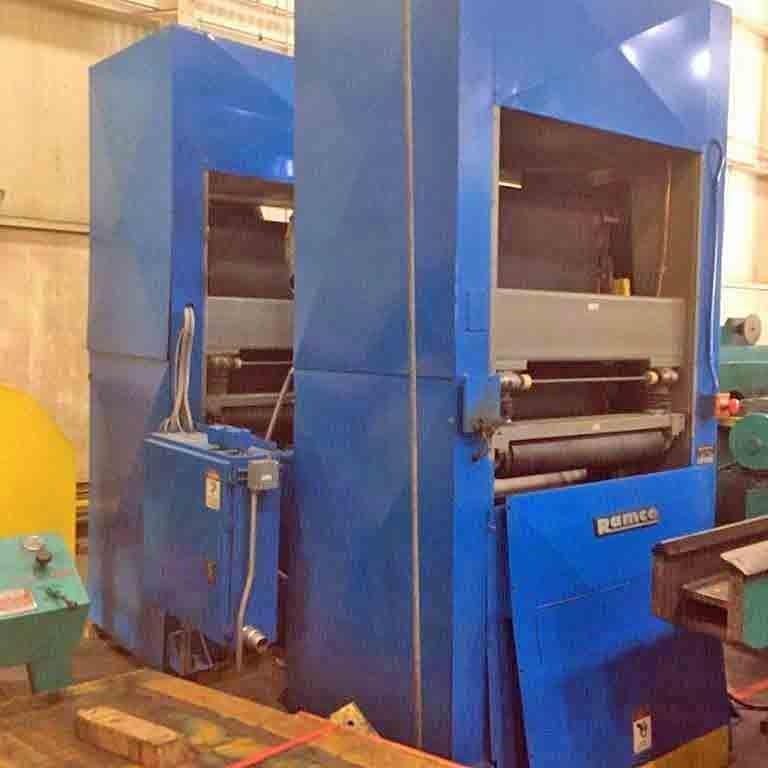

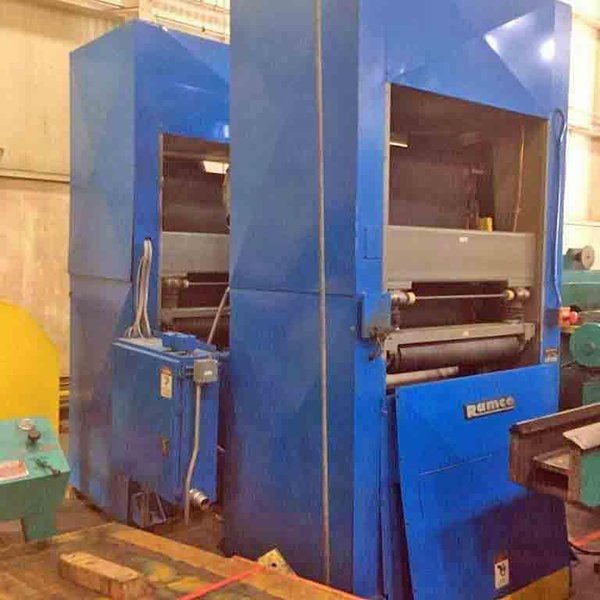

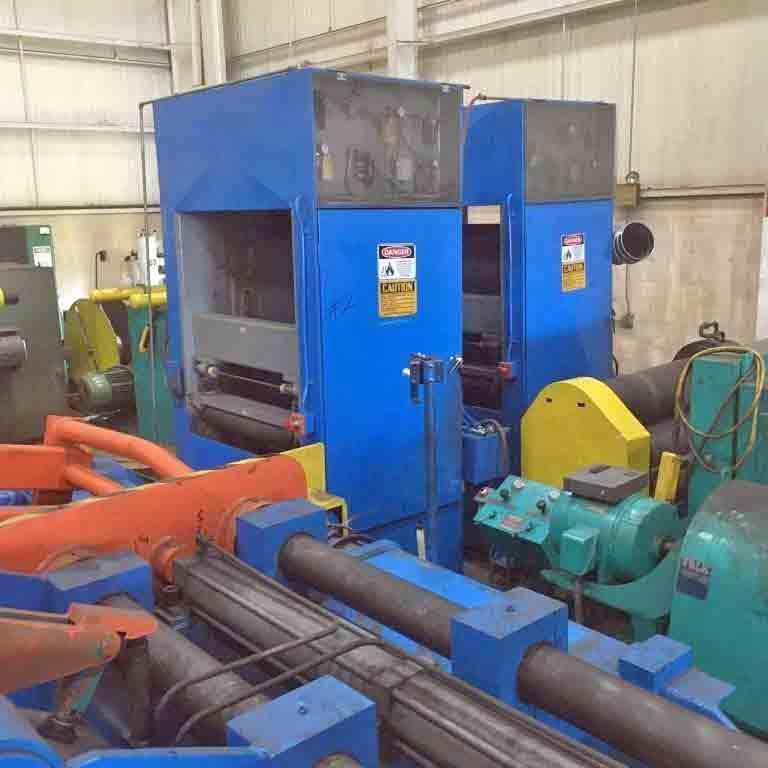

-Polishing Head #1 - Ramco:
Top Side Polishing
Powered Belt Sander Type
Manual Height Adjustment
-Polishing Head #2 - Ramco:
Top Side Polishing
Powered Belt Sander Type
Manual Height Adjustment
Machine Mounted Controls
-Exit Tension Stand - ASL:
Rotary Type
12" Diameter Rubber Coated Rolls
Pneumatically Powered Bottom Roll
12" Wichita Water Cooled brake on Top Roll
Water Cooler For Brake
Machine Mounted Controls

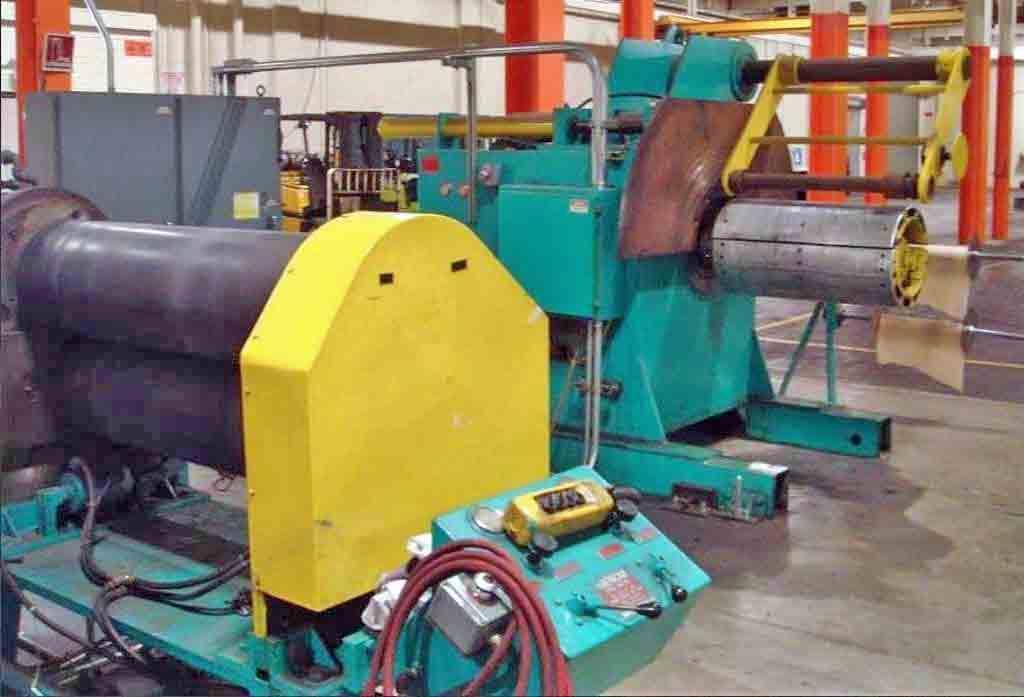

-Recoiler: ASL
Hydraulic Pushoff
Hydraulic Expansion
Manual Gripper
40 HP Eddy Current Motor (240/440 V)
Self-Contained Hydraulic Unit
Powered Holddown Roll
Machine Mounted Controls

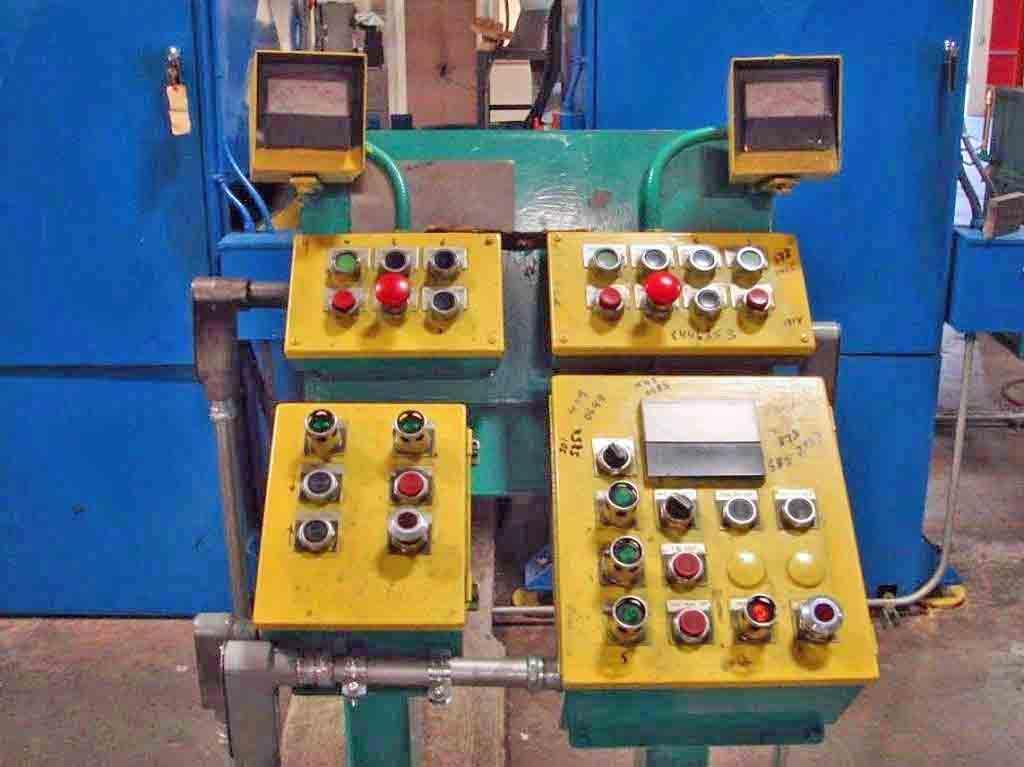

-Electrical Controls:
Main Control Console
AC Panel |
