SURFACE ENGINEERING PROFILE BRUSH & POLISHING LINE / COPPER & BRASS & ALUMINUM / BAR / PROFILE # NEW 2004

SPECIFICATIONS:

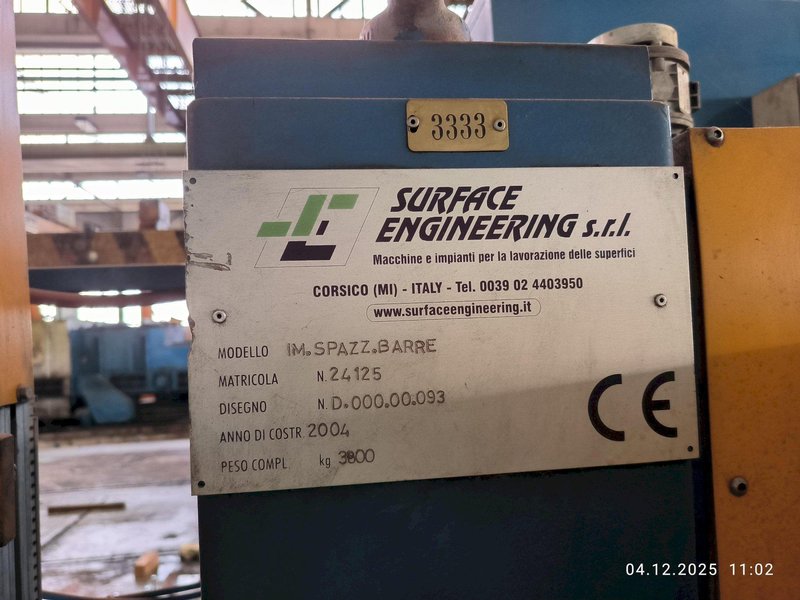

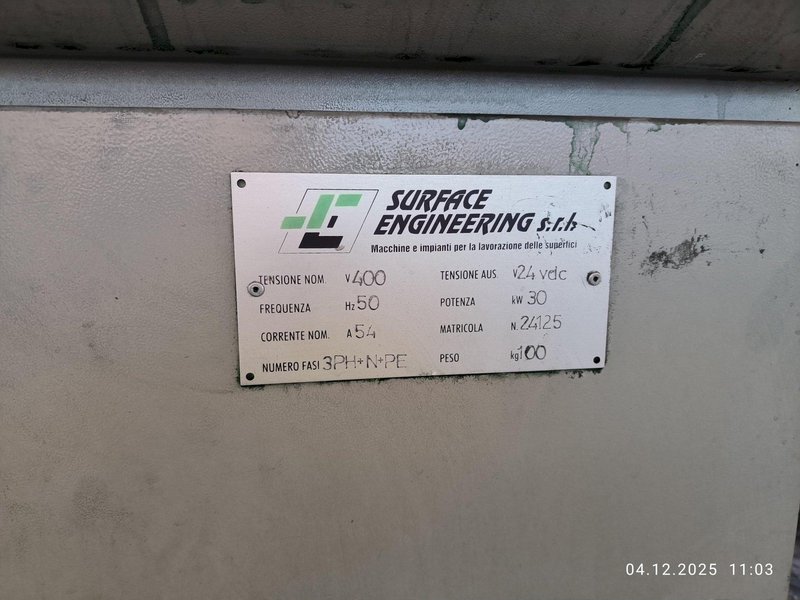

MANUFACTURER - SURFACE ENGINEERING
TYPE - SPECIAL
YOM - 2004
MACHINENUMBER - 24.125

MATERIAL LENGTH - MAX. APROX. 10M
MATERIAL WIDTH - MAX. APROX. 100MM

BRUSH DIMENSIONS - BORE: 50MM / RECEIVER/CAM OD: 150MM / BRUSH OD: 350MM / MAX. BRUSH WIDTH: 50MM

POWER SUPPLY - 400V@50HZ / SUPPORT VOLTAGE 110V / POWER CONSUMPTION APROX. 30KW

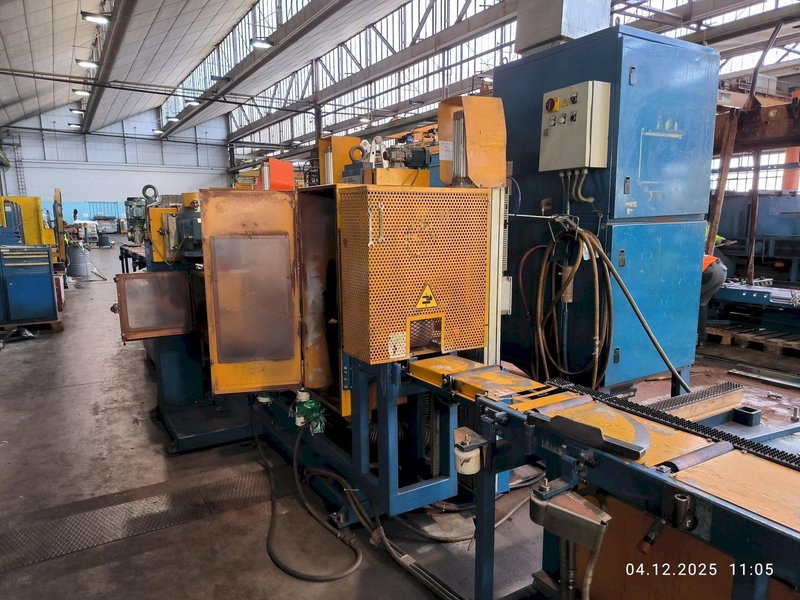

PNEUMATICALLY ENGAGED TOP SIDE PINCH ROLL + EDGE GUIDING ROLLS AT ENTRY AND EXIT OF EACH BRUSHING STATION

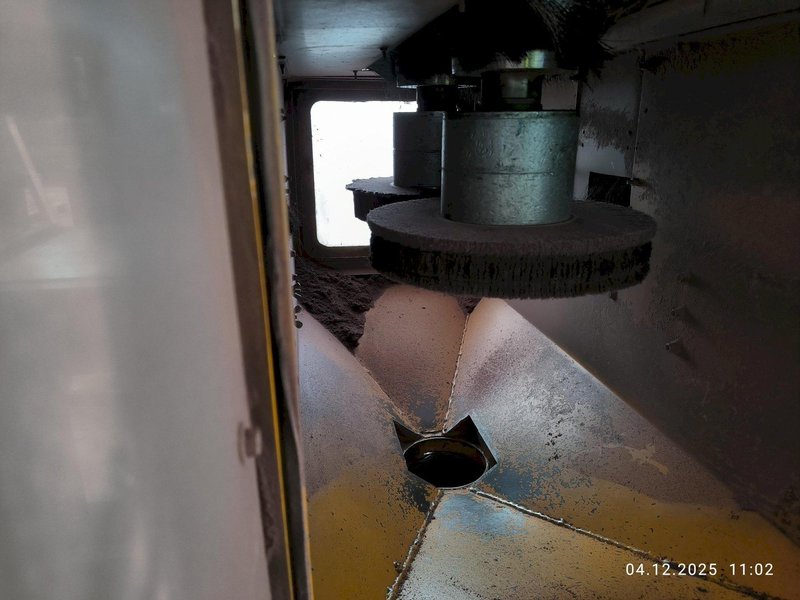

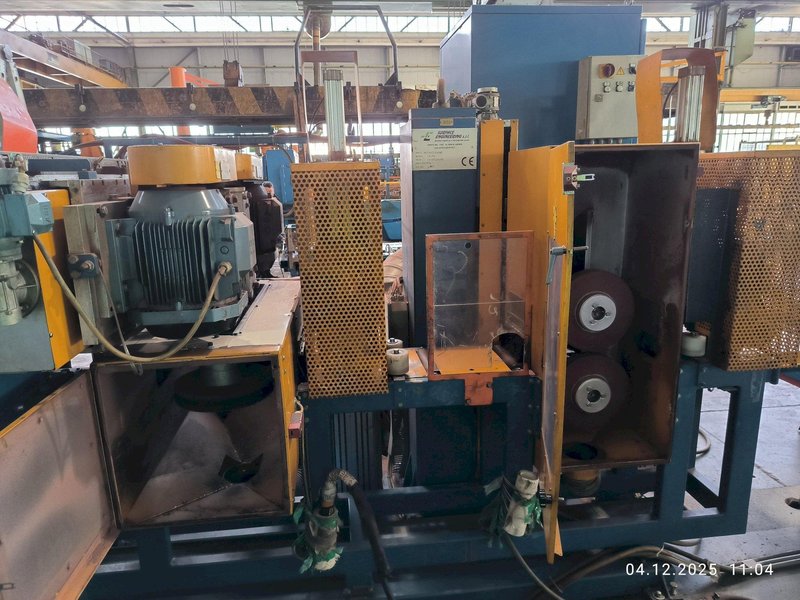

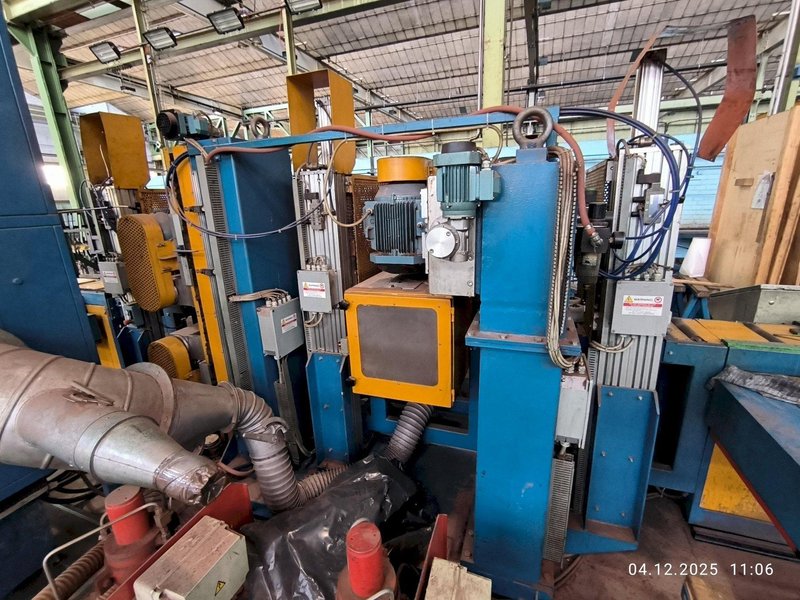

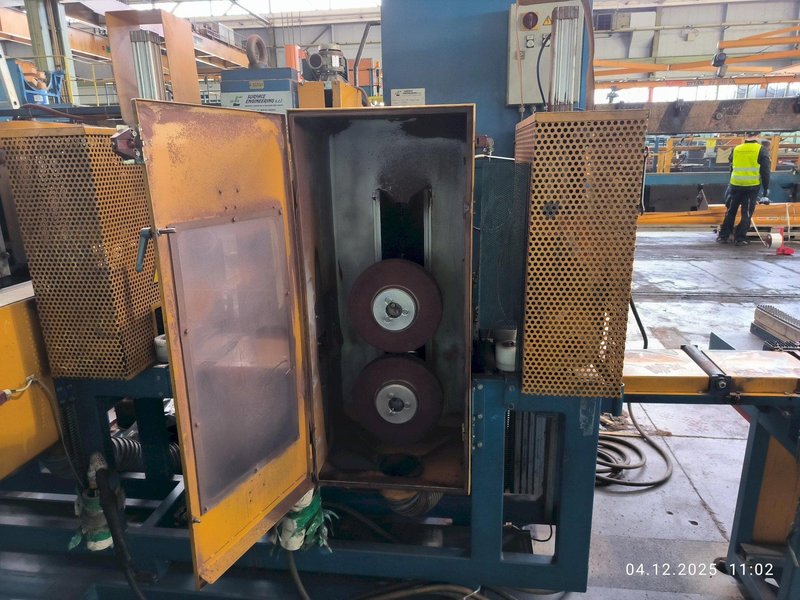

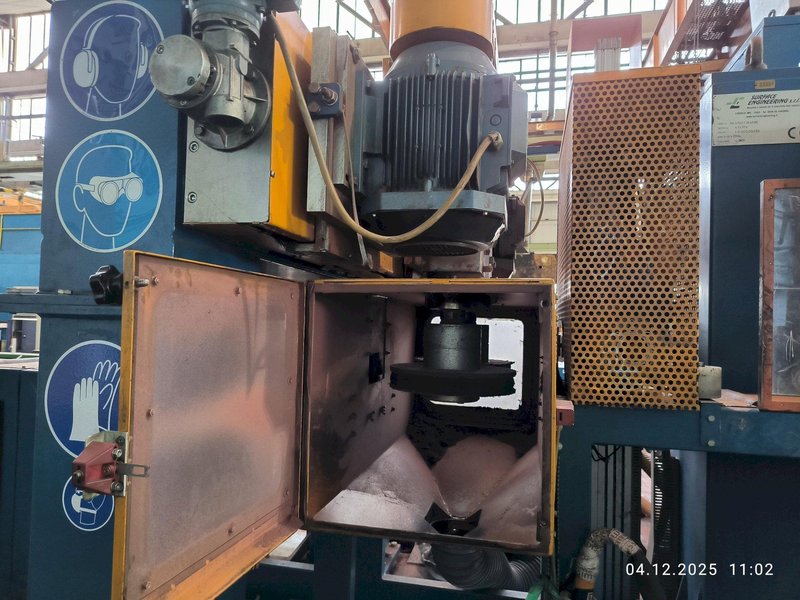

FIRST BRUSHING STATION - VERTICAL BRUSHING STATION WITH TWO BRUSHES / HEIGHT ADJUSTMENT VIA MOTOR + SPINDLE DRIVE

SECOND BRUSHING STATION - HORIZONTAL BRUSHING STATION WITH TWO BRUSHES / HEIGHT ADJUSTMENT VIA MOTOR + SPINDLE DRIVE

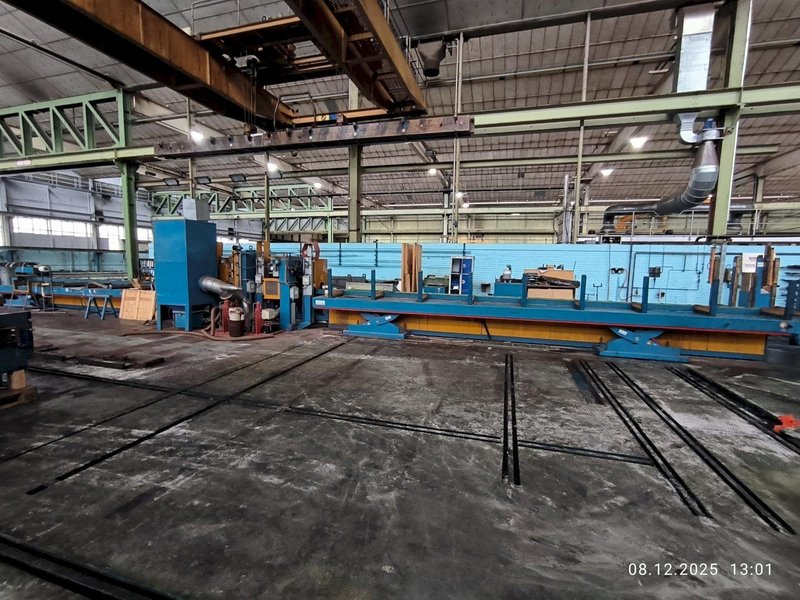

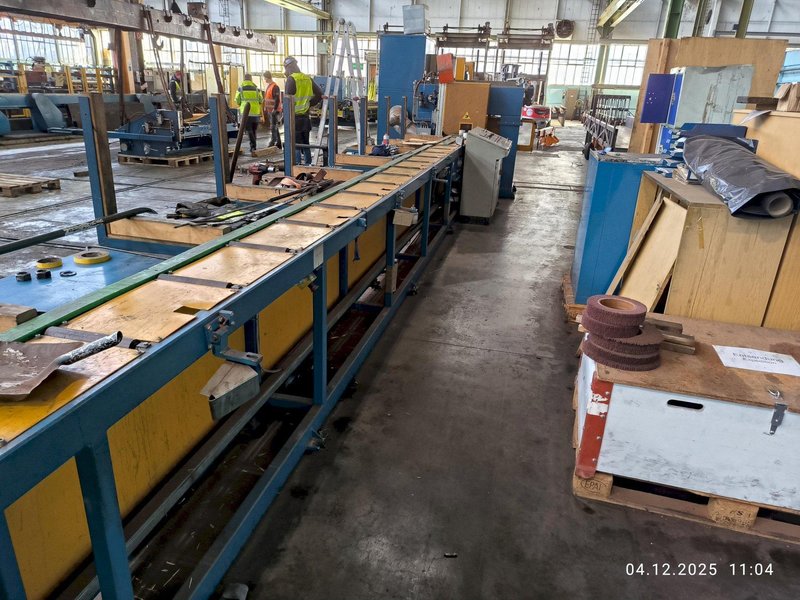

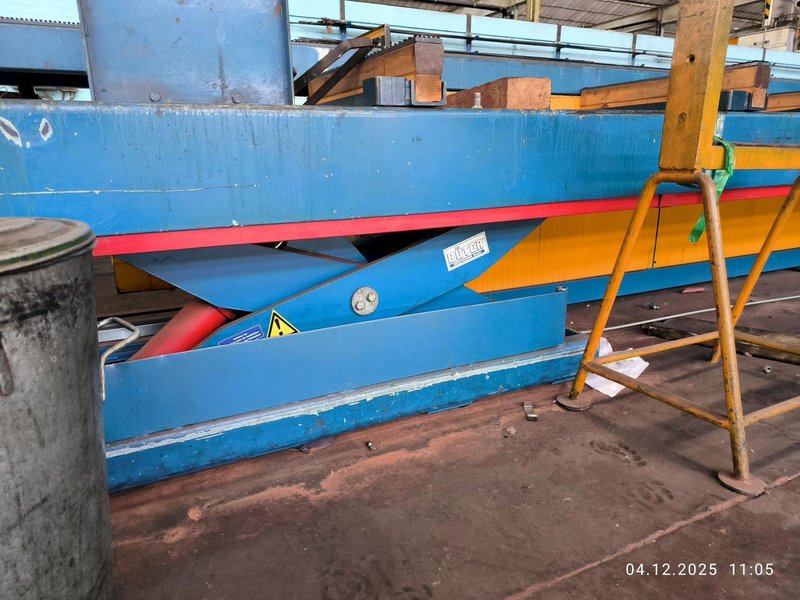

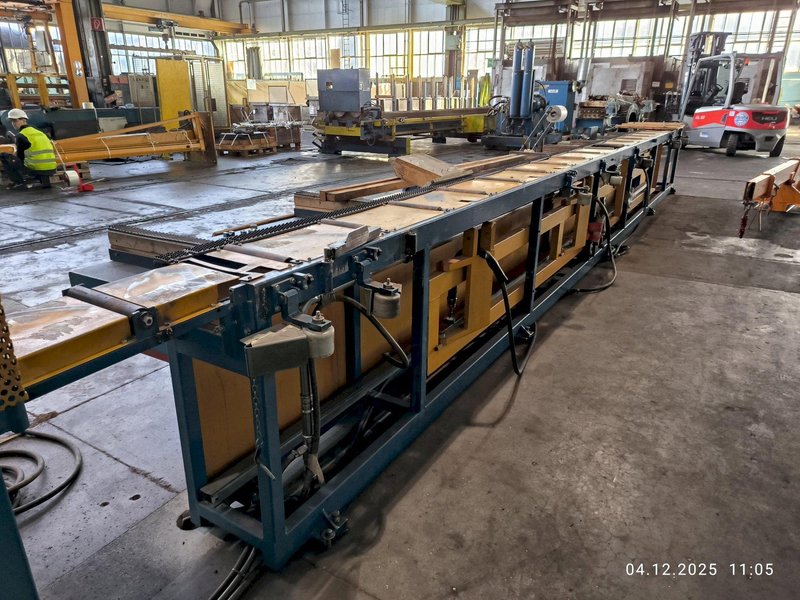

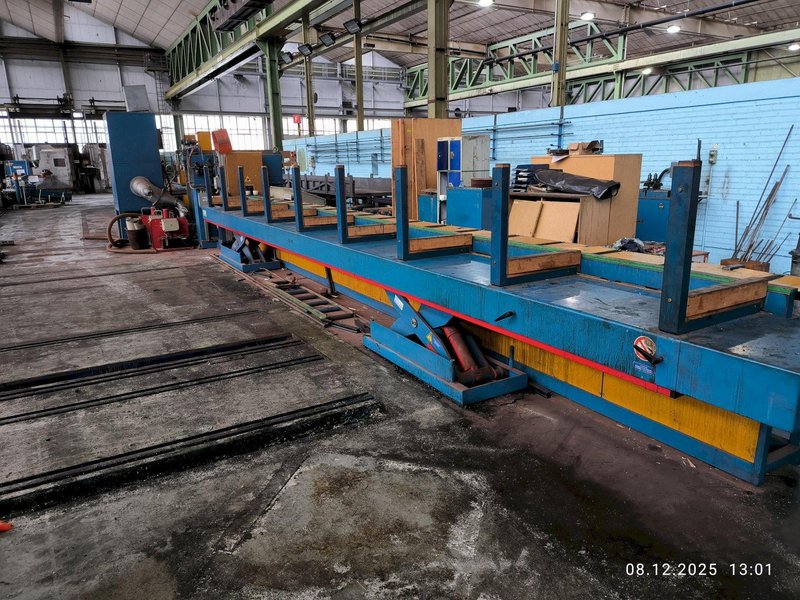

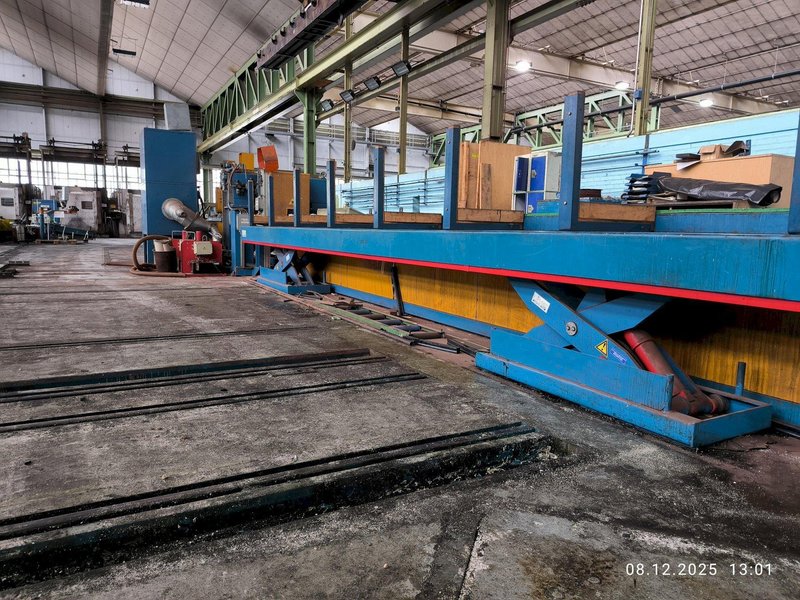

ENTRY AND EXIT SECTION ROLLER TABLE HYDRAULIC LIFTING TABLE:
MANUFACTURER - BUETER HEBETECHNIK
LIFTING CAPACITY - 4000KG
LIFTING HEIGHT - 960MM
LIFTING TABLE DIMENSIONS - 8500MM x 600MM
WORKING PRESSURE - 211BAR

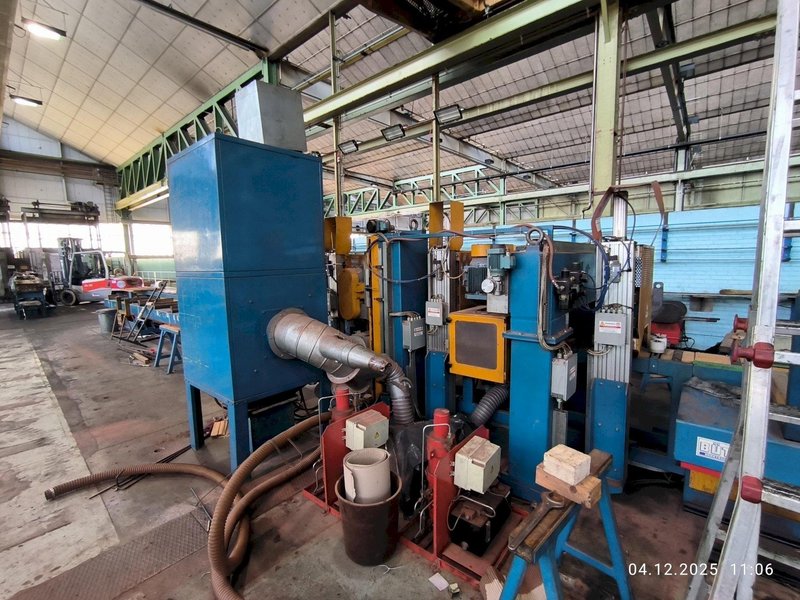

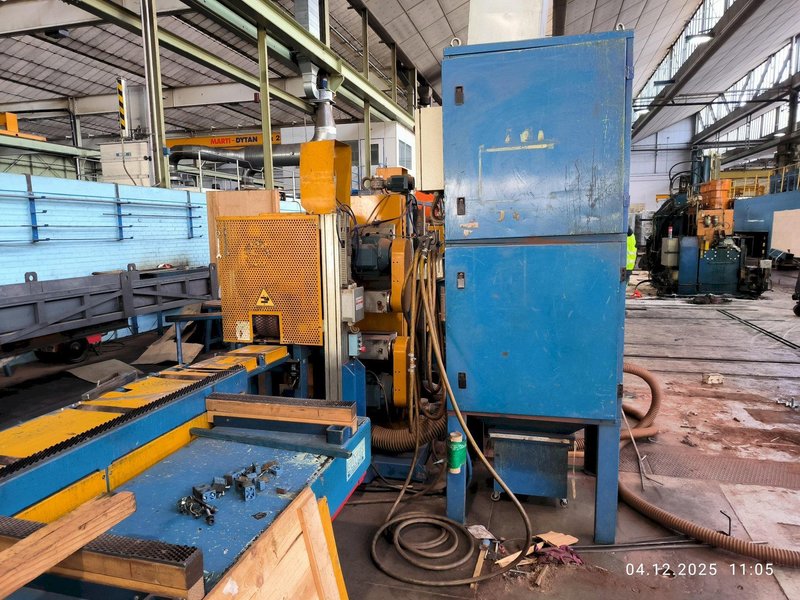

PARTICLE EXHAUST AND FILTRATION SYSTEM:
MANUFACTURER - HASCON ENGINEERING SPA.
TYPE - PC4/TV-Q - CARTRIDGE FILTER SELF-CLEANING BY COMPRESSED AIR
YOM - 2004
FLOW-RATE - 4000M³ PER HOUR
