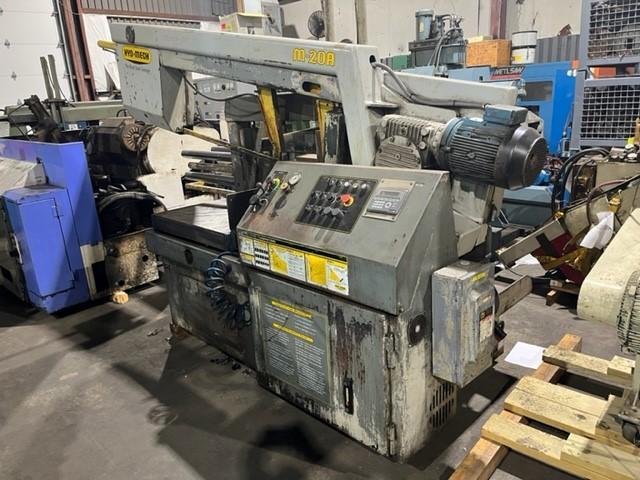

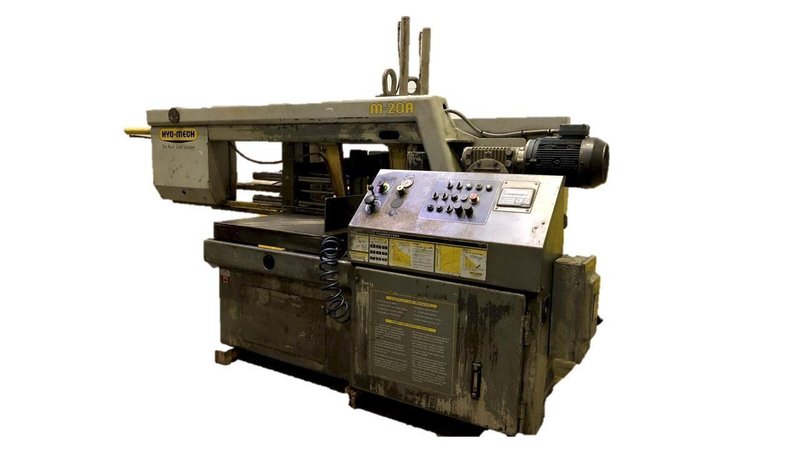

20" X 30" HYDMECH MODEL #M20A AUTOMATIC HORIZONTAL BAND SAW WITH POWER MITRE & BUNDLING STOCK #2927
Brand
Category
Model
M20A
Stock #
2927
Year
2001
Condition
Good
Location
Ohio
|
SERIAL .......................... T0801249
MODEL ........................... M20A
YEAR NEW ........................ 2001
CAPACITY @ 90 DEGREES ........... 20" W X 30" H
CAPACITY @ 45 DEGREES ........... 18" W X 20" H
BLADE SPEEDS (VARIABLE) ......... 50 TO 350 SFPM
BLADE SIZE ...................... 20'6" X 1-1/2"
CUTTING FORCE ................... 0 TO 500 LBS.
CLAMPING FORCE (VARIABLE) ....... 150 TO 900 PSI
MAXIMUM WORK LOAD ............... 8000 LBS.
SHUTTLE STROKE ................... 0 TO 33" (220" MAXIMUM)

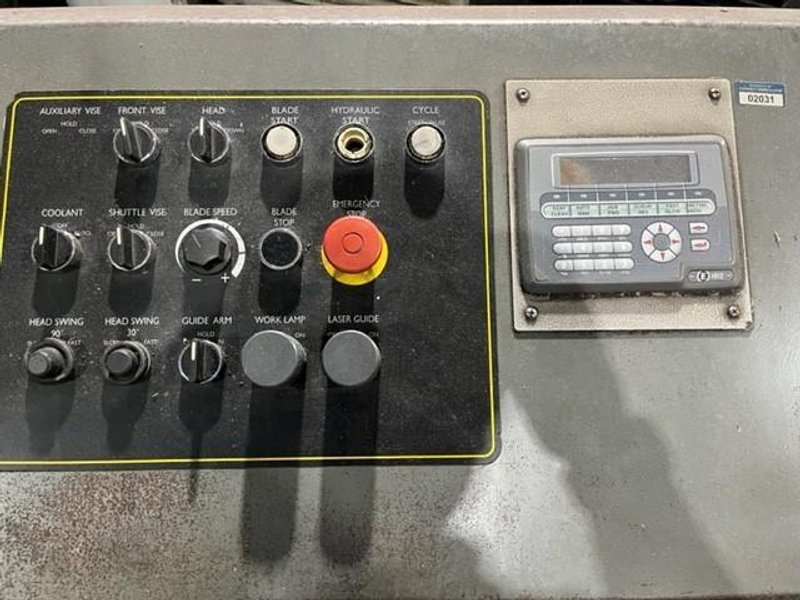

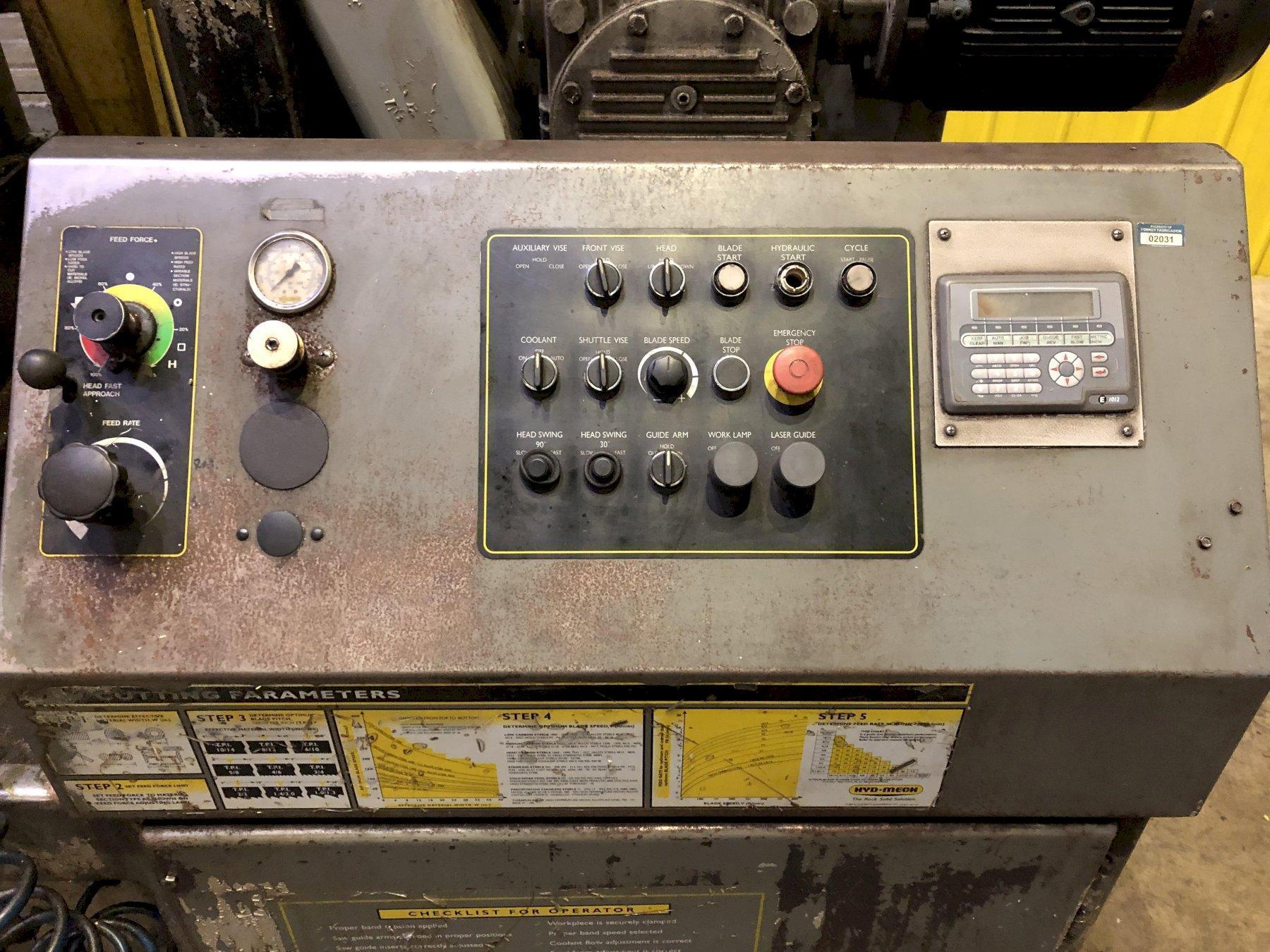

OPERATOR'S CONSOLE ............... DIGITAL ANGLE DISPLAY
VISE & BLADE TENSION ............. HYDRAULIC
CHIP AUGER CONVEYOR .............. HYDRAULIC
MITERING ......................... POWER
BUDDLE CUTTING ................... NESTING
PLC CONTROL ...................... 200
COOLANT .......................... YES
HYDRAULIC MOTOR .................. 3 HORSEPOWER
BLADE MOTOR ...................... 10 HORSEPOWER |
