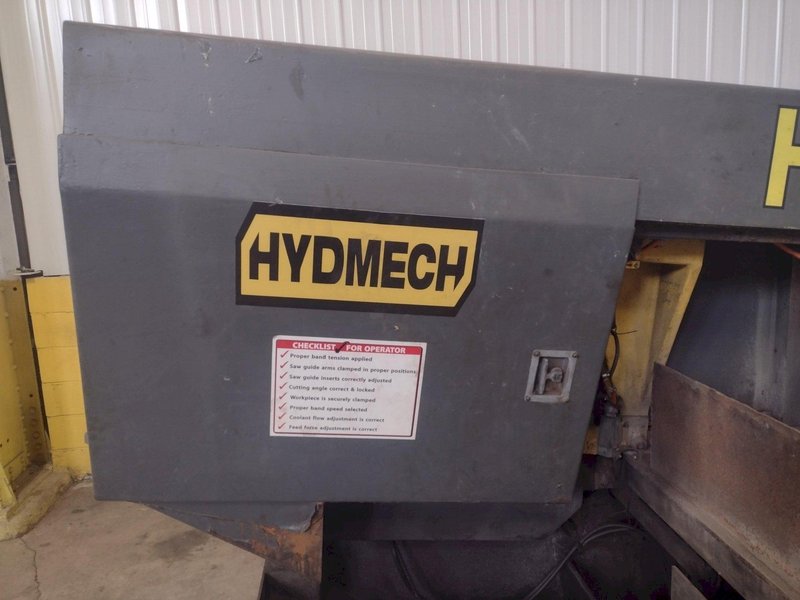

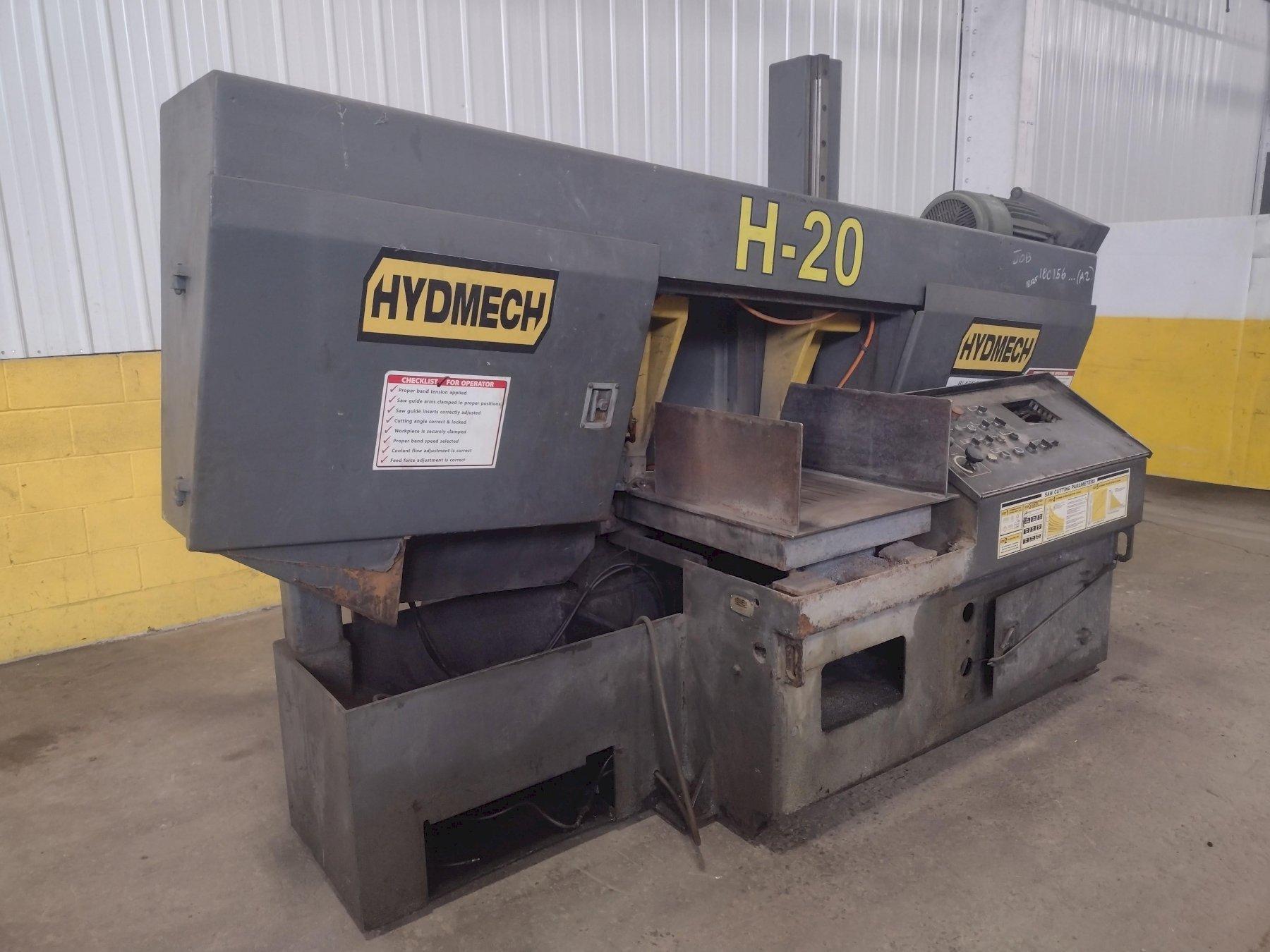

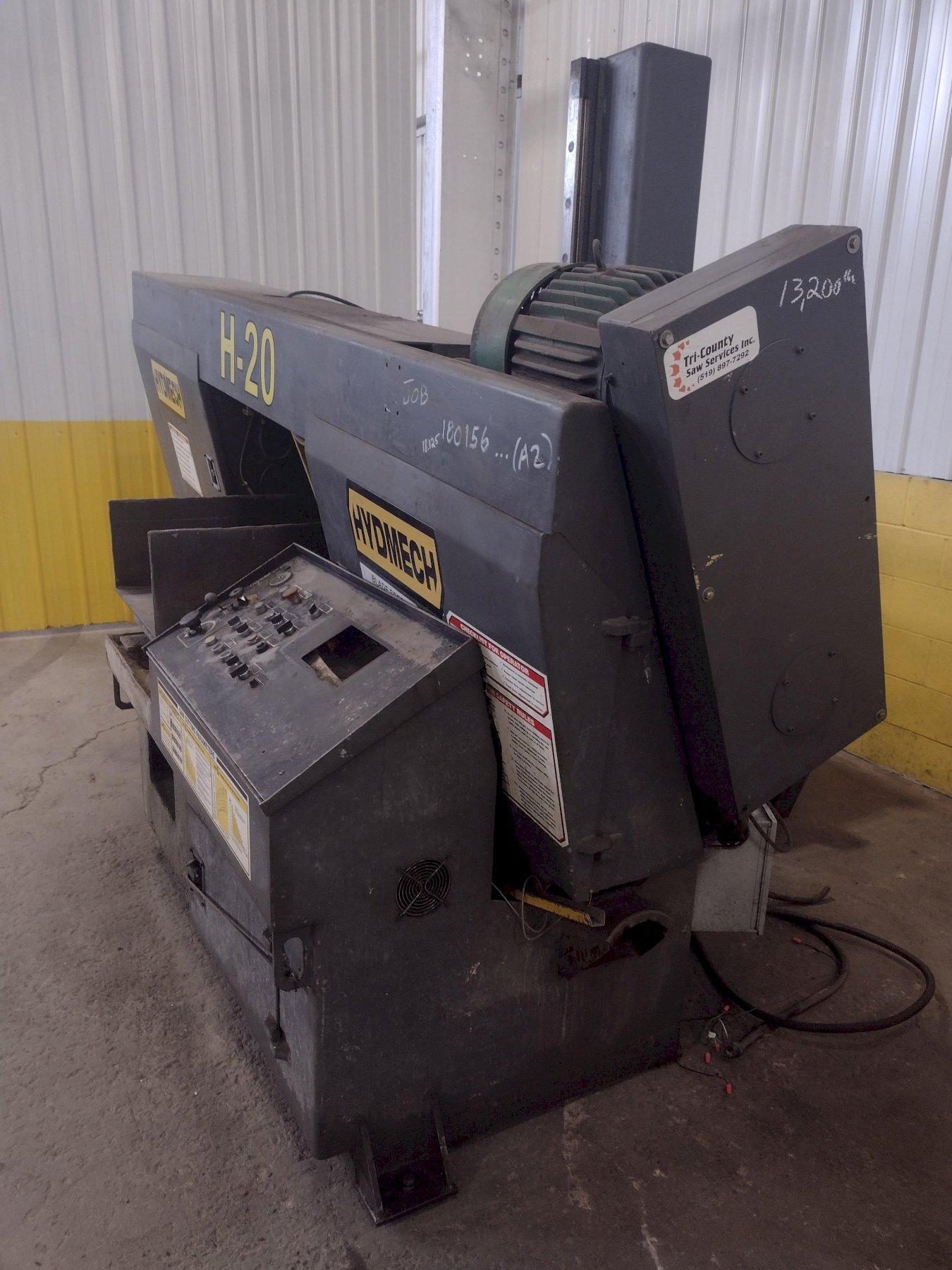

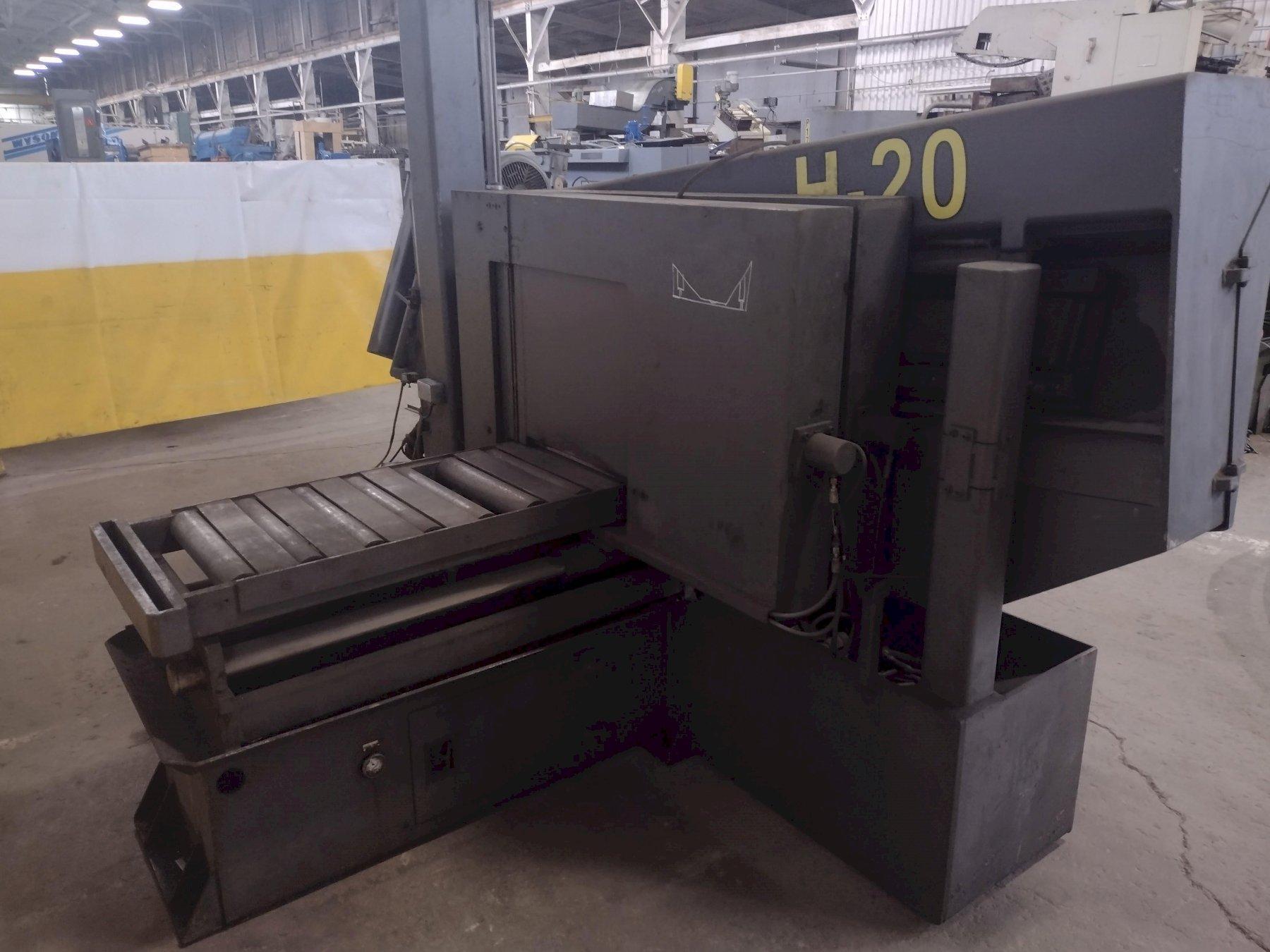

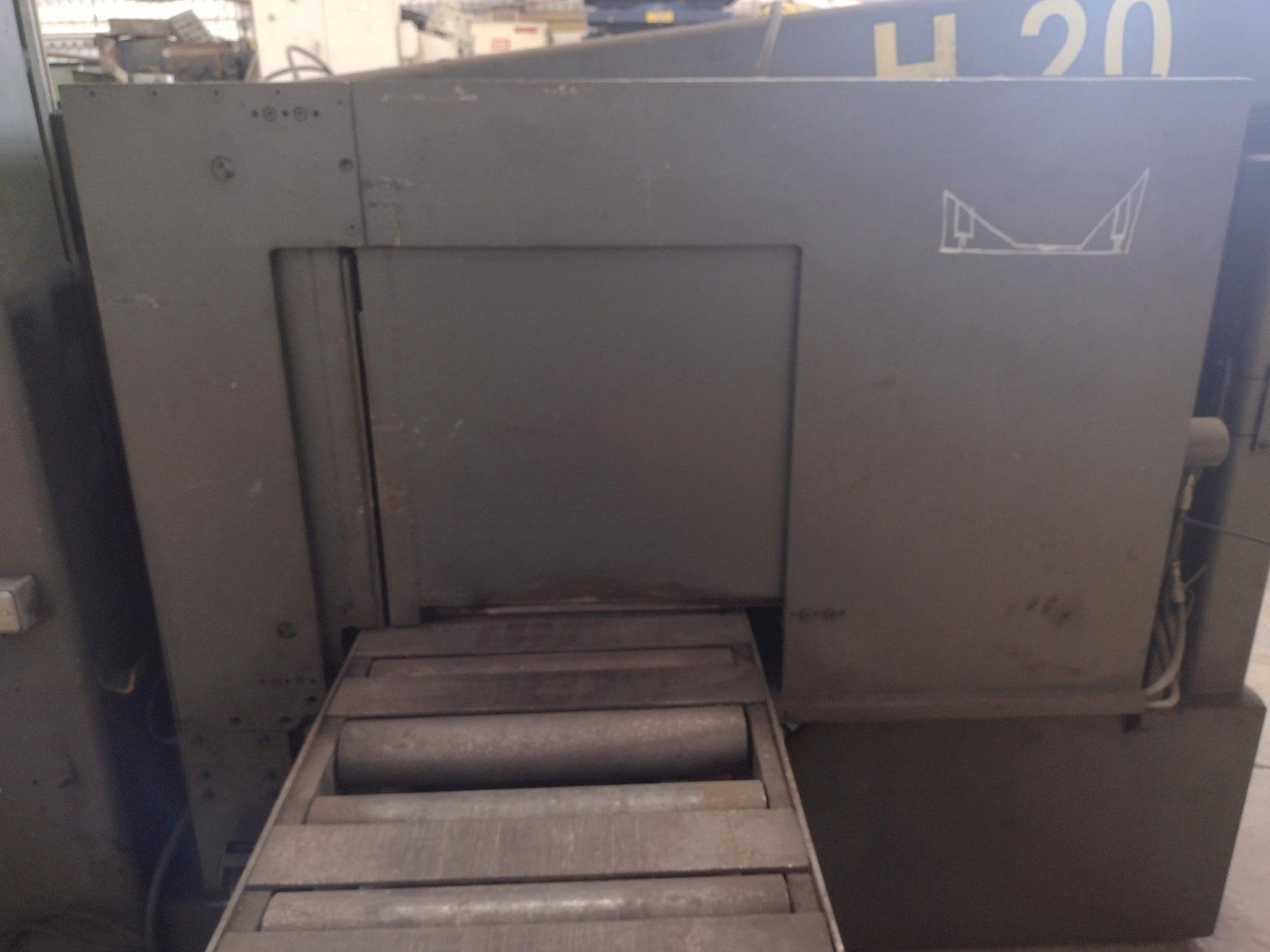

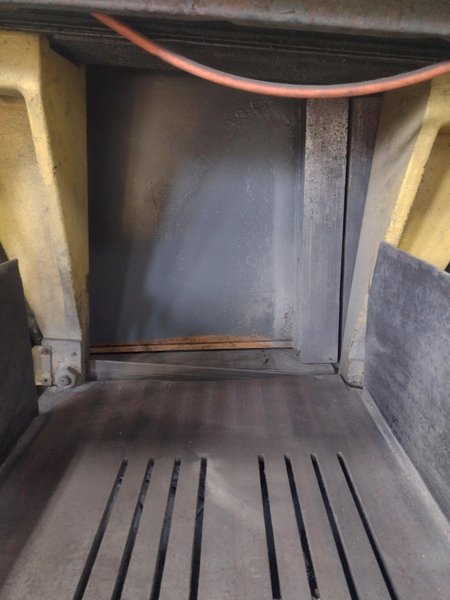

20" X 20" HYD-MECH MODEL #H-20AC AUTOMATIC HORIZONTAL BAND SAW STOCK #2924
Brand
Category
Model
H20AC
Stock #
2924
Year
Not specified
Condition
Not specified
Location
Ohio
|

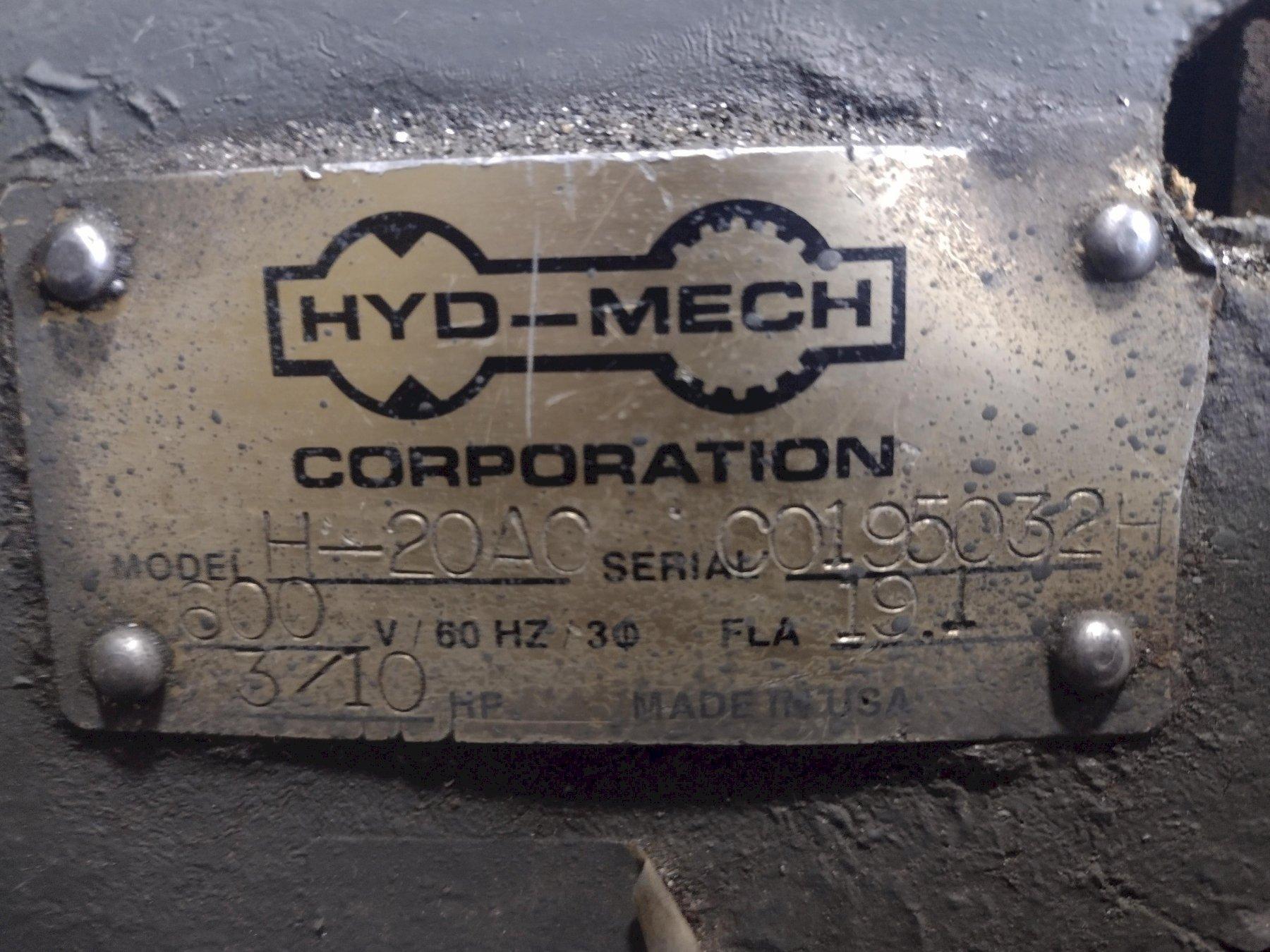

SERIAL C0195032H

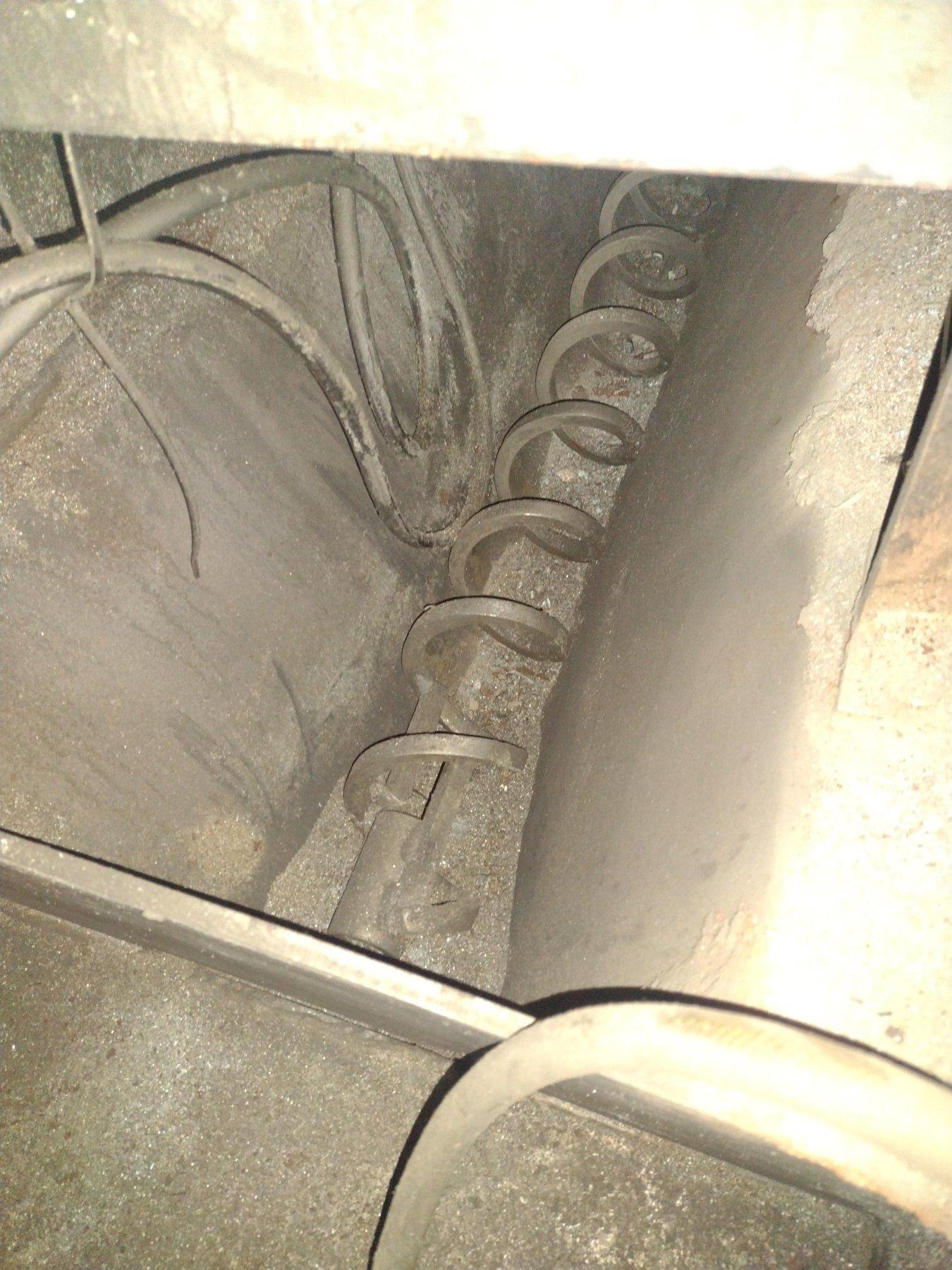

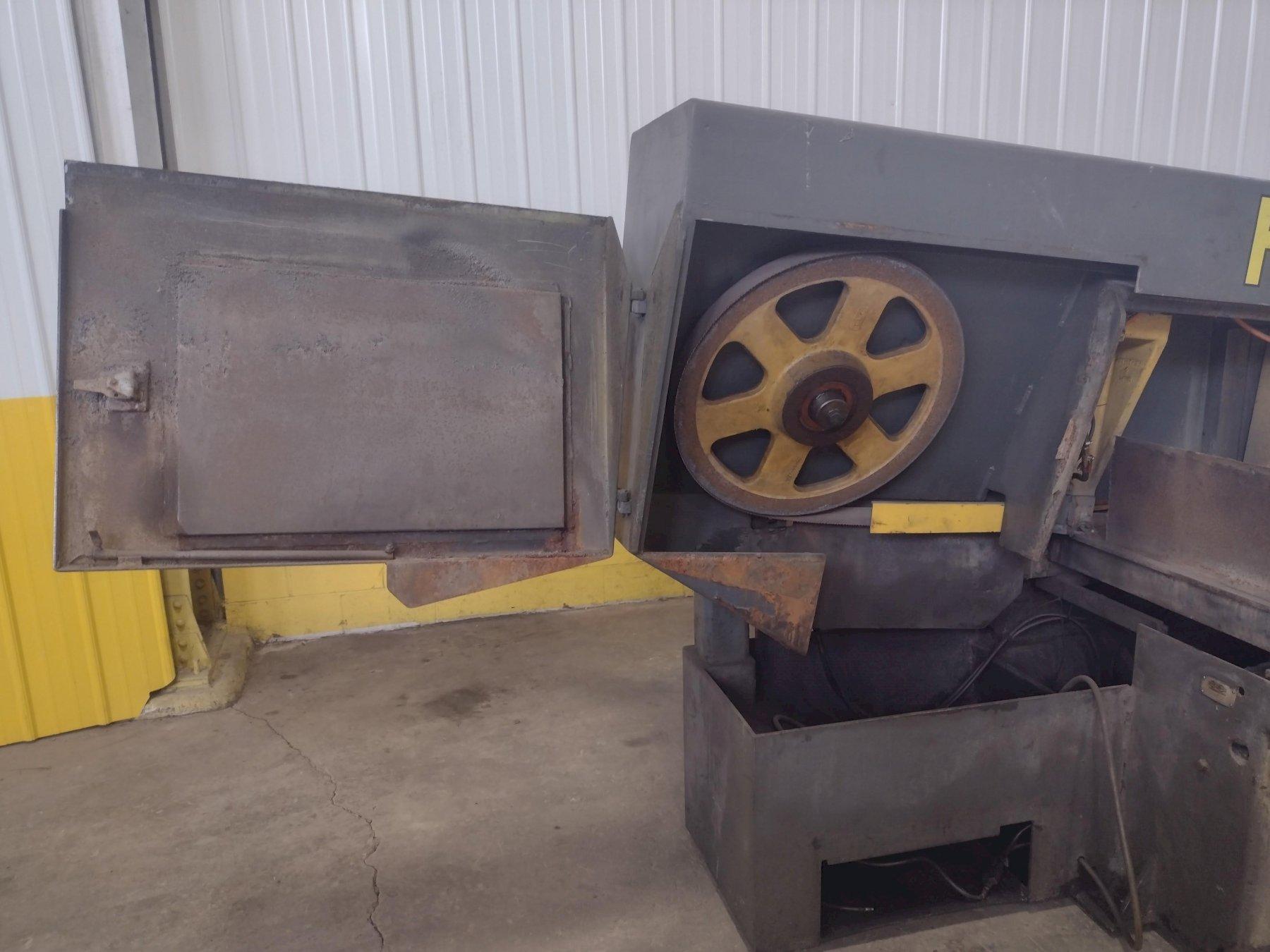

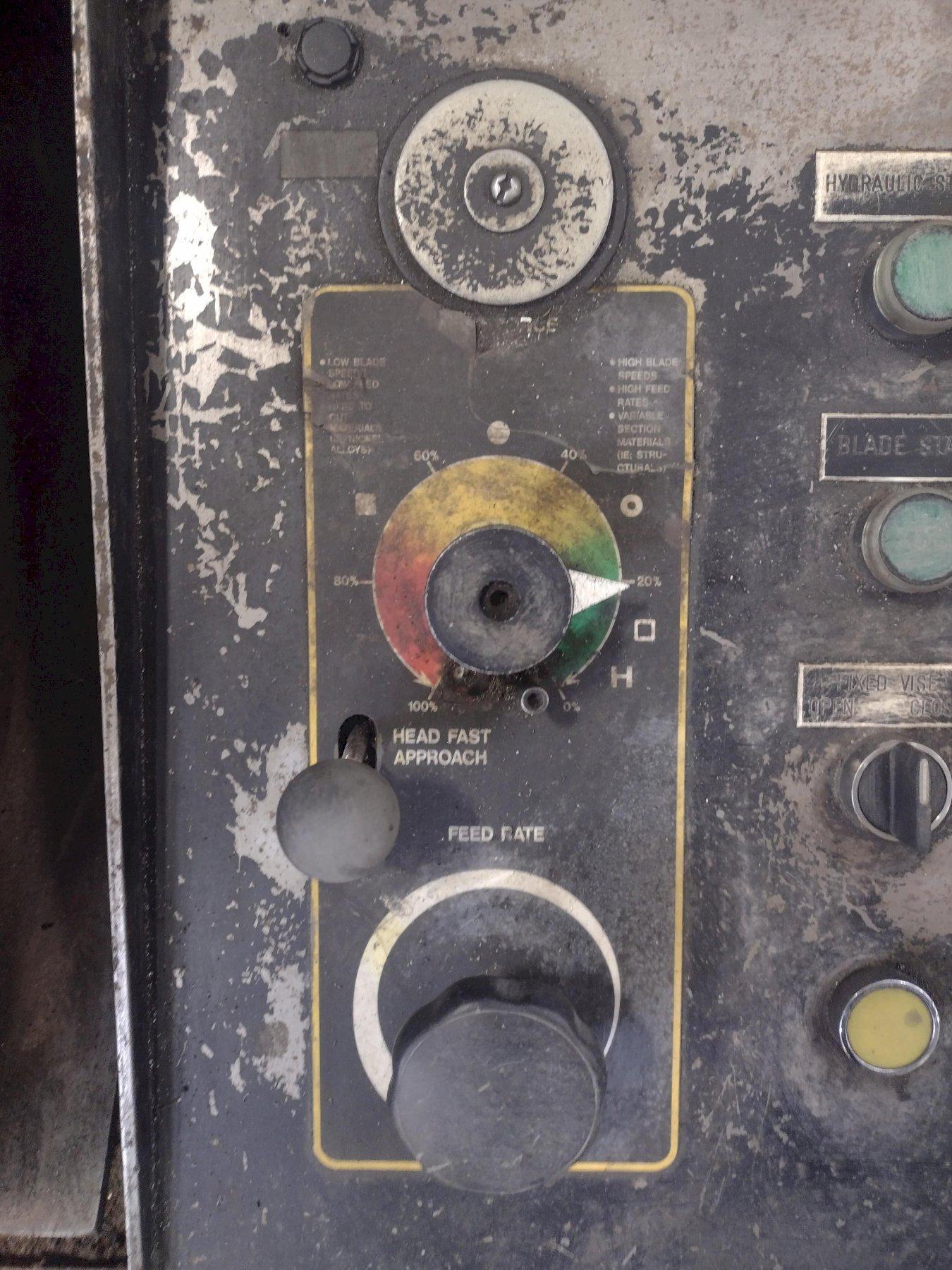

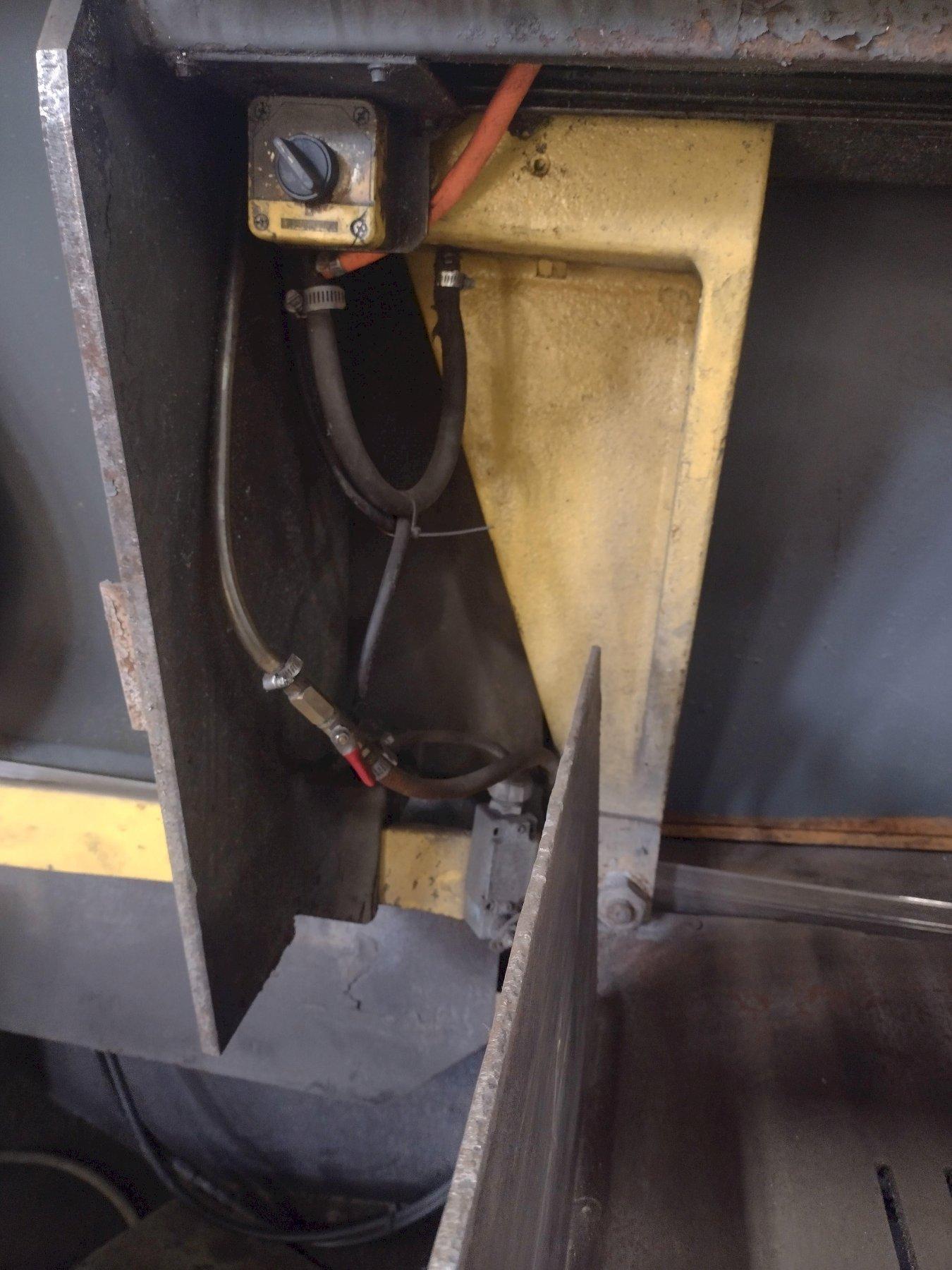

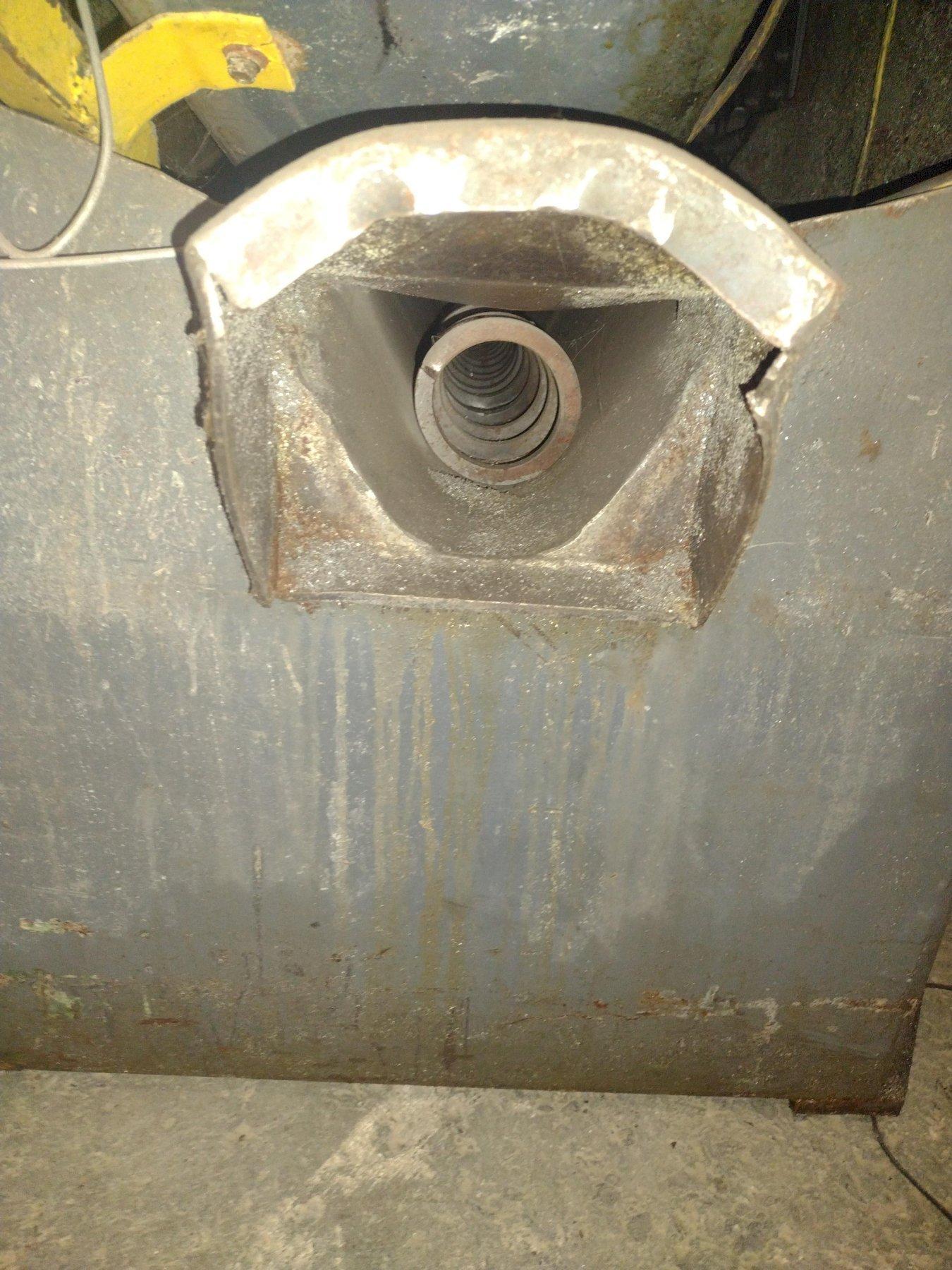

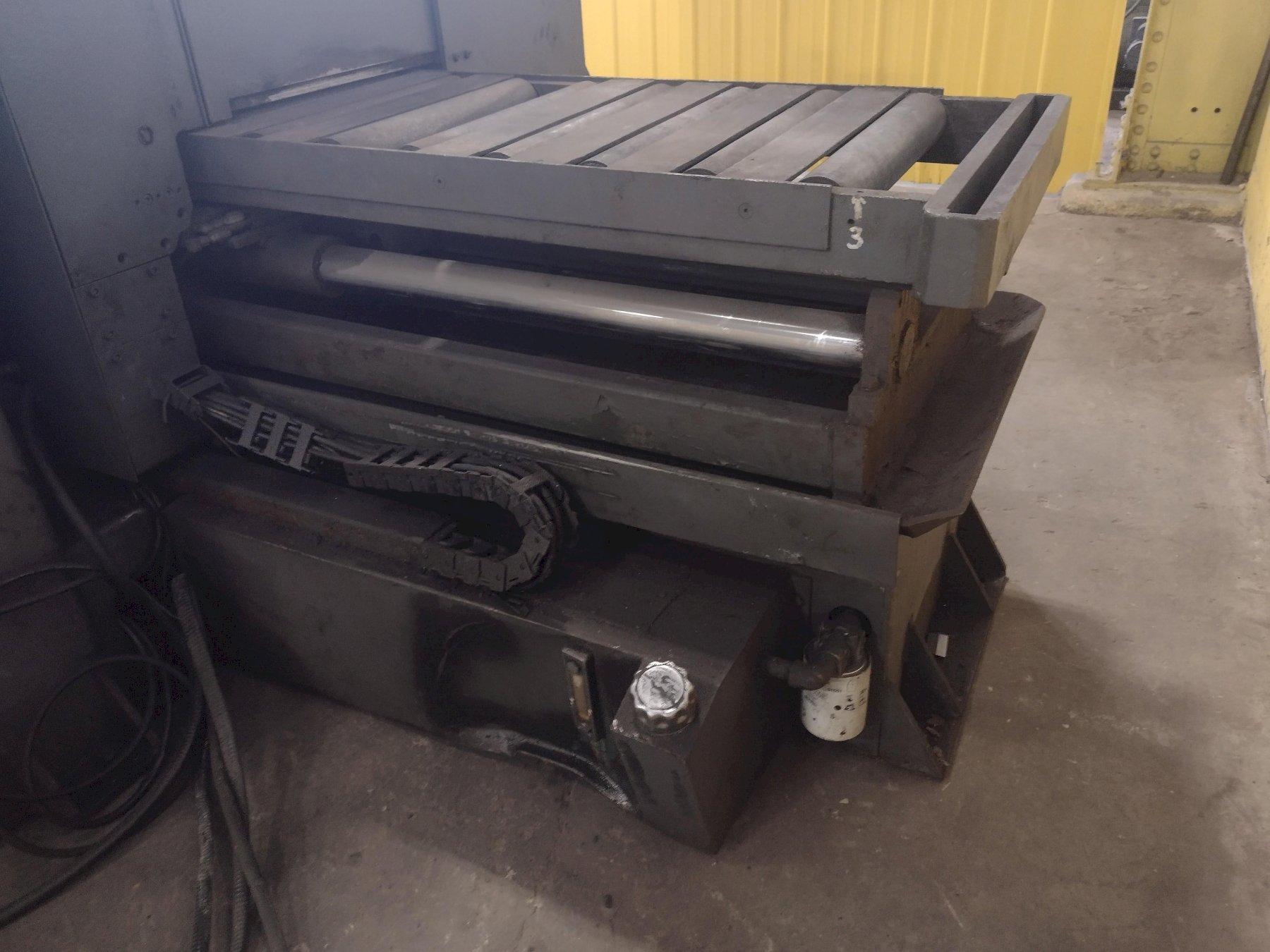

MODEL H20AC EQUIPPED WITH: HYD-MECH PLC PROGRAMMABLE CONTROL W/INDEPENDENT AND VARIABLE CONTROL OF HEAD FEED RATE AND FEED FORCE AUTOMATIC MULTI-INDEXING UP TO 35" IN A SINGLE STROKE 10-HP DIRECT BLADE DRIVE AUTOMATIC CHIP REMOVAL AUGER HYDRAULIC BLADE TENSION - HYDRAULIC VISE CONTROL CATALOG SPECIFICATIONS: ROUND STOCK CAPACITY .......... MAXIMUM 20" SQUARE STOCK CAPACITY ......... MAXIMUM 20" X 20" WORKLOAD ...................... MAXIMUM 10000 LBS TABLE HEIGHT .................. 36" BAND LENGTH ................... 22'2" BAND WIDTH .................... 2" BAND THICKNESS ................ 050" BAND CARRIER WHEELS DIAMETER .. 27" BAND SPEEDS VARIABLE ......... 45 TO 265 SFPM SHUTTLE STROKE ............... RANGE 0 TO 35" BLADE MOTOR .................. HORSEPOWER 10 HP HYDRAULIC MOTOR .............. HORSEPOWER 3 HP |
