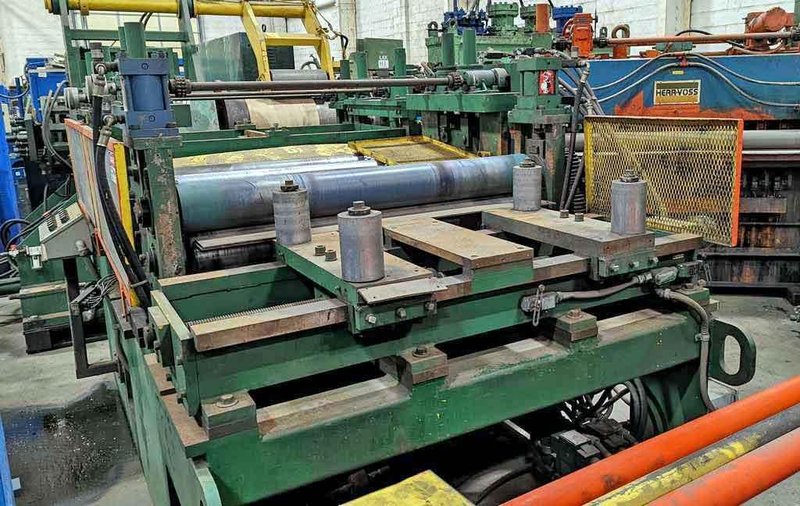

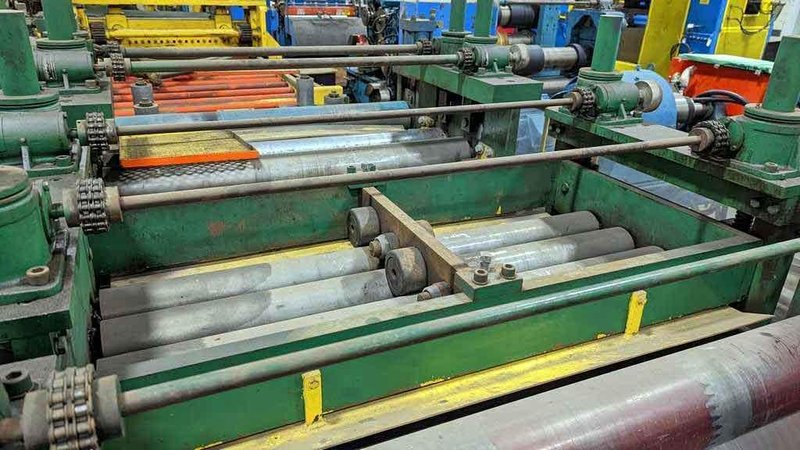

48" x 0.190" x 25,000# Strilich Cut To Length Line
Brand
Category
Type
Model
Not specified
Stock #
2863
Year
1985
Condition
Good
Location
Ohio
|

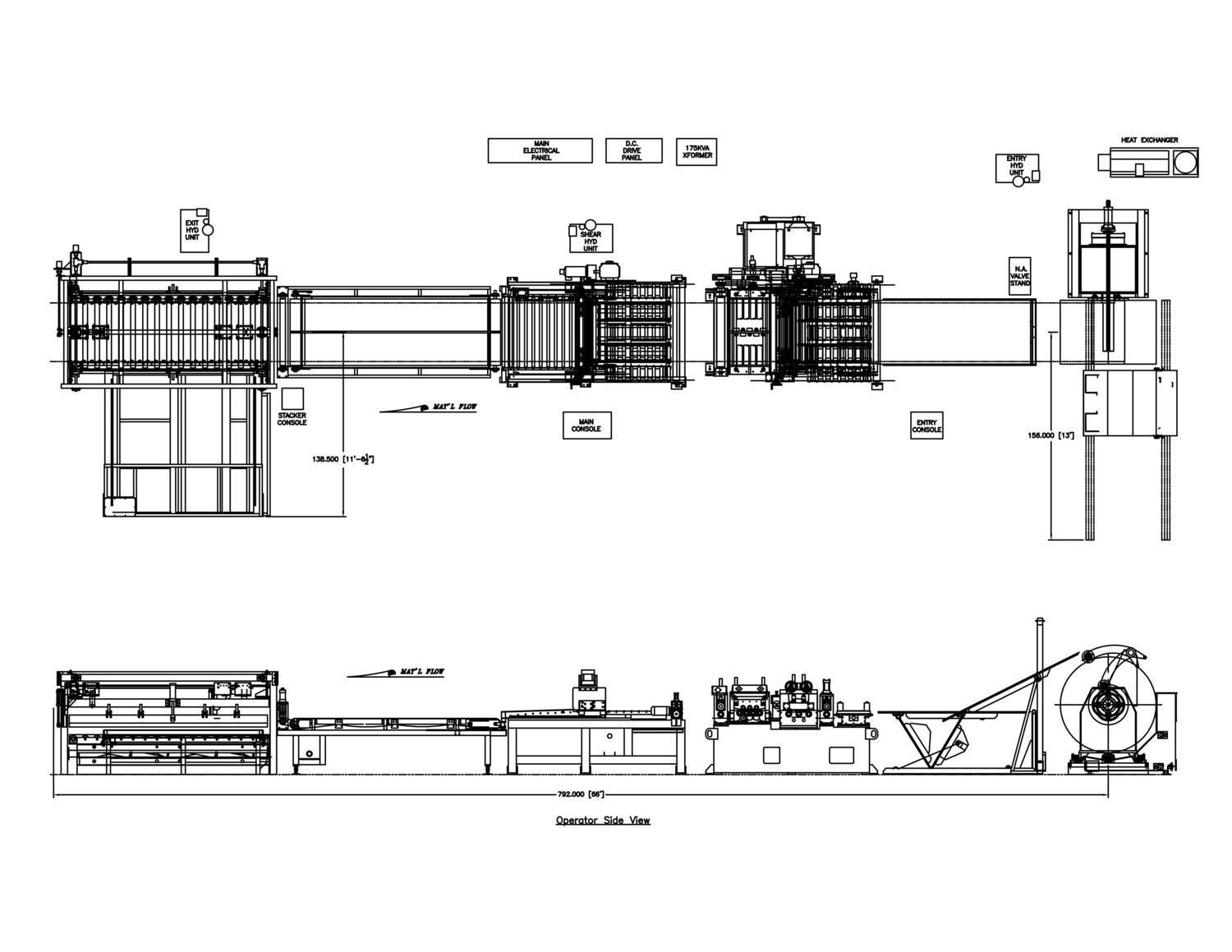

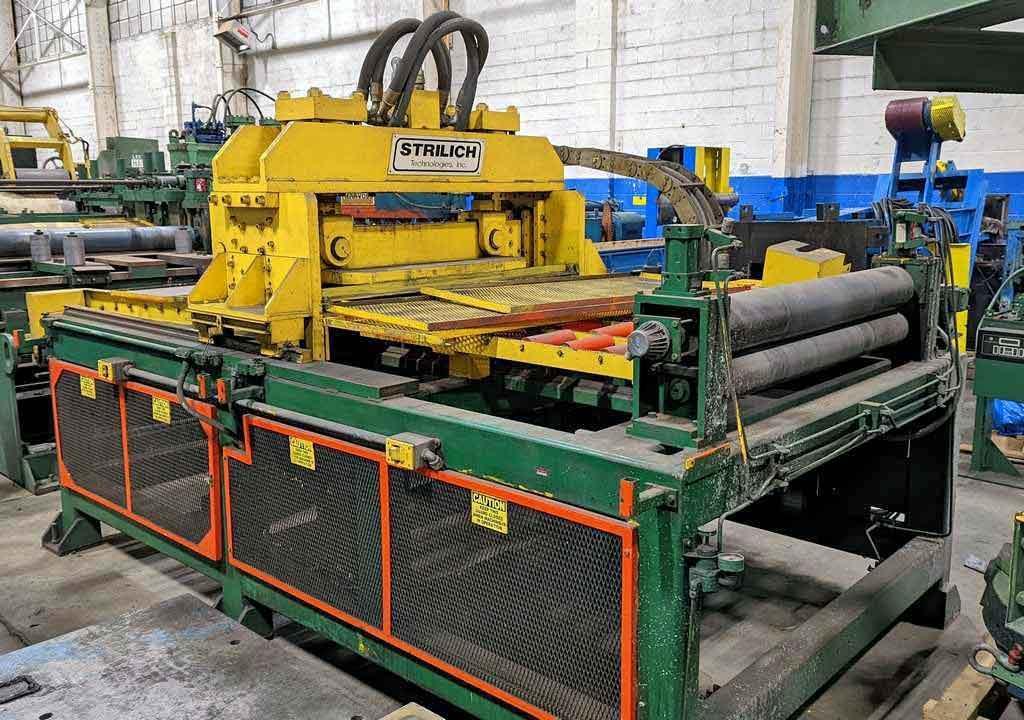

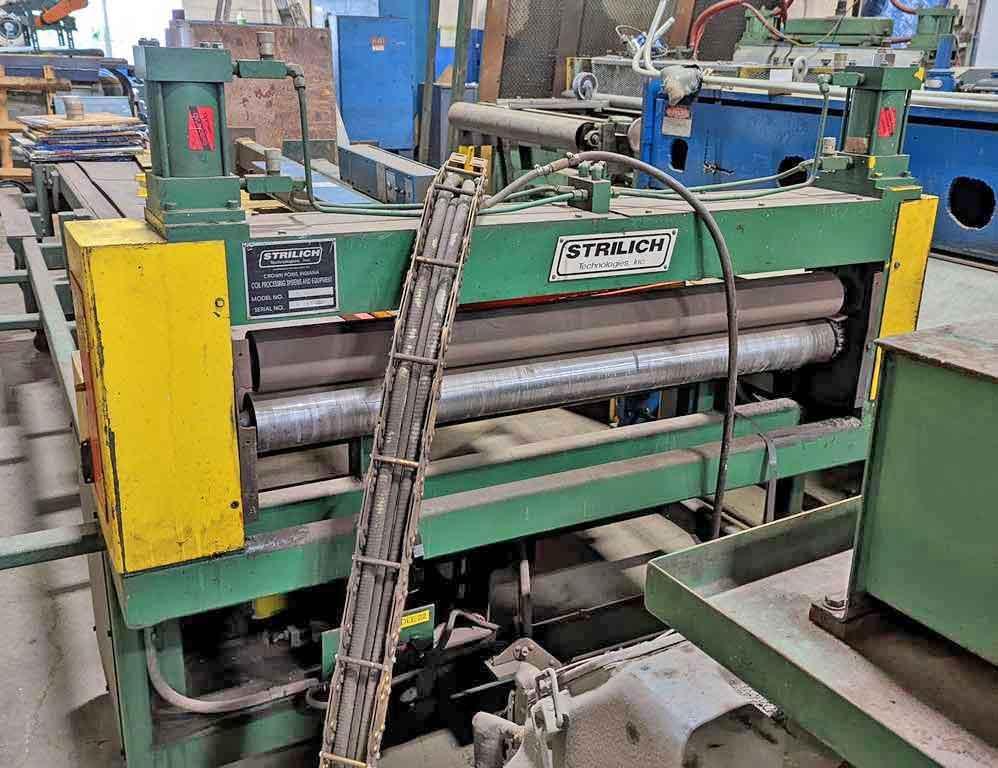

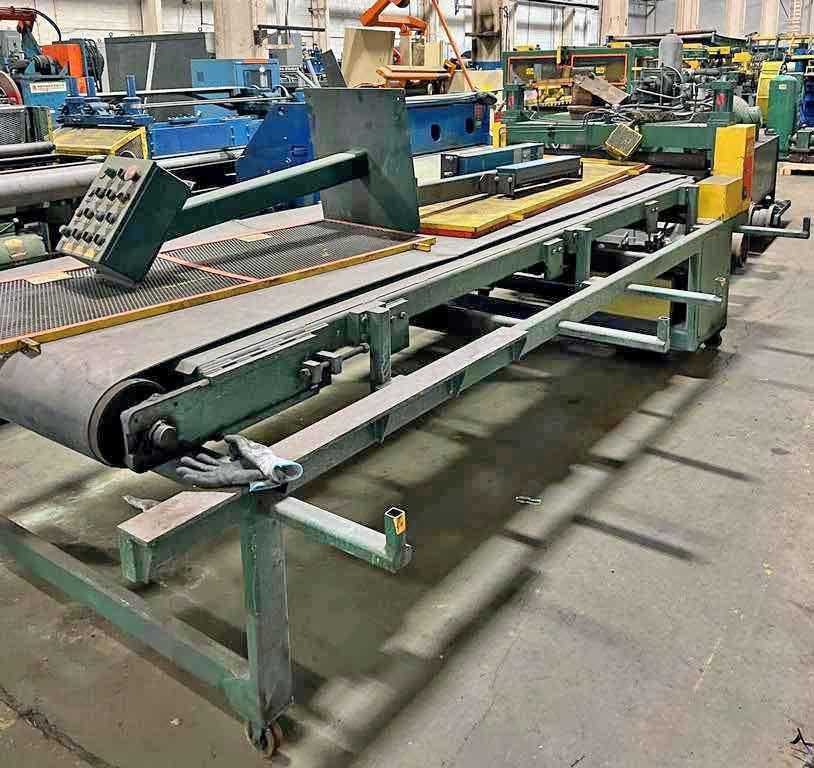

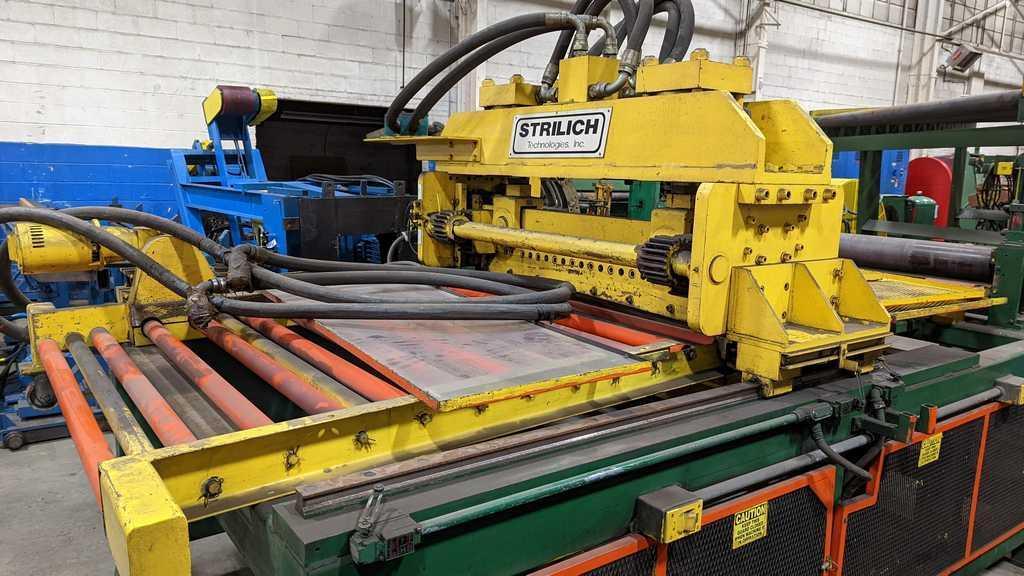

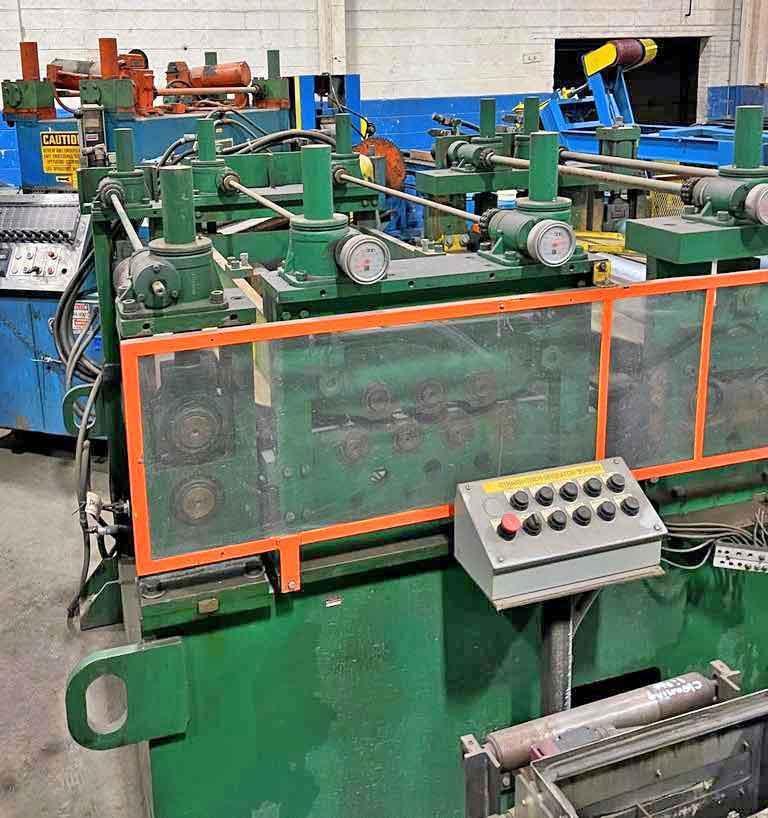

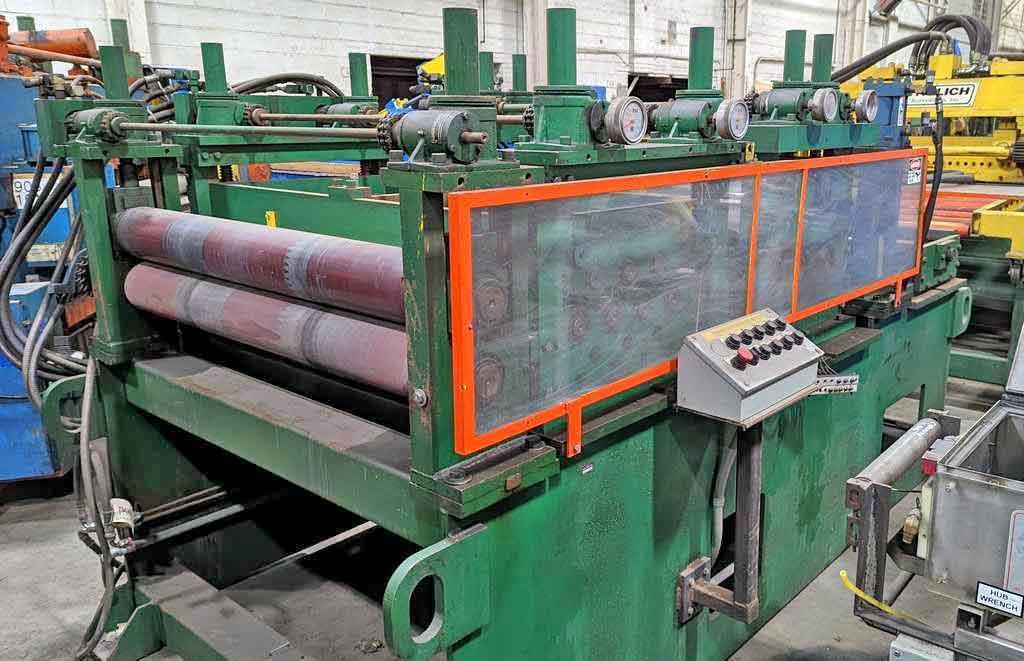

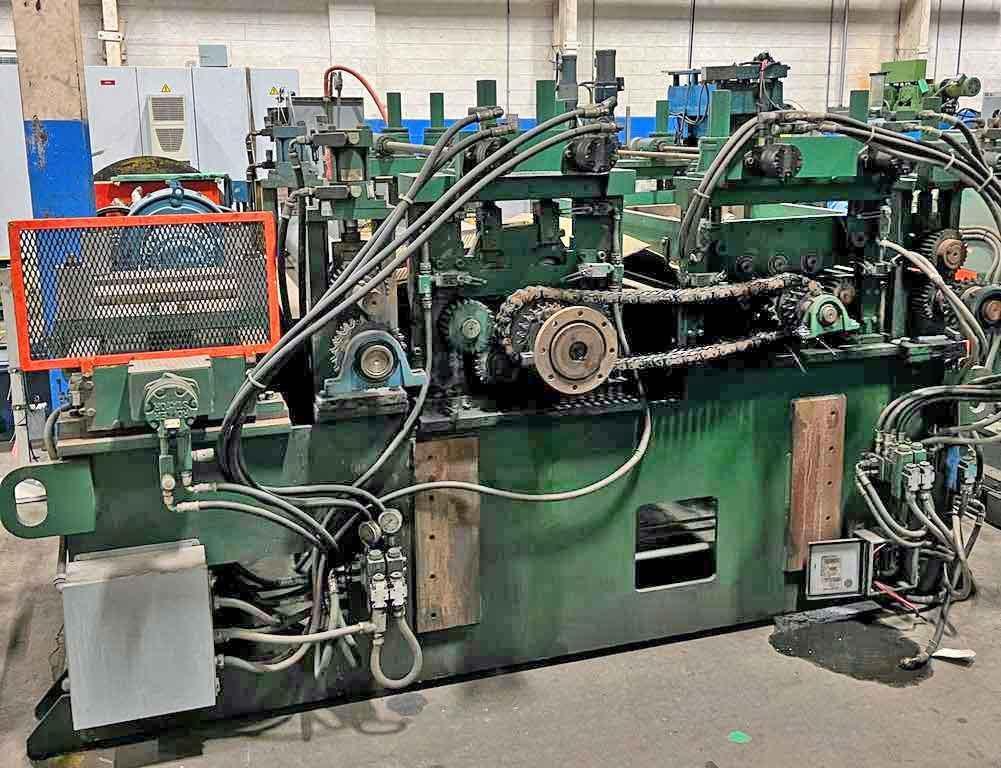

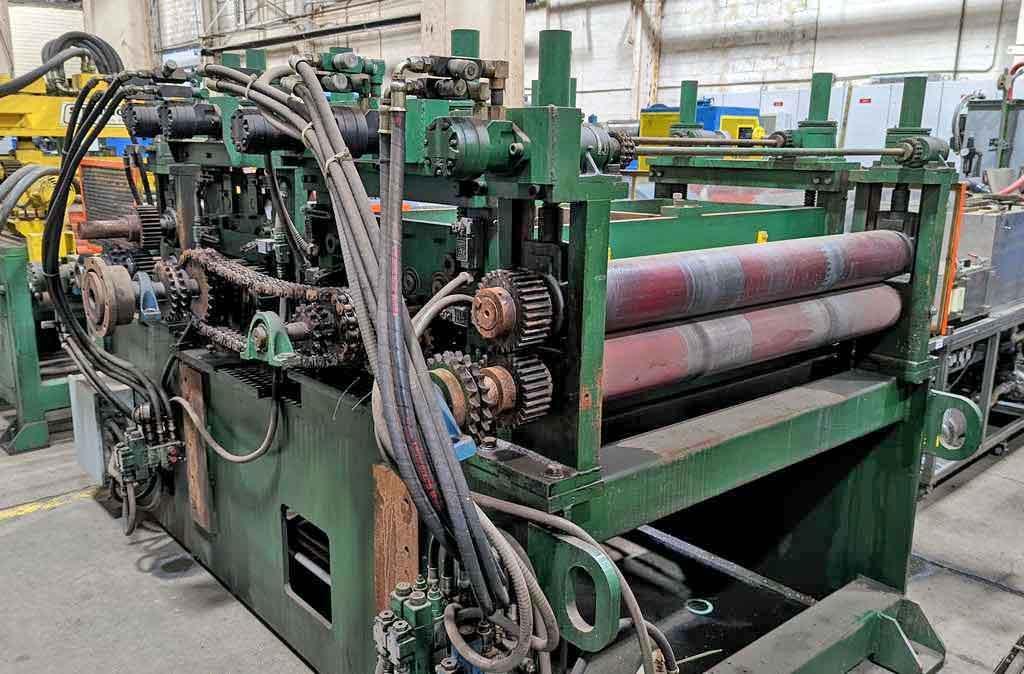

Strilich Cut-to-Length Line

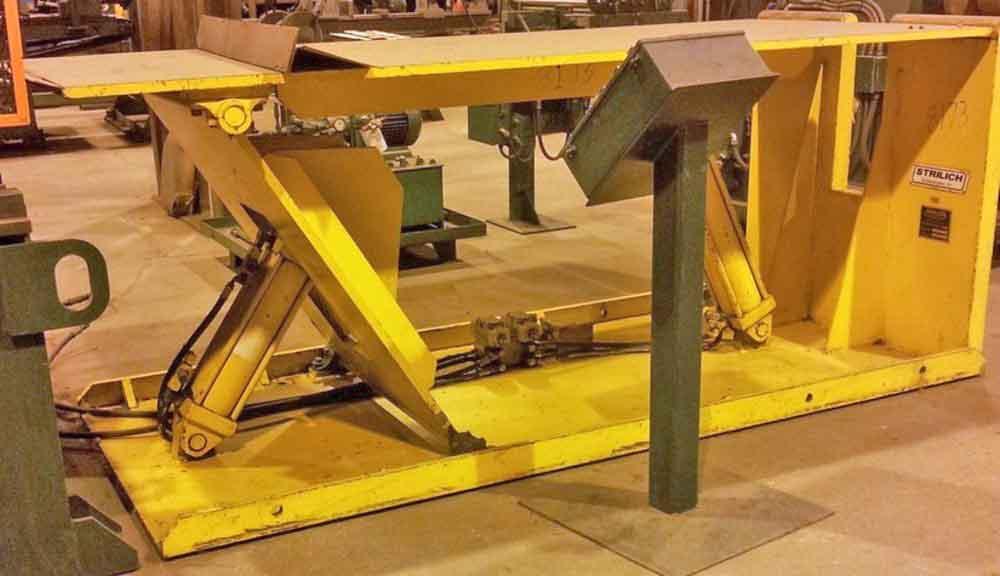

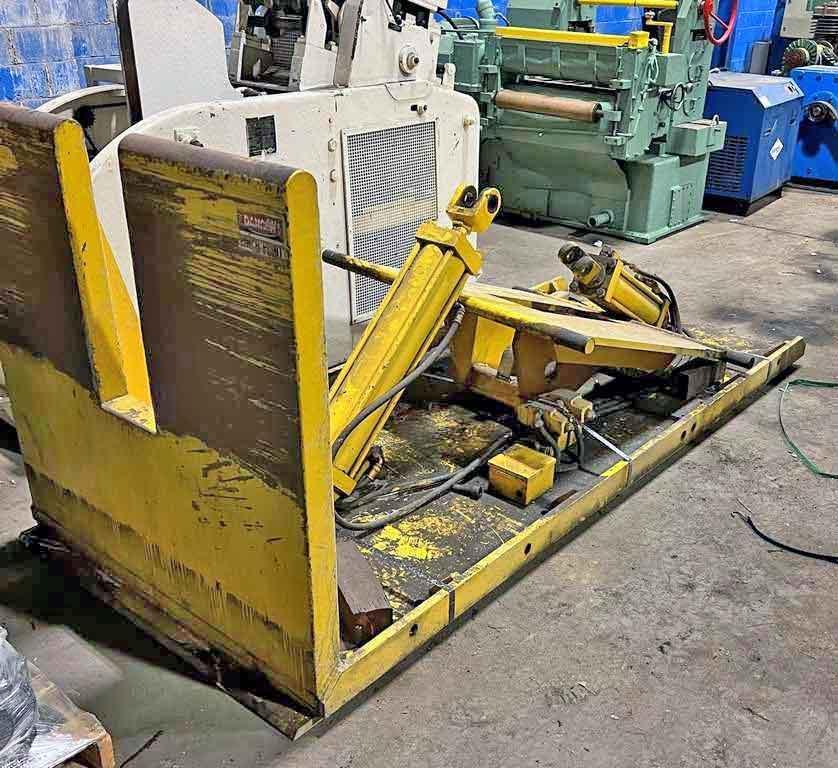

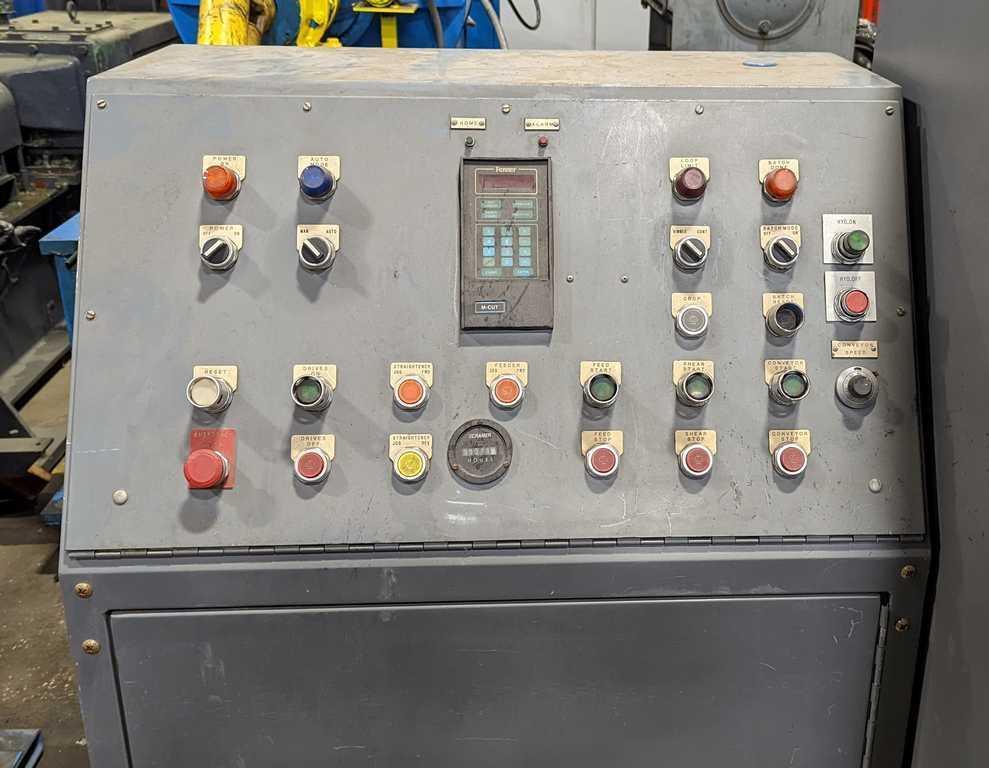

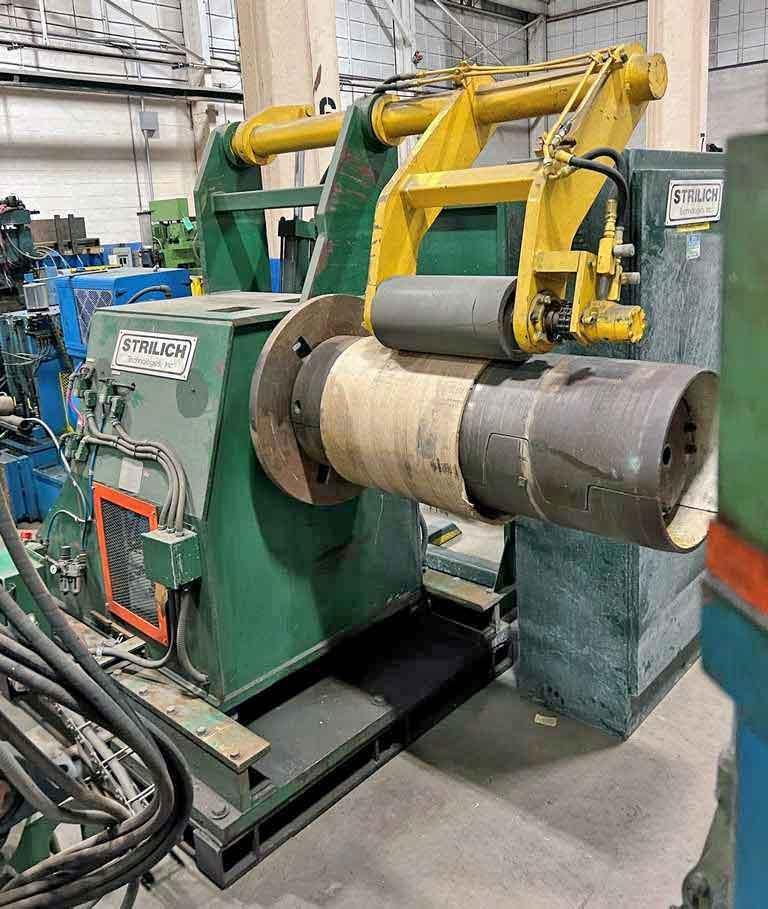

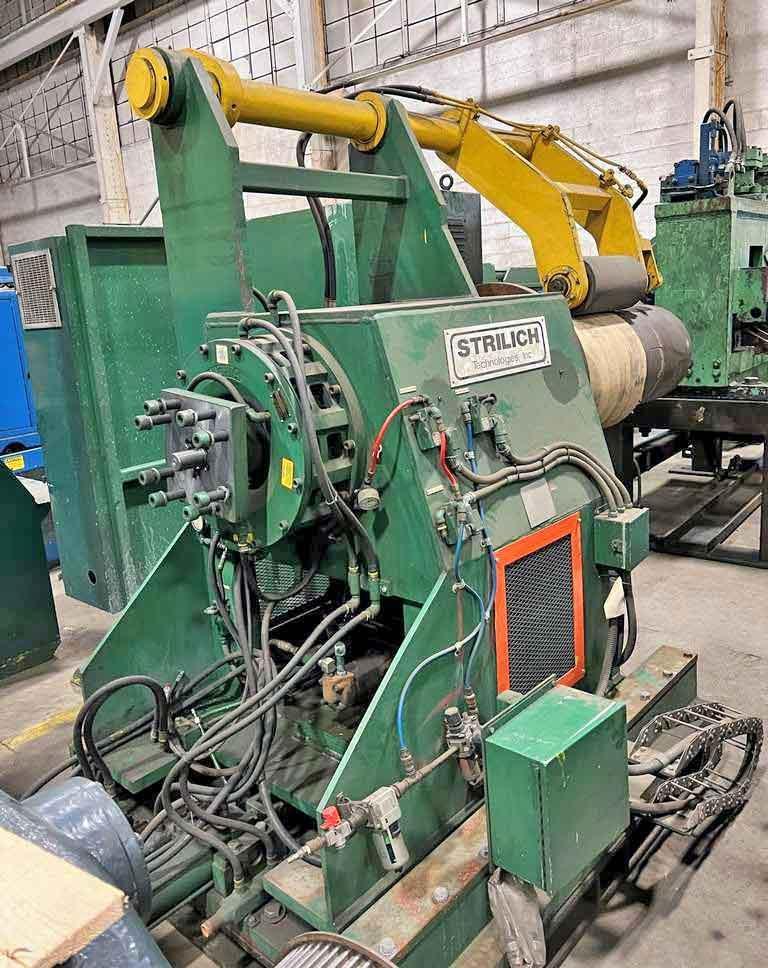

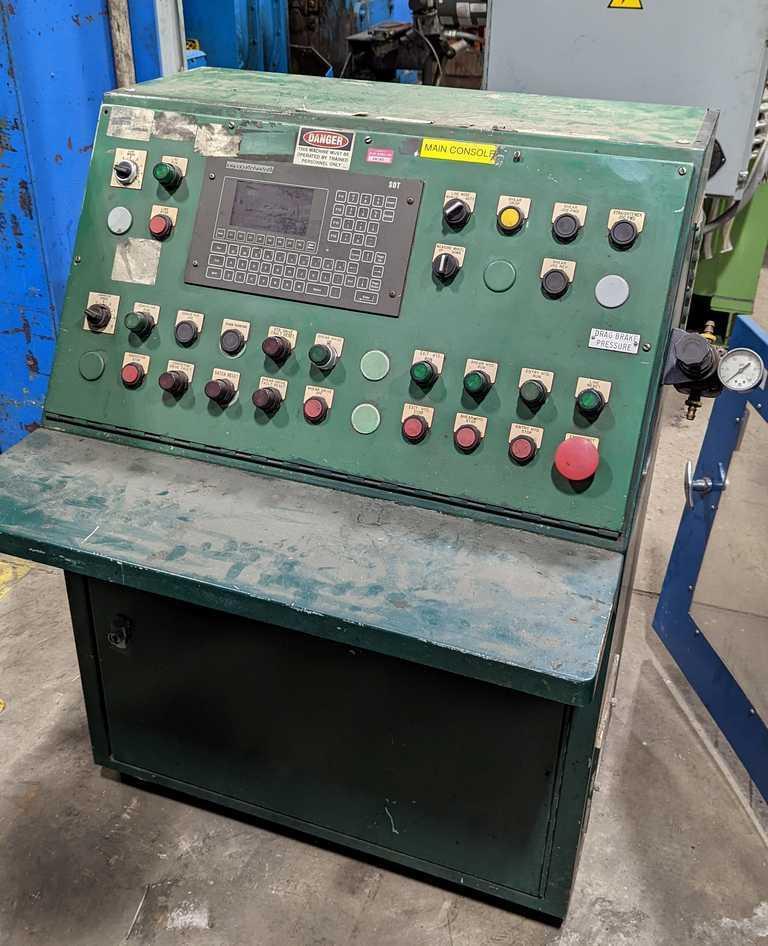

Capacity: 48" x 0.040" - 0.190" Mild Steel Shear Strength: 50,000 PSI Yield Strength: 50,000 PSI Weight Capacity: 25,000 lbs. Line Speed: 0 - 125 FPM Electrical Supply: 480 V/3 PH/60 Hz Line Direction: Right to Left Consisting of the following: -Single Mandrel Uncoiler: Maximum Coil Width Capacity: 48" Maximum Coil Weight Capacity: 25,000 lbs. 72" Maximum Coil O.D. 18.50" - 24.50" Hydraulic Three Arm Mandrel Expansion Range. Heavy Steel Cover leaves with tapered nose for easy coil loading. Wedge type expansion provides coil stability and constant hydraulic loading through the entire expansion range. Designed for accessibility and easy maintenance. Heavy Duty Construction. Hydraulic powered urethane covered overarm snubber roll with banding groove. Hydraulic feedup threading drive Hydraulic slide base +/- 6" horizontal travel with manual control for reel positioning. Air Drag Brake, water cooled. -Hydraulic Z-Type Peeler Table: 8' Long Maximum Strip Width: 48" Heavy Duty fabricated structural steel construction. 1" thick beveled nose reinforced peeler plate. Heavy duty hydraulic table positioning cylinders. Cylinders piped to valve manifold. Free-standing operator control console. -Adjustable Entry Guide: Maximum Material Width: 48" Heavy duty welded structural steel frame. Four sided hardened guide plates are mounted on heavy duty machined steel blocks with acme nuts. Guides are adjusted off center line through left and right hand acme screws via handwheel. Makes the initial centerline threading of the lead edge into the straightener pinch rolls easier. -Combination Coil Breaker and Straightener on Common Base: Maximum Strip Width Capacity: 48" Material Thickness Capacity: 0.040" - 0.190" Entry 6" Dia. Powered Pinch Rolls, Air Cylinder Loaded 5 Roll Coil Breaker, 2 over 3, with 5.5" Dia. Rolls 7 Roll Straightener, 3 over 4, with 4" Dia. Rolls Exit 6" Dia. Powered Pinch Rolls, Manual Jackscrew Adjustment Common Variable Speed AC Vector Drive geared for 125 FPM Max. Roll Speed All Work Rolls and Pinch Rolls are chain driven. -Flying Cutoff System: Hydraulic Cutoff Die complete with D2 HC-HC cutoff blades. Rack and Pinion Die Accelerator. Indramat Closed Loop DC Servo Drive and Control. Cutoff Die mounted on precision ball type slide ways. Roller Sheet Support Tables supplied. -Main Operator's Control Station and Electrical Cabinets: Meter which indicates machine speed in ft/Min. Device which will permit operator to preset the number of parts to be cut and which will then stop the machine when preset number of parts has been obtained. -Ancillary Items Electrical Drive Enclosures - (2) Electrical Transformer Main Operators Control Station with Remote Station Uncoiler Drag Brake Heat Exchanger Unit Entry/Exit Hydraulic Pumping Units Shear Head Hydraulic Pumping Unit -Removed and in Storage: Toledo, OH. |
