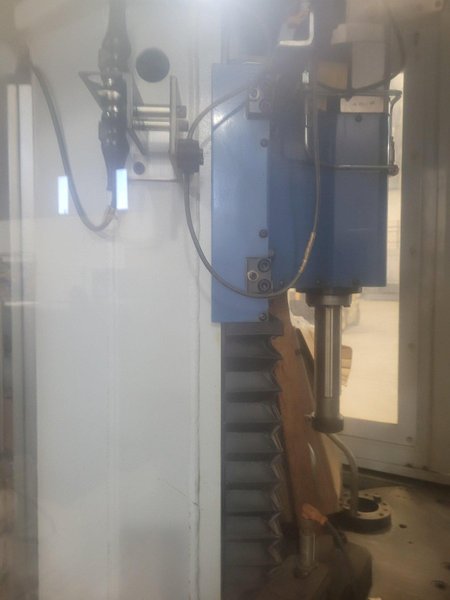

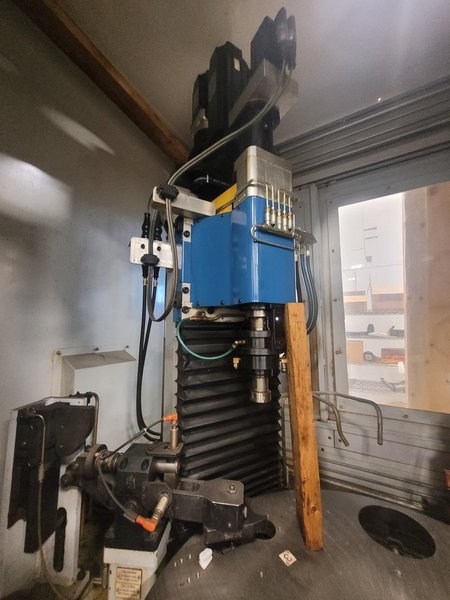

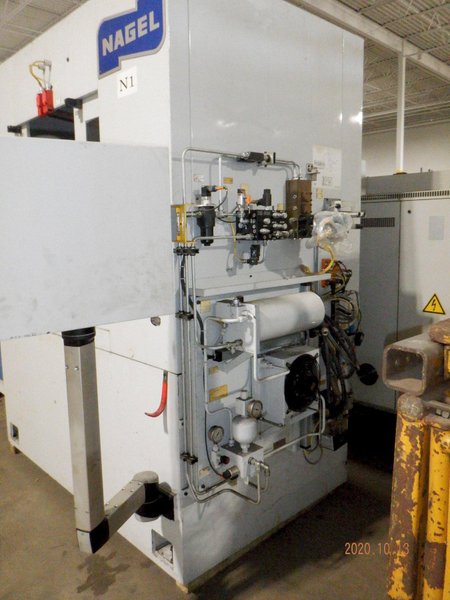

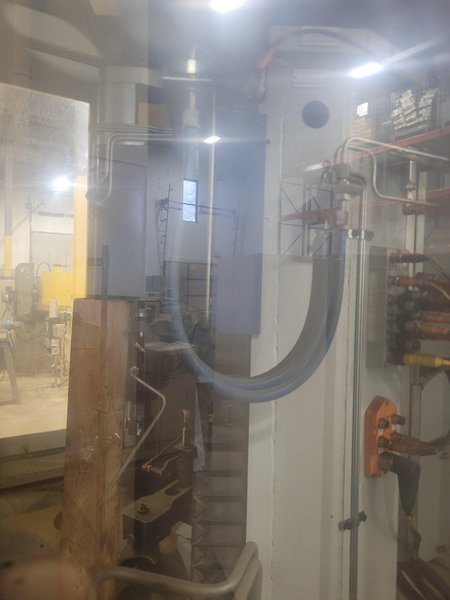

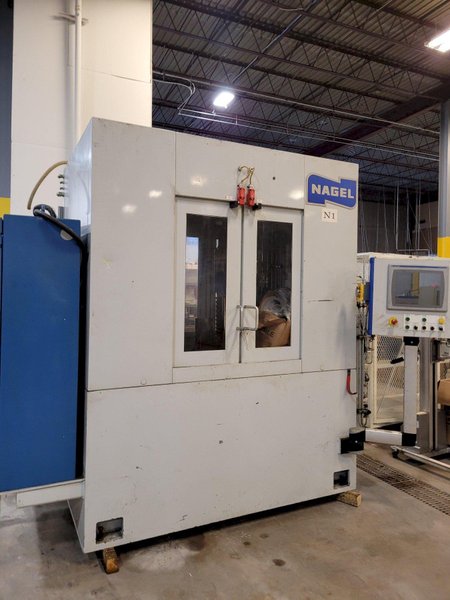

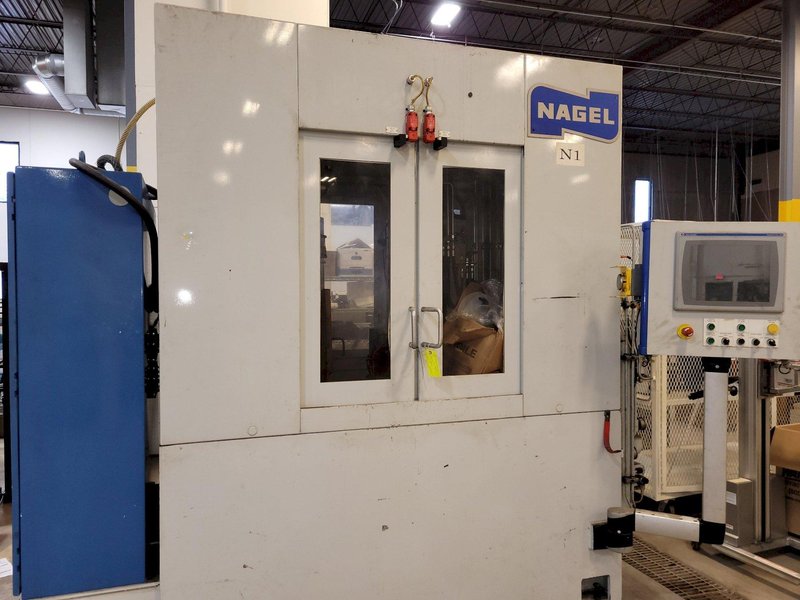

Nagel ECO 40-2 CNC Twin Spindle Vertical Honing Machine, 3 - 40mm Bore Size, 400mm Stroke, Allen Bradley Panel View Plus 1500 Control, New 2012

Brand
Model
ECO 40-2
Stock #
56036
Year
2012
Condition
Very Good
Location
Minnesota
CNC Control yes
Type of CNC Control Allen Bradley Panel View Plus 1500
Bore Size 3 -40 mm
Bore Depth 200mm
Max Part Height 1000mm
Spindle Speeds 100 - 1700 RPM
Number of Spindles (2) Two
Spindle Stroke 400mm
Spindle Speed 30m/min.
Spindle Drive (Servo) 2.7 HP
Machine Weight 11,250 Lbs. approx.
Approx. Overall Dimensions 109" x 52" x 50"

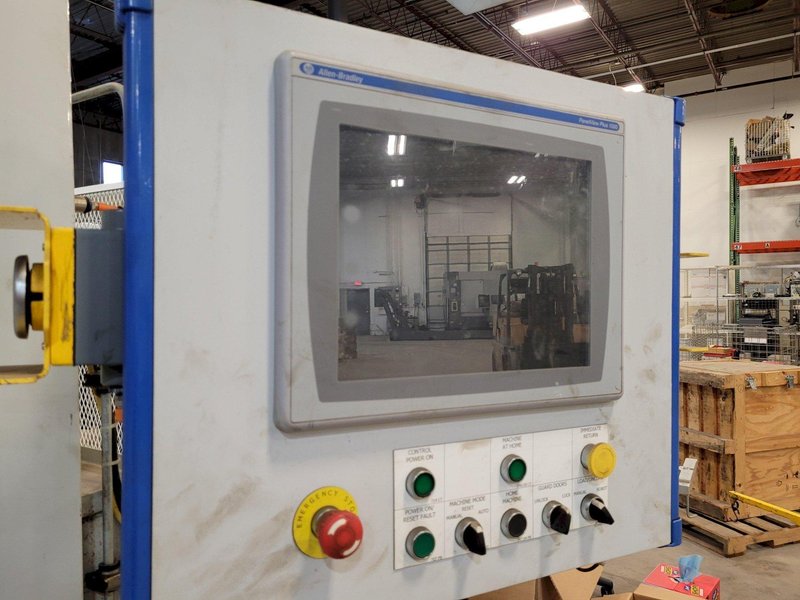

Allen Bradley Panel View Plus 1500 CNC Controls
AB Servo Motors - Stroke Control

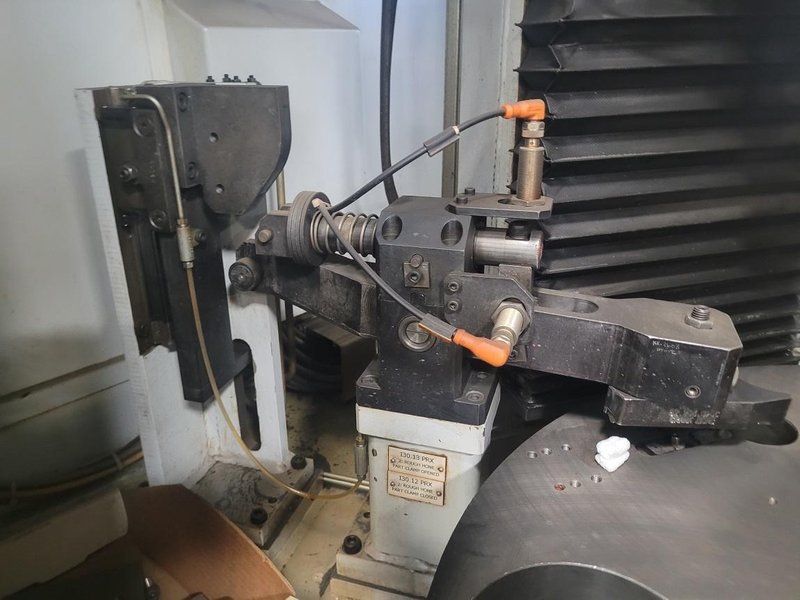

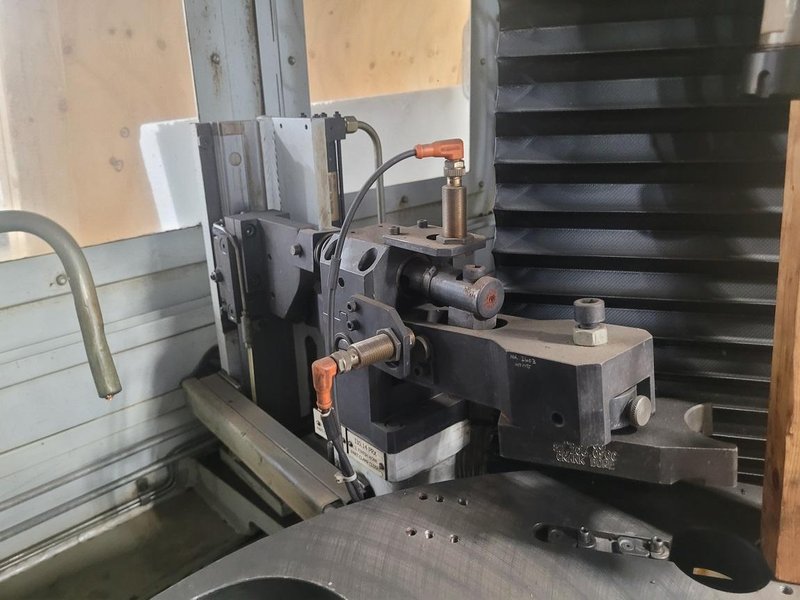

In Process Gauging
Post Processing Gauging

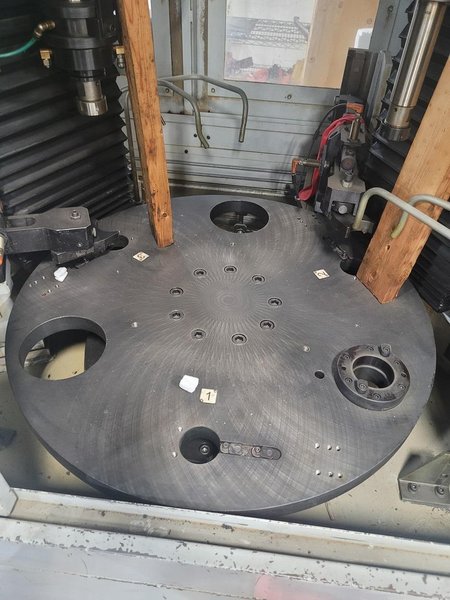

Rotary Index Table
Auto Load/Unload
Servo Controlled Tool Expansion System
Integrated with Gauging System for Auto Tool "Wear" Compensation
Torque Monitoring
Coolant System
SPC Capabilty
