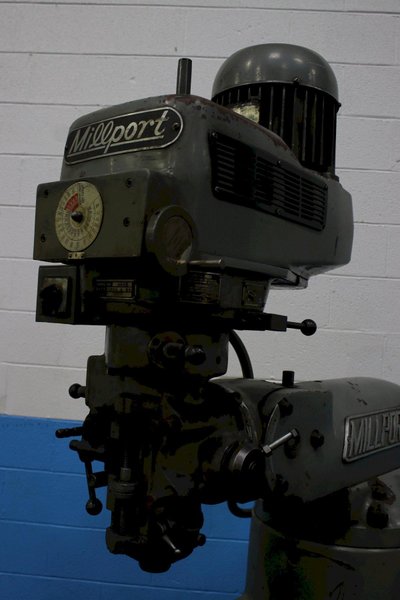

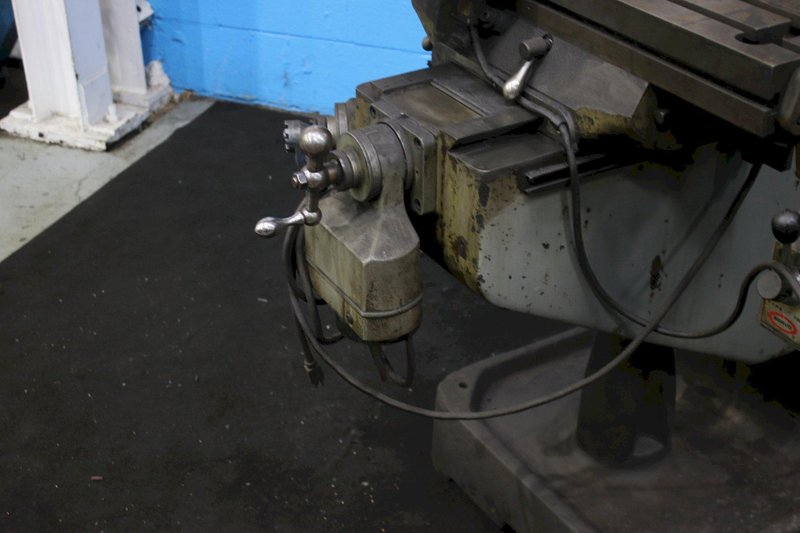

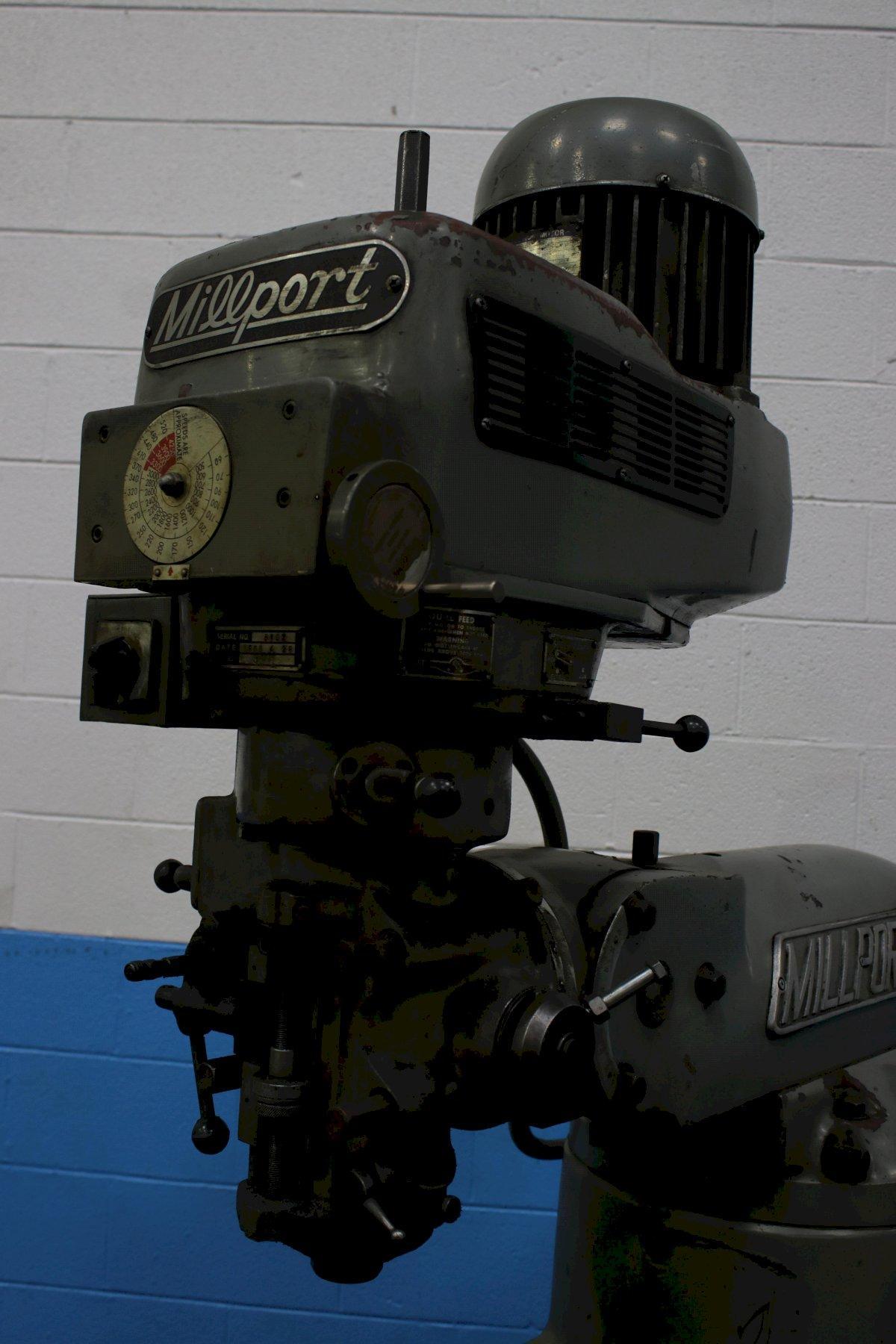

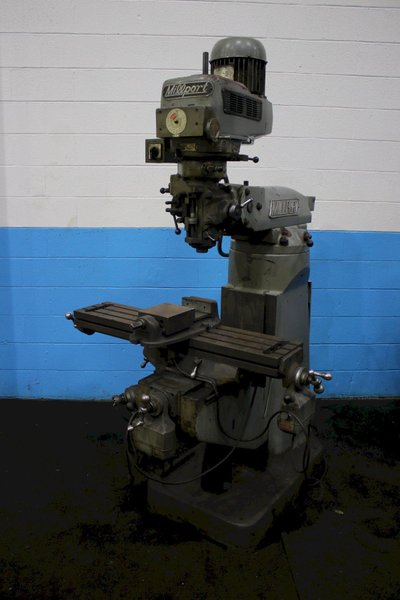

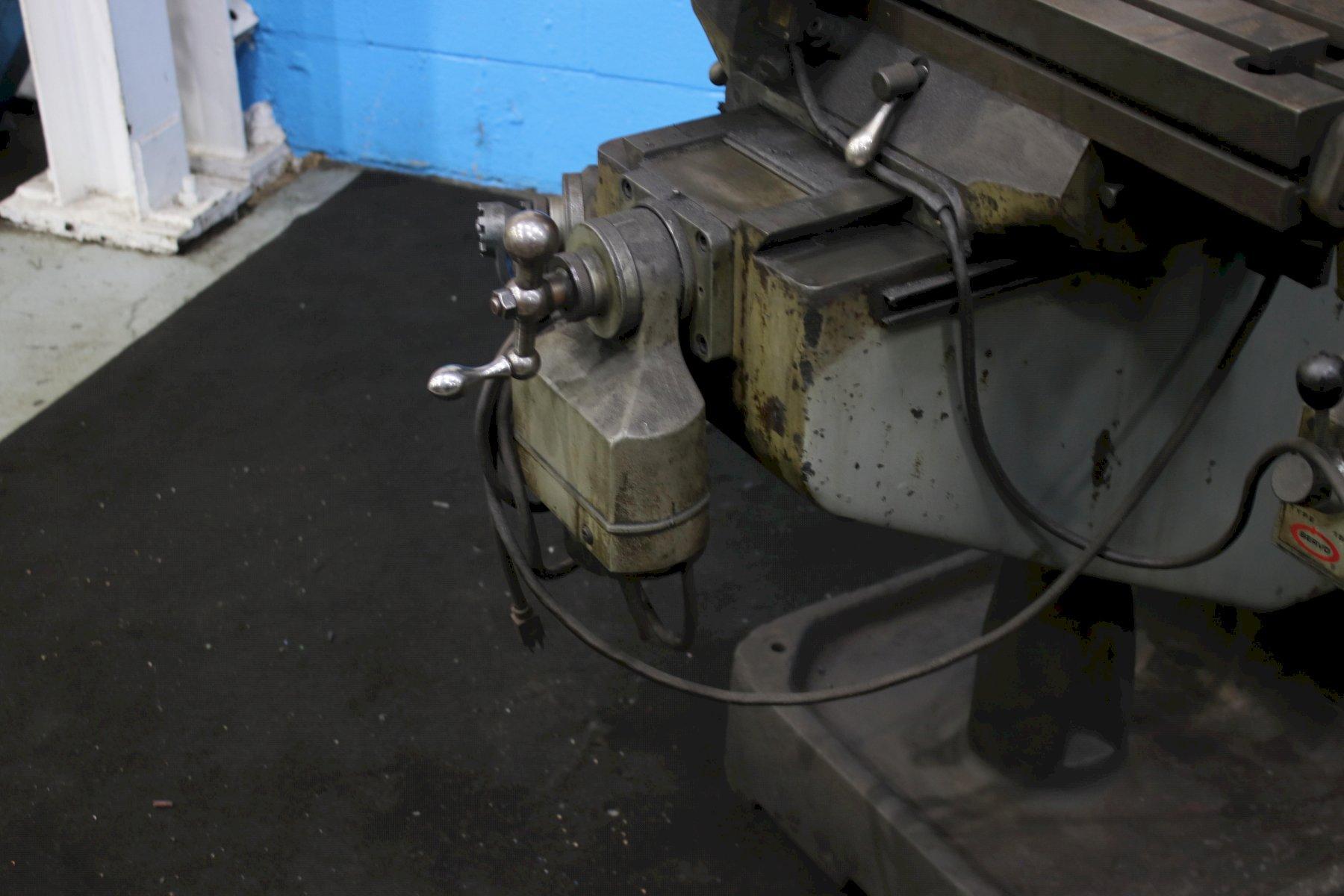

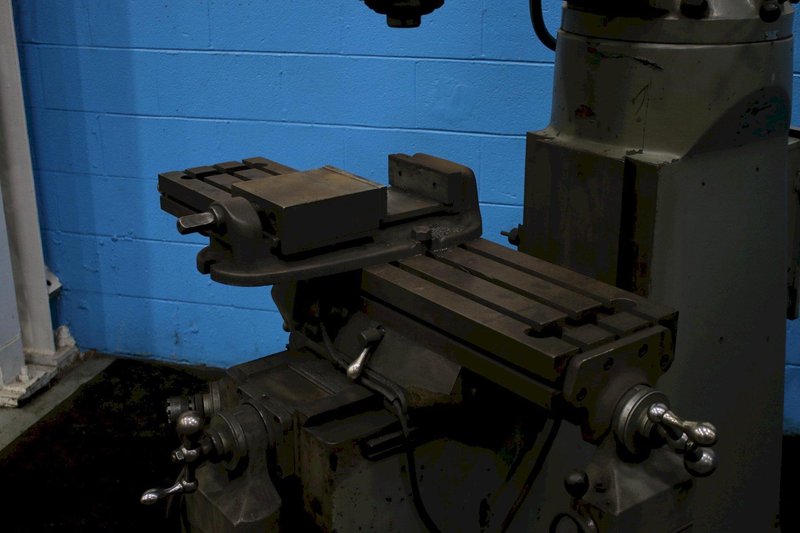

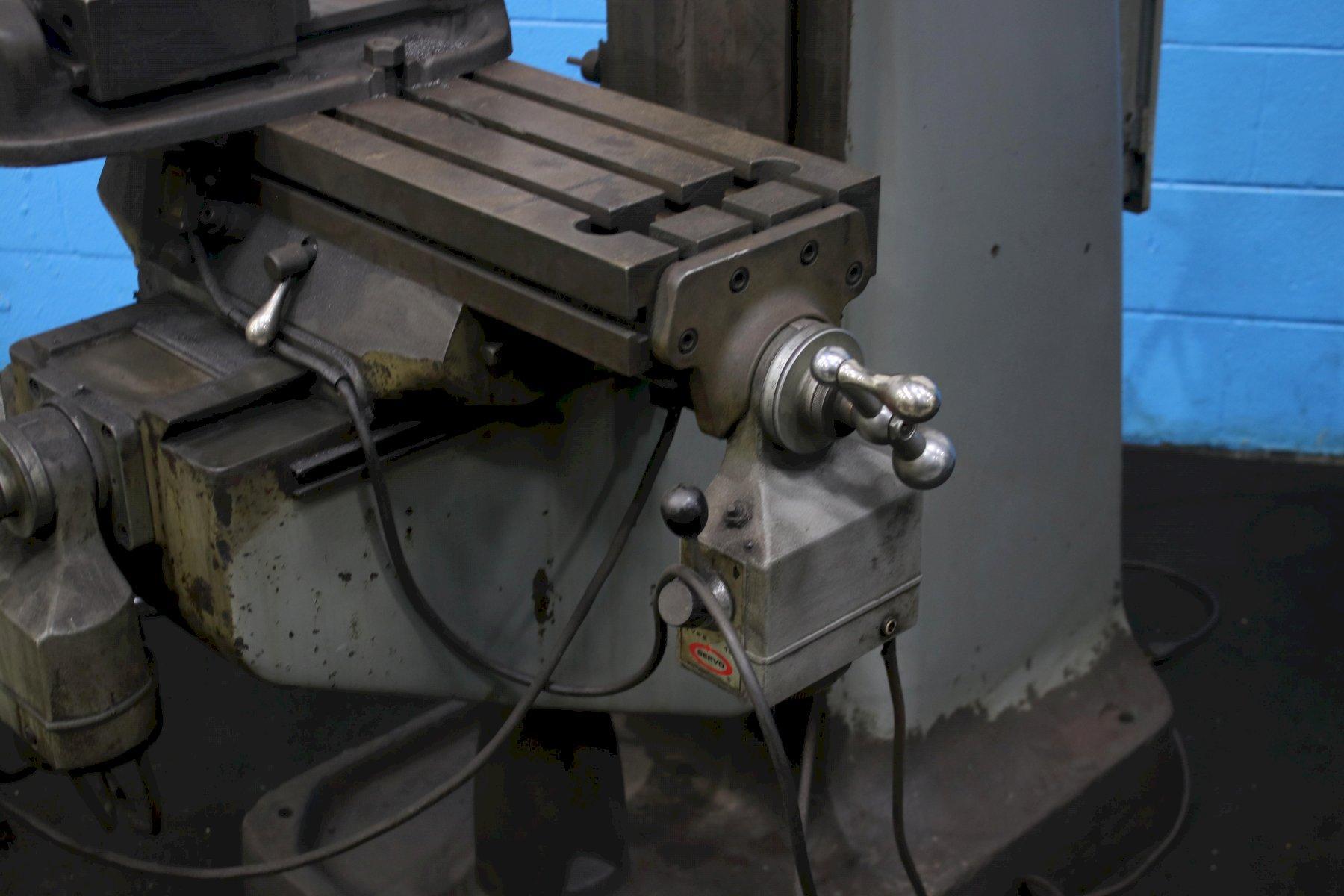

MILLPORT MODEL #3VH VERTICAL RAM TYPE MILL: STOCK #74637

Brand

Not specified

Category

Milling Machines

Type

Millers, Vertical

Model

3VH

Stock #

74637

Year

Not specified

Condition

Not specified

Location

Ohio

Specifications
Files & Videos

SERIAL ..................... 6102
MODEL ...................... 3VH
YEAR NEW ................... 1986
AREA OF TABLE .............. 9" X 42"
SPINDLE SPEEDS (VARIABLE) .. 60 TO 4250 RPM
SPINDLE FEEDS .............. .0015, .003, .006 IPR
LONGITUDINAL TABLE TRAVEL .. 30"
CROSS TRAVEL ............... 12"
VERTICAL TRAVEL OF KNEE .... 16"
QUILL TRAVEL ............... 5"
POWER LONGITUDINAL FEED .... SERVO
POWER CROSS FEED ........... SERVO
DEPTH OF THROAT ............ 6-3/4" TO 18-3/4"
SPINDLE TAPER .............. R-8
CHROME WAYS ................ YES
ONE SHOT LUBE .............. YES
MOTOR ...................... 2 HORSEPOWER

No files or videos to display

Want to request a quote from the owner of this listing?
