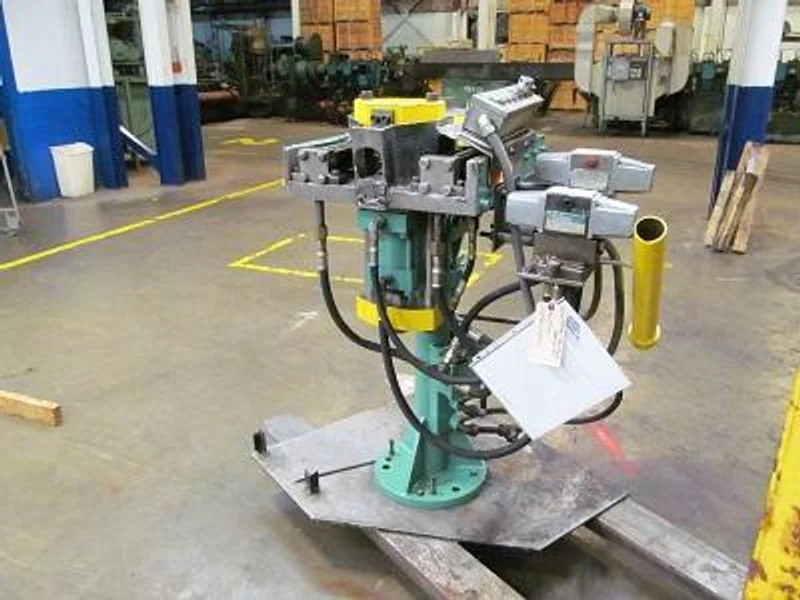

1 1/4" (31.25mm) MITCHELL HYDRAULIC TUBE PUSH POINTER

Model
Not specified
Stock #
111540
Year
Not specified
Condition
Used
Location
Ohio
MANUFACTURER ............... GEORGE MITCHELL CO. (U.S.A.)
TYPE ....................... HYDRAULIC PUSH POINTER FOR TUBE
SINGLE DIE MODEL

RATED PUSH FORCE ........... 5,000 LB @ 1060 PSI NORMAL OPERATION
............................ 10,620 LB @ 2250 PSI MAX.
MAXIMUM TUBE O.D. .......... 1 1/4" (31.75mm)
MINIMUM TUBE O.D. .......... 1/4" (6.35mm)
DIE CASE SIZE............... 4" O.D. X 2-1/4" MAX. THICKNESS

POINTING SPEED
-ADVANCE.................... 352 I.P.M. @1000 PSI
-RETRACT.................... 264 I.P.M. @1000 PSI

STROKE ON POINT ............ 5" (127mm)
DIMENSIONS ................. 32" (812mm) x 36" (914mm) x 48" (1220mm) HIGH
WEIGHT ..................... 800 LBS. (362 KG)

EQUIPPED WITH:
FOUR-WAY DIE HOLDER
HYDRAULIC CLAMPING
PUSH BUTTON CONTROLS
SWIVEL BASE

HYDRAULIC CYLINDER
-MANUFACTURER............... MILLER
-MODEL NO................... H-68-B
-BORE....................... 4"
-STROKE..................... 2"
-ROD DIAMETER............... 1-3/4"

BUYER TO SUPPLY HYDRAULIC UNIT, 20 GALLON RESERVOIR, 7-1/2 HP MOTOR


**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**

**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION BY PURCHASER**
