50,000 LBS MITCHELL 3-DIE PUSH POINTER
Brand
Category
Type
Model
Not specified
Stock #
115313
Year
1975
Condition
Used
Location
Arizona
|

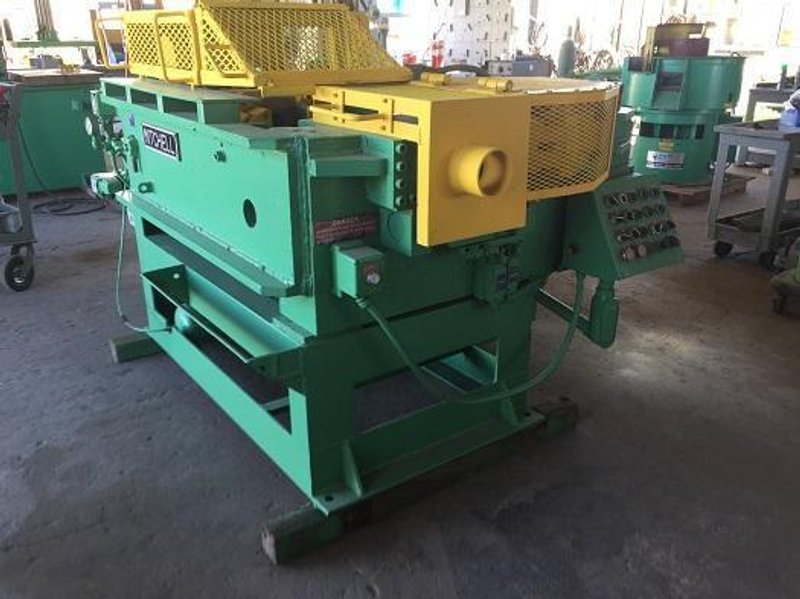

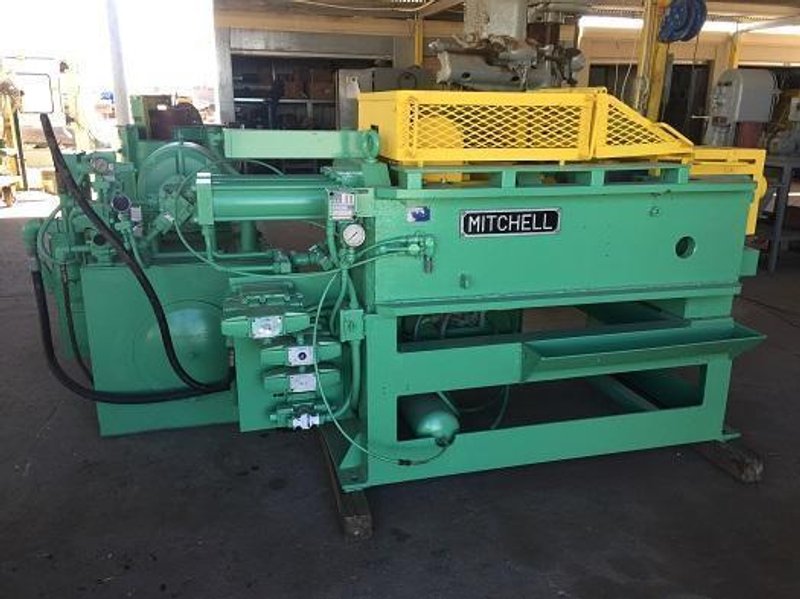

50,000 LBS MITCHELL 3-DIE PUSH POINTER
MANUFACTURER - MITCHELL
SERIAL NUMBER - PP-211
YEAR - 1975
RATED CAPACITY - 50,000 LBS @ 2000 PSI
MAXIMUM CAPACITY - 62,800 @ 2500 PSI
AUTOMATIC CYCLE - ONE (1), TWO (2) OR THREE (3) PUSH
POINTING SPEEDS
ADVANCE - 219 IPM @ 2000 PSI
RETURN - 284 IPM @ 1000 PSI

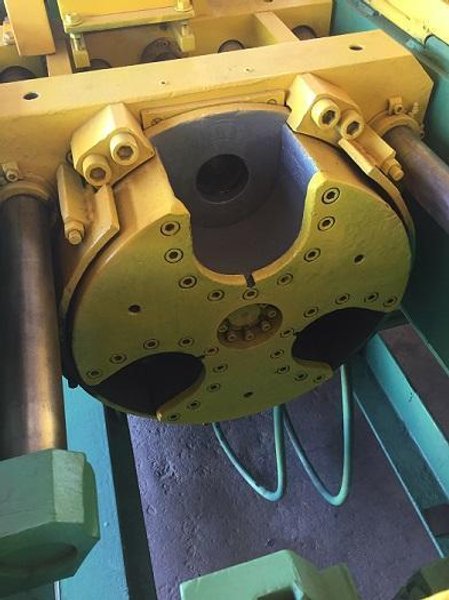

DIE HOLDER - THREE HOLE ROTARY WITH 6.010" ROUND X 4 1/32" DEEP CAVITIES
POINT LENGTH - AUTOMATIC BY HYDRAULIC CYLINDER - (4) POSITION SELECTOR SWITCH
MAX TRAVEL OF DIES - 14"

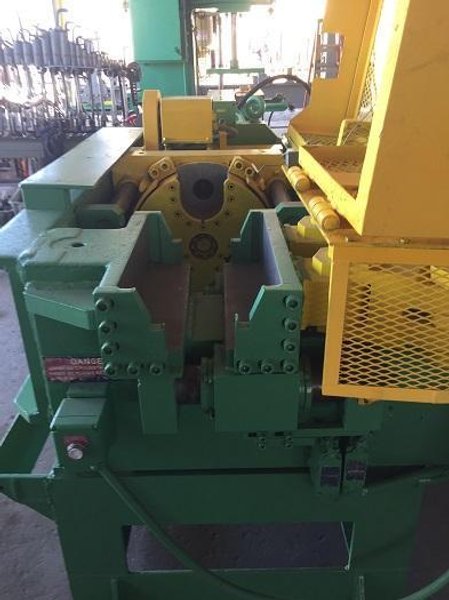

TUBE GRIPPER JAWS - SQUARE, HEXAGONAL, OR OCTAGONAL
LENGTH OF GRIPPER JAWS - 16"
MAX OPENING BETWEEN THE JAWS - 3"
DIE INDEX MECHANISM - HYDRAULIC MOTOR/FERGUSON DRIVE
DIE INDEX SPEED - 55 IPM
CLAMPING MECHANISM - HYDRAULIC CYLINDER & DOUBLE TOGGLE
HYDRAULIC RESERVOIR - 100 GALLON CAPACITY
HYDRAULIC DOUBLE PUMP - 23.8 GPM @ 2000 PSI (MAIN) | 7.8 GPM @ 1000 PSI (AUX.)
PUMP MOTOR - 30 HP, 1200 RPM, 460 VOLT, 3 PH, 60 CYCLE
INCLUDES:

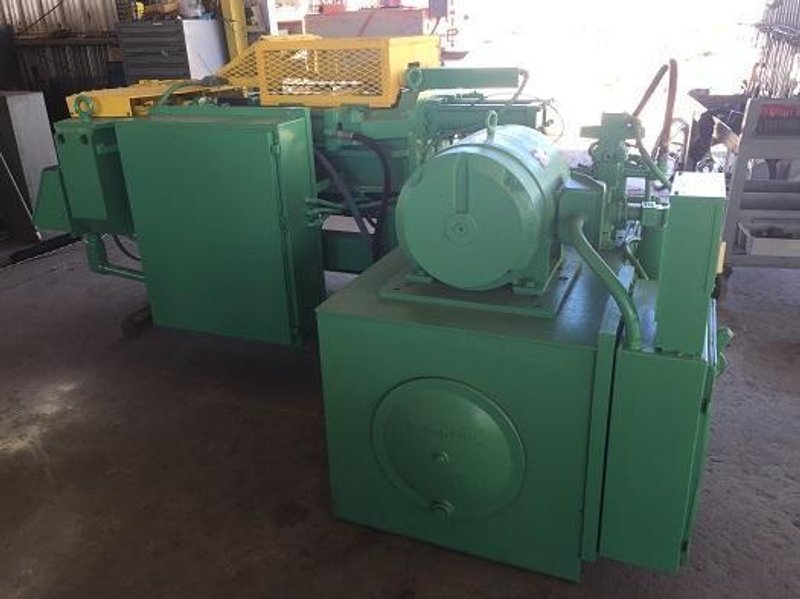

ELECTRICAL CONTROL AND HYDRAULIC UNIT
ALL SPECIFICATIONS ARE CATALOG SPECFICATIONS AND MUST BE VERIFED BY PURCHASER
|
