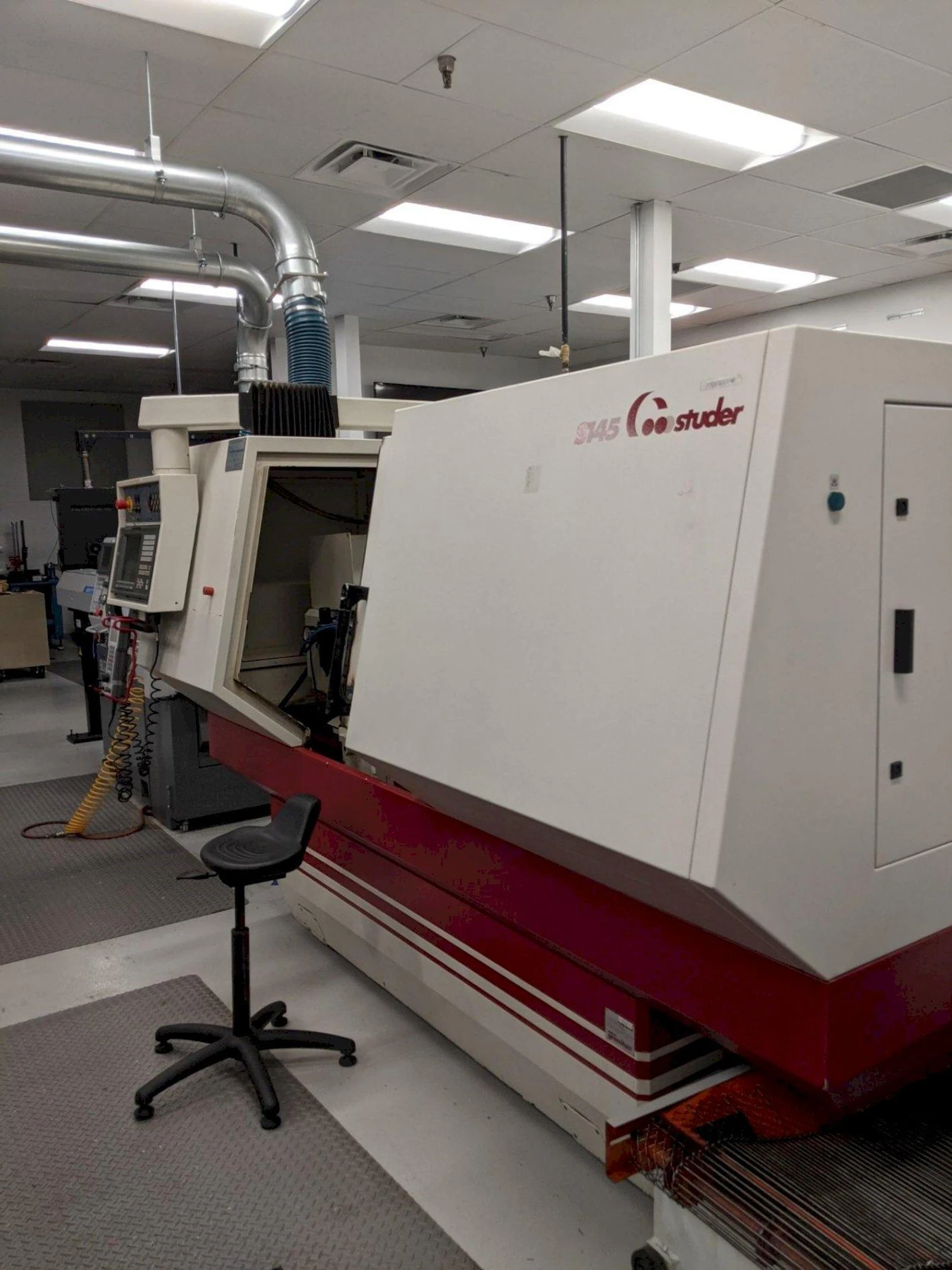

Studer S145 CNC Internal Grinders with 4-Heads, 24K and 120K Wheel Head, with Fanuc 16i-TB, New 2000
Brand
Category
Model
S145
Stock #
56018
Year
2000
Condition
Very Good
Location
Pennsylvania
| CNC Control | yes |

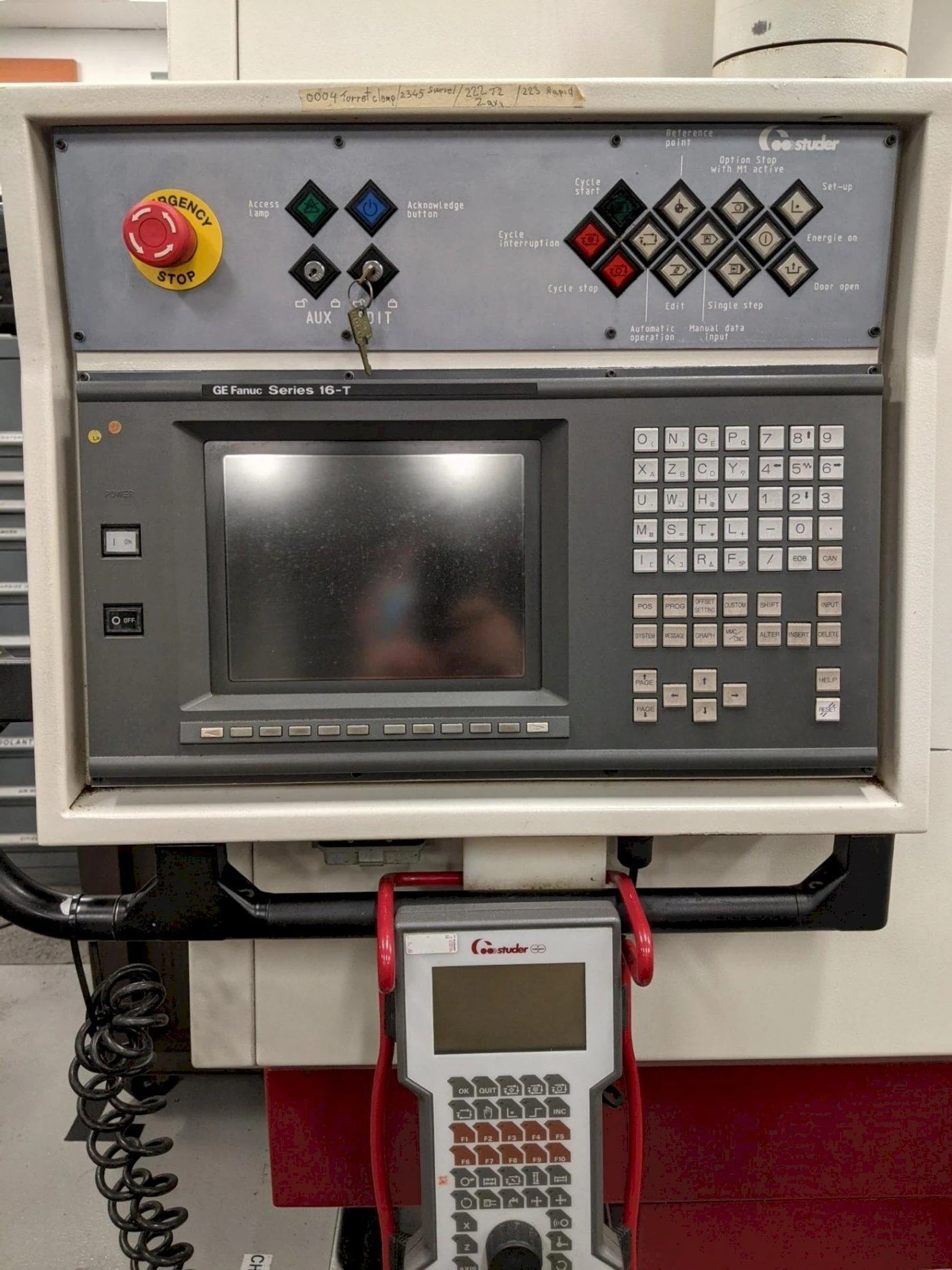

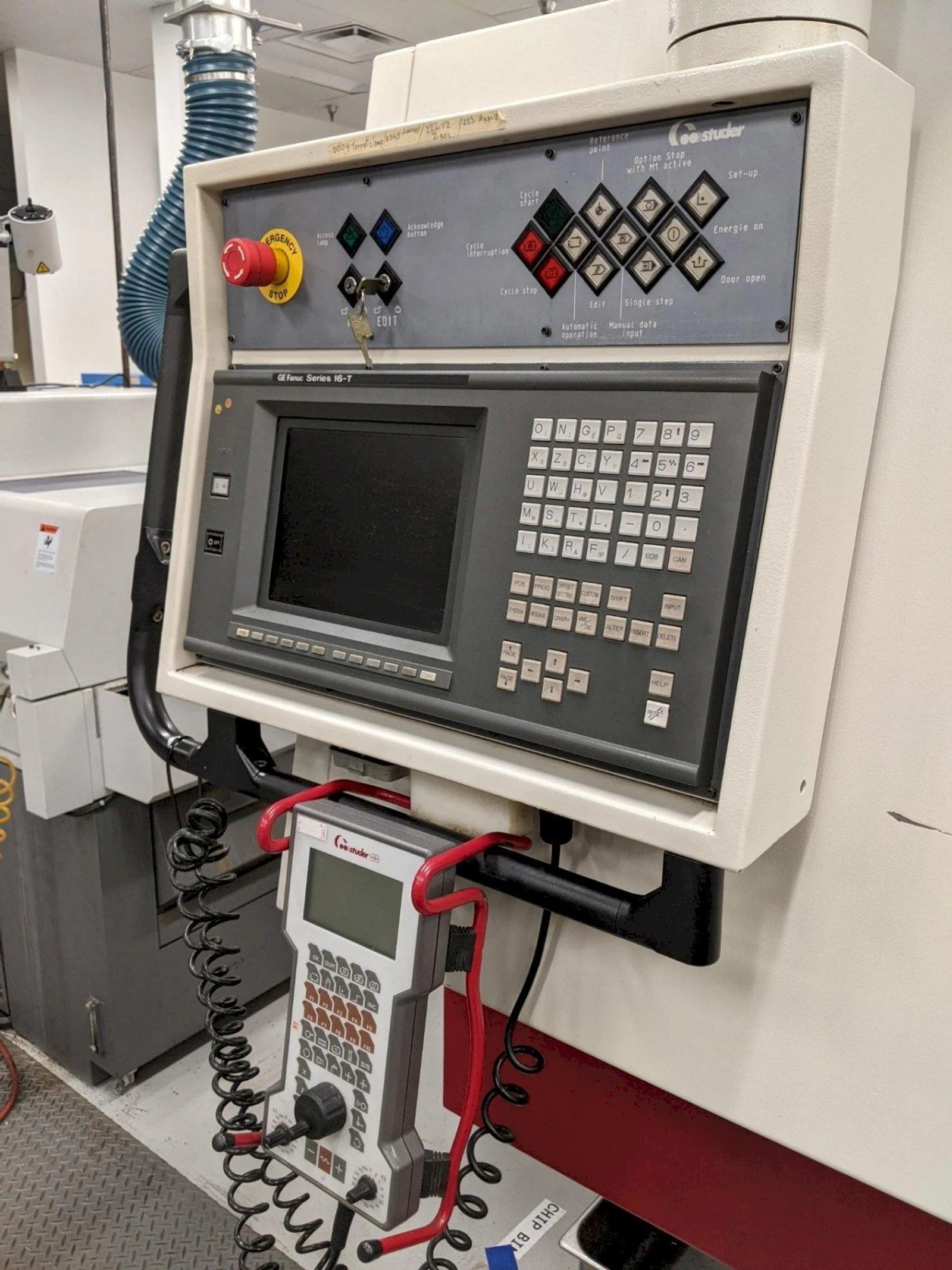

| Type Of CNC Control | Fanuc 16i-TB |

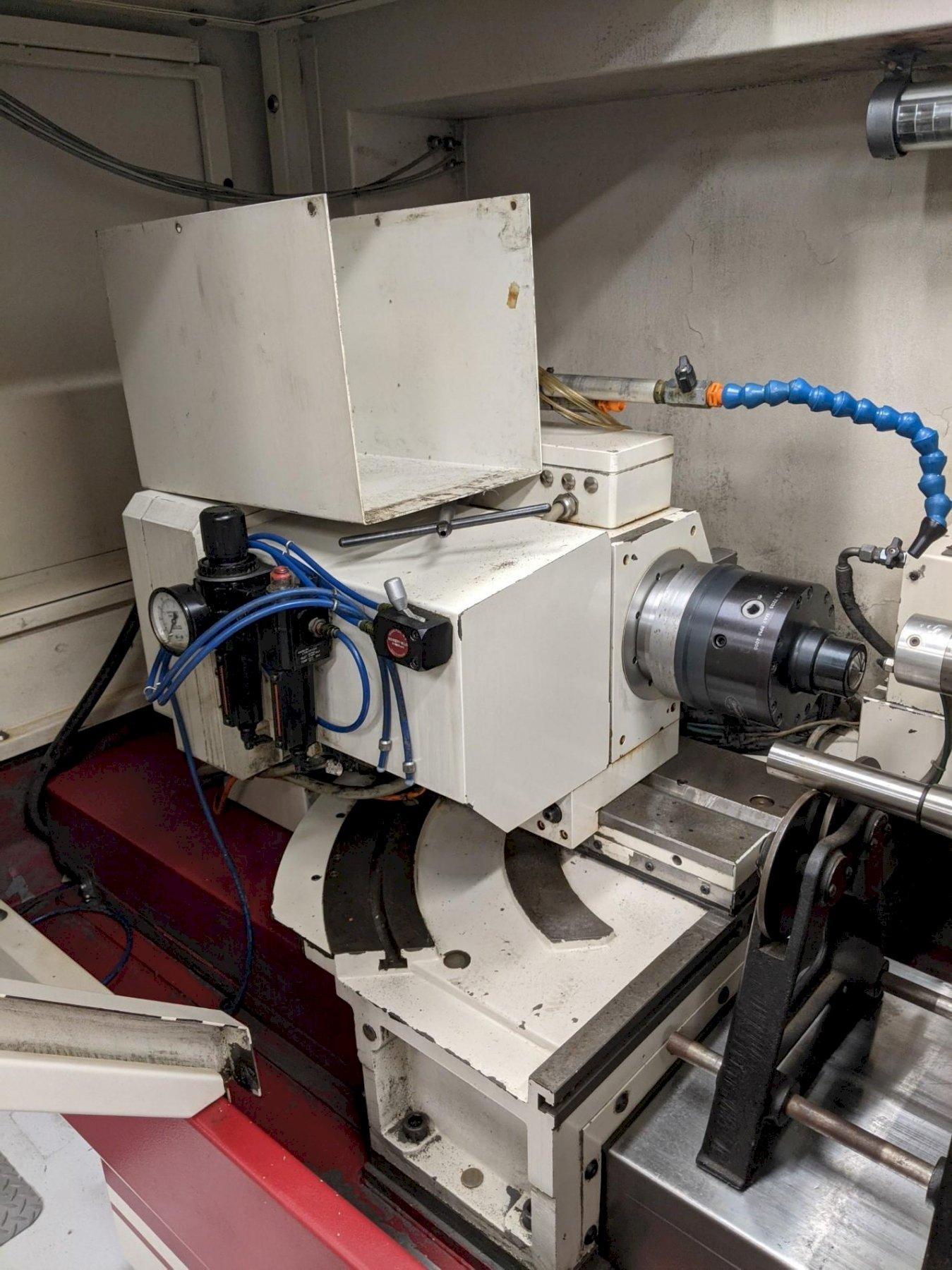

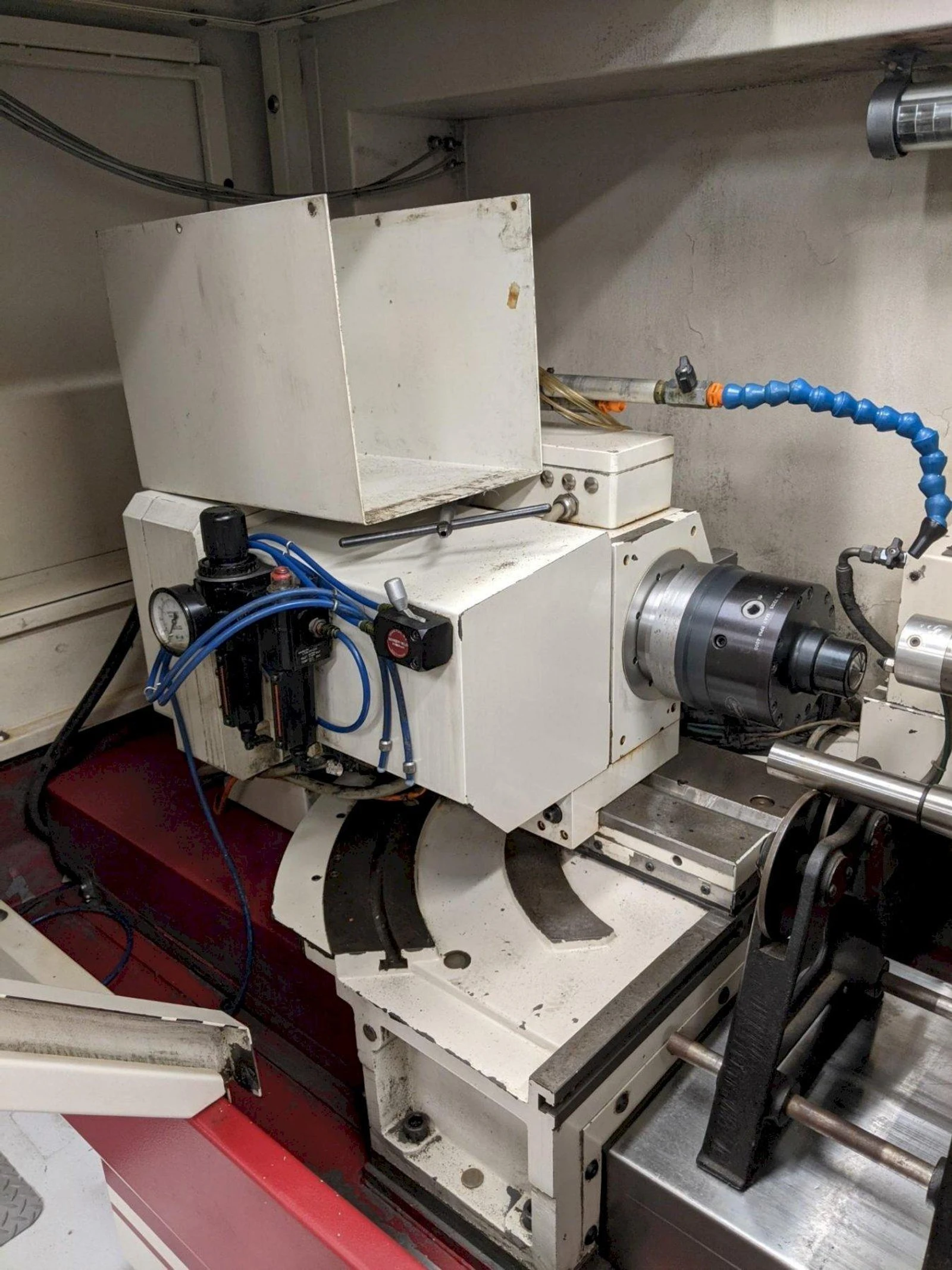

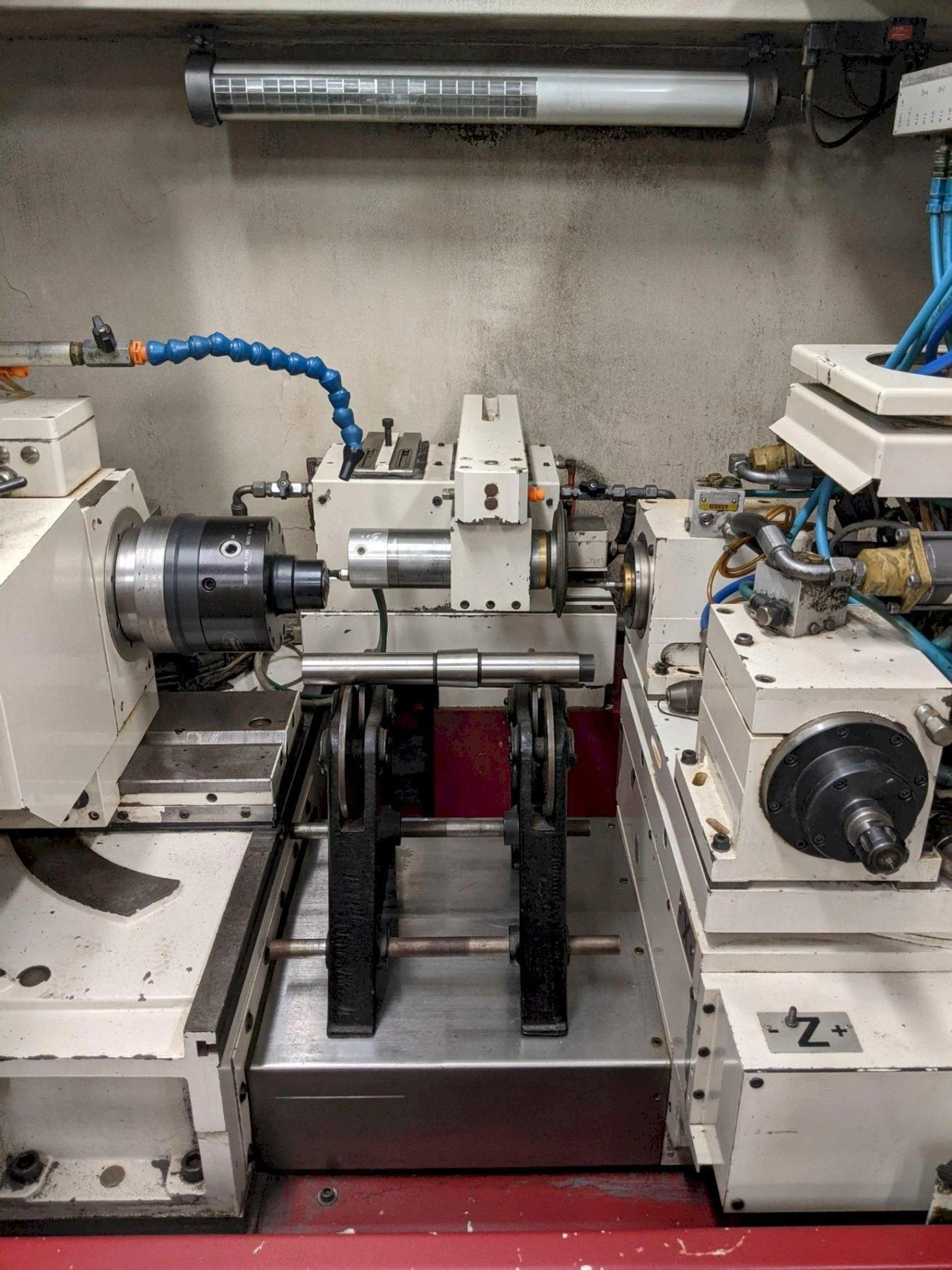

| Capabilities And Features | C-Axis for form & thread grinding / Q-Axis for Swivel of head / 4-Position Internal Grinding Spindles |
| Workpiece Envelop | 19.700" x 4.700" |
| Z-Axis Travel | 19.700" |
| X-Axis Travel | 4.700" |
| ID Grinding Diameter(s) | Max. 11.811" |
| ID Grinding Depth | 4.700" |
| Max. Swing Over Bed | 13.800" |
| Center Height | 7" |

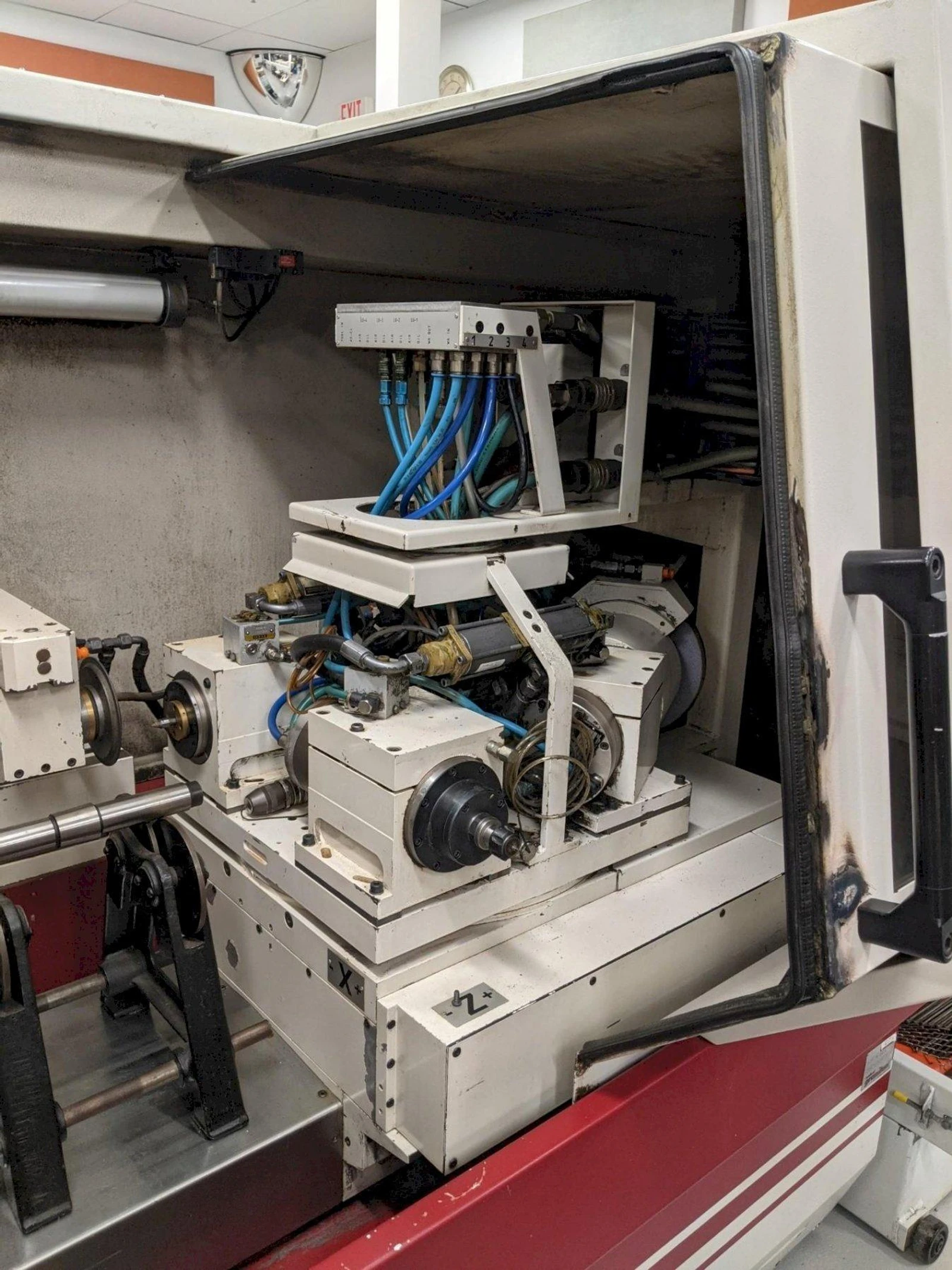

| Number Of Programmable Grinding Spindles | 4 ID Spindles |
| Spindle Speeds | 24,000 RPM to 120,000 RPM |
| Angle Adjustment On Wheel Head: | 0.000 degrees |
| OD Grinding Wheel Dimensions | 10" x 1" |
| Workload | 176 Lbs. |
|
· Control: GE Fanuc 16i-TB · Q-axis with a swivel range of +/-30 deg · Frequency-controlled internal grinding spindles · C-axis for the workhead for form and thread grinding · Large selection of multi-range spindles · Full enclosure with sliding door · Machine base made of Granitan · Standardised interface for loader and peripheral devices · Extensive range of chucks and accessories |
|
