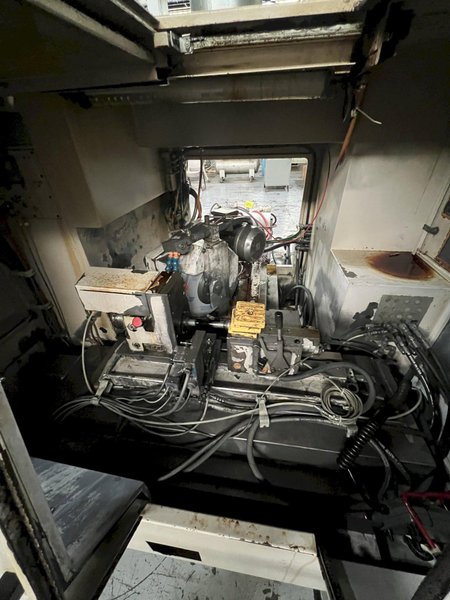

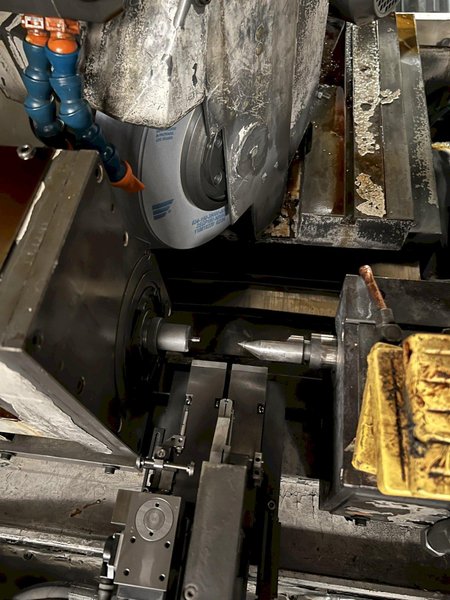

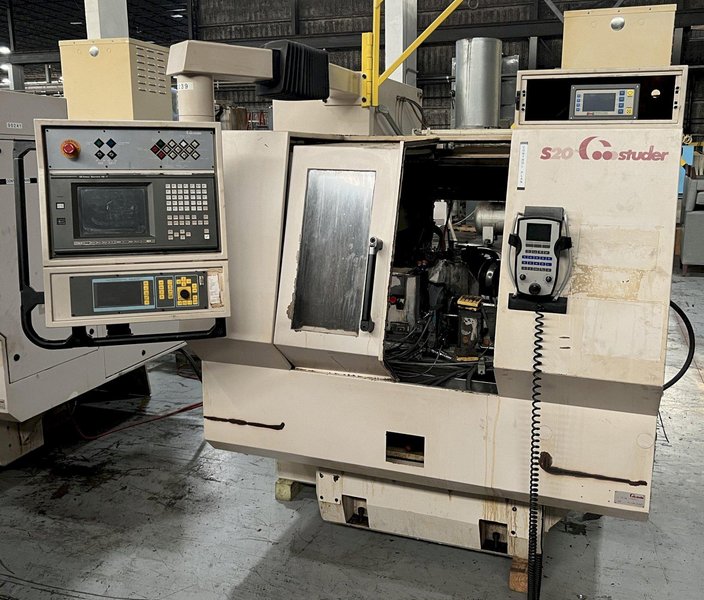

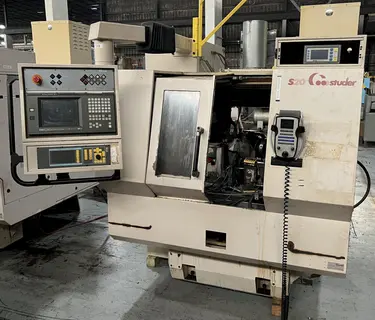

Studer S20 CNC Plain Cylindrical Grinder with Combination Plain/Angle Wheel Head and Swiveling Work Head.
Brand
Category
Model

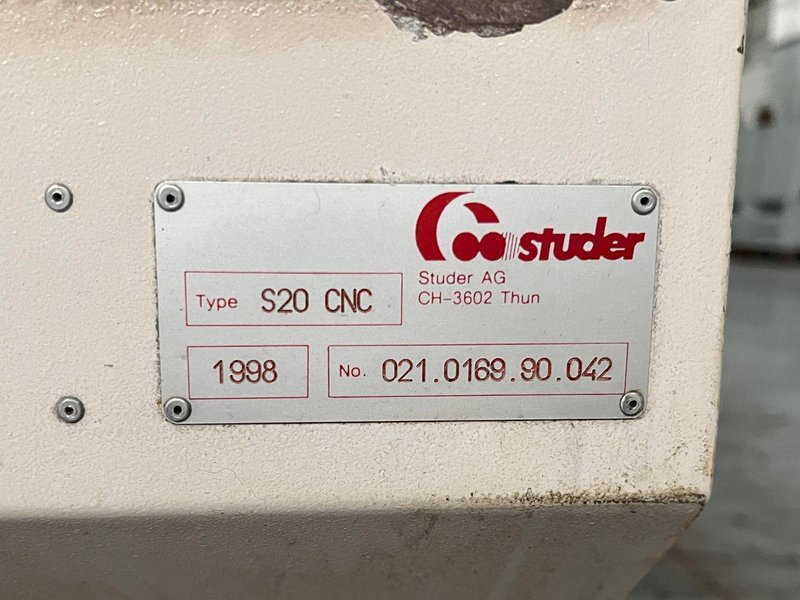

S20 CNC Plain / Angle Head
Stock #
GS201MT
Year
1998
Condition
Used
Location
Illinois
| Swing Over Bed | 7.87 inches |
| Distance Between Centers | 15.75 inches |
| Max Table Travel Longitudinal Slide | 16.54 inches |
| Max Grinding Length | 15.75 inches |
| Longitudinal Table Slide Speed | 0.001 - 10,000 mm/min |
| Max Swivel Of Table | 15 Grad (13.5 deg.) |
| Wheel Head Slide Max. Travel | 6.06 inches |
| Wheel Head Slide Speed | .001 - 10,000 mm/min |
| Wheel Size Diameter X Width X Bore | 13.75" X 2" X 5" |
| Workhead Swivel | 0 - 90 deg. |
| Work Head Taper | Morse #4 |
| Tailstock Taper | Morse #2 |
| Maximum Weight Between Centers | 44 pounds |
|

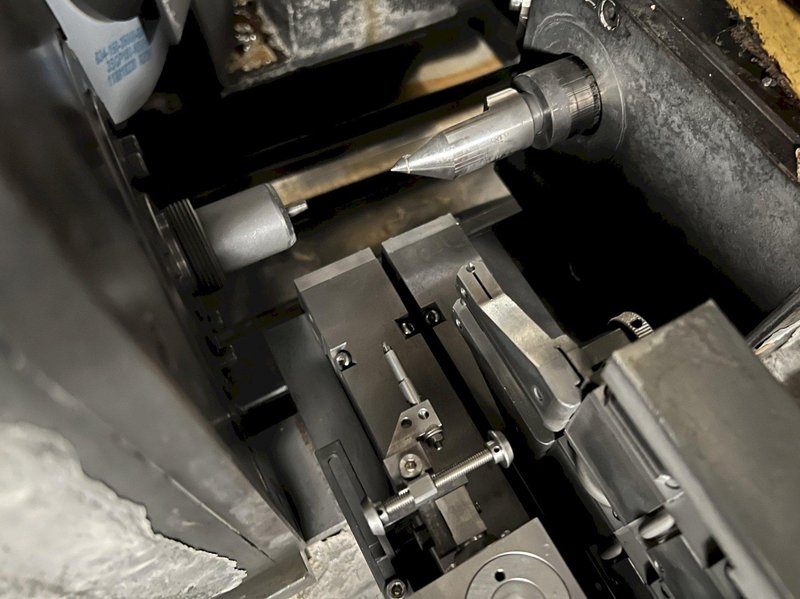

Universal Swiveling Work Head.

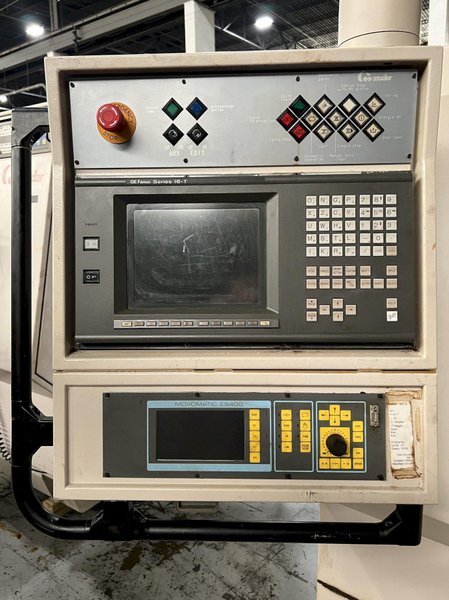

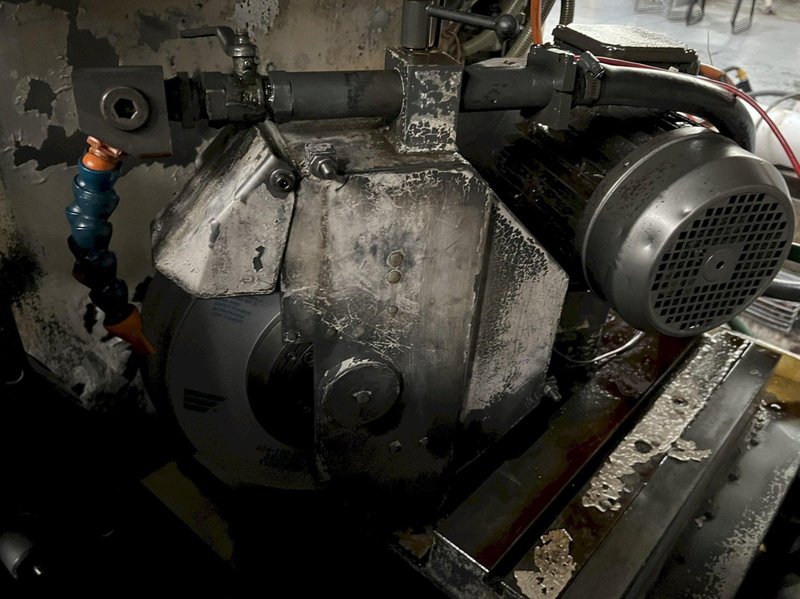

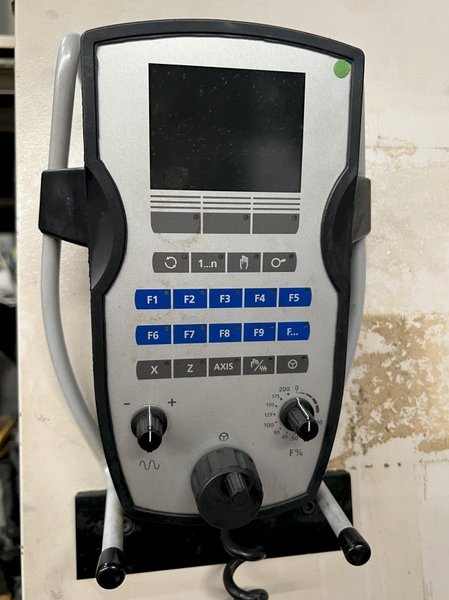

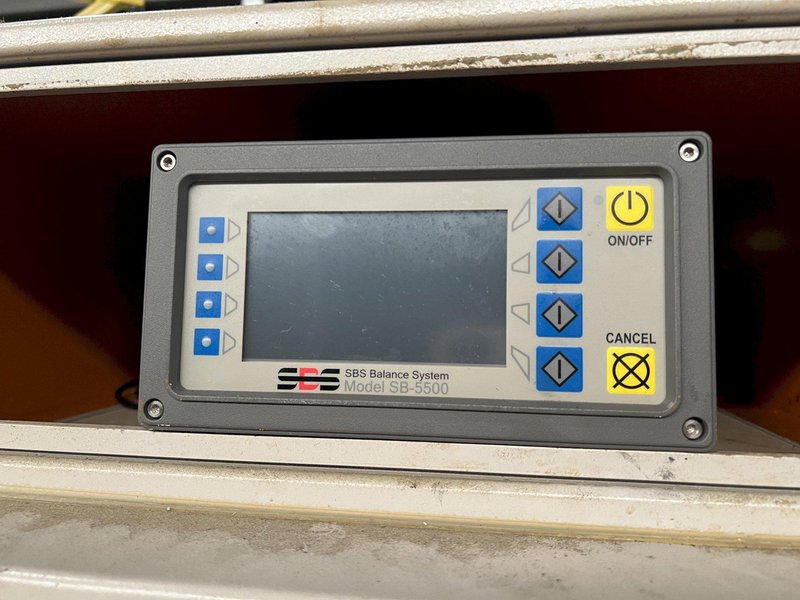

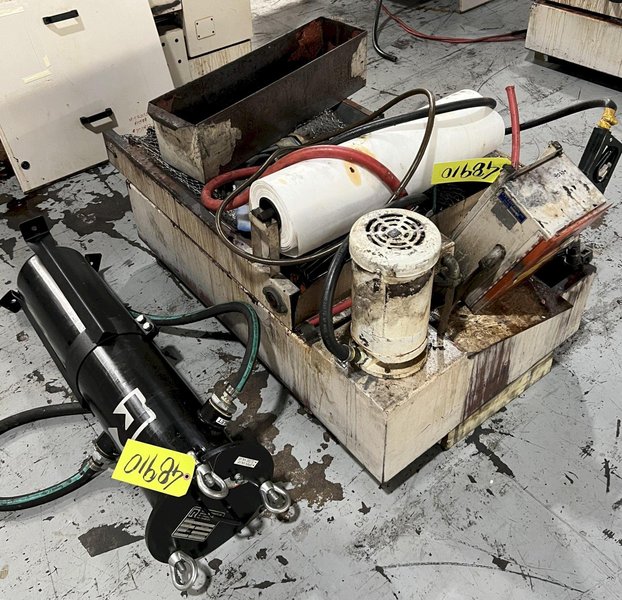

Straight or 30 deg. Wheel Head. (Manually adjusted). Fanuc 16-T CNC Controls. Movomatic ES400 Edge Locator and In Process Gauging. SBS Model SB-5500 Wheel Balancer. Operators hand held remote control station with M.P.G. Aerocology Mist Collector. Cyclotron Paper drag out coolant filtration system. |
|
