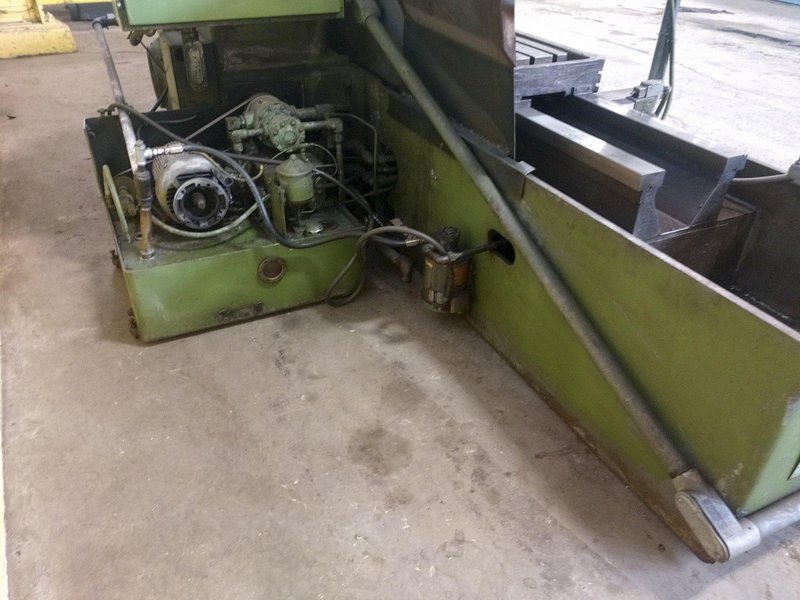

Title: 18" X 128" CINCINNATI HYPOWERMATIC HORIZONTAL SIMPLEX PRODUCTION MILL. STOCK # 1162121
Type: Millers, Production, Simplex (Hor.)
Brand: Cincinnati
Model: 400-188 HYPOWERMATIC
Year: Not listed
Message
Information

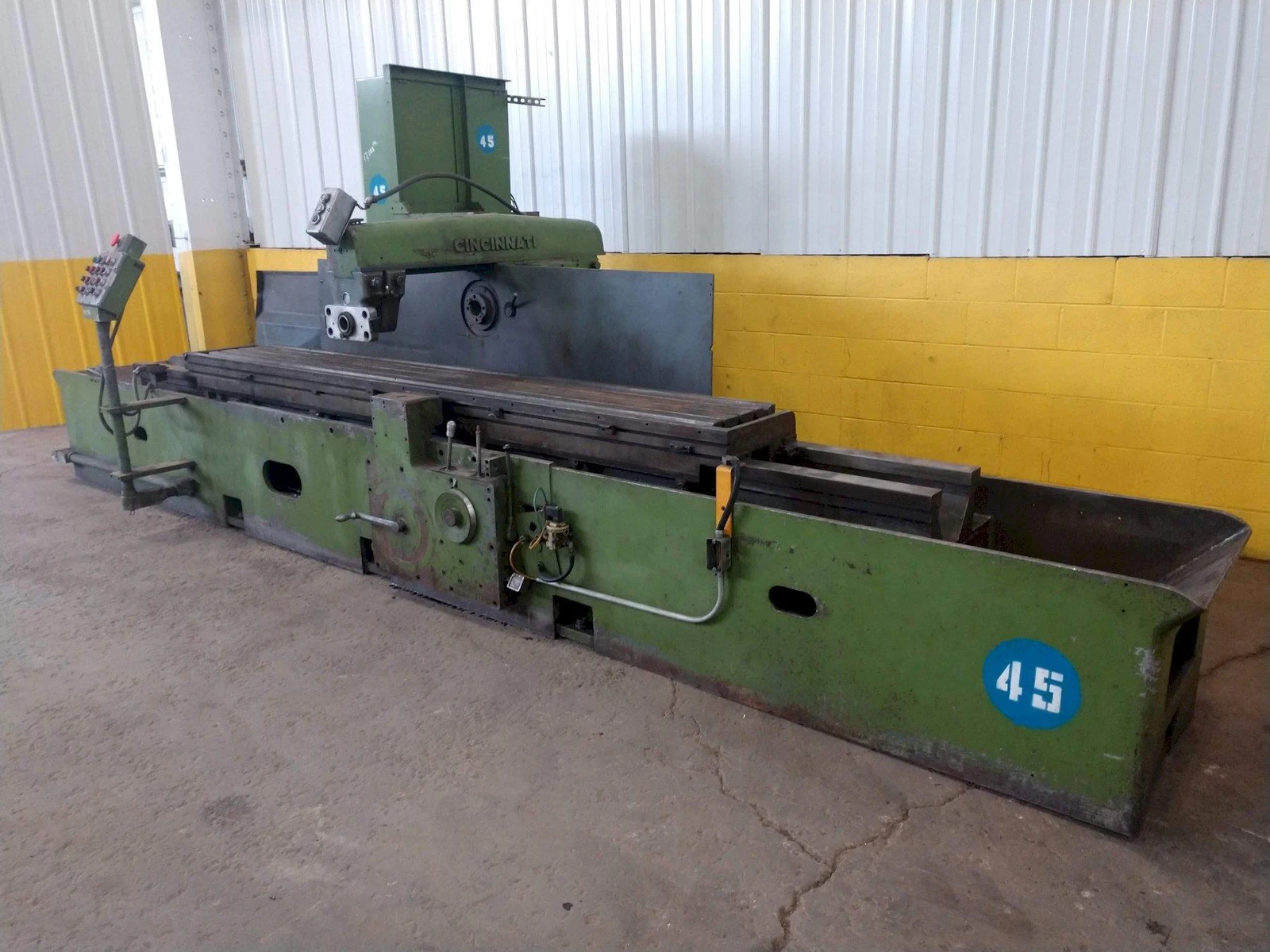

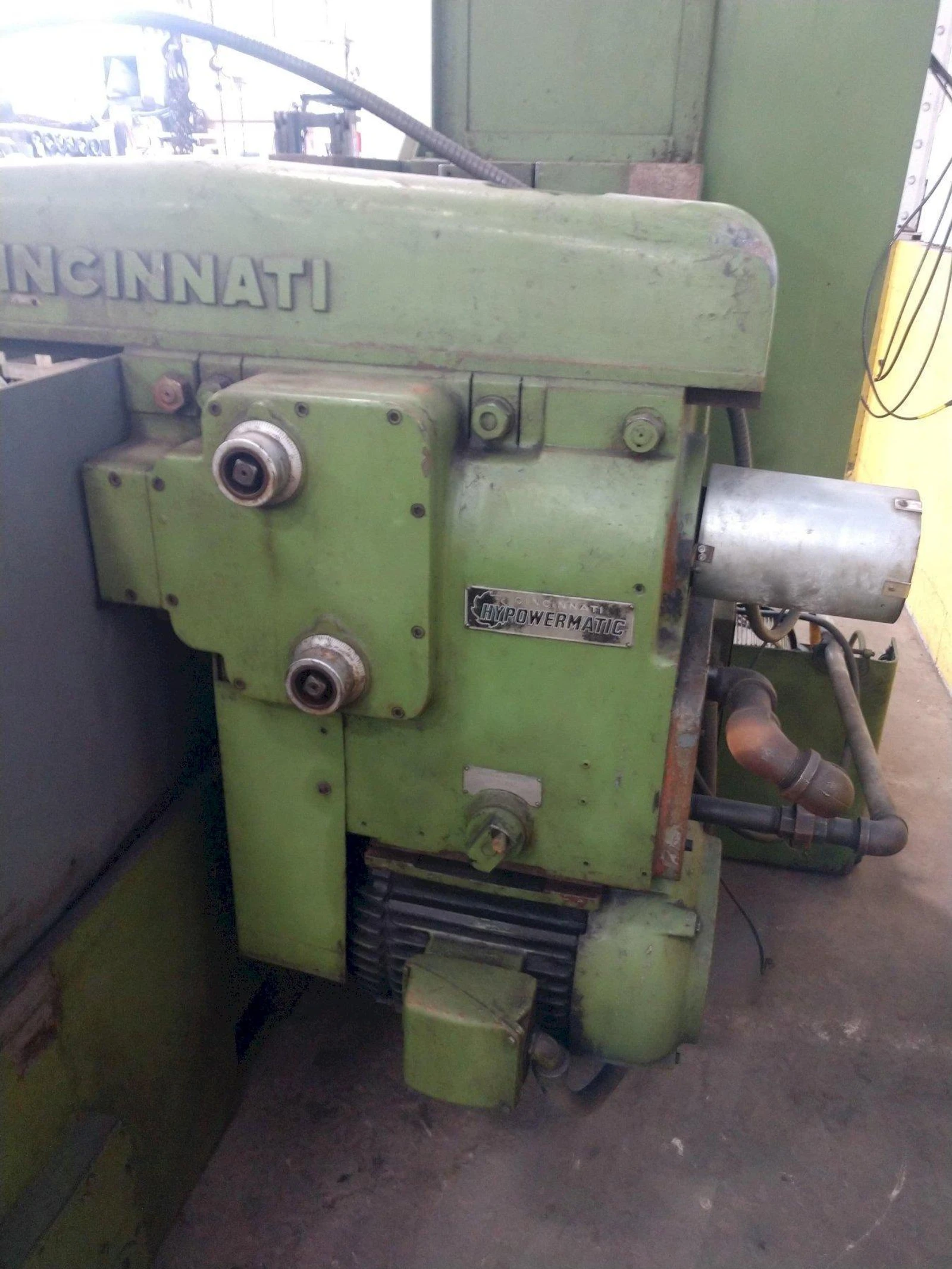

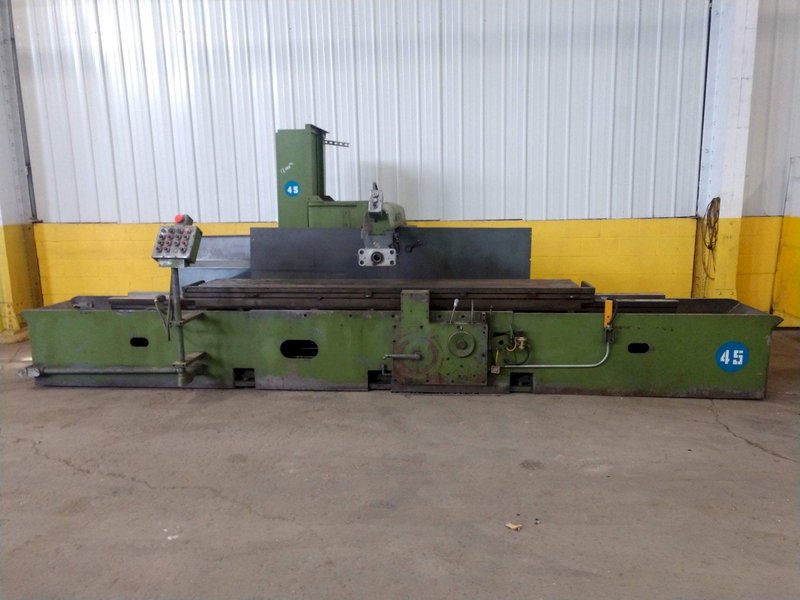

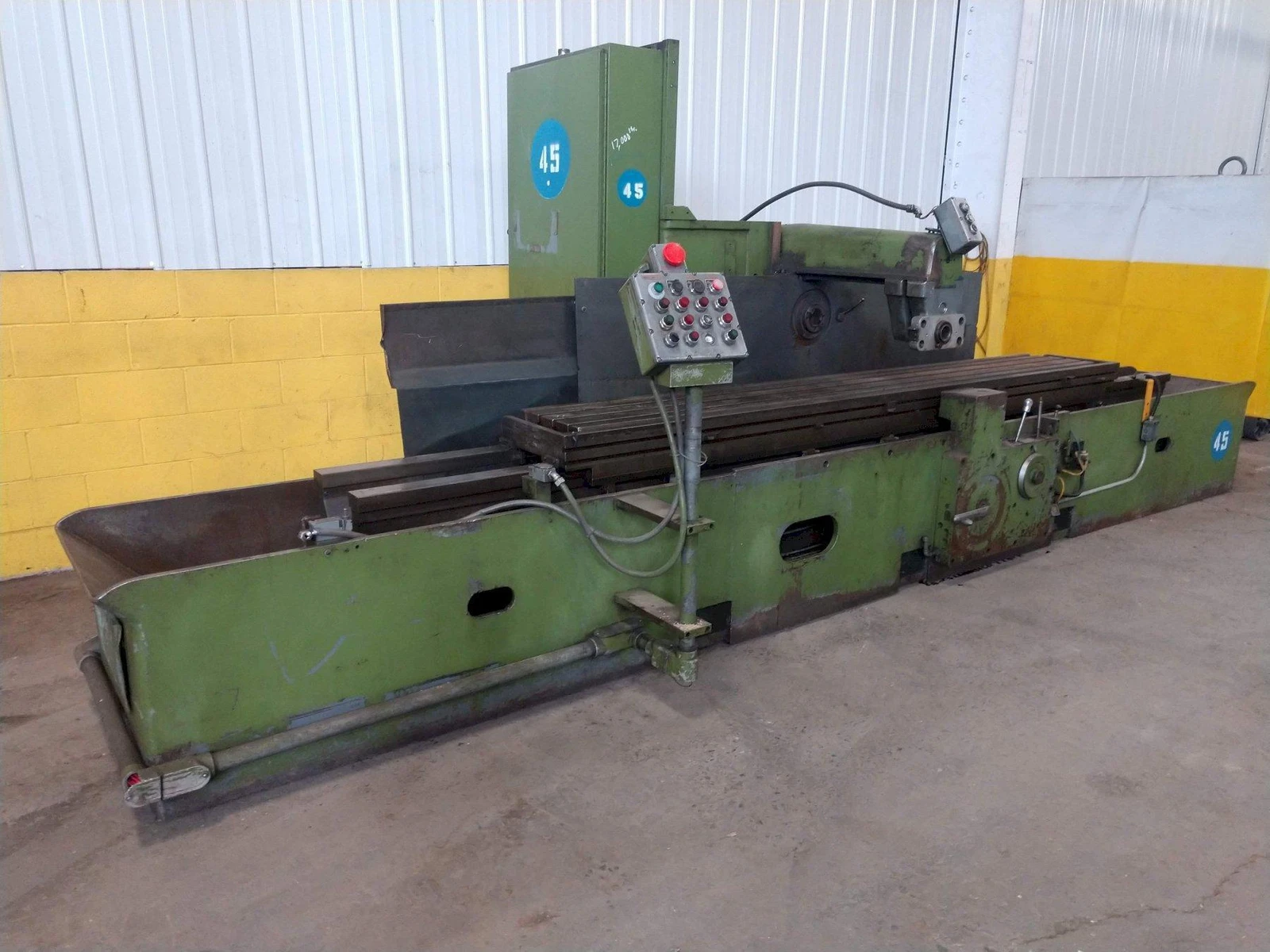

18" X 128" CINCINNATI HYPOWERMATIC HORIZONTAL SIMPLEX PRODUCTION MILL. STOCK # 1162121

Model
400-188 HYPOWERMATIC
Stock #
1162121
Year
Not specified
Condition
Used
Location
Ohio
SERIAL ......................... 6B5P5D-4
MODEL .......................... 400-188 HYPOWERMATIC

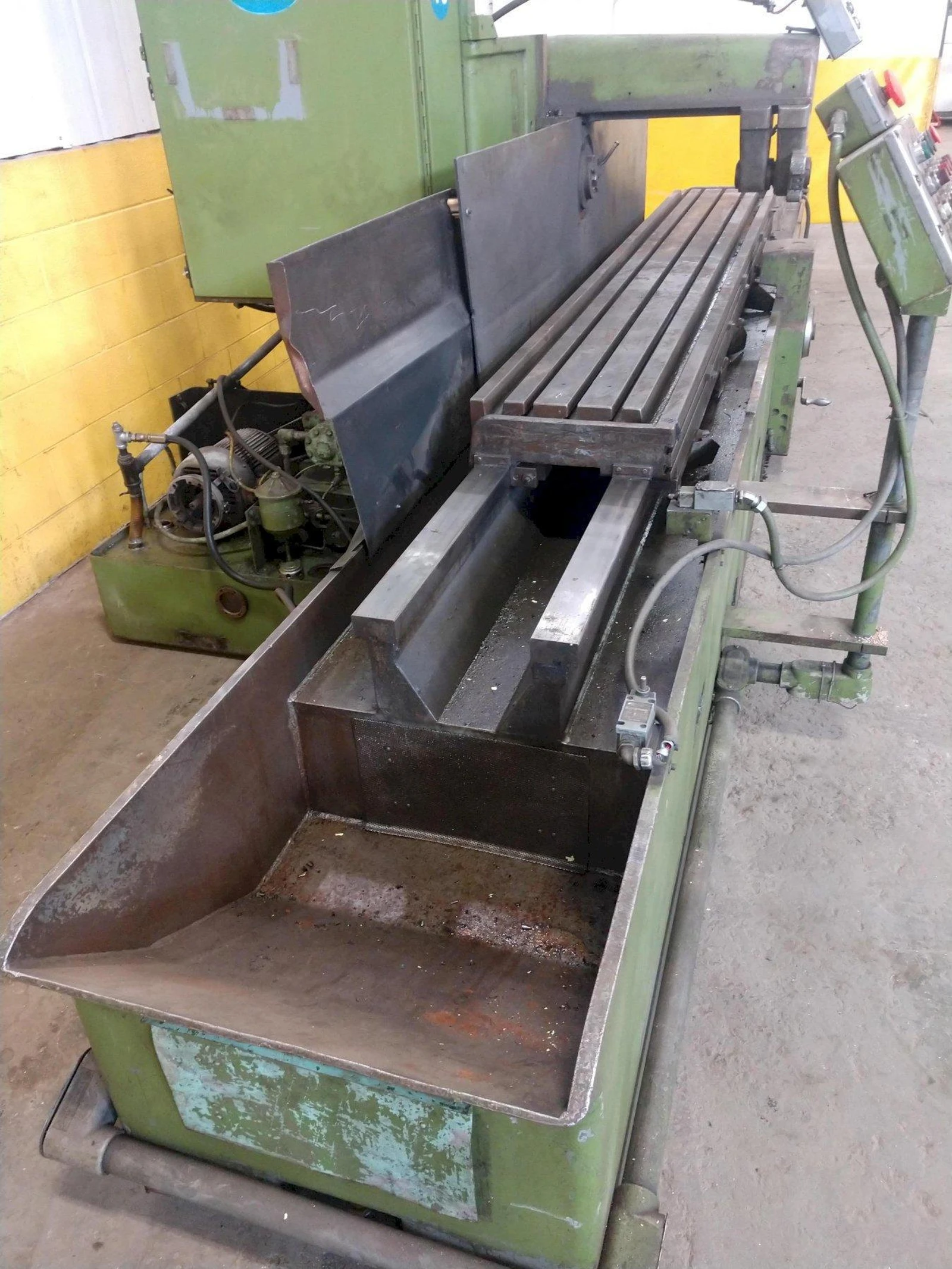

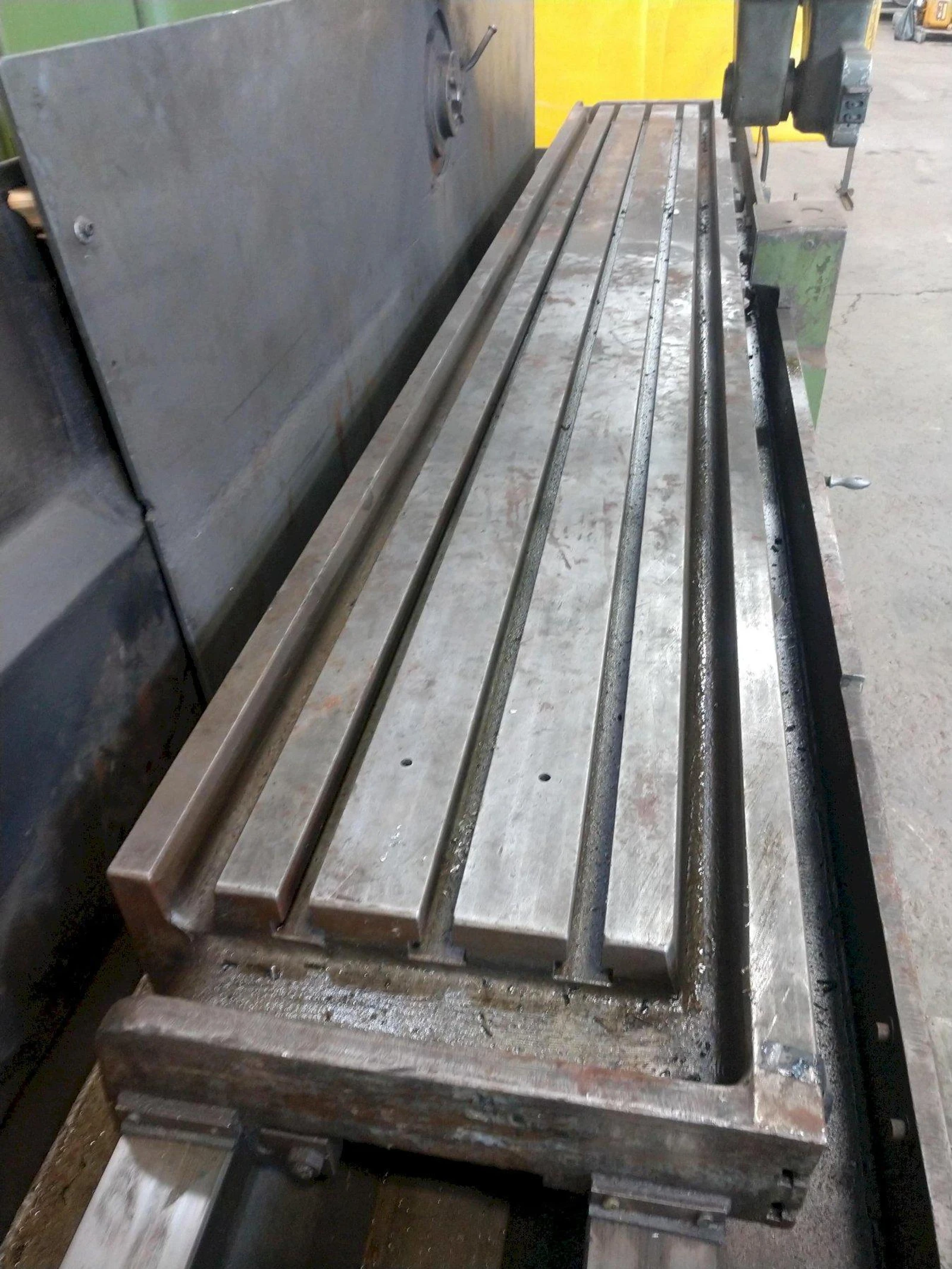

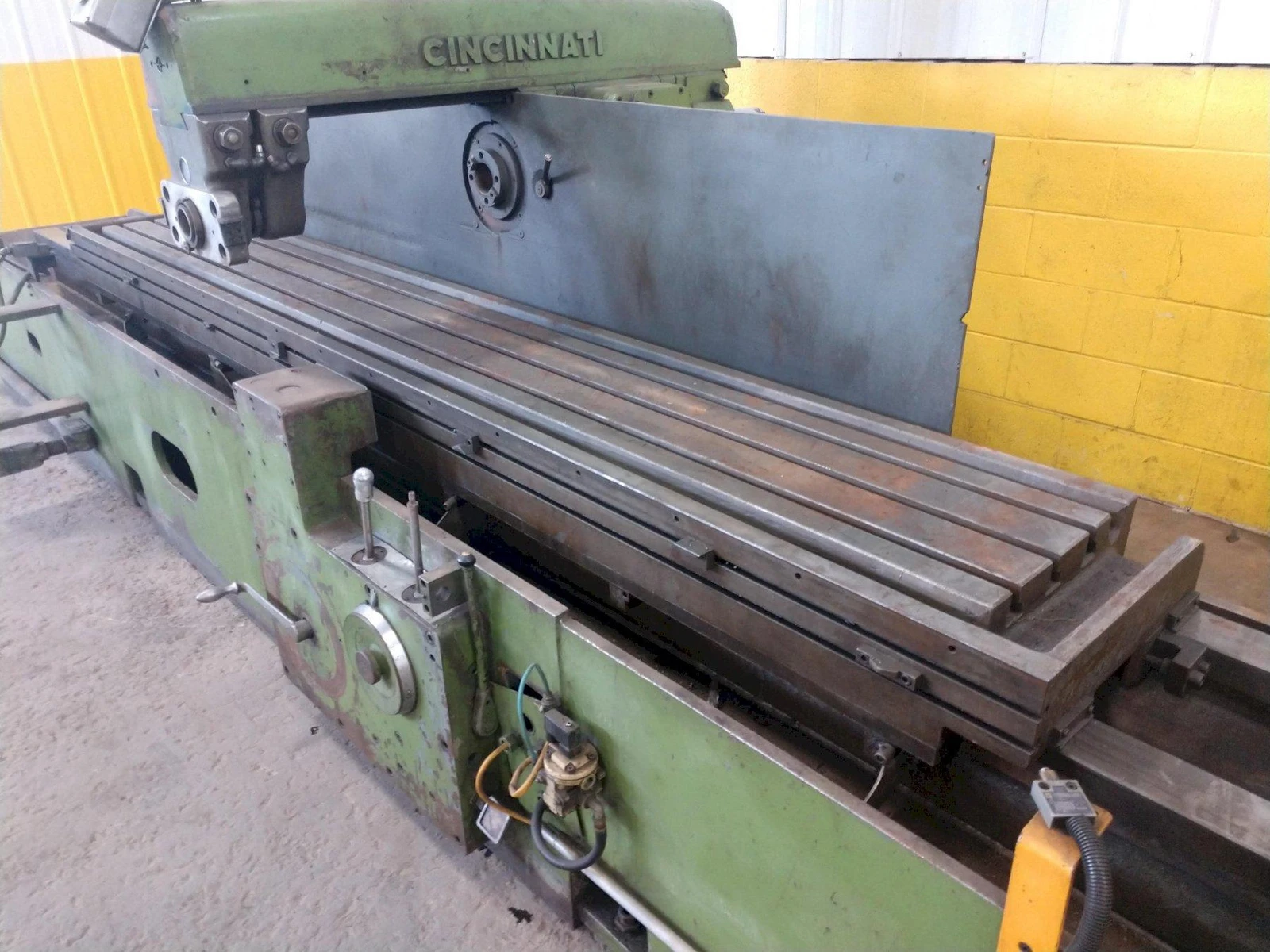

TABLE AREA (T-SLOTTED) ......... 18" X 120"
OVERALL TABLE SIZE ............. 18" X 128"
MAX WORKING WIDTH .............. 23-1/4"
TABLE TRAVEL ................... 96"
TABLE TO SPINDLE DISTANCE ...... 6" TO 16"

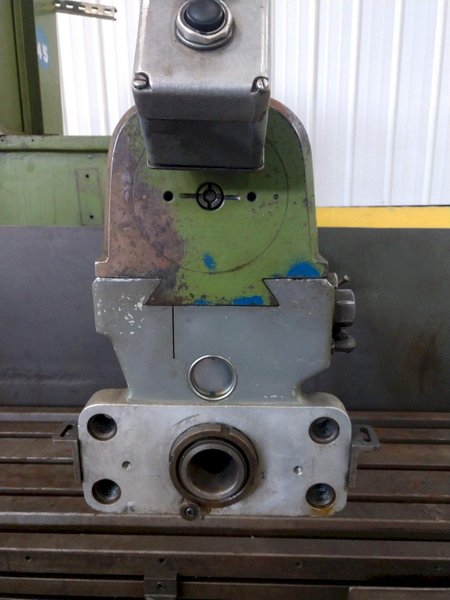

HEAD VERTICAL ADJUSTMENT ....... 10"

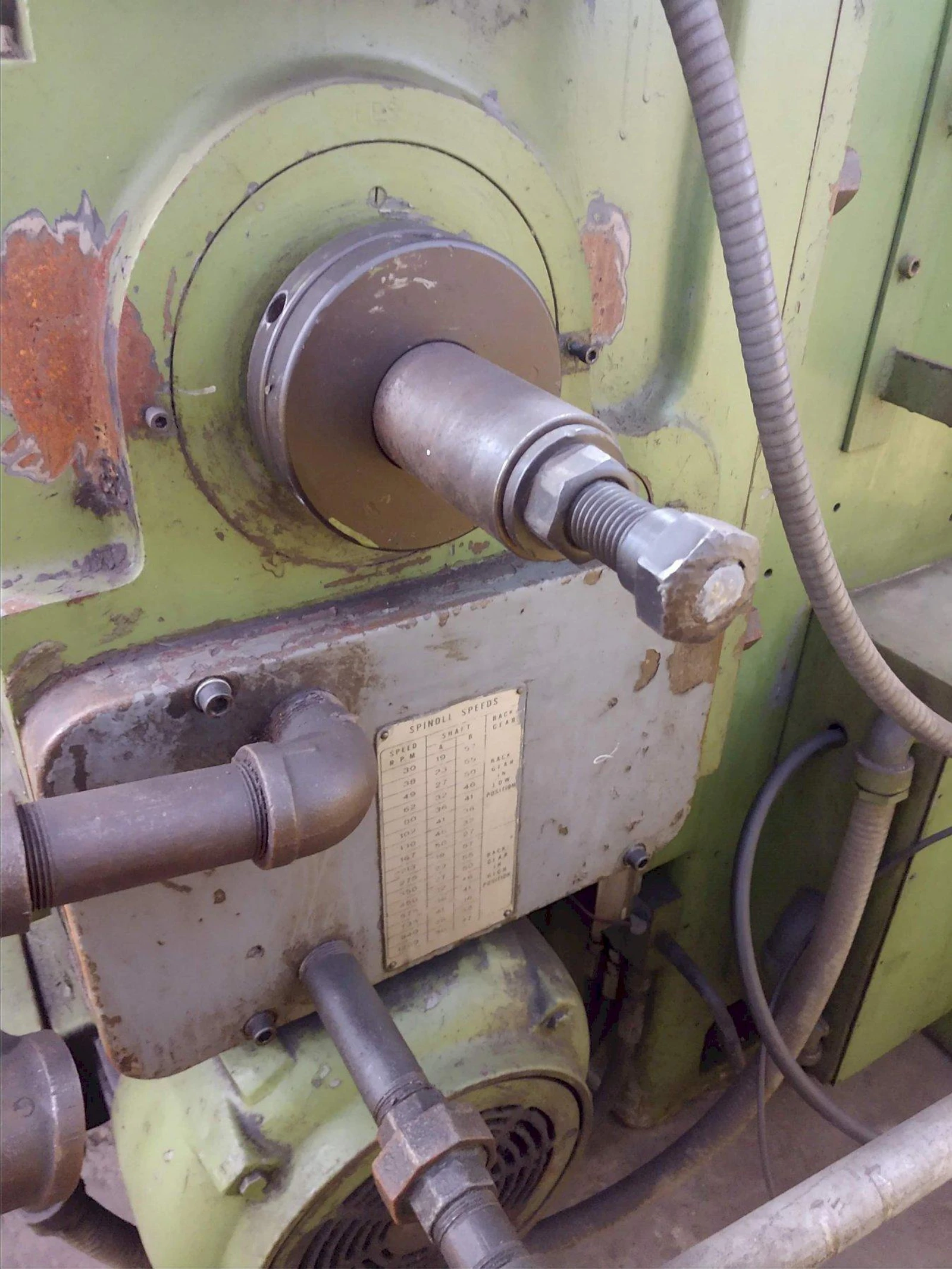

SPINDLE TAPER .................. #50 NS

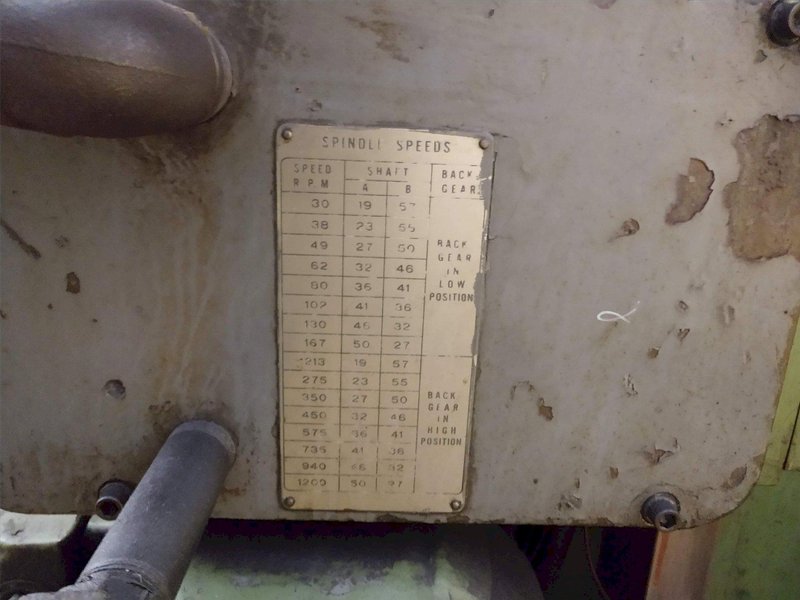

SPINDLE SPEEDS ................. (16) 30 TO 1200 RPM
TABLE FEEDS .................... 1/4 TO 150 IPM
TABLE RAPID TRAVERSE............ 300 IPM
QUILL ADJUSTMENT ............... 6"
DIAMETER OF QUILL .............. 8-1/2"
FLOOR TO TABLE ................. 32"
MANUAL & AUTO CYCLE ............ YES
COOLANT ........................ YES

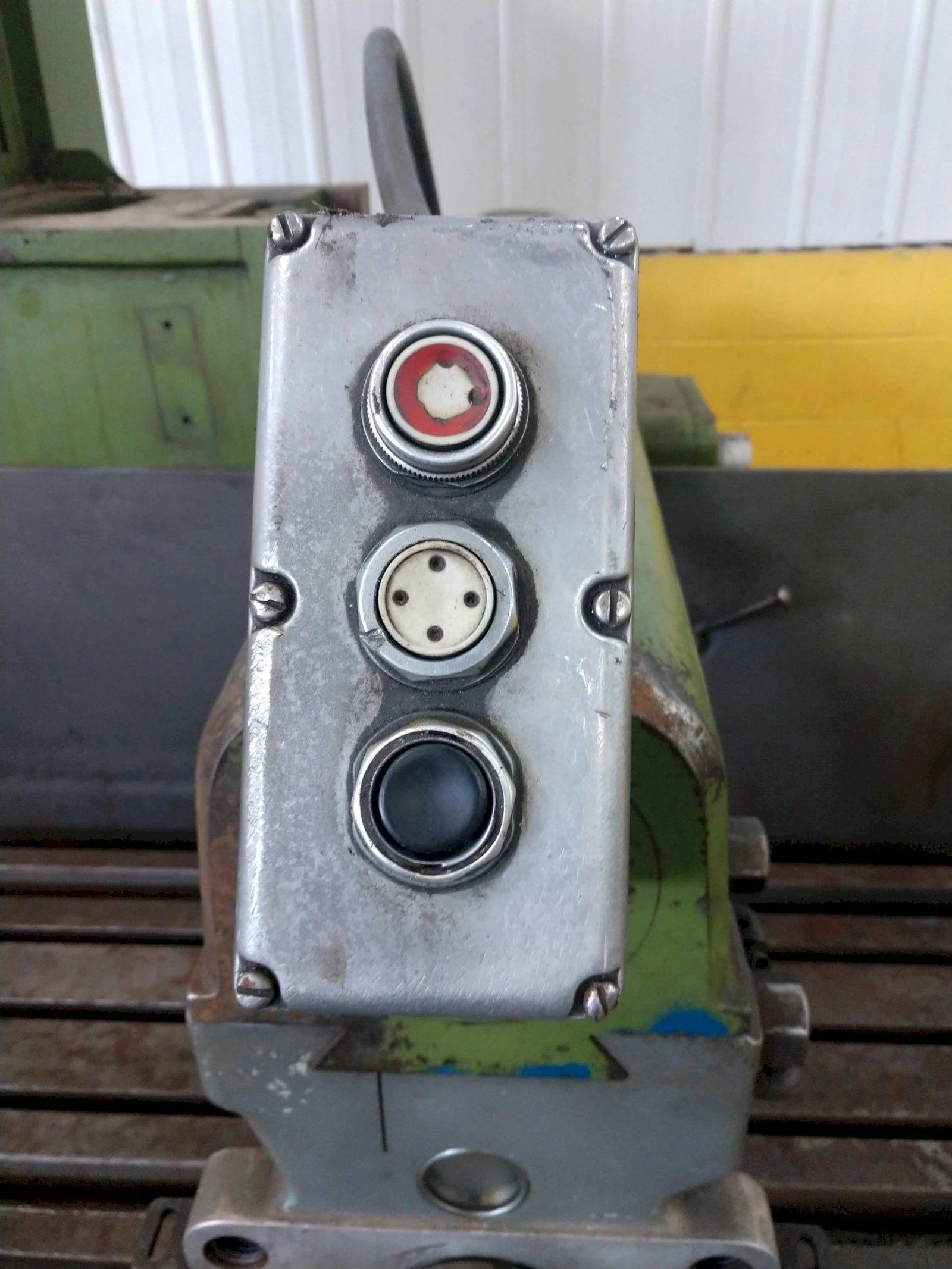

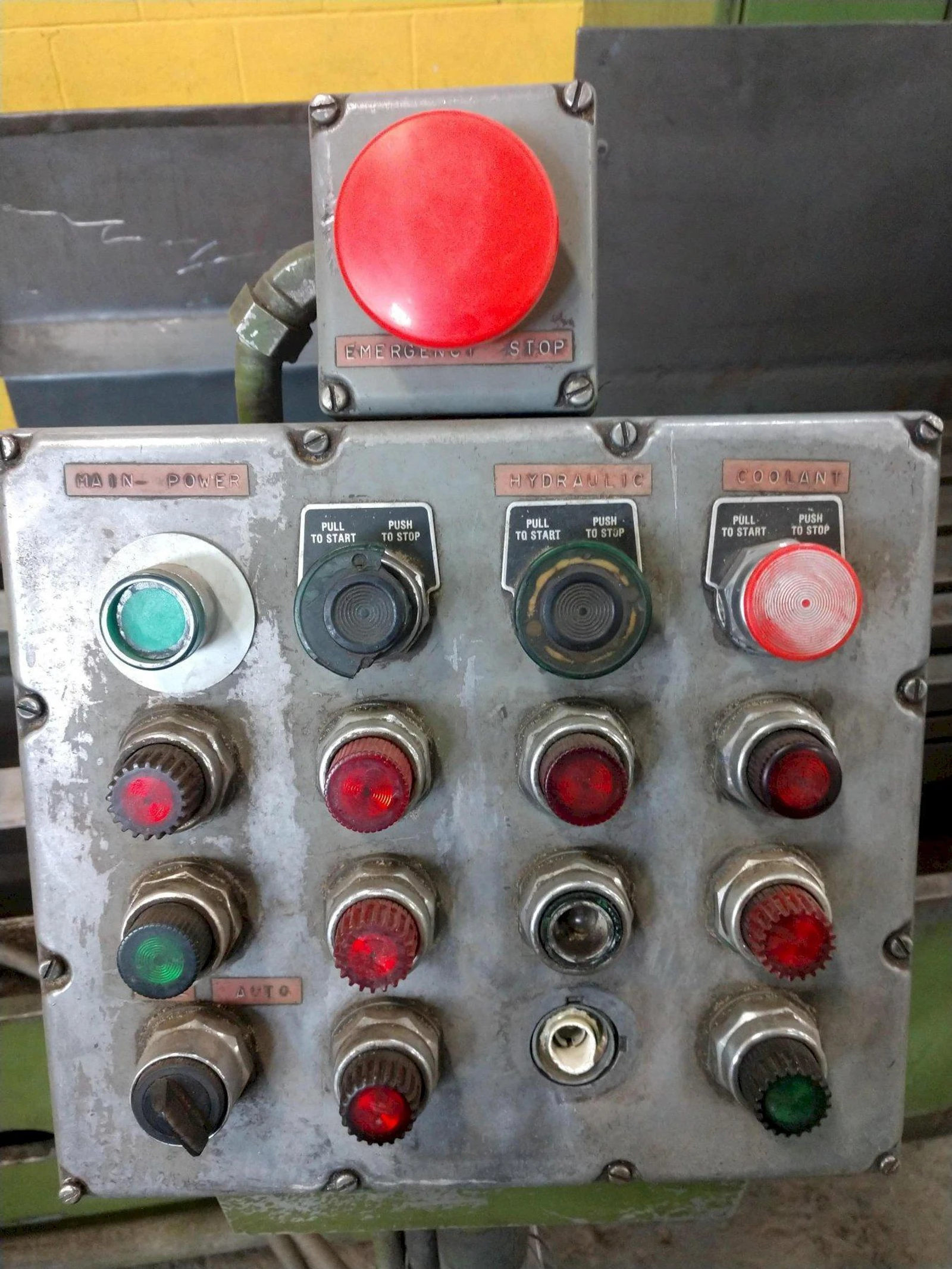

CONTROL CONSOLE STATION ........ YES
HYDRAULIC MOTOR ................ 5 HP
SPINDLE MOTOR .................. 25 HP
