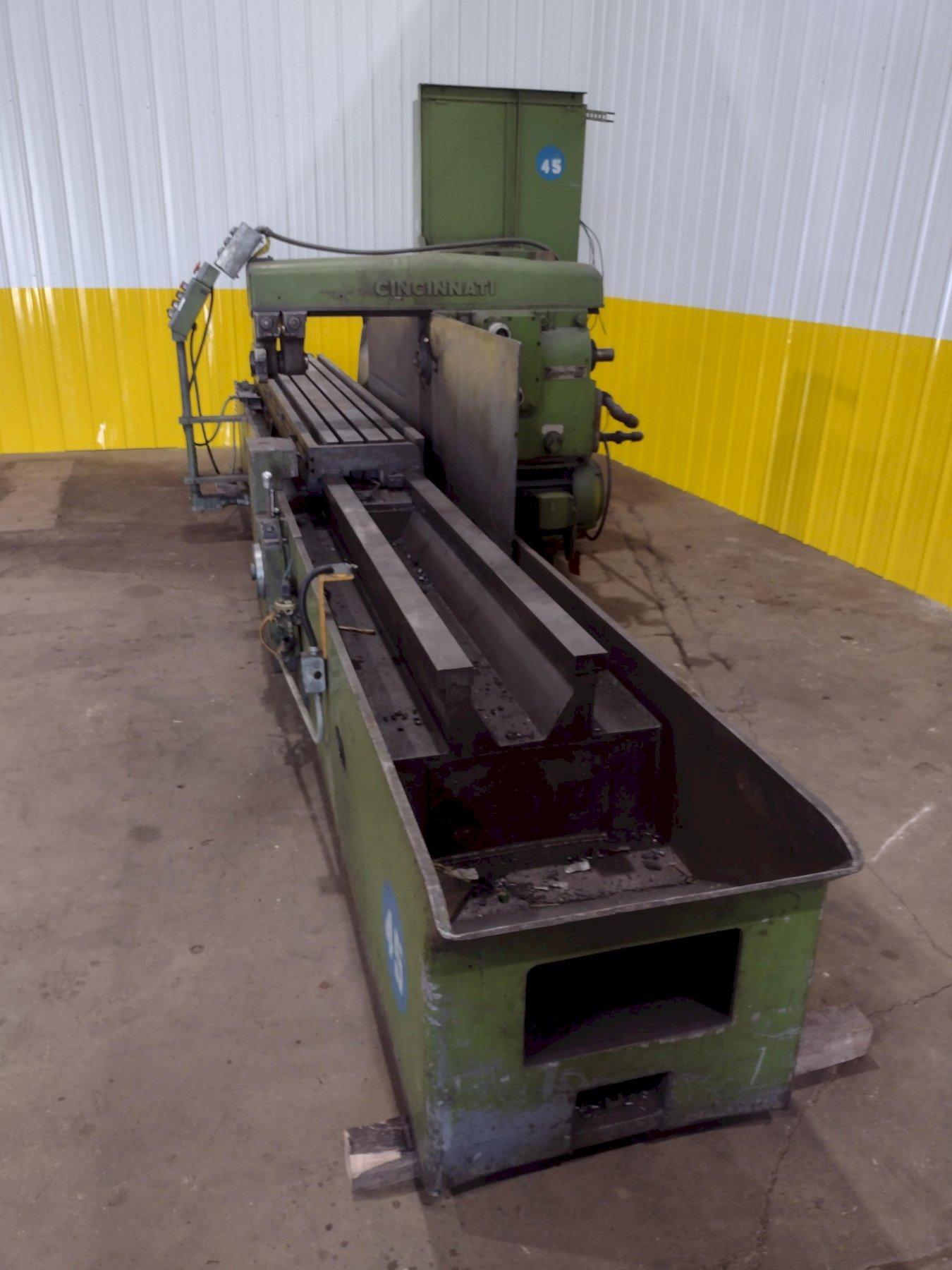

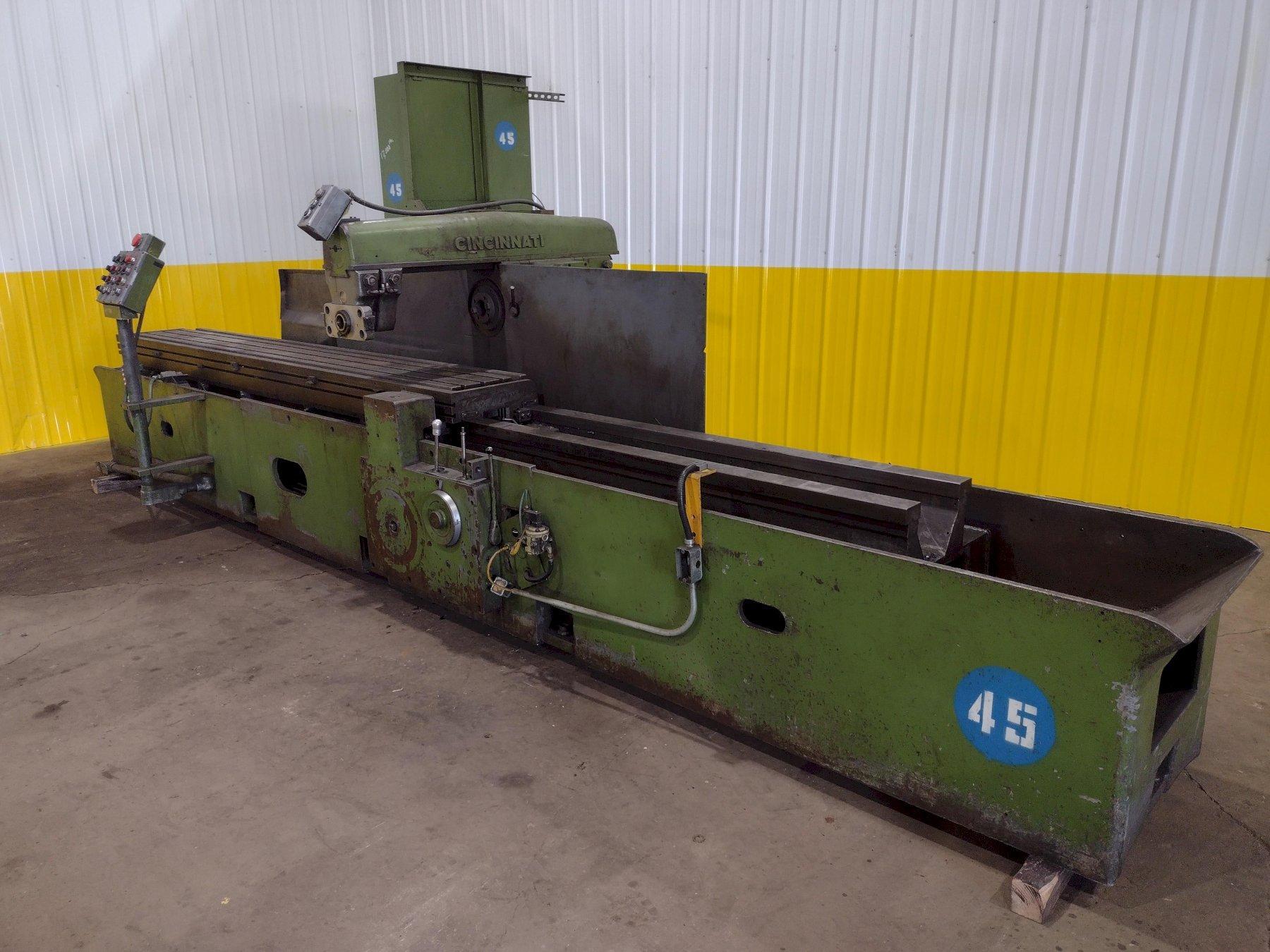

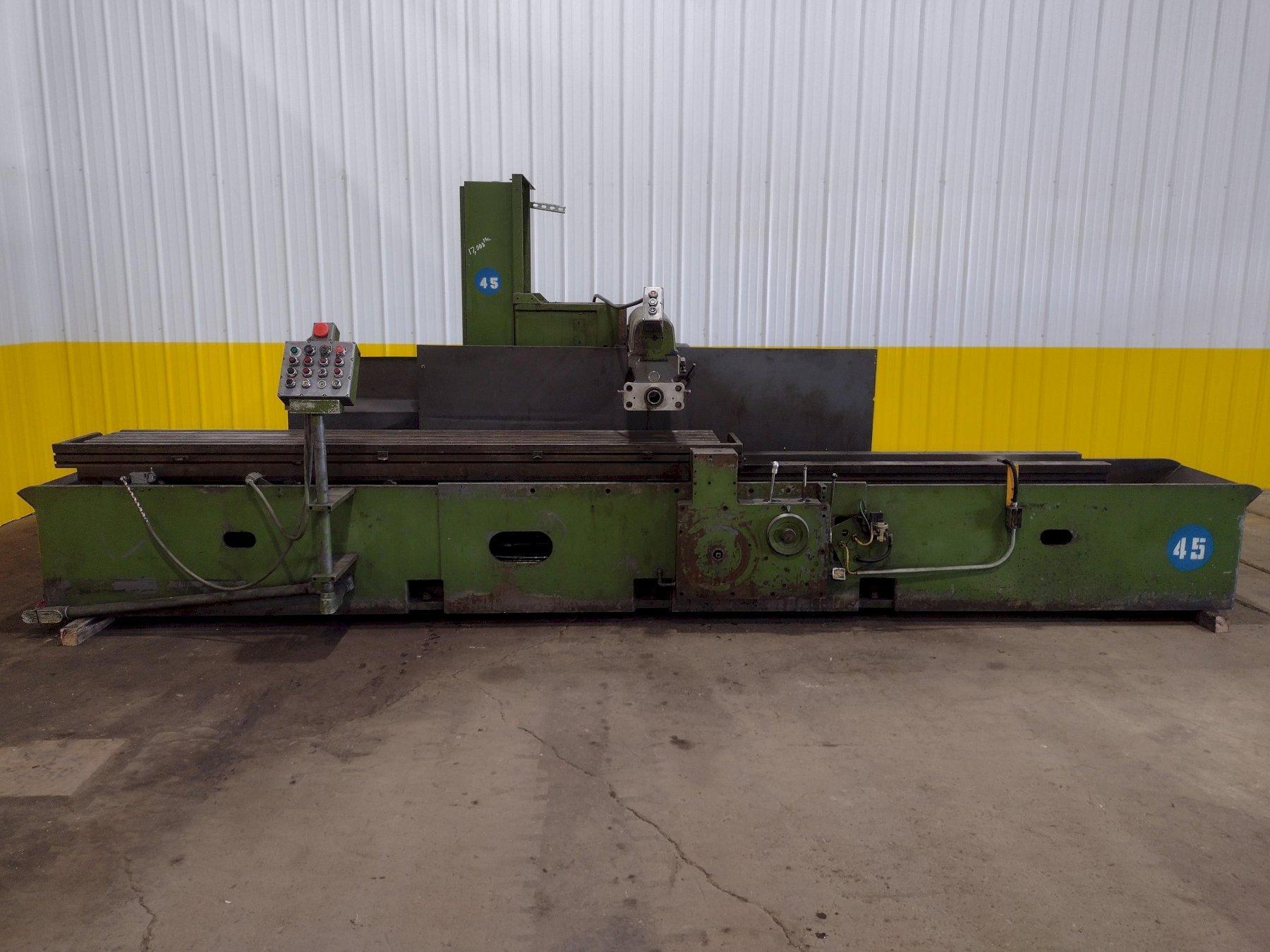

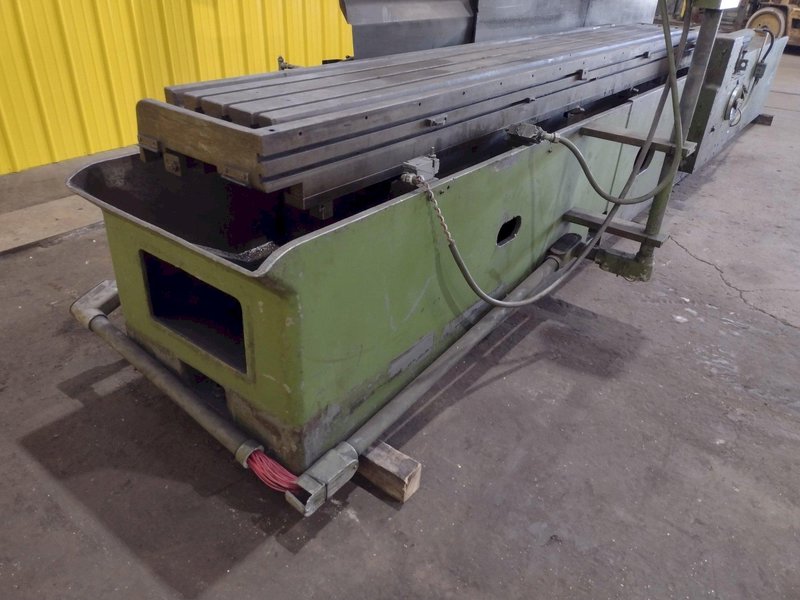

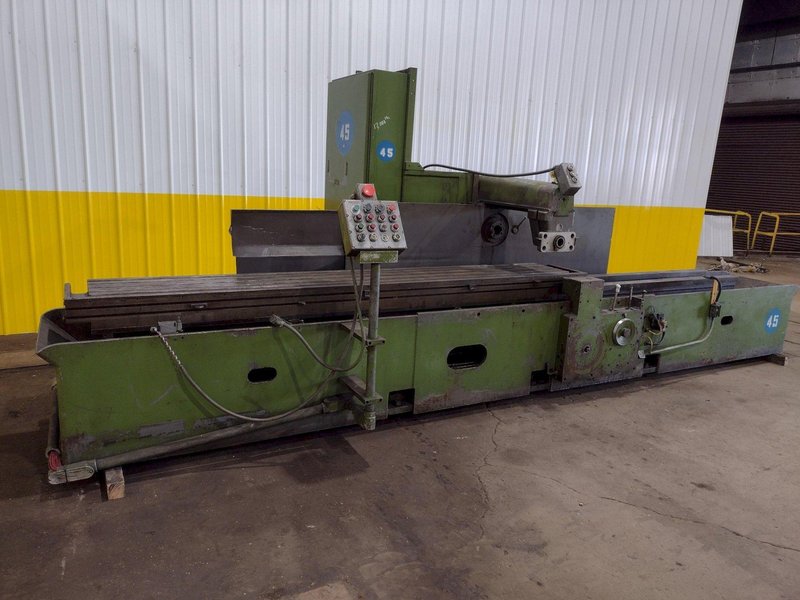

18" X 128" CINCINNATI HYPOWERMATIC HORIZONTAL SIMPLEX PRODUCTION MILL: STOCK #14725
Brand
Category
Model
Not specified
Stock #
14725
Year
1966
Condition
Good
Location
Ohio
|
SERIAL ......................... 6B5P5D-4

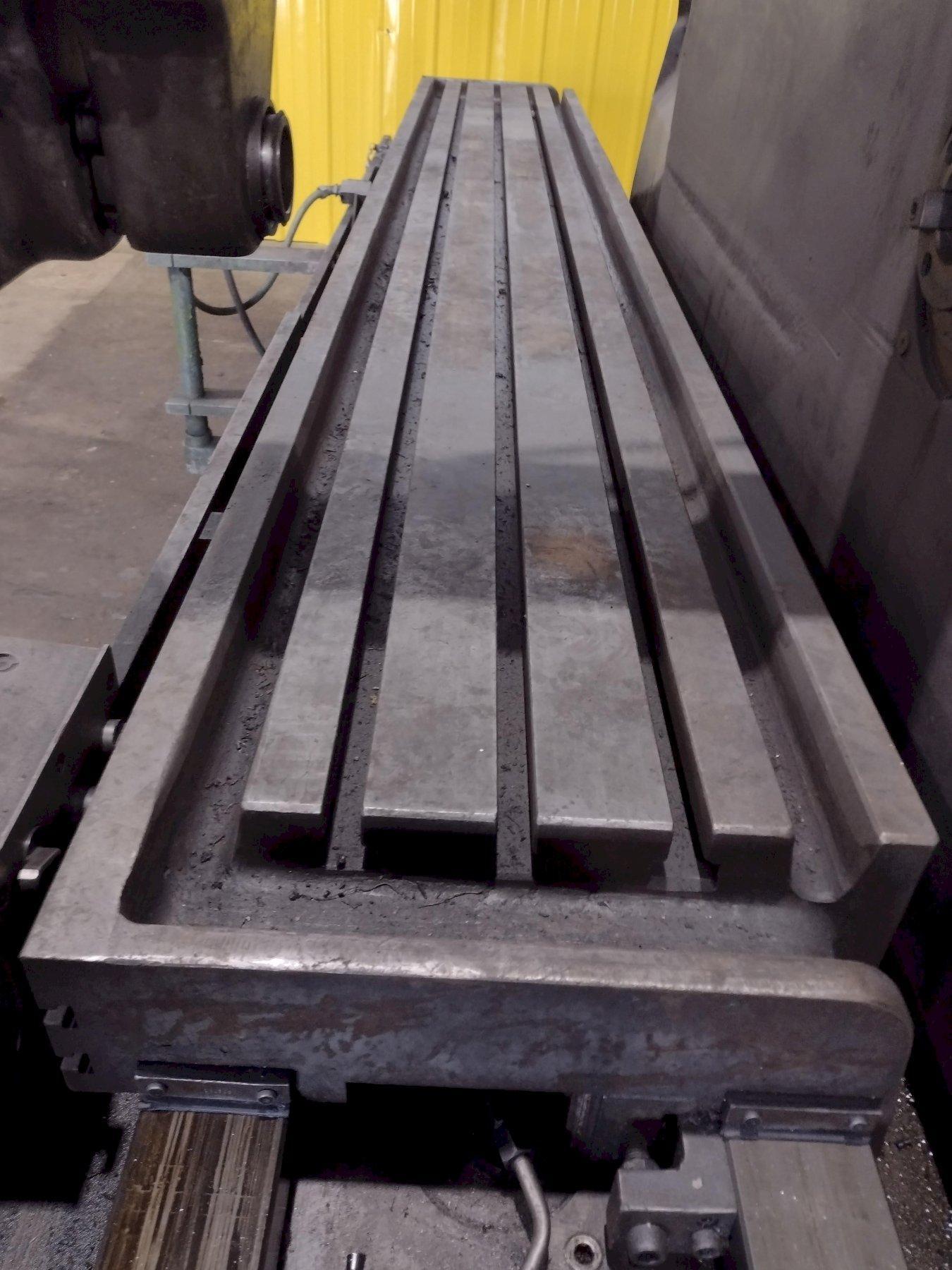

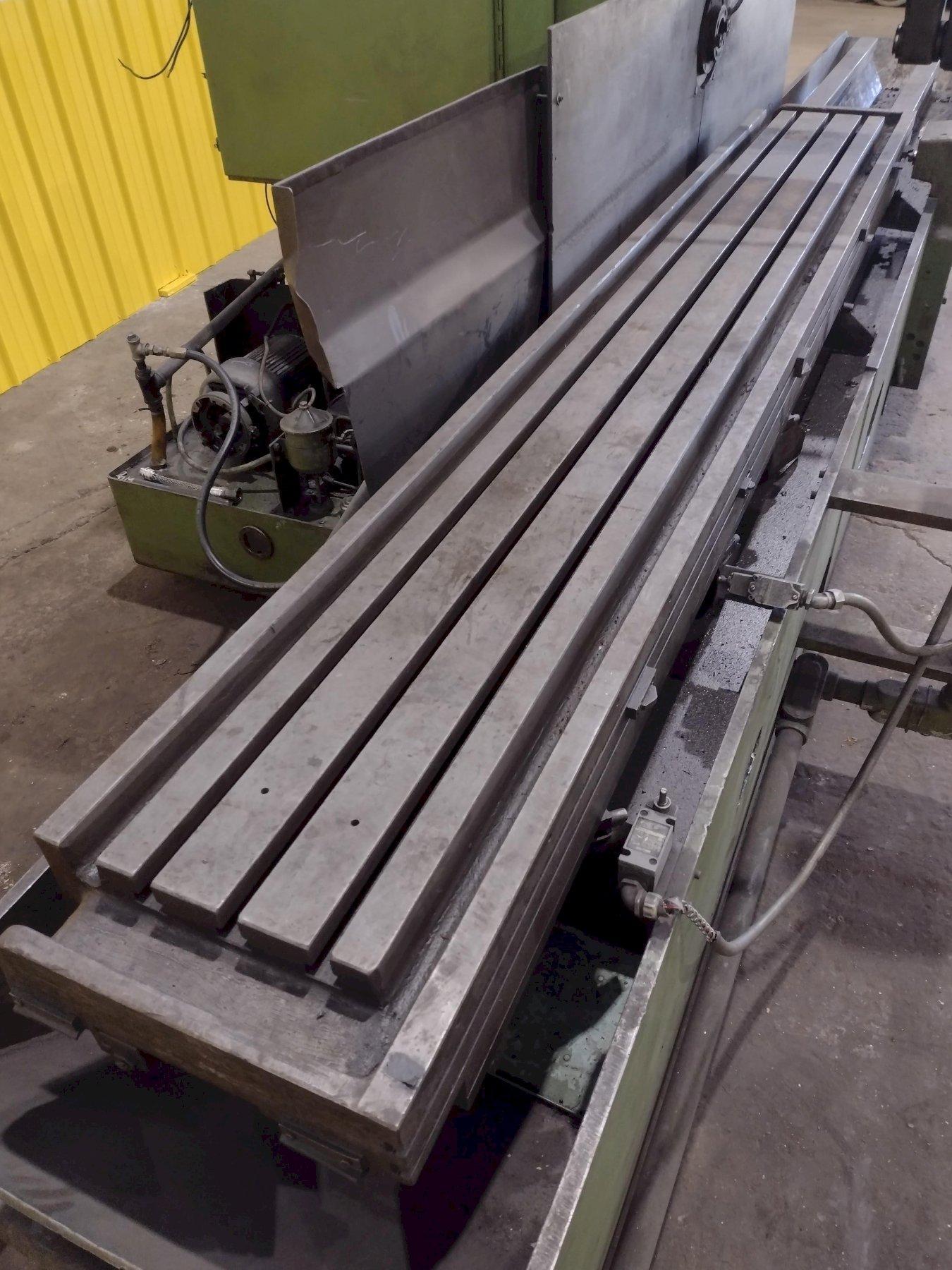

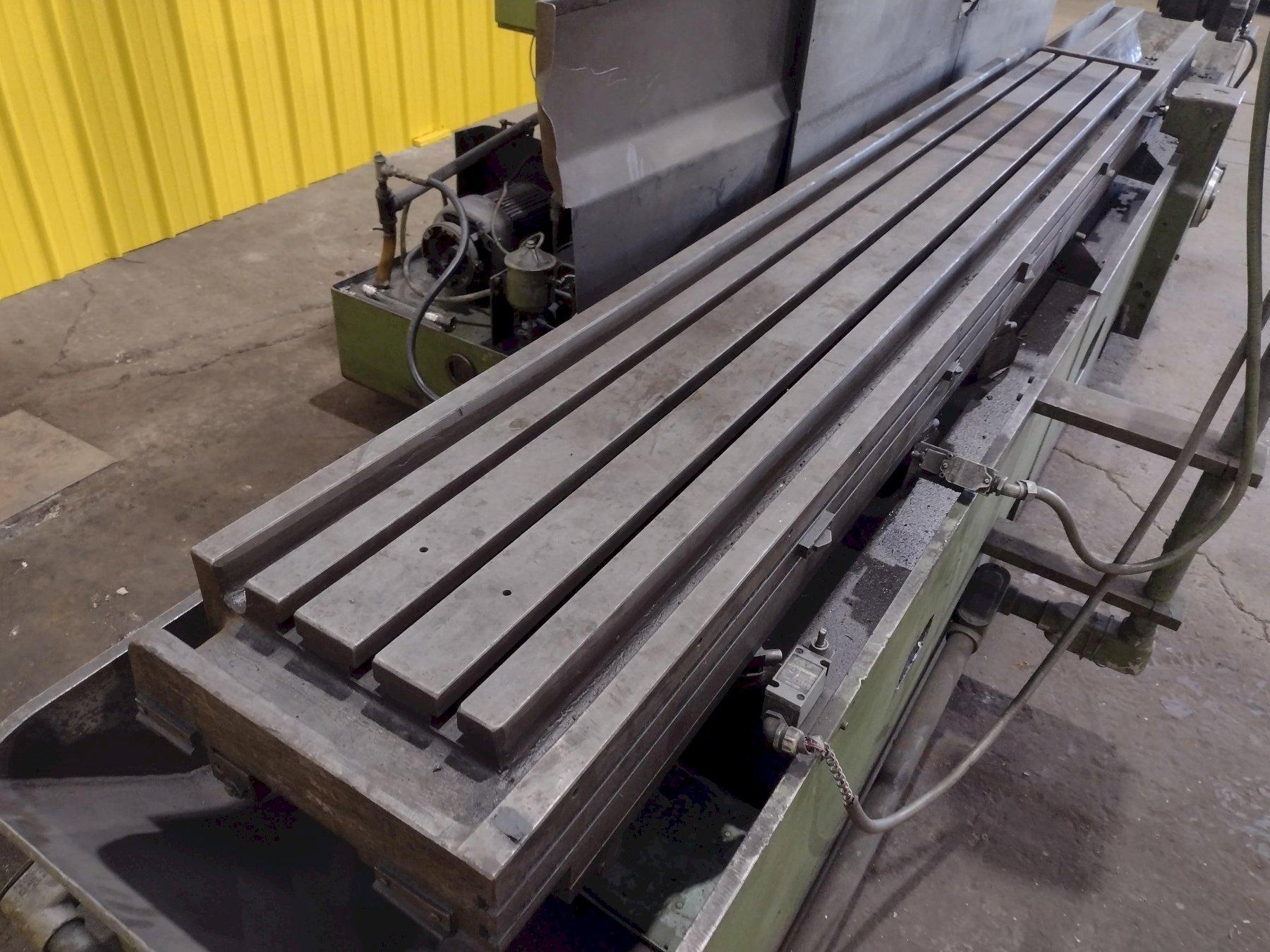

MODEL .......................... 400-188 HYPOWERMATIC TABLE AREA (T-SLOTTED) ......... 18" X 120" OVERALL TABLE SIZE ............. 18" X 128" MAX WORKING WIDTH .............. 23-1/4" TABLE TRAVEL ................... 96" TABLE TO SPINDLE DISTANCE ...... 6" TO 16" HEAD VERTICAL ADJUSTMENT ....... 10" SPINDLE TAPER .................. #50 NS SPINDLE SPEEDS ................. (16) 30 TO 1200 RPM TABLE FEEDS .................... 1/4 TO 150 IPM TABLE RAPID TRAVERSE............ 300 IPM QUILL ADJUSTMENT ............... 6" DIAMETER OF QUILL .............. 8-1/2" FLOOR TO TABLE ................. 32" MANUAL & AUTO CYCLE ............ YES COOLANT ........................ YES CONTROL CONSOLE STATION ........ YES HYDRAULIC MOTOR ................ 5 HP SPINDLE MOTOR .................. 25 HP |
Watch https://youtu.be/OI5PszRvZWU
