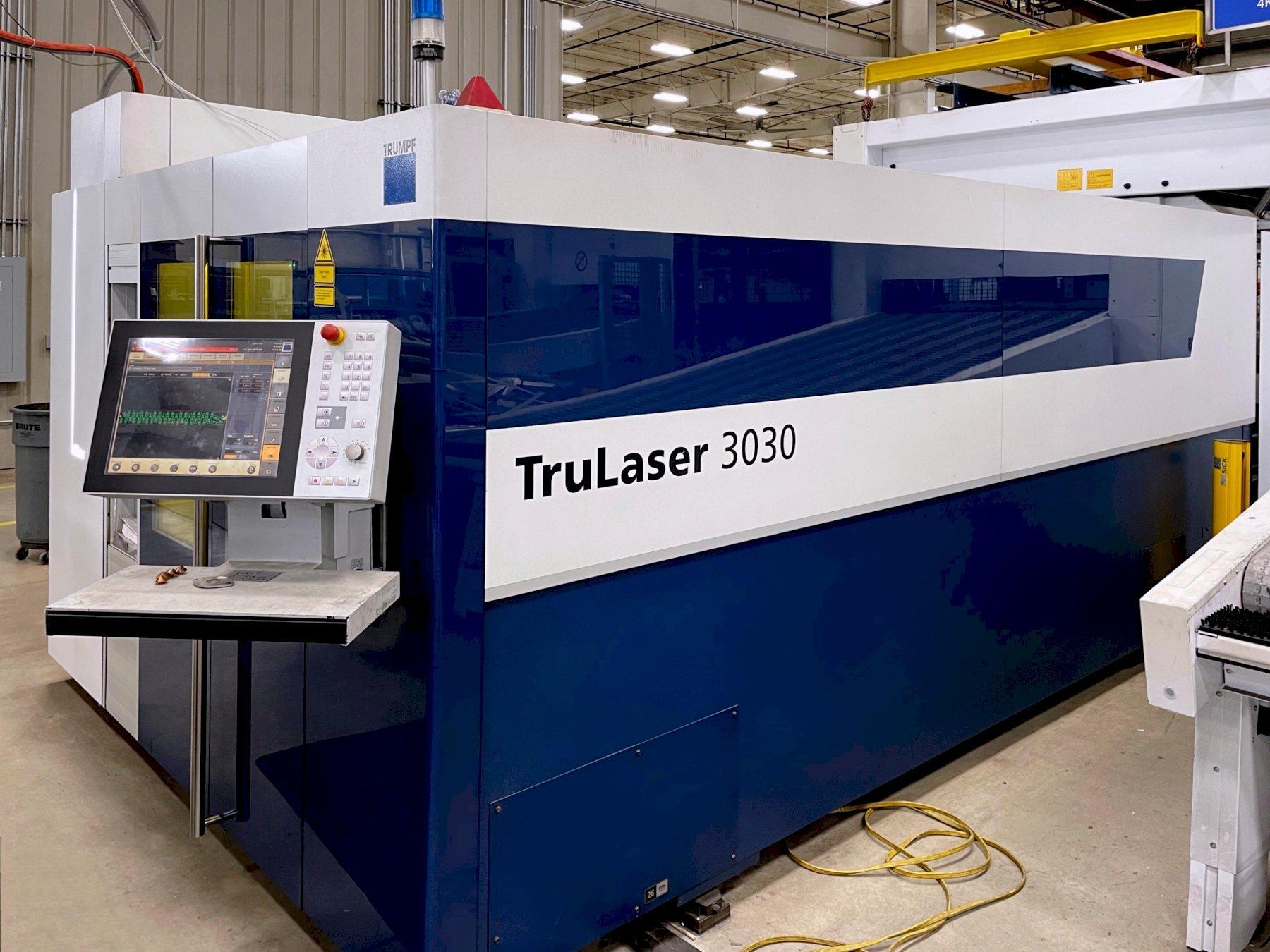

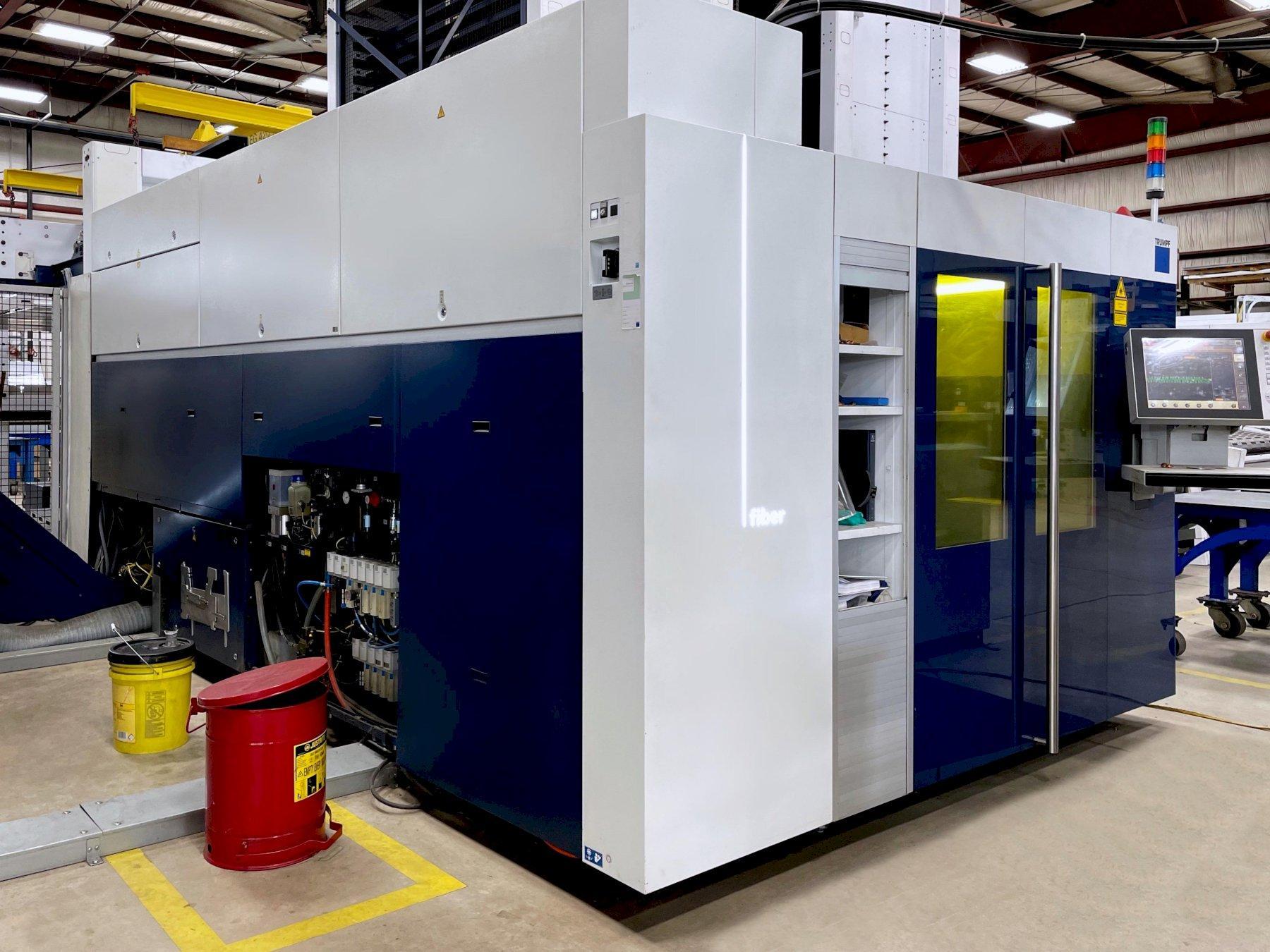

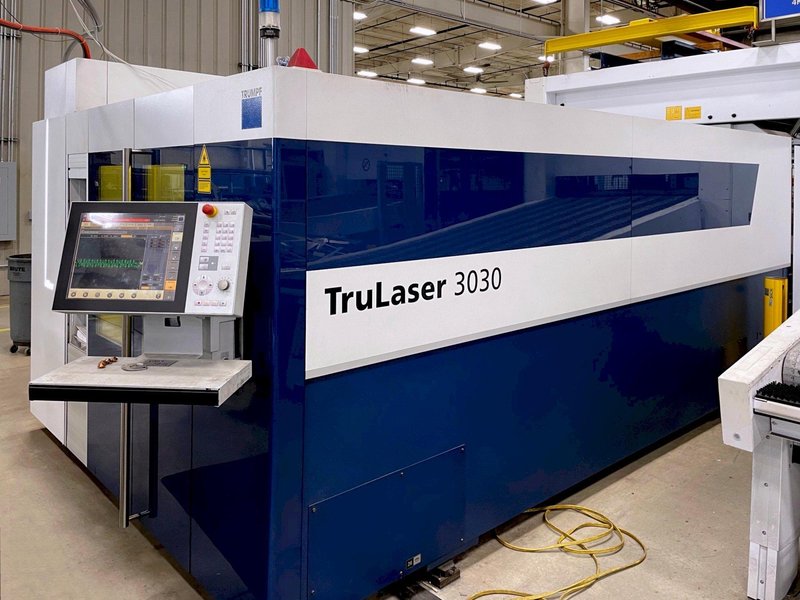

Trumpf TruLaser 3030 Fiber Laser
Brand
Category
Type
Model
TruLaser 3030 Fiber
Stock #
100300
Year
2015
Condition
Excellent
Location
Not specified

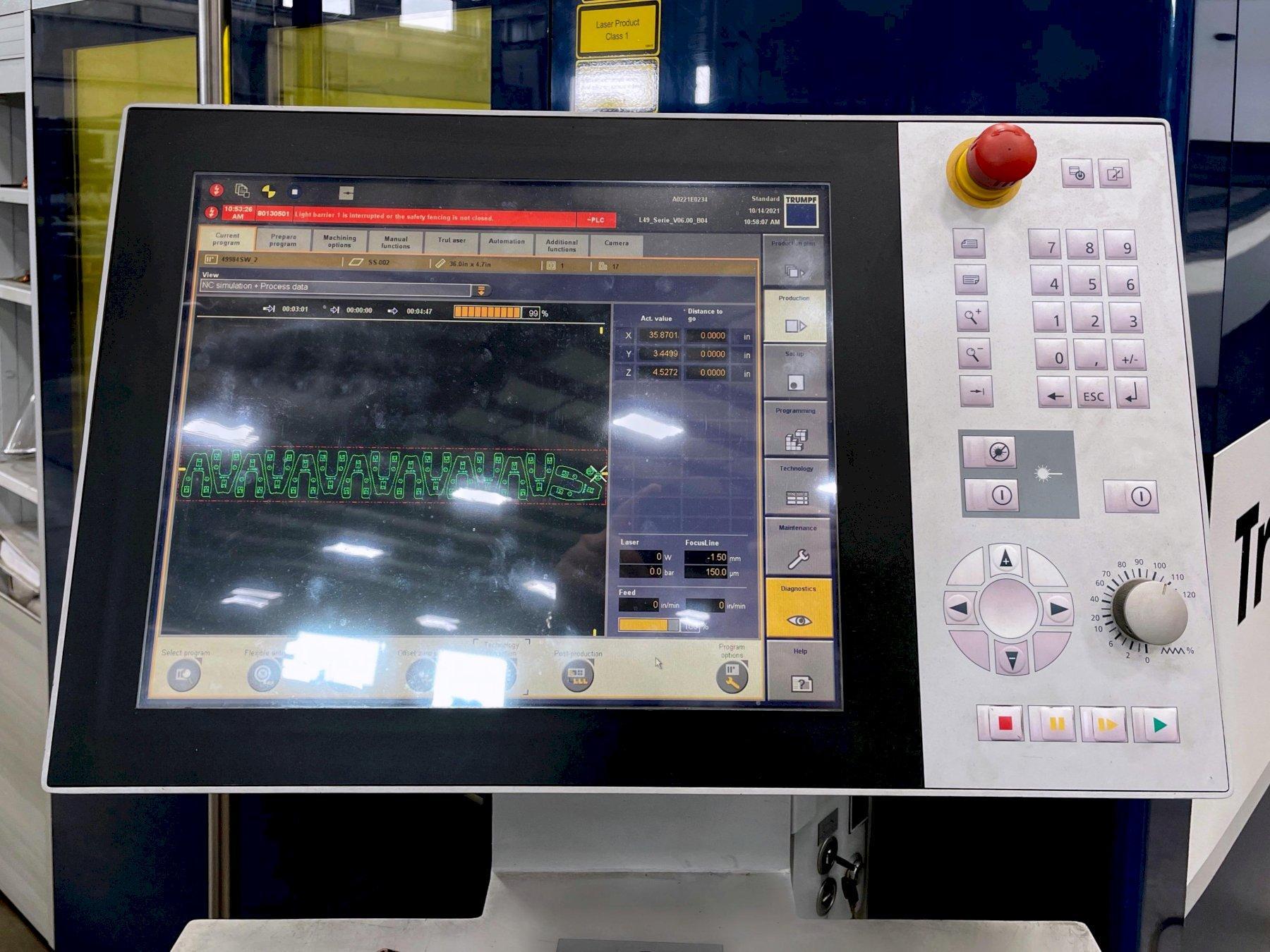

| Control | Sinumerik 840 D Si CNC |
| Laser Type | Fiber |
| Power Source | TruDisk 4001 |
| Max Power Output | 4,000 Watts |
| Table Size | 60”x120” |
| X Axis Travels | 120" |
| Y Axis Travels | 60" |
| Z Axis Travels | 4.5" |
| Workpiece Max Weight (Lbs) | 3,960 Lbs. |
| Max Speed (Sim). | 5,512 IPM |
| Accuracy | .002" |
| Repeatability | .0012" |
| Max Thickness Mild Steel | 1.00" |
| Max Thickness Stainless Steel | 0.75" |
| Max Thickness Aluminum | 0.75" |
| Max Thickness Copper | 0.31" |
| Max Thickness Brass | 0.31" |
|

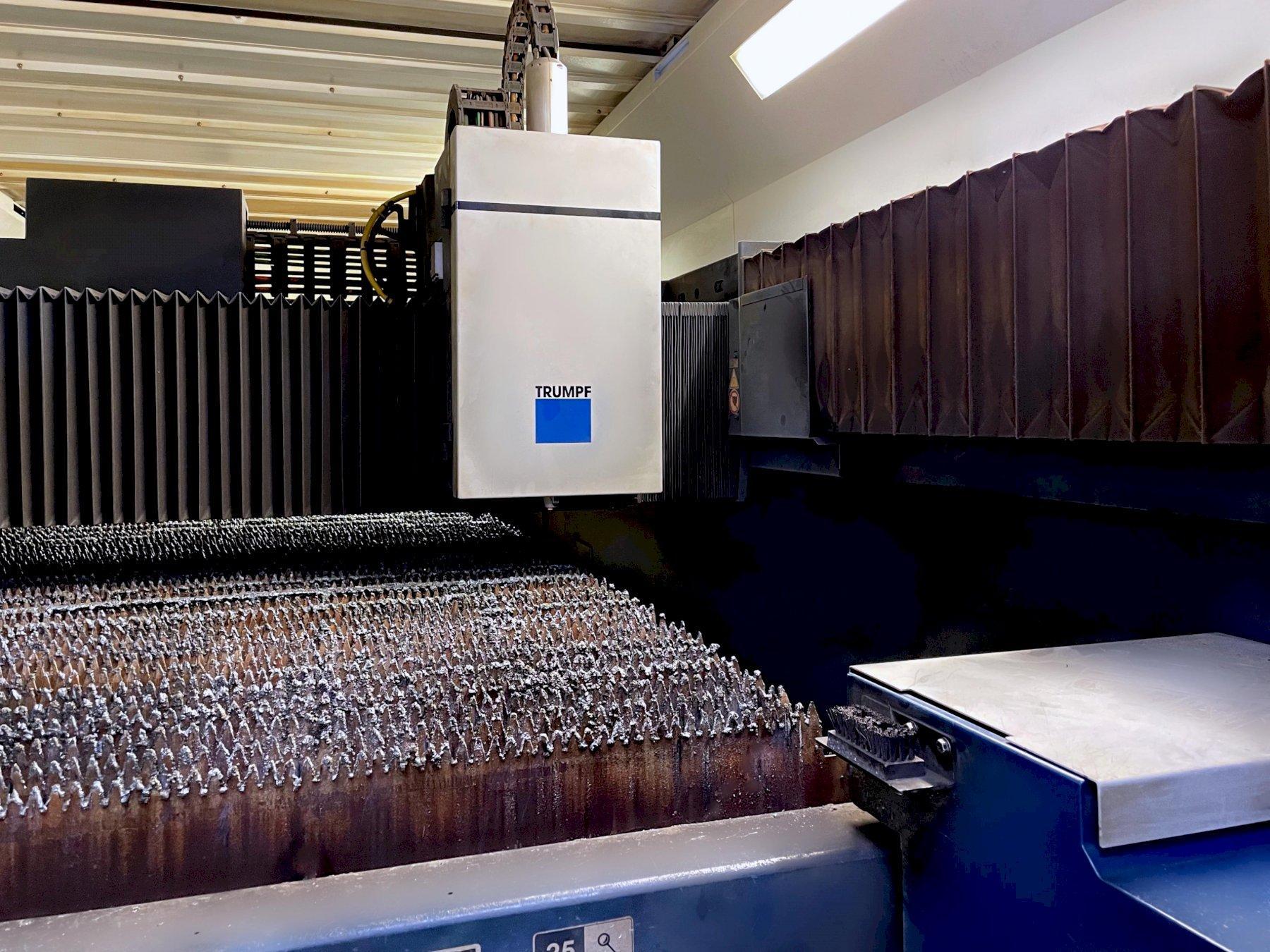

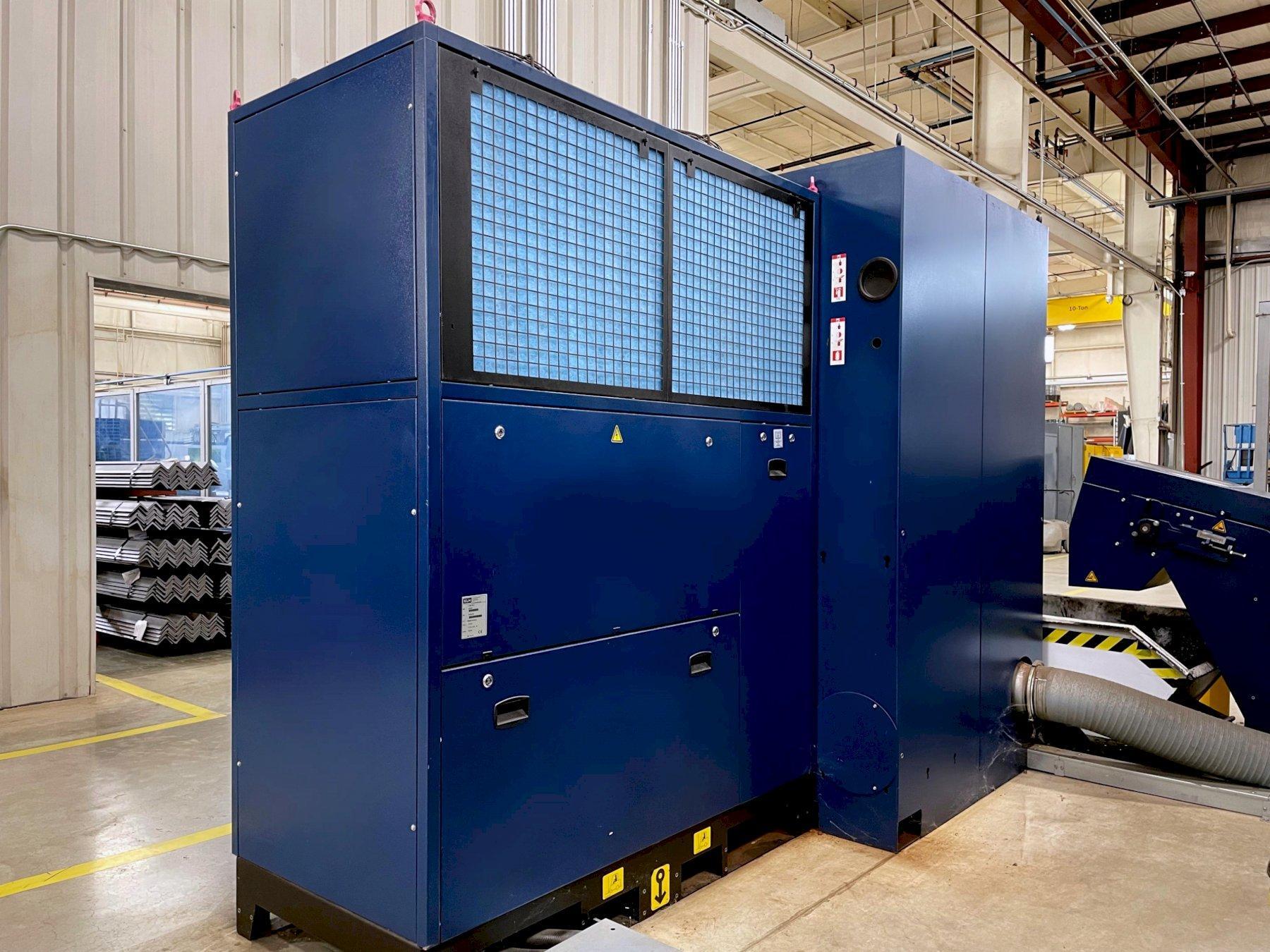

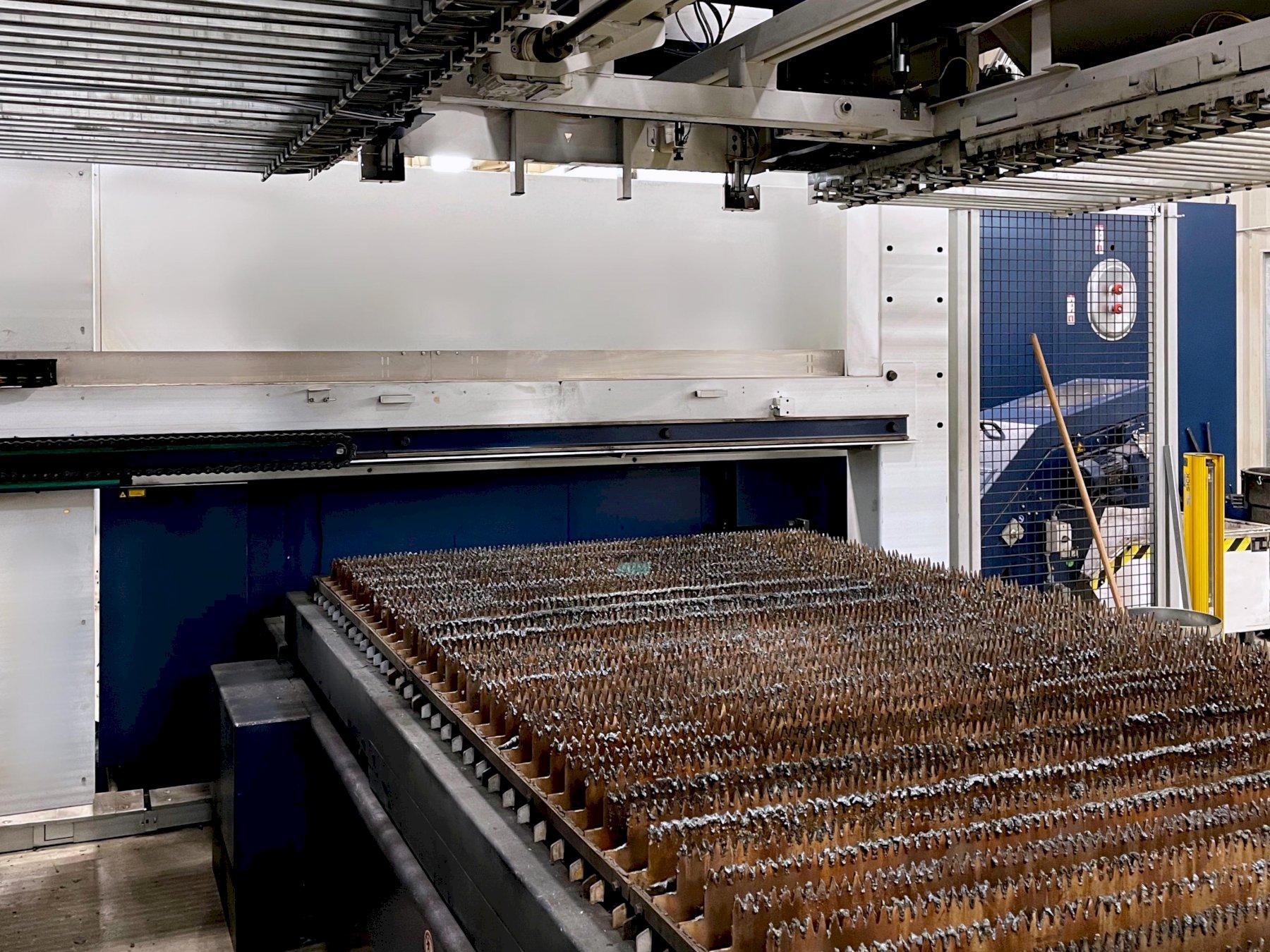

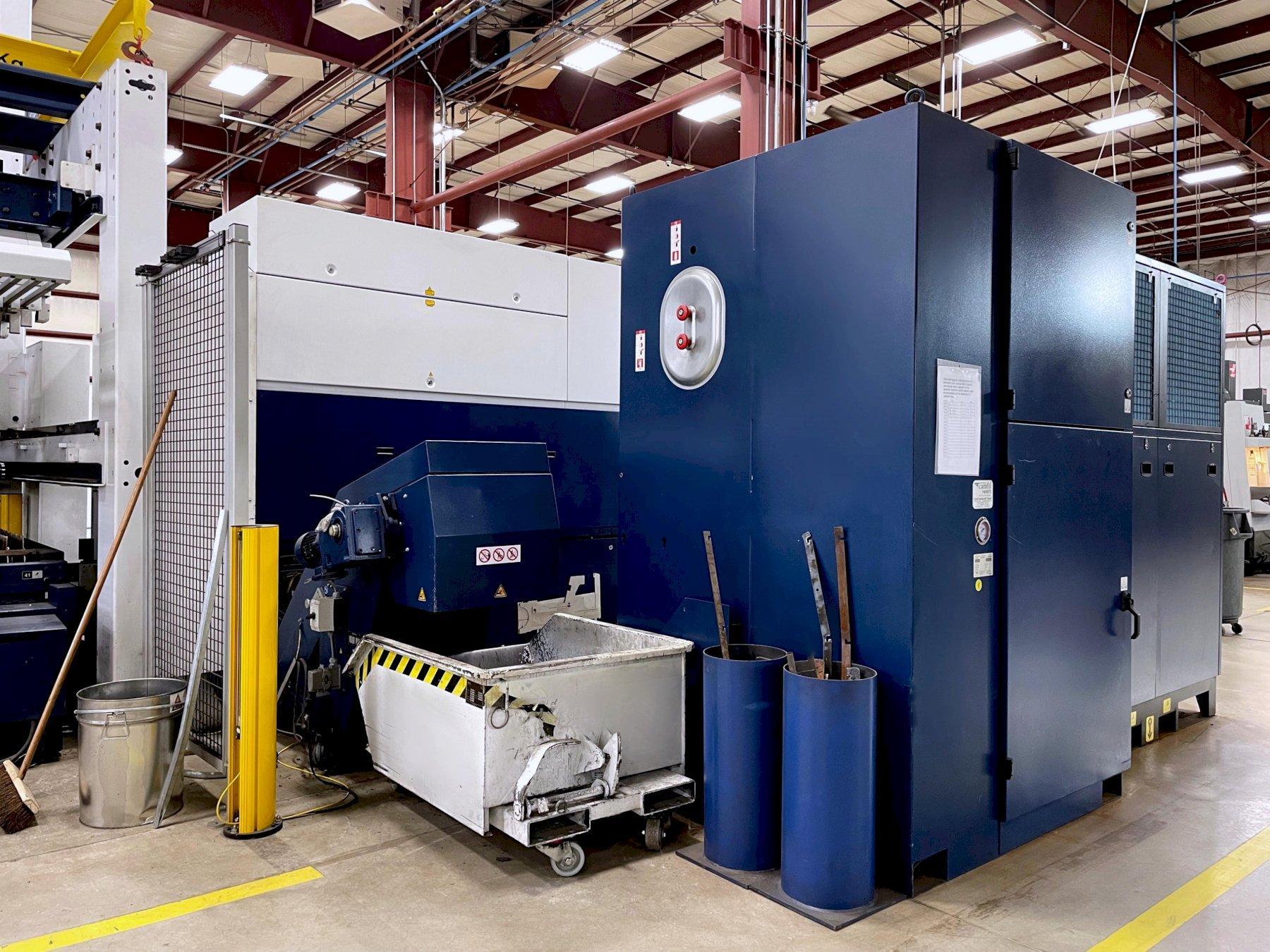

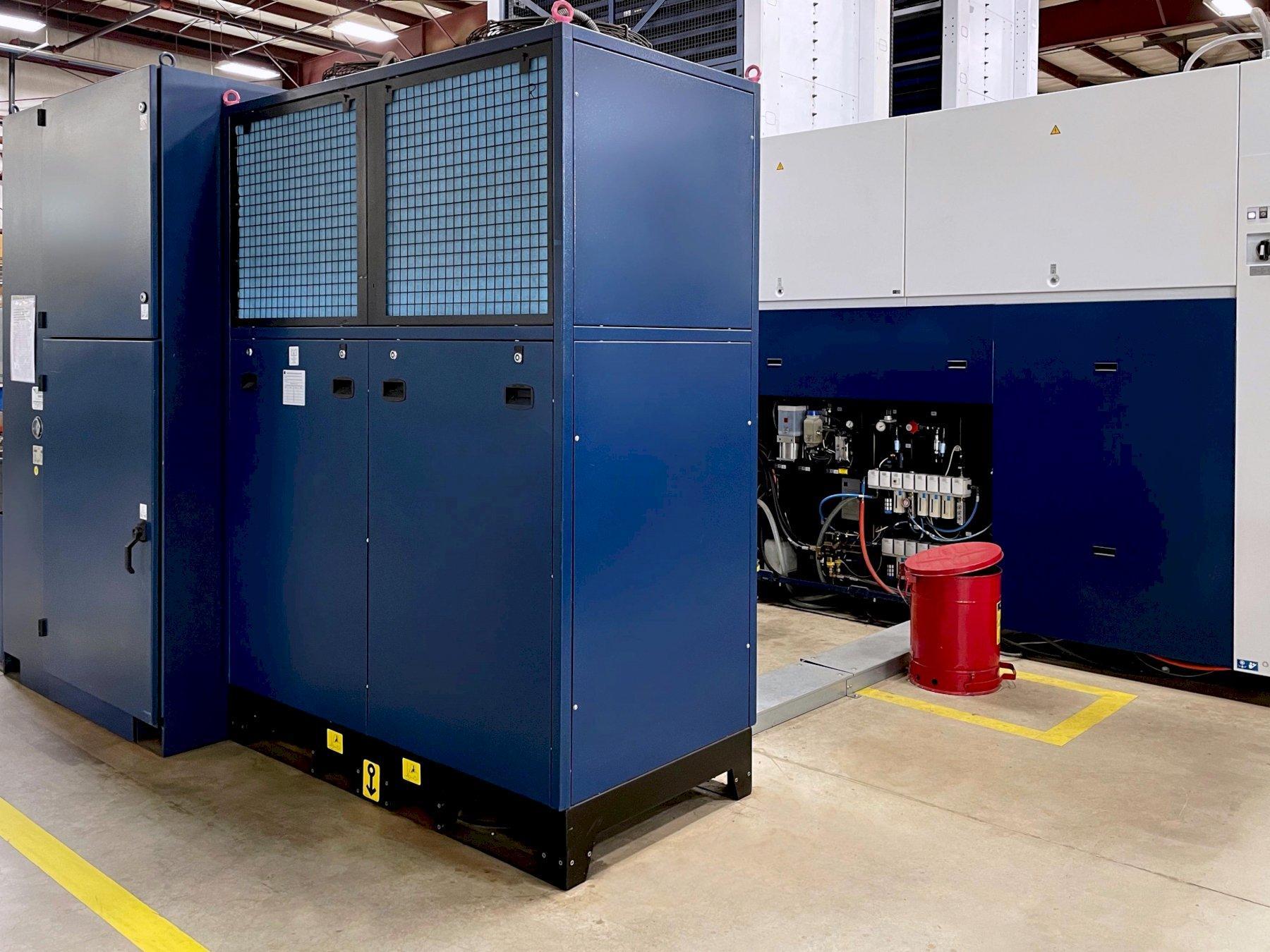

Equipped With: TFL Color Screen TruDisk 4001 With 1 Laser Output Universal Cutting Unit Auto Height Control Sheet Edge Detection Auto Shut-Down Device Collision Protection Easy Shop Floor Programming Programmable Cutting Gas Pressure Integrated E-Shop USB Interface Light Barrier System Automatic Pallet Shuttle Chiller For Laser Cooling Compact Dust Extractor
|
|
