Title: 11 STANDS X 3.500" X 0.135" AEF TUBE MILL LINE: STOCK #15474
Type: Tube Mills
Brand: AEF
Model: No model specified
Year: Not listed
Message
Information

11 STANDS X 3.500" X 0.135" AEF TUBE MILL LINE: STOCK #15474

Brand
Model
Not specified
Stock #
15474
Year
Not specified
Condition
Used
Location
Ohio
SQUARE ................................. 3.5" X 3.5" SQUARE
RECTANGLE (TOOLING IN MILL) ............ 3" X 5"
LINE DIRECTION ......................... RIGHT TO LEFT
MATERIAL THICKNESS .....................
0.135"
CONSISTING OF THE FOLLOWING:

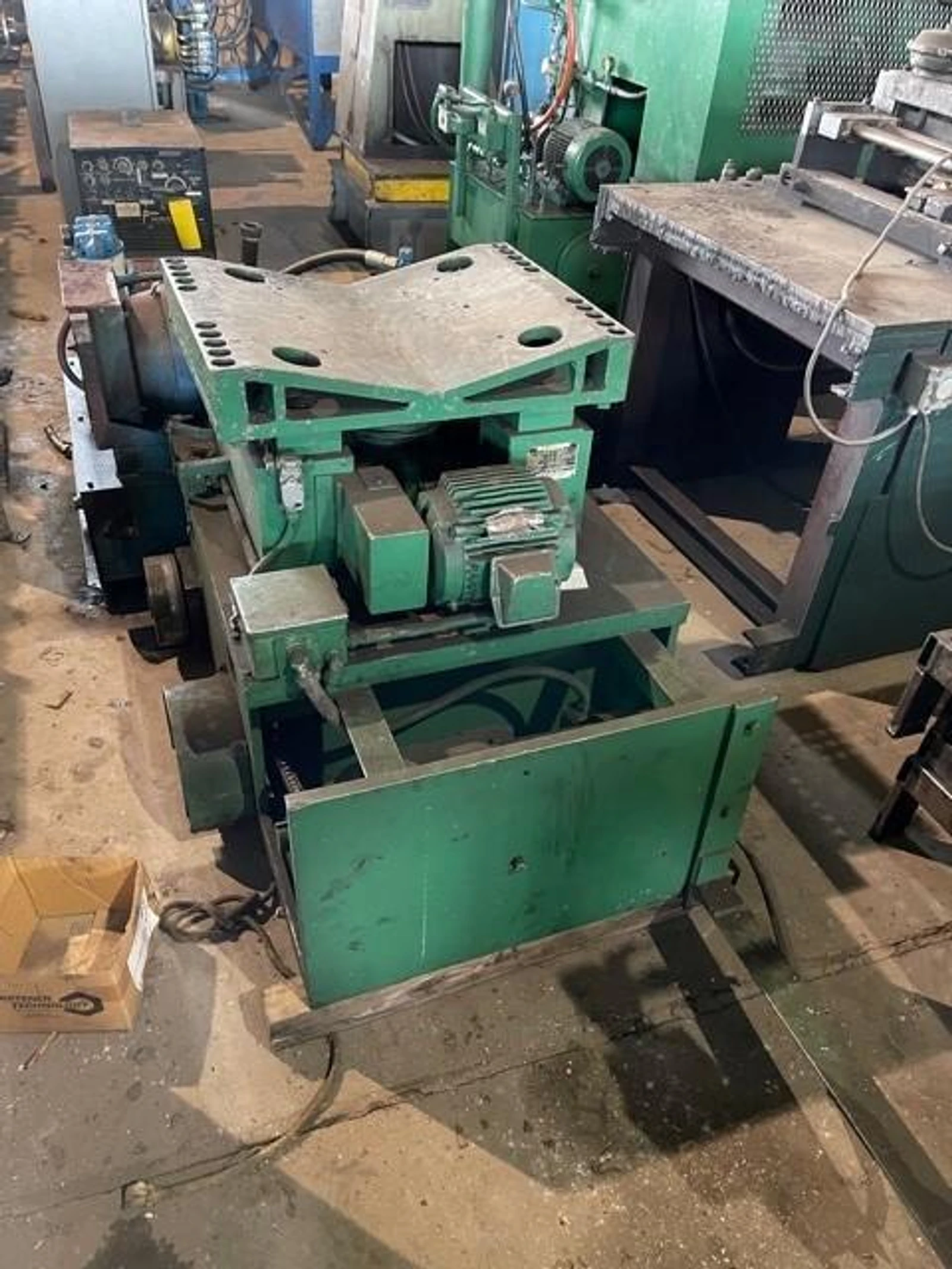

DAHLSTROM COIL CAR:
AC MOTOR DRIVE......................... YES
AC MOTOR JACK SCREW LIFT .............. YES
FLOOR MOUNTED RAILS ................... YES

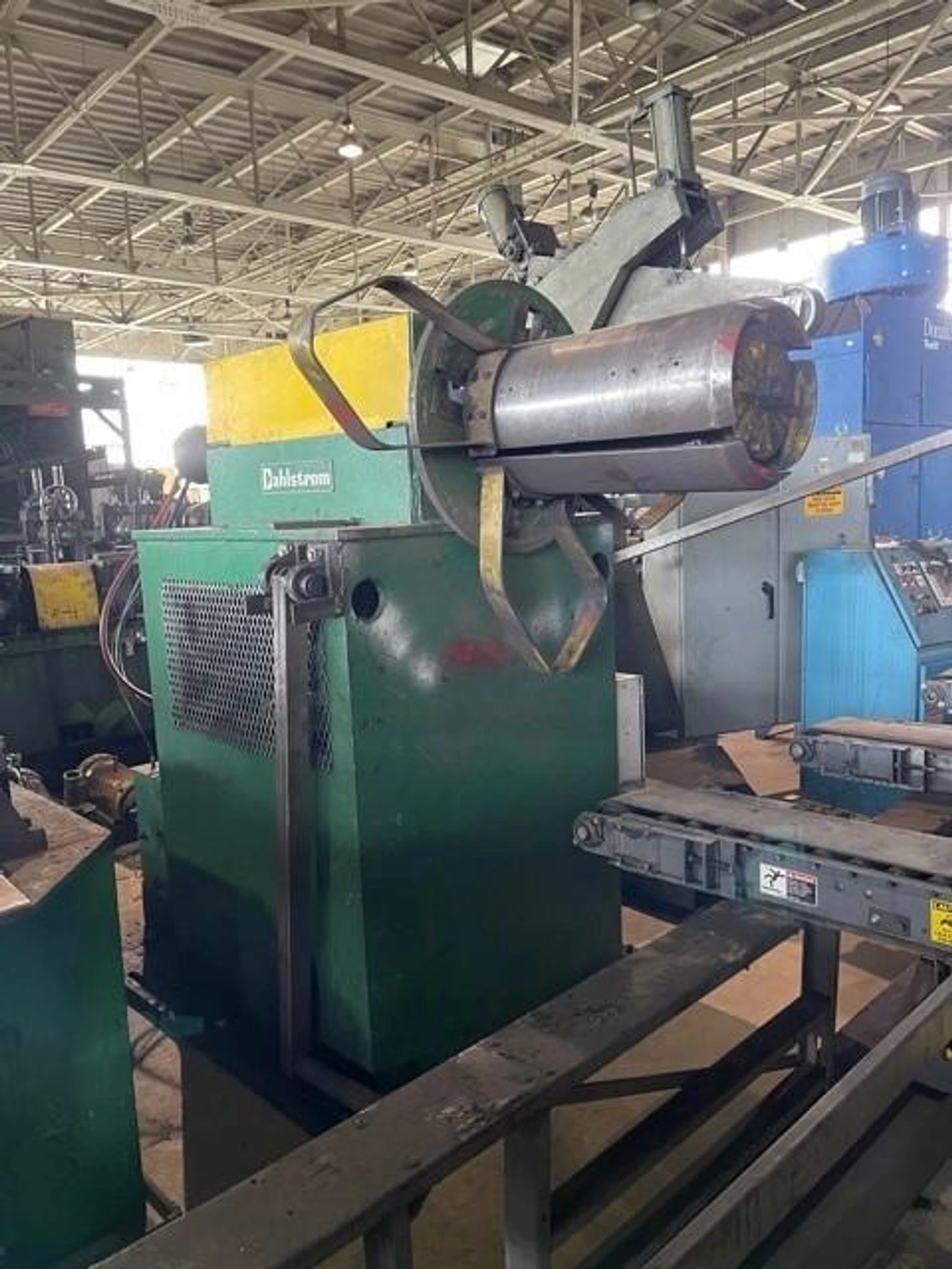

DAHLSTORM UNCOILER:
COIL WIDTH ........................... 18"
NUMBER OF KEEPERS .................... 4
AC GEAR MOTOR WITH CLUTCH DRIVE ...... YES
HYDRAULIC EXPANSION .................. 16" to 22" ID
COIL O.D. ............................ 72"
SELF CONTAINED HYDRAULIC POWER UNIT .. yes
WEIGHT CAPACITY ...................... 15,000 LBS
FREE STANDING OVERARM HOLDDOWN ....... YES
LOOP CONTROL ARM ..................... YES

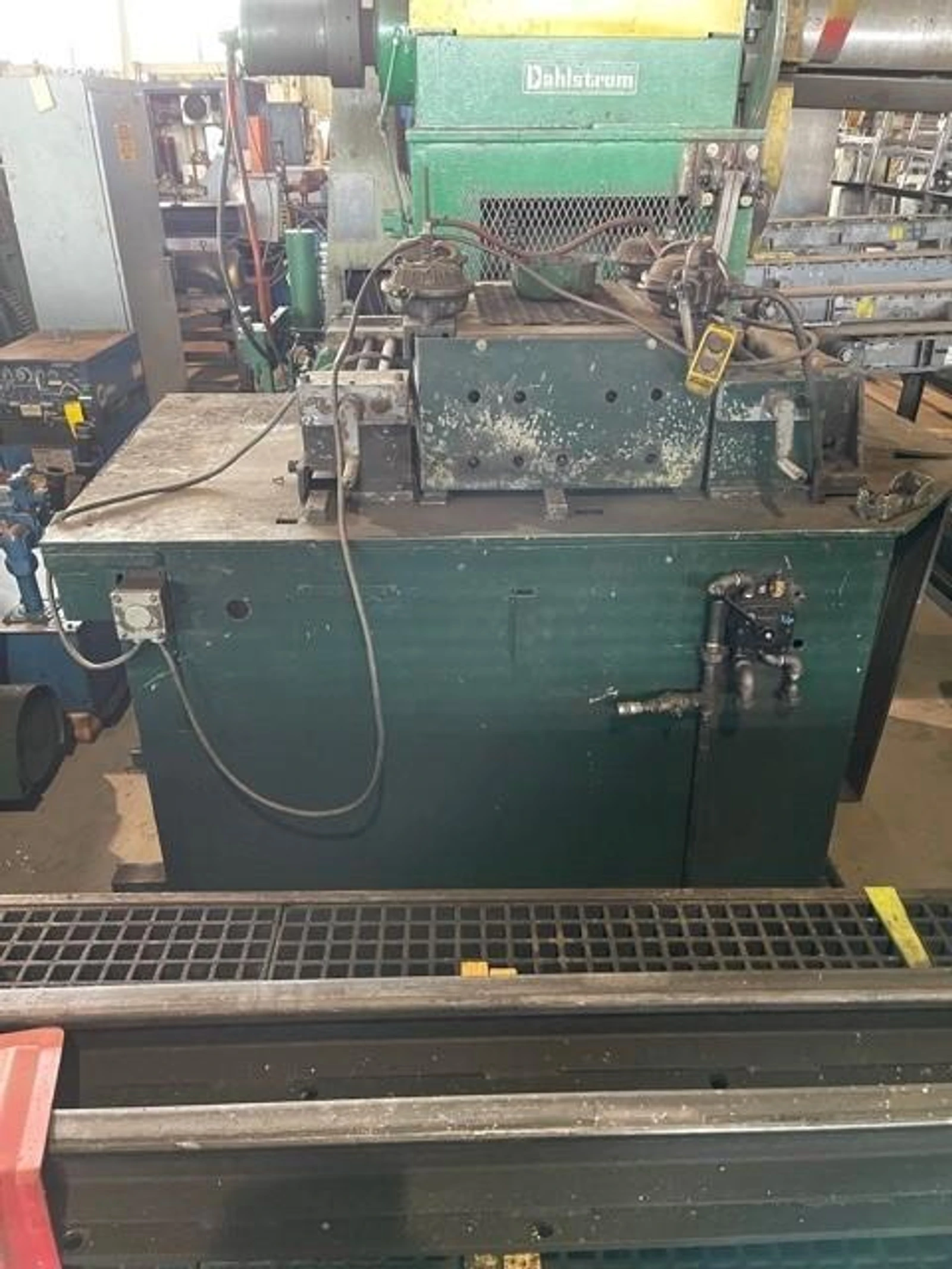

DAHLSTROM STRAIGHTENER:
NUMBER OF ROLLS ...................... 5 (2 OVER 3)
SUAL ENTRY PINCH ROLL ................ YES
SIDE GUIDES .......................... YES

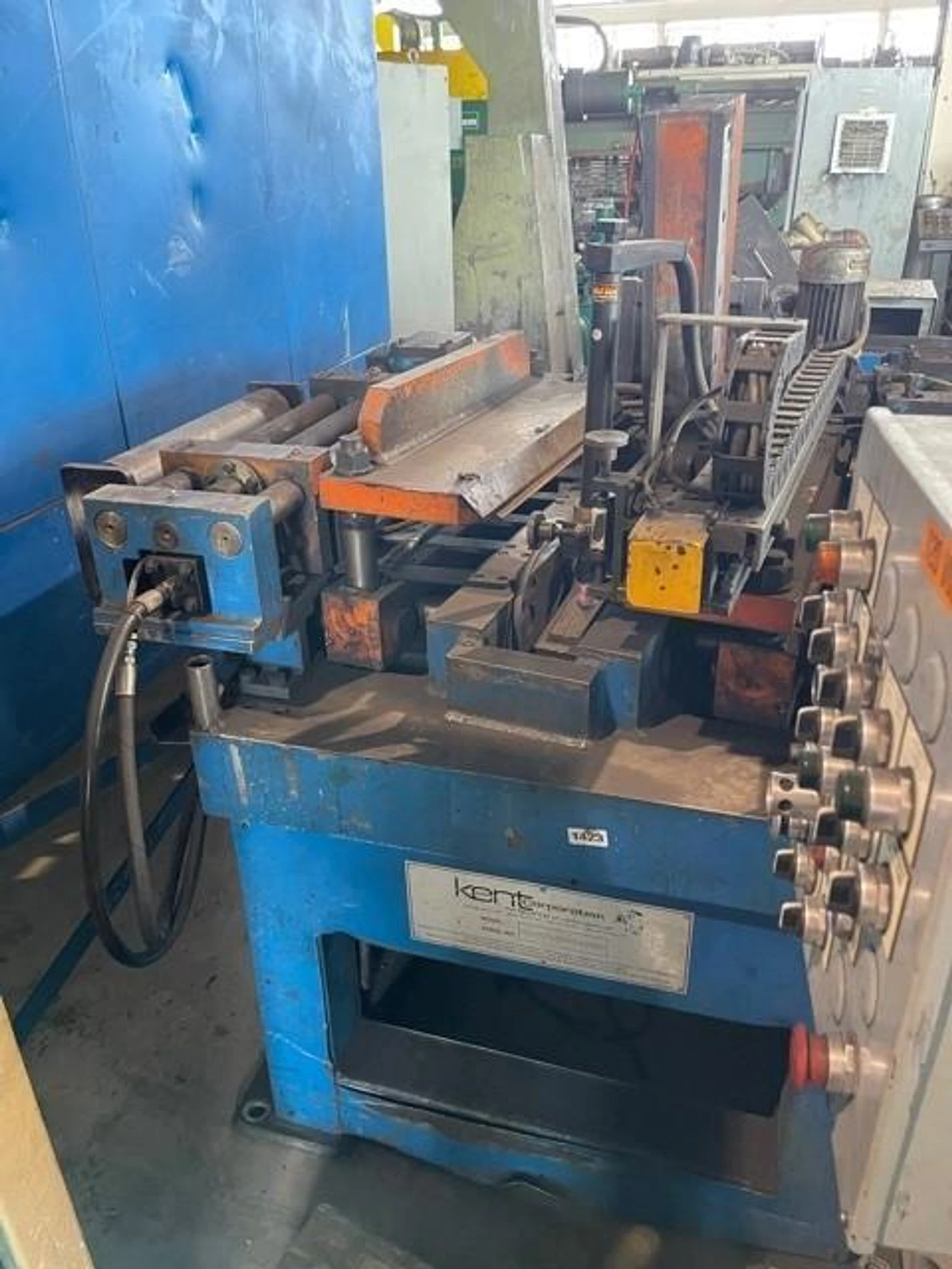

KENT SHEAR END WELDER:
MODEL ................................
20-250-DSAA
STRIP WIDTH .......................... 20"
STRIP THICKNESS ...................... 0.250"
ENTRY & EXIT SQUARING GUIDES ......... YES
DUAL HYDRAULIC STRIP CLAMPS ON BIAS .. YES
HYDRAULIC BLANKING SHEAR ............. YES
MILLER SQUARE WAVE 250 ............... YES

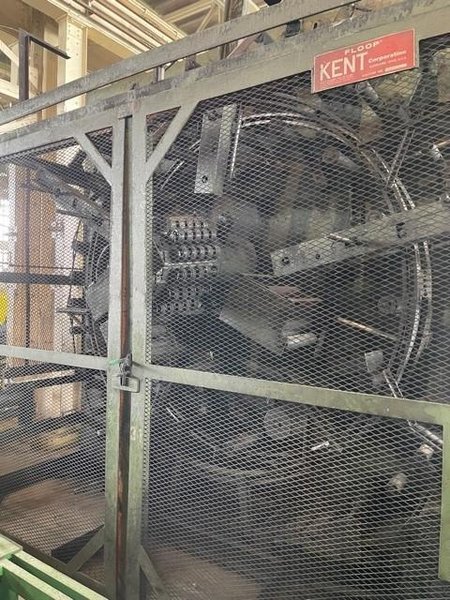

KENT VERTICAL SLOOP ACCUMULATOR:
MODEL ................................
BEC 3122
MAX STRIP WIDTH ...................... 16"

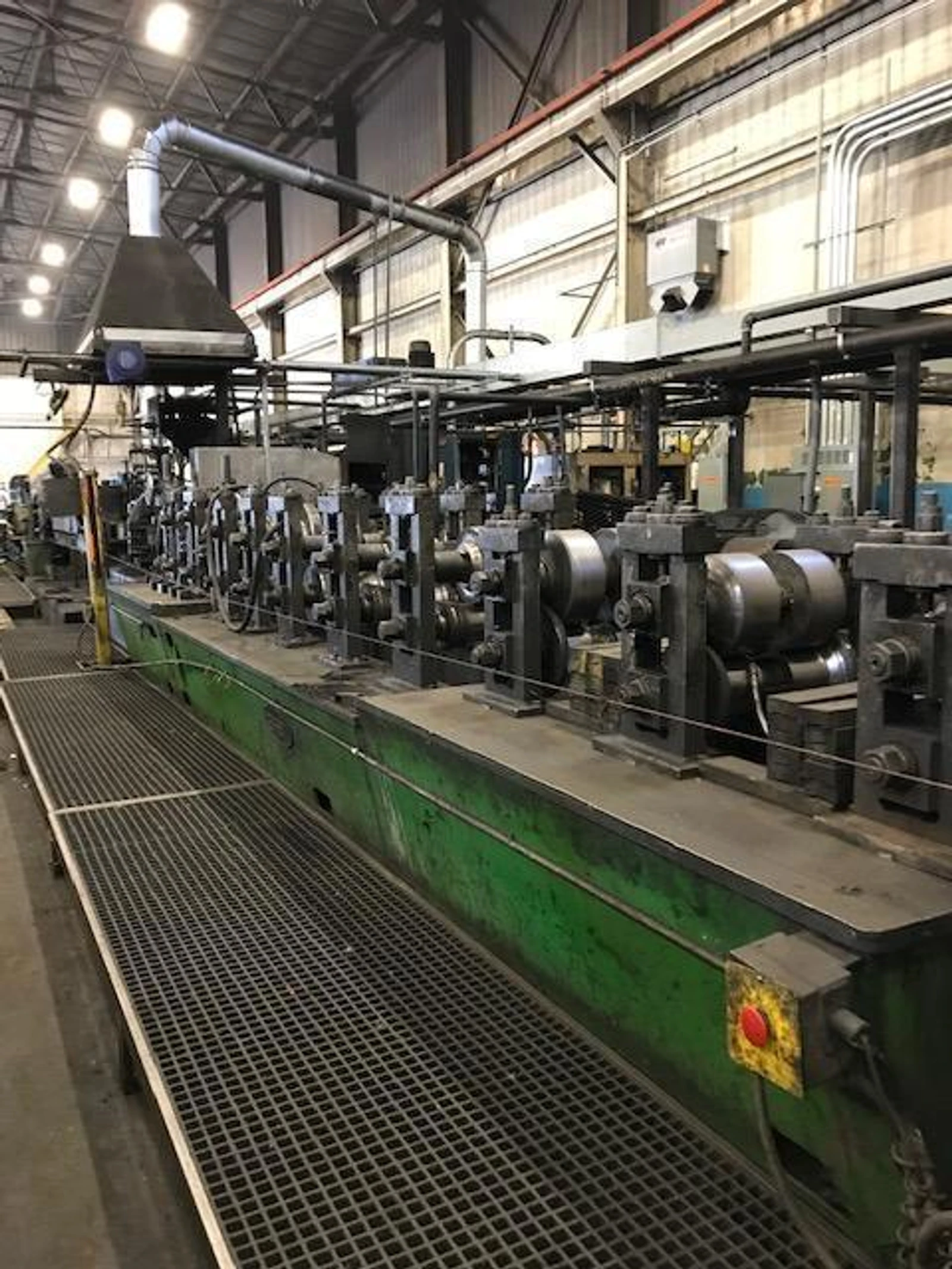

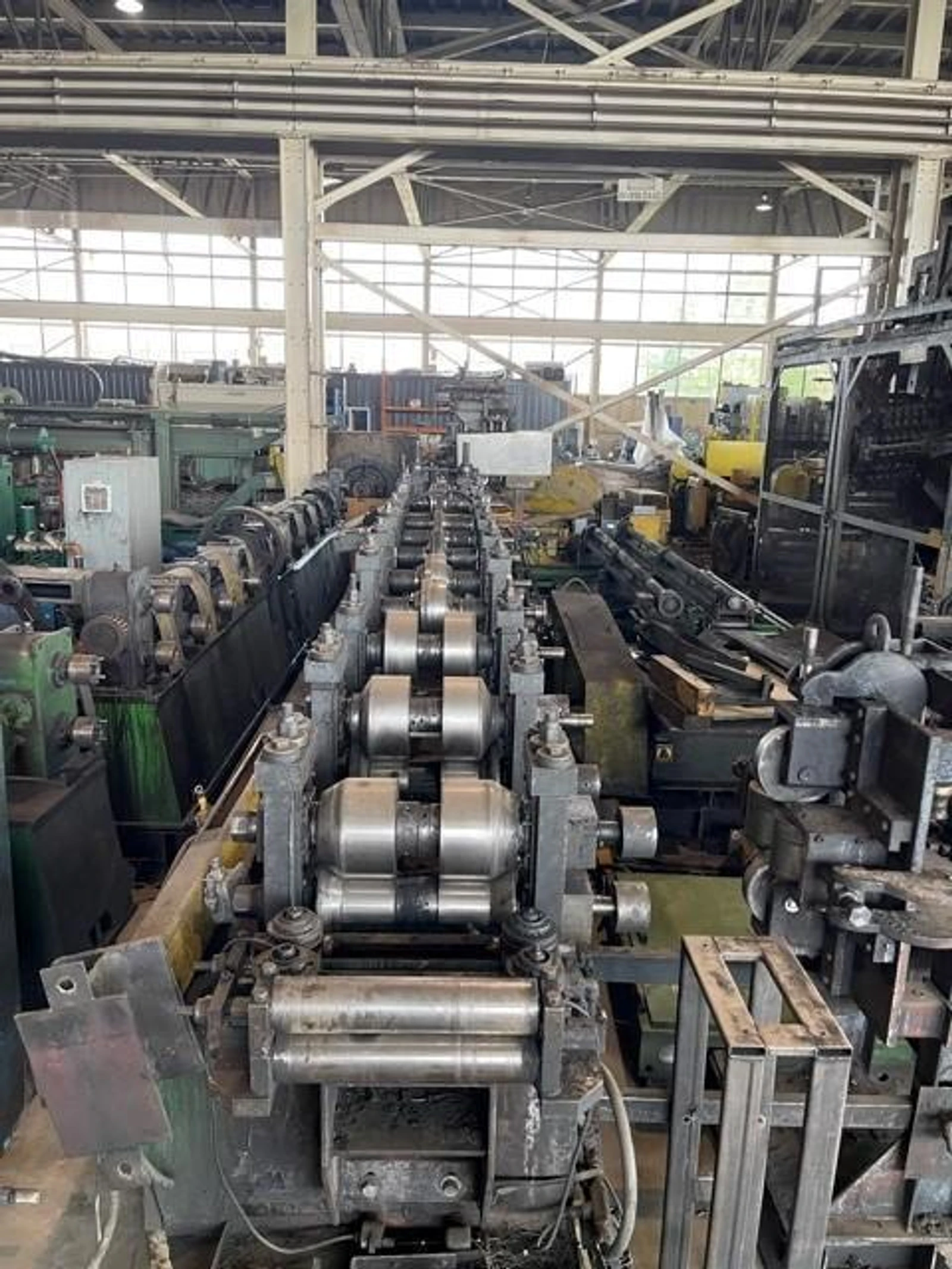

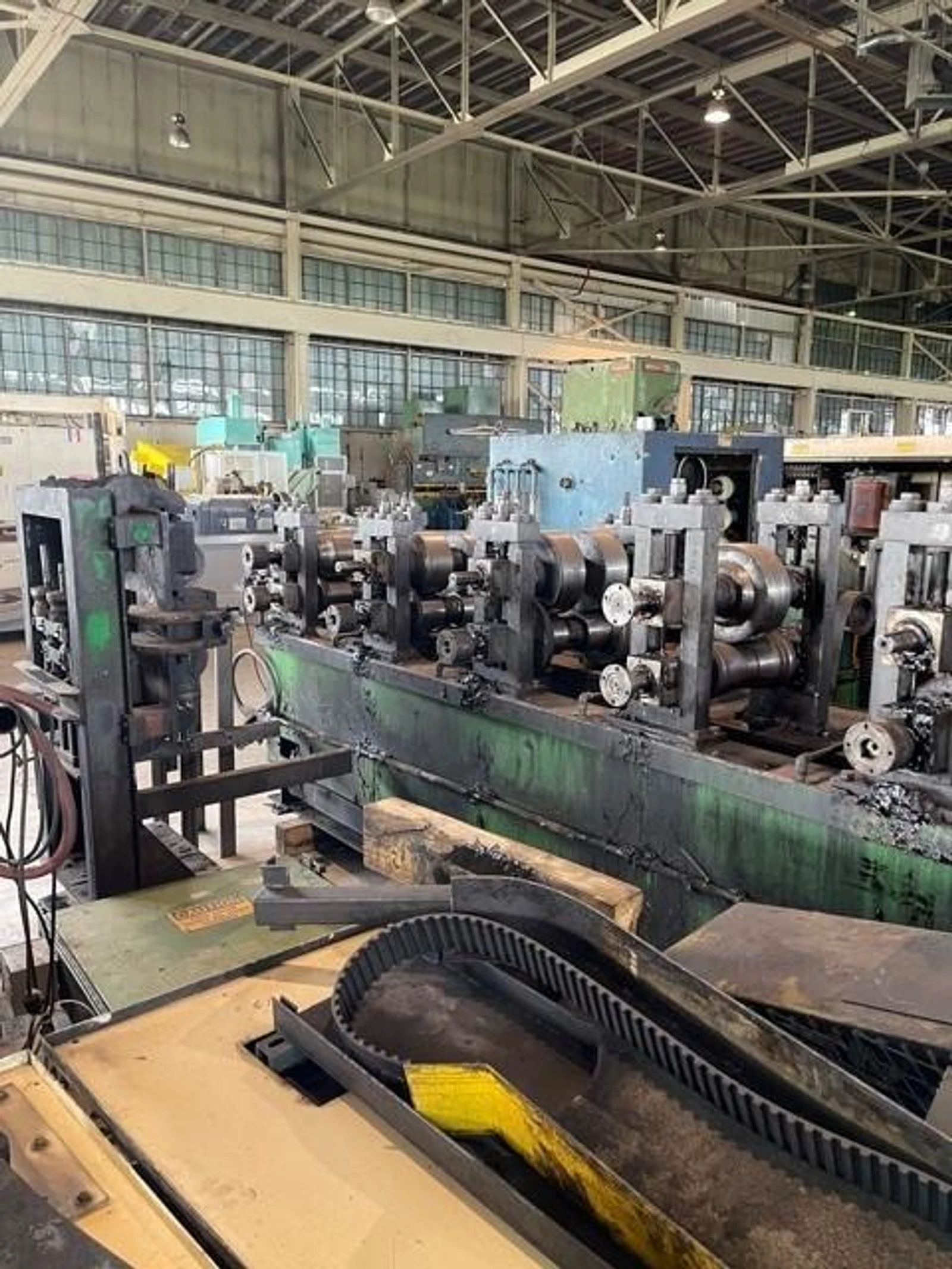

AEF FORMING MILL:
ENTRY SIDE GUIDES .................... YES
PASS LINE ROLL ....................... YES
NUMBER OF HORIZONTAL STANDS .......... 11
BOTTOM DRIVE ......................... YES
ROLL SPACE ........................... 14"
HORIZONTAL SPACING ................... 24"
VERTICAL ADJUSTMENT (LAST 3 STANDS) .. 8"
4-ROLL WELD BOX ...................... YES
SCARFING TOOL ........................ YES
SCARF RECOILER ....................... AC DRIVE
AC MAIN DRIVE MOTOR .................. 150HP

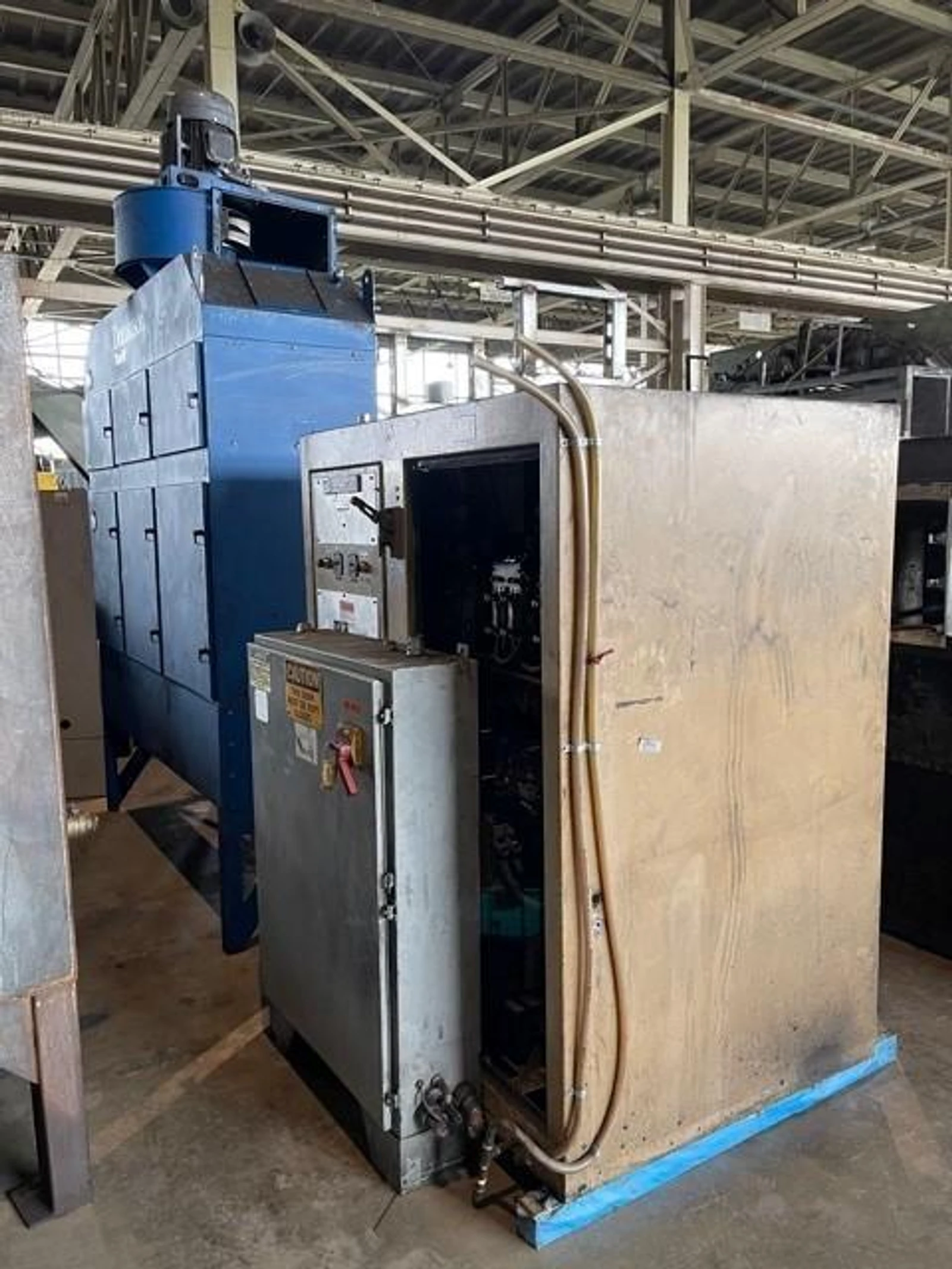

THERMATOOL VT 200 WELDER:
TRANSFORMER .......................... 375KV/480V

LONG COOLANT TROUGH .................. 10'

AEF SIZING STAND:
1 DRIVEN STAND ....................... YES
ROLL SPACE ........................... 14"
PINCH ROLL ........................... YES
SINGLE SIDE TURKSHEAD ................ YES
MAX OPENING .......................... 6" X 6"

FREE STANDING TURKSHEAD
MAX OPENING .......................... 6" X 6"

FLYING CUTOFF SAW:
DUAL VISE HYDRAULIC CLAMP ............ YES
AC MOTOR BLADE DRIVE ................. YES
HYDRAULIC CYLINDER ACCELERATOR ....... YES

(2) CONVEYOR RUNNOUT SECTIONS:
LENGTH ............................... 45'
DISCHARGE TABLE ...................... 40'L
DEPTH ................................ 8'
BELT TYPE TOP ........................ YES

(2) STACKING TABLES:
LENGTH ............................... 40'
