Title: 3/4" MANVILLE Mdl# 5B OPEN DIE DOUBLE STROKE MAGAZINE FEED ROD HEADER Our stock number: 112963
Type: Headers, Rod
Brand: MANVILLE
Model: Mdl# 5B
Year: Not listed
Message
Information

3/4" MANVILLE Mdl# 5B OPEN DIE DOUBLE STROKE MAGAZINE FEED ROD HEADER Our stock number: 112963

Model
Mdl# 5B
Stock #
112963
Year
Not specified
Condition
Not specified
Location
Ohio
Link to our website listing http://uen.hsix.com/q/webinv/005700=x,112963
3/4" MANVILLE Mdl# 5B OPEN DIE DOUBLE STROKE MAGAZINE FEED ROD HEADER   Our stock number: 112963

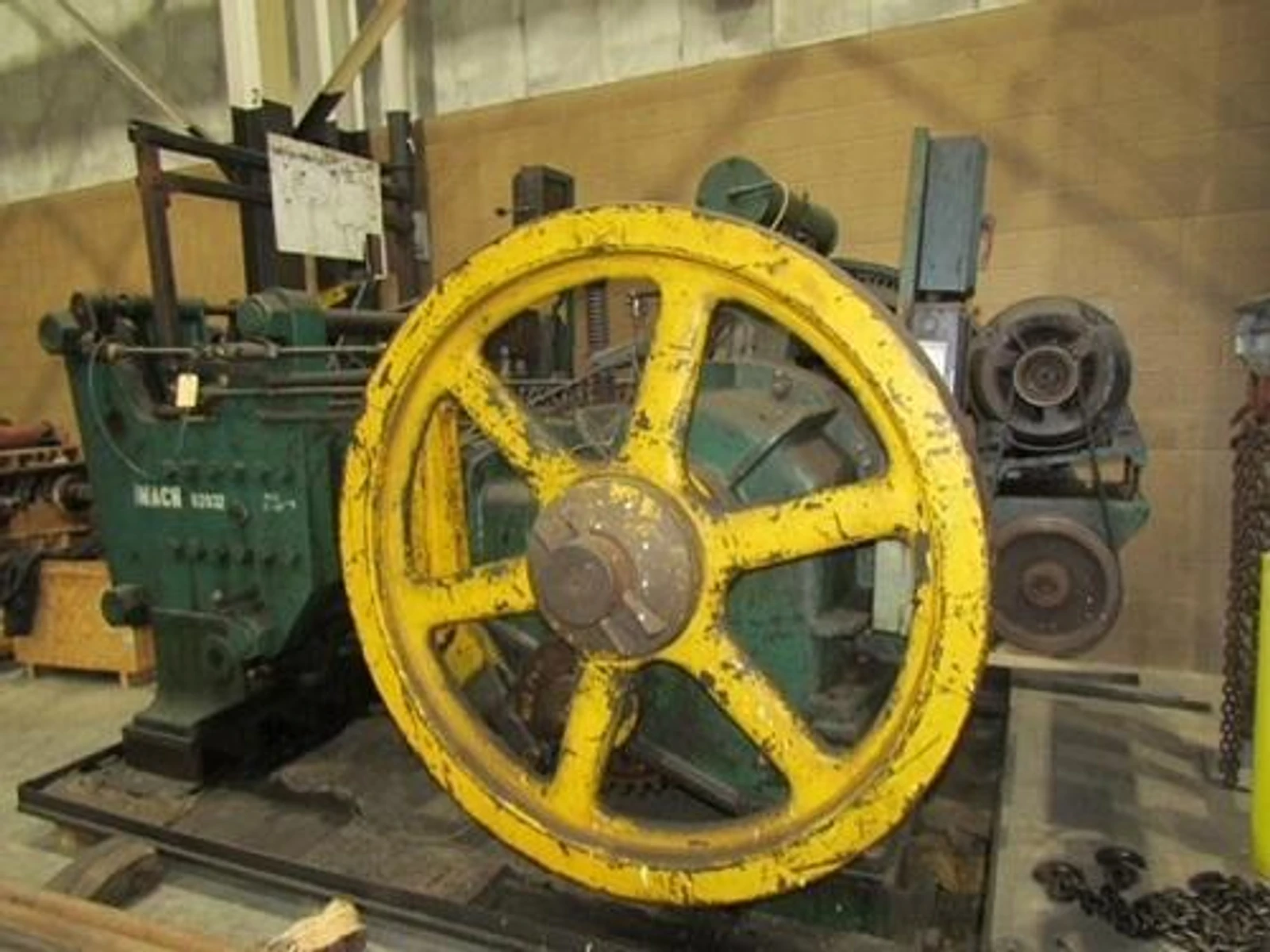

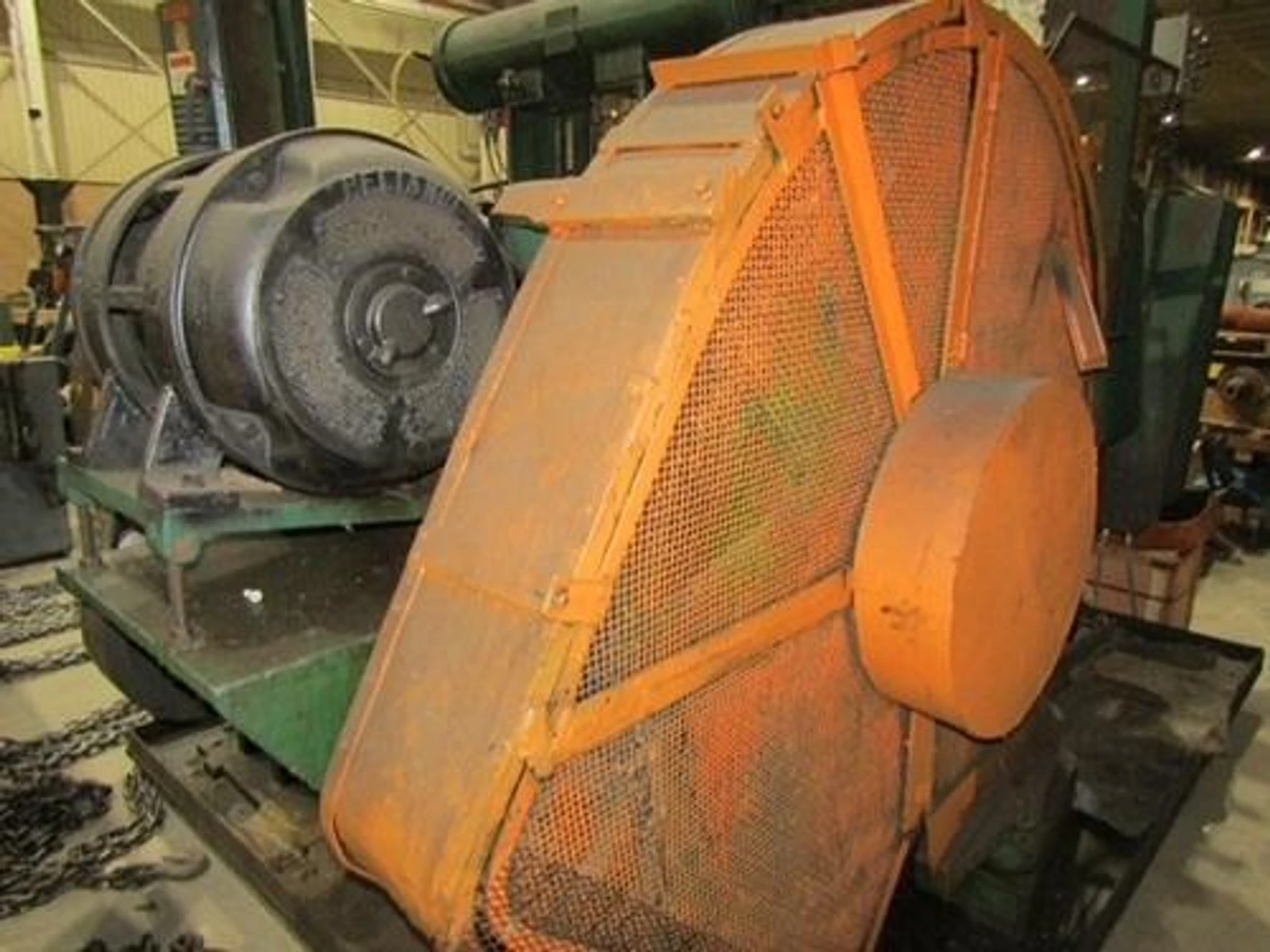

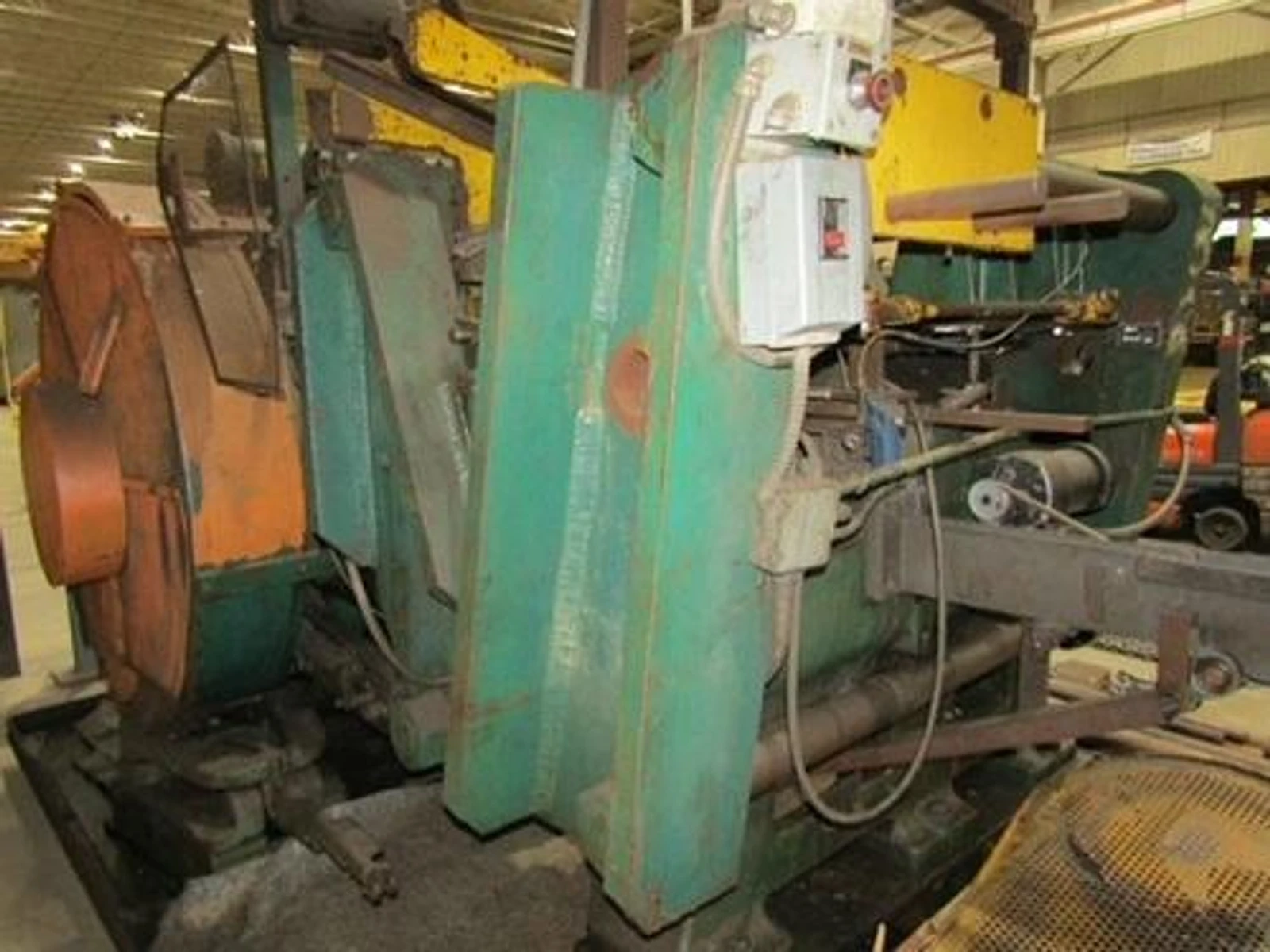

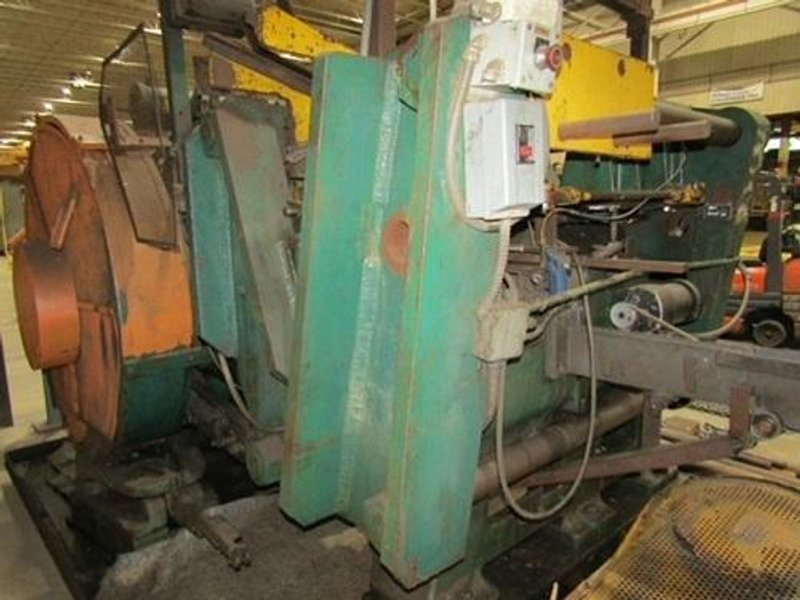

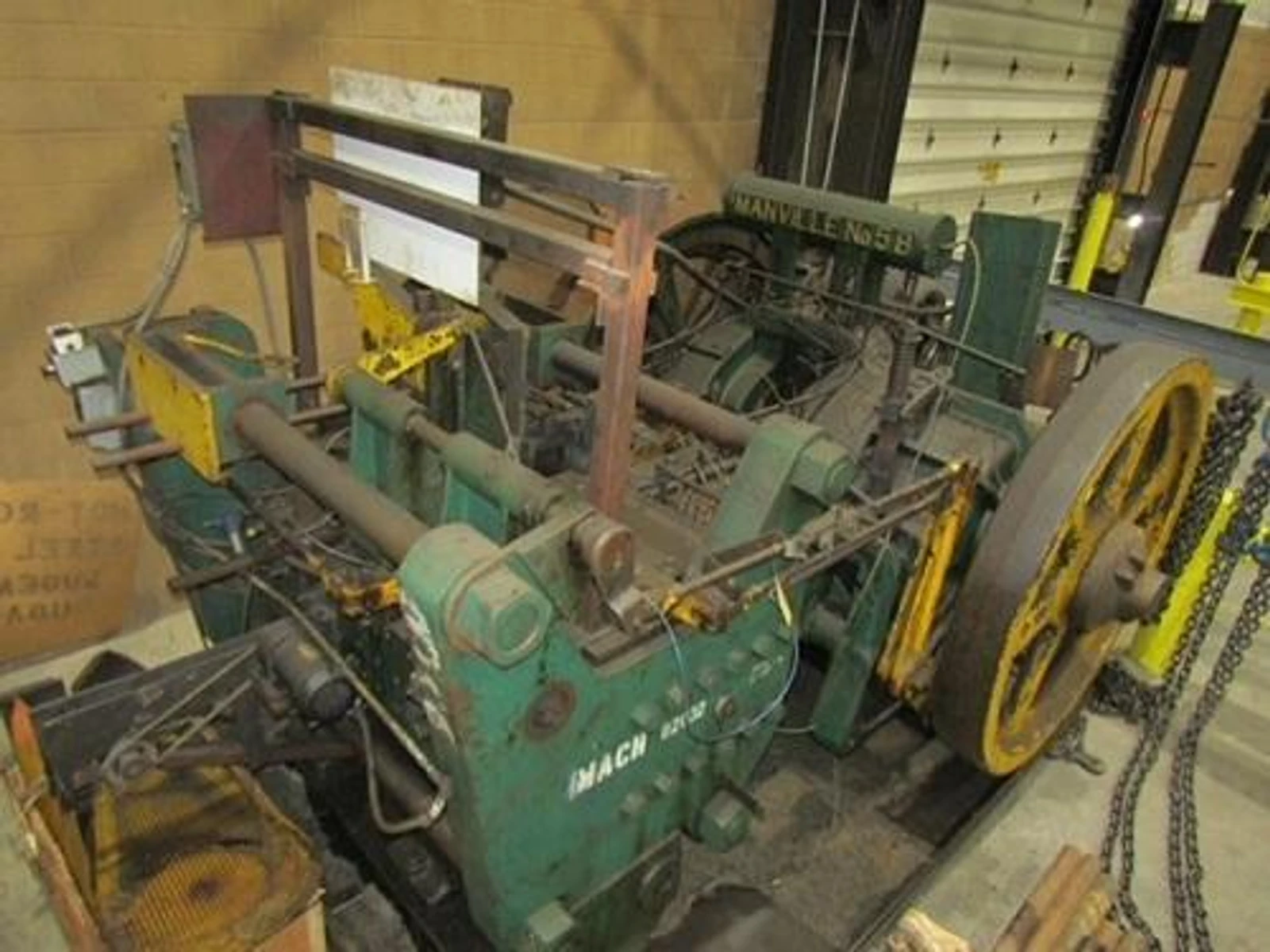

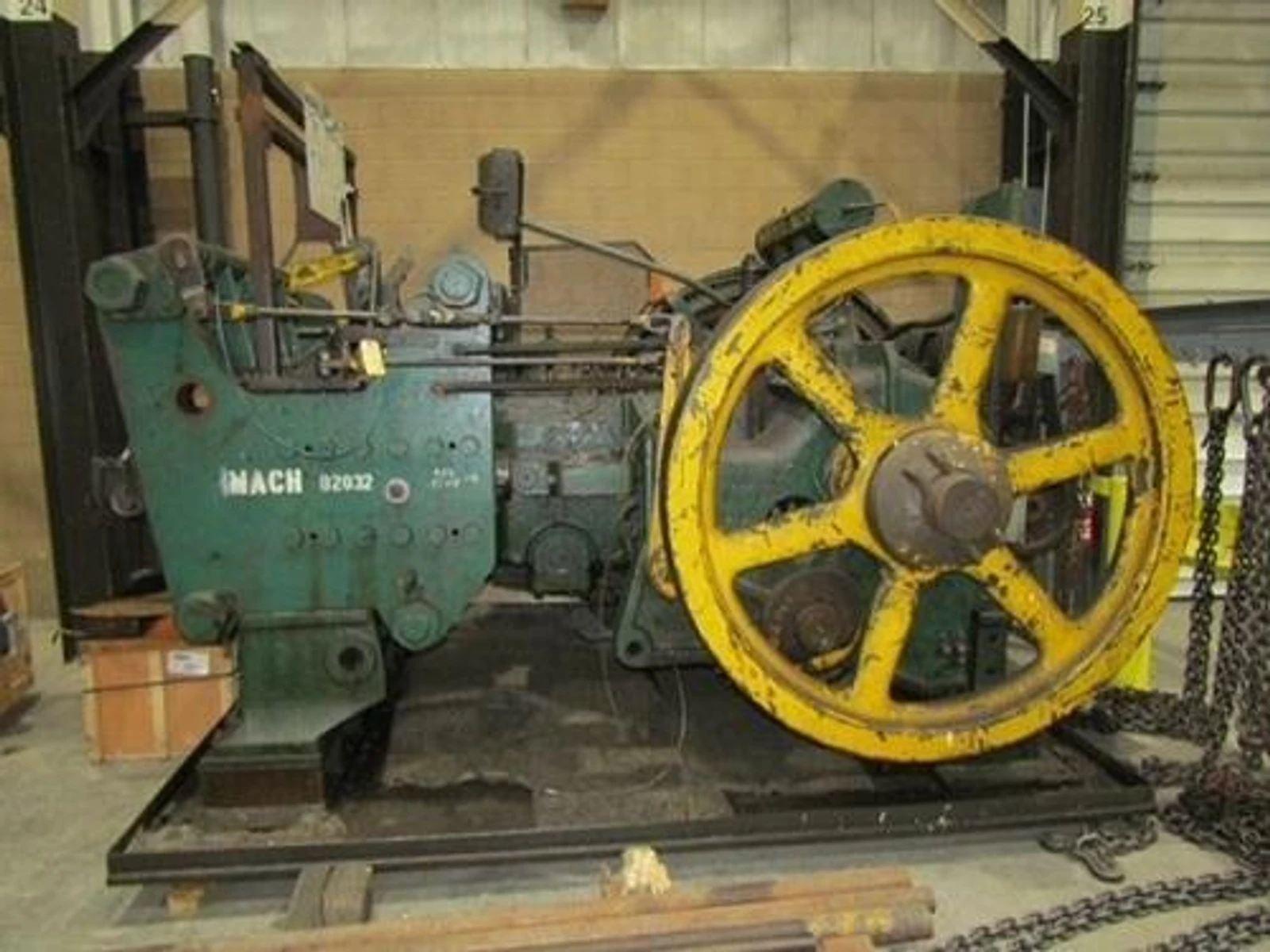

One Used 3/4" Manville Model 5B Open Die Double Stroke Magazine Fed Rod

Header, Serial No 4852

3/4" Max. wire diameter
18" Max. part length (Can be up to 32" with slight change)
3-1/2" Square Grip dies x 7" long.
Approx. 25 PPM.

Equipped with
Magazine feeder
Motorized chain escapement conveyor
Extended gather and pull-off (approx. 3-1/2")
Gear drive
A/C motor and controls.
This machine was originally a coil fed machine.

Dimensions:
11'-1" W x 13'-2" L x 9'-7" T
Weight: Approx. 70,000 lbs.
