10,000 LBS. X 40" X .110" ROWE SERVO CONVENTIONAL COIL FEED LINE FOR METAL STAMPING
Brand
Category
Type
Model
10040-DSJ / C3-40 / PM-FDC-053-240
Stock #
2692
Year
Not specified
Condition
Very Good
Location
Michigan
| Coil Weight | 10000 ounces |
| Coil Width | 40 inches |
| Coil Thickness | .110 inches |
|
10,000 lbs Coil Capacity
40" Coil Width Capacity 40” wide x .110” thick material
19.5” – 24.5” Coil I.D. Range
60" Coil O.D.

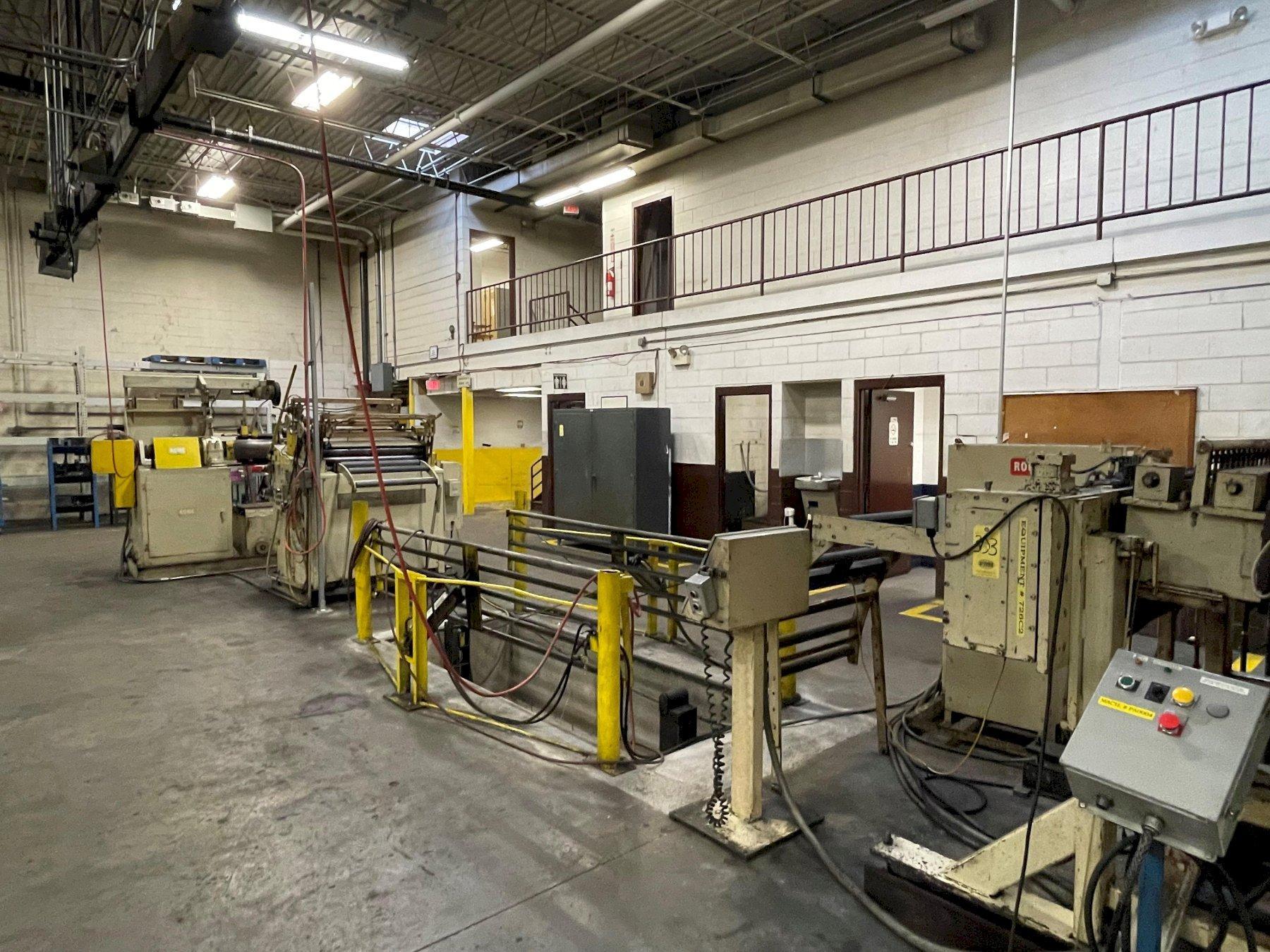

Rowe Conventional Coil Feed Equipment for Metal Stamping Equipment and Features:

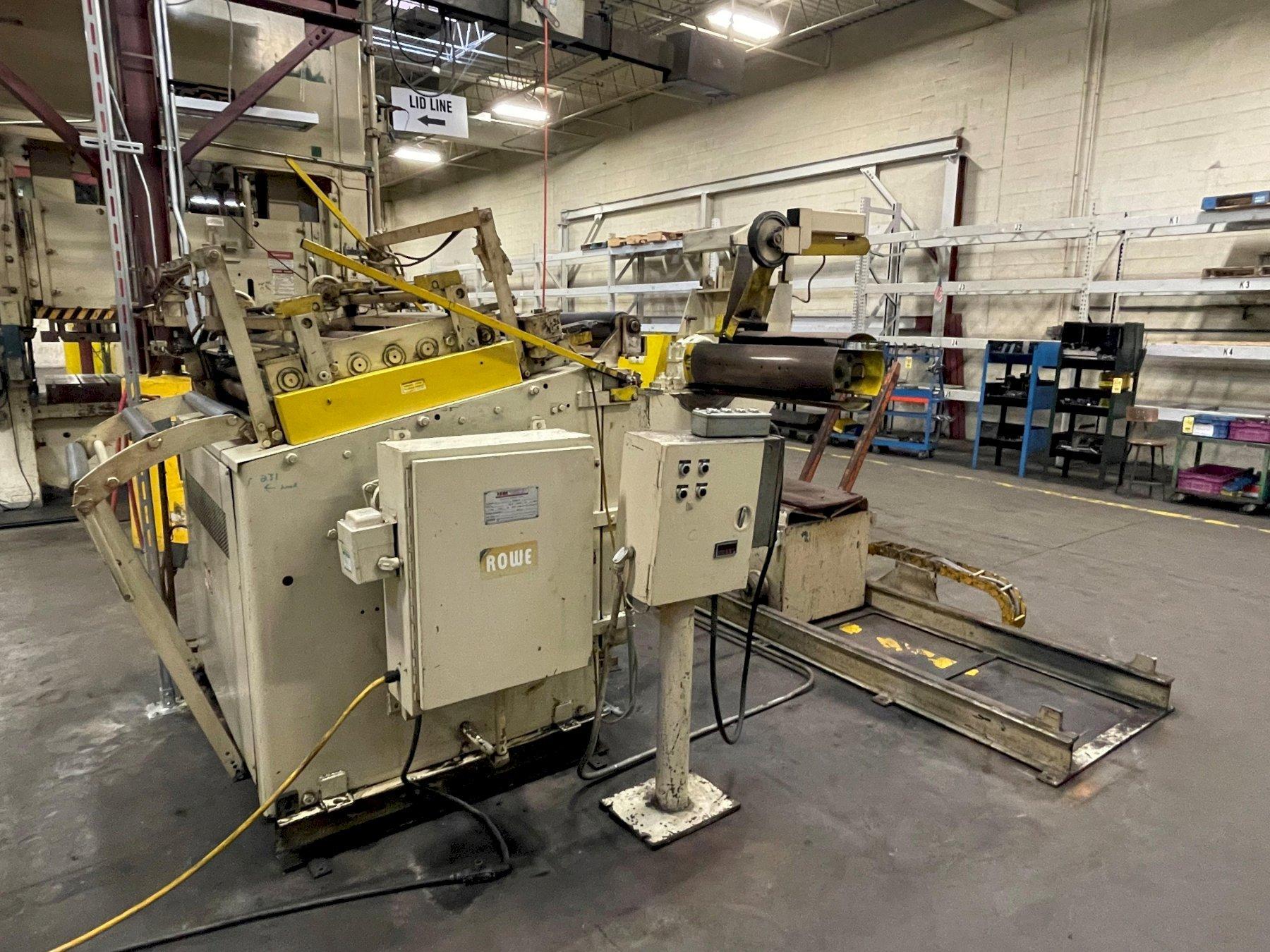

Rowe Non-Motorized Coil Reel

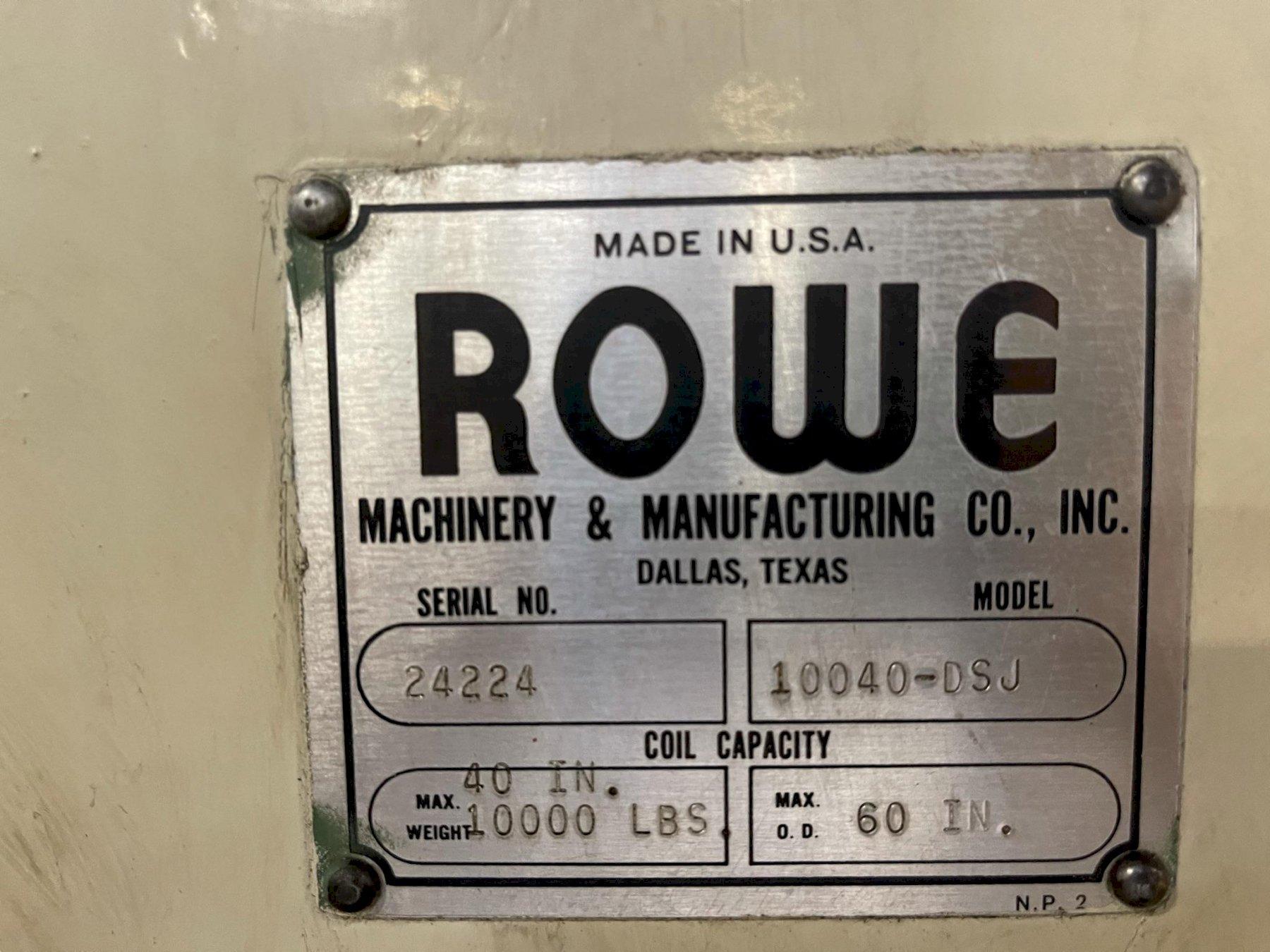

Model #: 10040-DSJ
Serial #: 24224
Hydraulically Actuated Hold Down Arm
Driven Spindle Jog Drive
Hydraulic Motor for Threading Material
Adjustable Air Brake
Pneumatic Brake w/ Regulator
Powered Thread Up Drive
4 Leaf Mandrel
60” OD Capacity
10,000 lbs Capacity Coil Car

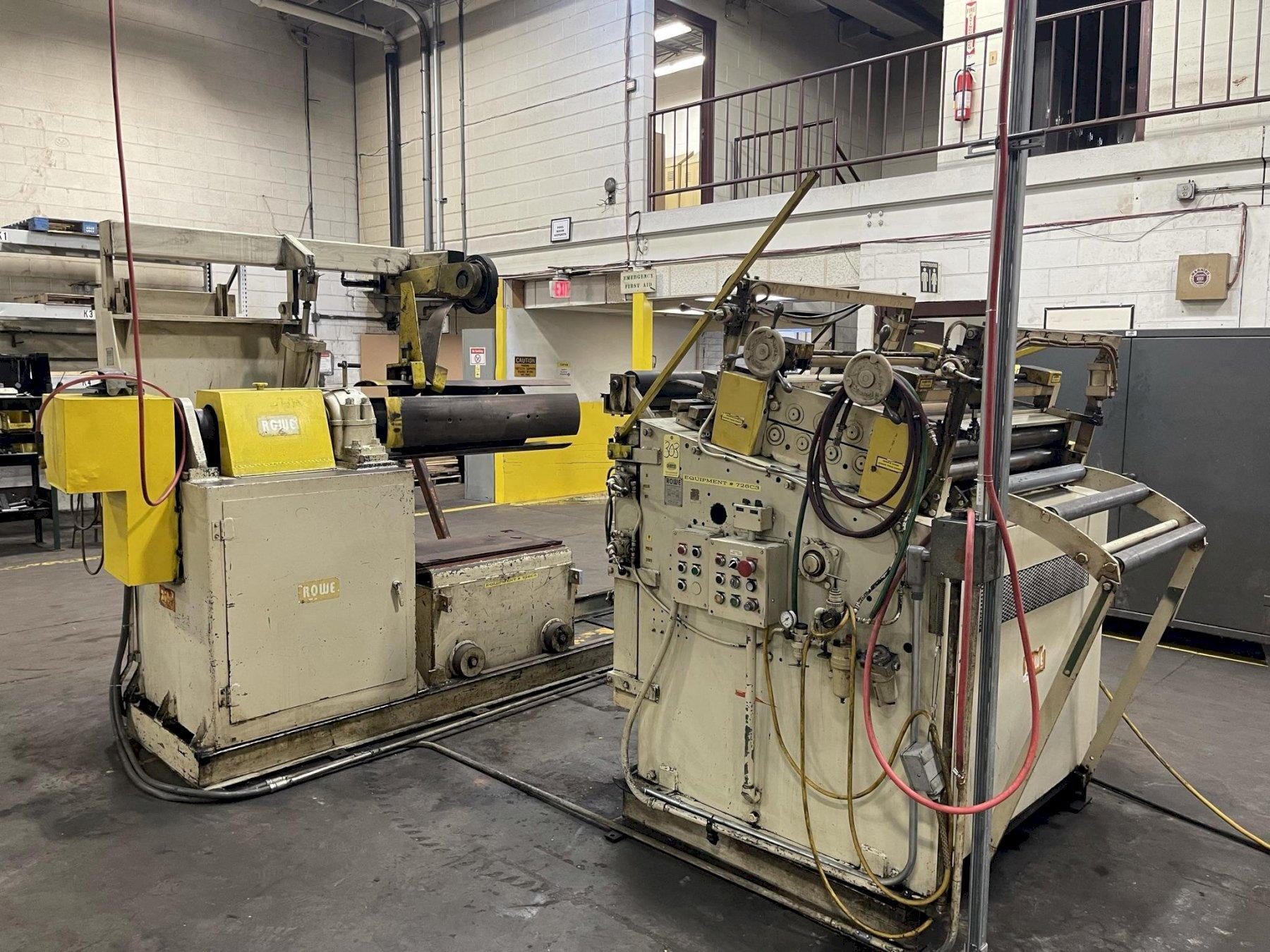

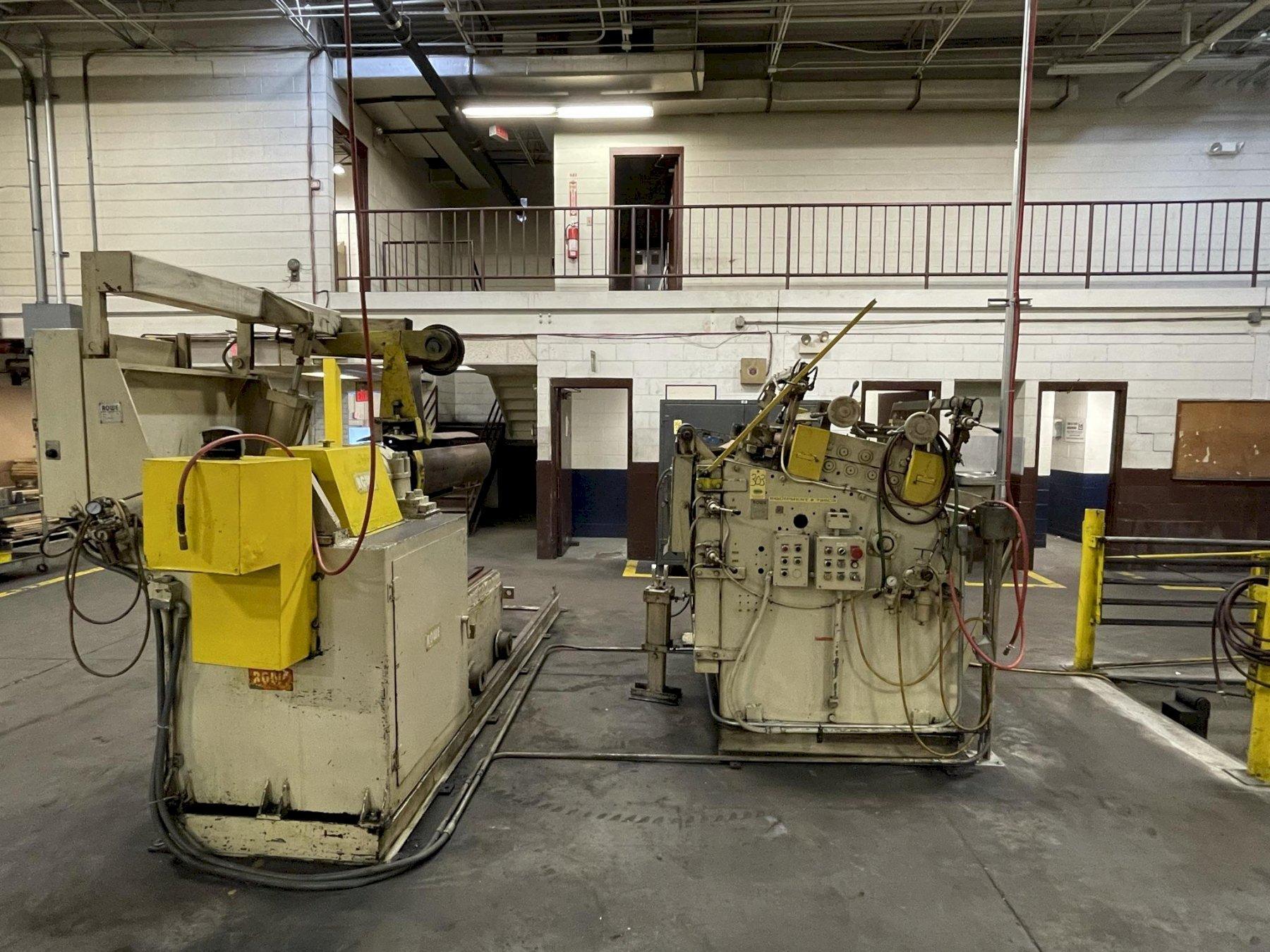

Rowe Powered Straightener

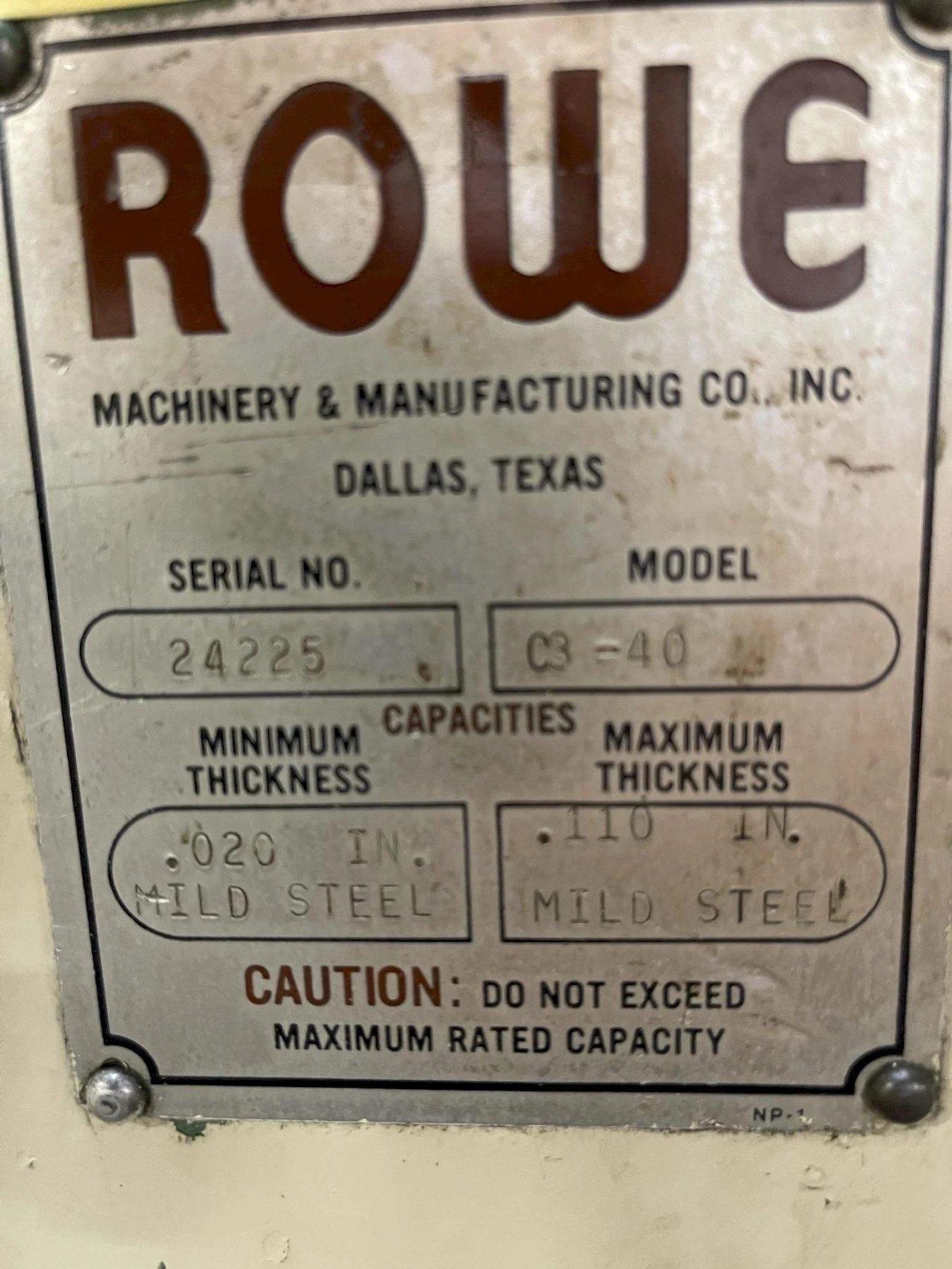

Model #: C3-40
Serial #: 24225
7 Roll Straightener
3” Diameter Straightening Rolls
4 Roll Coil Breaker Assembly
Capacity: 40” wide x 0.110” material
Peeler Threading Station End of Stock De-bender Entry and Exit Edge Guides
Exit Pinch Rolls
5 HP Motor
Exit Cascade Rolls

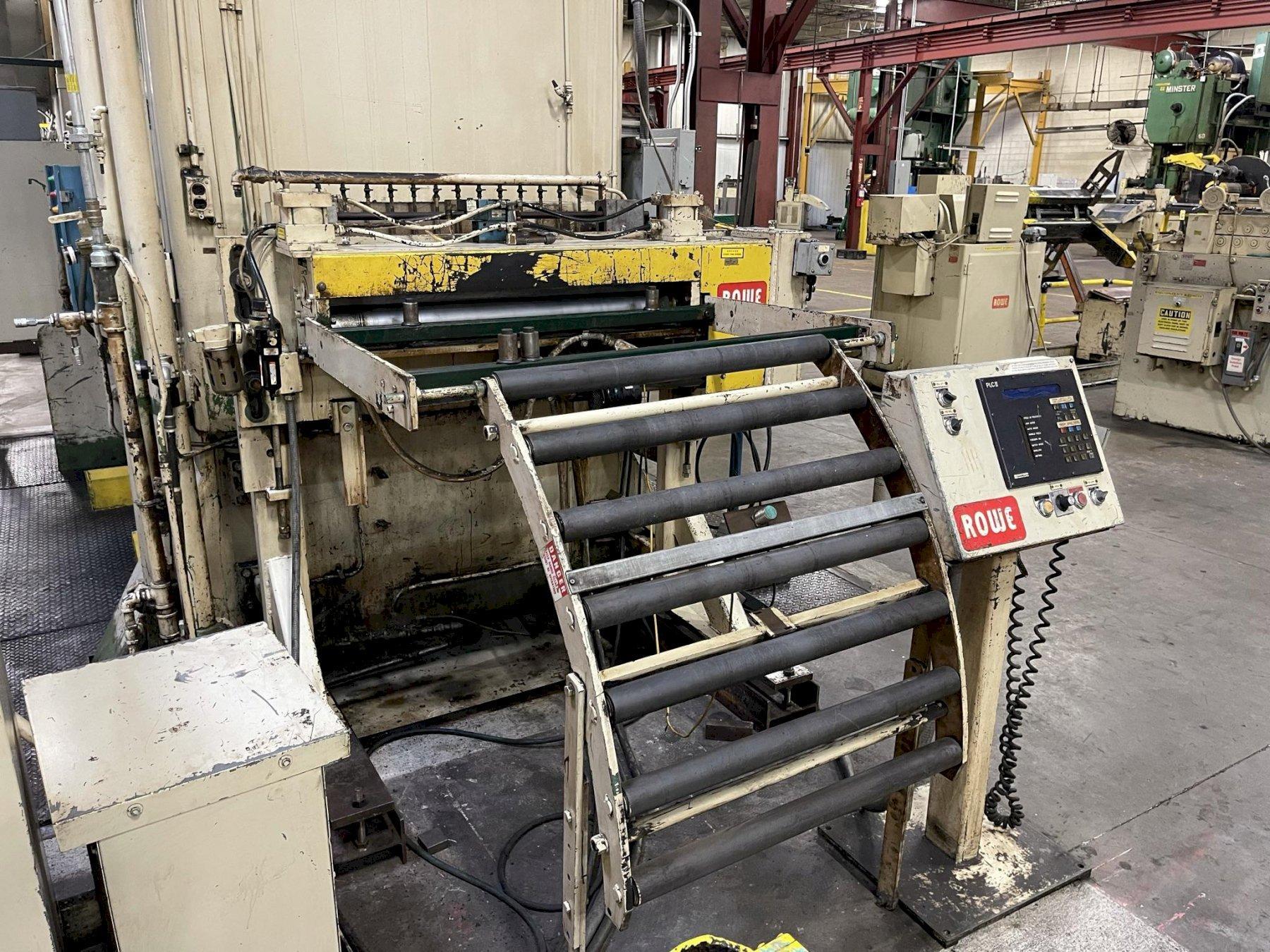

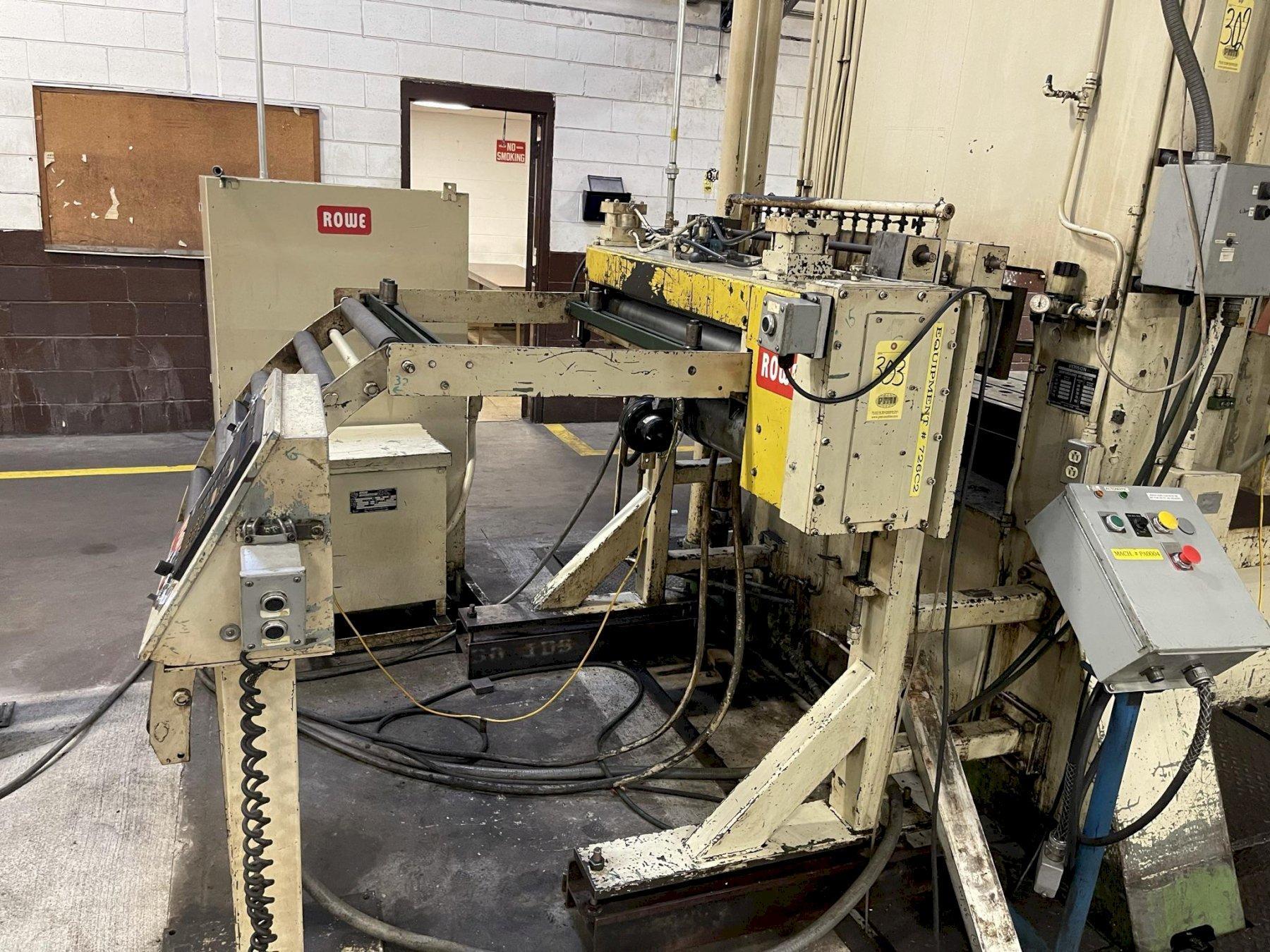

Rowe Bomb Bay Double Sided Thread Tables Pneumatic Raise and Lower Hand Valve Acuated Rowe Cabinet Mounted Servo Feed
Model#: PM-FDC-053-240
Serial #: 27107
Entry Cascade Rolls
Pneumatic Pilot Release on Upper Feed Roll
Crank Adjustable Floor Mounted Pedestal (+/- 3)
Edge Guides
Loop Control |
|
