30,000 lbs x 40" x .135" Rowe Servo Coil Feed Line
Brand
Category
Type
Model
30040-DSJ/PM-FAC-123-240-AB
Stock #
2630
Year
1996
Condition
Good
Location
Michigan
| Coil Weight | 30000 pounds |
| Coil Width | 40 inches |
| Coil Thickness | .135 inches |
|
Standard Specifications
30,000 lbs Coil Capacity
40" Coil Width Capacity 40” wide x .135” thick material
19.5” – 24.5” Coil I.D. Range
60" Coil O.D.
Equipment and Features:

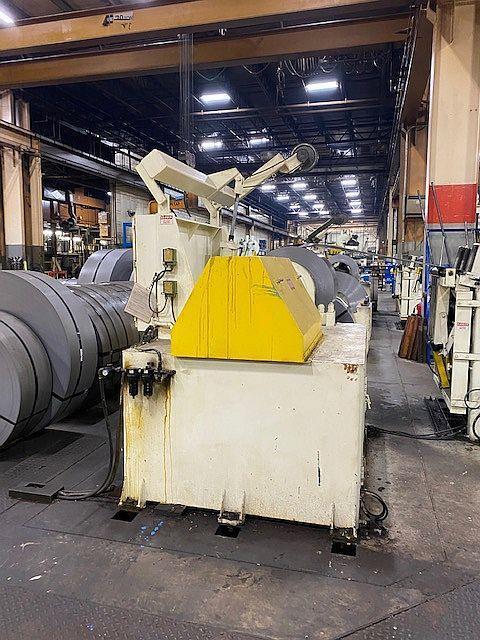

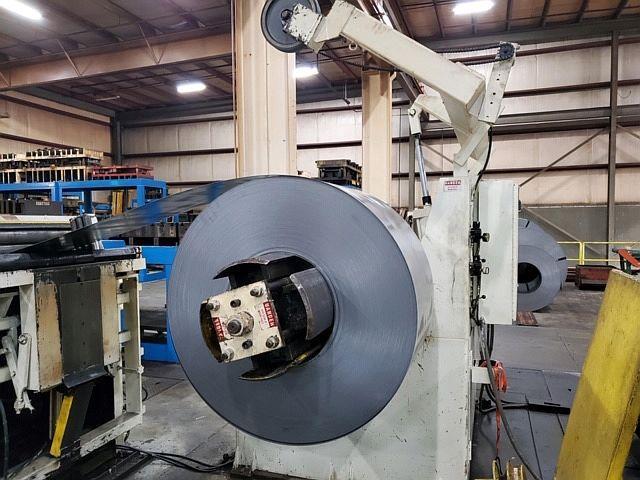

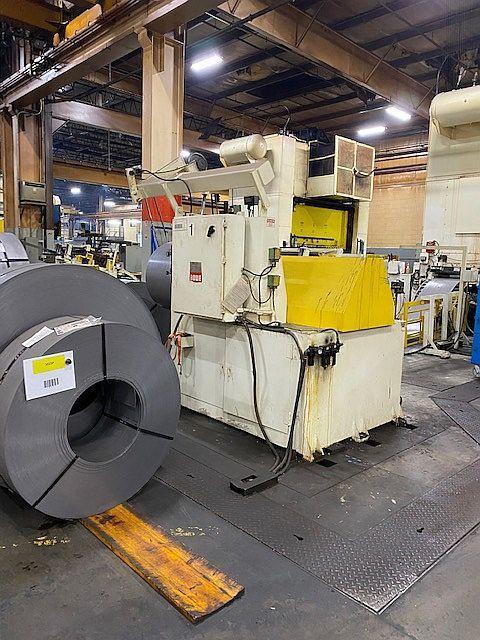

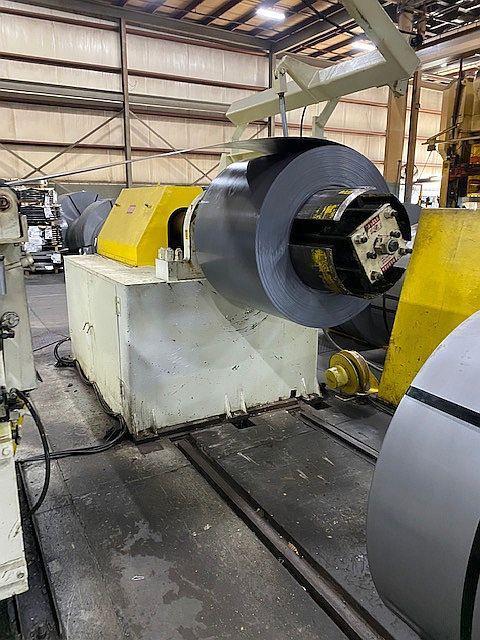

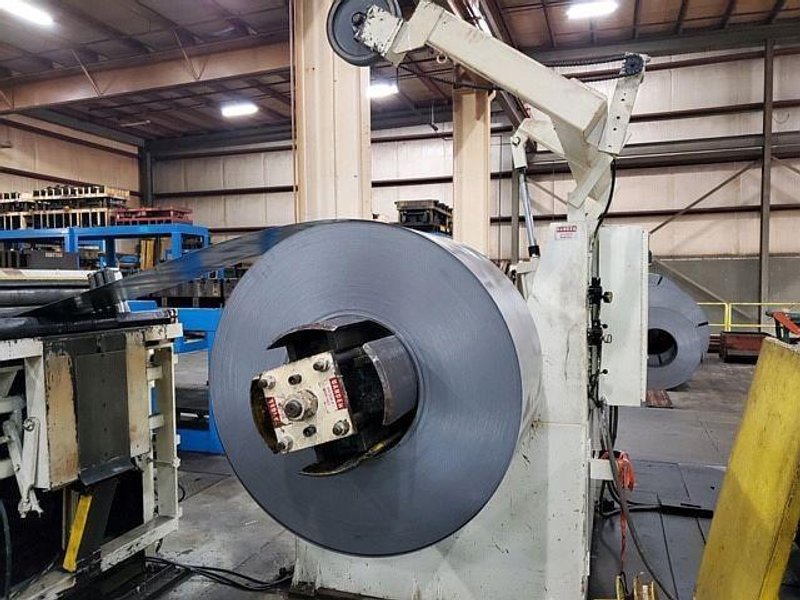

Rowe Non-Motorized Coil Reel
Model #: 30040-DSJ
Serial #: 28707
Hydraulically Actuated Hold Down Arm
Driven Spindle Jog Drive
Hydraulic Motor for Threading Material
Adjustable Air Brake
Pneumatic Brake w/ Regulator
Powered Thread Up Drive
4 Leaf Mandrel
60” OD Capacity
Total Amperage Requirement: 33 Amps

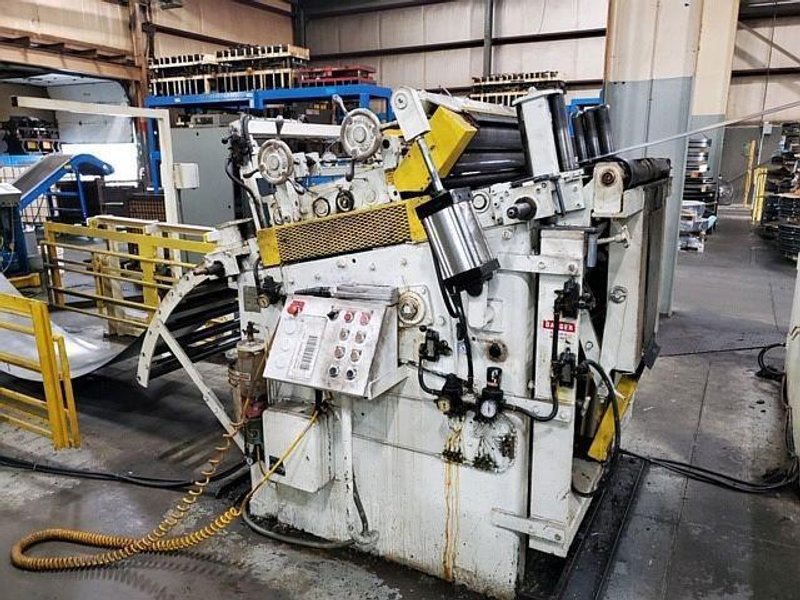

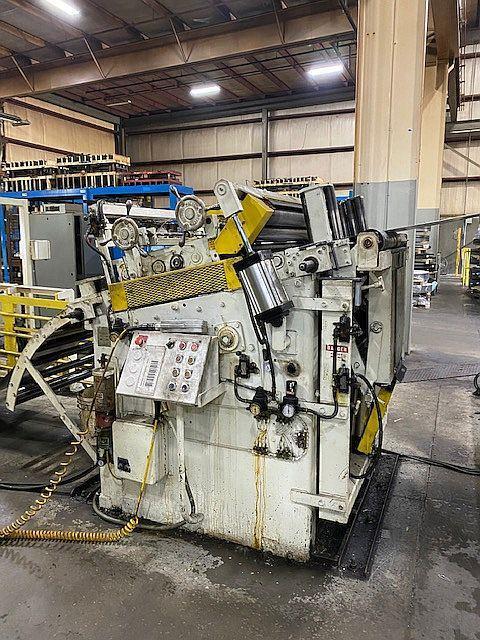

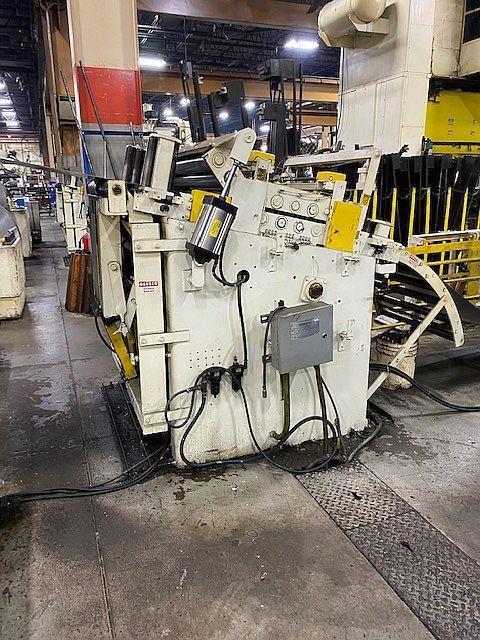

Rowe Powered Straightener

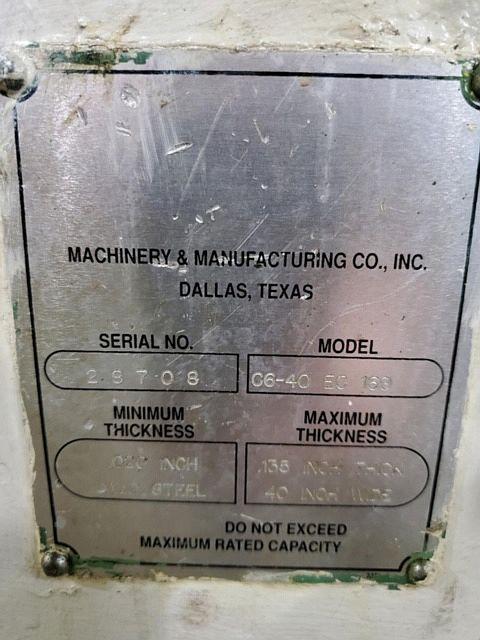

Model #: C6-40 EC 160
Serial #: 28708
7 Roll Straightener
4” Diameter Straightening Rolls on 4 ½” Roll Centers
4 Roll Coil Breaker Assembly
Capacity: 40” wide x 0.135” material
Entry and Exit Edge Guides
Exit Pinch Rolls
5 HP Motor
Exit Cascade Rolls
Recently Rebuilt 2017, with all new bearings

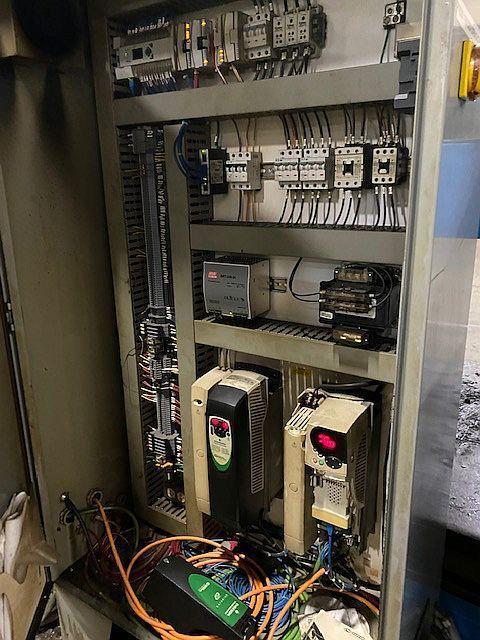

2017 replaced with new Emerson Variable Speed Drive

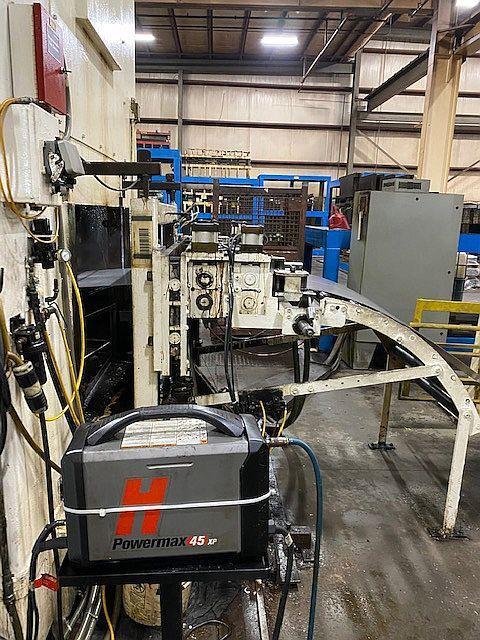

Rowe Cabinet Mounted Servo Feed
Model#: PM-FAC-123-240-AB
Serial #: 28710
Entry Cascade Rolls
Pneumatic Pilot Release on Upper Feed Roll
Crank Adjustable Floor Mounted Cabinet (+/- 3)
Edge Guides
Updated in 2017, New Emerson Servo Drive and Motor

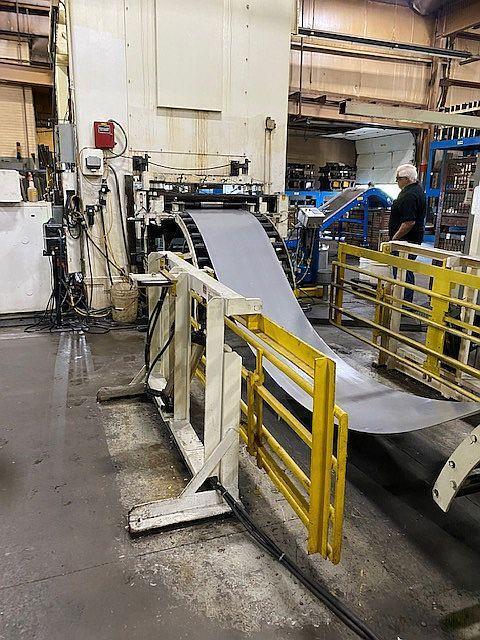

Dual Side Thread Table
Hydraulically Actuated
Laser Loop Control
|
|
