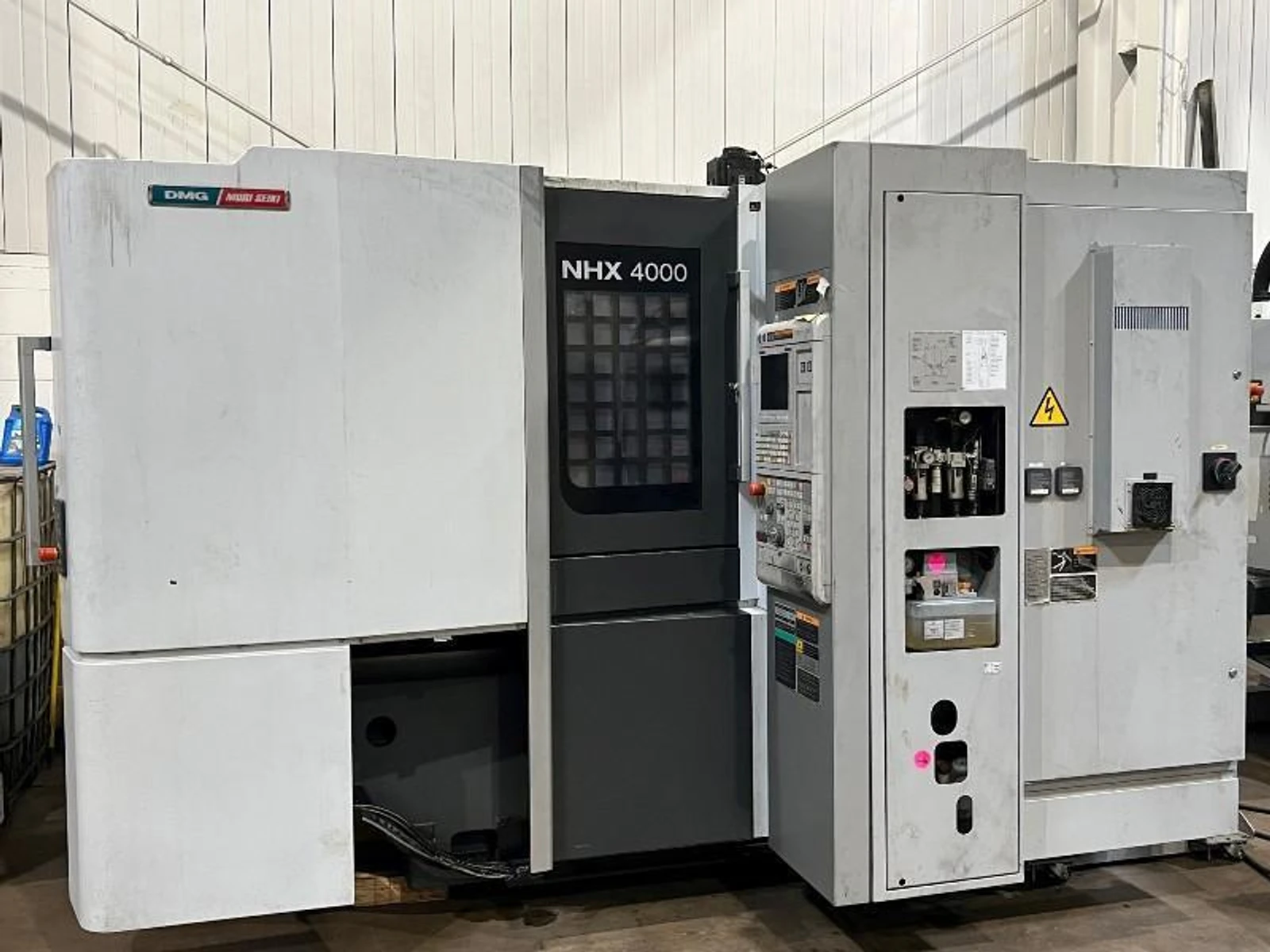

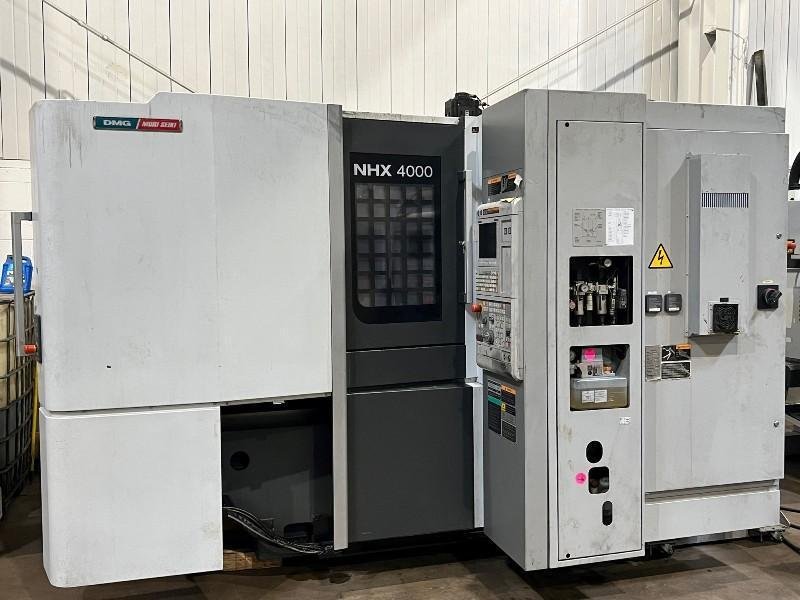

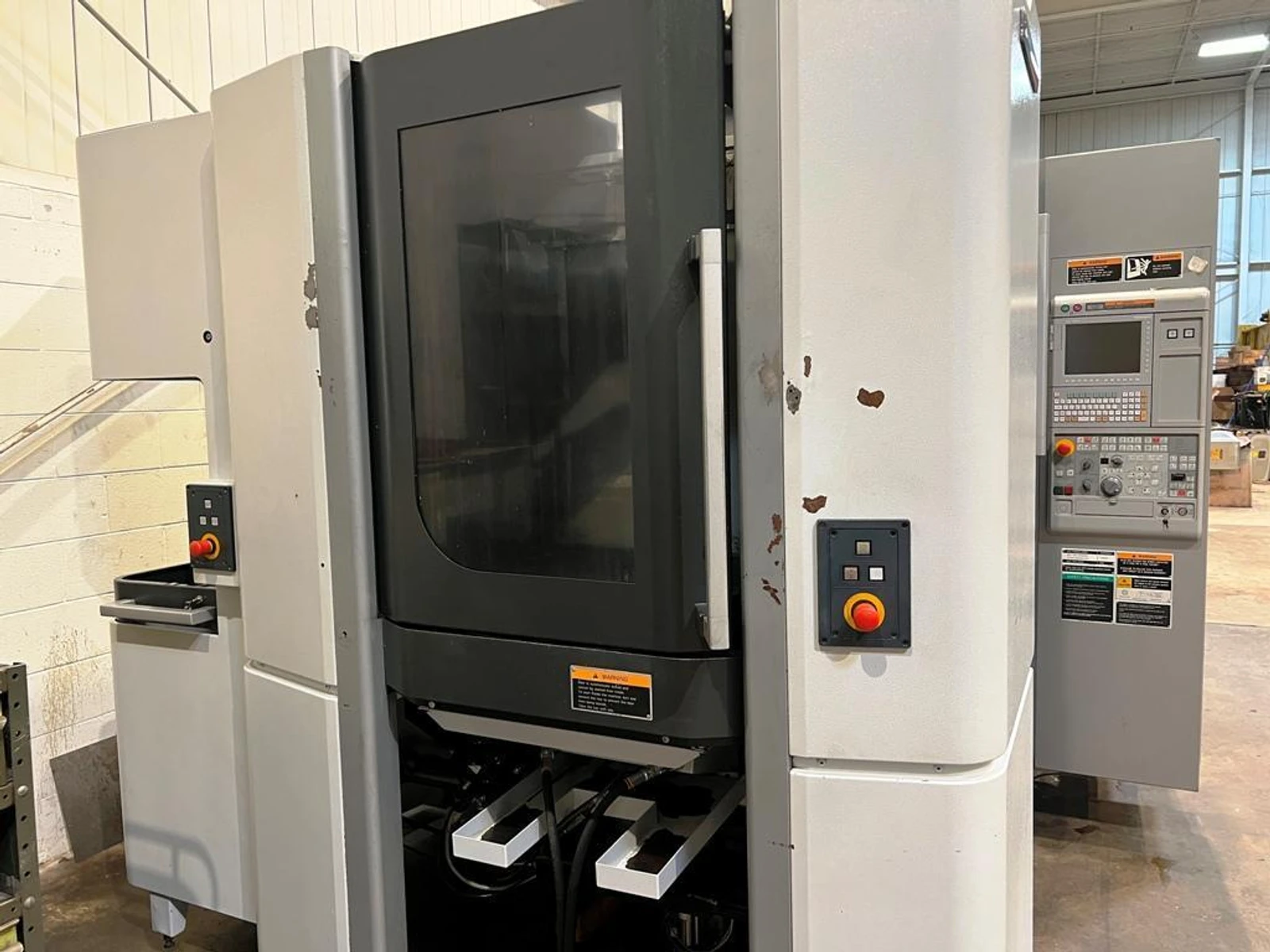

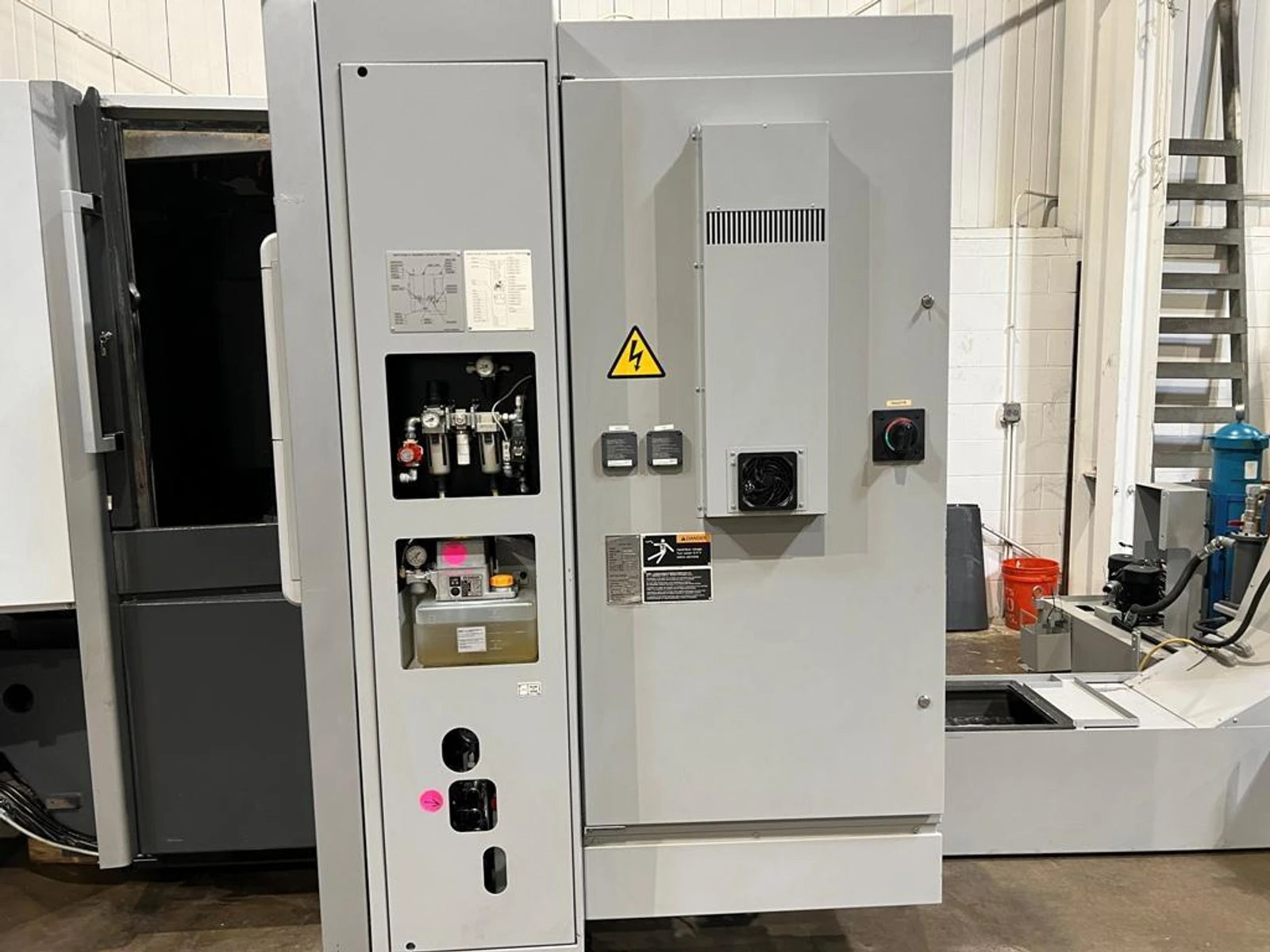

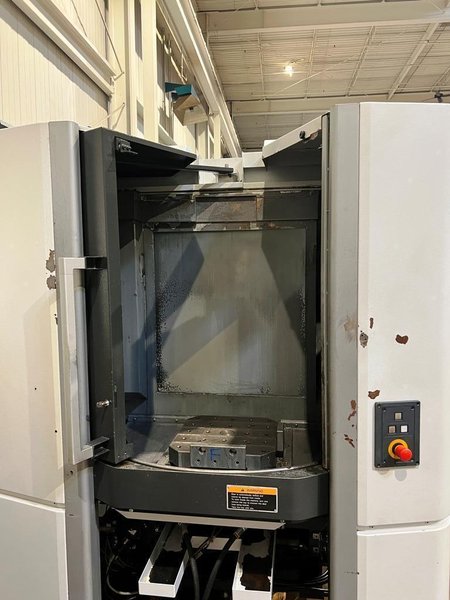

MORI SEIKI NHX4000 HORIZONTAL MACHINING CENTER

Model
NHX4000
Stock #
17249
Year
2013
Condition
Excellent
Location
Illinois

MORI SEIKI NHX4000 HORIZONTAL MACHINING CENTER

New 2013

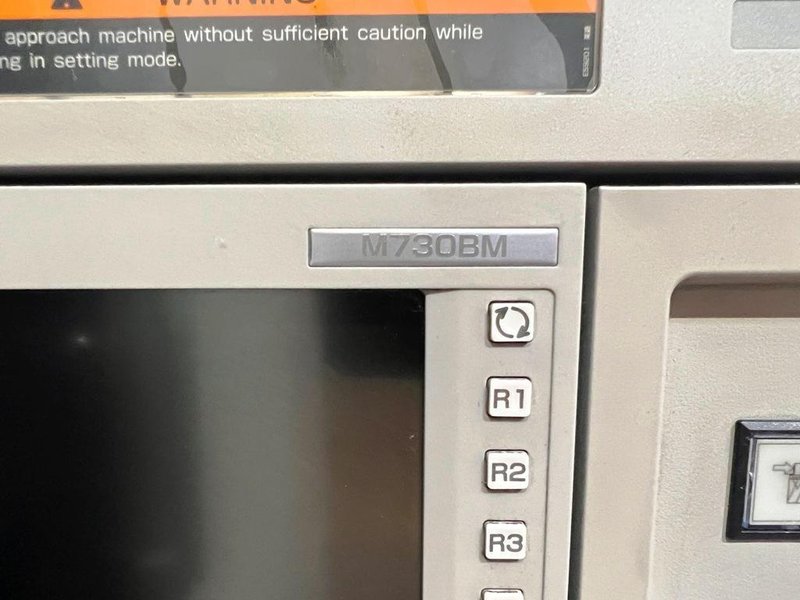

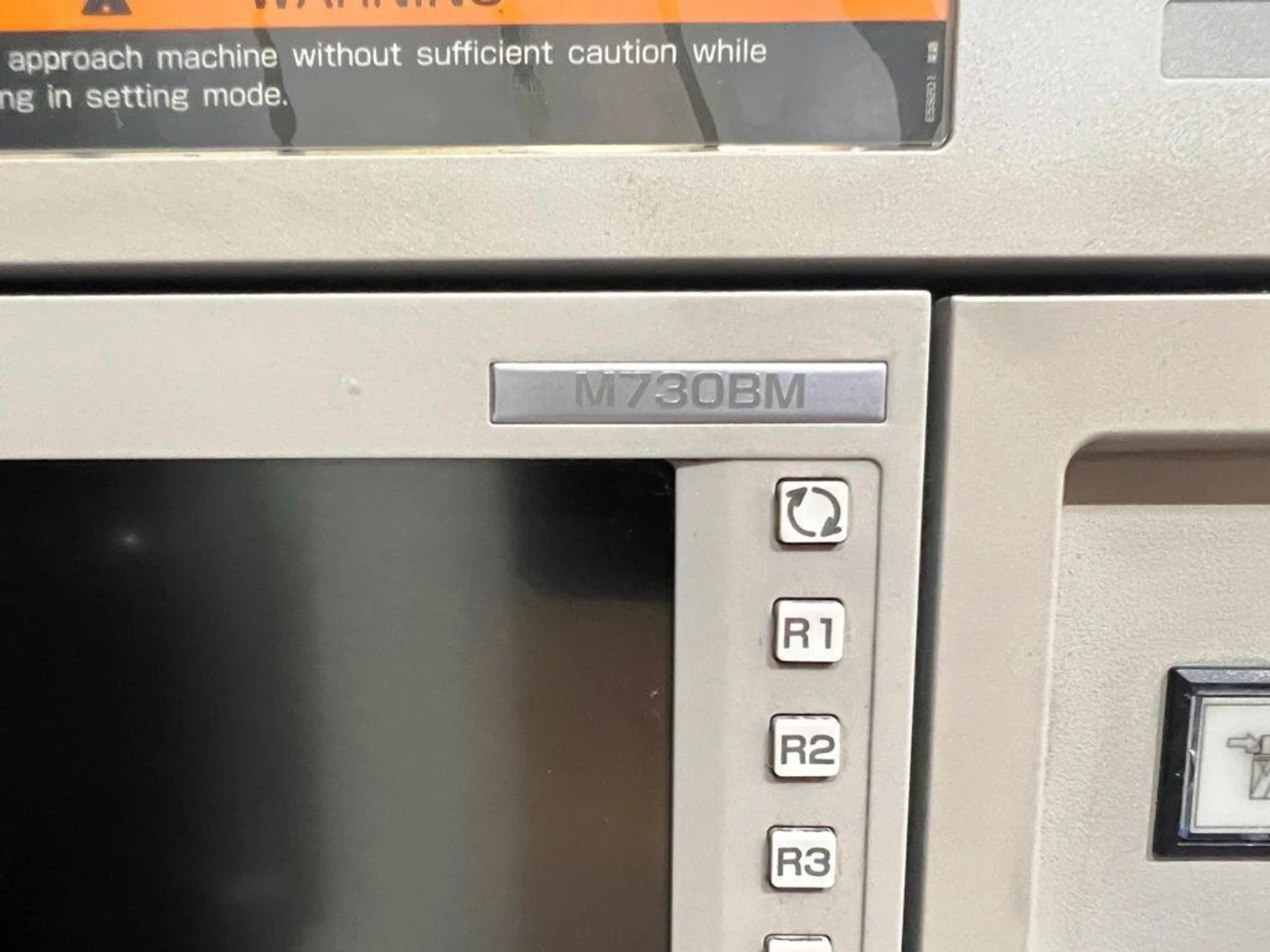

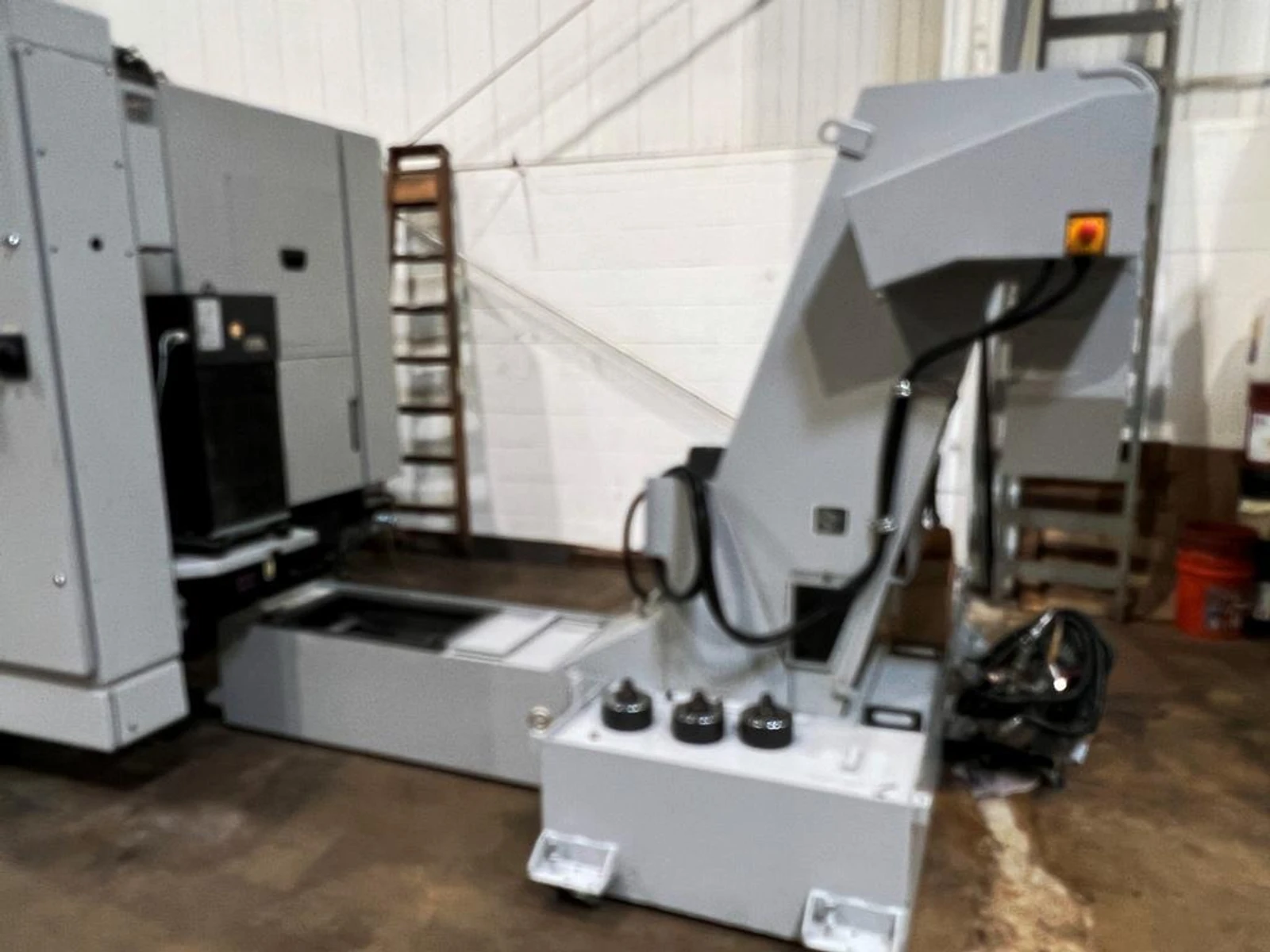

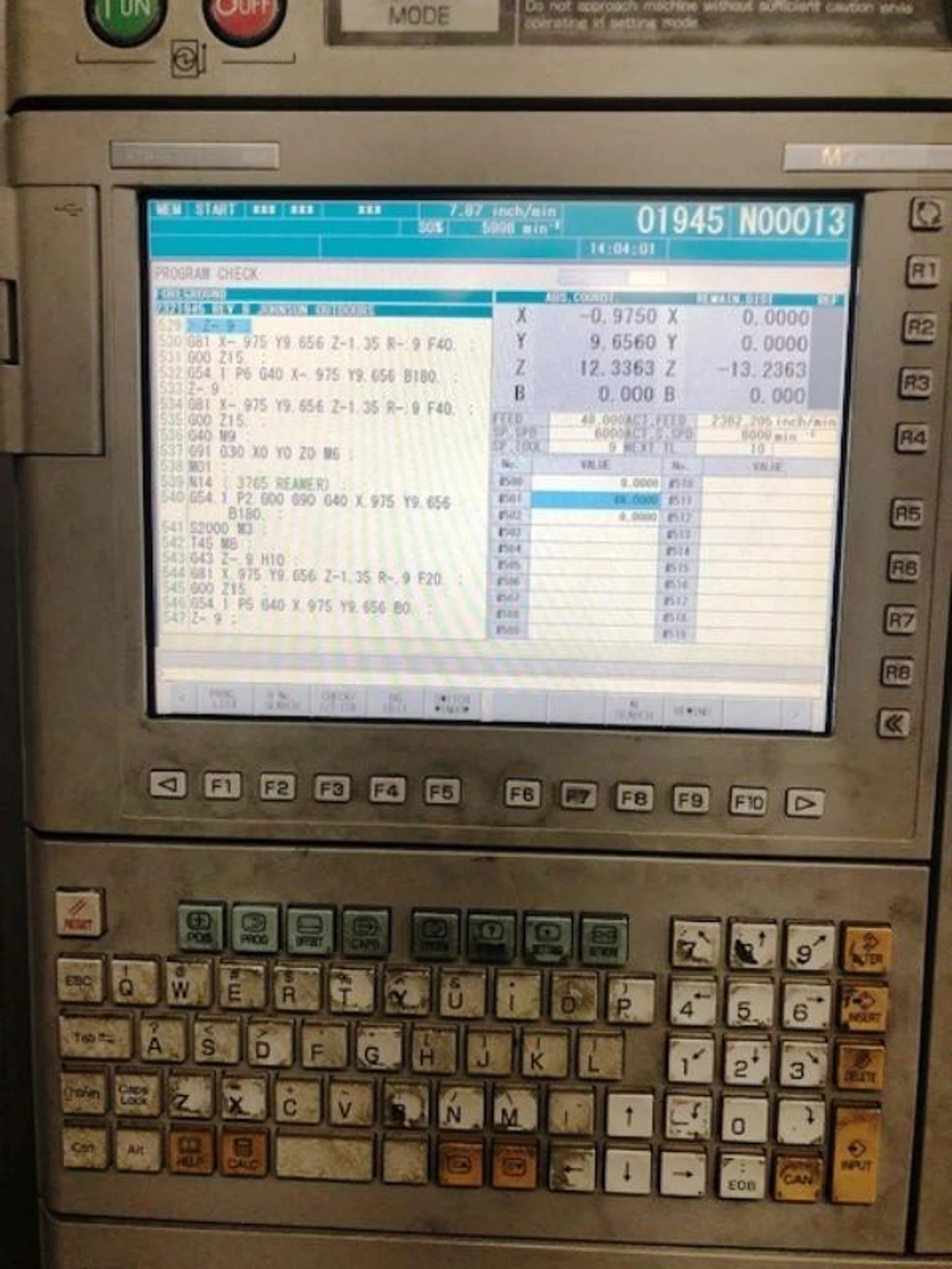

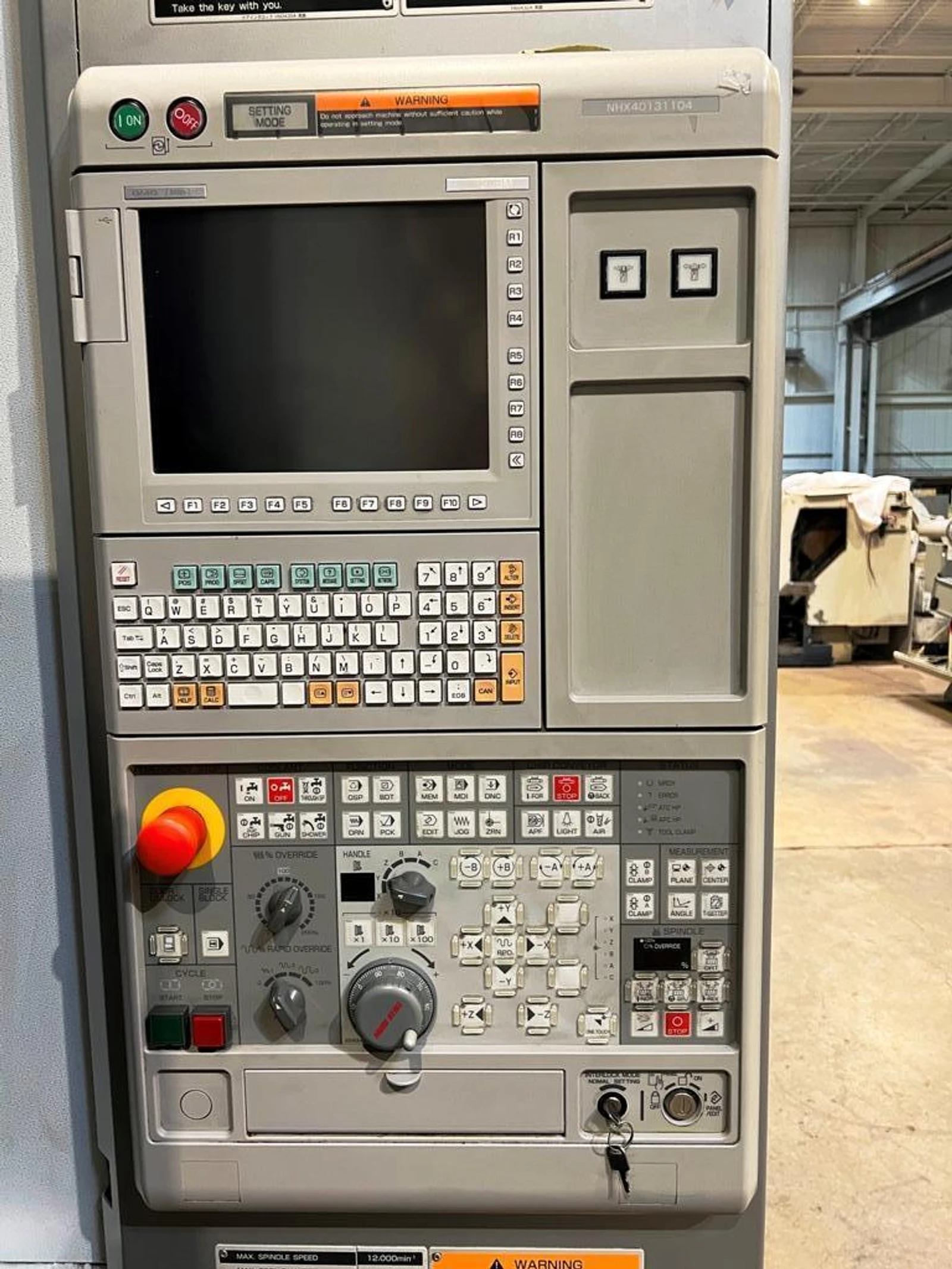

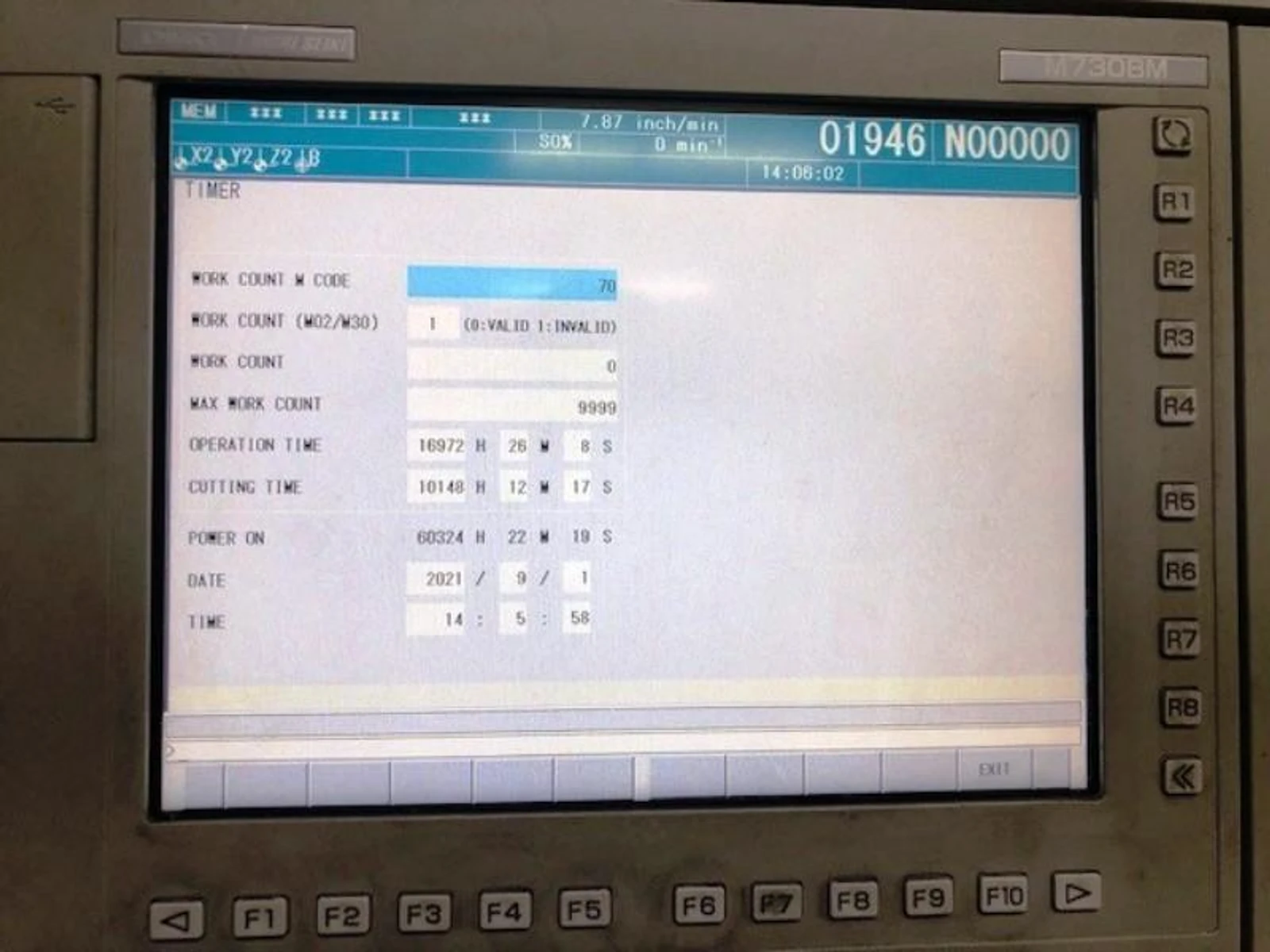

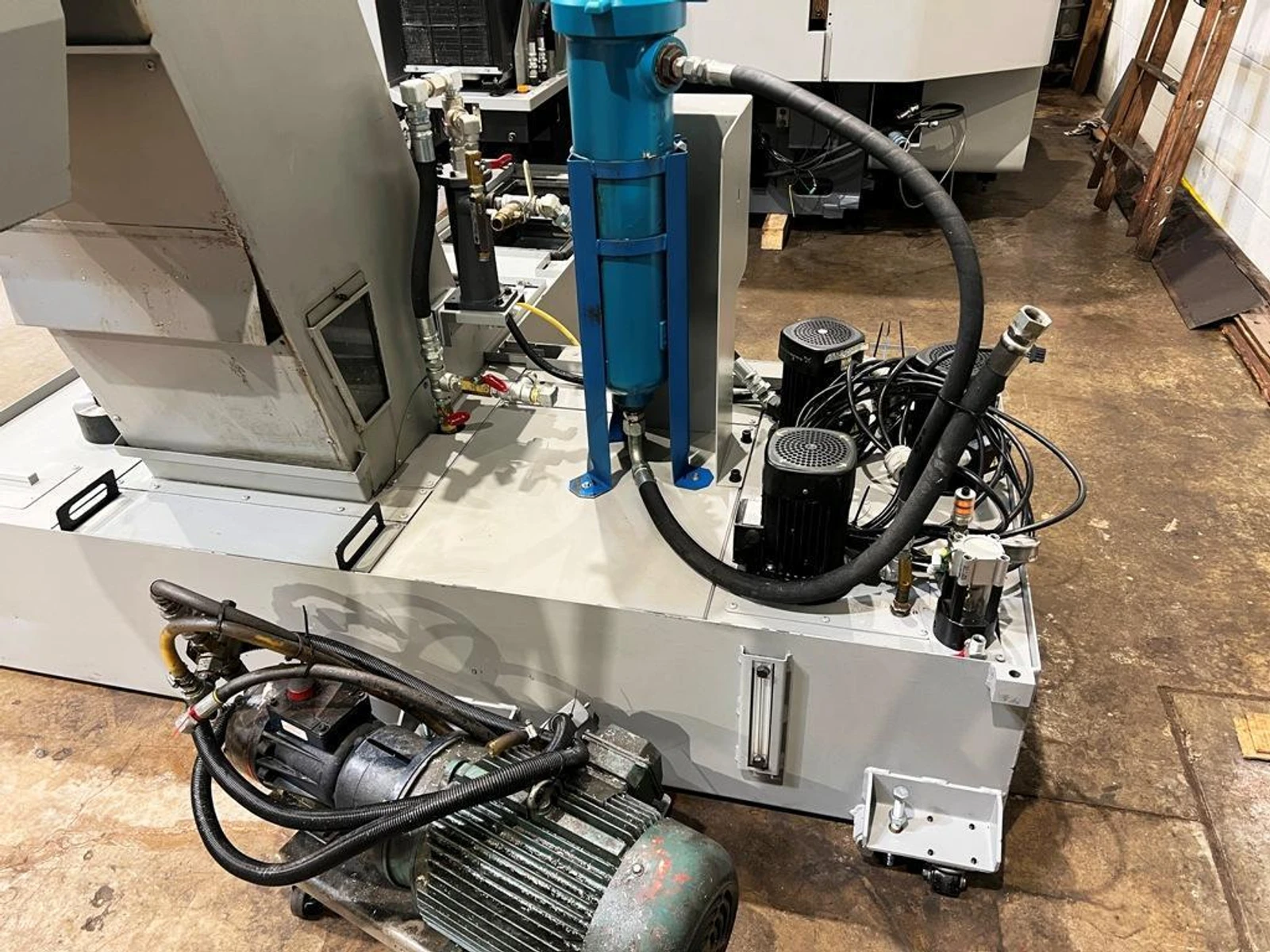

EQUIPPED WITH: Mori Seiki CNC Controls, Coolant Thru Spindle, 60 Tool Automatic Tool Changer, MD Chip Conveyor

SPECIFICATIONS:

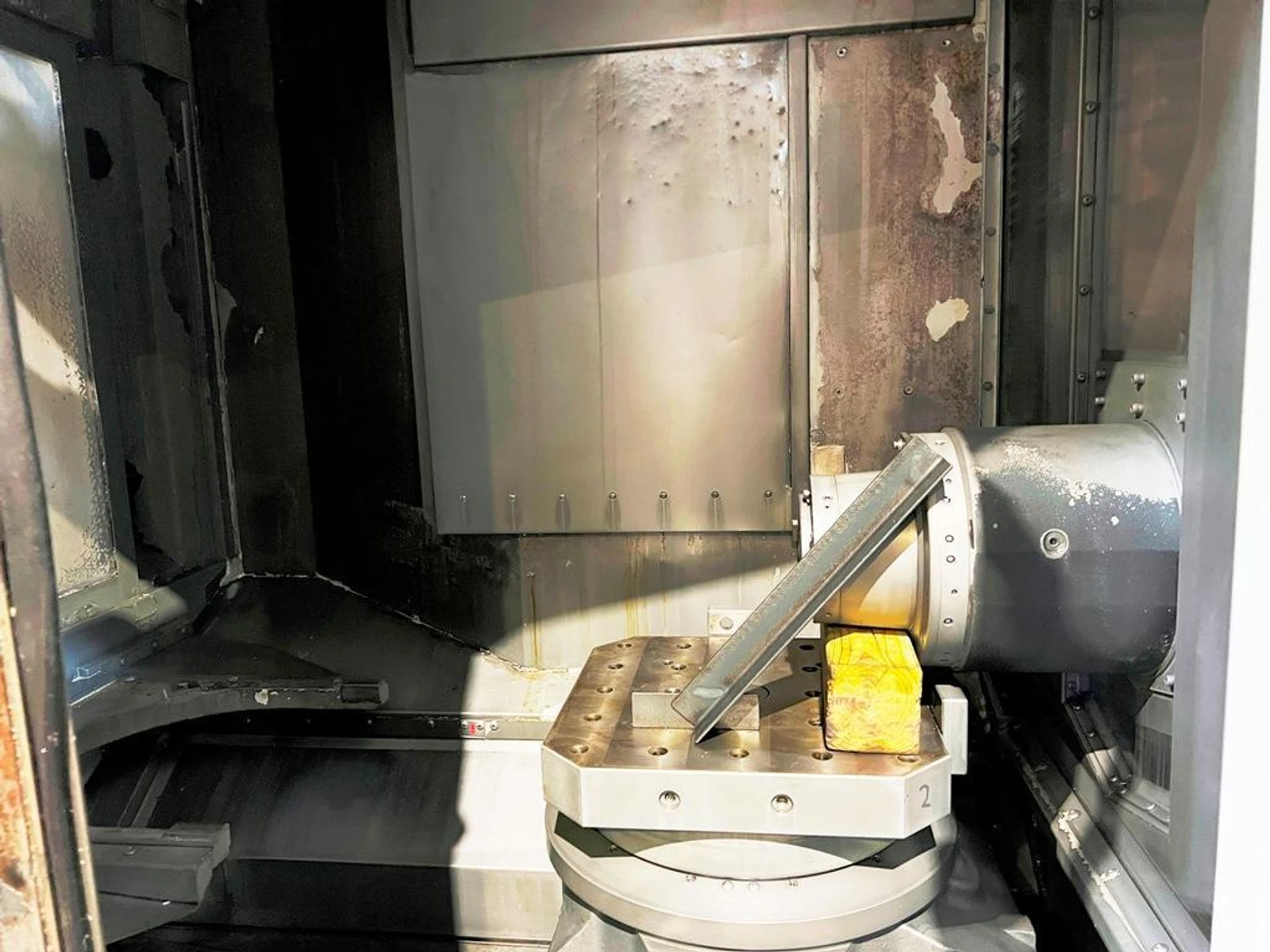

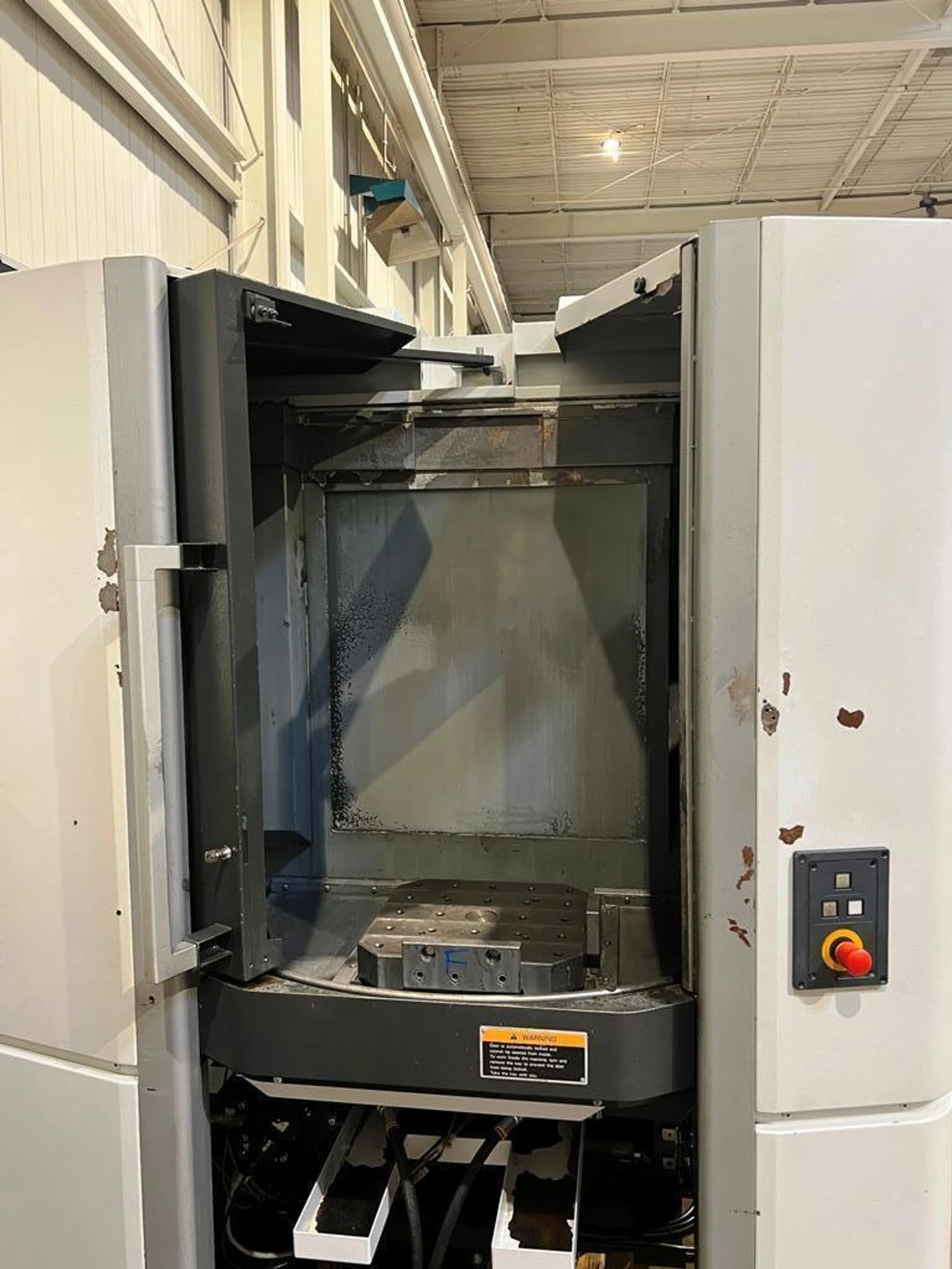

Pallets (2)                                                        15.7" x 15.7"
Table Indexing                                                .001 Degree Rotary
Table Load Capacity                                        880 Lbs.
Pallet Index Time                                            1.49 Seconds
Travels
         X - Axis                                                  22"
         Y - Axis                                                  22"
         Z - Axis                                                  26"
Spindle Nose                                                  CAT 40
Spindle Speed                                                12,000 RPM
Spindle Speed Ranges                                    1 Range
Spindle Motor                                                40 HP
Maximum Part Size (D x H)                            24.8" x 35.4"

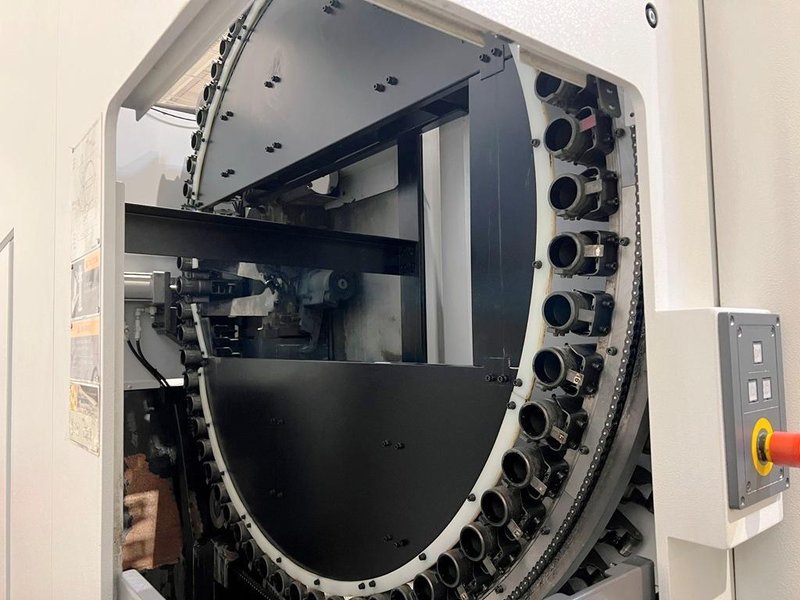

Tool Magazine Capacity                                60 ATC
Maximum Tool Length                                  15.7"
Maximum Tool Weight                                 17.6 Lbs.
Rapid Traverse Rates
          X - Axis                                                2362 IPM
          Y - Axis                                                2362 IPM
Approximate Dimensions                             107.1" x 165.9" x 108" H
Approximate Weight                                    18,000 Lbs.
