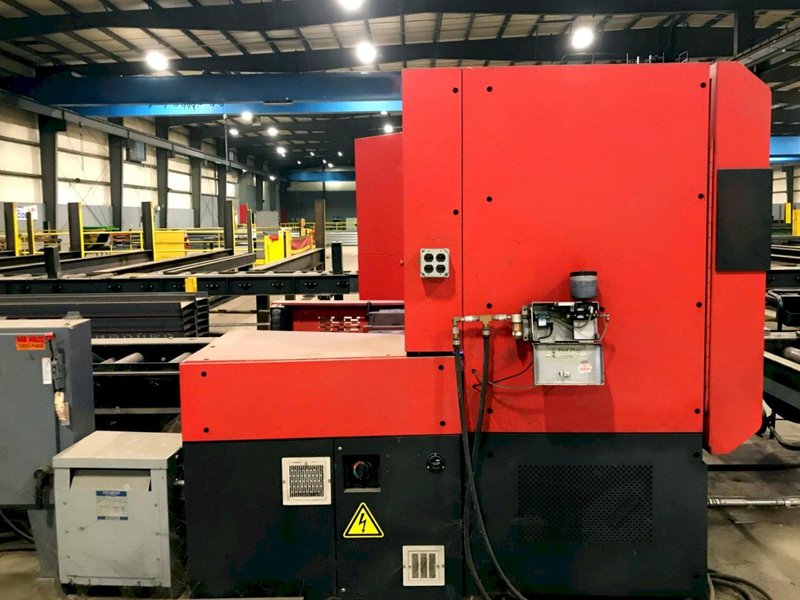

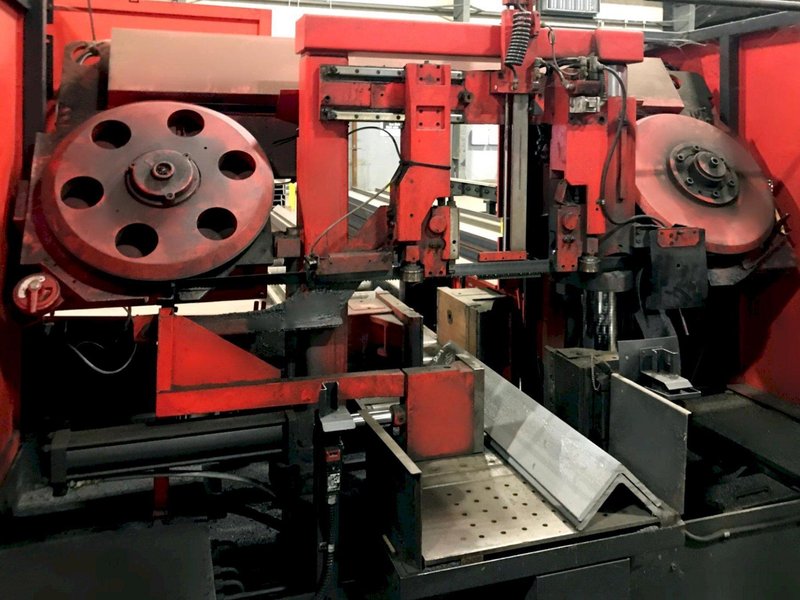

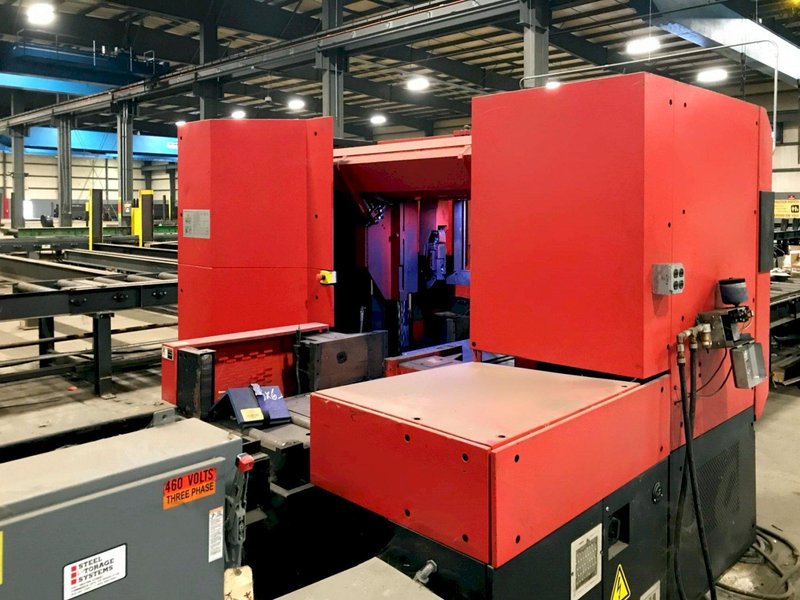

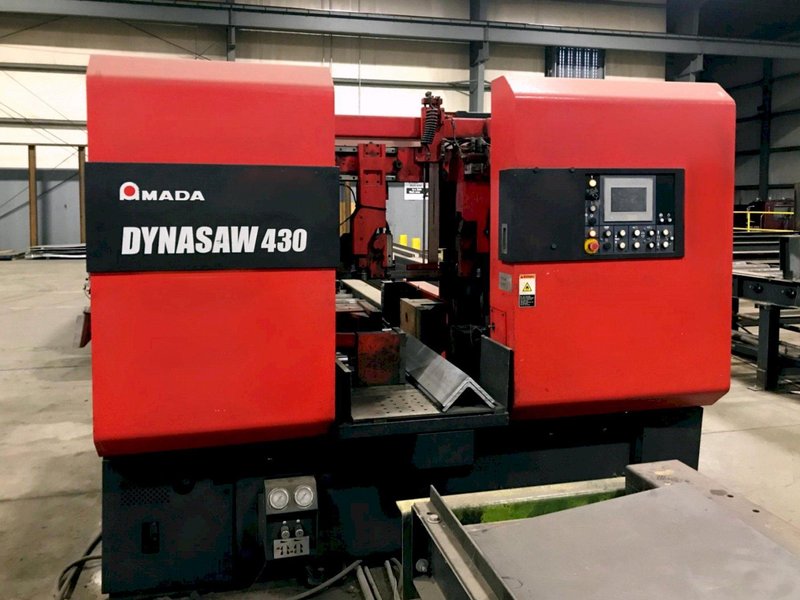

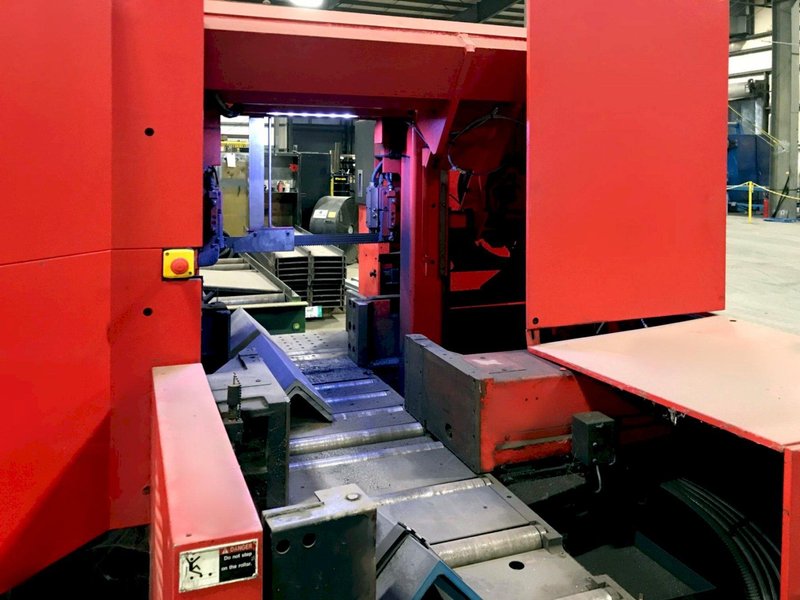

Amada Dynasaw 430 Horizontal Bandsaw
Brand
Category
Model
Dynasaw 430
Stock #
100289
Year
2014
Condition
Very Good
Location
Not specified

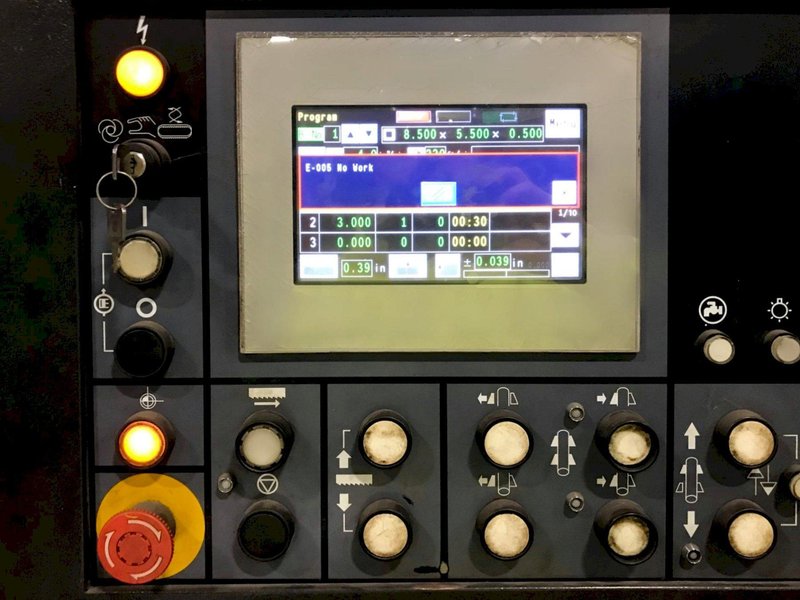

| Control | CNC (Amada) |
| Round Capacity | 1.18” - 16.93” |
| Rectangle Capacity (W x H) | 1.18” x 1.18” - 16.93” x 16.93” |
| Work Load Capacity | 6,613 lbs. |
| Material Index Stroke | 27.559” |
| Material Index Length | 0.394” - 99.999” |
| Min Remnant Length | 1.38” Plus Length of Parts |
| Number of Input Block/Station | 1-99 / 1-30 |
| Material Index Mechanism | Shuttle Vise |

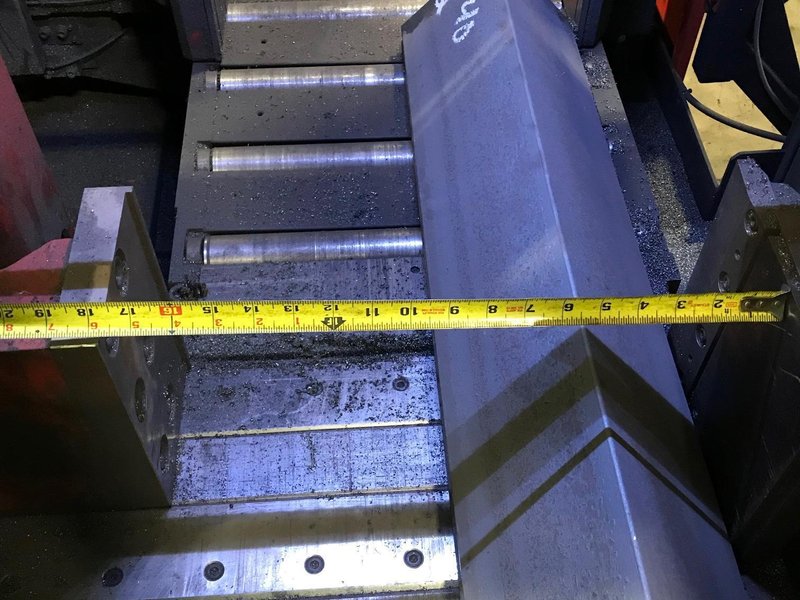

| Vice Opening | 17.75" |
| Vice Height | 9.0" |

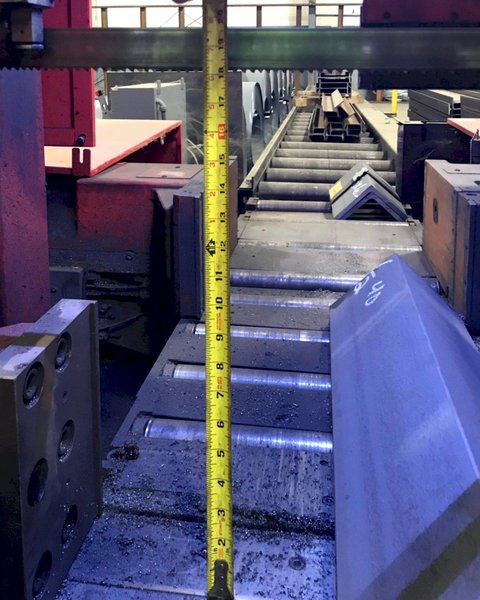

| Bed To Blade | 18.0" |
| Blade Size (L x T x W) | 17’5” x .050” x 1 1/2” |
| Blade Speed | 49~394 ft/min, By Inverter |
| Blade Motor | 7.5 HP |
| Hydraulic Pump Motor | 2 HP |
| Cutting Fluid Pump Motor | 1/4 HP |
| Wire Brush Motor | 1/8 HP |
| Chip Disposal | Screw-Type Chip Conveyor |
| Power Requirement | 13 kVA AC220V±10%, 3 PH, 60 Hz |
| Table Height | 27.6” |

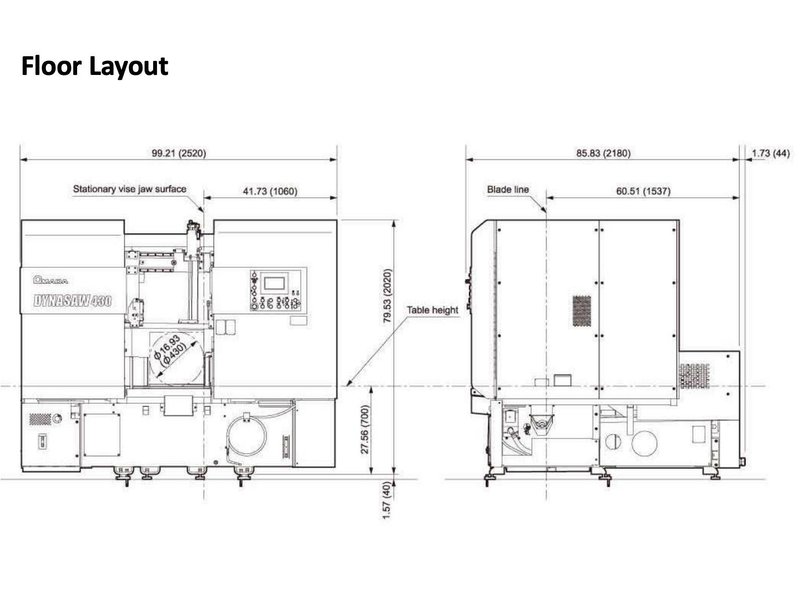

| Dimensions (W x L x H) | 99.2″ x 85.8″ x 79.5″ |
| Machine Weight | 7,718 lbs |
|
Equipped With: CNC Cutting Control With Hydraulic Pressure Column Guided Cutting Head Auto Table Cleaning Auto Blade Guide Adjustment Self Adjusting Wire Brush Blade Deviation Monitor Blade Speed Controlled By Inverter Auto Trim Cut Function Chip Conveyor Motion Detector Back Gauge Stopper |
|
