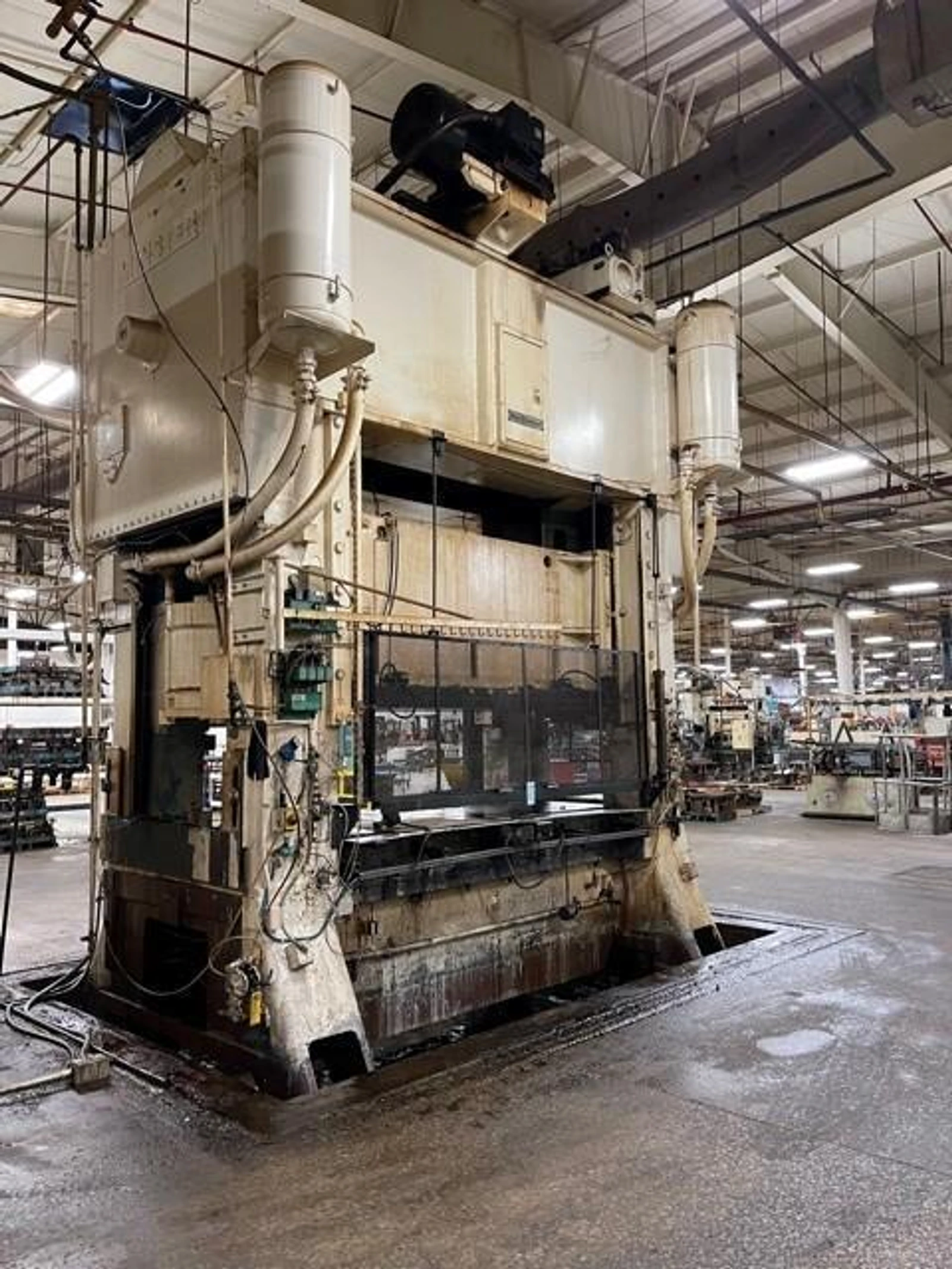

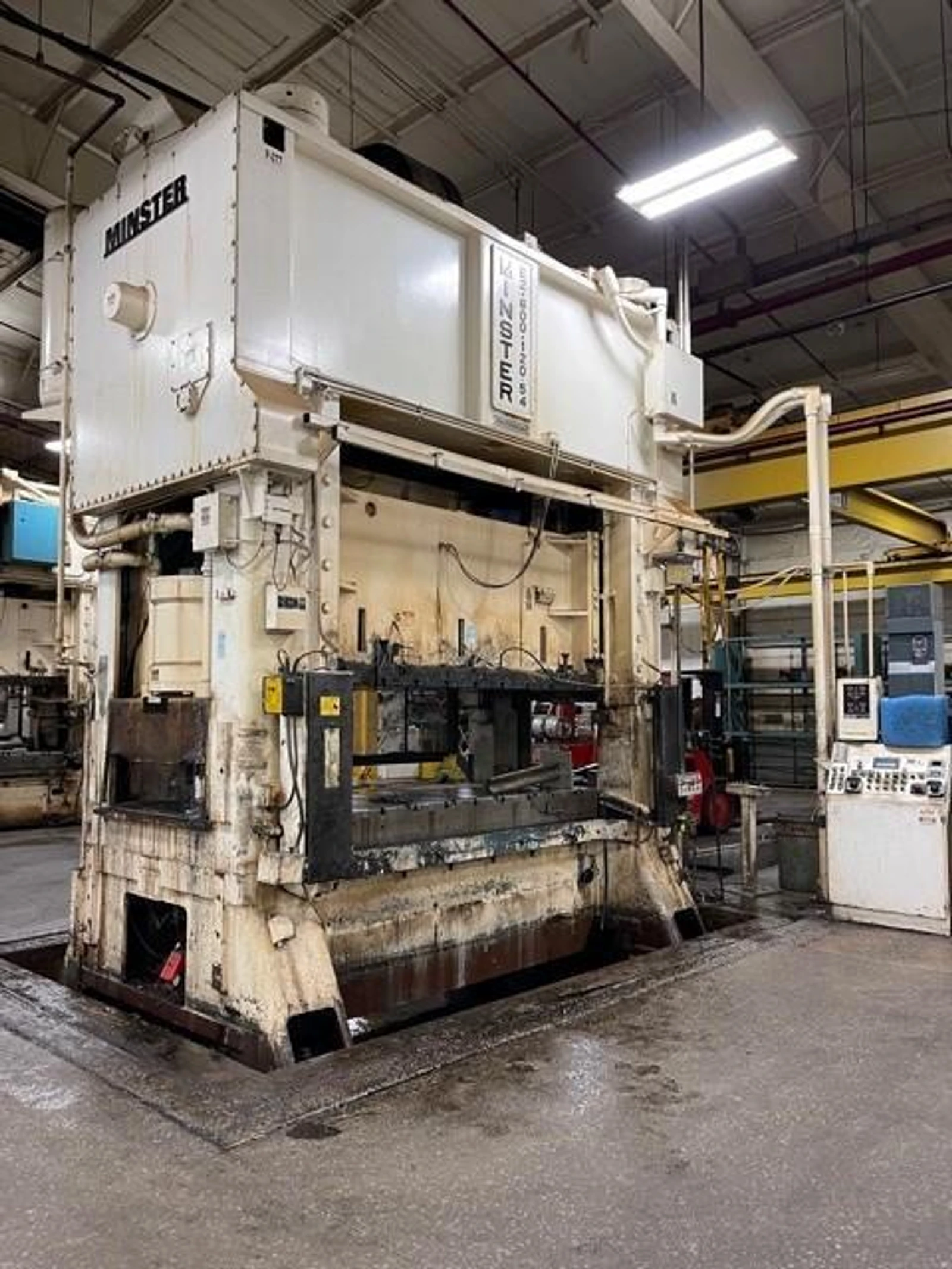

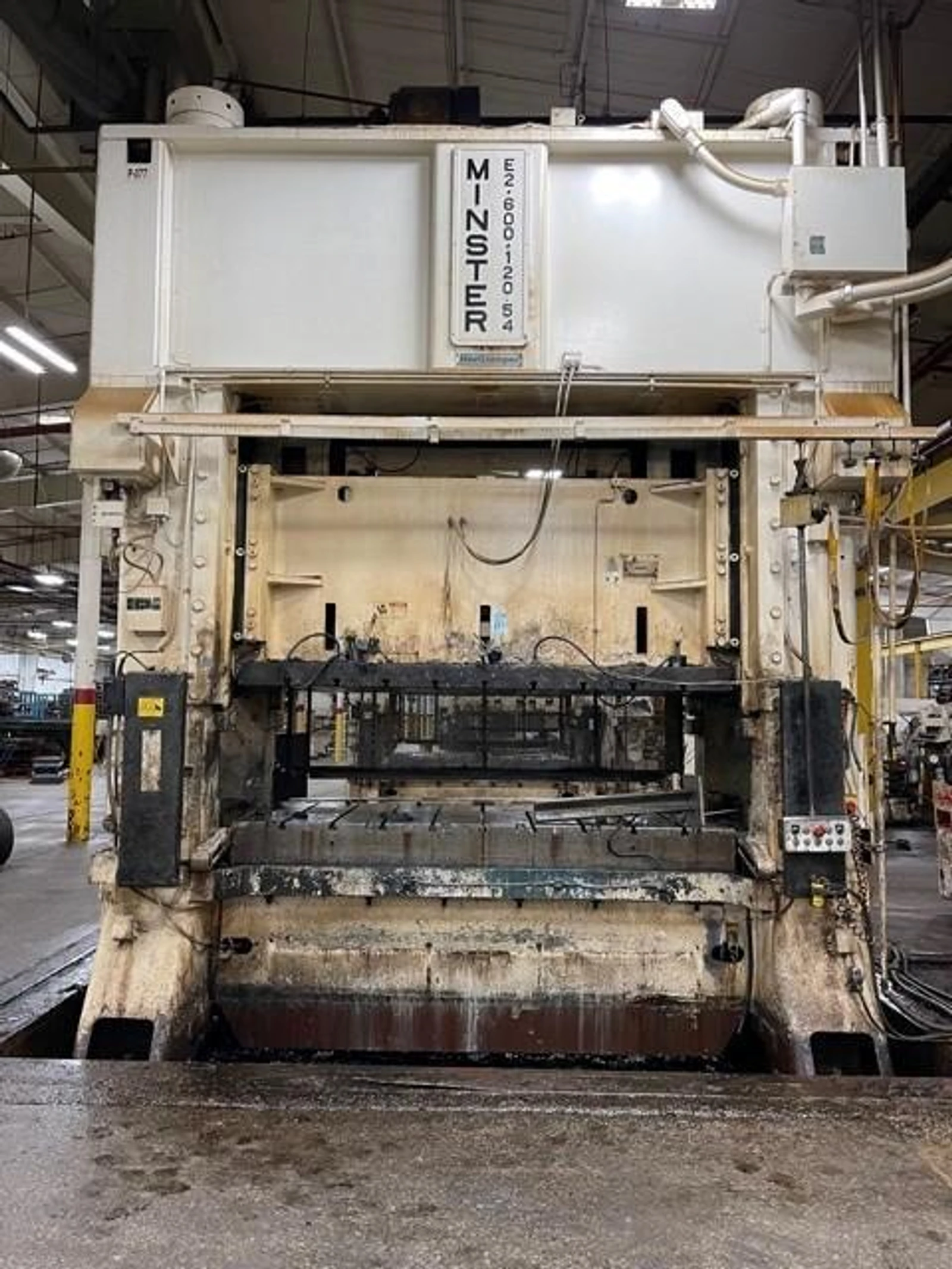

600 ton Minster E2-600-120-54 Hevi-Stamper Press, New 1992
Brand
Category
Model
E2-600-120-54 Hevi-Stamper
Stock #
2689
Year
1992
Condition
Very Good
Location
Michigan
| Tonnage | 600 |
| Stroke | 14 inches |
| Shut Height | 43 inches |
| Adjustment | 6 inches |
| Bed Size | 120" x 54" |
| Ram Area | 120" x 54" |
| SPM | 0-60 |
|
Standard Specifications

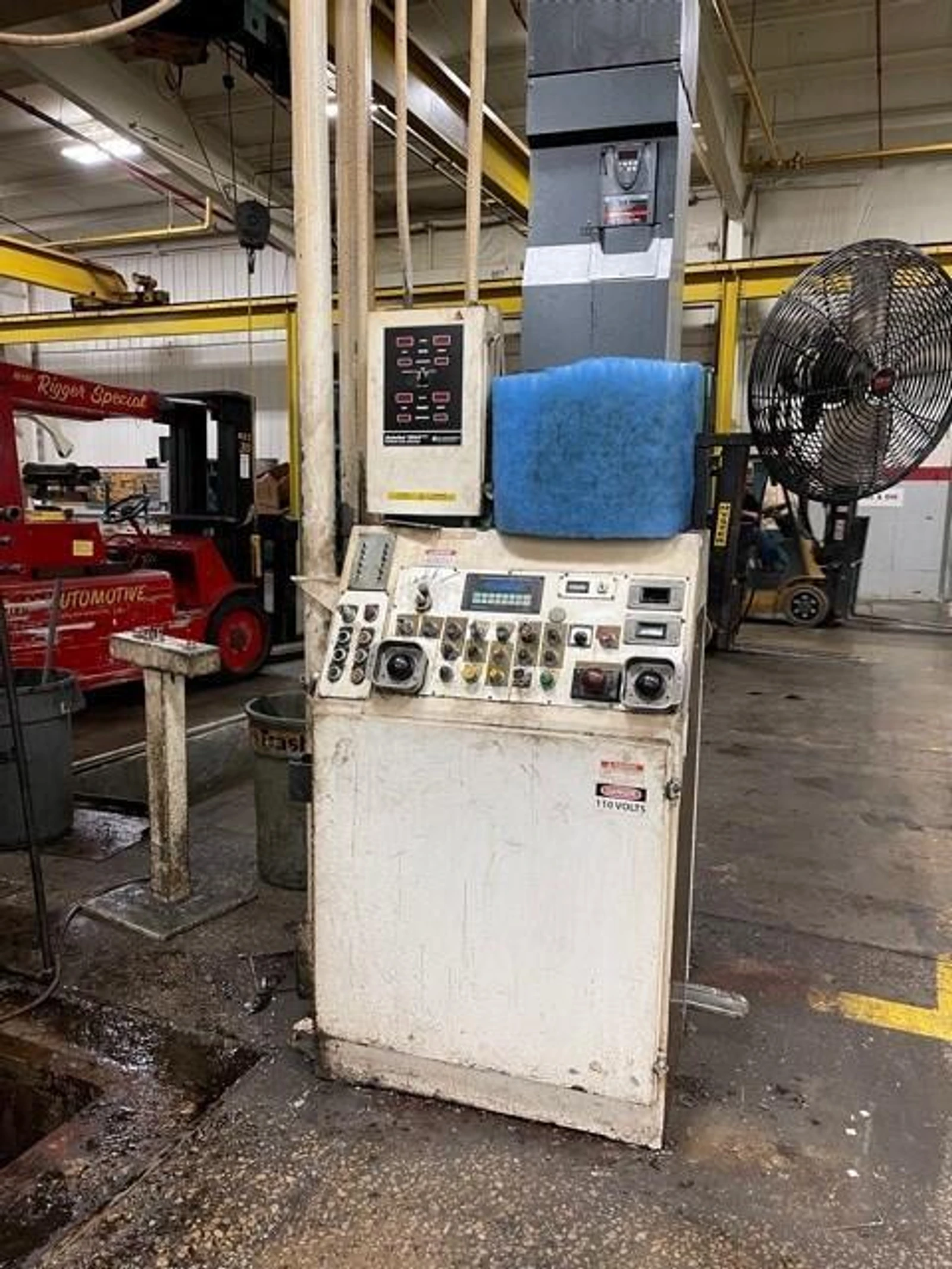

600 ton Capacity Model# E2-600-120-54 Hevi-Stamper 14" Stroke 43" Shut Height 6" Motorized Adjustment 120" LR x 54" FB Bed Area 120" LR x 54" FB Slide Area 0-60 VSPM Equipment and Features Combination Hydraulic Clutch and Brake Air Counterbalances Minster Monitor Flow Lubrication System T-Slotted Ram and Bolster 48" Wide Windows Micro Shut Height Indicator Light Curtains Hydraulic Tie Rod Nuts Free Standing Console Press Controls Floor Standing Design Overall Height: 21' 6" Tall Foot Print: 173" x 112" Can be inspected upon request in the S&G Press Livonia Michigan Warehouse! Click For More 600-ton Minster Press Options Straight Side 600-ton Presses For Sale Minster Presses For Sale @ S&G Press For sale at S&G Press: a powerful 600-ton Minster E2-600-120-54 Hevi-Stamper press, ideal for heavy-duty metal stamping. This capable machine features a 14" stroke, 43" shut height, and 6" motorized adjustment, ensuring precise control. Its generous 120" LR x 54" FB bed and slide areas accommodate large tooling, operating efficiently at 0-60 VSPM. Acquire this dependable, high-capacity used press from S&G Press to significantly enhance your production capabilities and optimize performance. |
|
