Capacity | 25 ounces |

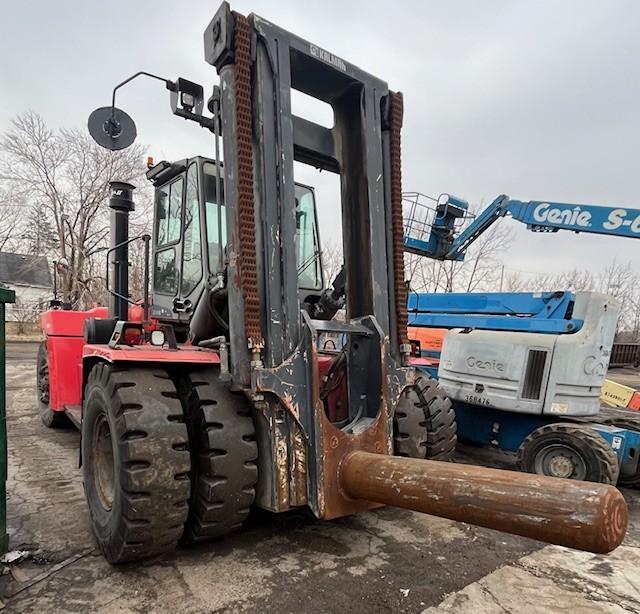

Model: DCD250-12LB Kalmar Forklift Truck, Low Built Wheelbase 4,250 mm Capacity: 25,000 Kgs. Capacity @ 1,200 mm Load Center Engine: Volvo Engine, Model TWD731VE, Tier I 6 Cylinder Turbo Diesel Engine 234 Horsepower @ 2300 Rpm Transmission: Dana (Clark-Hurth) 32000 Series Powershift Transmission 3 Speeds Forward - 3 Speeds Reverse Directional Lockout Protection - Forward / Reverse Kalmar Automatic Gearshift Drive Axle: Kessler Heavy Duty Drive Axle Wheel Hub Reduction Service Brake: Maintenance Free Oil Cooled Wet Disc Brakes Parking Brake: Spring Actuated Dry Disc on Drive Line Steering Axle: Kalmar Design - Heavy Duty Single Steer Cylinder - Double Action Tires: Front: Dual 14.00 x 24 Pneumatic tires Rear: 14.00 x 24 Pneumatic tires Cab: Complete Standard Spirit Delta Cab with all Instrumentation Internal height = 1,500 mm / 60'' Warning Lamps: Battery Charging, Blinkers, High / Low Beam, Preheating, Parking Brake, Low Brake Pressure Engine: Low Oil Pressure Low Coolant Level High Coolant Temperature Transmission: Low Oil Pressure High Oil Temperature Gauges: Hour Gauge, Fuel Level, Engine Coolant Temperature, and Transmission Oil Pressure, and voltmeter Door Locks Two (2) Ergonomically Positioned, Multi-function levers on Steer Column - Windshield Wipers, Windshield Washers, Blinkers and Horn Mechanical Suspension, 6-way Adjustable, Cloth Drivers Seat Three (3) Speed Fan, Cab Heater / Defroster Sliding Windows in both Left and Right Doors Tinted Glass Interval Windshield wiper with washer on Front Windshield Cab: Standard Windshield Wipers with washers on Roof and Rear Pane One (1) internal rear view mirror Corner Posts in Cab Electrical: 24-Volt Electrical System All Fuses, Relays, and Connectors are Located within an Easily Accessible Position Inside the Cab (Behind the Drivers Seat) Standard Lights for Chassis, Cab and Mast Two (2) Working Lights on Mast Two (2) Rear Lights on Cab Roof, Backwards Direction Two (2) Working Lights, on Counterweight, Backwards Direction Two (2) Head Lights, Mounted on Front Mudguard High / Low Beam Two (2) Tail / Brake Lights, mounted on Counterweight Four (4) Blinkers Two (2) mounted on Front Mudguards Two (2) mounted on Counterweight Position Lights, 2 Pcs. on each side of Cab All Internal Lighting Rotating Beacon, Mounted on Cab roof Reverse Alarm Hydraulic System: Two (2) Pump System, One Double Gear Wheel Type Pump for Tilt, Lift, and Working Hydraulic Functions, One Single Gear Wheel Type Pump for the Brake and Servo System. Four (4) Hydraulic Functions with Hoses, Valve Groups, and Pilot Operator Control Levers Mast: Two-Stage Mast with hrough Vision' Design Maximum Lift Height, Forks = 4,500 mm Mast Height, Fully Extended = 5,820 mm Mast Height, Lowered = 3,570 mm Tilt Angles: 5o Forward / 10o Backward Carriage: Roller-type carriage with side-shift and Simultaneous fork- positioning Side-shift = + / - 150 mm with forks at center to center: 2,050 Width = 2,900 mm Forks: One set of standard forks with hook-type fork-shaft mountings Dimensions = 300*110*2400 mm Coil Ram: Hook-mounted coil ram Diameter = 300 mm Length = 1,500 mm |
