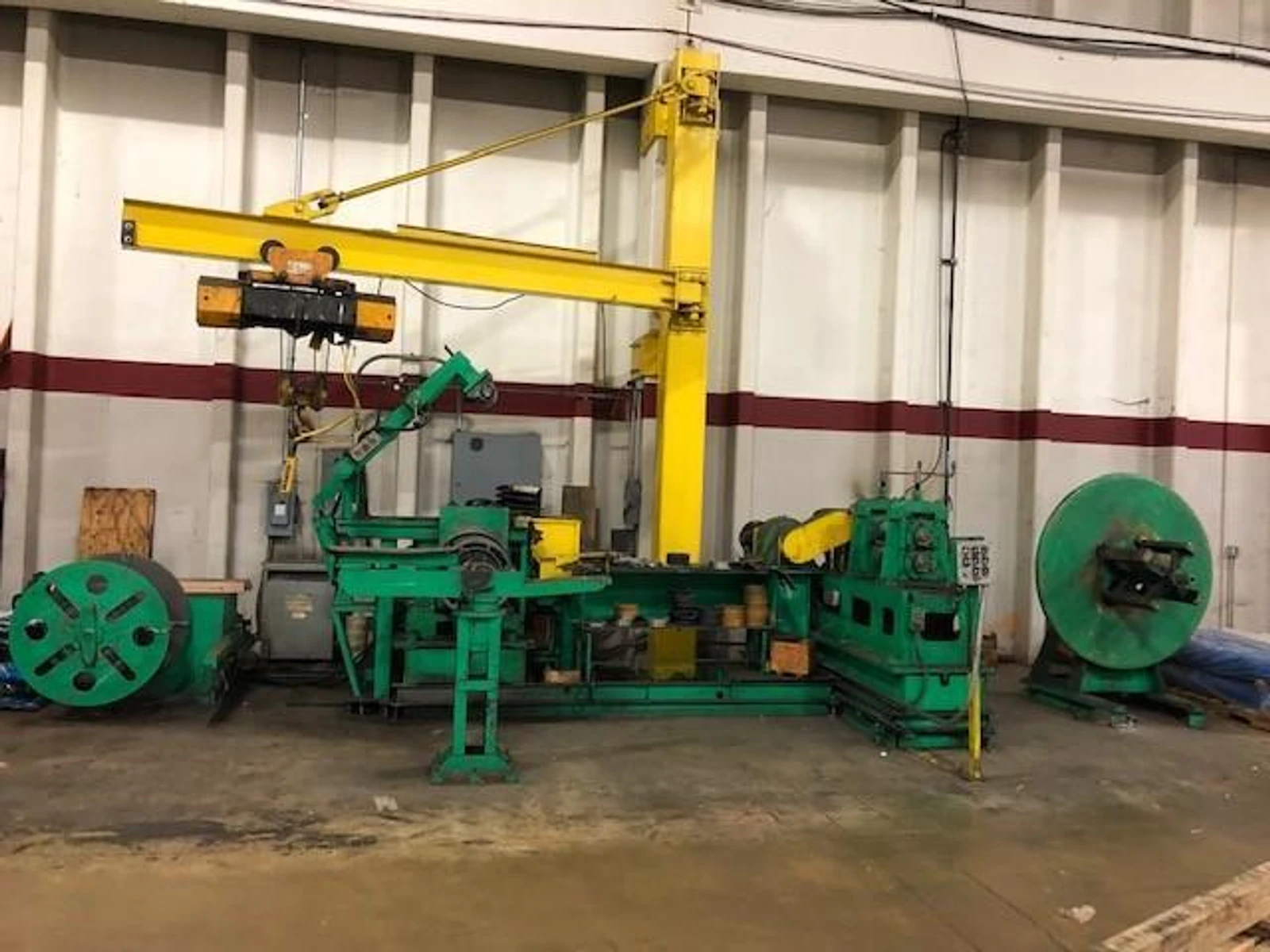

12" BLISS SLITTING LINE
Brand
Category
Model
Not specified
Stock #
2797
Year
Not specified
Condition
Good
Location
Michigan
| Max Width of Workpiece | 12 inches |
|

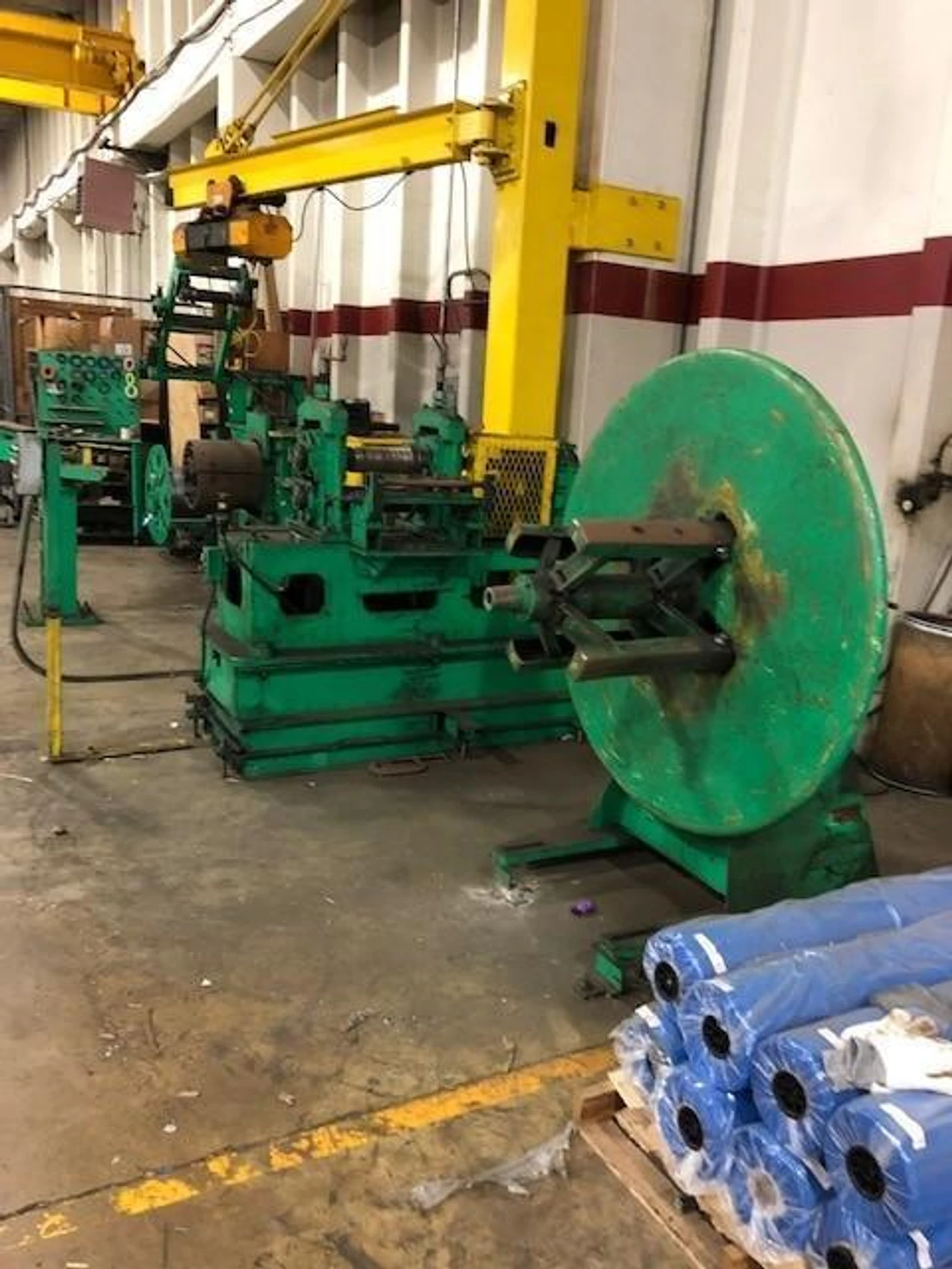

UNCOILER – LITTELL 4,000# CAPACITY / 16”-24” ID COIL ENTRY / 18” MANDREL WIDTH
INCOMING COIL SPECS (MILD STEEL) FINISHED PRODUCT SPECS
.008” - .125” THICKNESS .008” - .125” THICKNESS
.750” – 12.00” WIDTH .125 GA-MAX 4 CUTS/.500”-12.00” WIDTH
16” – 24” ID / 72” MAX OD .030-.060 GA-6-8 CUTS/.500”-12.00” WIDTH 16” OR 20” ID / 72” MAX OD

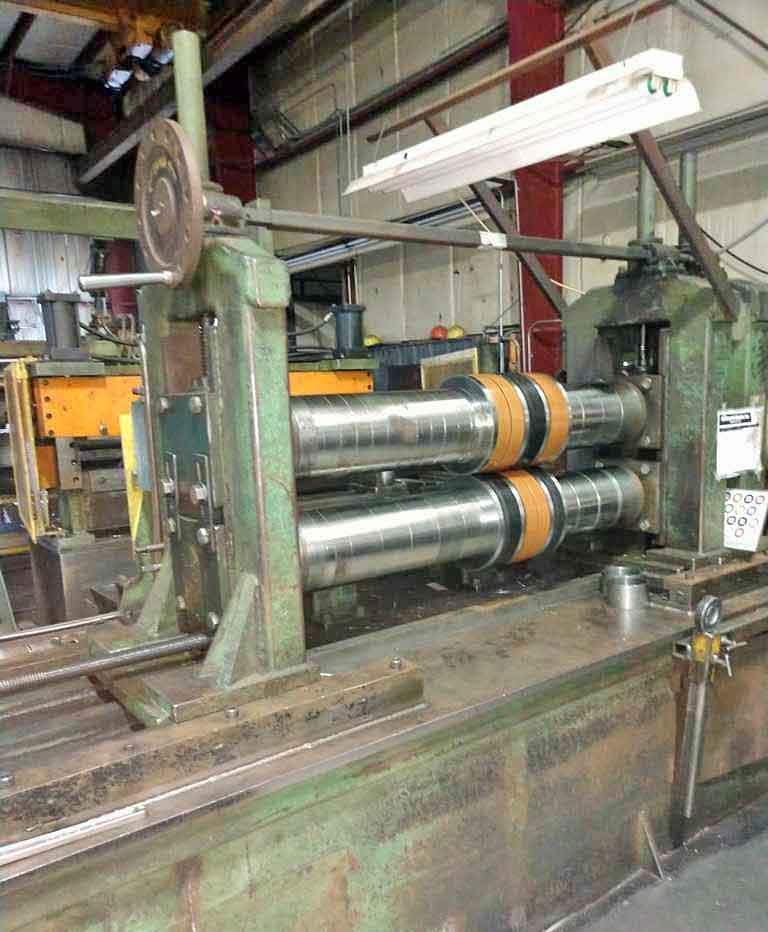

SLITTER HEAD – BLISS / 3” ARBORS WITH JET NUTS
10 HP (JOG) 208-220/440 3 PHASE G.E. MOTOR
DRIVE – G.E. MODEL AF-300ES

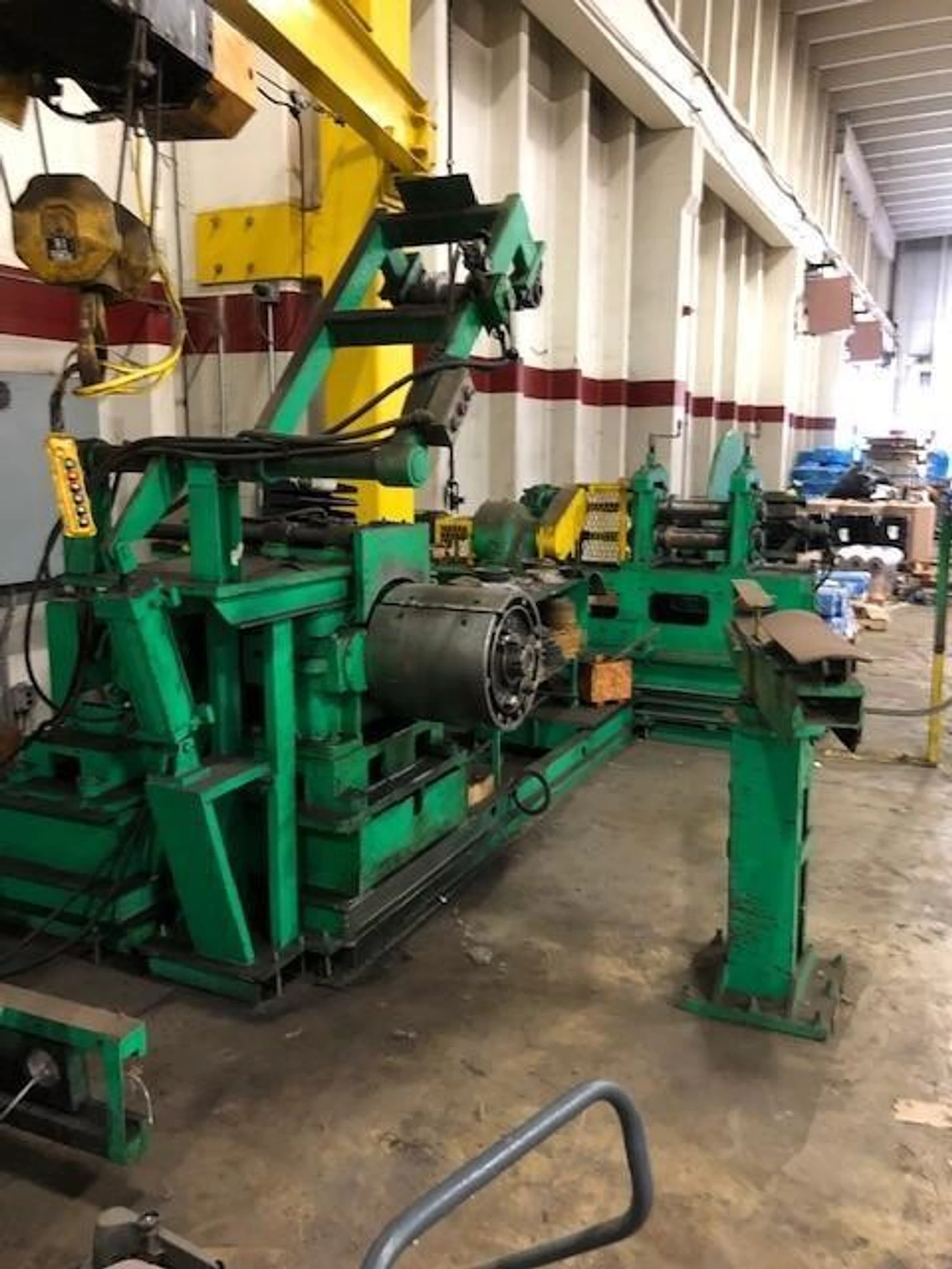

RECOILER – HORSBURGH WITH ADJUSTABLE GEAR REDUCER AND RHEOSTAT SPEED CONTROL
16 HP 208-220/440 3 PHASE MOTOR
16” & 20” ID
HYDRAULIC PUSHOFF
PNEUMATIC OVERARM WITH 2 ½” MANDREL
MISCELLANEOUS

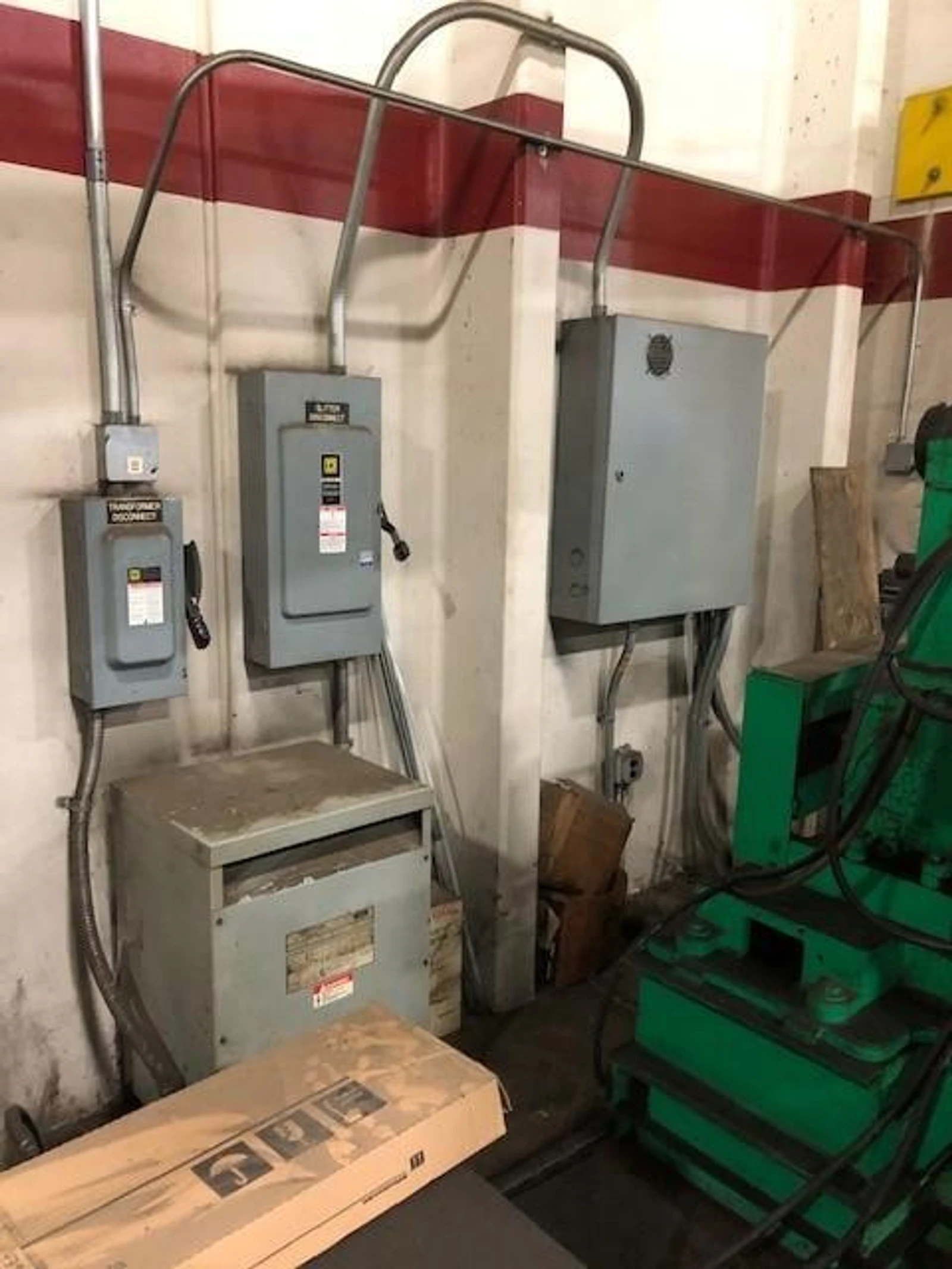

TRANSFORMER FOR SLITTER (HIGH VOLTAGE 480V / LOW VOLTAGE 240/120V

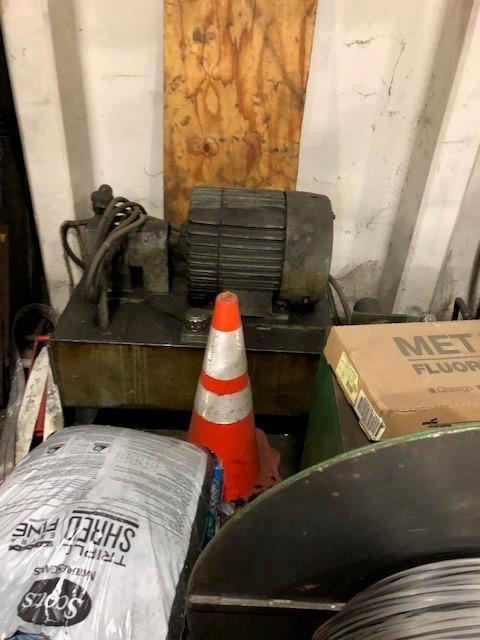

HYDRAULIC PUMP AND SINGLE WHEEL SCRAPWINDER
FREE STANDING TWO ARM TURNSTILE – 4,000# MAX CAPACITY
ASSORTED .125” & .187” SLITTER KNIVES
ASSORTED STEEL ARBOR SPACERS AND RUBBER STRIPPER RINGS
ASSORTED OVERARM TOOLING – MICARTA SPACERS/STEEL OVERARM SEPARATORS
COIL TOOLING CART WITH ASSORTED PLASTIC SHIMS
JIB CRANE – RELIABLE 5 TON COLUMN MOUNTED WITH CONE 5 TON FEM 2m HOIST
|
|
