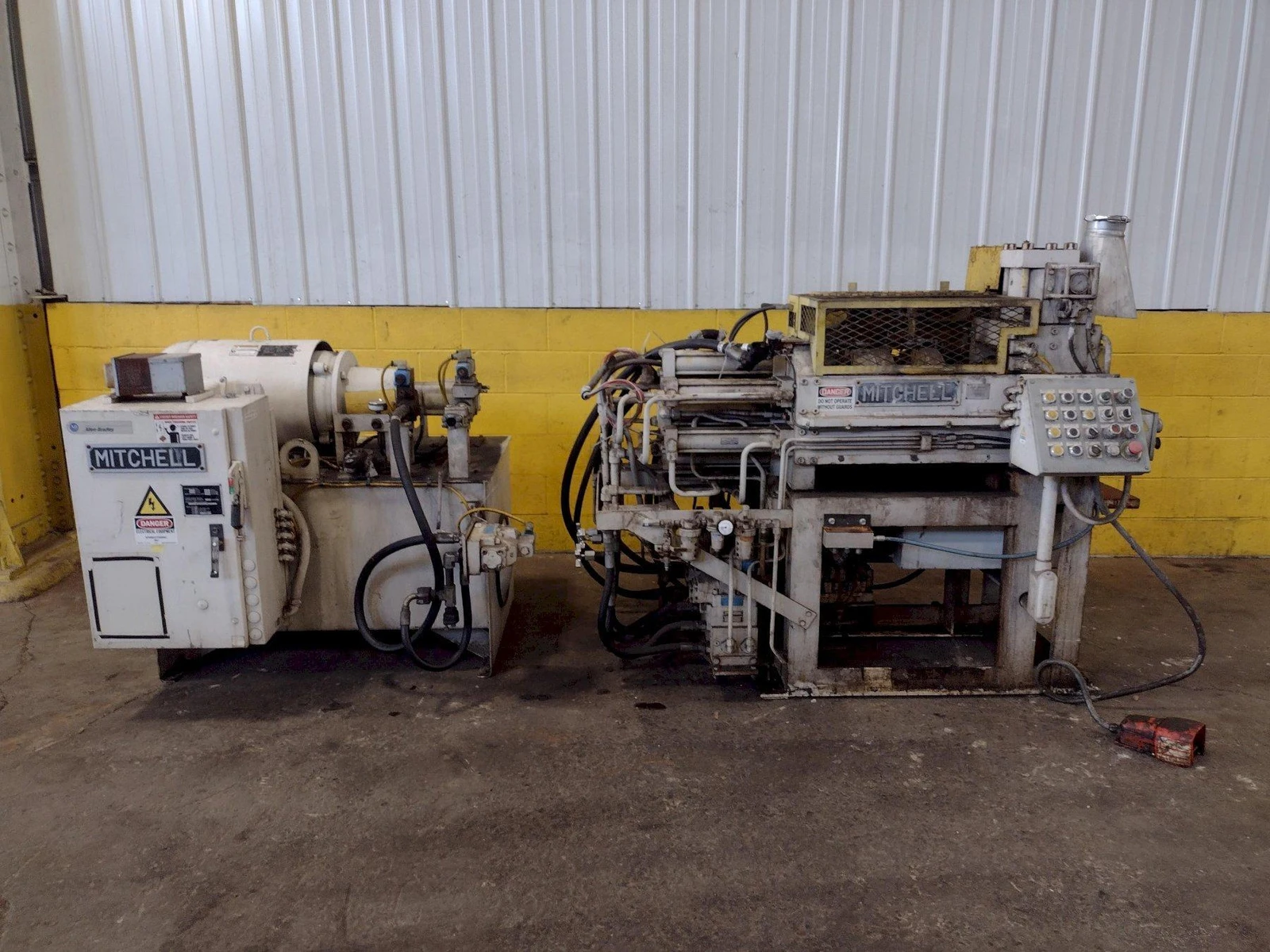

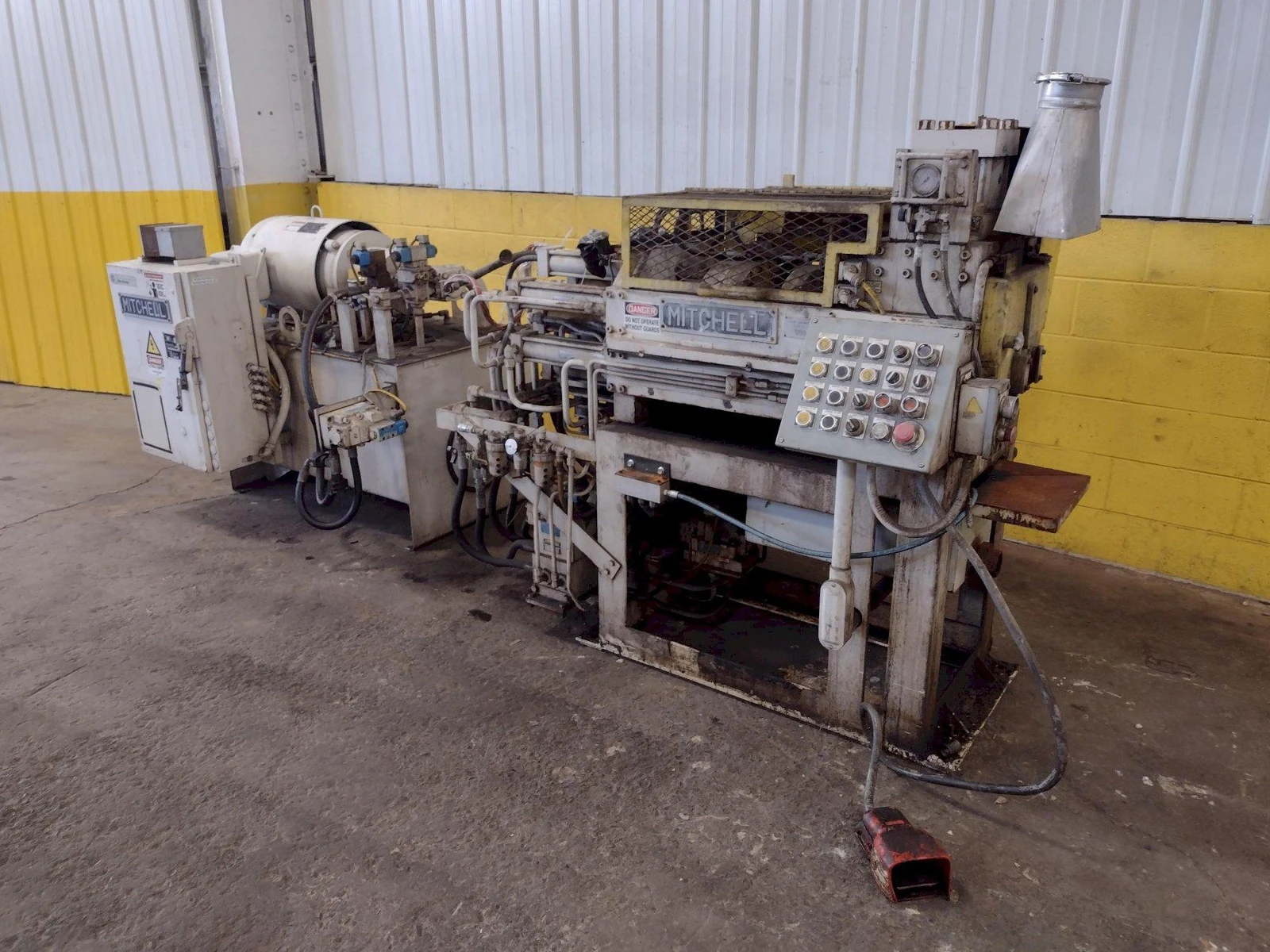

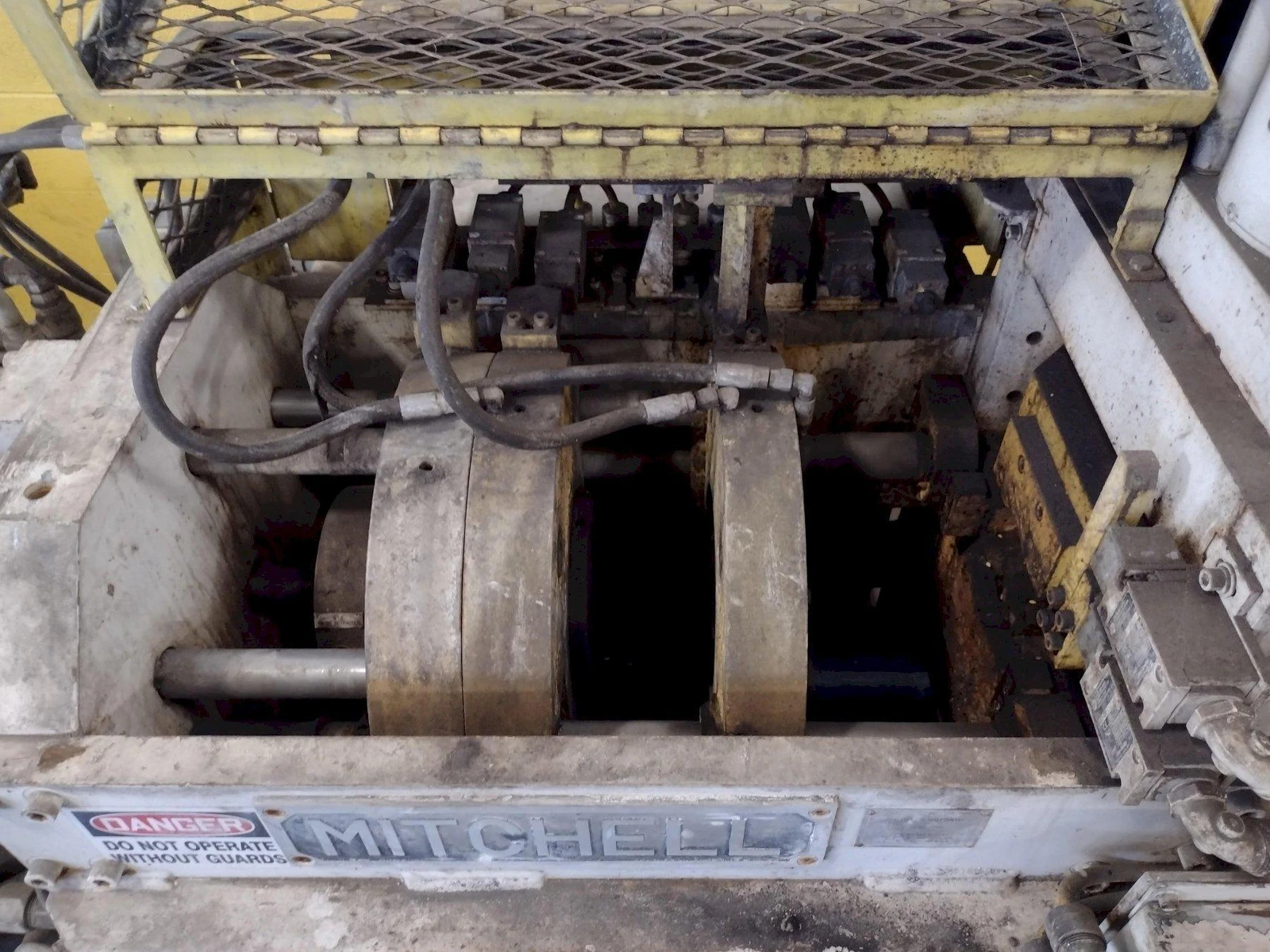

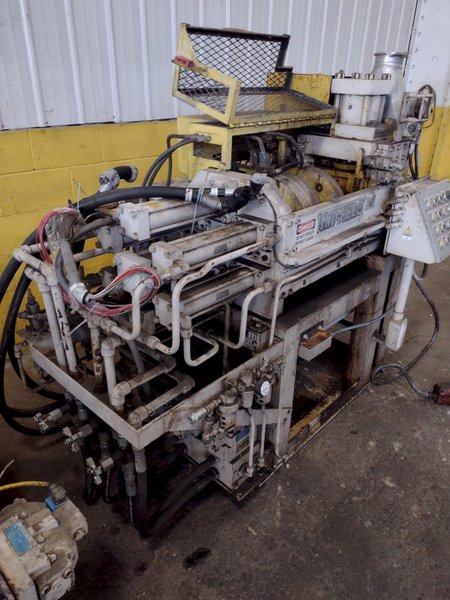

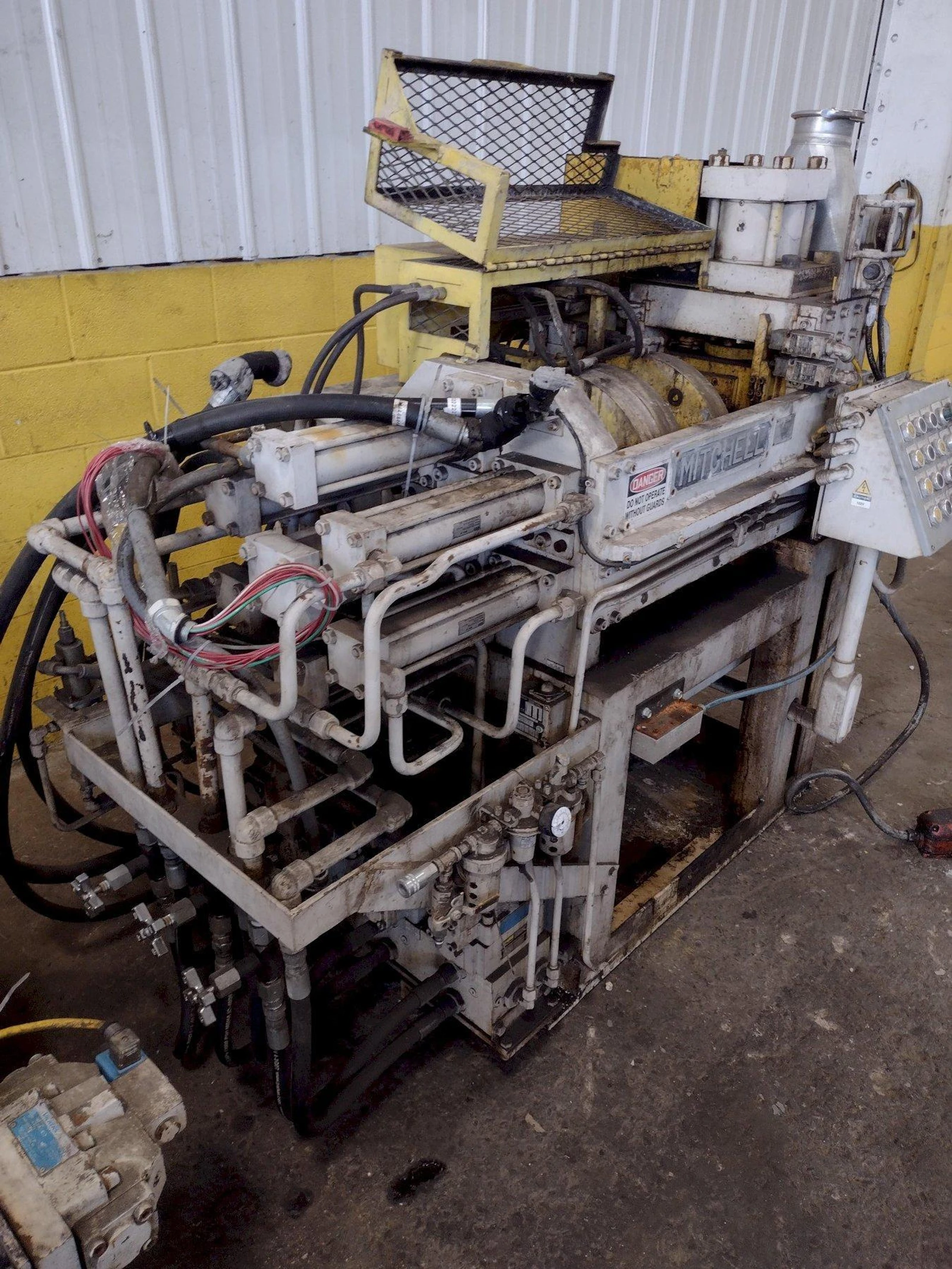

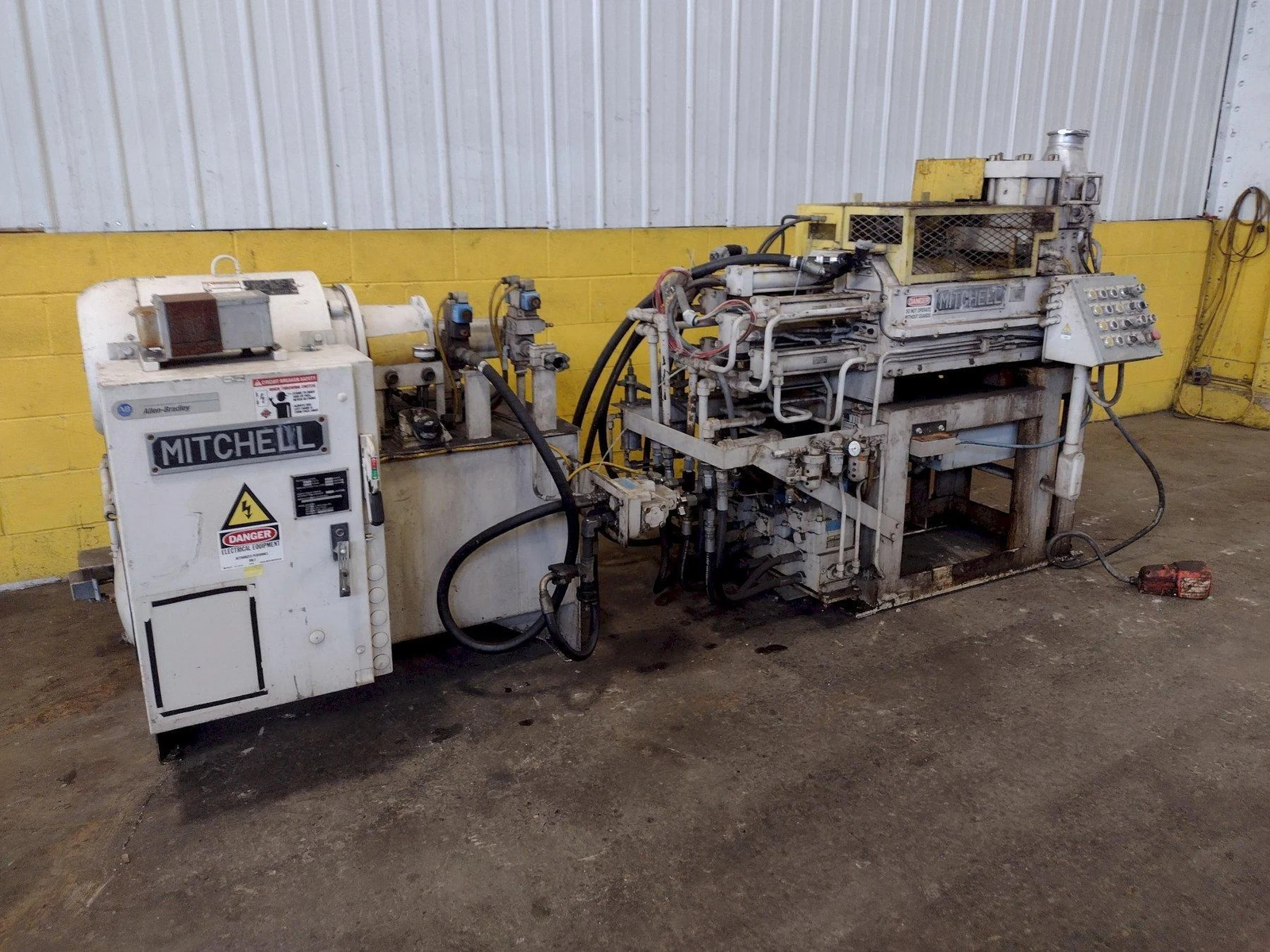

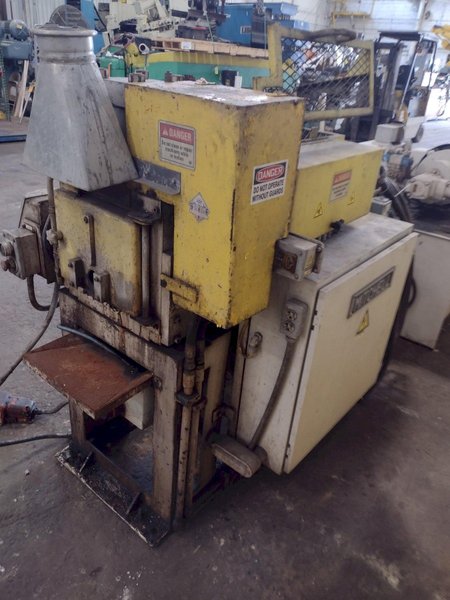

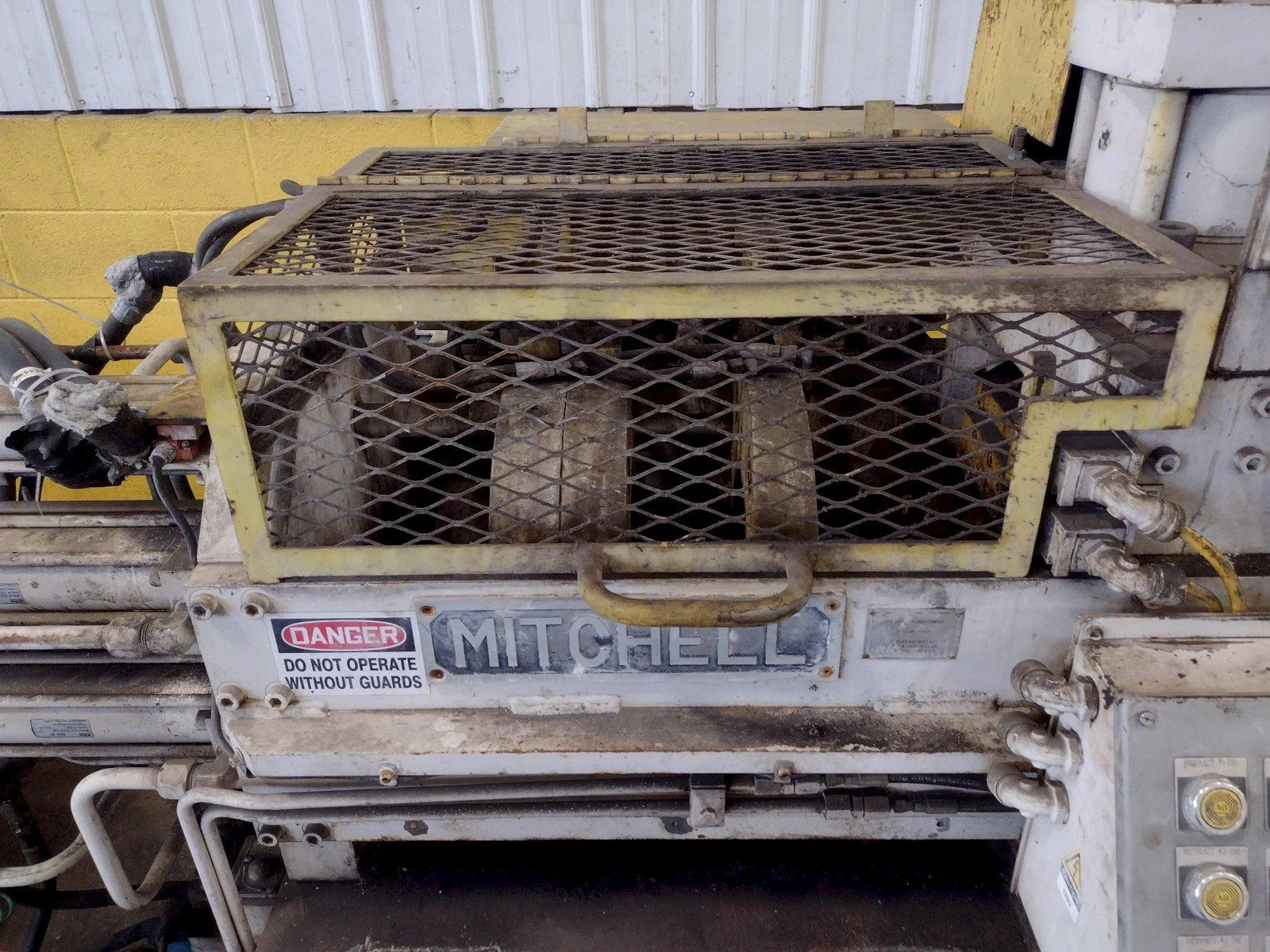

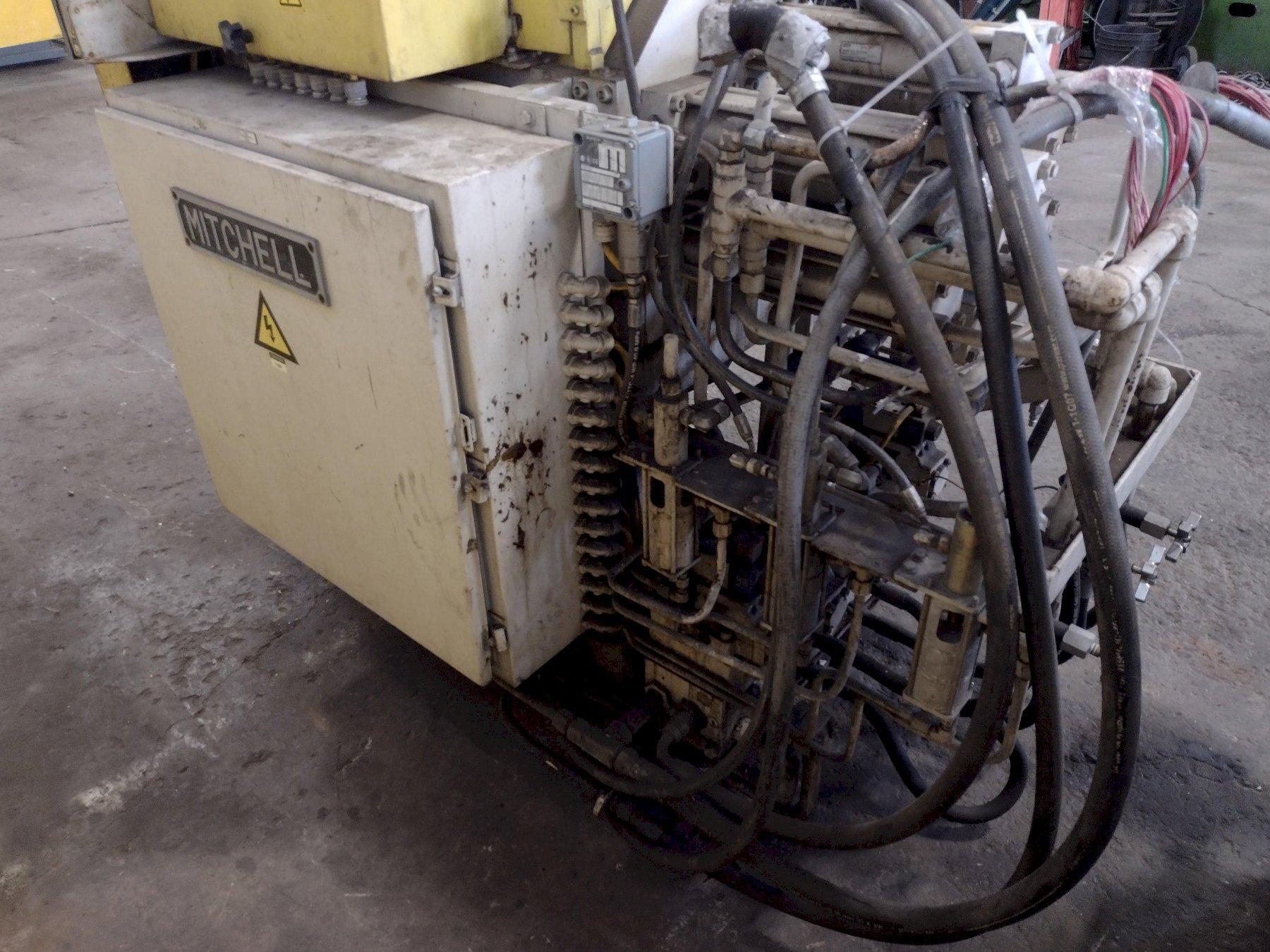

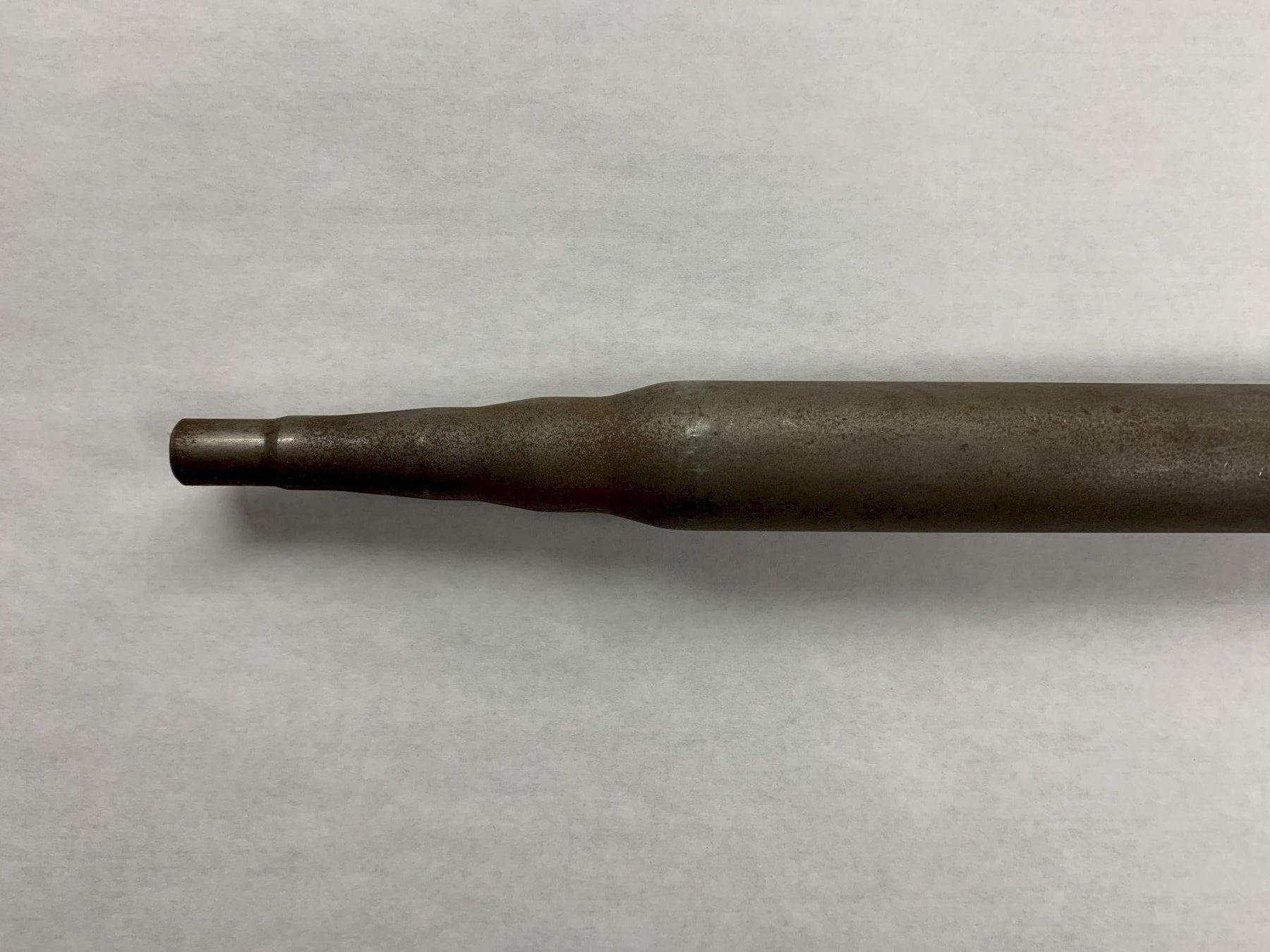

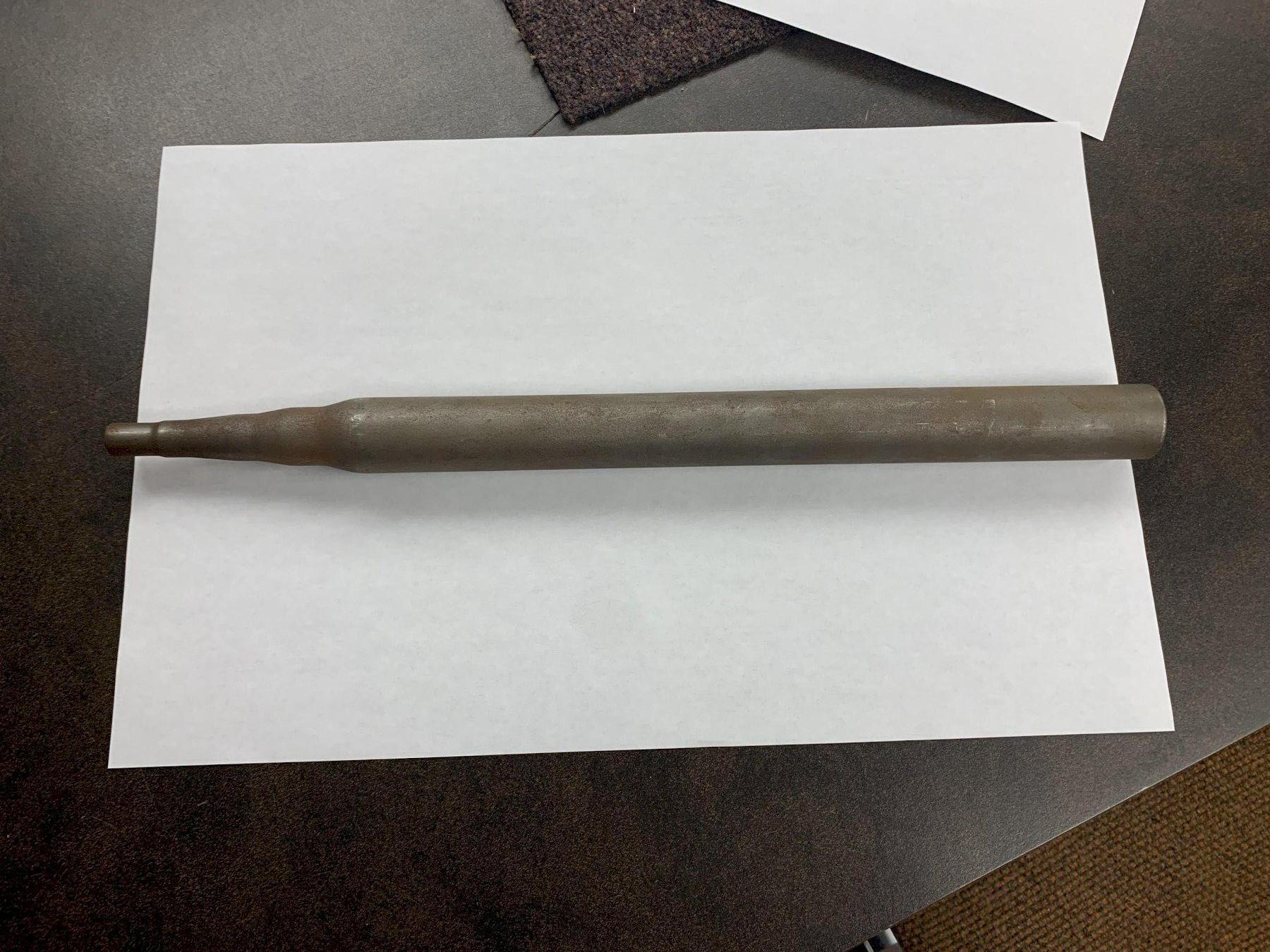

25,000 LB. MITCHELL (4) DIE IN LINE TUBULAR CONVEYOR ROLL SHAFT END FORMING MACHINE: STOCK #15298
Brand
Category
Model
Not specified
Stock #
15298
Year
Not specified
Condition
Good
Location
Ohio
|
SERIAL .............. PP687

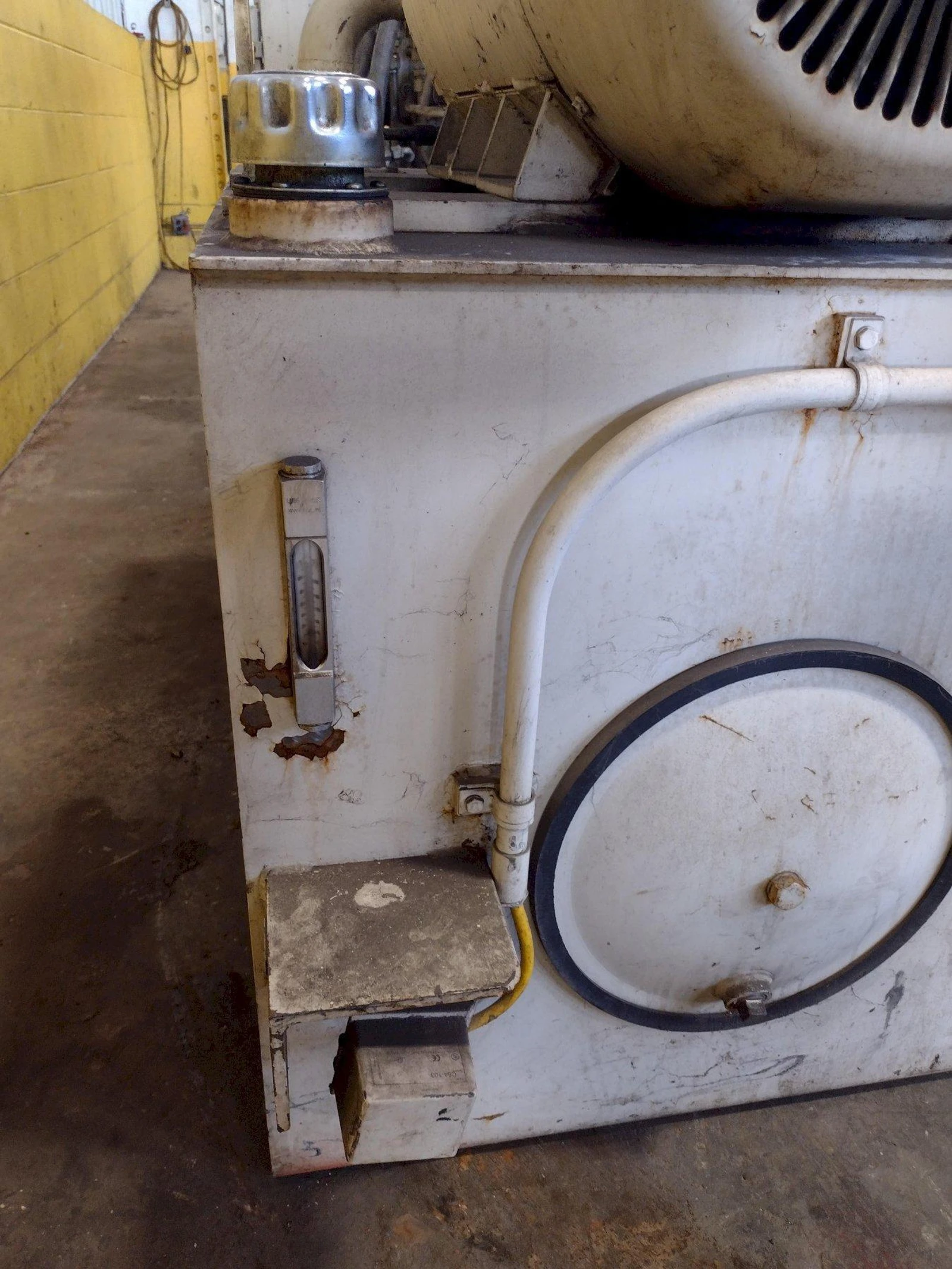

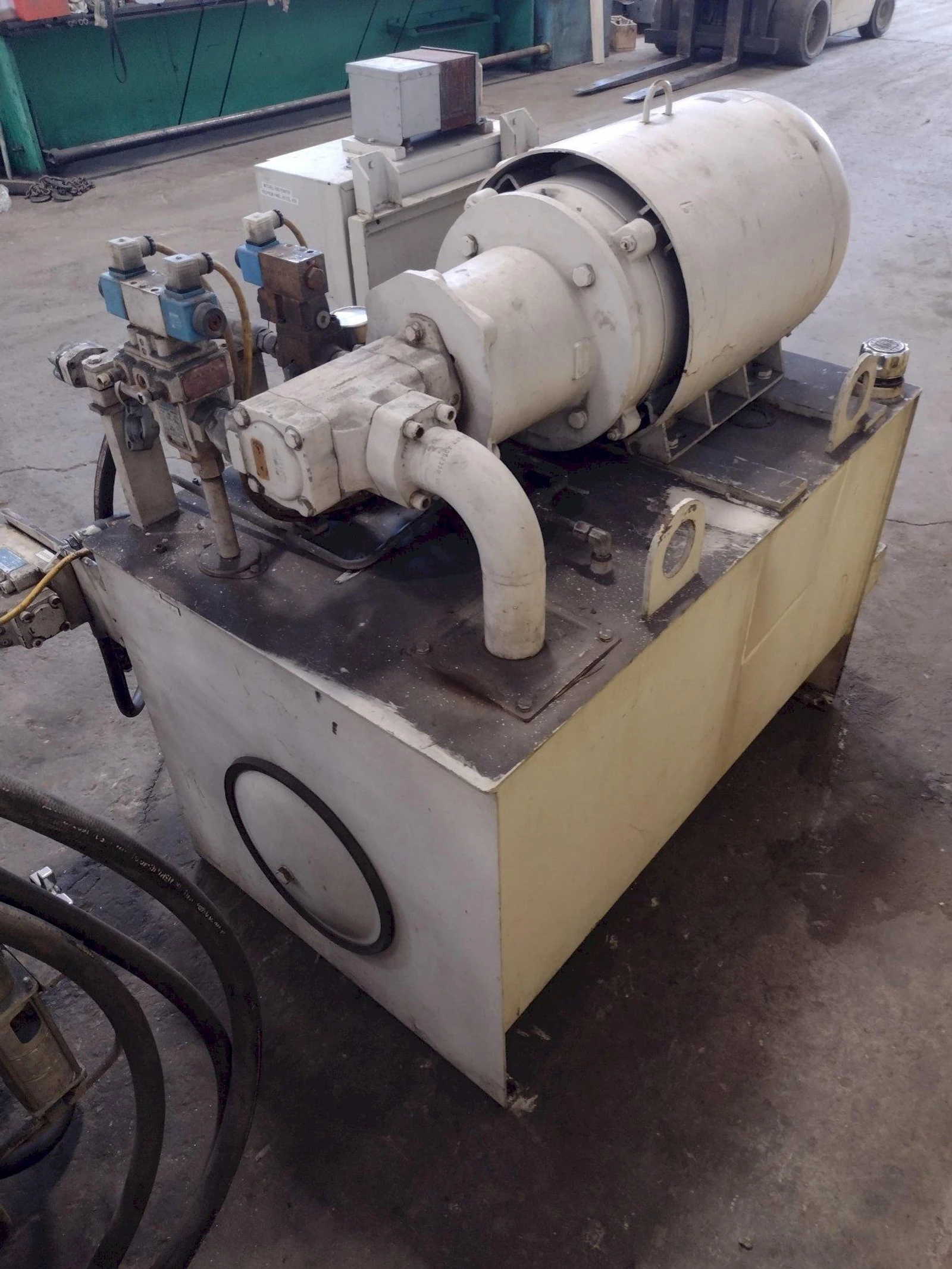

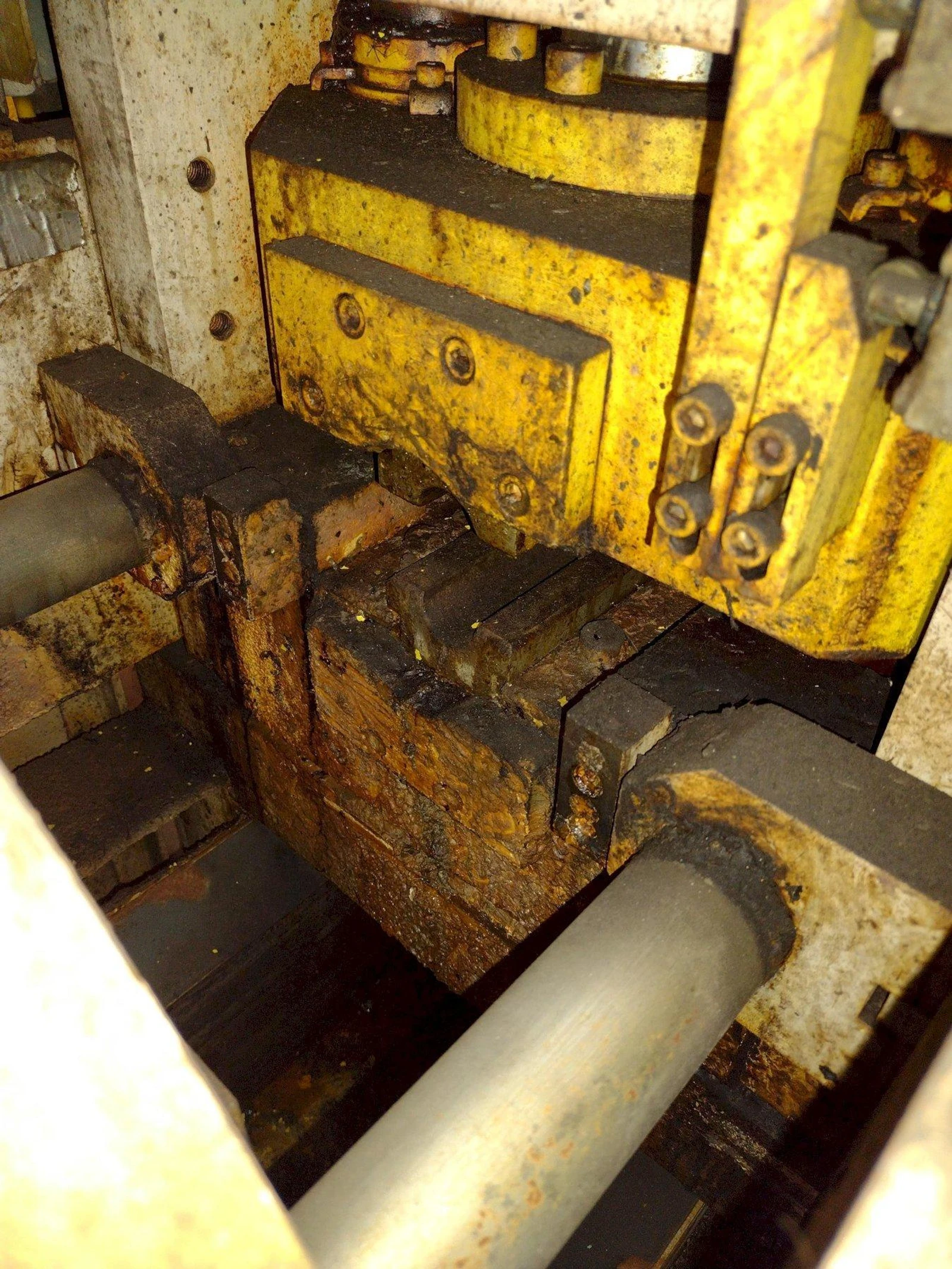

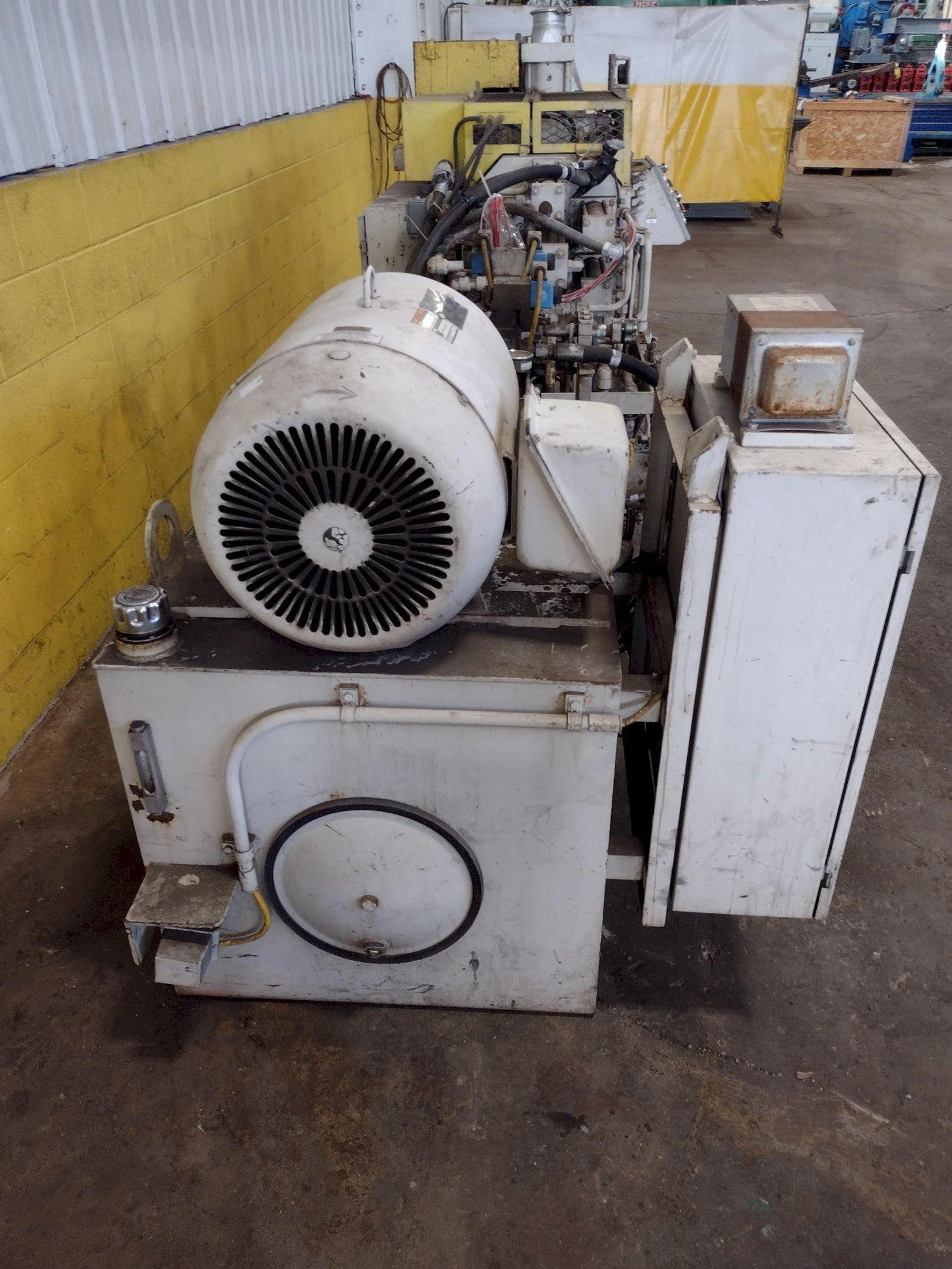

YEAR NEW ............ 2009 RATED TUBE SIZES: #1, 2 & 3 ........... 29,500 LBS @ 3000 PSI $4 .................. 24,900 LBS @ 3000 PSI POINTING DIES: #1, 2 & 3 ........... 5" OD (SPECIAL FLANGED) CARBIDE INSERT DIES: #4 .................. 3-1/2" OD CARBIDE NUMBER OF POINT LENGTHS ... INFINITE BY ADJUSTABLE LIMIT SWITCH: MAX TRAVEL OF DIES ..... 12" POINTING SPEEDS: ADVANCE #1 DIE TO POINT LENGTH .. 60 IPM @1000 PSI ADVANCE #1, 2, & 3 DIES ......... 349 IPM @ 2500 PSI RETRACT #1, 2 & 3 DIES .......... 534 IPM @ 1000 PSI ADVANCE #4 DIE .................. 328 IPM @ 2500 PSI RETRACT #4 DIE .................. 442 IPM @ 1000 PSI AUTOMATIC CYCLE ................. 1, 2, 3 OR 4 PUSH TUBE GRIPPER JAWS: MAX OD (SINGLE SIDED FIXED) ..... 1-3/4" MAX OD LENGTH OF GRIPPER JAWS .......... 10" MAX OPENING BETWEEN GRIPPER JAW . 1-3/4" CLAMPING MECHANISM .............. DIRECT ACTING HYDRAULIC CYLINDER: HYDRAULIC RESERVOIR ............. 100 GALLONS HYDRAULIC FLUID (PETROLEUM OIL) . 150-315 SUS @100E F HYDRAULIC CYLINDERS: #1, 2 & 3 DIE CROSSHEADS ........ (6) 2-1/2" BORE X 1-3/8" ROD #4 DIE HOLDER ................... (1) @ 3-1/4" BOR X 1-3/8" ROD CLAMPING ........................ (1) @ 6" BORE X 3-1/2" ROD HYDRAULIC PUMP .................. DOUBLE VANE PUMP 14.8 GPM @2500 PSI 11.8 GPM @ 2500 PSI METHOD OF LUBING DIES ........... LINCOLN LUBE EJECTORS: HYDRAULIC PUMP DRIVE MOTOR ...... 30HP/1200RPM/3PH/6HZ/TEFC/FR #326TC DRIVE MOTOR STARTER SIZE 3 ...... FULL VOLTAGE COMBINATION W/FUSED DISCONNECT IN NEMA 12 ENCLOSURE PROGRAMMABLE ELECTRICAL CONTROL . YES MAIN POWER SUPPLY ............... 460V/3PH/60HZ CONTROL CIRCUIT ................. 120V/SINGLE PHASE SPECIAL TUNGSTEN CARBIDE FLANGED DIES FURNISHED FOR 1-1/4" DIA TUBES: (1) - 1.050" |
