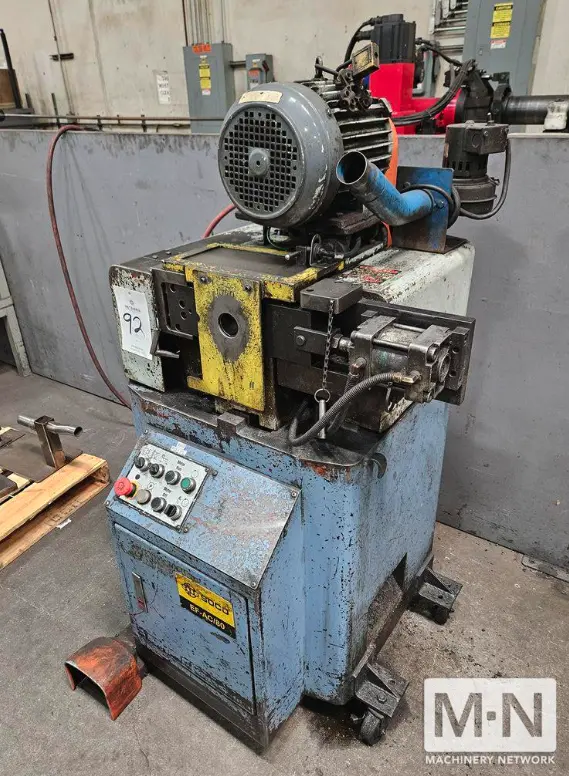

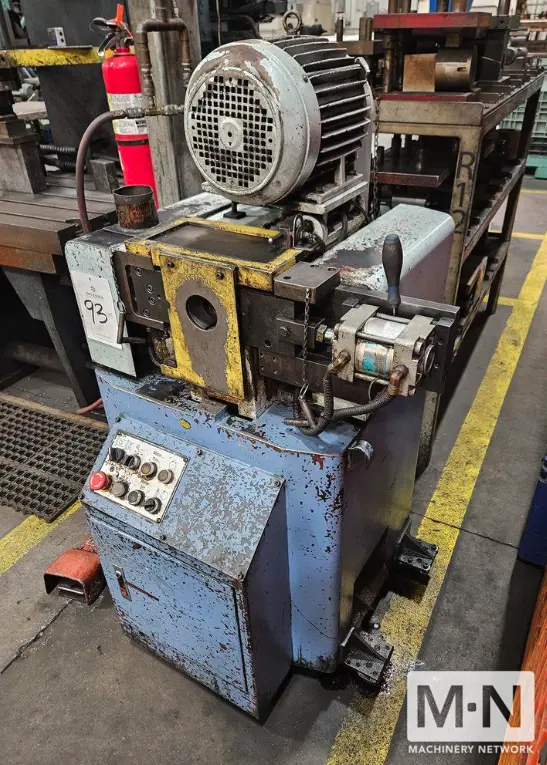

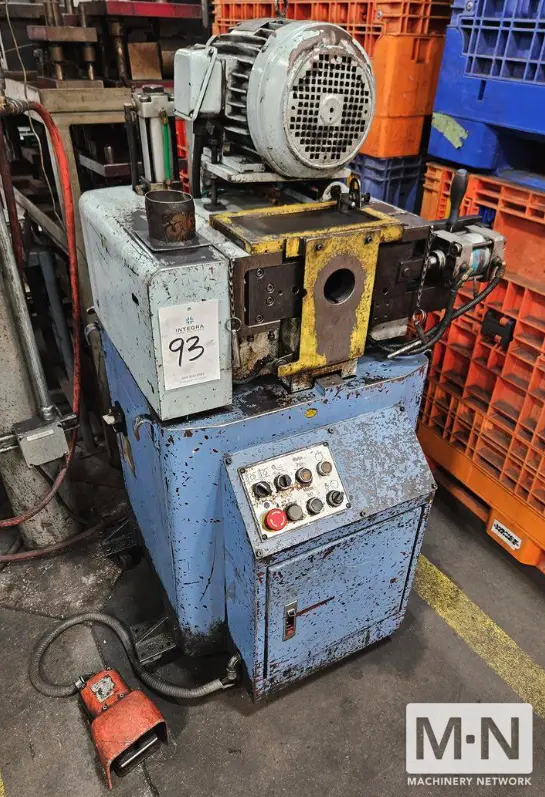

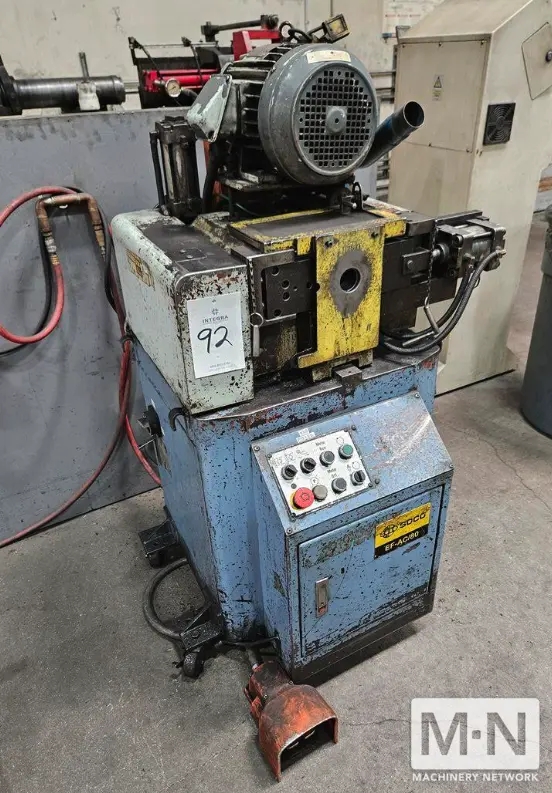

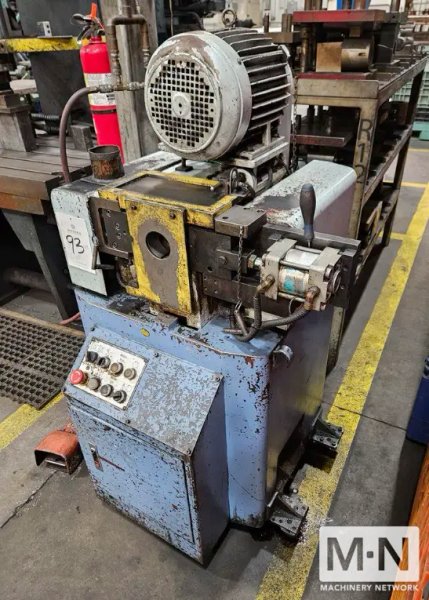

SOCO EF-AC/80 Chamfering Machine

Specification SOCO EF-AC/80
Machine type Semi-automatic tube end chamfering machine
Maximum tube diameter 80 mm (3.15 in.)
Minimum tube diameter Approximately 16–20 mm, depending on specification
Maximum solid bar diameter 50 mm (1.97 in.)
Maximum tube wall thickness 4 mm for mild steel
Spindle motor 3 HP
Spindle speed Multiple speeds; pulley adjustment

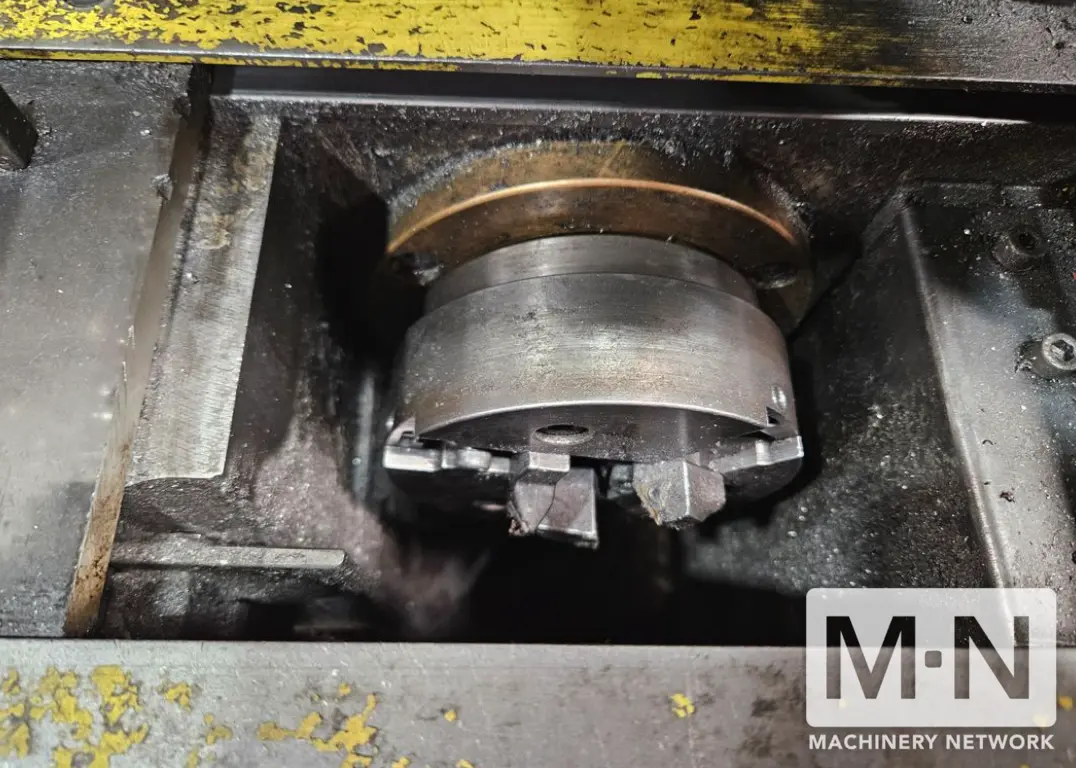

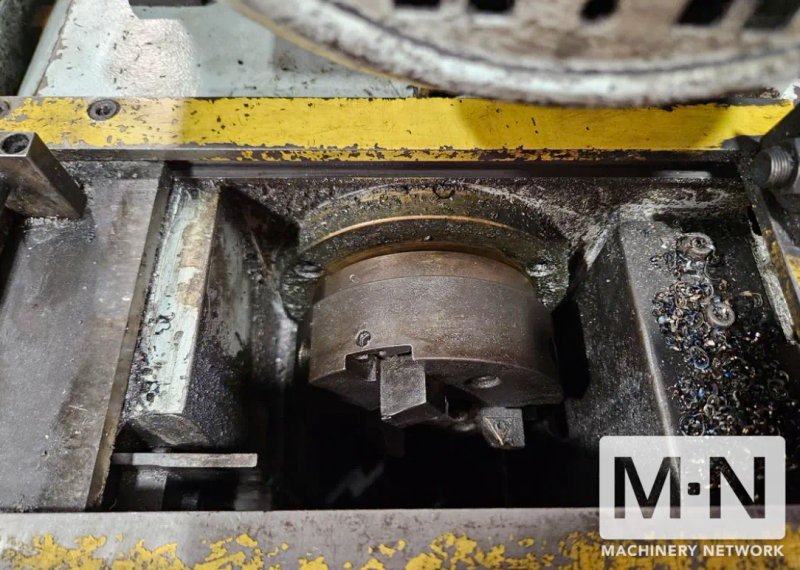

Operations Inside chamfer, outside chamfer, and end facing
Operating cycle Manual loading; automatic clamping, feeding, chamfering, and retraction
Air pressure 6–9 kg/cm² (approximately 85–128 psi)
Air consumption Listed as 120 ml/min; confirm with manufacturer
Machine weight Approximately 380 kg (838 lb)
Overall dimensions (L × W × H) 800 × 750 × 1,350 mm (31.5 × 29.5 × 53.1 in.)
Electrical supply Three-phase; verify voltage on the machine nameplate
