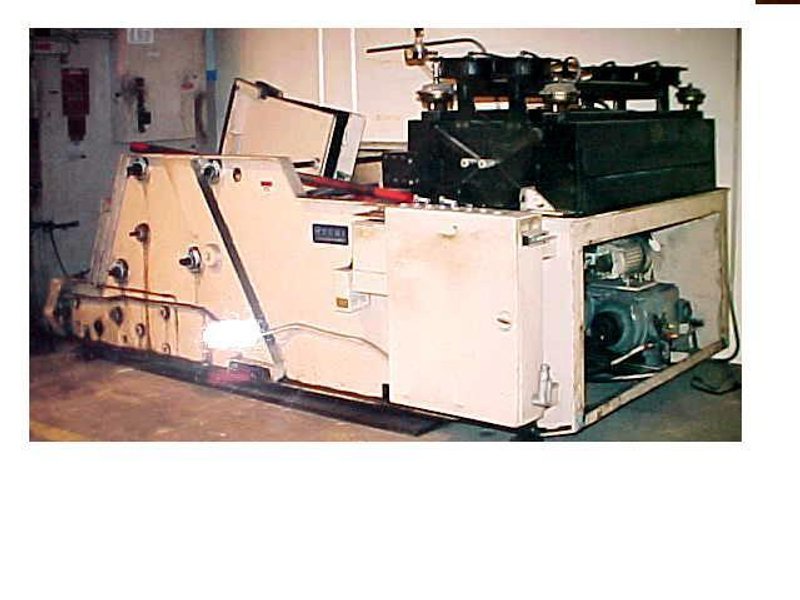

REGAL #3277-CC-CSF-48 COMBINATION COIL CRADLE & STRAIGHTENER
Brand
Category
Model
#3277-CC-CSF-48
Stock #
103553
Year
Not specified
Condition
Used
Location
California
|
Capacity 10,000 Lbs. Coil
48" Coil Width
60" Coil OD
Max. Stock Thickness .060"
O.A. Dimensions 144" lr x 89" f-b
Weight 6,350 lbs.
Variable Production Speed to 80 FPM Power Adjustment of Coil Width to 48"
Coil supported & driven by powered rolls 4" dia.
Feeder-Straightener (Regal Series 330) has Front & Back
Pinion Rolls 4-1/2" Diameter and 7-Straightening Rolls 49" wide.
Straightener also has pneumatic holddown of top feed/straightener section.
All Rolls Induction Hardened Precision Ground Alloy Feed Line Height approx. 33"
Air Operated Pinch Rolls
Powered Lift of all upper pinch & straightening rolls for
diameter piloting
5 HP AC Variable Speed Drive & Controls |
