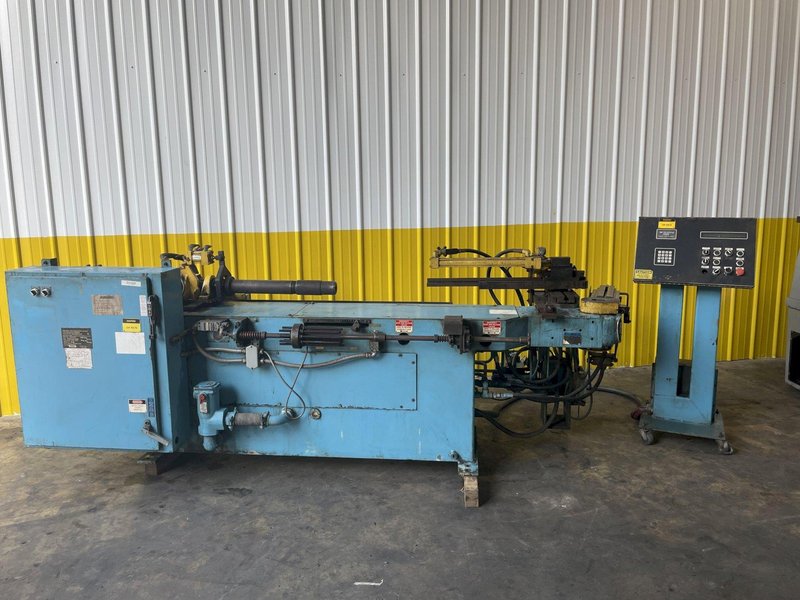

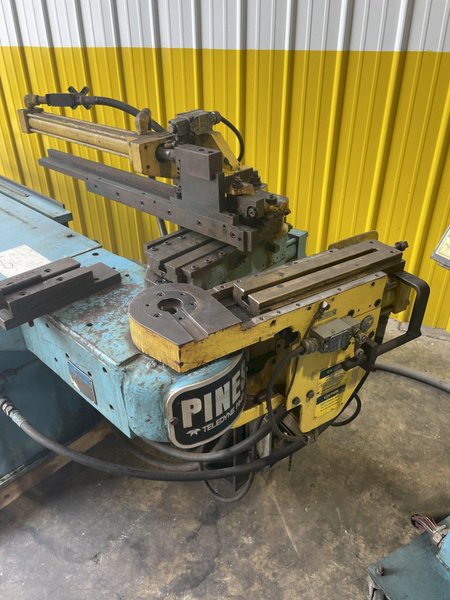

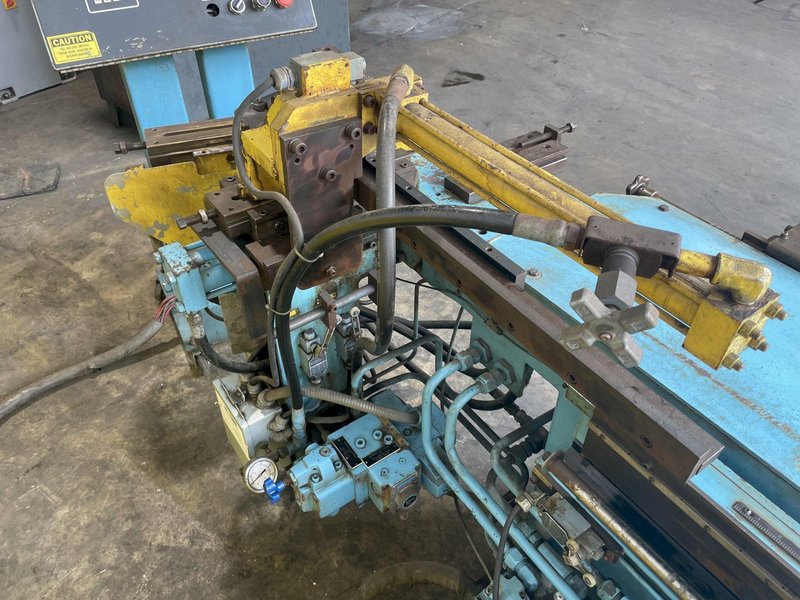

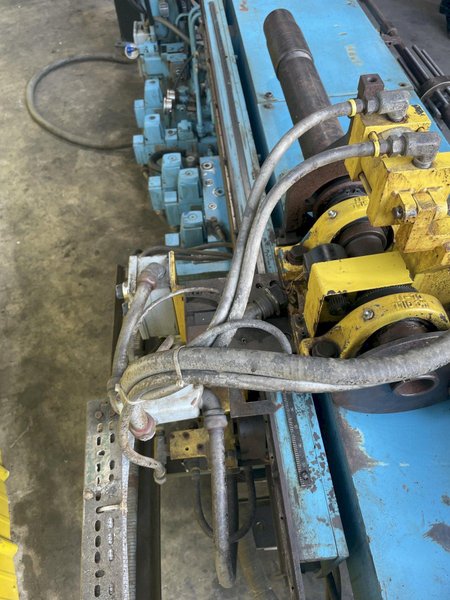

1.5'' X 0.188" PINES HORIZONTAL HYDRAULIC TUBE BENDER: STOCK 15028
Brand
Category
Model
1.5"
Stock #
15028
Year
Not specified
Condition
Good
Location
Ohio
| Dimensions | 145" x 44" x 43" |
| Weight | 4100 pounds |
|

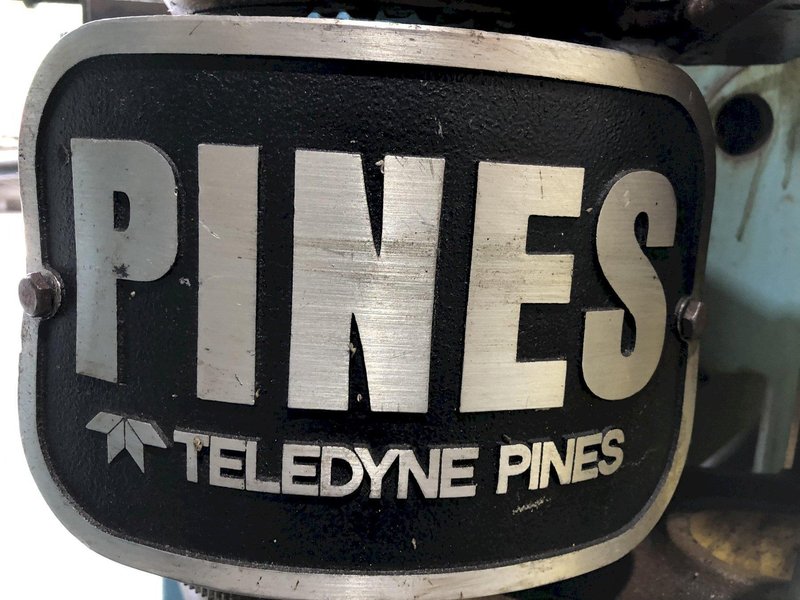

MANUFACTURER .................. PINES
MODEL ......................... #1
CAPACITY:
ROUND TUBING (NON FERROUS) .... 1-1/2" X 0.188" WT
ROUND TUBING (FERROUS) ........ 1-1/2" X 0.109" WT
ROUND TUBING (STAINLESS) ...... 1-3/8" X 0.065" WT
SQUARE TUBING (MILD STEEL) .... 1-1/8" X 0.012" WT
ROUND BAR ..................... 1-1/8"
SQUARE BAR .................... 1"
MAX. BEND ANGLE ............... 180 DEGREES
MAX. RADIUS ................... 10"
BENDING ARM SPEED ............. 5-1/2 RPM
MAX. TUBE LENGTH .............. 96"
EQUIPPED WITH

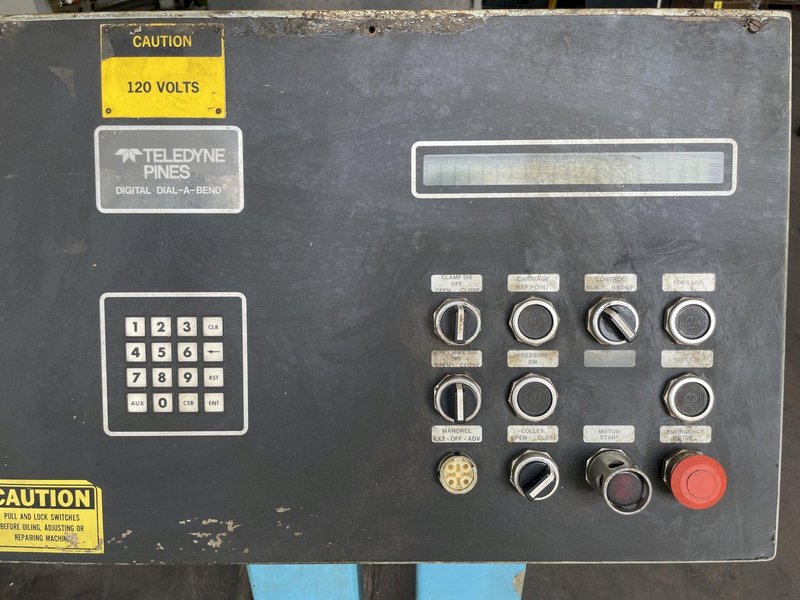

- PINES DIGITAL DIAL-A-BEND CONTROL

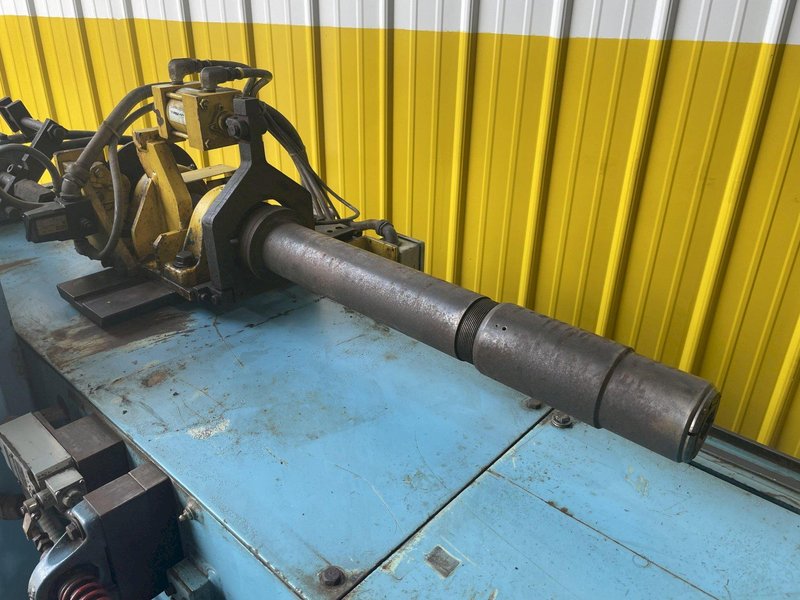

-HYDRAULIC MANDRELL EXTRACTOR

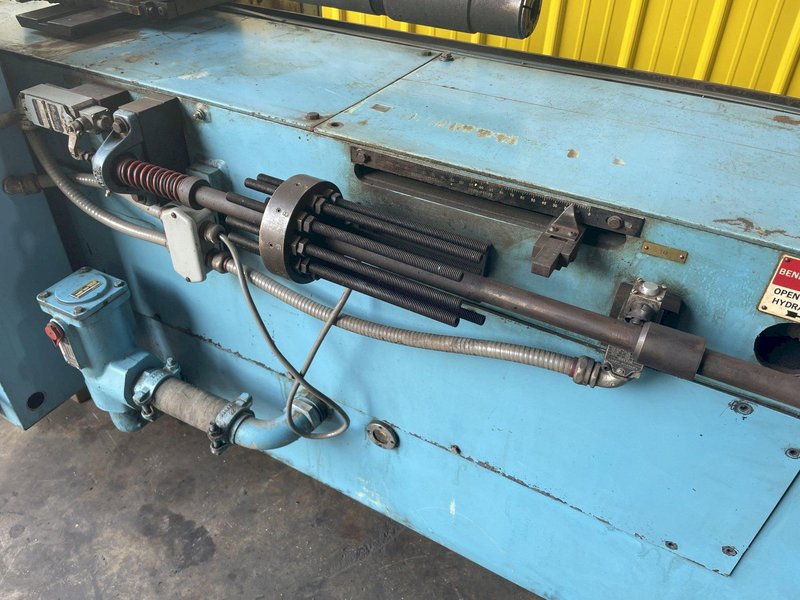

-60" SYNCRO DEGREE OF BEND ATTACHMENT WITH COLLET ATTACHMENT, PLANE- DEGREE- DISTANCE OF BEND

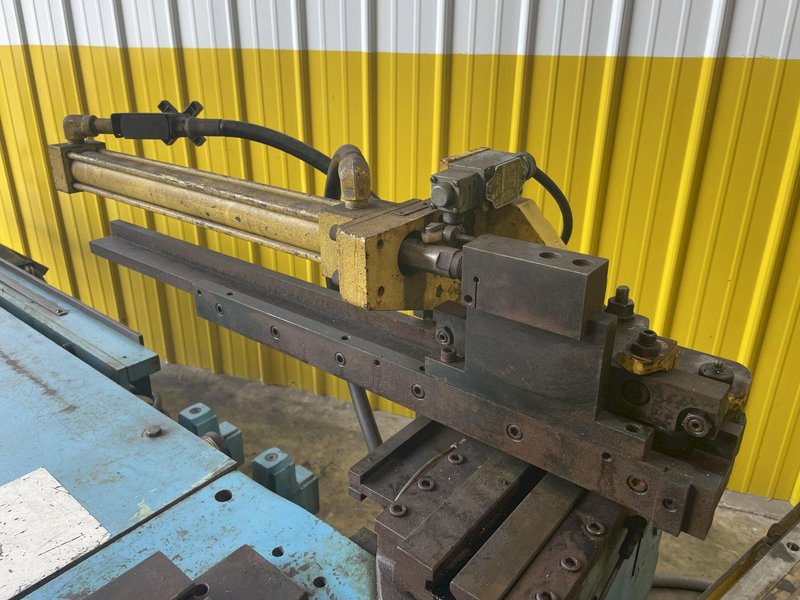

-PRESSURE DIE ASSIST
-TURRET STOP
-AUTO LUBE SYSTEM
-HORSEPOWER: 7 1/2
|
|
