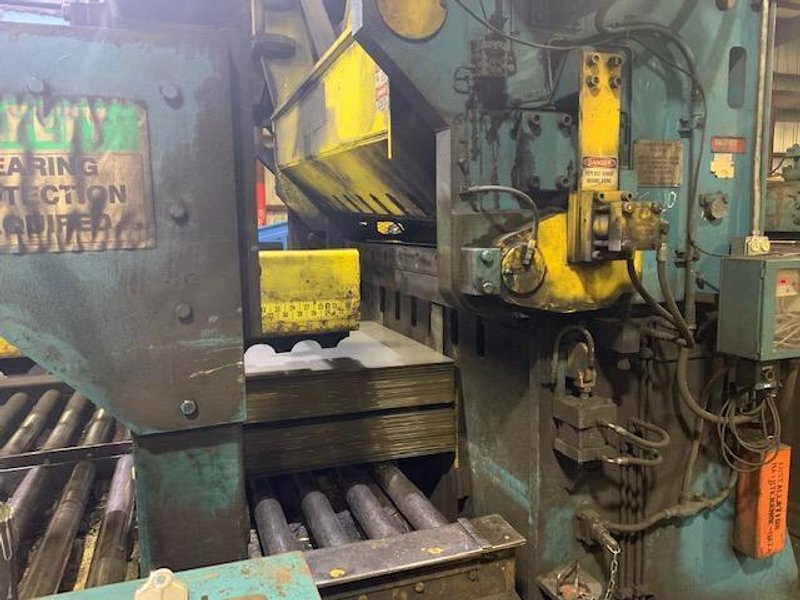

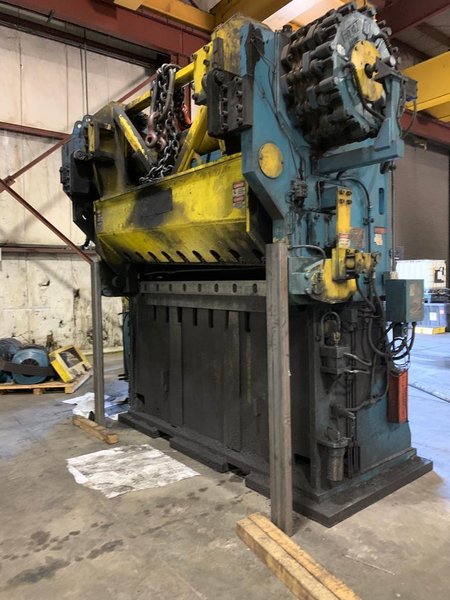

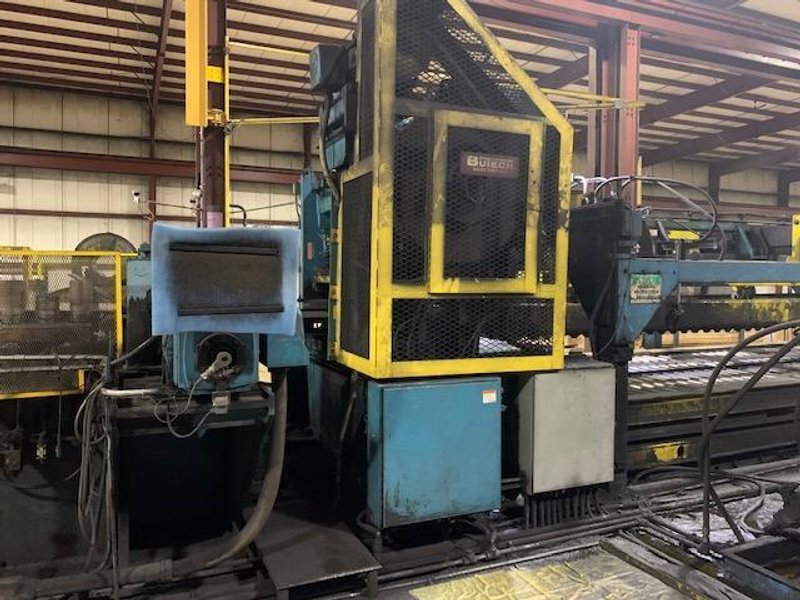

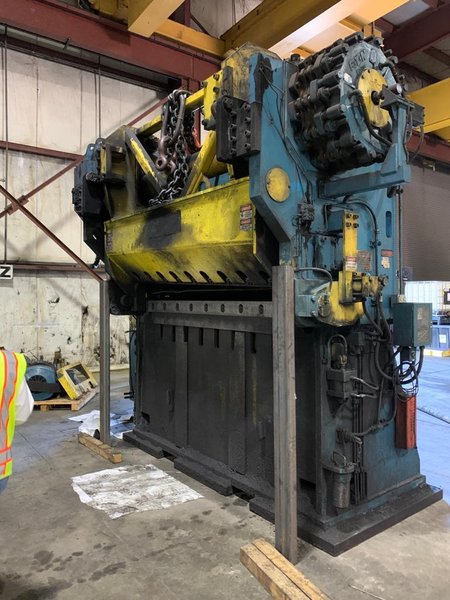

76" x 5/8" Butech Shear, Year 2000
Brand
Category
Model
MS-625-78
Stock #
102064C
Year
2000
Condition
Used
Location
Not specified
| Width | 76 inches |
| Thickness | .625 inches |
| Hyd/Mech | mechanical |
| Power | 100 horsepower |
|
Year: 2000
Model: MS-625-78
Material to Cut: HR, HRP&O, Steel
Thickness: .625” Max., .060” Min.
Strip Width: 76” Max, 24” Min.
Shear Strength: 80,000 PSI Max. Up To .500” ; 50,000 PSI Max. Over .500”
Line Direction: Right to Left
Shear Style: Mechanical Downcut (Single Rake) Drive: 100 Horsepower. AC
Knife Length: 86”
Knife Opening: 4.00”
Knife Rake Angle: .500”/Foot
Stroke Rate: 100 Strokes/Min.
Cut Rate: 40 Cuts/Minute Min.
Scrap Tail Length: 24”-30” Min.
Auto Gap Control
Driven Entry Kickout Rolls
Flywheel & Air Clutch
Tail Pusher
SOLA Suppressor STV 25K Series
SOLA Power Supply SDN 10-24-100
|
|
