Incremental Downfeed | yes |
Table Size | 6x13-1/2" |
Table Movement | 8x15" |
Max. Height | 18" |
Table (L/F) Movement per Tev. of Hand Wheel | 3-1/3"/rev. |
Table (L/F) Speed Infinately Variable | 16-79'/min |
Table (C/F) Movement per Rev. of Hand Wheel | 0.1" |
Table (C/F) Hand Wheel Graduation of Dial | .001" |
Table (C/F) Fine Feed Attachment (Optional) | 0.00005" |
Head - Movement per Rev. of Hand Wheel | 0.05" |

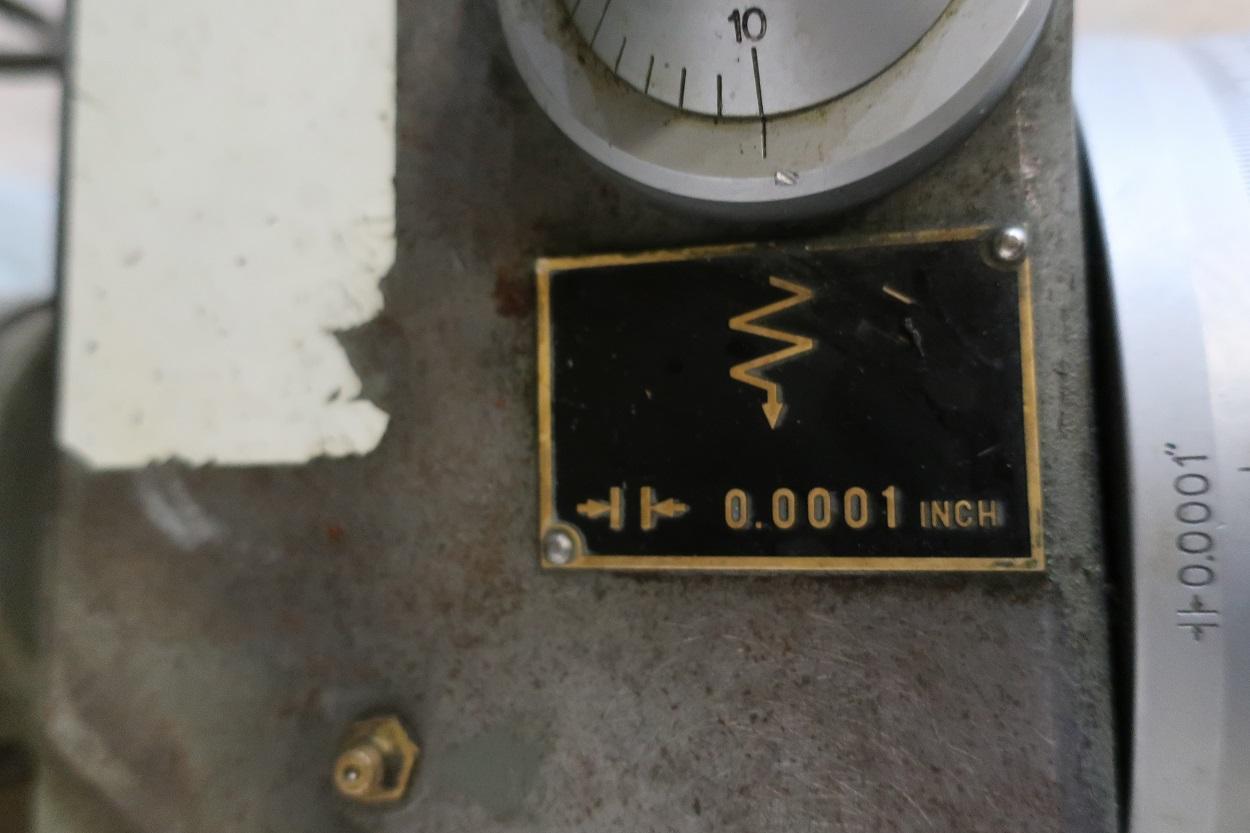

Head - Hand Wheel Graduation of Dial | 0.0001" |
Head - Fine Feed Attachment (Optional) | 0.00001" |
Head - Power Elevation Speed | 17-1/3" /min. |
Grinding Wheel Size | 8"x3/4"x1-1/4" |
Wheel - Spindle Speed (50/60Hz) | 2900/3460 RPM |
Motor Spindle HP: | 1-1/3 HP |
Dimensions | WxLxHt - 50"x46"x71" |
Weight | 2090 pounds |

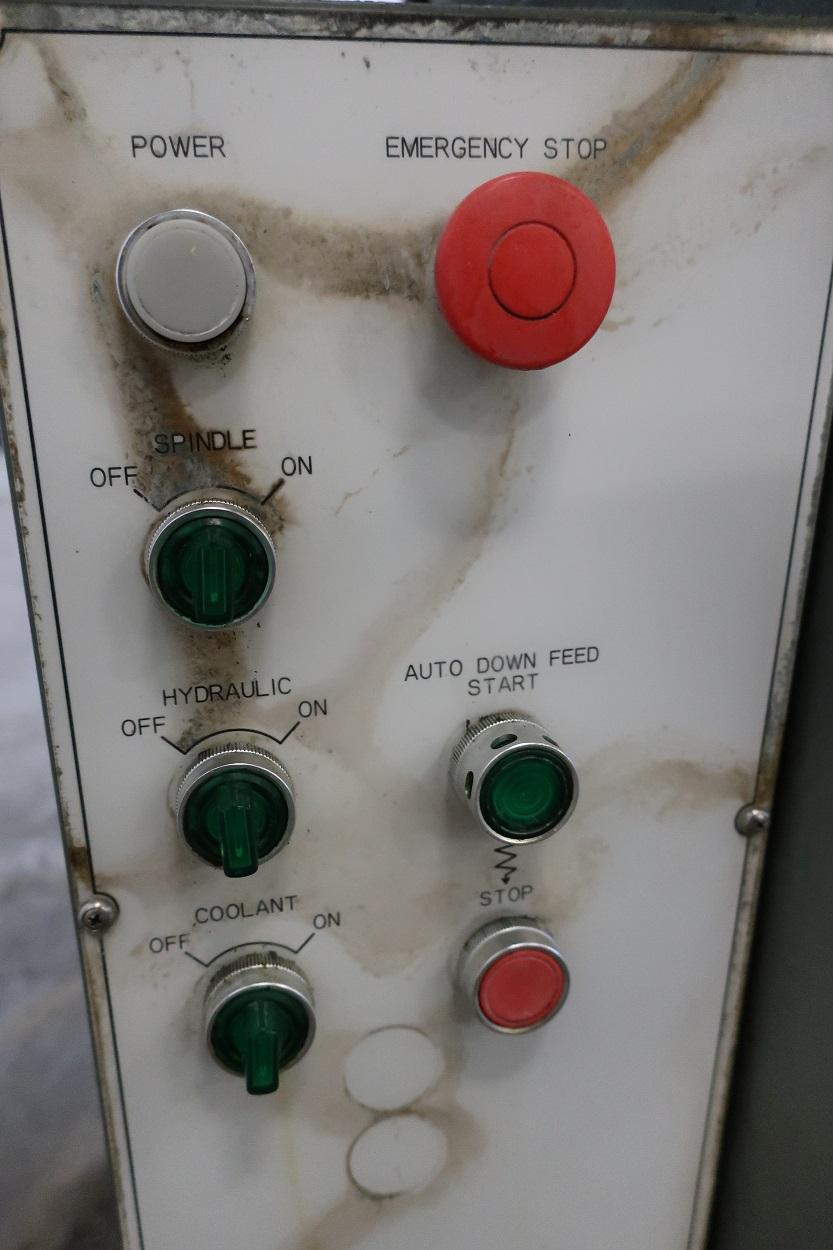

Electric Control Panel

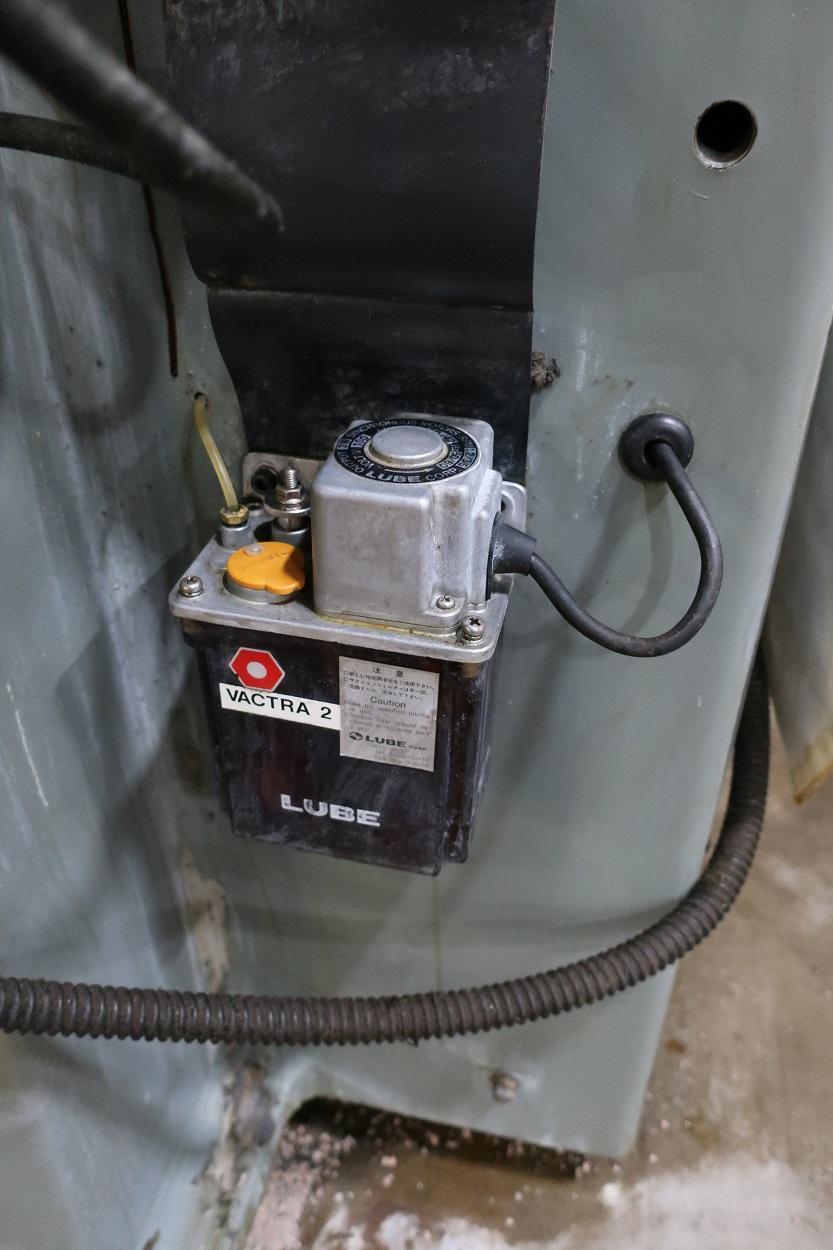

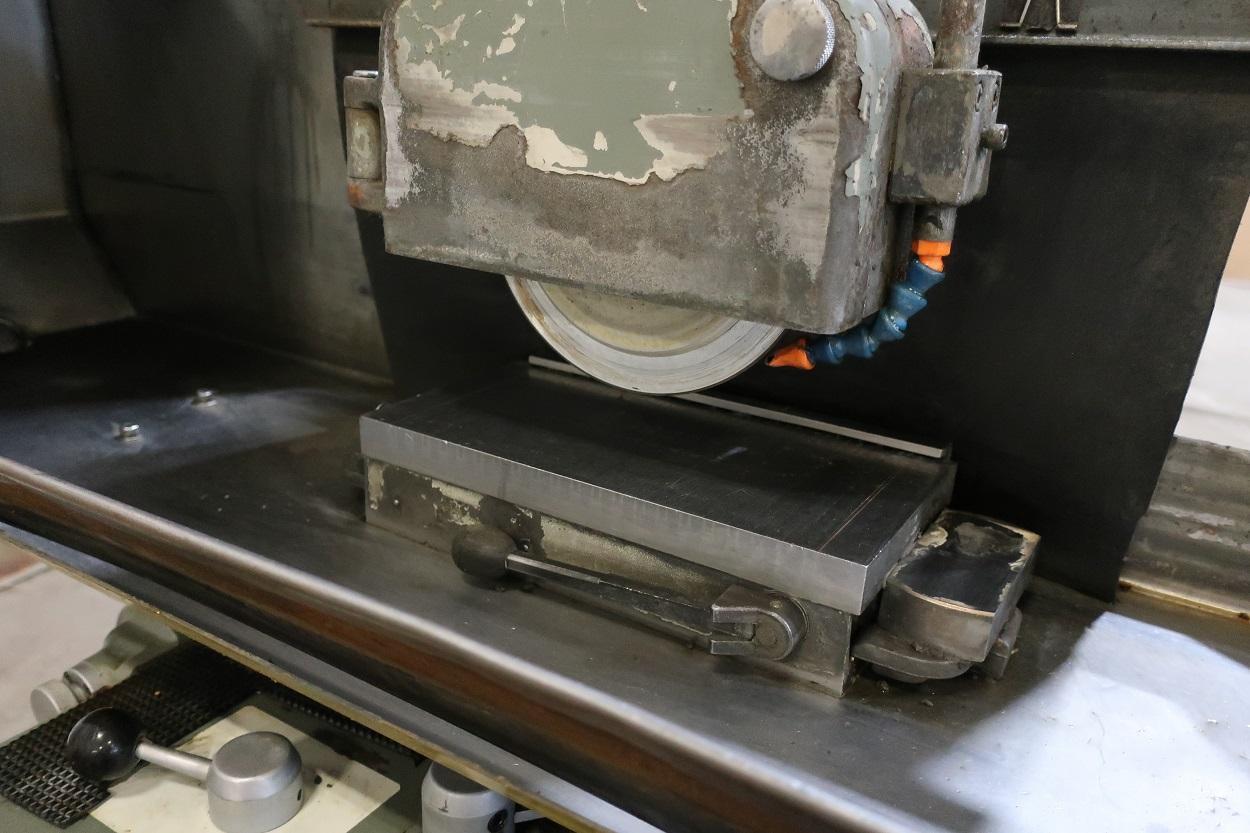

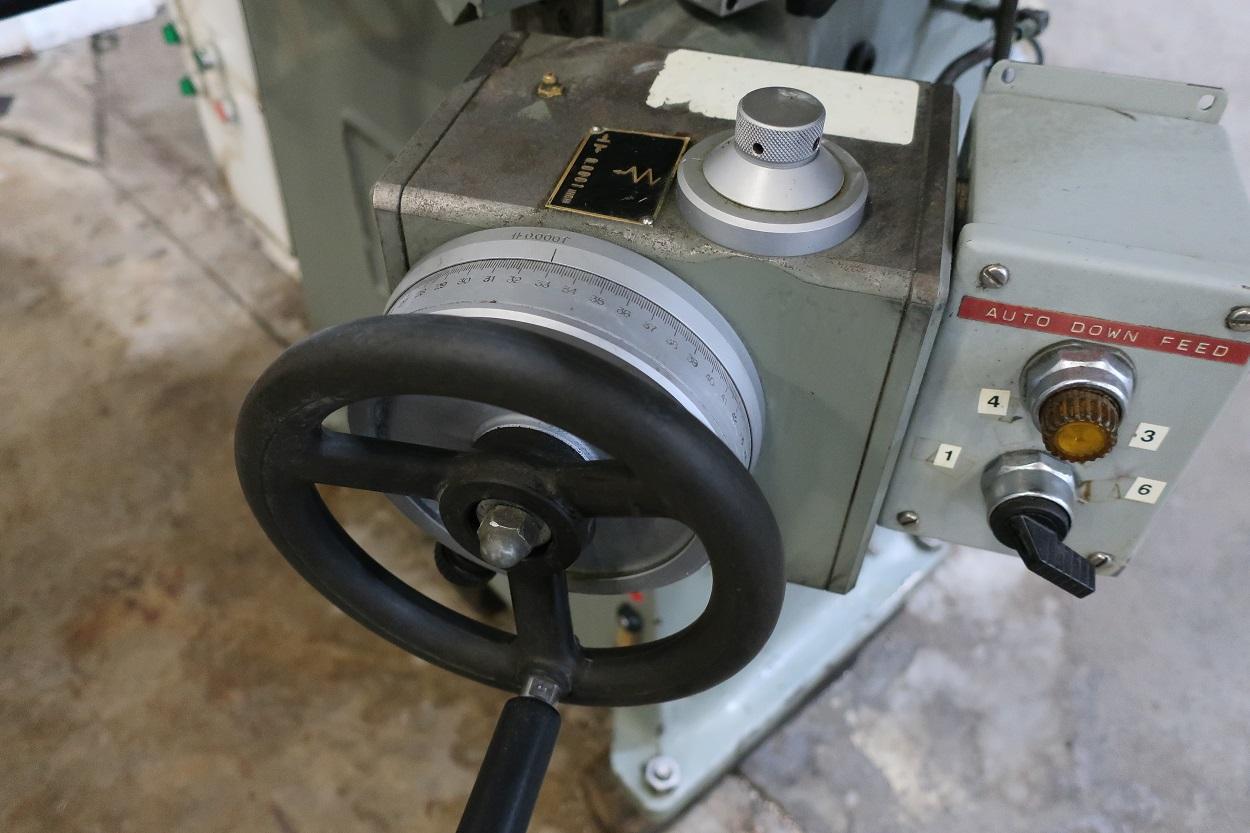

-Power On -Emergency Stop -Spindle - On/Off -Hydraulics - On/Off -Coolant - On/Off -Auto Down Feed Start Button Stop Button -6" x 12" Permanent Magnetic Chuck -Table Stops for Longitudinal Feed -Table Stops for Cross Feed -Hand Wheels -Twin V-Ways (X & Y Axes) -Automatic Lubrication -Oil Bath System -Jack Bolts & Base Plates -NO OVER THE WHEEL DRESSER -NO COOLANT TANK OR PUMP |
