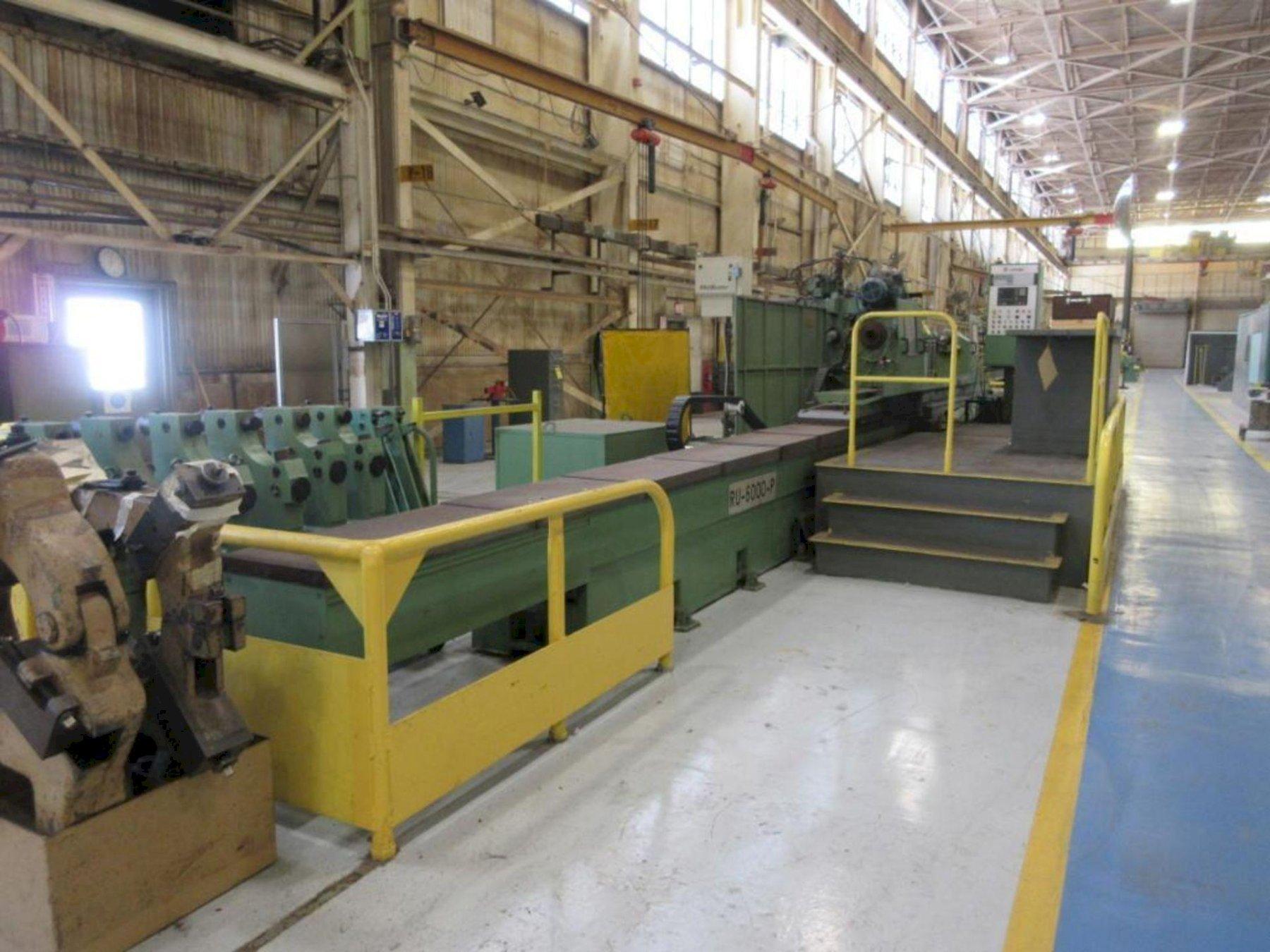

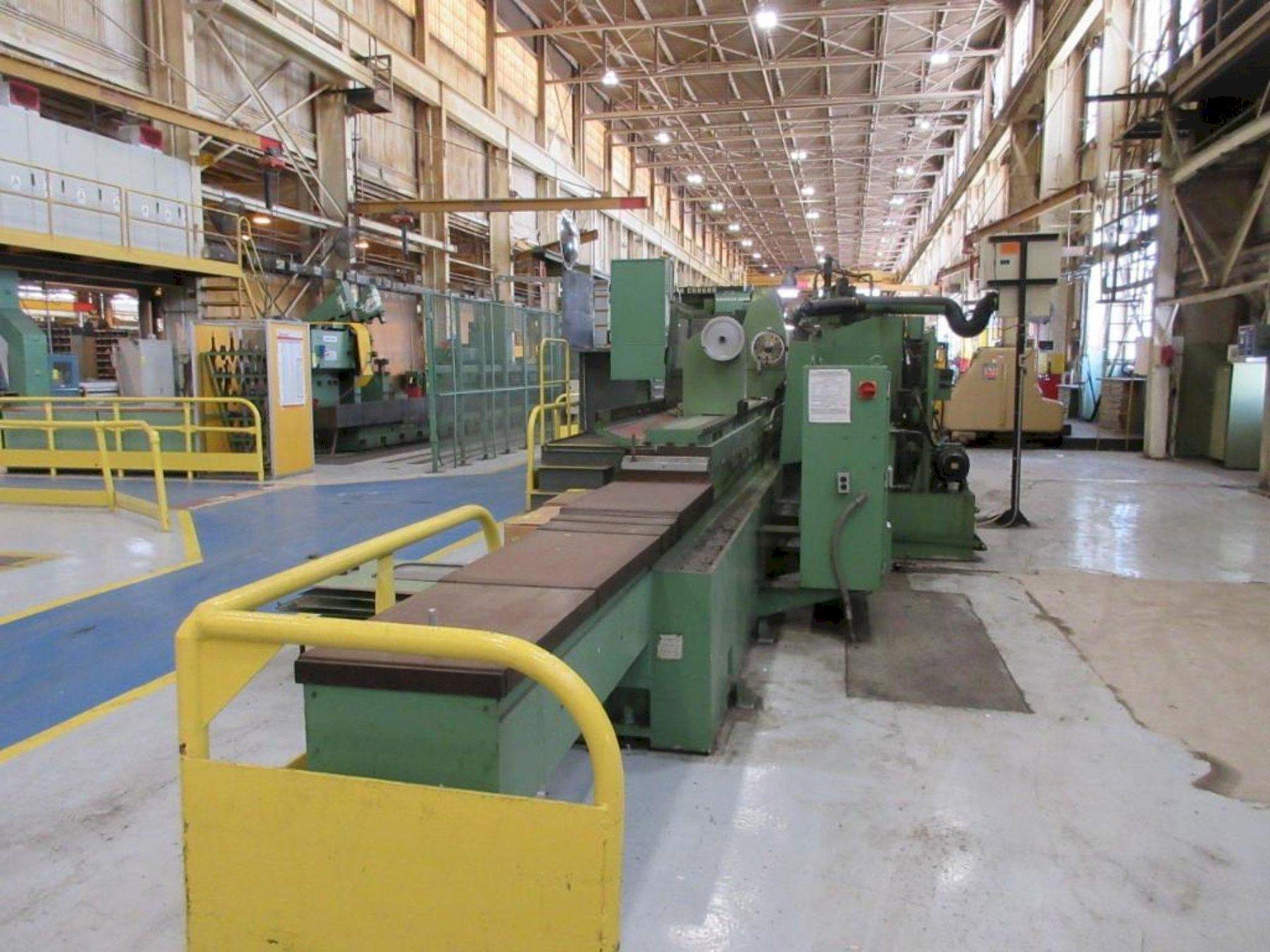

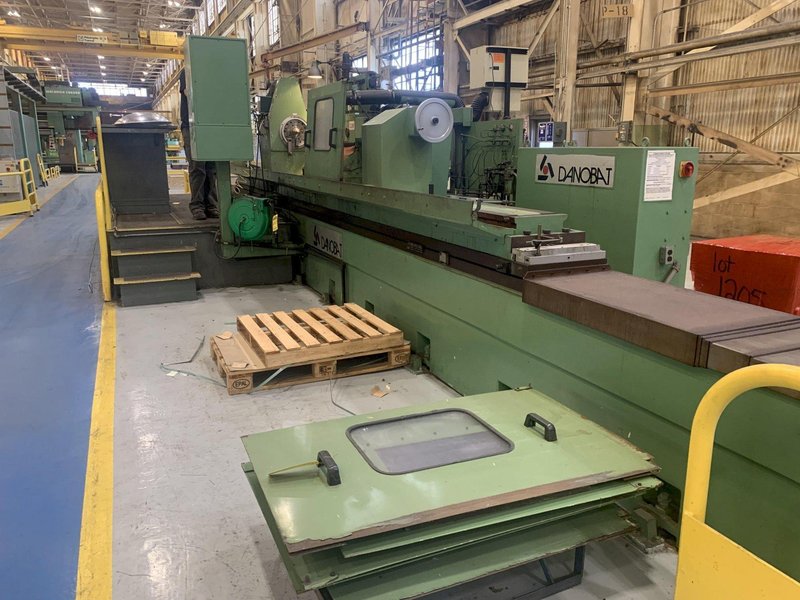

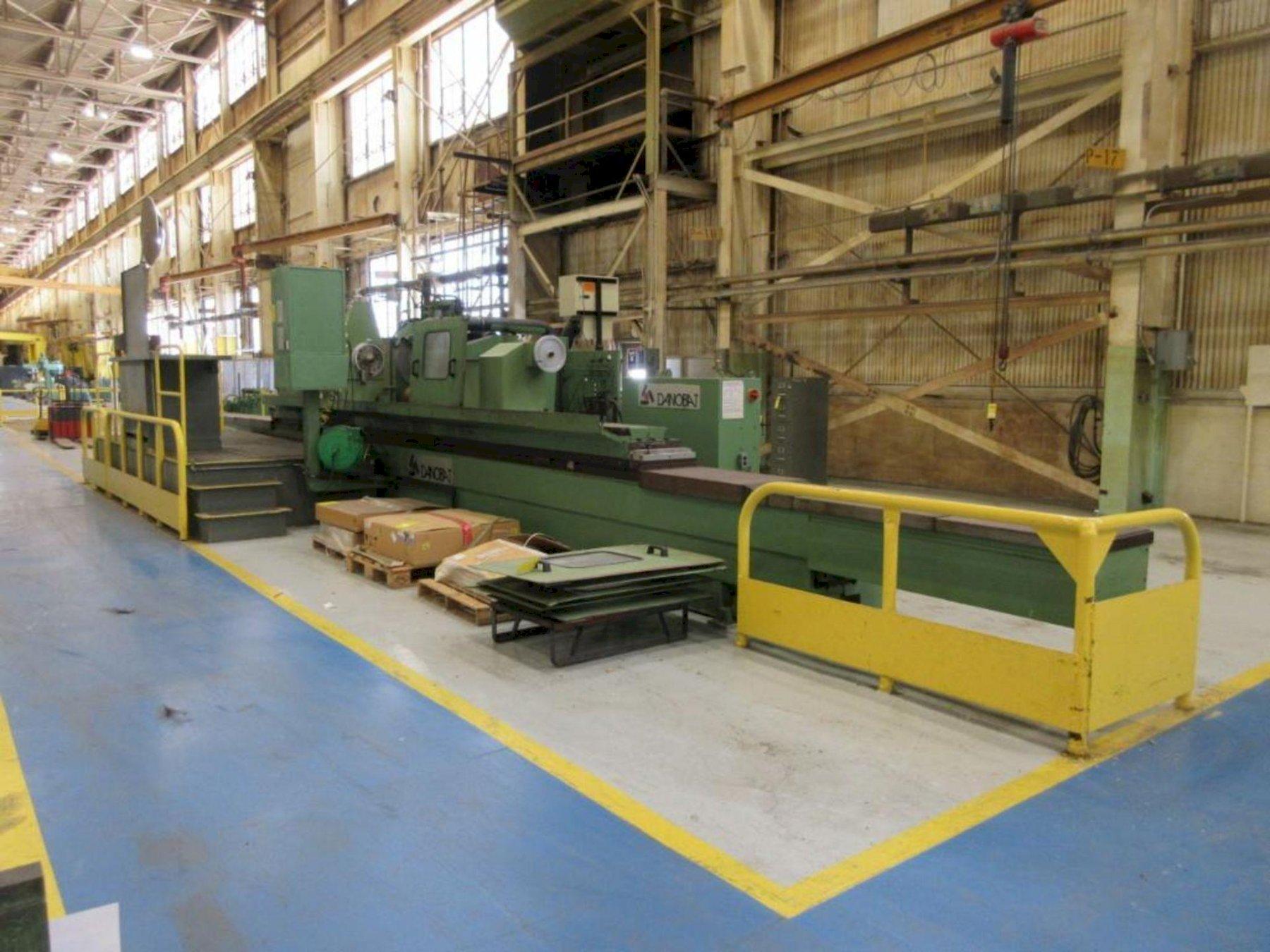

26" X 240" DANOBAT MODEL #RU-6000-P HYDRAULIC CYLINDRICAL GRINDER WITH FAGOR CONTROLS

MODEL ......................... RU-6000-P
CONTROLS ...................... FAGOR

YEAR NEW ...................... 1993

WORK DIAMETER CAPACITY ........ 26" (660 mm)
DISTANCE BETWEEN CENTERS ...... 236" (6000 mm)
WEIGHT CAPACITY OF PART ....... 15,000 LBS (6800 kg)

WHEELHEAD:
INFEED TRAVERSE (MAX) ......... 10.6" (270 mm)
AUTO INFEED ................... VARIABLE TO 0.04" (1 mm)
PLUNGE GRINDING FEATURE ....... 0.004 TO .27 IPM (1 TO 7 mm/min)
MANUAL HANDWHEEL INDEXING ..... 0.00002" (.005 mm)
DWELL AT END OF CYCLE ......... 0 TO 360 SECONDS
TABLE RETRACTION FEED ......... 0.0011" (.03 mm)

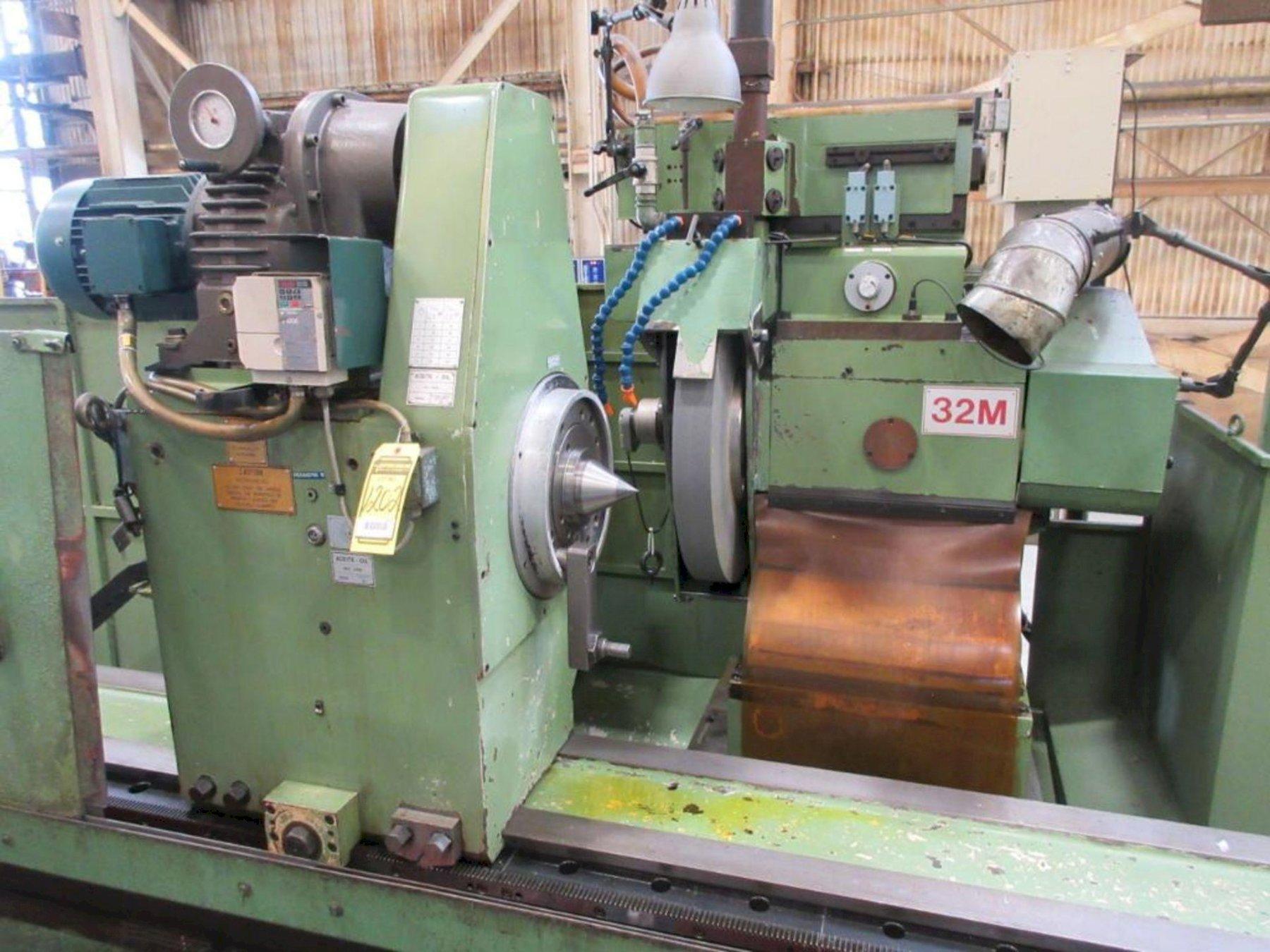

WORKHEAD:
SPINDLE SPEED (VARIABLE) ...... 10 TO 120 RPM
CENTER TAPER .................. YES

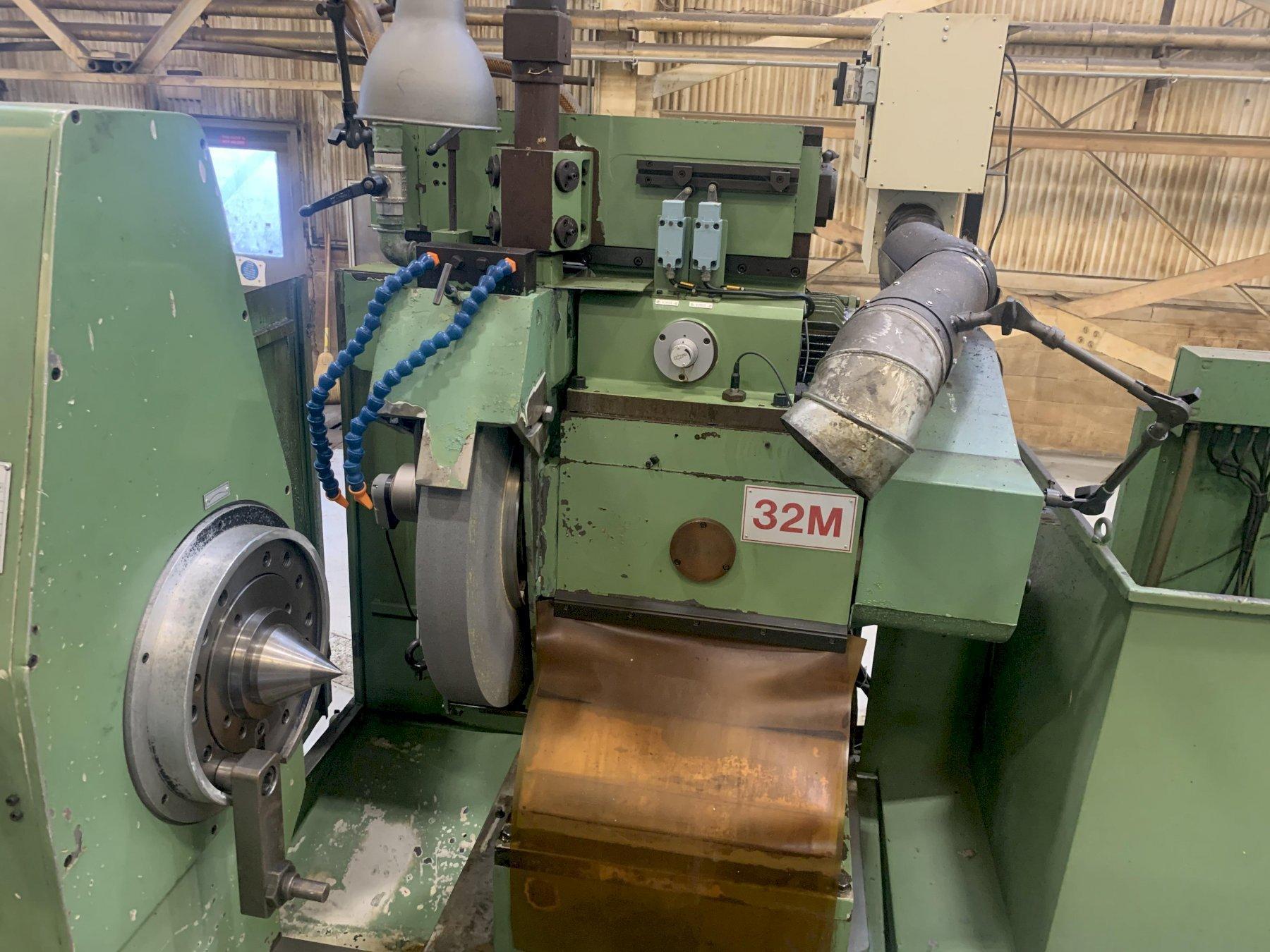

WHEEL:

STANDARD GRINDING WHEEL SIZE .. 30" X 4" X 12" OR 8"

GRINDING WHEEL SPEED .......... 815 RPM
CUTTING SPEED ................. 105 FPM

TABLE:
TRAVERSE LENGTH ............... 242.5" (6160 mm)
MINIMUM TRAVERSING SPEED ...... 0.01 IPM (.4 mm/min)
MAXIMUM TRAVERSING SPEED ...... 137 IPM (3500 mm/min)

TAILSTOCK:
QUILL STROKE LENGTH ........... 2.75" (70 mm)
QUILL DIAMETER ................ 4.5" (115 mm)
TAPER ......................... #6 MT

WHEEL HEAD ....................

WORK HEAD .....................

HYDRAULIC DRIVE MOTOR .........

EQUIPPED WITH:
(7) HEAVY DUTY FOLLOW RESTS
(2) PRECISION FOLLOW RESTS
SPARE WHEELS
TAPER & STRAIGHT GRINDING
MORPOSS E78 BALANCING MONITOR SYSTEM (SEE BELOW)
COOLANT & COOLANT FILTRATION SYSTEM
MISTBUSTER FUME EXTRACTOR

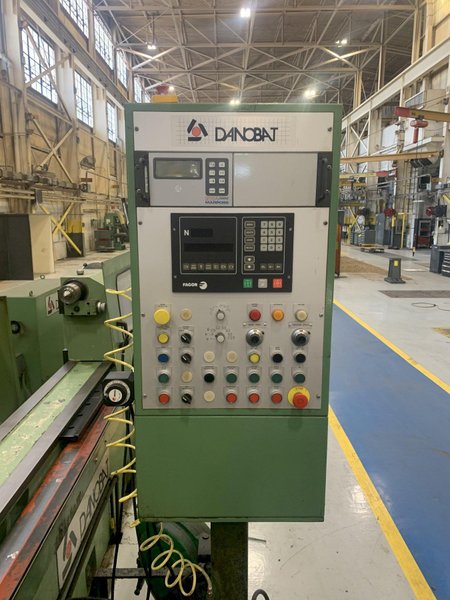

PENDANT CONTROL STATION
TOUCH SCREEN CONTROLS
E-STOP BUTTON
