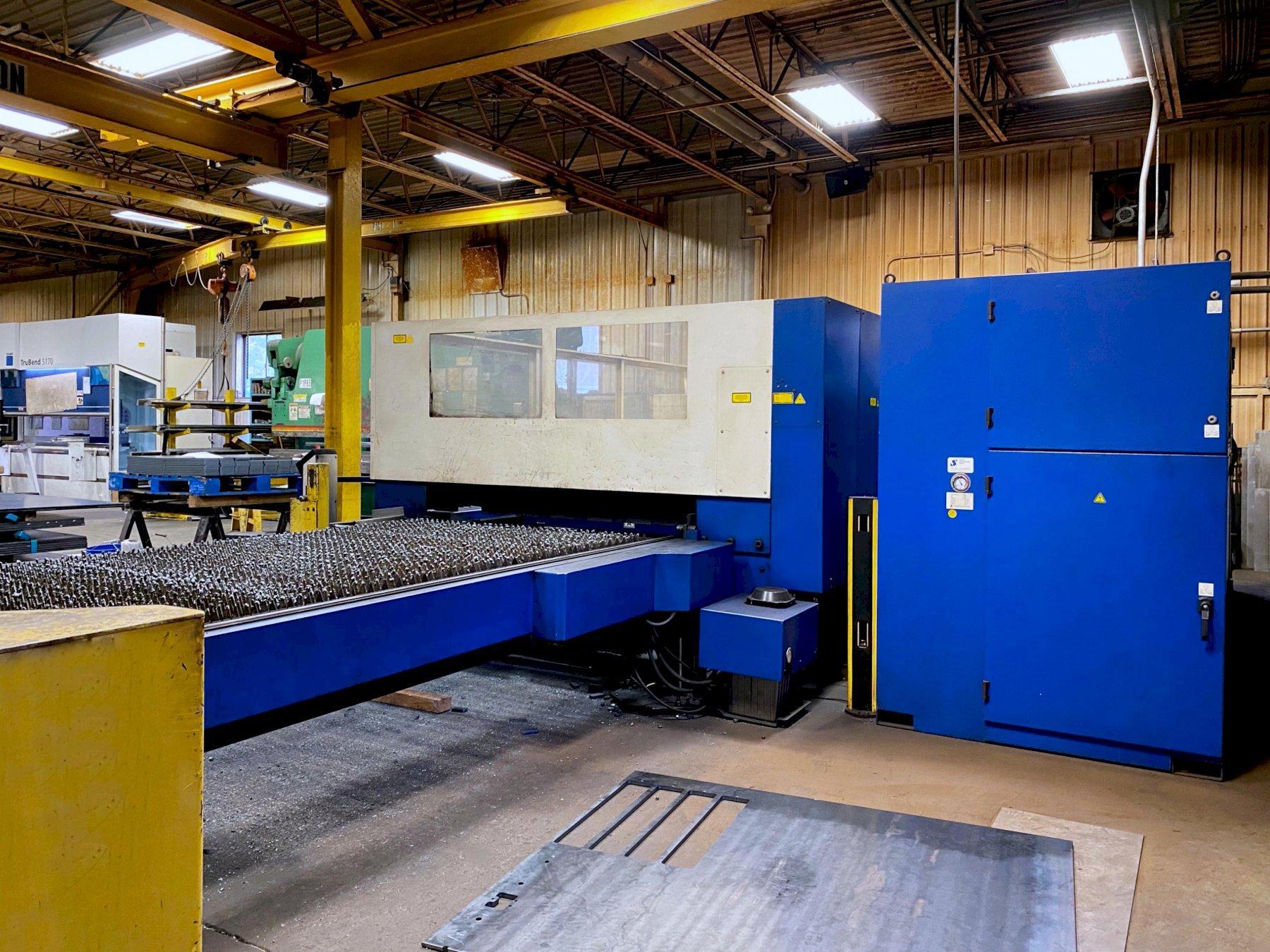

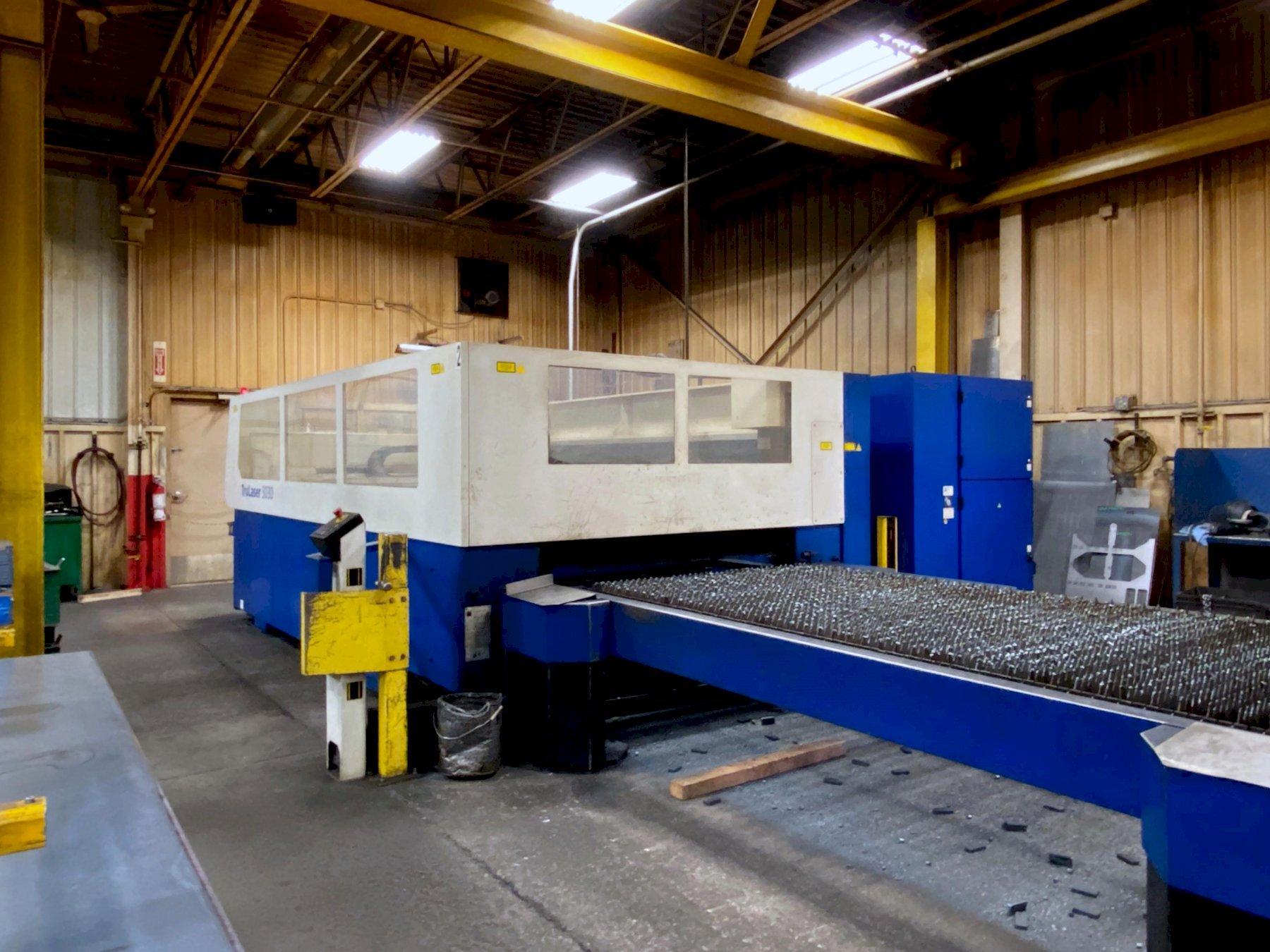

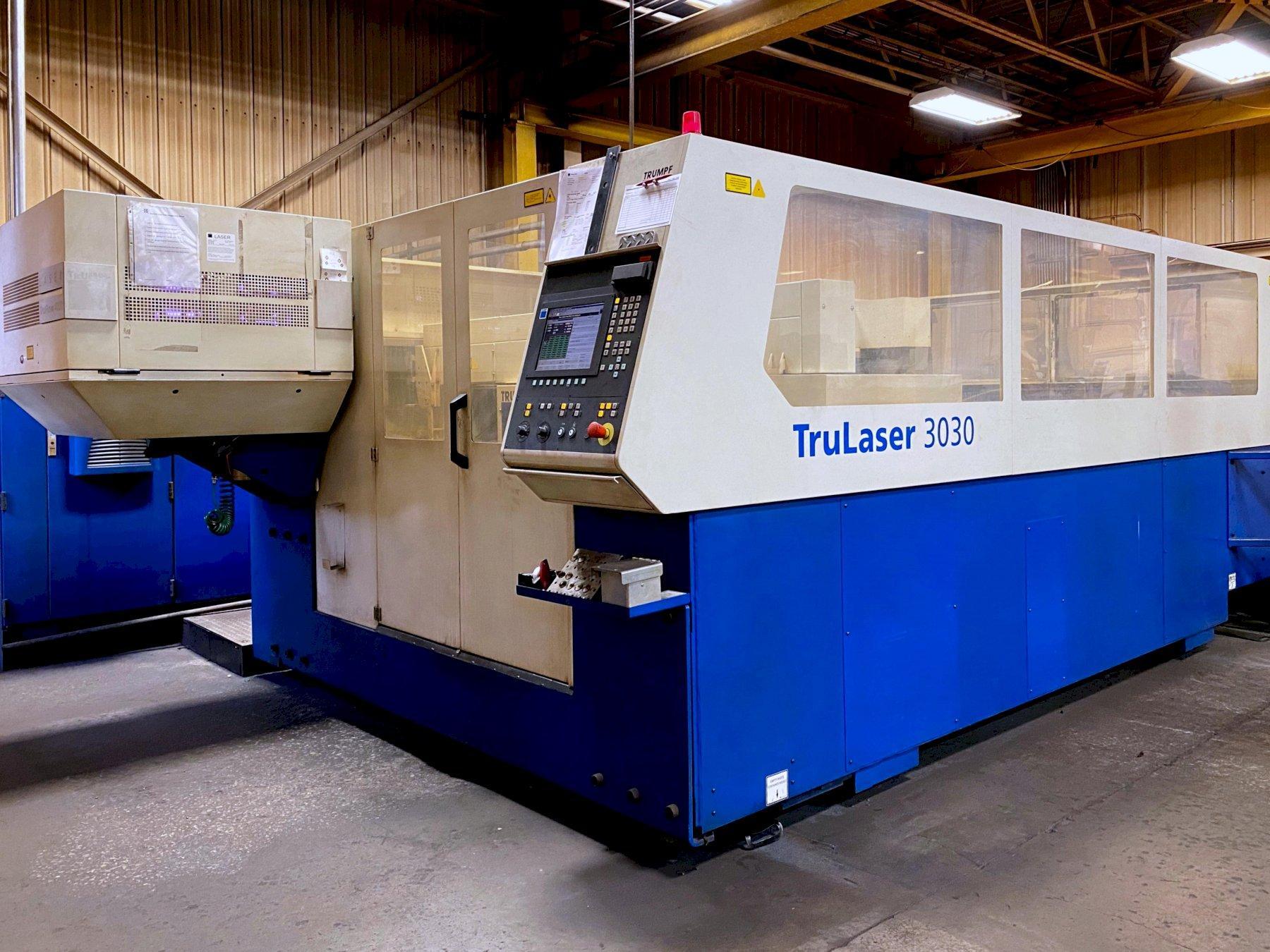

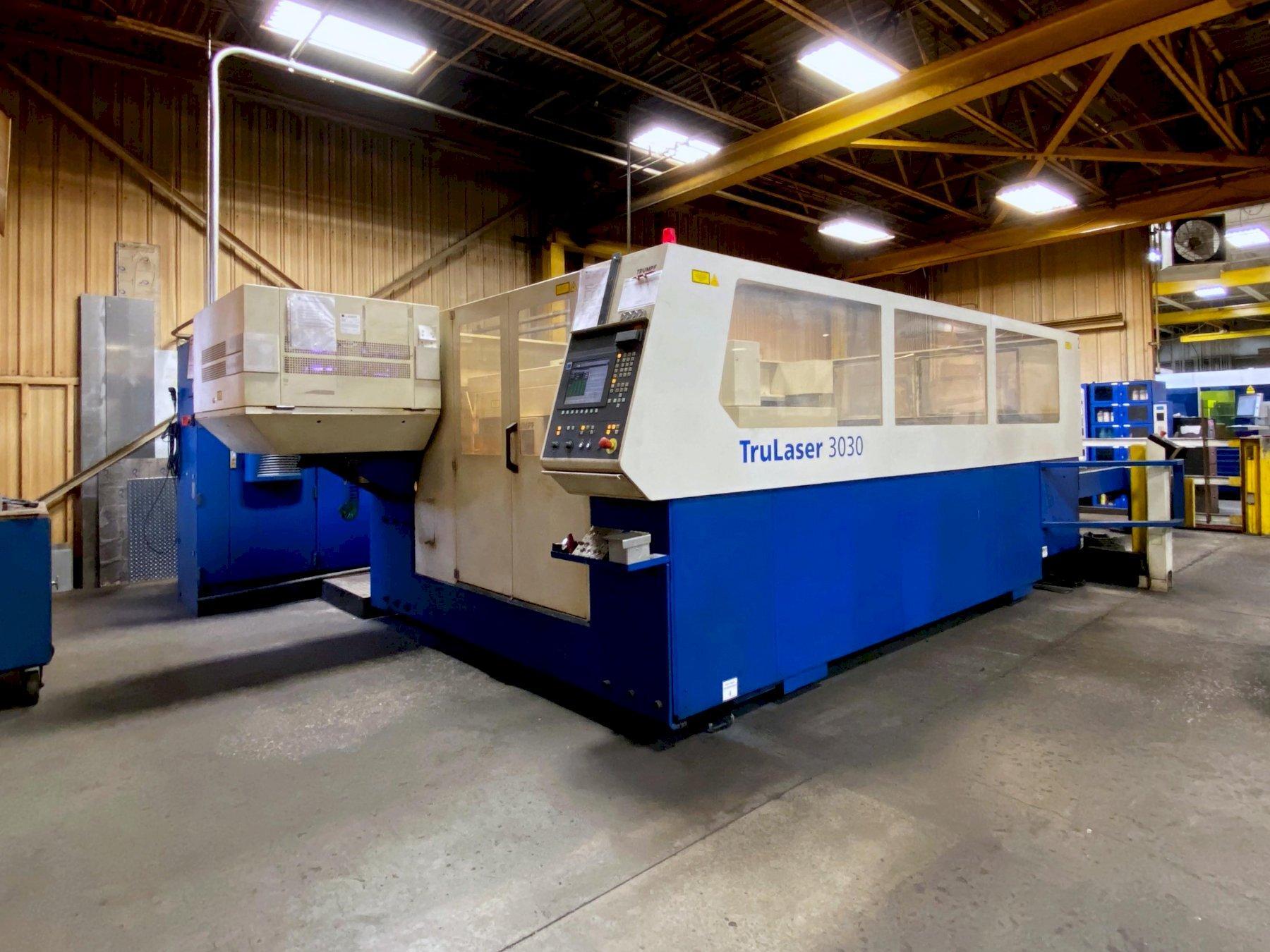

Trumpf TruLaser 3030 (2006) 4,000 Watt CO2 Laser
Brand
Category
Type
Model
TruLaser
Stock #
MFO100202
Year
2006
Condition
Very Good
Location
Illinois
| Sheet-W | 60 inches |
| Sheet-L | 120 inches |
| Type | CO2 |
| Wattage | 4000 watts |
| IPM | 3346 inches-per-minute |
| X-Travel | 120 inches |
| Y-Travel | 60 inches |
| Z-Travel | 4.5 inches |
| CNC Control | yes |

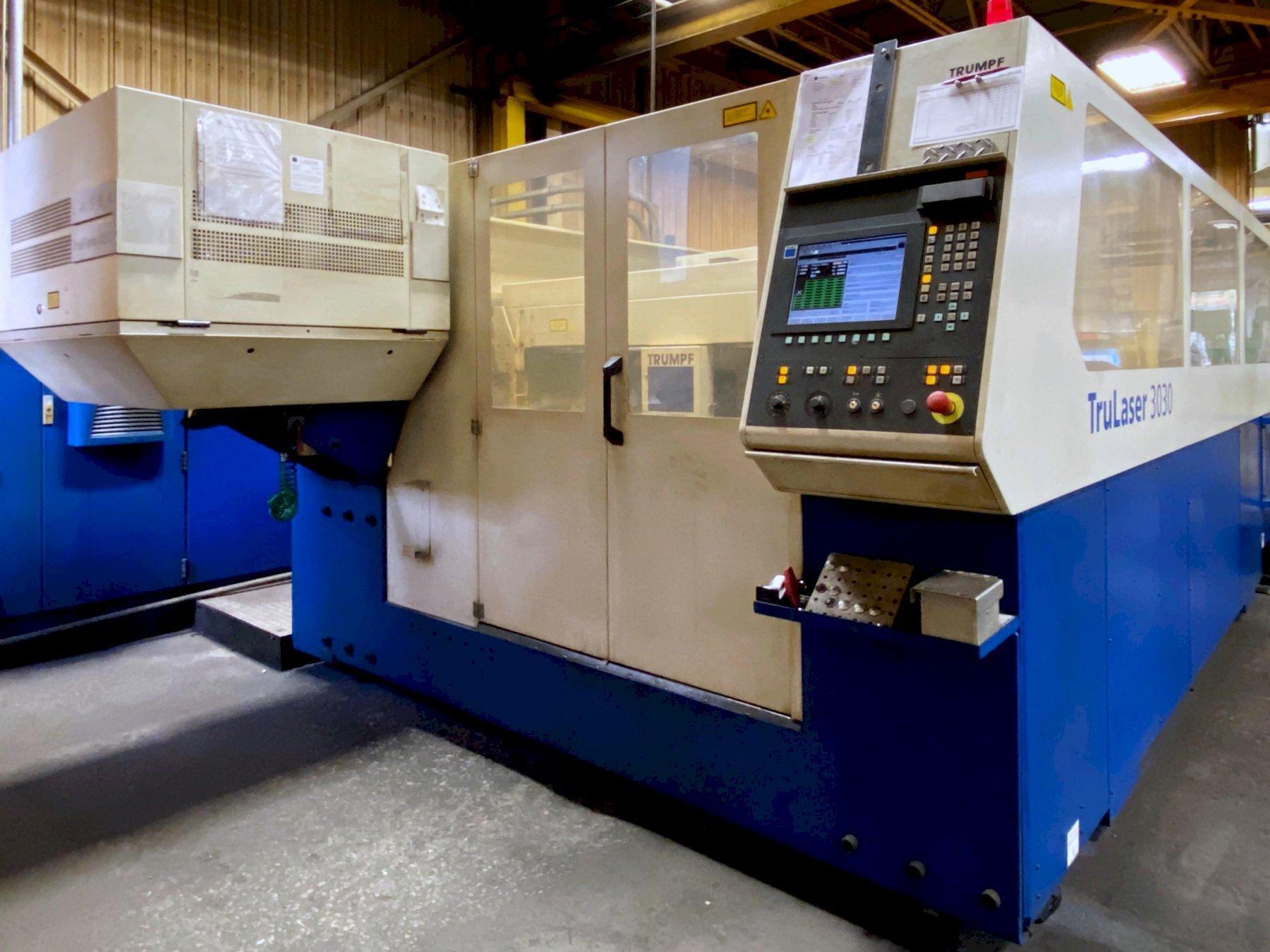

| Type of CNC Control | Siemens 840d |
| Dimensions | (Footprint) L 366" x W 181" x H 94" |
| Weight | 25400 pounds |
|

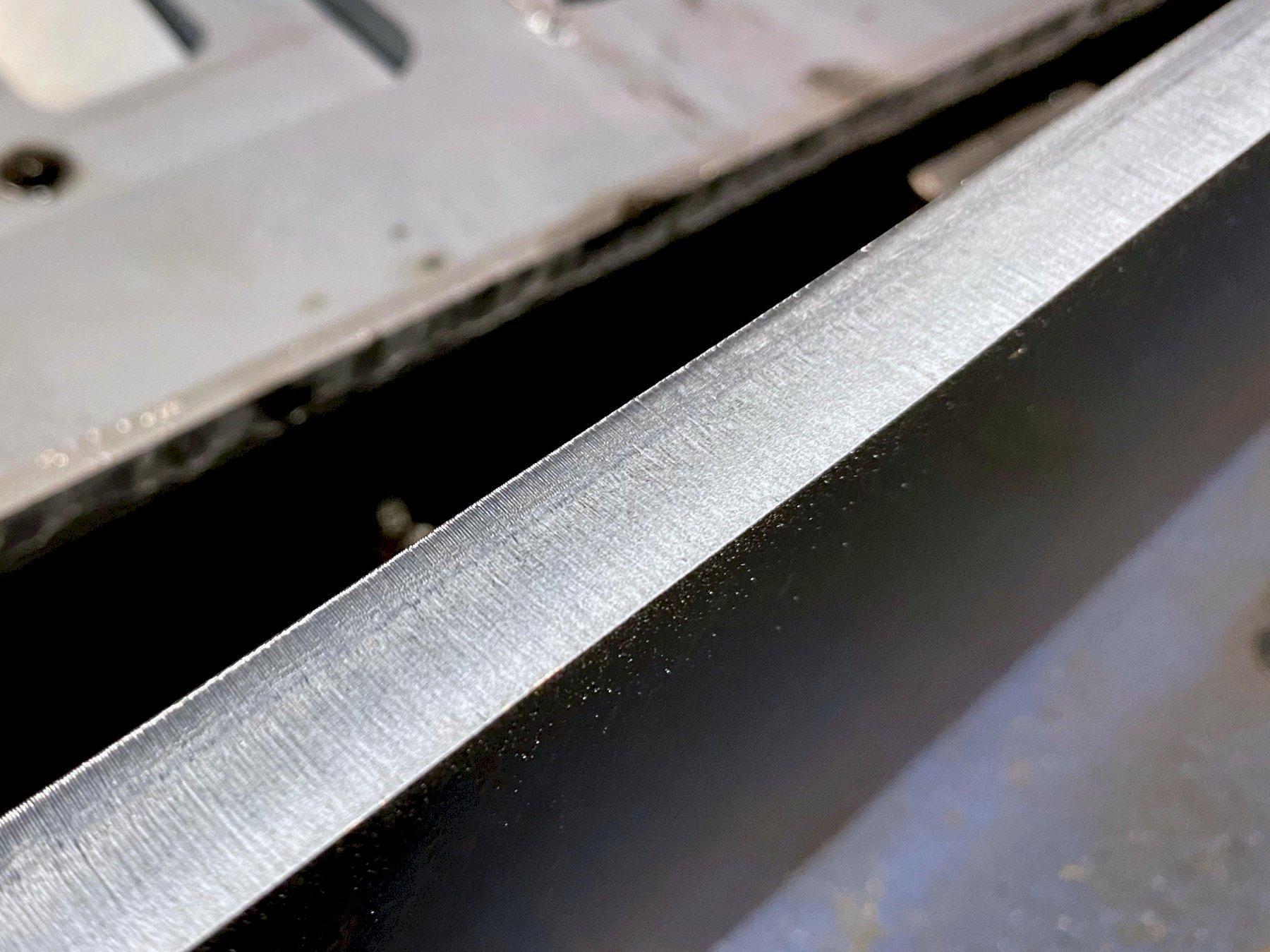

Year New: 2006 Control: Siemens 840d CNC Type Of Resonator: Co2 Resonator Model: TLF 4000 Laser Power: 4000 Watts Table Size 5' X 10' Max Workpiece Weight 1,980 Lbs. X-Axis Travel 120" Y-Axis Travel 60" Z-Axis Travel 4.5" Positioning System Design Flying Optic Max Positioning Speed (X+Y): 3,346 Machine Weight: 26,455 Lbs. Max Cut (Mild Steel): .80” Max Cut (Stainless Steel): .63” Max Cut (Aluminum): .39”

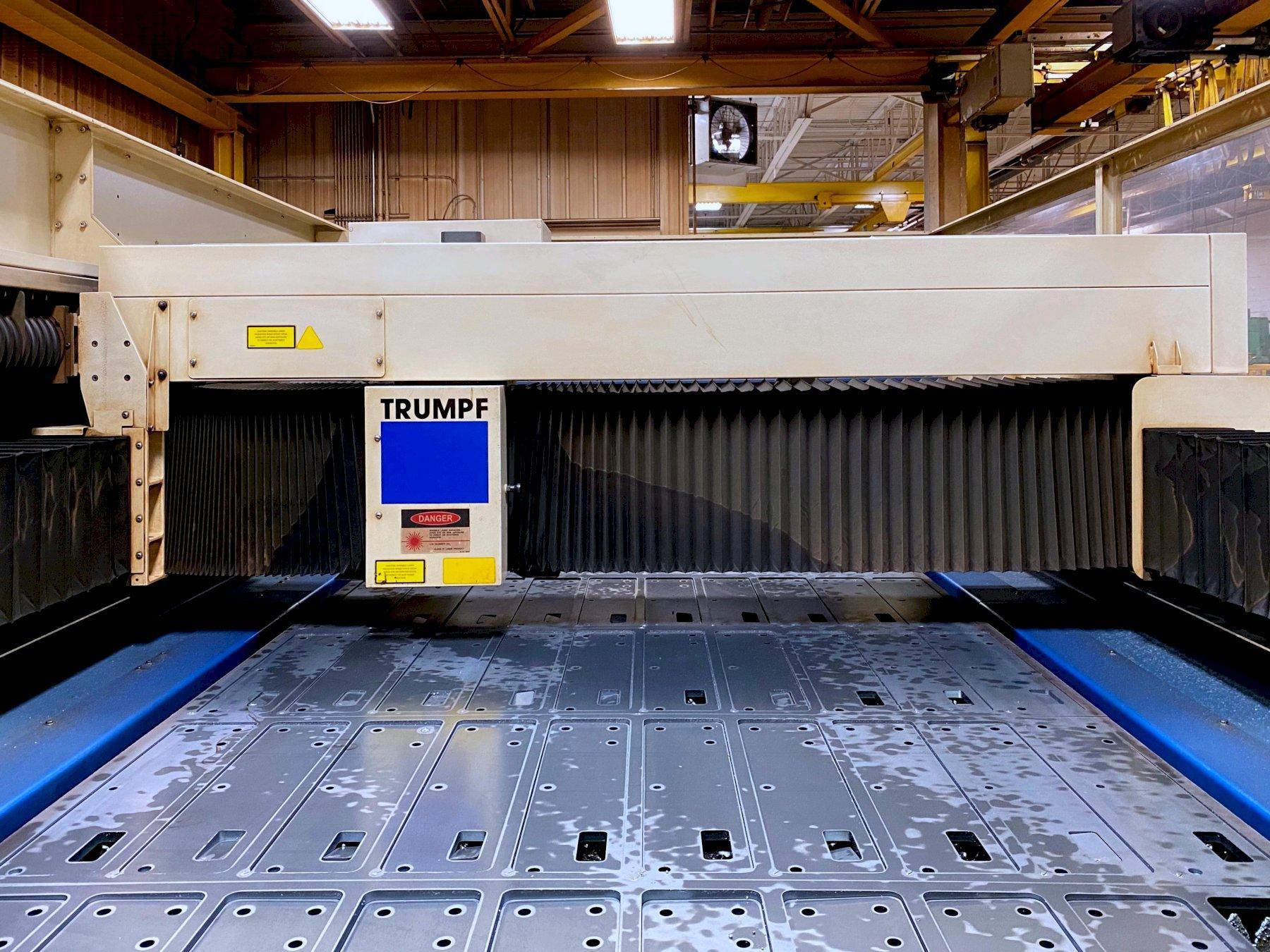

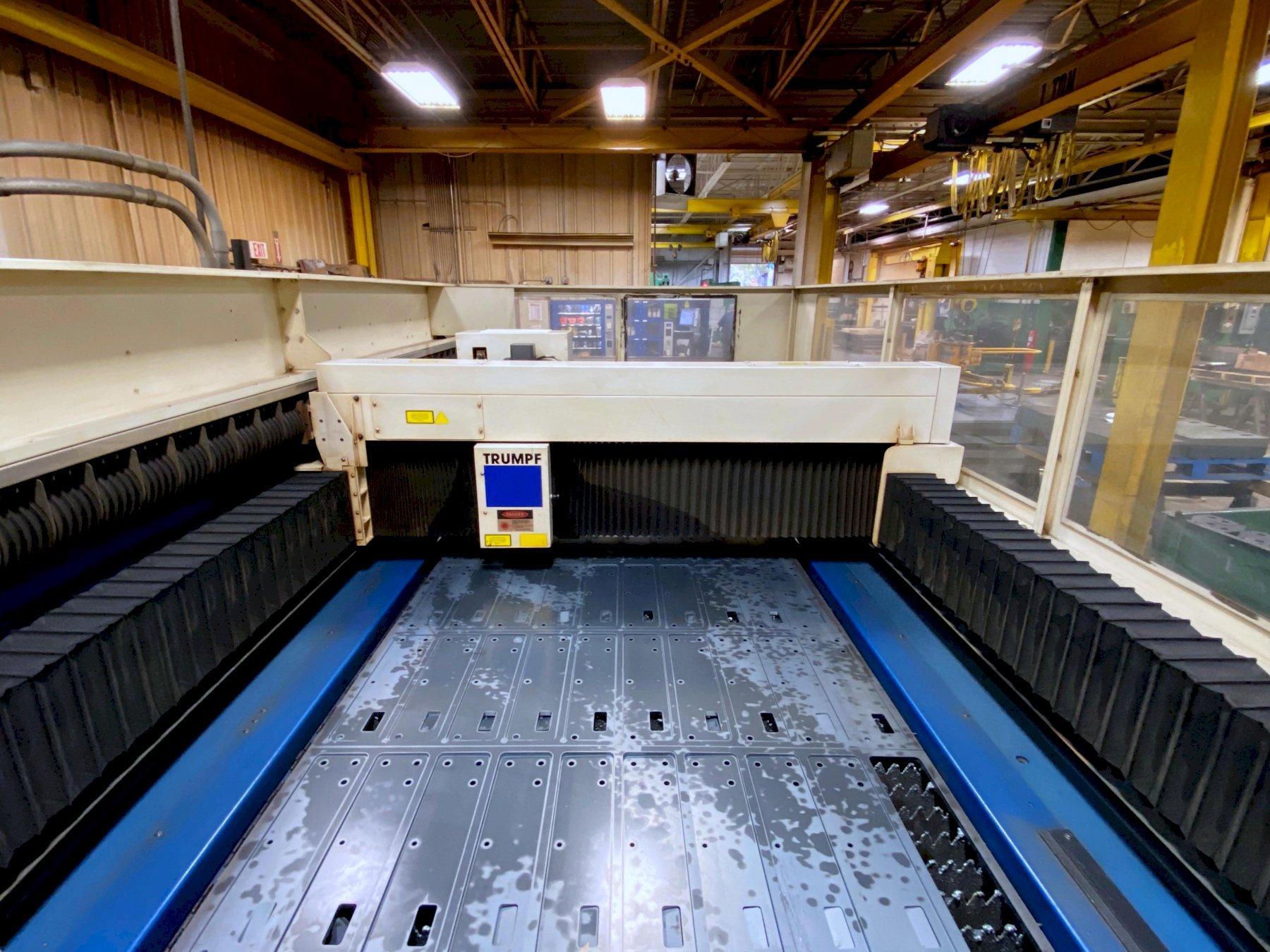

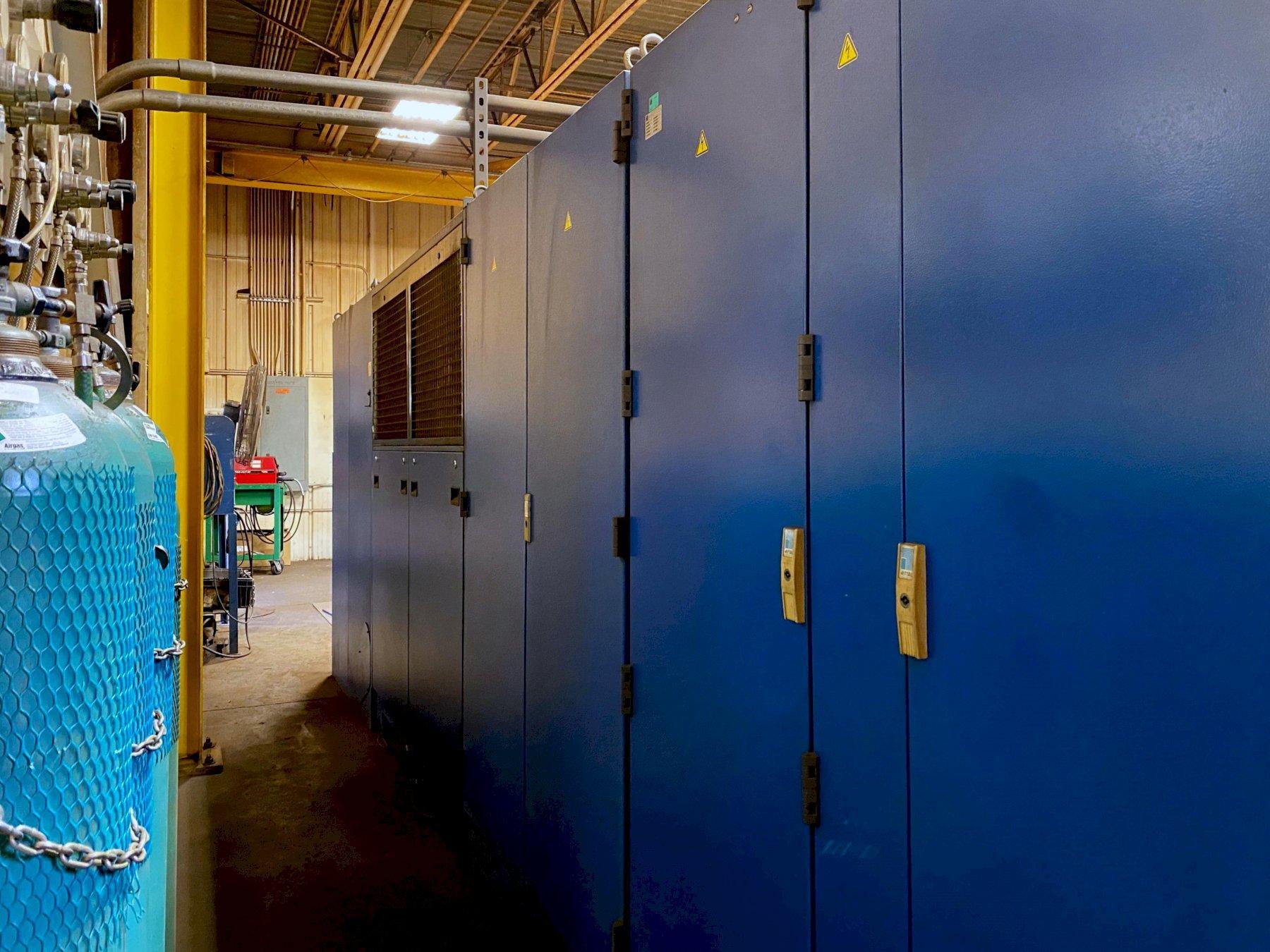

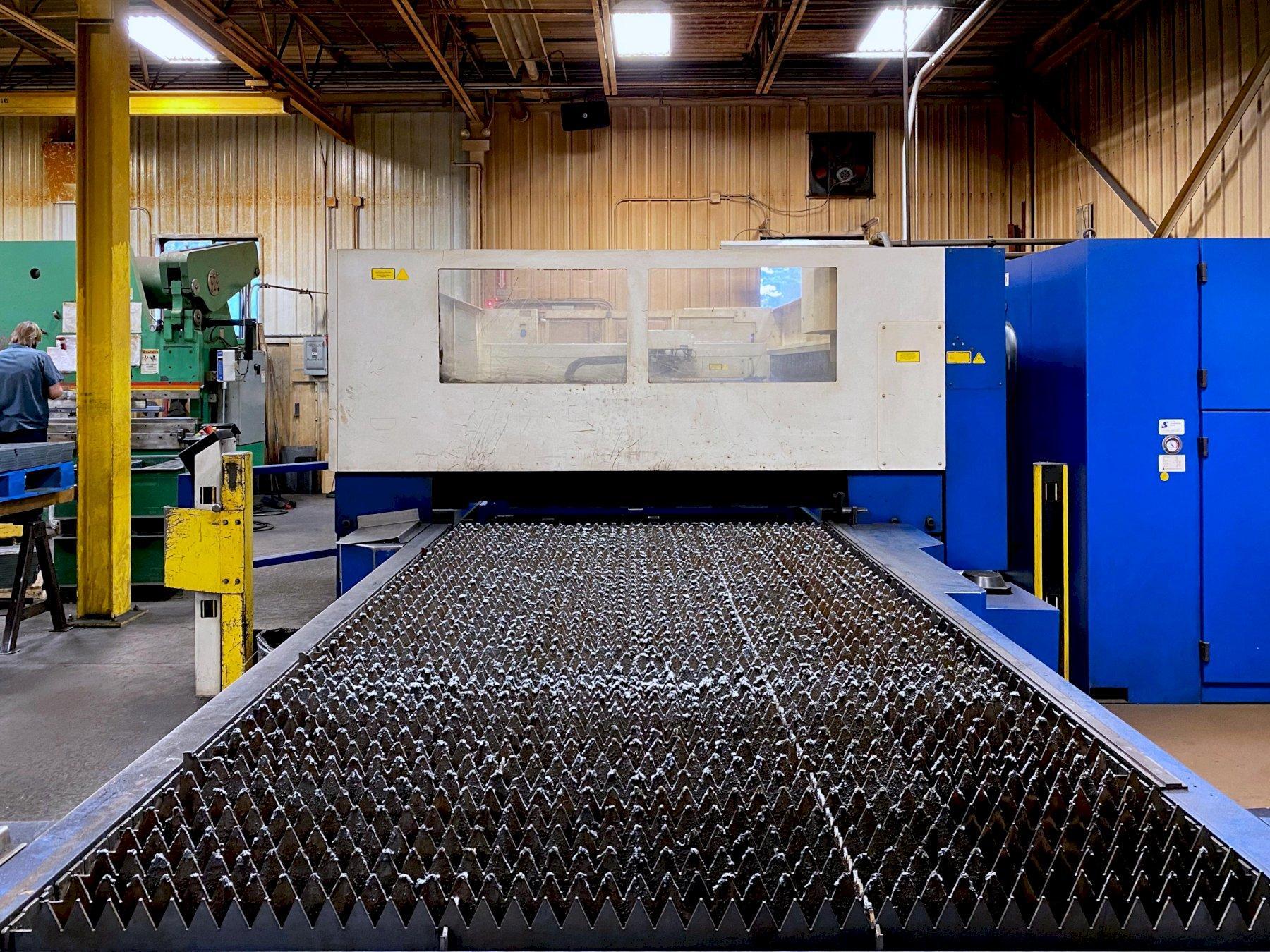

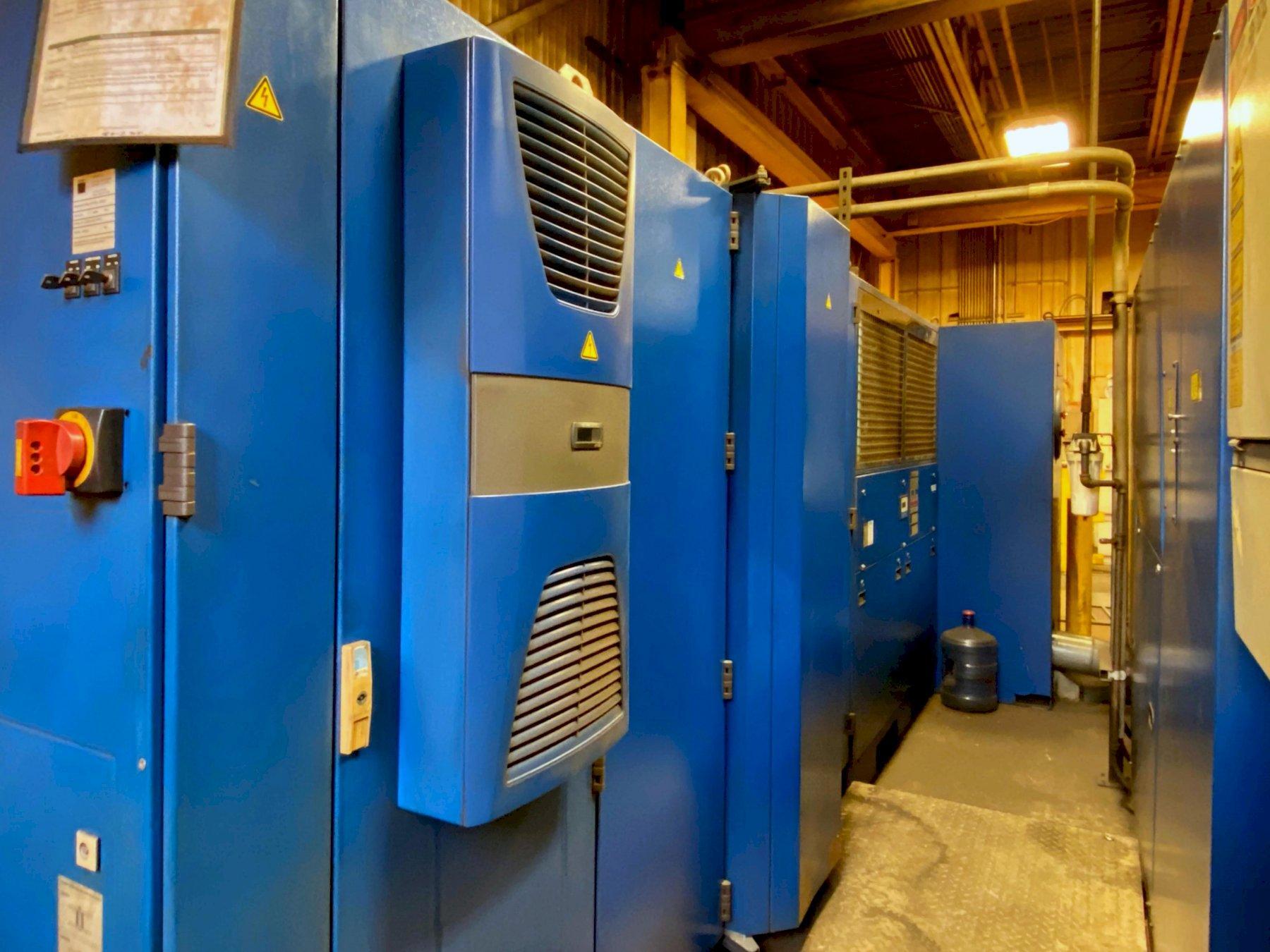

Siemens 840d CNC Controls Trumpf TLF 4000 Watt Resonator 5' X 10' Dual Pallet Shuttle Tables Chip Conveyor Safety Light Curtains Chiller Unit Dust Collector |
|
