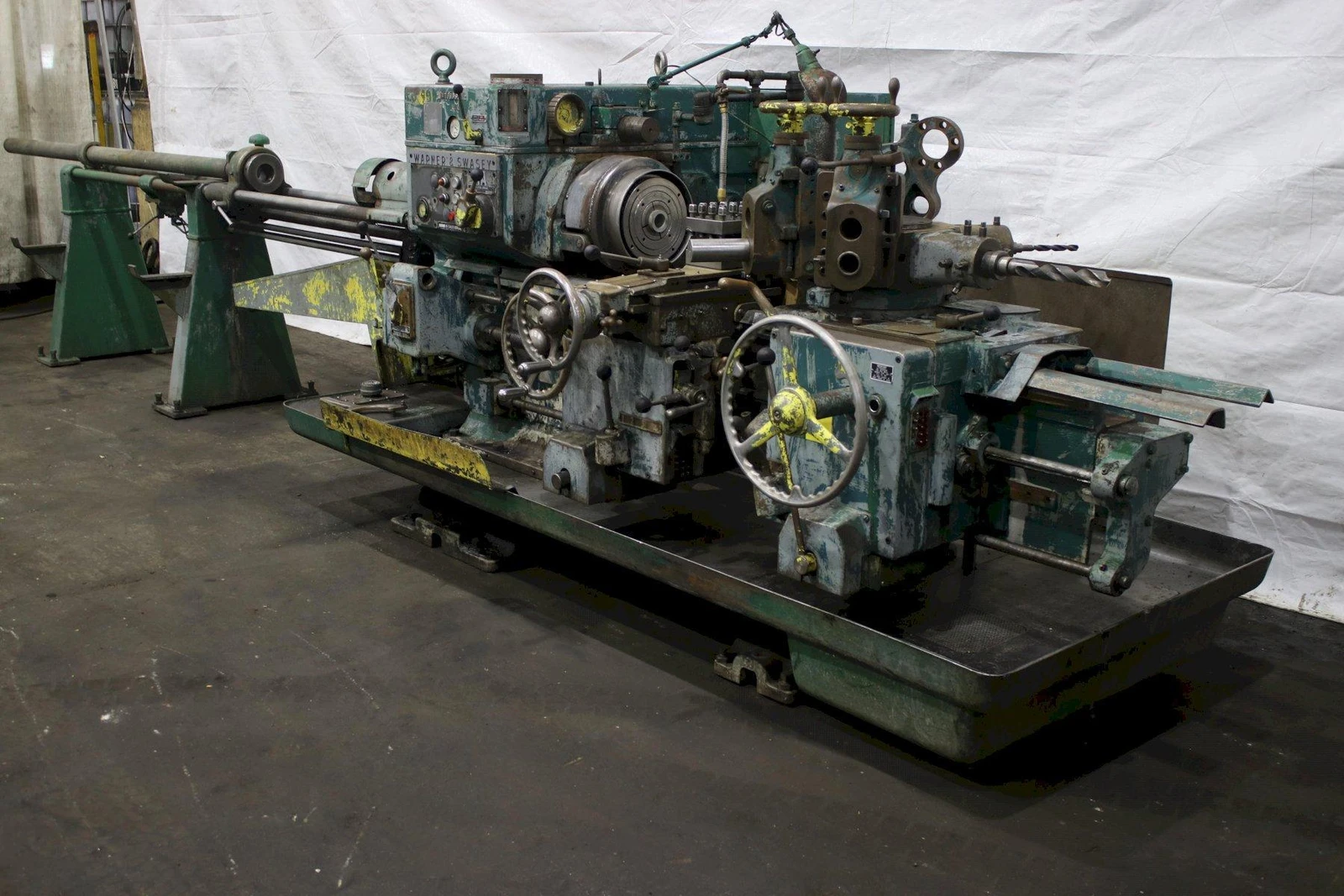

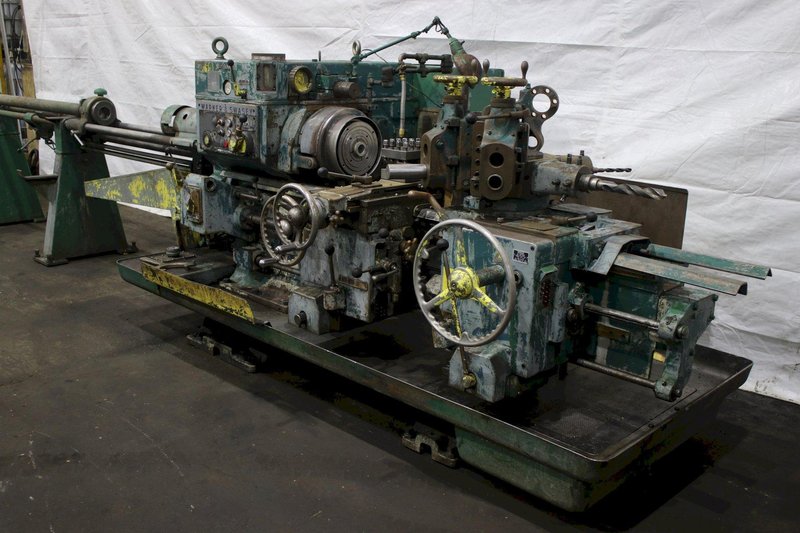

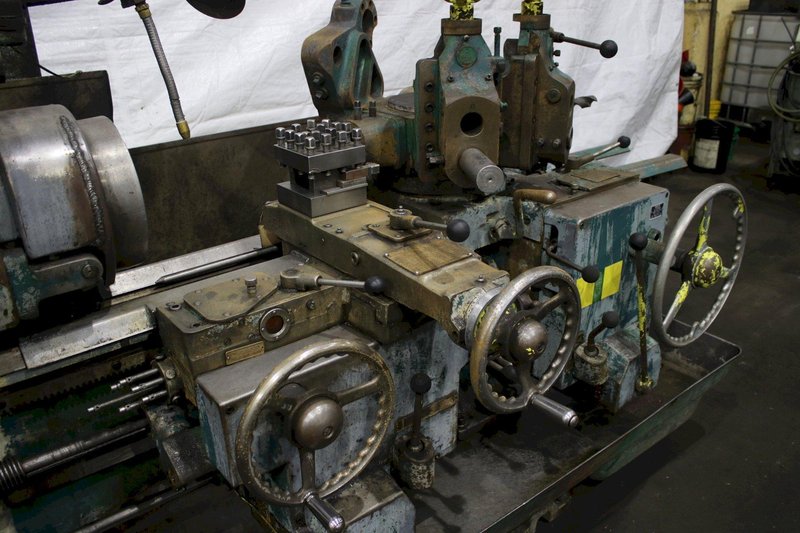

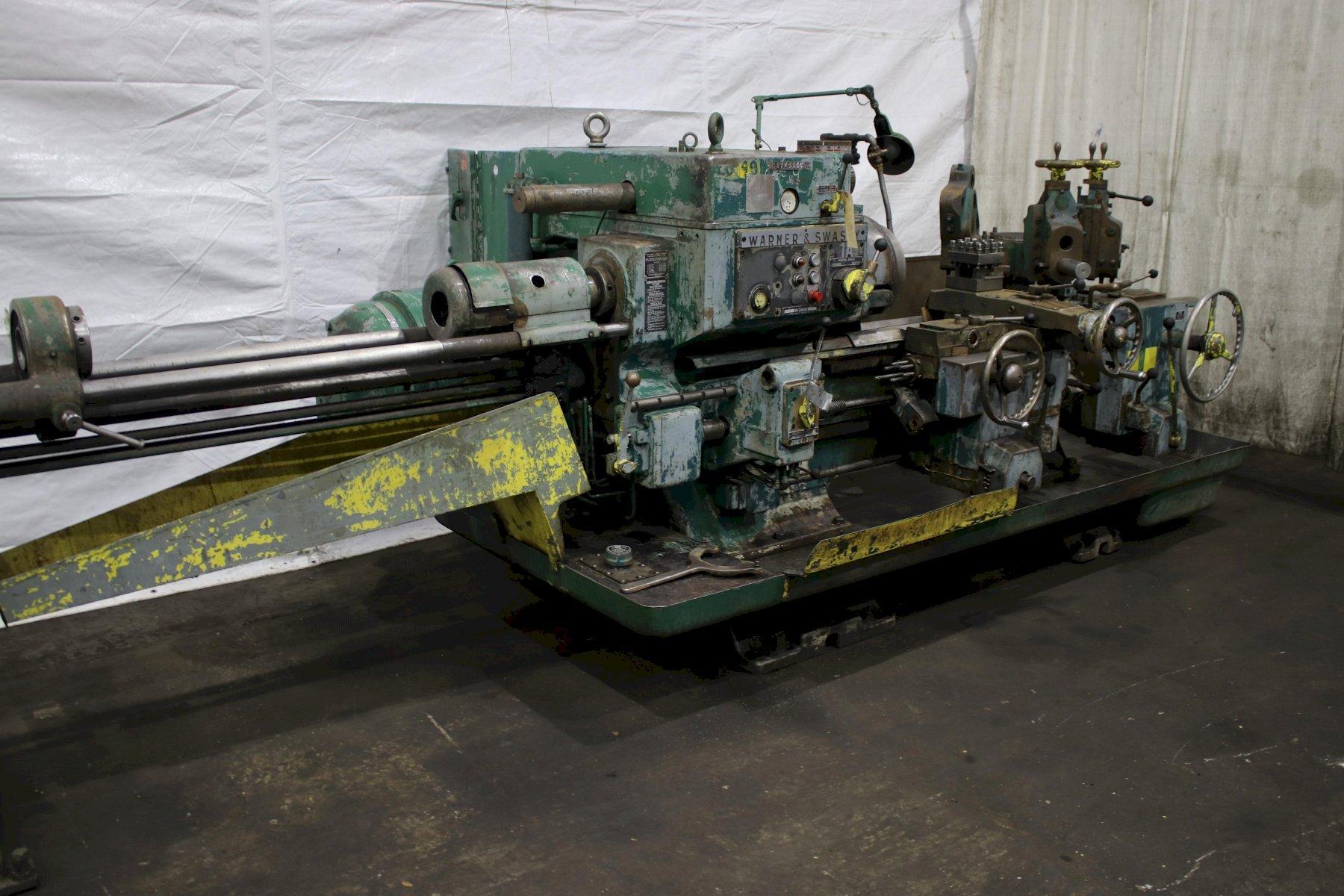

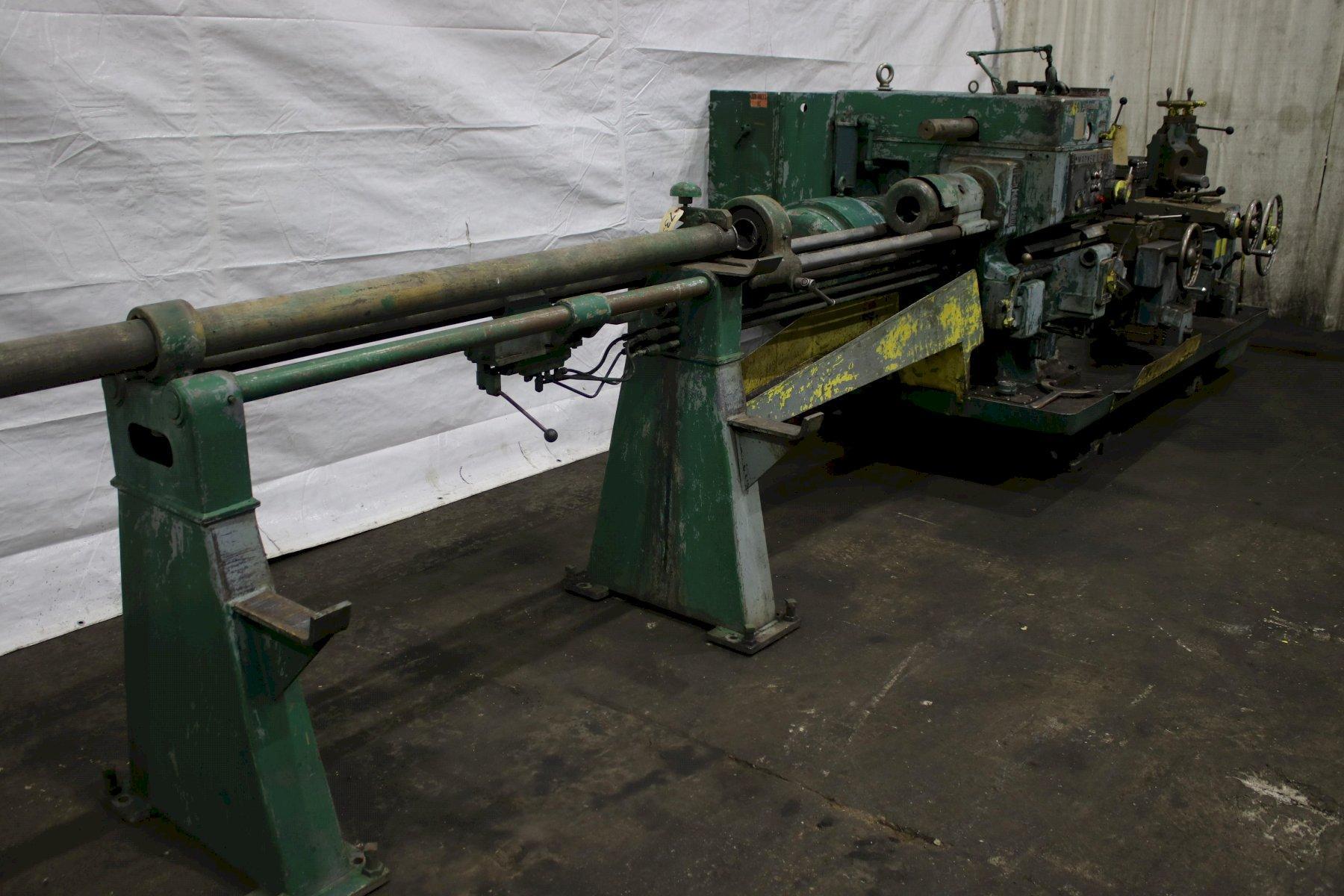

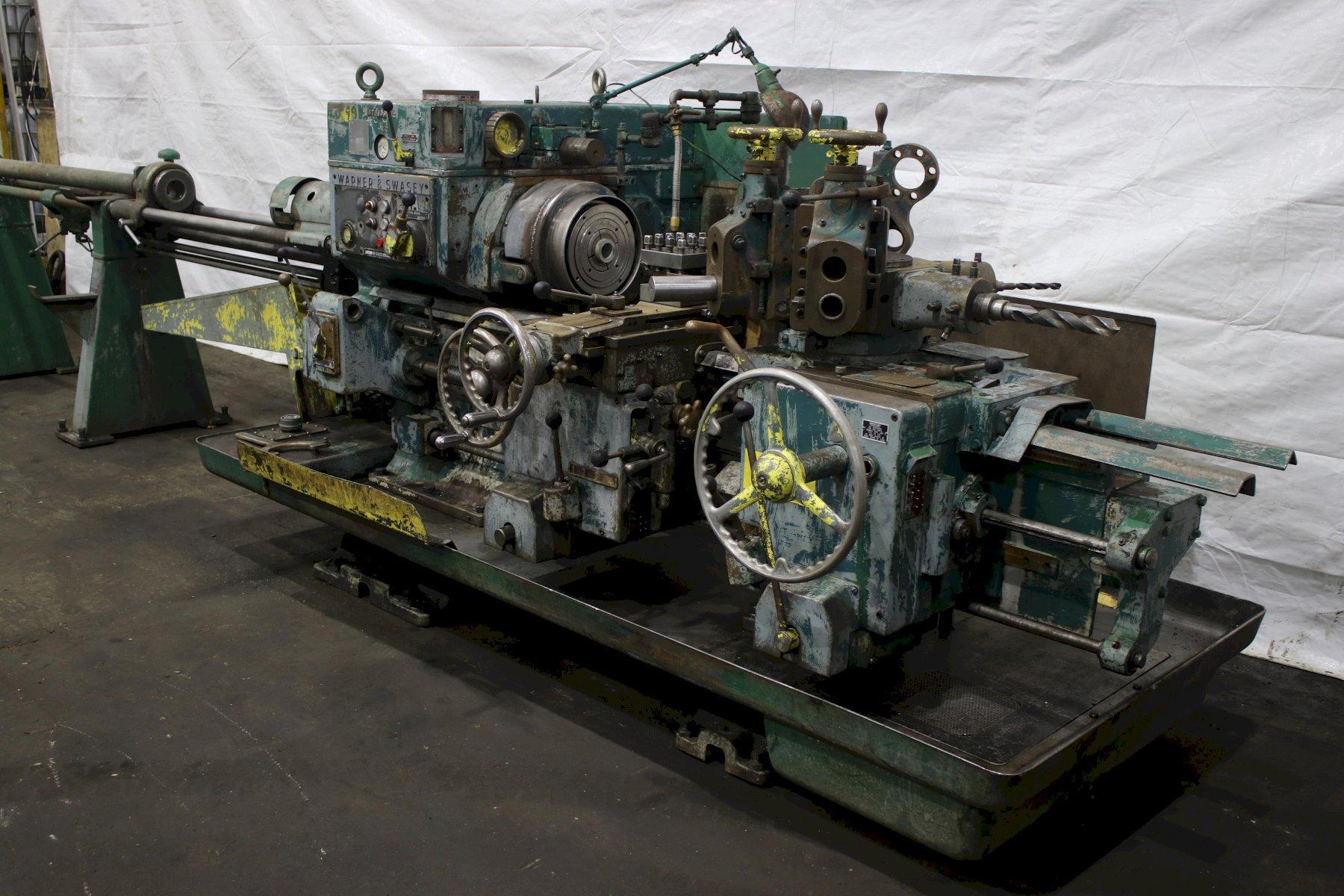

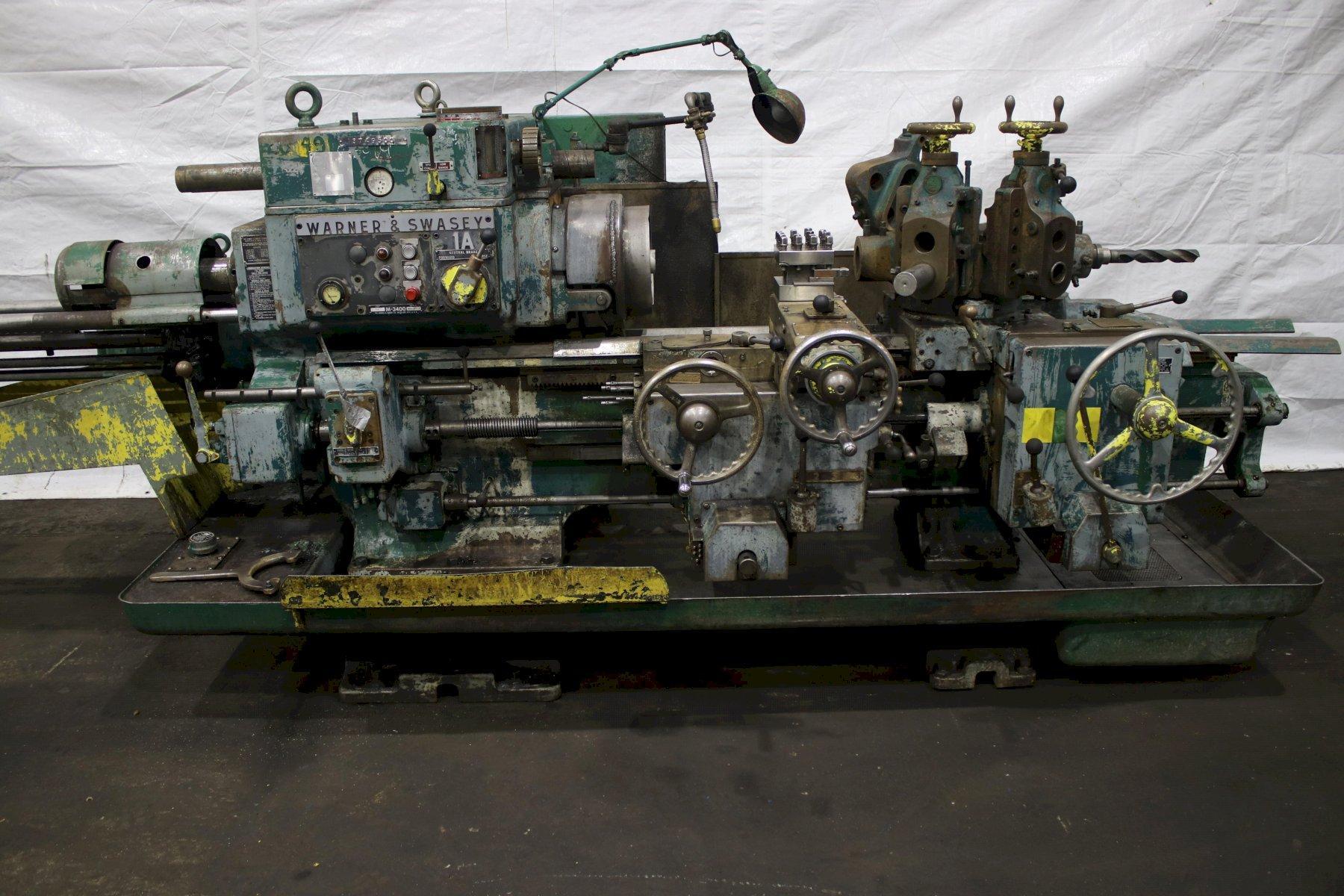

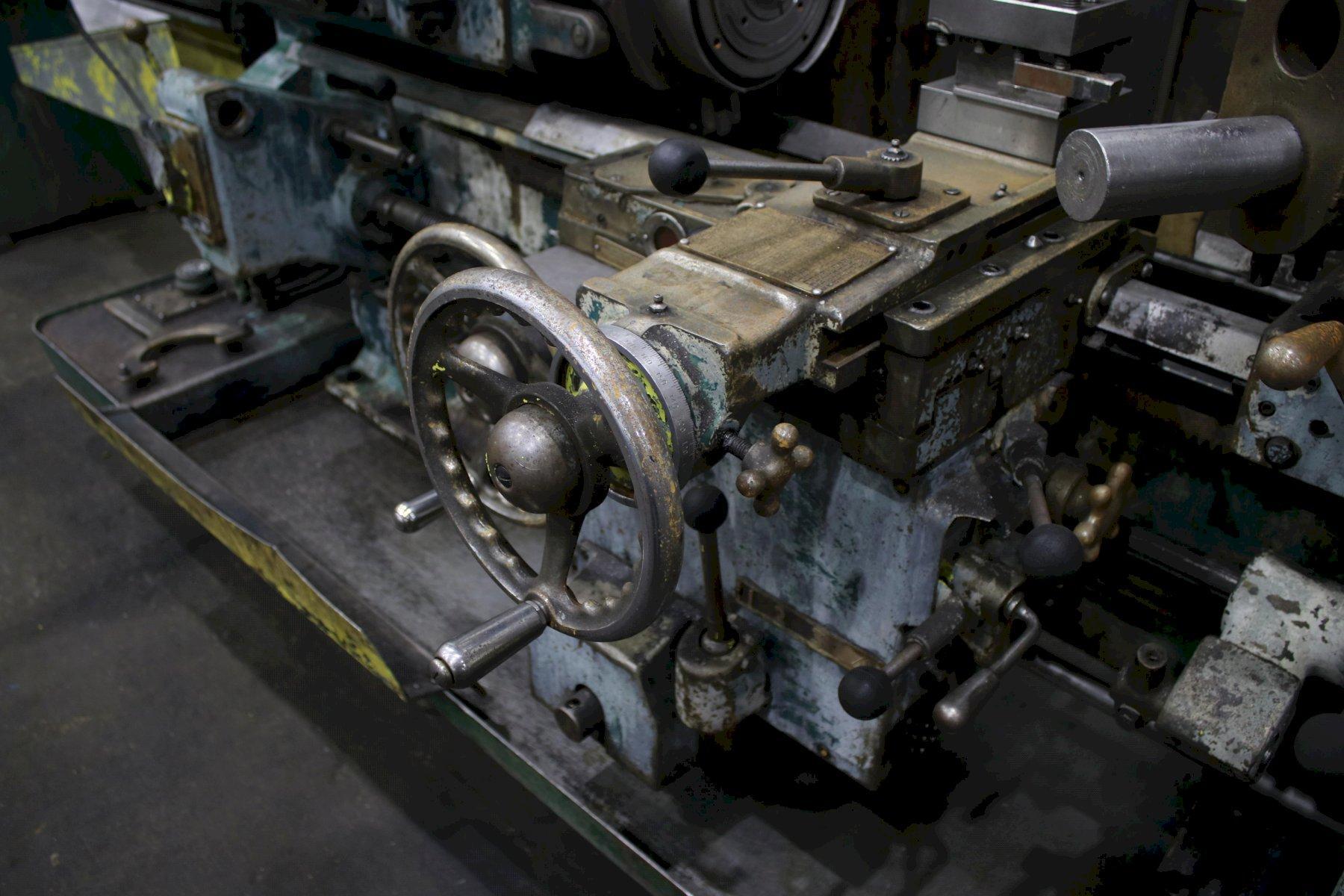

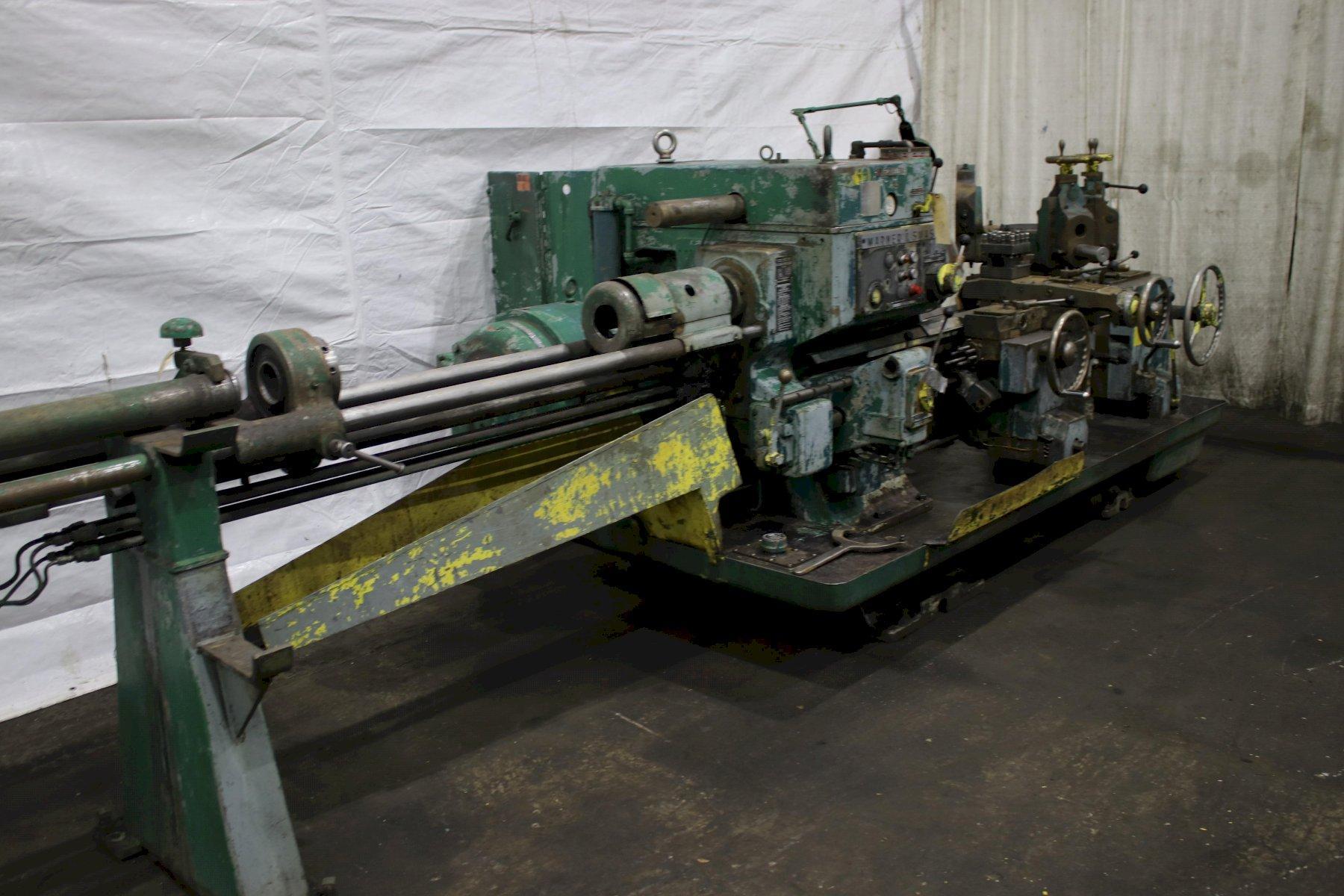

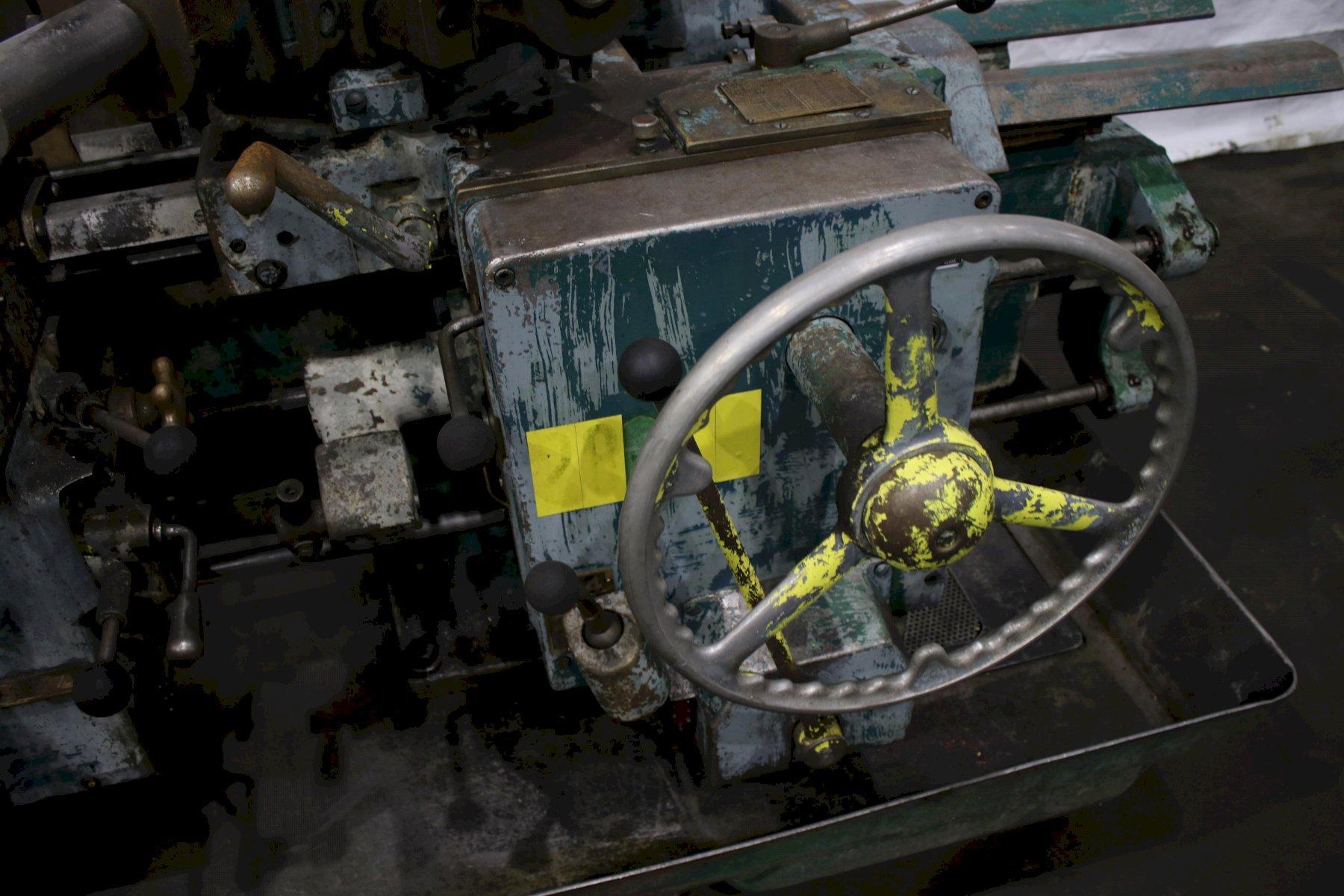

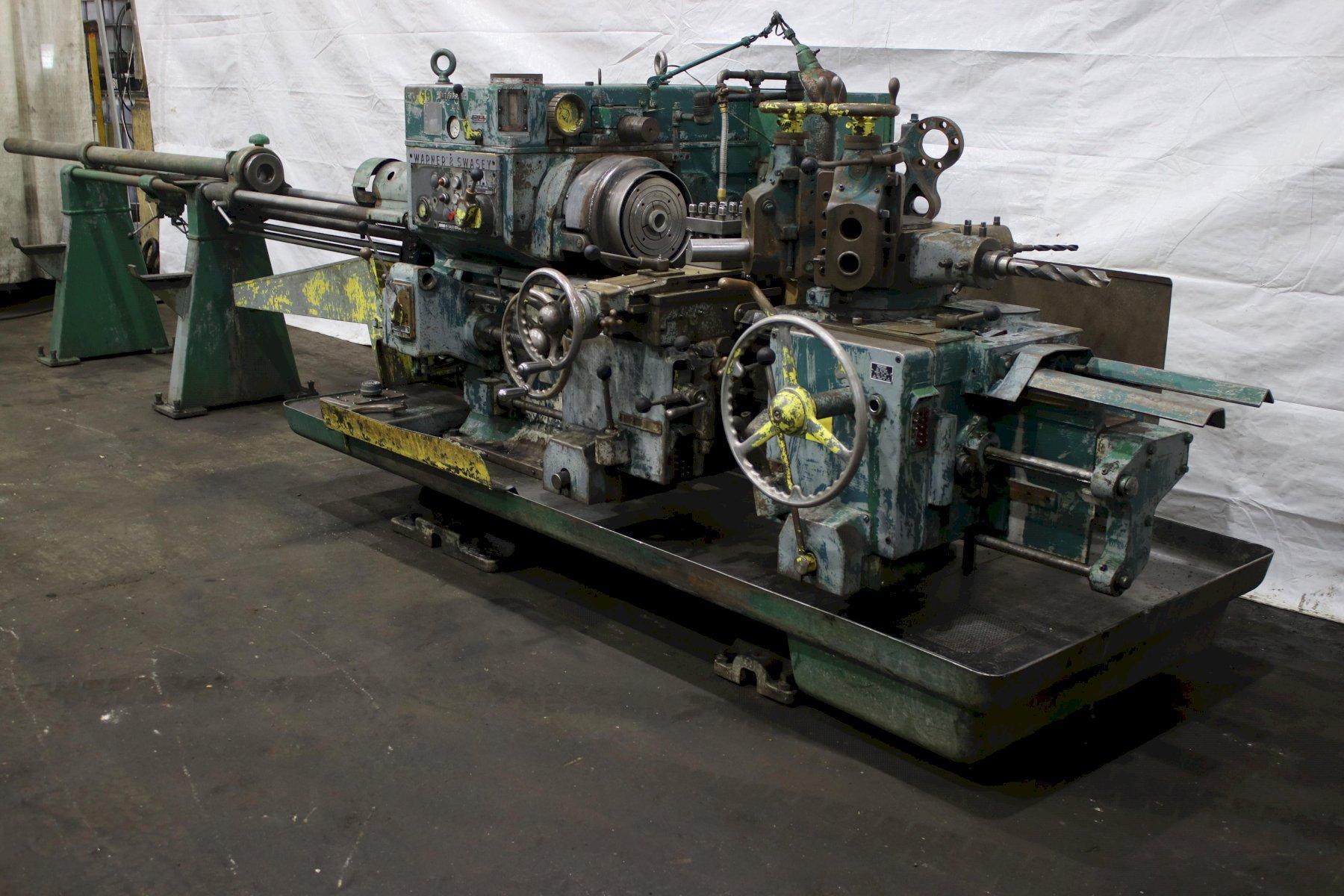

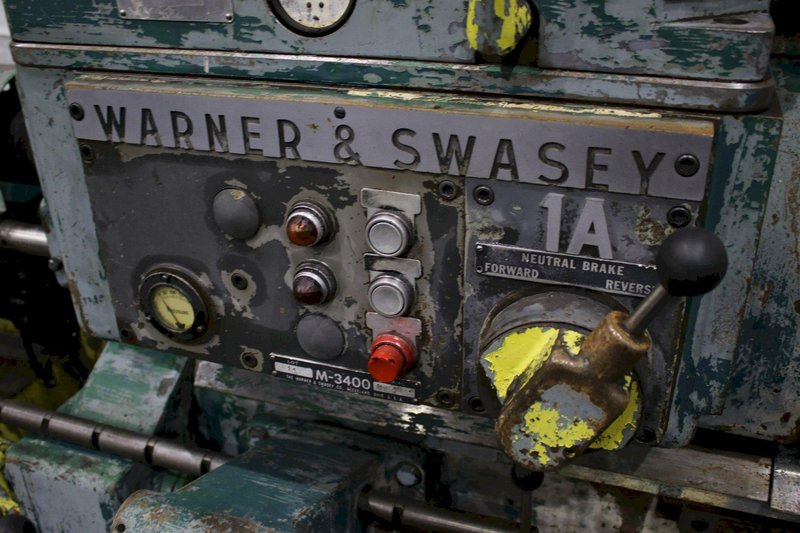

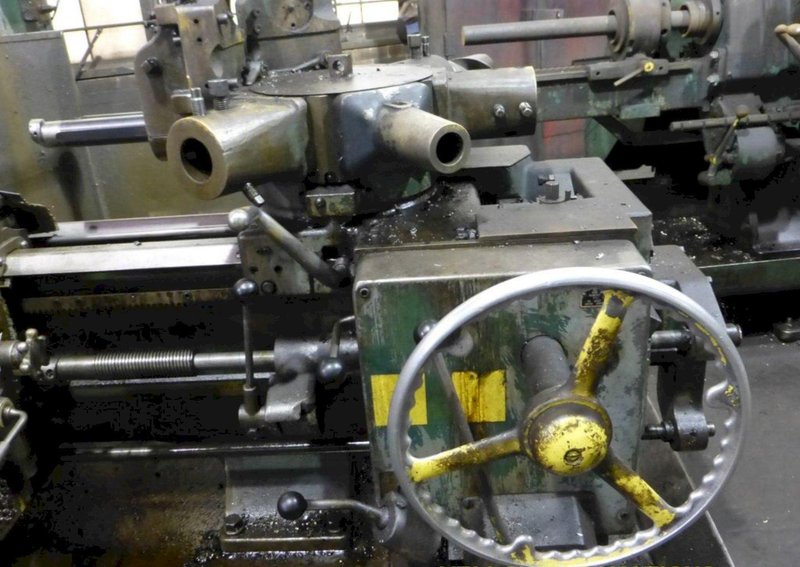

#1A WARNER & SWASEY SADDLE TYPE TURRET LATHE: STOCK #73300
Brand
Category
Type
Model
M-3400
Stock #
73300
Year
Not specified
Condition
Not specified
Location
Not specified
|

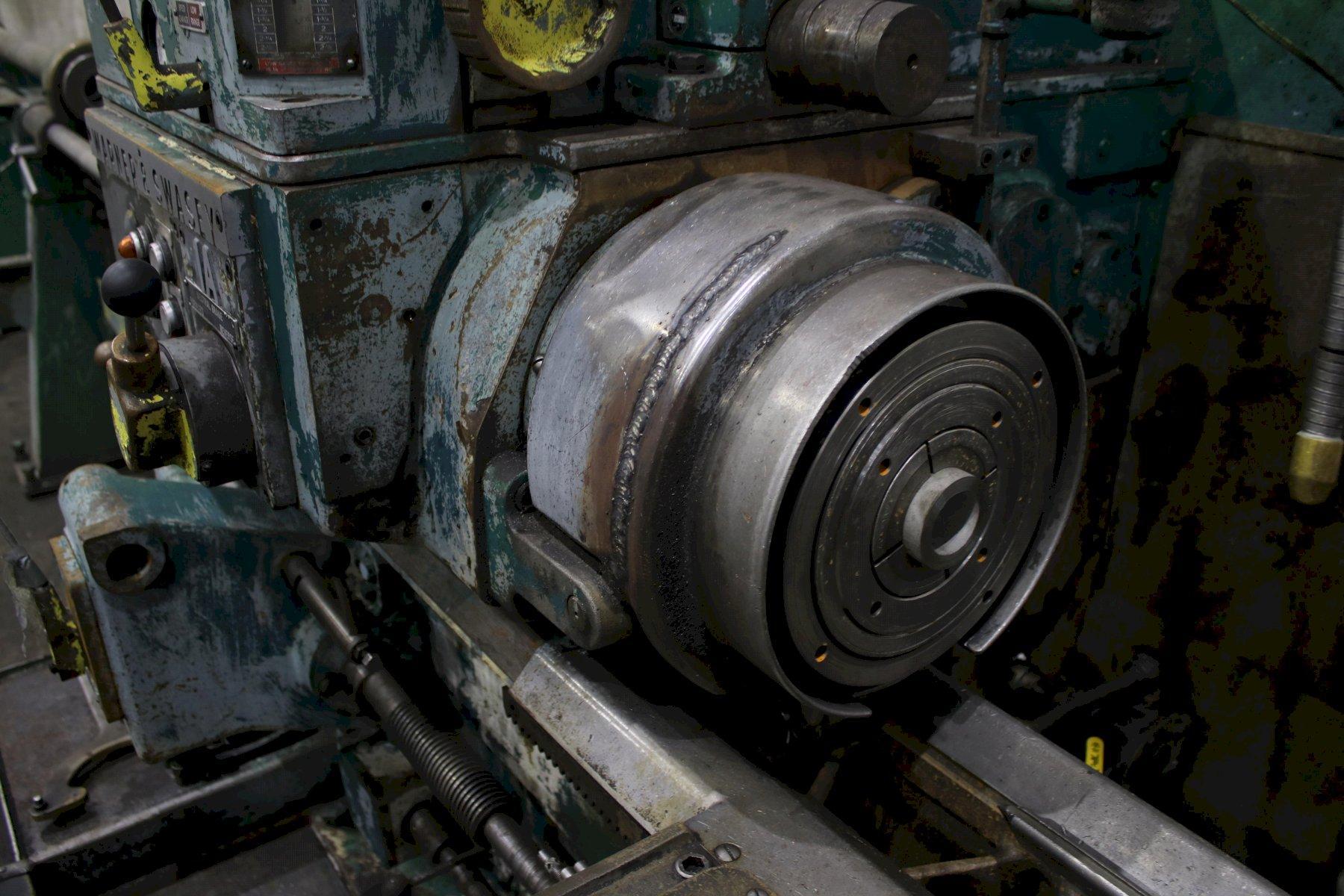

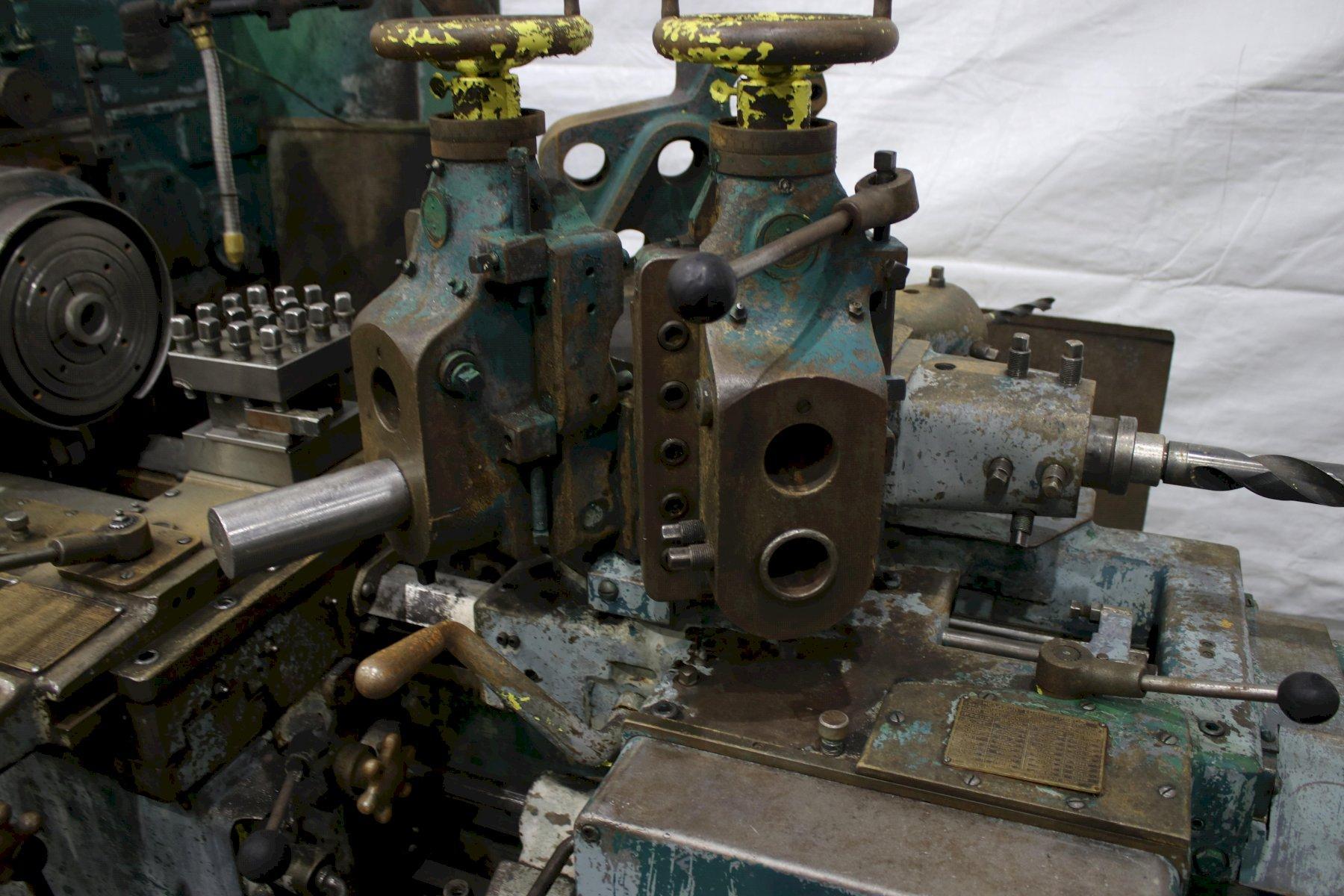

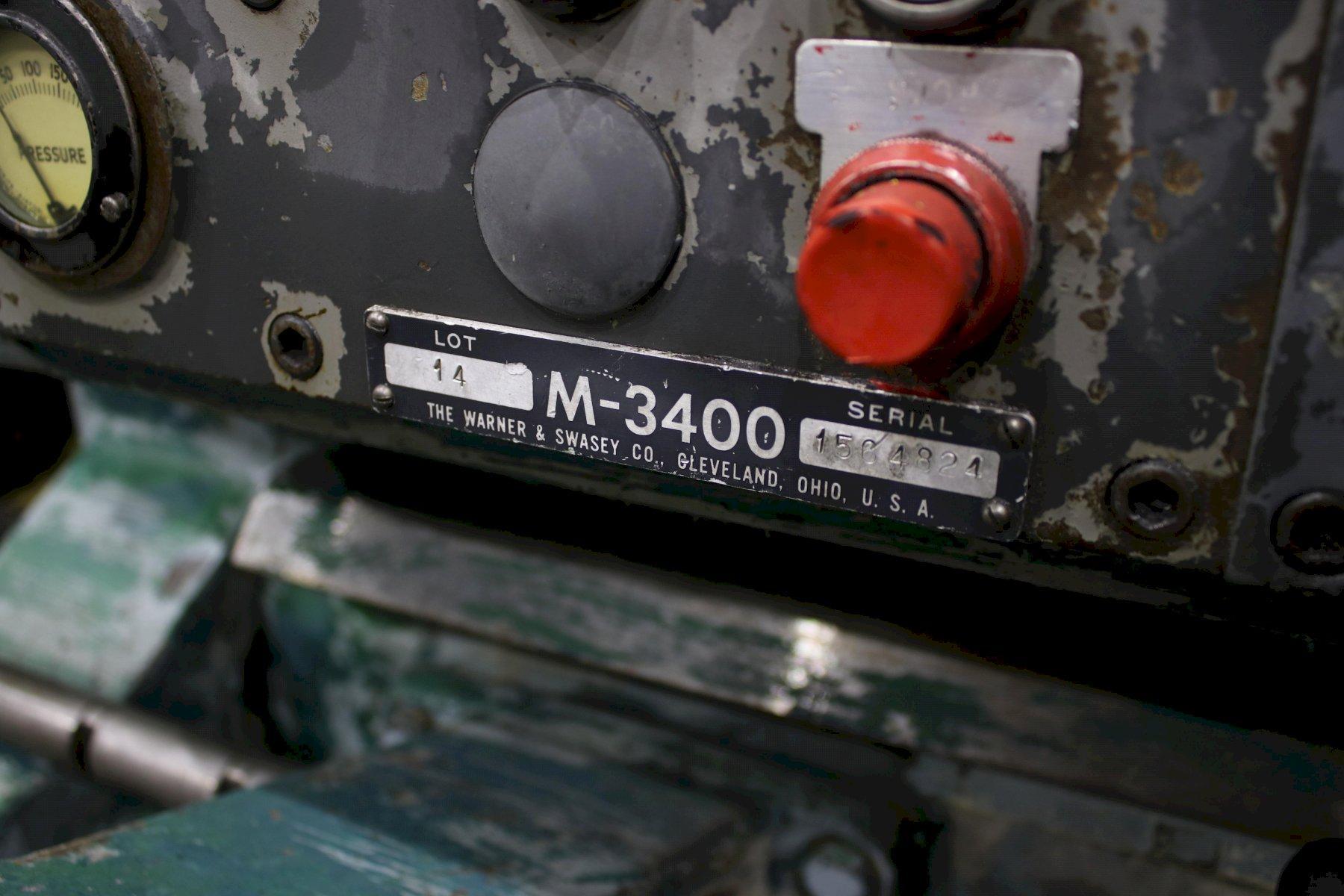

SERIAL .............................. 1564824 MODEL #1A ........................... (M-3400) SQUARE HEAD SWING OVER BED WAYS ................. 18" SWING OVER CARRIAGE HORN ............ 13-1/4" DISTANCE SPINDLE TO TURRET FACE ..... 43-3/4" SPINDLE SPEEDS ...................... (16) 40 TO 1497 RPM LONGITUDINAL AND TURRET FEEDS ....... (16) .004 TO .149 IPR CROSS SLIDE FEEDS ................... (16) .0022 TO .073 IPR DIAMETER OF SPINDLE HOLE ............ 3" CHUCK ............................... 4 JAW LEAD ON THREADING ................... YES BAR FEED ............................ YES 6 POSITION TURRET CARRIAGE STOP ..... YES ADJUSTABLE TOOL HOLDERS ............. 2 FLANGE TOOL HOLDERS ................. 4 RAPID TRAVERSE ....................... YES COOLANT WITH CHIP PAN ............... YES HORSEPOWER MAIN MOTOR ............... 25 |
