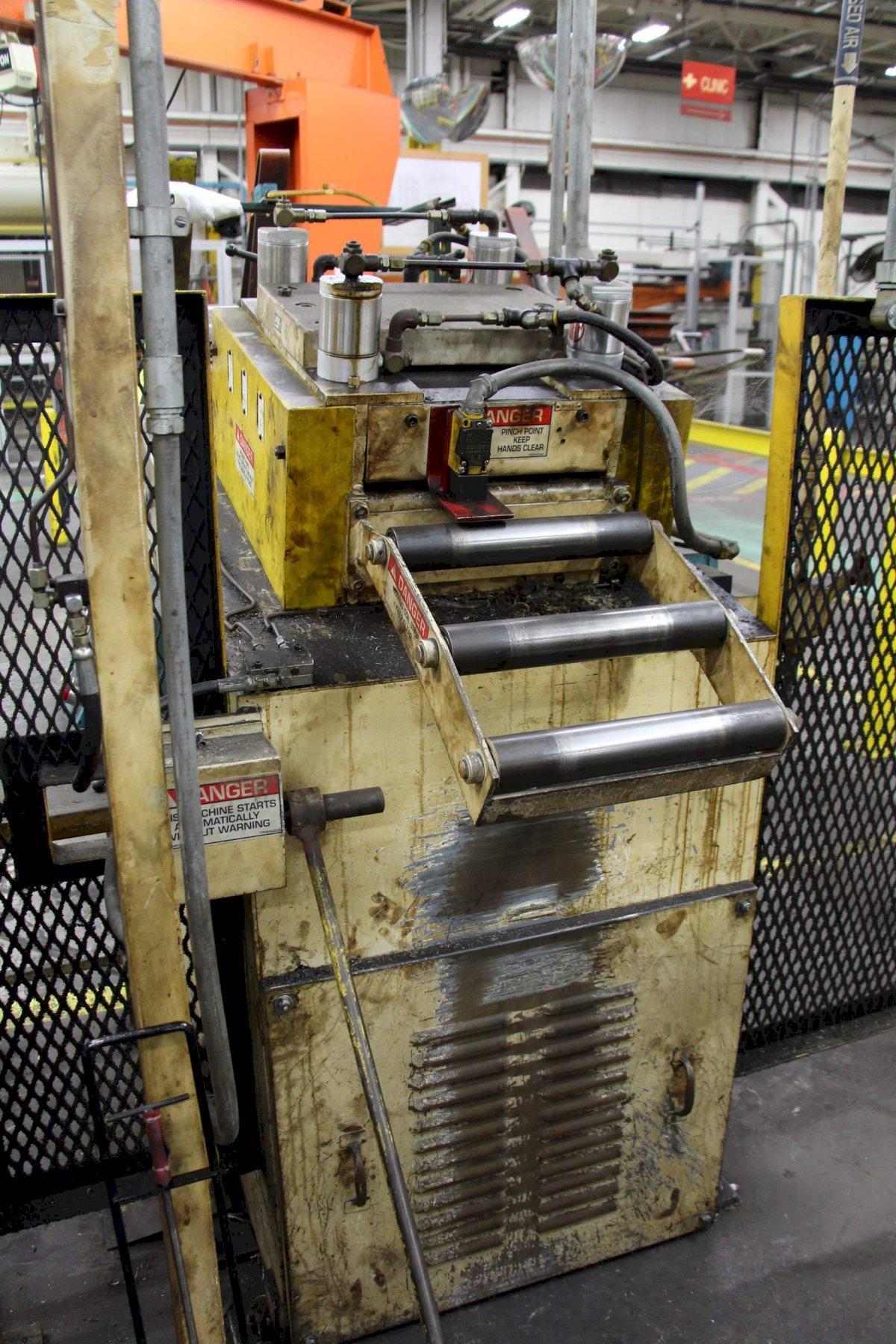

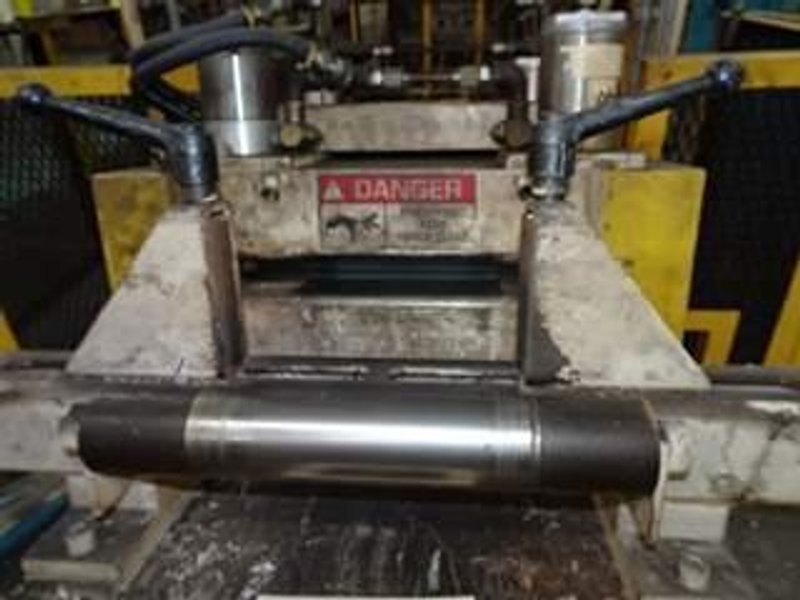

12' X .080 COE COIL FEED LINE: STOCK #67541
Brand
Not specified
Category
Type
Model
18
Stock #
67541
Year
Not specified
Condition
Not specified
Location
Ohio
|

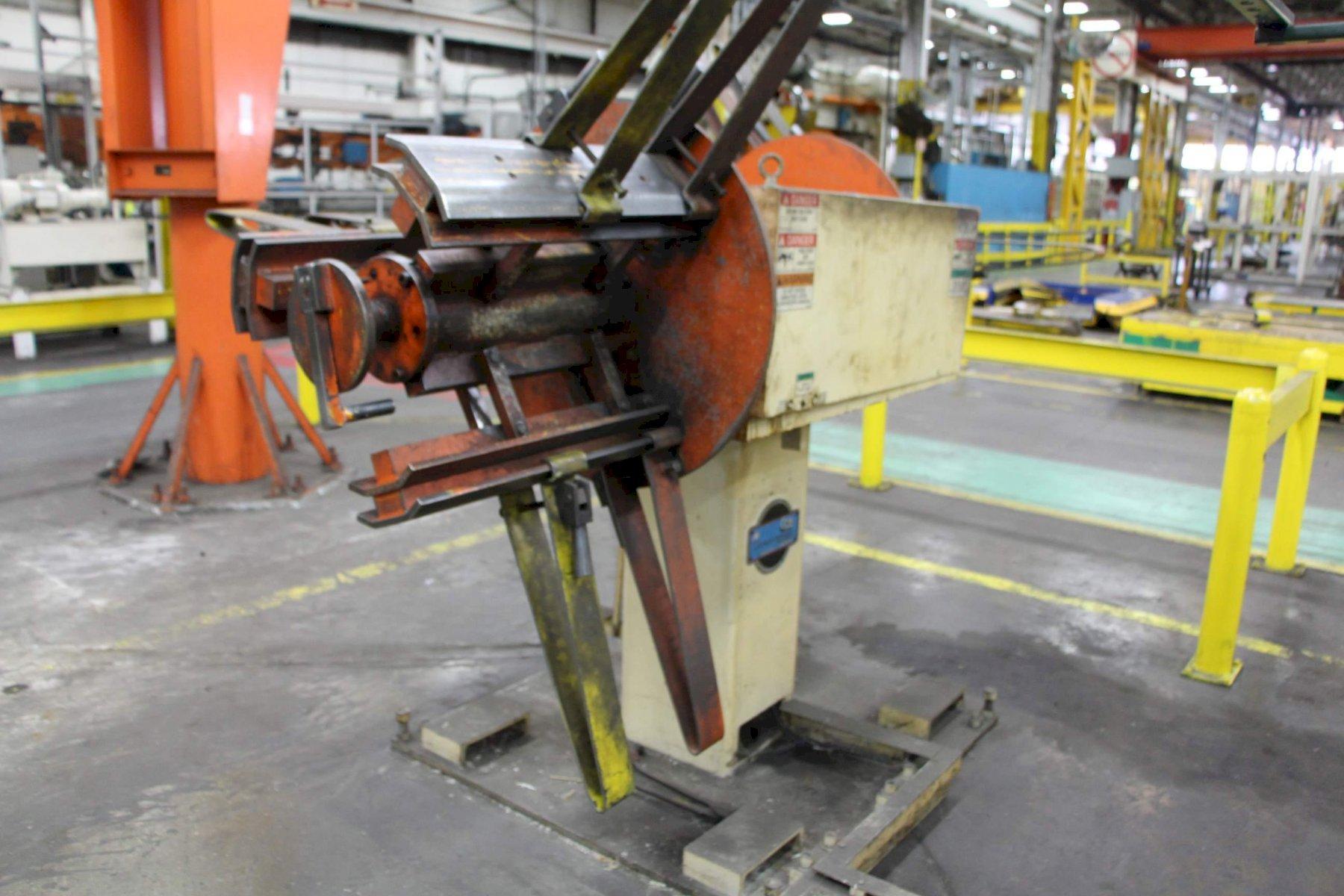

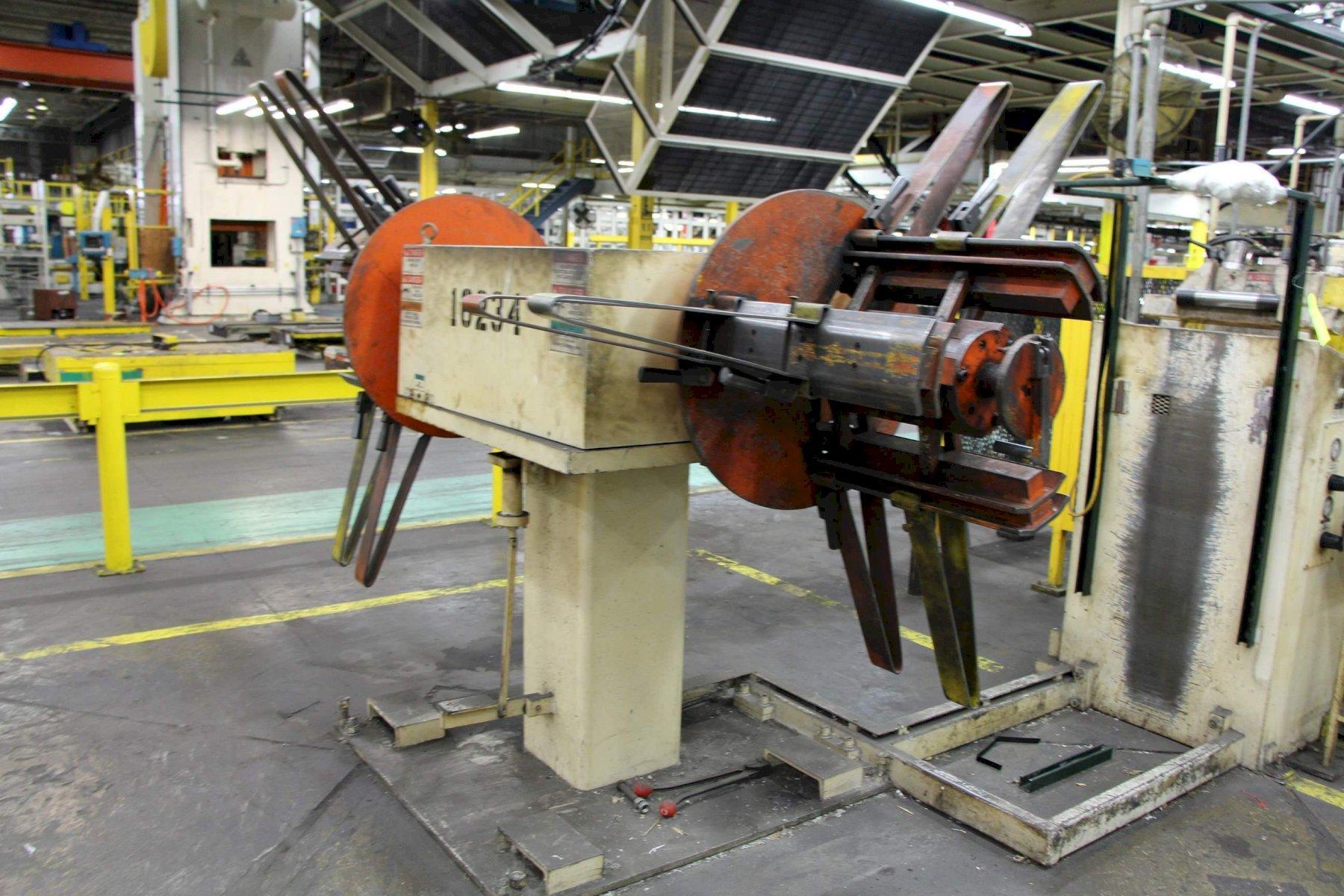

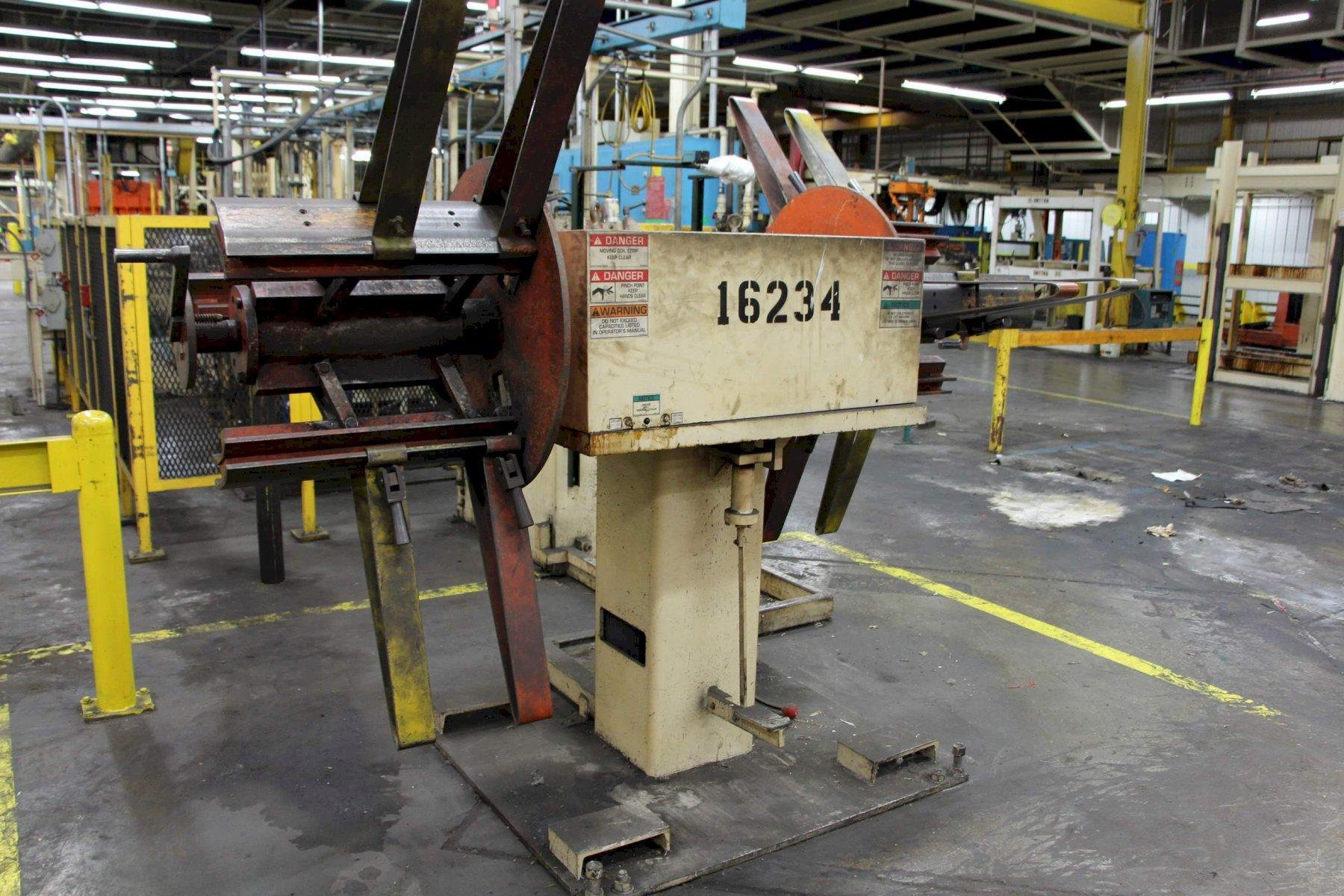

CONSISTS OF: 6000 LBS X 18" COE DOUBLE END COIL REEL SERIAL .......................... 24791-3 MODEL ........................... CPR-DE-PO-6018 YEAR NEW ........................ 2000 CAPACITY ........................ 10,000 LBS COIL WIDTH (MAX) ................ 18" COIL O.D. ....................... 60" COIL I.D ........................ 16" TO 21" SPECIAL COIL ADAPTER PADS I.D. .. 19" TO 24" BACKPLATE DIAMETER .............. 30" MANUAL EXPANSION ................ YES COIL KEEPERS .................... YES AIR DISC DRAG BRAKE ............. YES 12" X .080" COE MODEL CPPS-225-12 7 ROLL STRAIGHTENER SERIAL .......................... 24791-2 MODEL ........................... CPPS-225-12 YEAR NEW ........................ 2000 CAPACITY ........................ 0.020 TO 0.080 CAPACITY (MAX WIDTH) ............ 12" SPEED (MAX) ..................... 125 FPM NUMBER OF ROLLS ................. 7 (4 OVER 3) DIAMETER OF STRAIGHTENING ROLLS . 2-1/4" INDEPENTENT ROLL ADJUSTMENT ..... YES DIAMETER OF PINCH & EXIT ROLLS .. 3" ENTRY & EXIT PINCH ROLLS ........ YES PINCH ROLLS ADJUSTMENT .......... PNEUMATIC BRAKE ........................... PNEUMATIC DRAG ENTRY SLIDE & CLAMP EDGE GUIDES . YES REMOTE JOG PENDANT CONTROL ...... YES MOTOR ........................... 3 HORSEPOWER 12" X .080 COE MODEL CPRF-SM-1-12 COIL SERVO FEEDER MODEL ........................... CPRF SM-1 12 YEAR NEW ........................ 2000 CAPACITY (MAX WIDTH) ............ 12" CAPACITY ........................ .020 TO .080 SPEED (MAX) ..................... 295 FPM ACCELERATION .................... 100 F/S/S FEED ACCURACY ................... +/- .003" NUMBER OF FEED ROLLS ............ 2 DIAMETER OF ROLLS ............... 2-1/4" PASS LINE ....................... 39" ROLL PRESSURE (VARIABLE) ........ PNEUMATIC VERTICAL EDGE GUIDES ............ YES |
