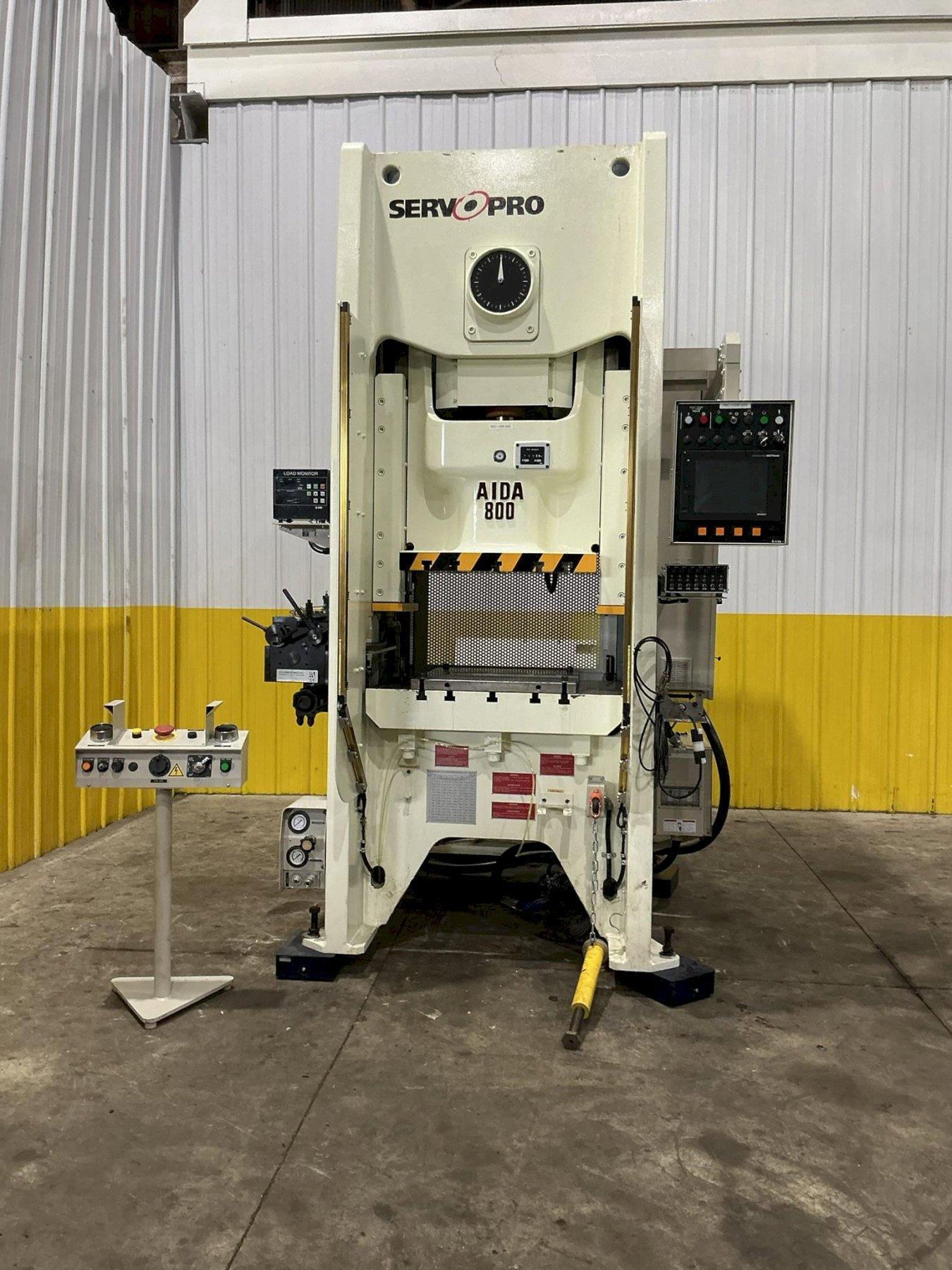

88 TON AIDA MODEL #DSF-N1-800 GAP FRAME PRESS 6.3” STROKE & PA SERVO COIL FEED LINE: YOBRO #25102

88 TON AIDA MODEL #DSF-N1-800 GAP FRAME PRESS 6.3” STROKE & PA SERVO COIL FEED LINE: YOBRO #25102

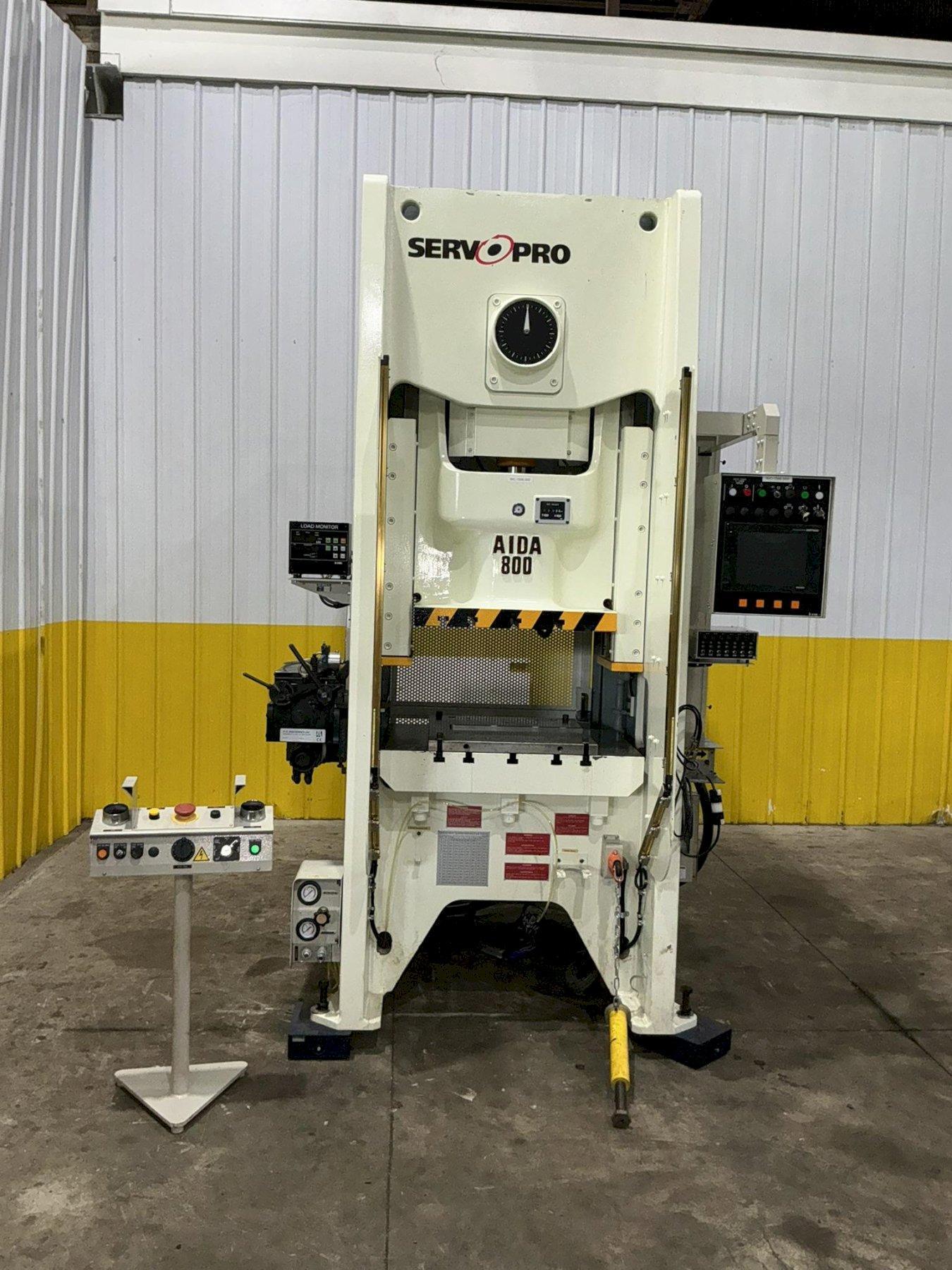

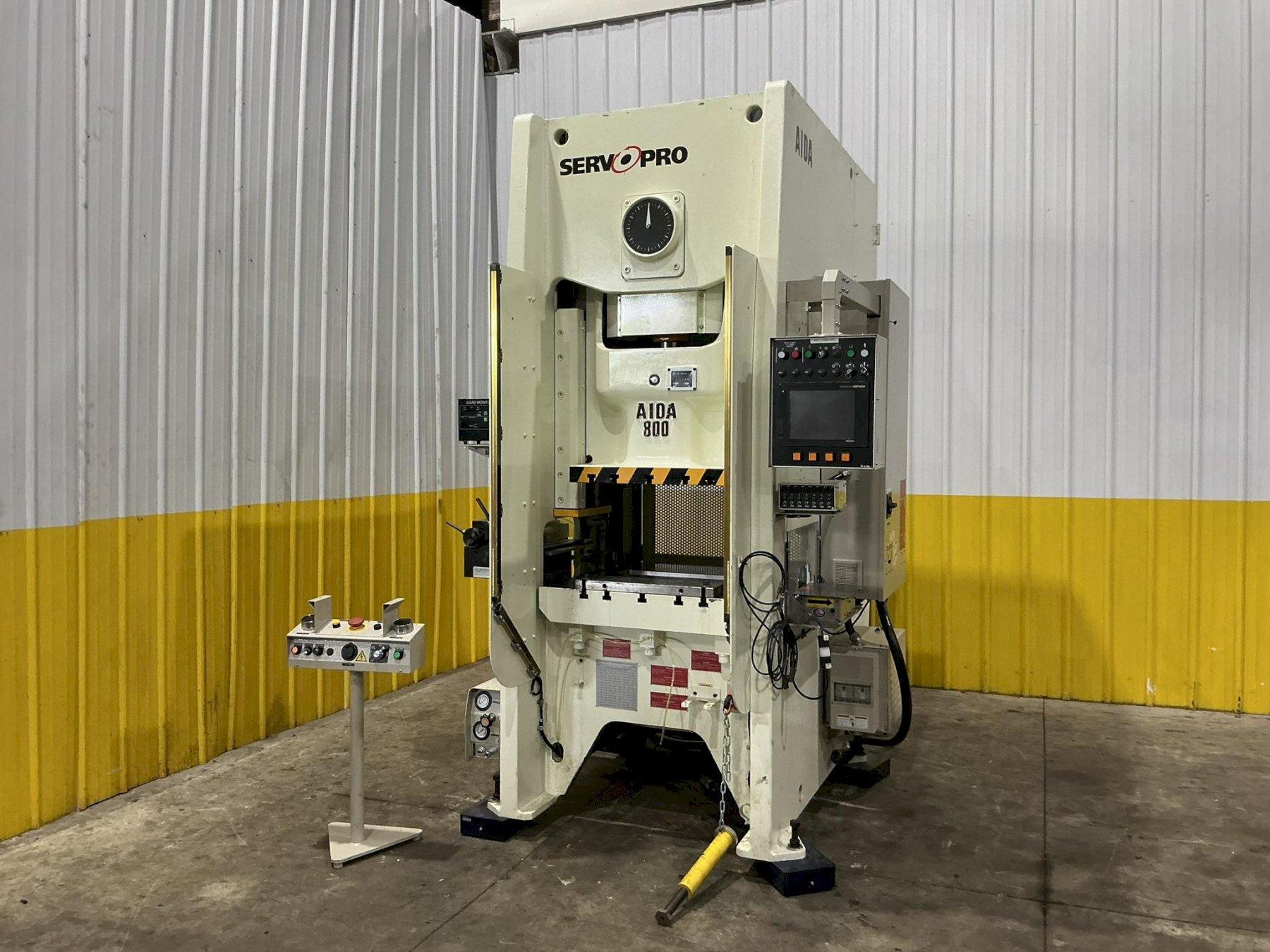

Name: 88 TON AIDA MODEL #DSF-N1-800 GAP FRAME PRESS 6.3” STROKE & PA SERVO COIL FEED LINE: YOBRO #25102
Brand: AIDA
SKU: 25102
Availability: InStock

Brand

AIDA

Location

Ohio

REQUEST FINANCING

Specifications
Files & Videos

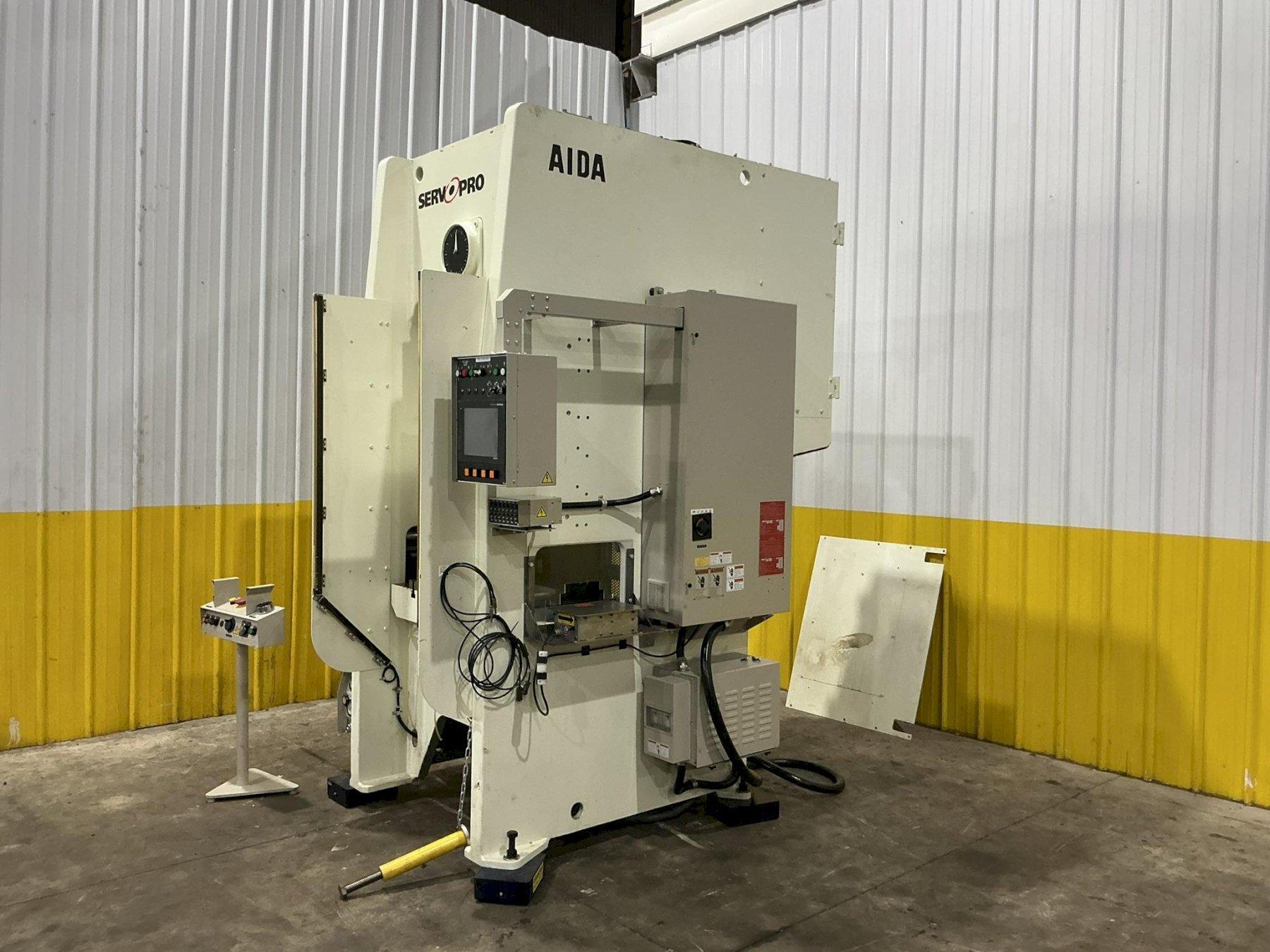

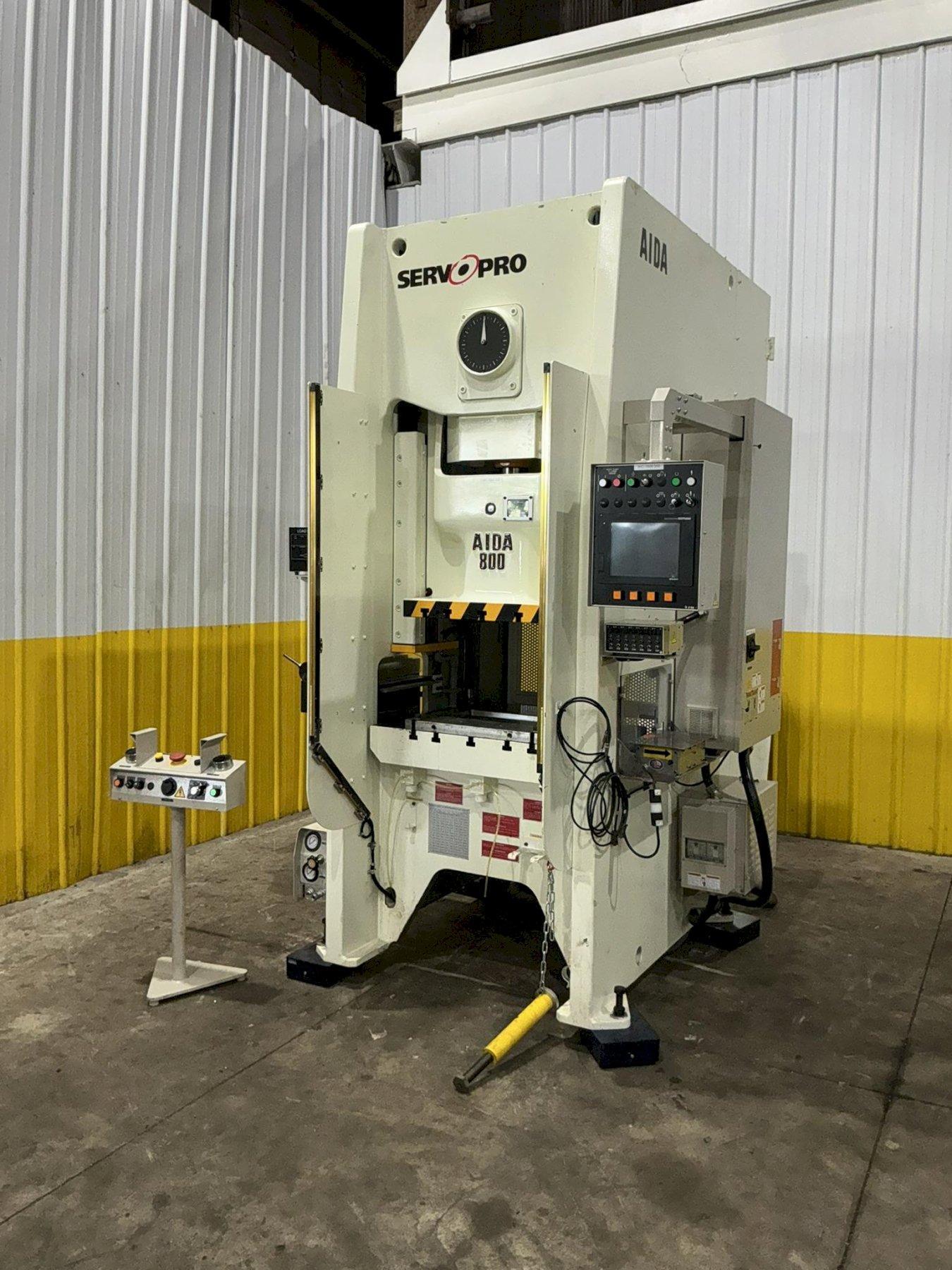

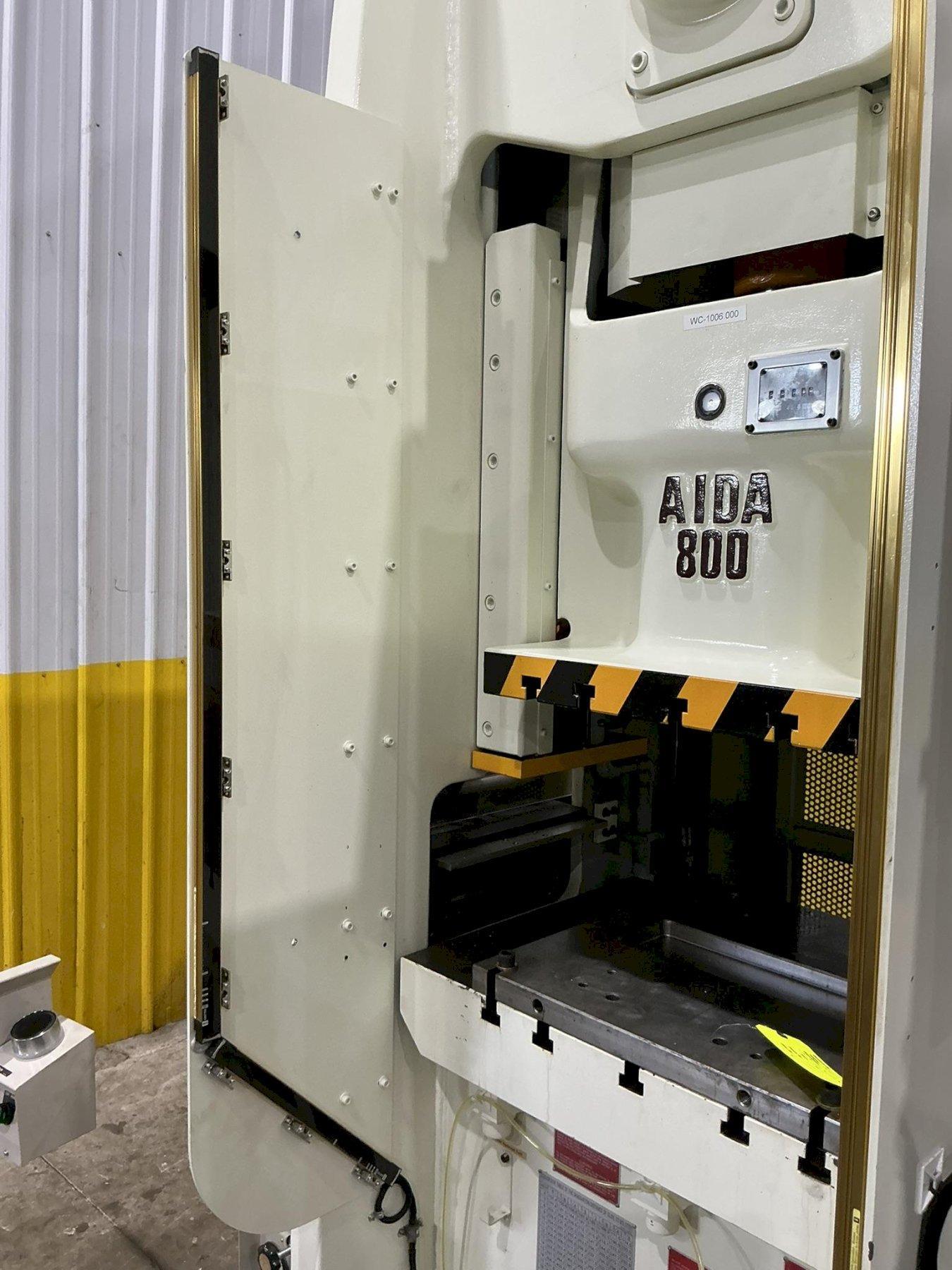

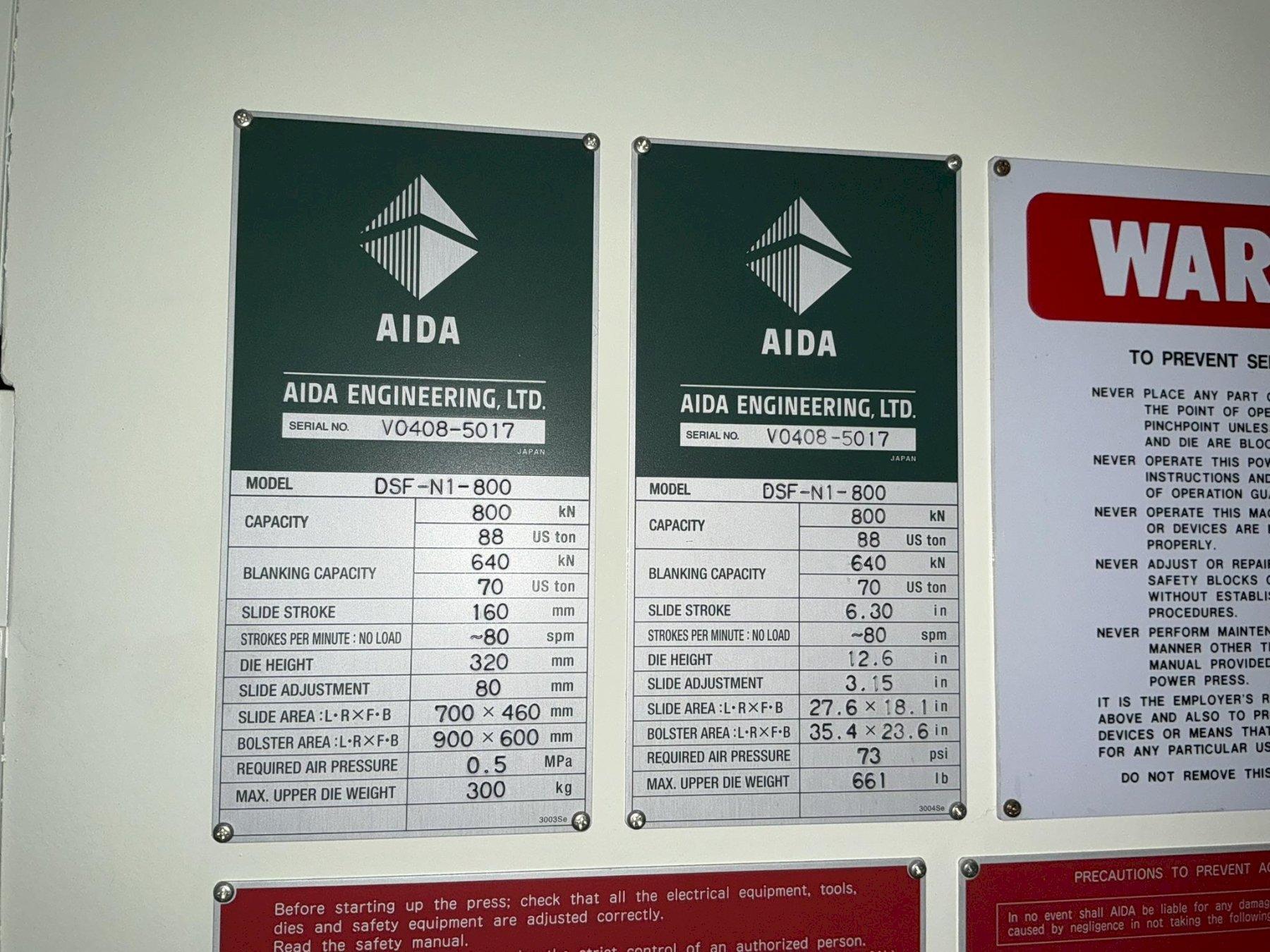

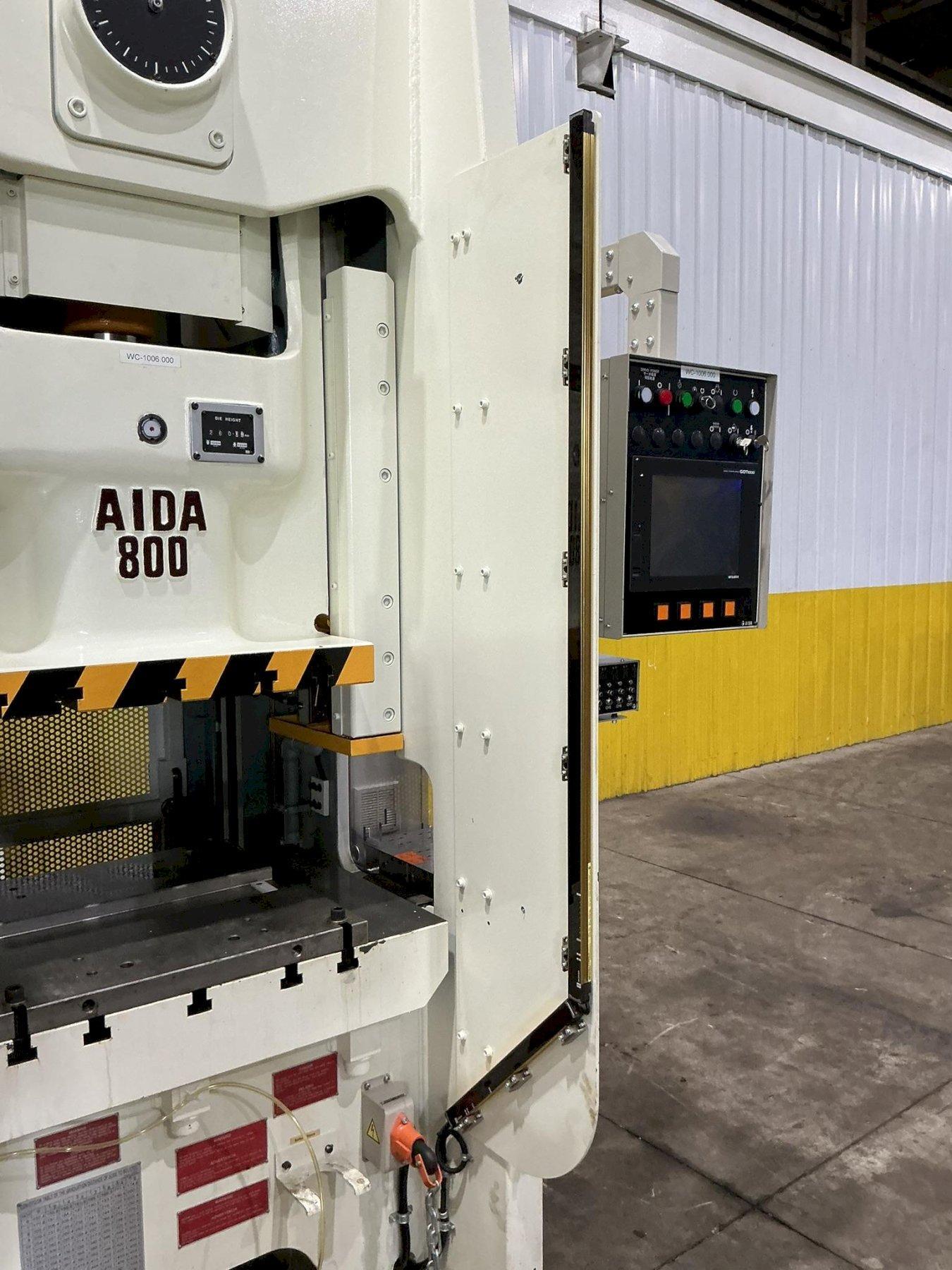

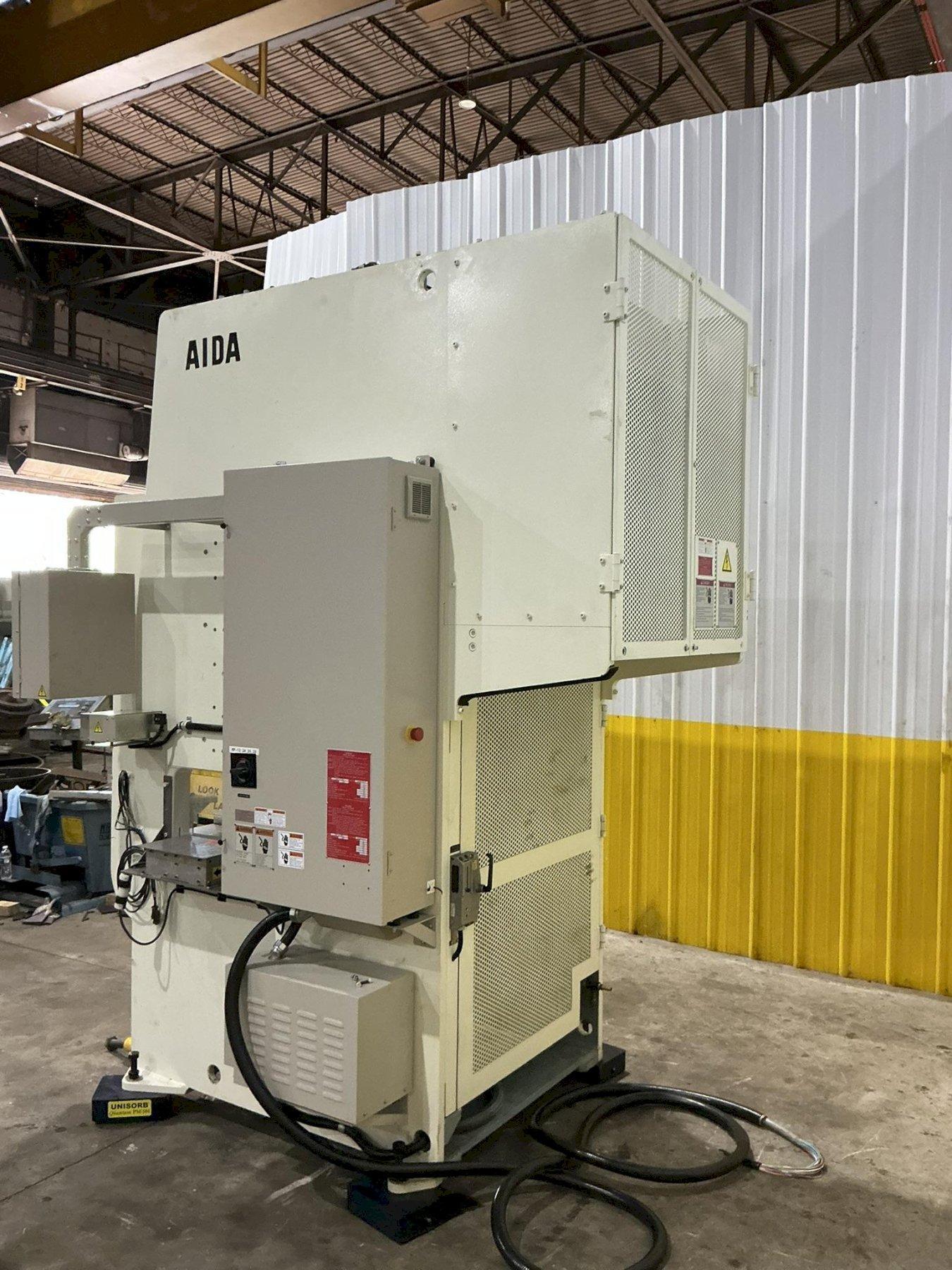

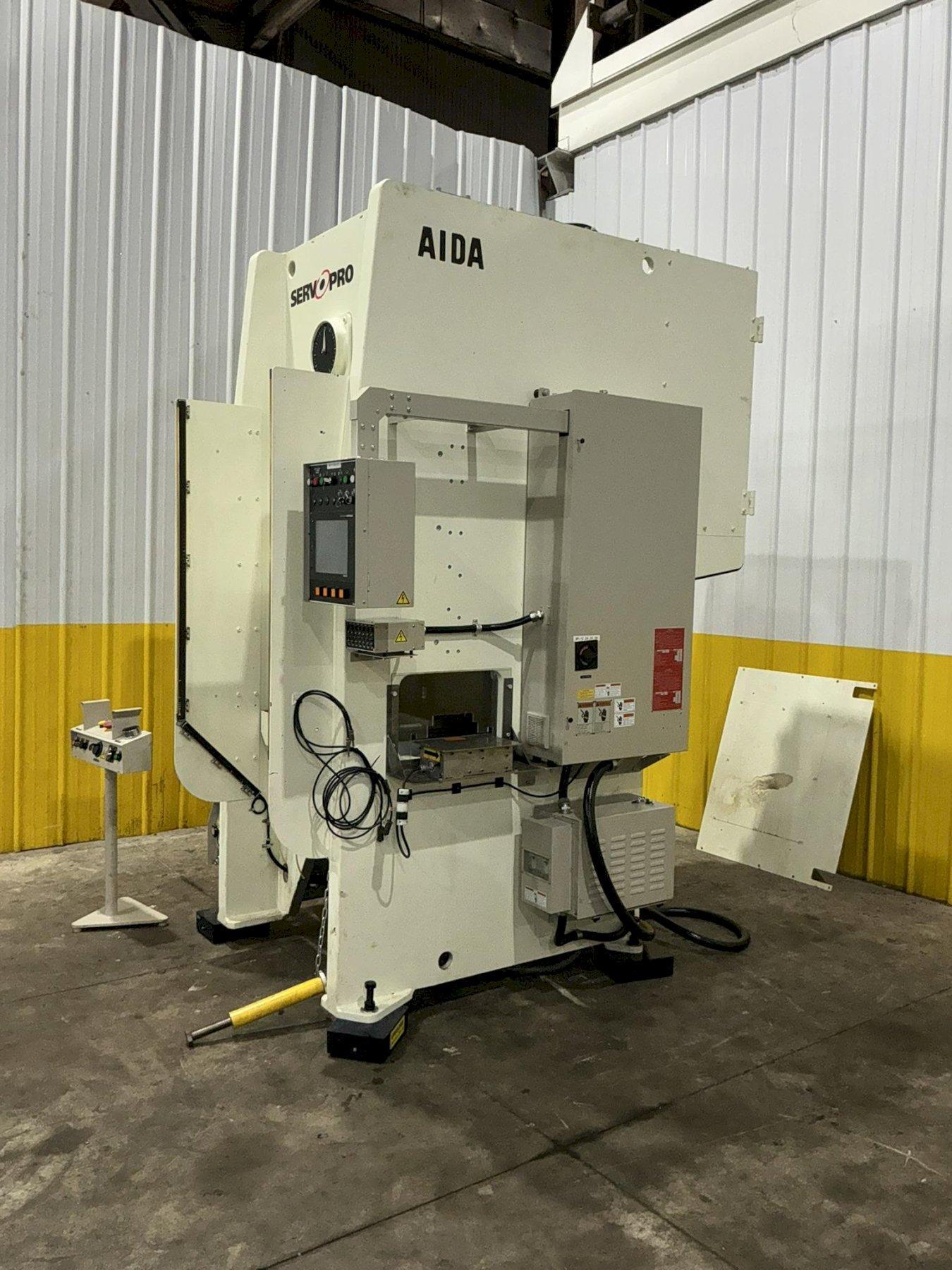

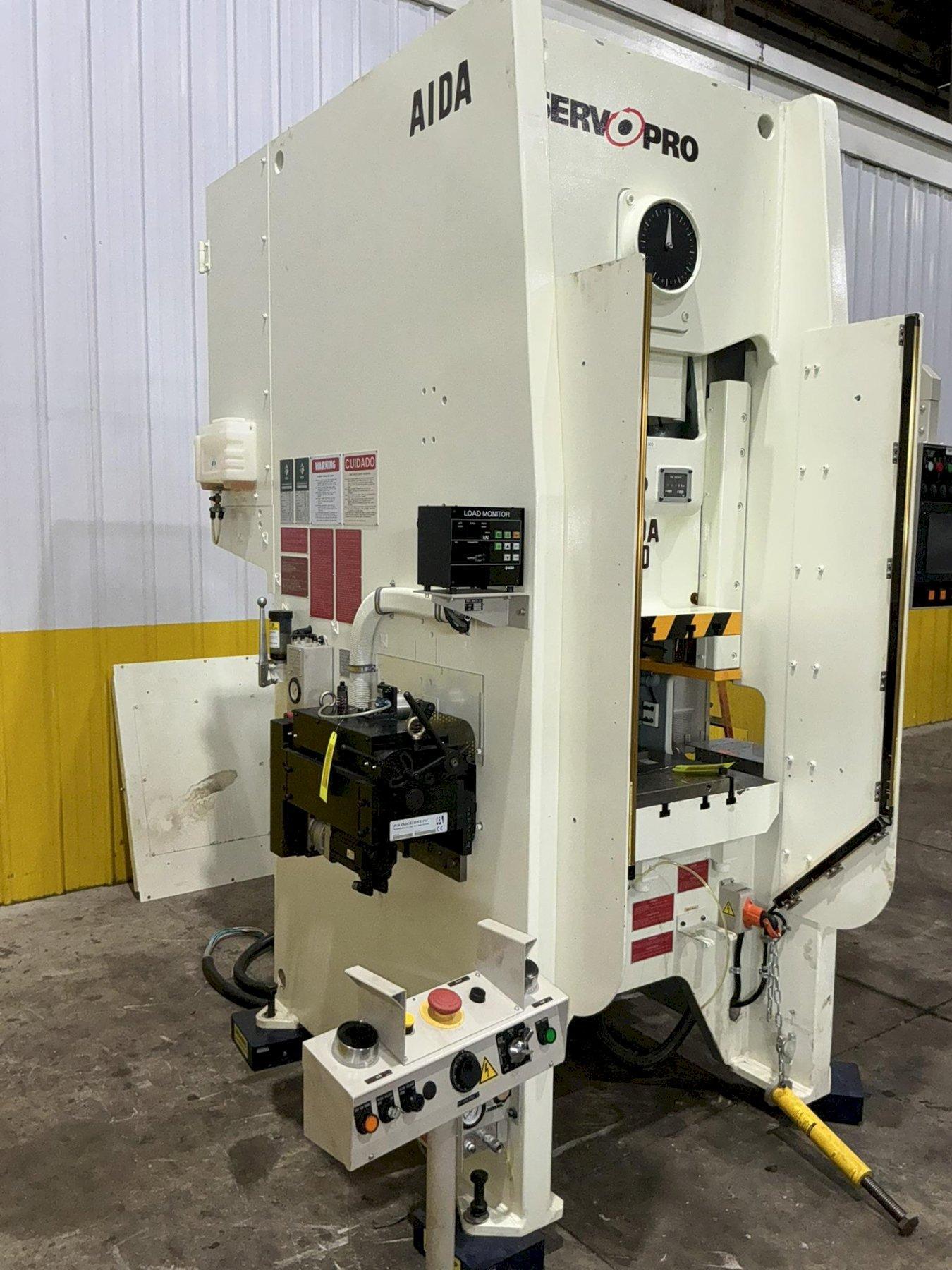

PRESS
SERIAL V0408-5017
NEW 2015
MODEL DSF-M1-800
CAPACITY 88 TON / 800 kN
BLANKING CAPACITY 70 TON / 640 kN
STROKE 6.30" / 160 MM
SPEED 80 SPM
DIE HEIGHT 12.6" / 320 MM
ADJUSMENT MOTORIZED
SLIDE ADJUSTMENT 3.15" / 80 MM
SLIDE AREA 327.6" X 18.1" / 700 X 460 MM
BOLSTER AREA 35.4" X 23.6" / 900 X 600 MM
UPPER DIE WEIGHT 661 LBS / 300 KG
WINDOWS 11.8" X 17.3" / 300 X 440 MM

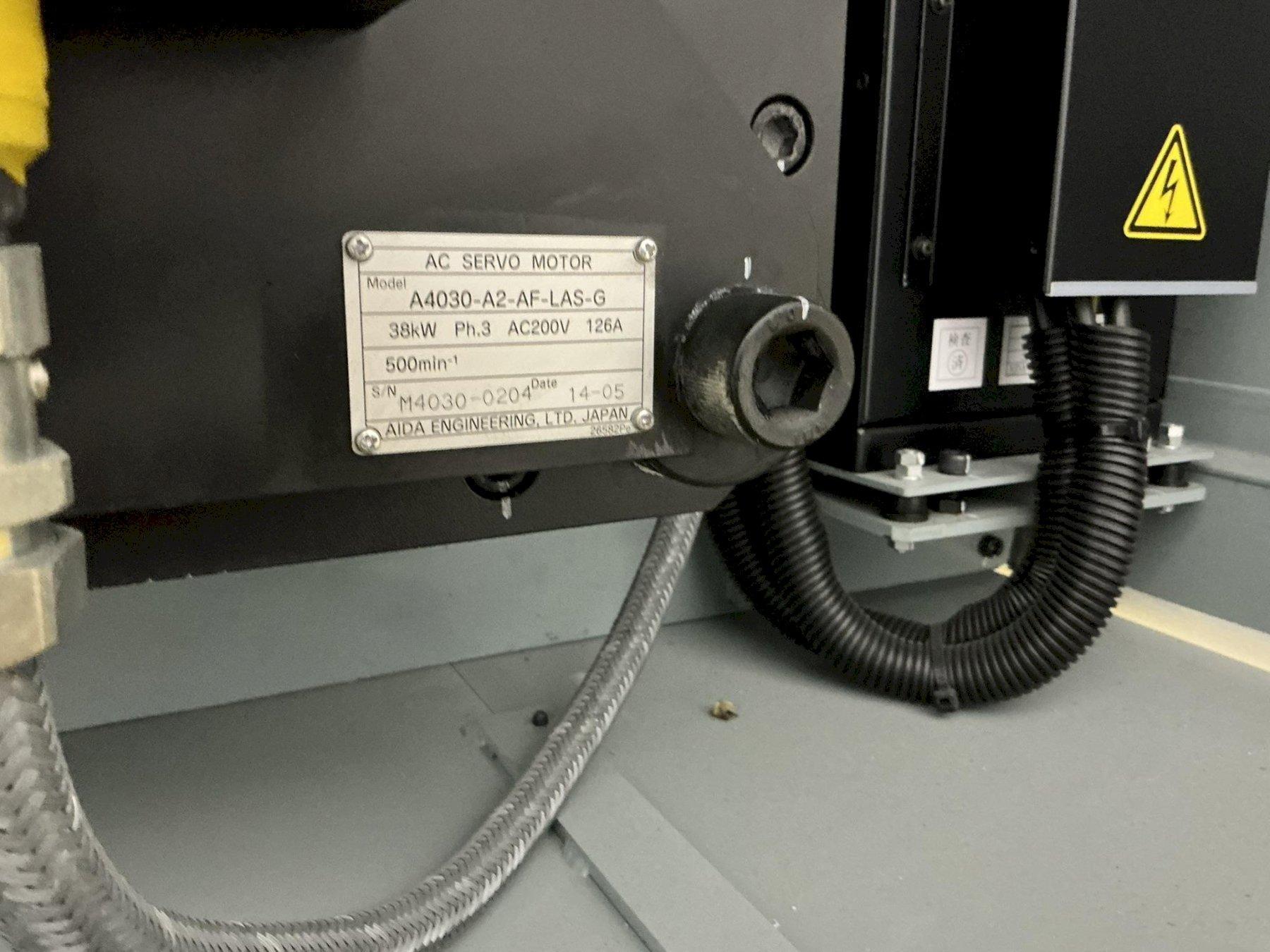

MOTOR SERVO 25 KW

FEED LINE

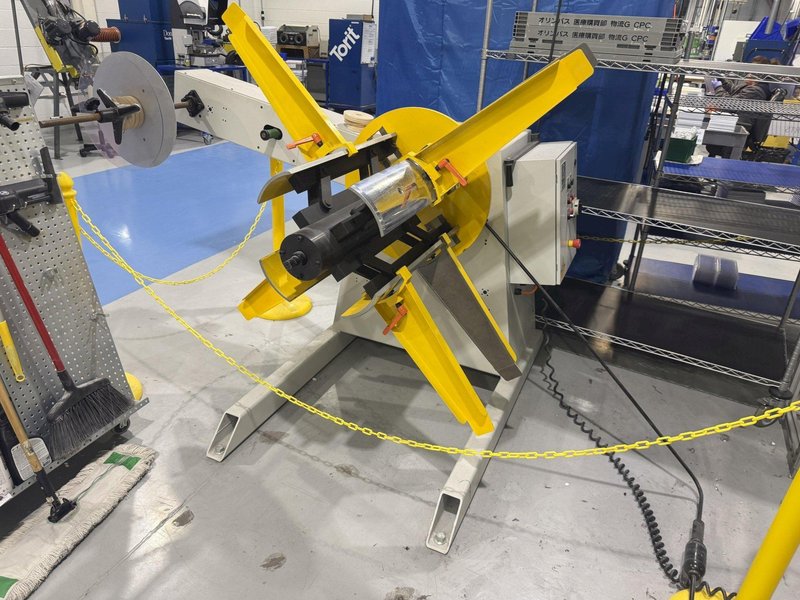

COIL REEL UNCOILER

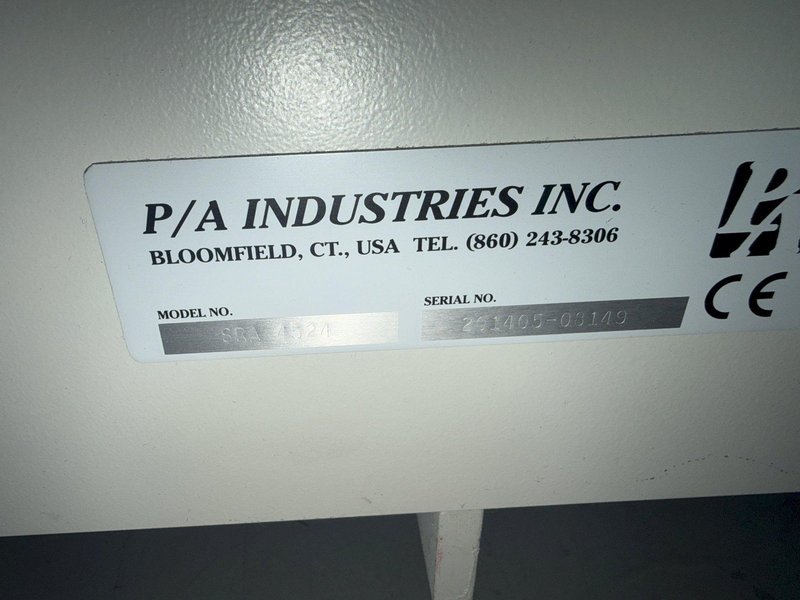

SERIAL 201405-08149
MODEL SRA4524
NEW 2015
CAPACITY 4,500 LBS
STOCK WIDTH 24"
COIL ID 15.7" TO 20.5"
COIL OD 60"
MOTORIZED
SPEED 3 TO 15 RPM
DRIVE MOTOR 1 HP

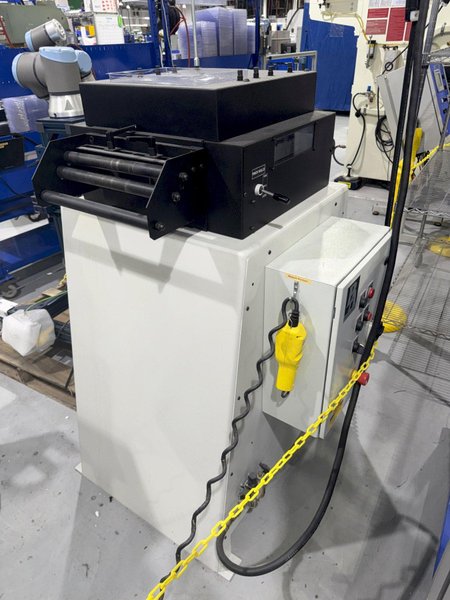

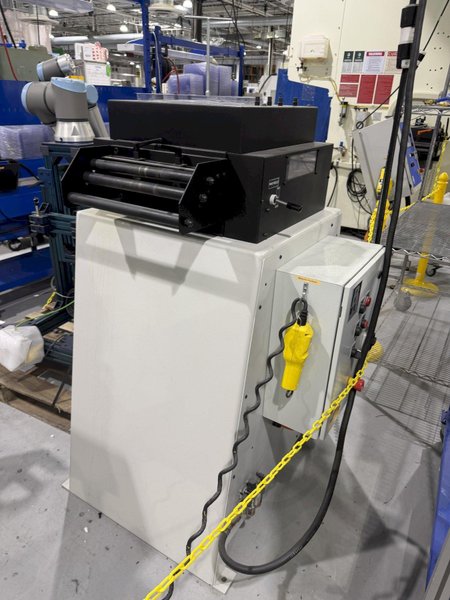

STRAIGHTENER

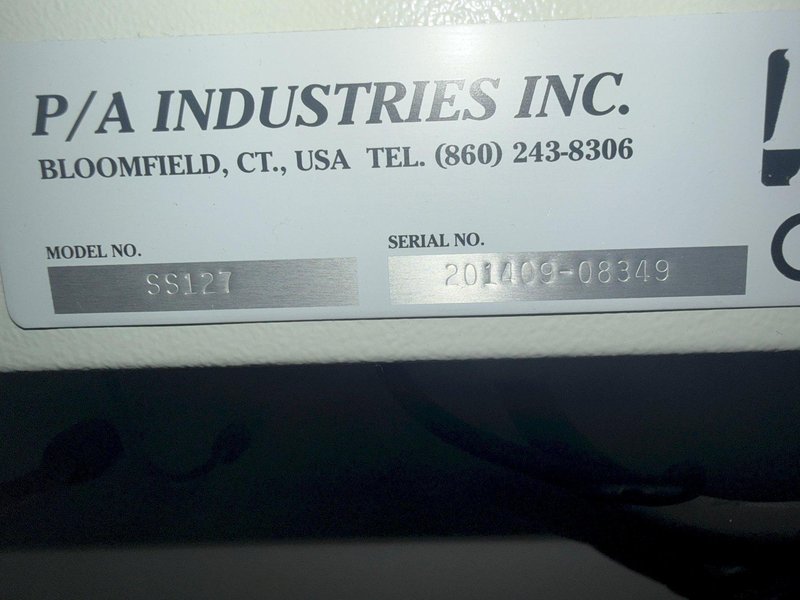

SERIAL 201409-08349
MODEL SS127
NEW 2015
CAPACITY 12" WIDE
CAPACITY .125" THICK @ 12"
STRAIGHTENING ROLLS 7
MOTORIZED

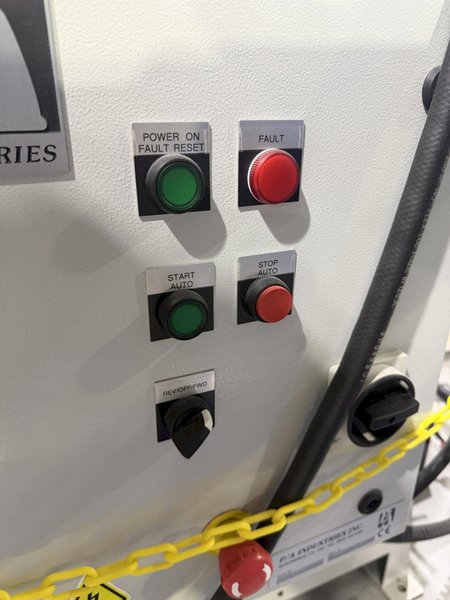

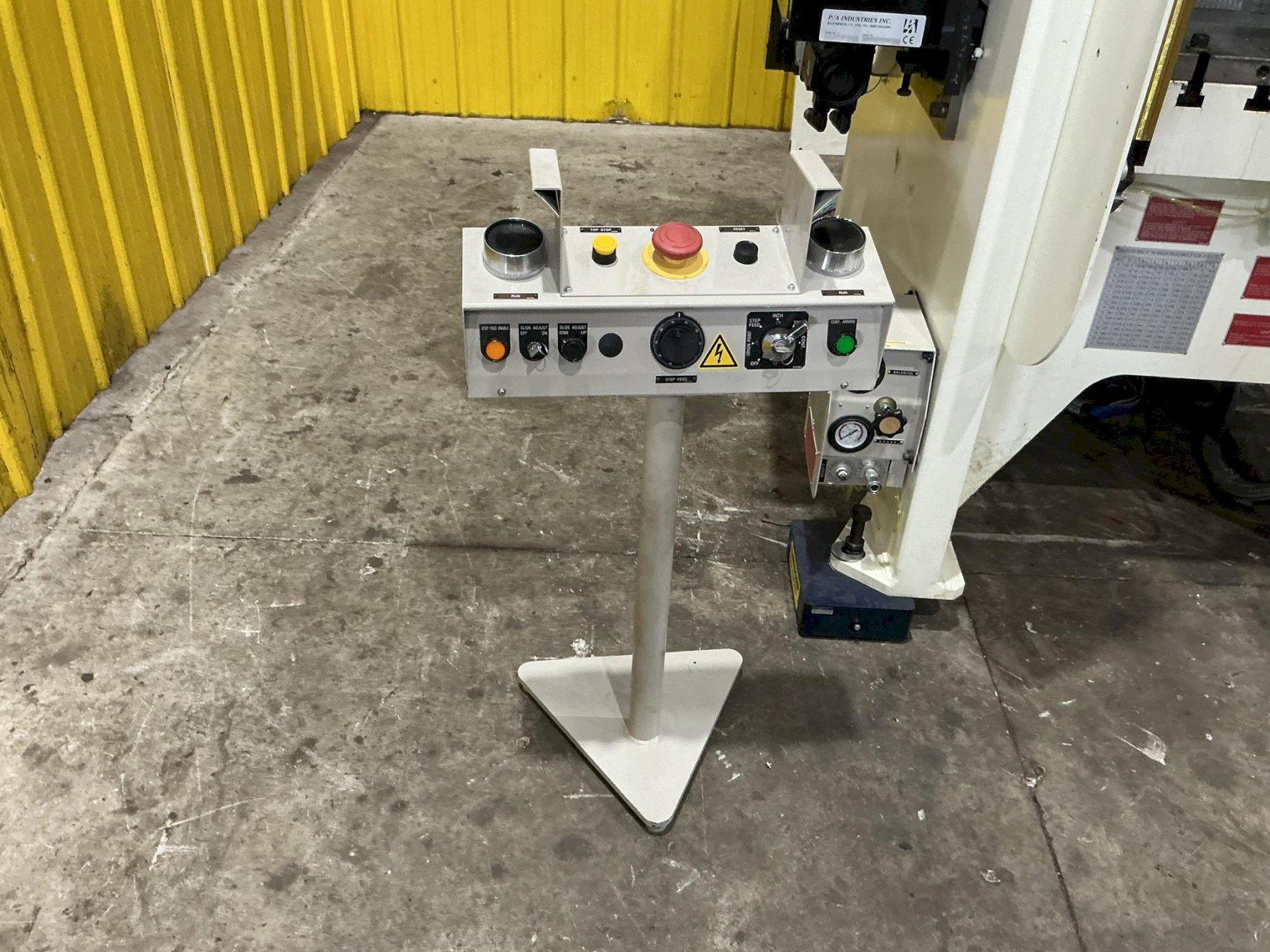

CONTROLS

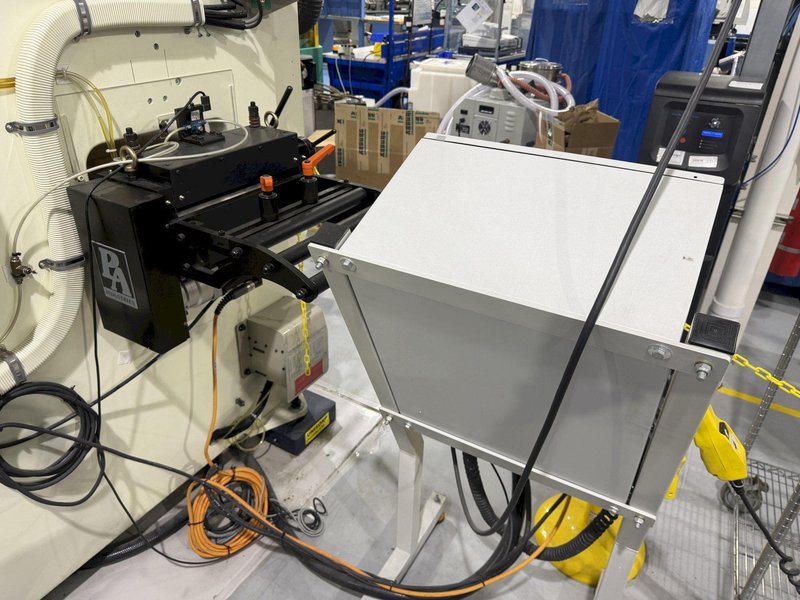

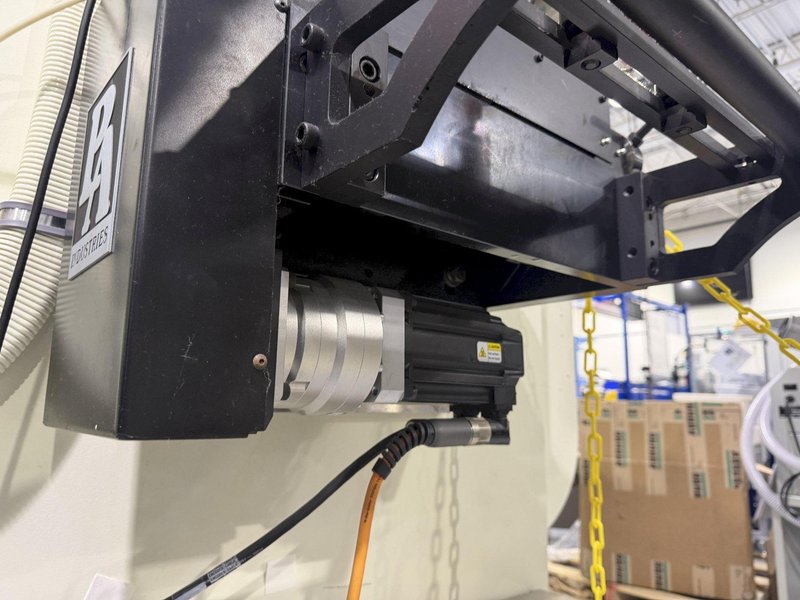

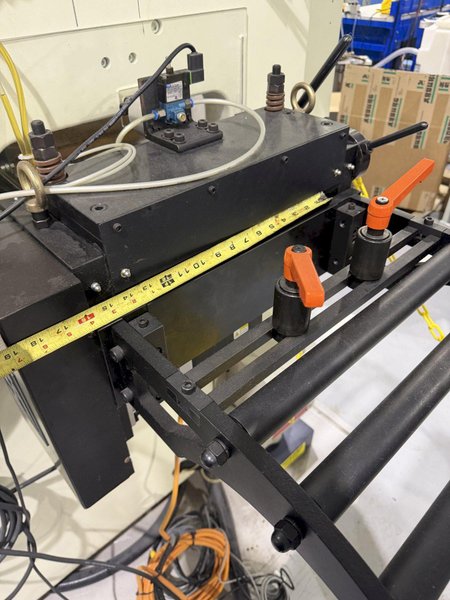

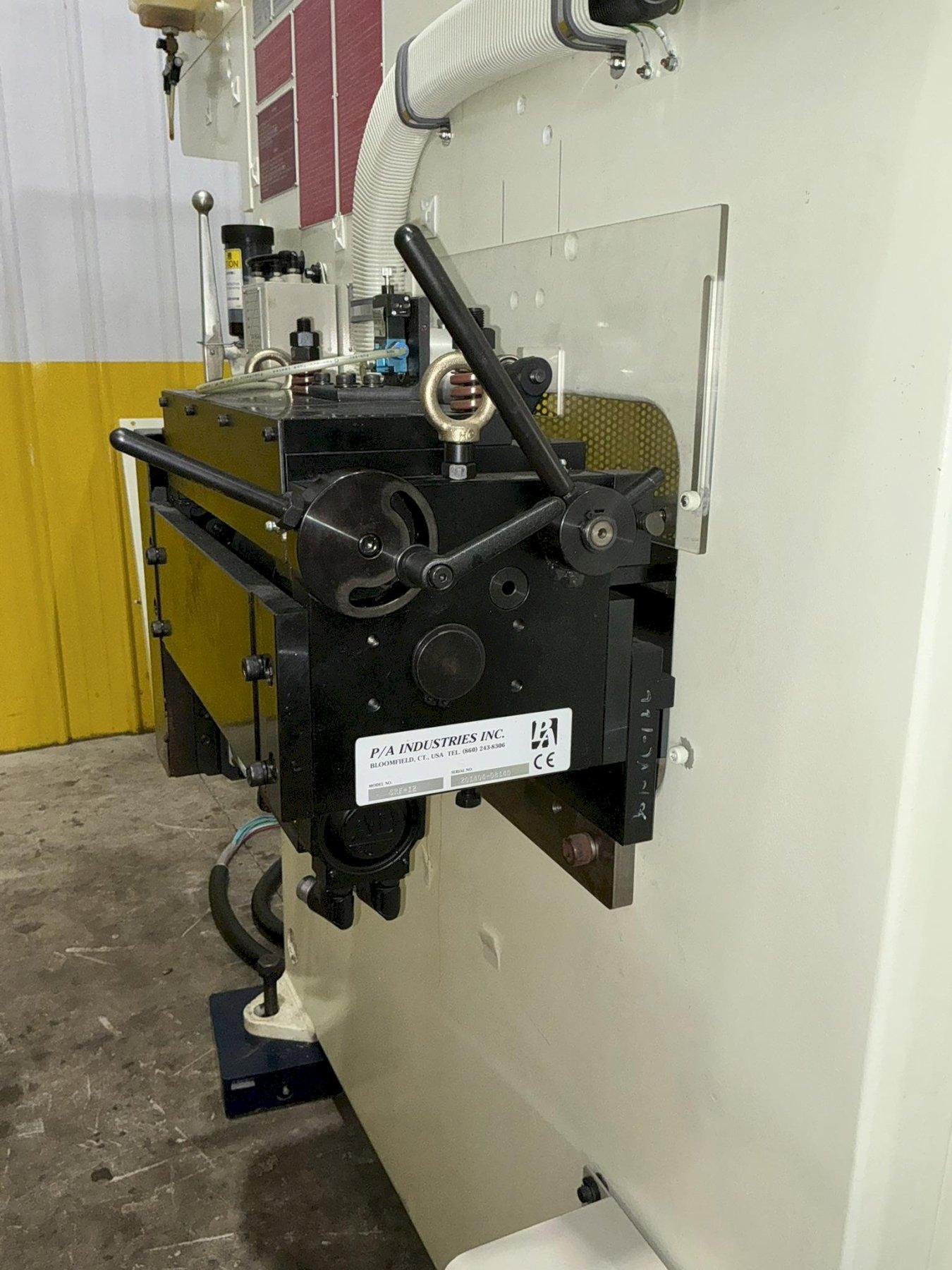

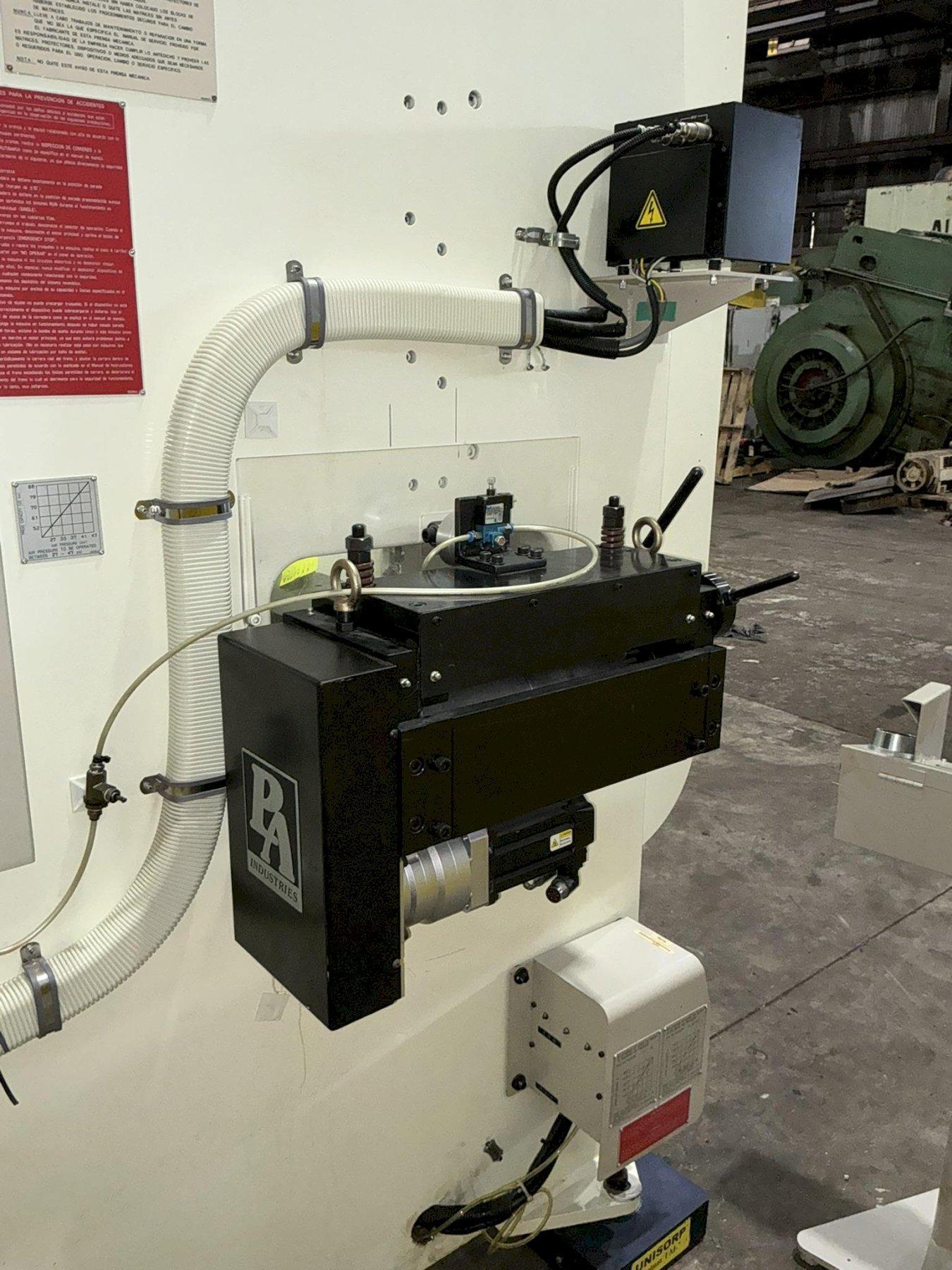

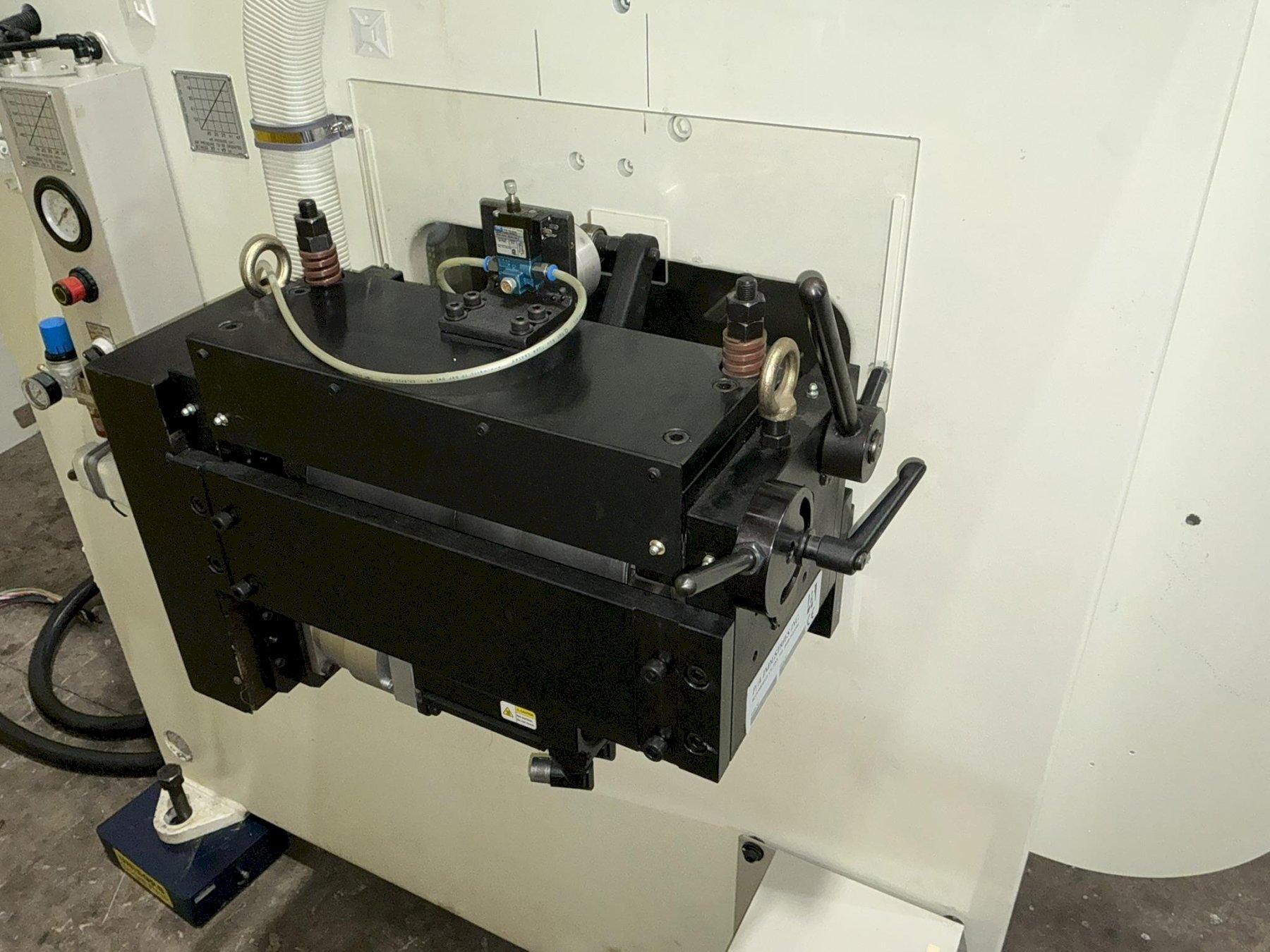

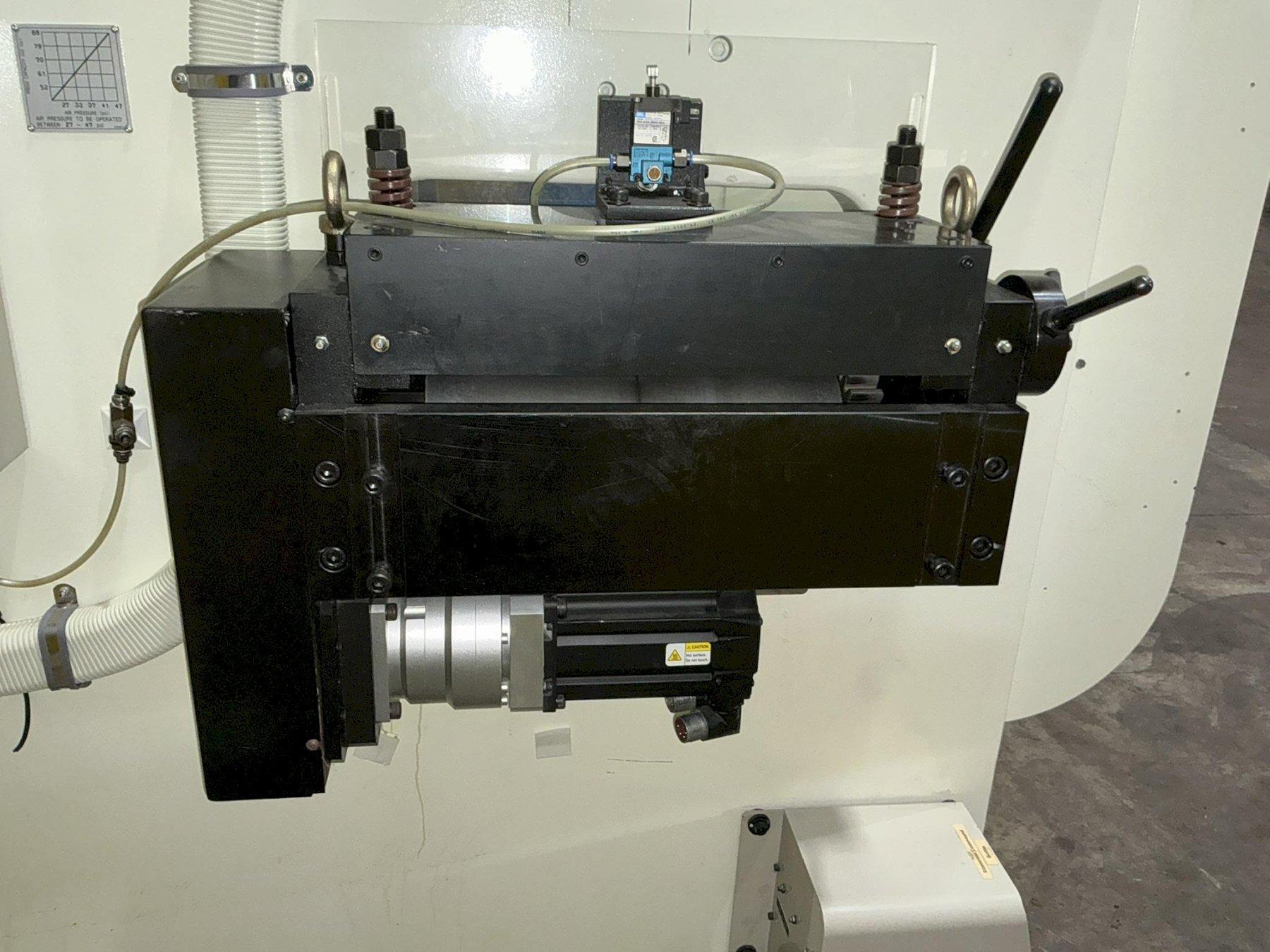

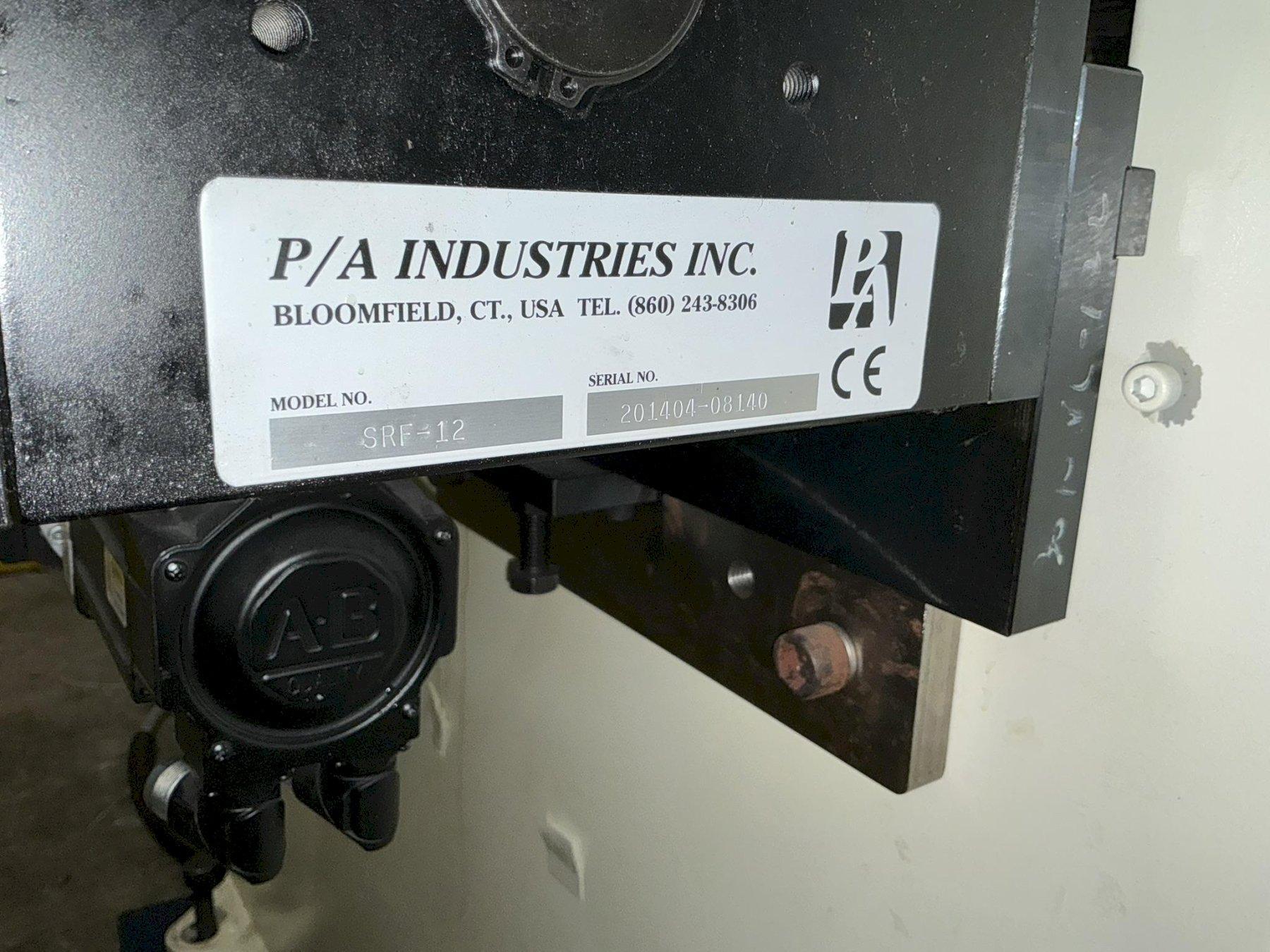

SERVO FEEDER

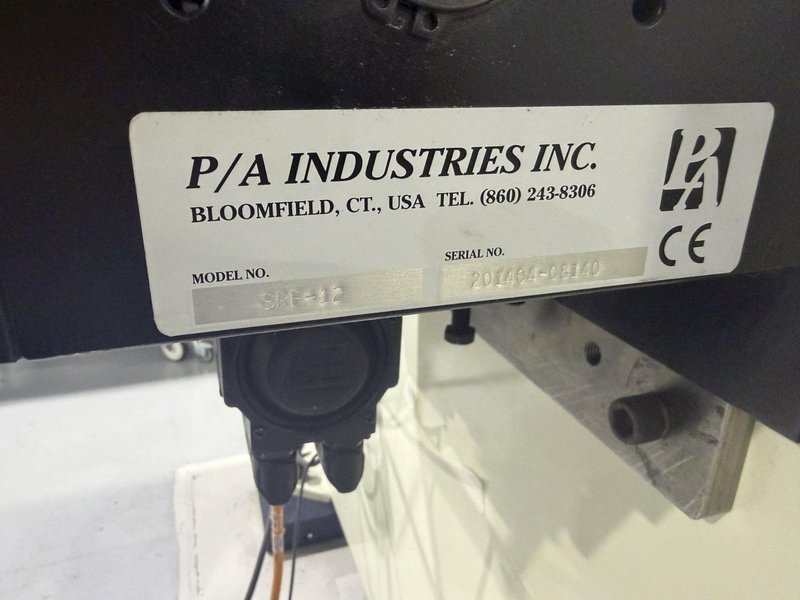

SERIAL 201404-08140
MODEL SRF-12 SERVO FEED
NEW 2015

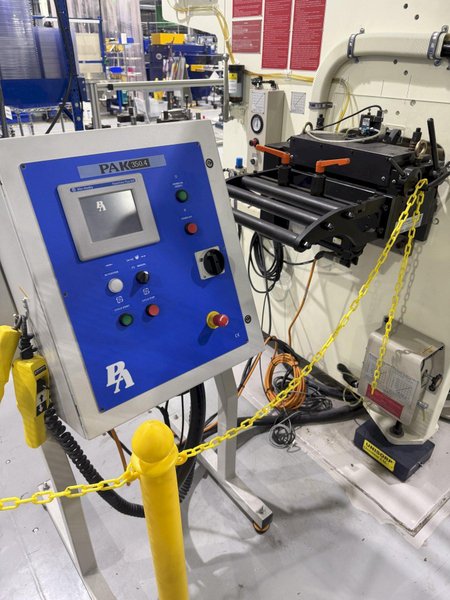

CONTROL PAK350.4
ROLL DIAMETER 3.55"
ROLL OPENING .138" MAXIMUM
THICKNESS .138" AT 11.8"
PULLING POWER 584 LBS PEAK / 201 LBS CONTINUOUS
