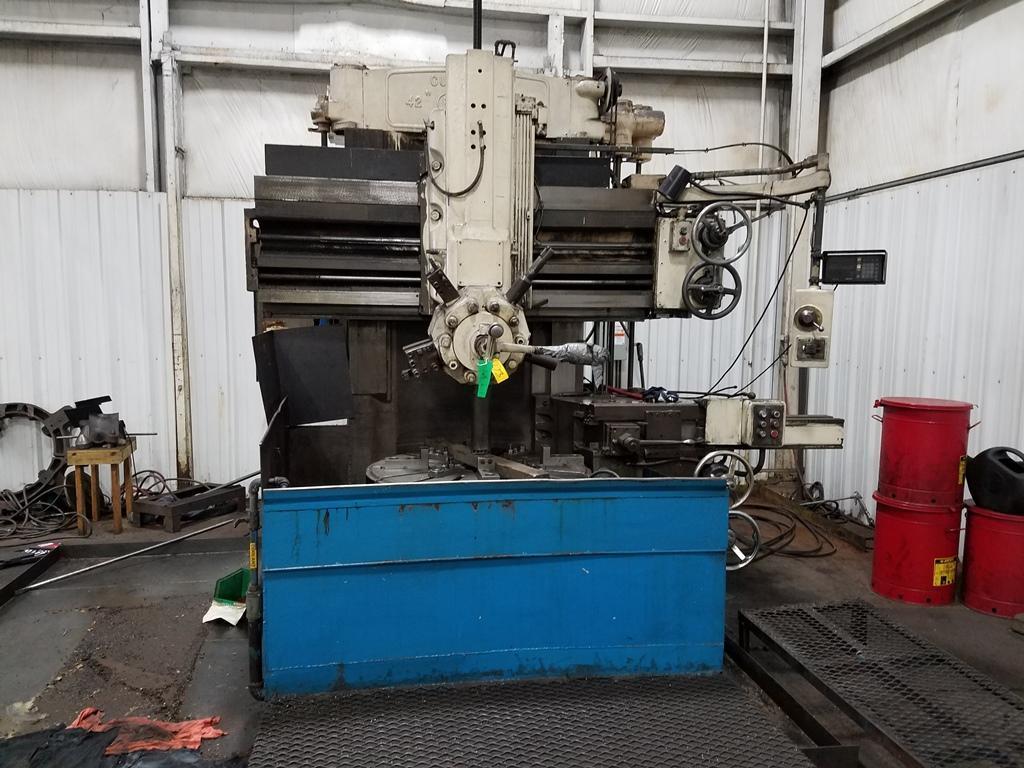

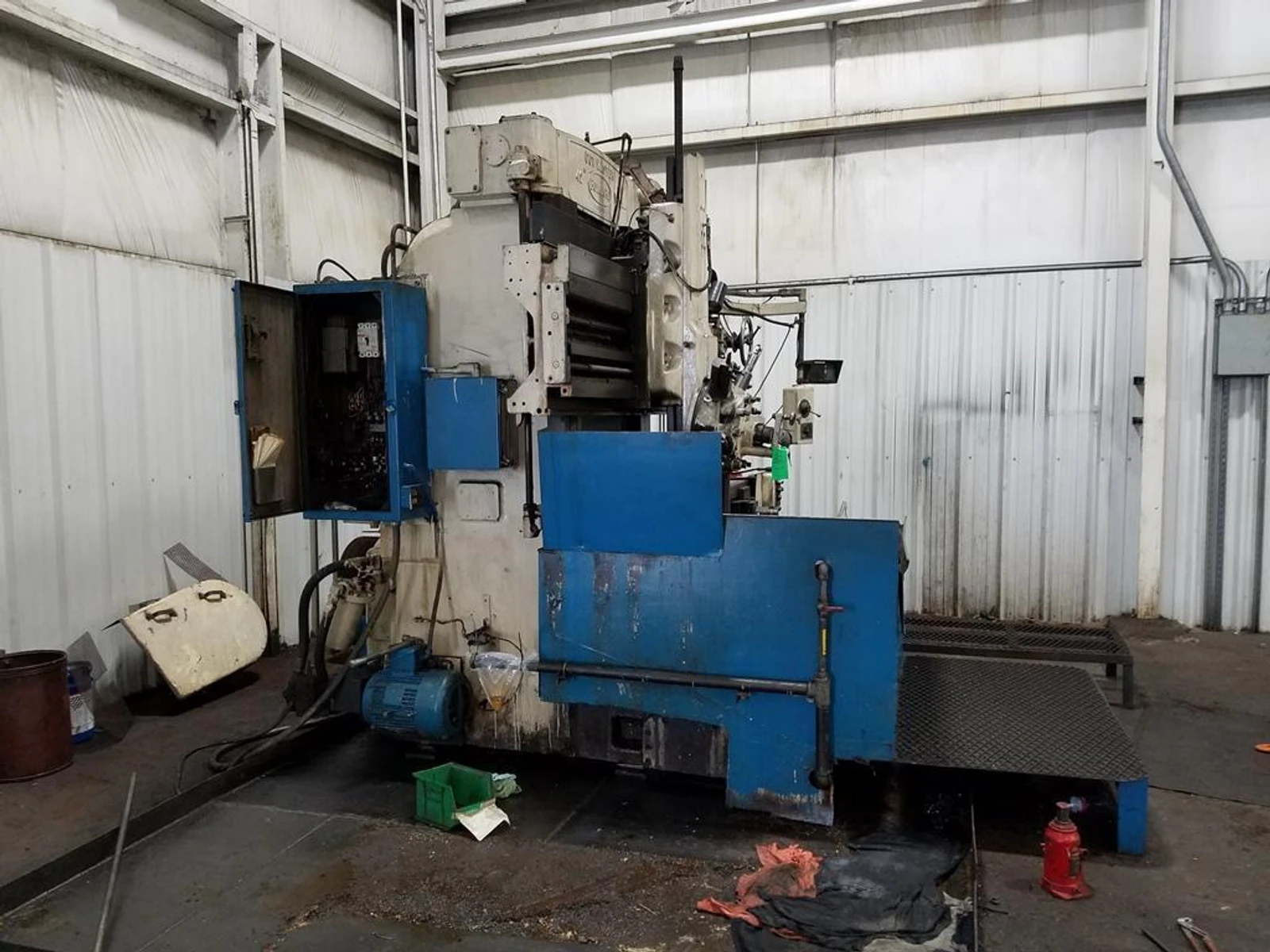

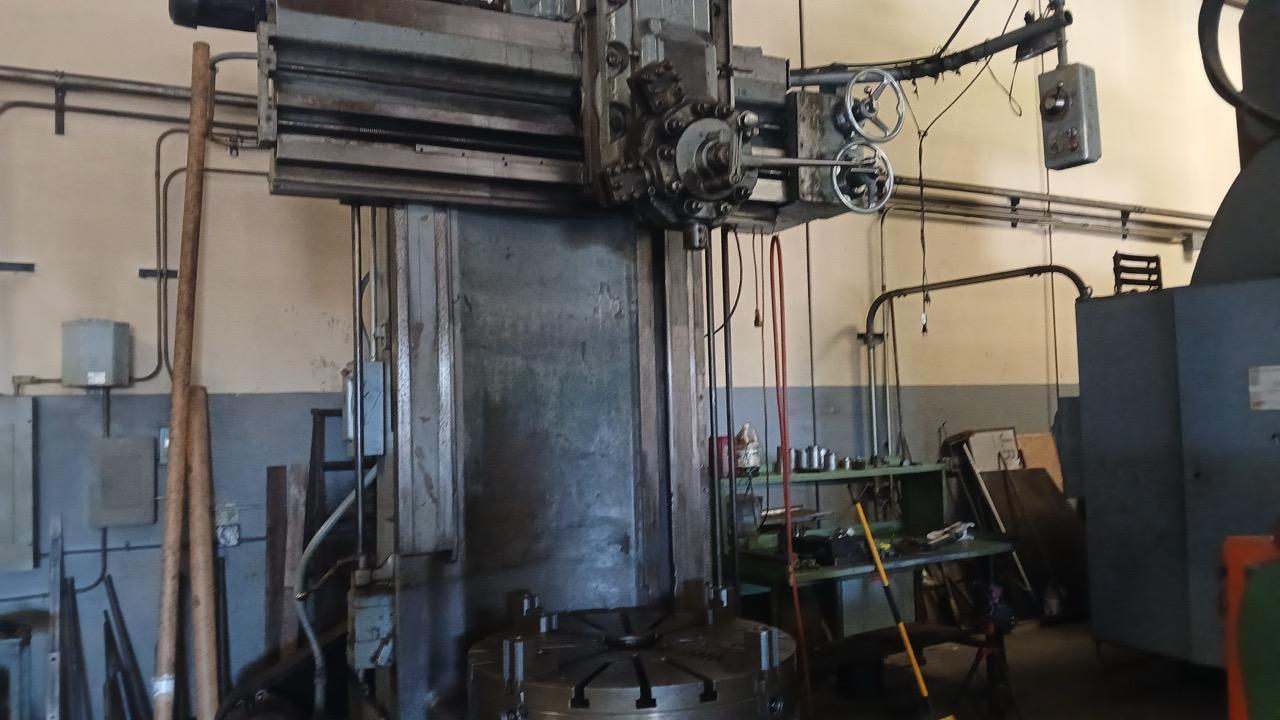

42" BULLARD CUTMASTER VERTICAL TURRET LATHE: STOCK #66852
Brand
Category
Model
42" CUTMASTER
Stock #
66852
Year
Not specified
Condition
Not specified
Location
Not specified
|
SERIAL .................................... 27260 MODEL ..................................... CUTMASTER DIAMETER OF 4 JAW CHUCK ................... 42" MAXIMUM SWING ............................. 54" SWING WITH SIDE HEAD IN WORKING POSITION .. 45" MAXIMUM MAXIMUM UNDER RAIL ........................ 37" MAXIMUM UNDER TURRET FACE ................. 48-1/4" TABLE SPEEDS .............................. (20) 4.11 TO 150 RPM FEEDS ..................................... (16) .004 TO .500IPR 5 POSITION TURRET HEAD ON RAIL ............ YES HORIZONTAL TRAVEL OF SIDE HEAD ON RAIL .... 54" VERTICAL TRAVEL OF TURRET HEAD ............ 30" TURRET HEAD SWIVEL (EITHER WAY) ........... 30 DEGREE HORIZONTAL TRAVEL OF SIDE HEAD ............ 21" VERTICAL TRAVEL OF SIDE HEAD .............. 37-1/4" VERTICAL TRAVEL OF RAIL ................... 25" PENDANT CONTROL ........................... YES RAPID TRAVERSE ALL DIRECTIONS ............. YES DIGITAL READ OUTS ......................... YES MOTOR ..................................... 40 HP |
