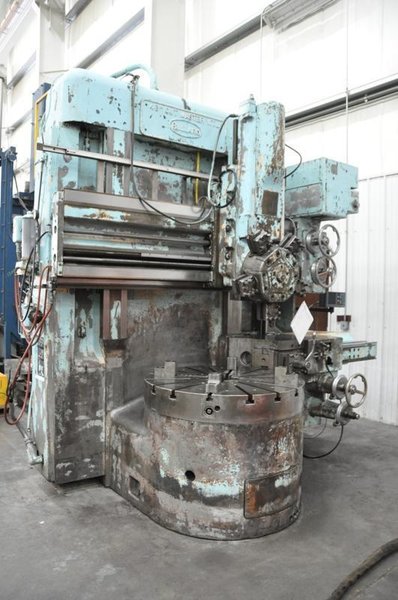

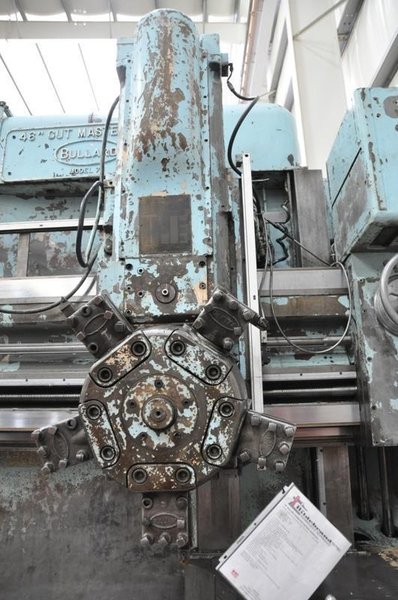

46" BULLARD 4 JAW MODEL CUTMASTER (VTL) VERTICAL TURRET LATHE: STOCK 13409
Brand
Category
Model
75
Stock #
13409
Year
Not specified
Condition
Used
Location
Ohio
|
SERIAL ........................................ 30002
MODEL ......................................... 75 DIMENSIONS (PENDANT REMOVED) .................. 132"L x 113"W x 134"H (), DIMENSIONS (PENDANT IN PLACE) ................. 132"L x 113"W x 156"H WEIGHT ........................................ 50,000 LBS OR 25 TON

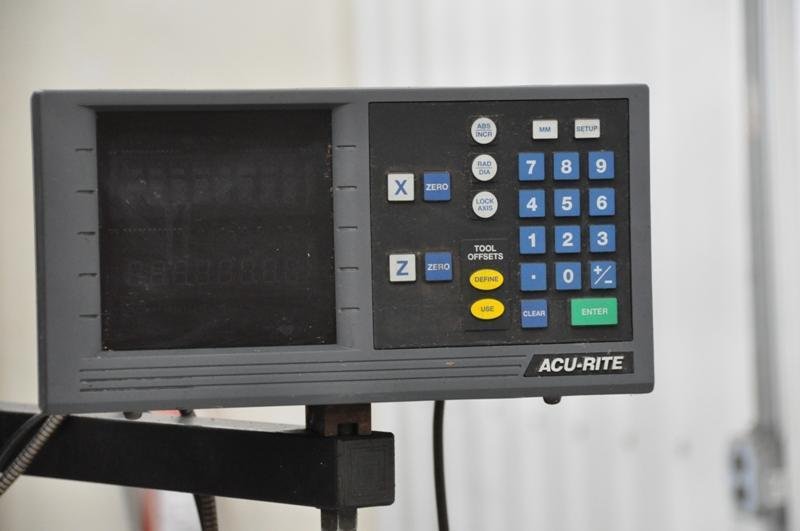

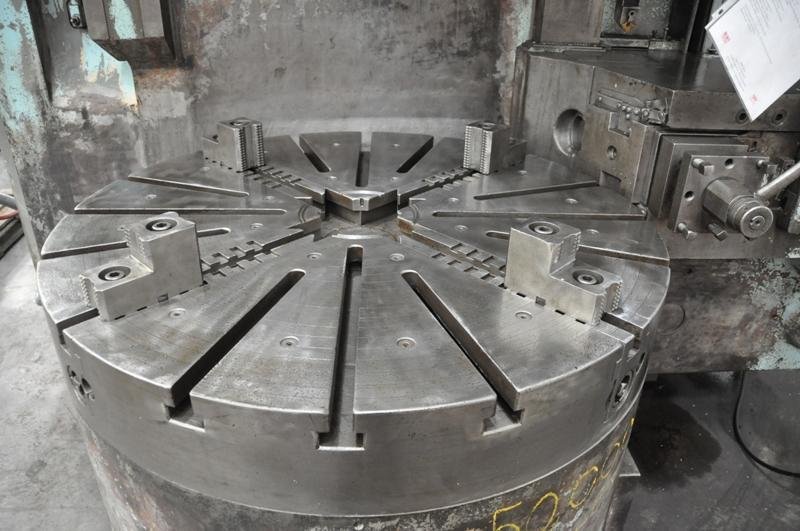

4-JAW CHUCK ................................... 46" INDEPENDENTLY ADJUSTABLE MAX SWING HEAD UP ............................. 50" MAX SWING HEAD DOWN ........................... 58" MAX UNDER RAIL ................................ 40" VERTICAL STROKE TURRET HEAD ................... 30" VERTICAL TRAVEL SIDE HEAD ..................... 38" (APPROX) HORIZONTAL TRAVEL SIDE HEAD ................... 26" MAX DISTANCE TABLE TOP TO BOTTOM SIDE HEAD .... 28" (APPROX) TABLE SPEEDS .................................. 6.8 TO 250 RPM (20 TOTAL SPEEDS) FEEDS ......................................... .0026 TO .5000 TPR MAIN MOTOR .................................... 40 HORSEPOWER PHASE ......................................... 3 PH POWER ......................................... 440 VOLT SQUARE BULLARD TURNING TOOL HOLDERS ........... 5 INCLUDED PENDANT CONTROL ............................... YES RAPID TRAVERSE ................................ YES ACV-RITE DRO .................................. YES |
